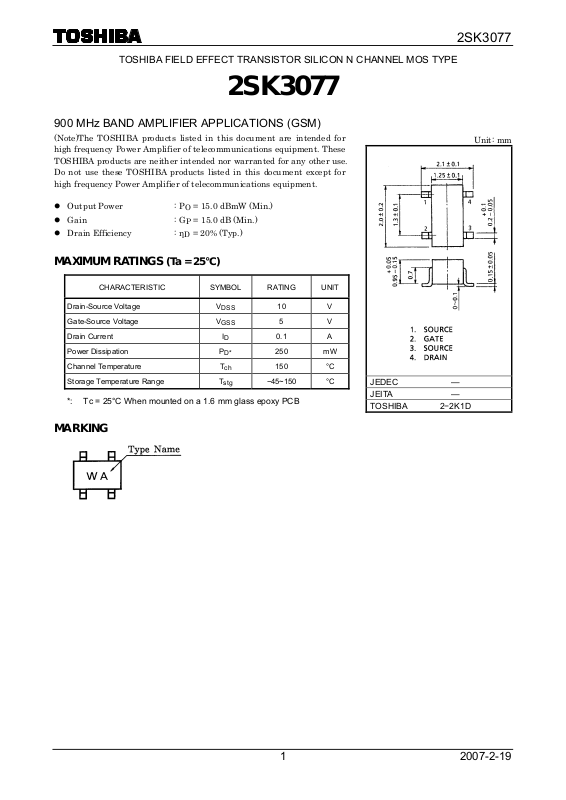

TOSHIBA FIELD EFFECT TRANSISTOR SILICON N CHANNEL MOS TYPE
2SK3077
900 MHz BAND AMPLIFIER APPLICATIONS (GSM)
(Note)The TOSHIBA products listed in this document are intended for
high frequency Power Amplifier of telecommunications equipment. These
TOSHIBA products are neither intended nor warranted for any other use.
Do not use these TOSHIBA products listed in this document except for
high frequency Power Amplifier of telecommunications equipment.
z Output Power : P
z Gain : G
z Drain Efficiency : η
MAXIMUM RATINGS
CHARACTERISTIC SYMBOL RATING UNIT
= 15.0 dBmW (Min.)
O
= 15.0 dB (Min.)
P
= 20% (Typ.)
D
(Ta = 25°C)
2SK3077
Unit: mm
Drain-Source Voltage V
Gate-Source Voltage V
Drain Current ID 0.1 A
Power Dissipation PD* 250 mW
Channel Temperature Tch 150 °C
Storage Temperature Range T
*: Tc = 25°C When mounted on a 1.6 mm glass epoxy PCB
10 V
DSS
5 V
GSS
−45~150 °C
stg
MARKING
JEDEC —
JEITA —
TOSHIBA 2−2K1D
1
2007-2-19
Page 2
2SK3077
ELECTRICAL CHARACTERISTICS
CHARACTERISTIC SYMBOL TEST CONDITION MIN TYP. MAX UNIT
Output Power PO 15.0 — — dBmW
Drain Efficiency ηD — 20.0 — %
Power Gain GP
Threshold Voltage Vth VDS = 4.8 V, ID = 0.5 mA 0.25 — 1.25 V
Drain Cut-off Current I
Gate-Source Leakage Current I
(Ta = 25°C)
VDS = 10 V, VGS = 0 V — — 10 µA
DSS
VGS = 5 V, VDS = 0 V — — 5 µA
GSS
= 4.8V
V
DS
Iidle = 43 mA (V
f = 915 MHz, P
= adjust)
GS
= 0 dBmW
i
15.0 — — dB
Note 1: These characteristic values are measured using measurement tools specified by Toshiba.
CAUTION
This transistor is the electrostatic sensitive device.
Please handle with caution.
RF OUTPUT POWER TEST FIXTURE
2
2007-2-19
Page 3
2SK3077
CAUTION
These are only typical curves and devices are not necessarily guaranteed at these curves.
3
2007-2-19
Page 4
2SK3077
