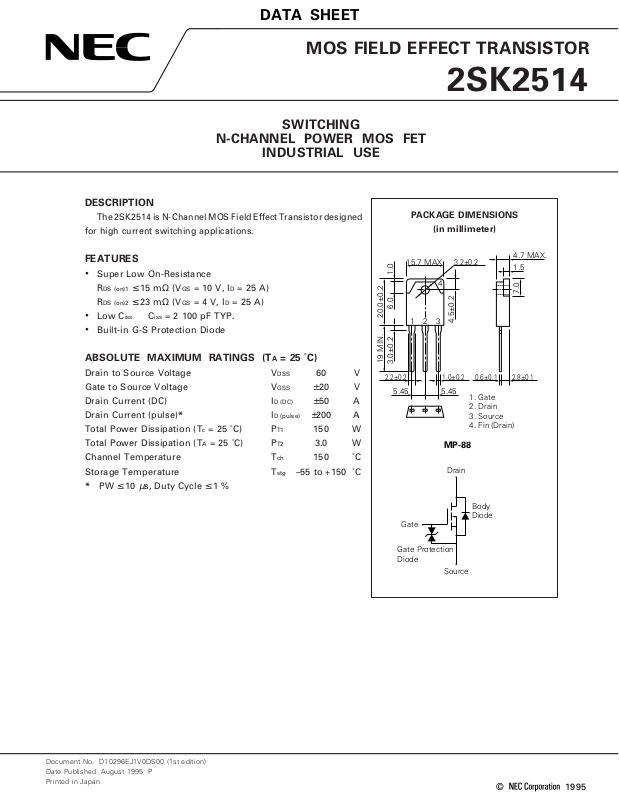

Page 1
DATA SHEET
MOS FIELD EFFECT TRANSISTOR
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION
The 2SK2514 is N-Channel MOS Field Effect Transistor designed
for high current switching applications.
2SK2514
PACKAGE DIMENSIONS
(in millimeter)
FEATURES
• Super Low On-Resistance
RDS (on)1 ≤ 15 mΩ (VGS = 10 V, ID = 25 A)
DS (on)2 ≤ 23 mΩ (VGS = 4 V, ID = 25 A)
R
• Low Ciss Ciss = 2 100 pF TYP.
• Built-in G-S Protection Diode
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
Drain to Source Voltage VDSS 60 V
Gate to Source Voltage V
Drain Current (DC) ID (DC) ±50 A
Drain Current (pulse)* ID (pulse) ±200 A
Total Power Dissipation (Tc = 25 ˚C) PT1 150 W
Total Power Dissipation (T
Channel Temperature Tch 150 ˚C
Storage Temperature Tstg –55 to +150 ˚C
µ
* PW ≤ 10
s, Duty Cycle ≤ 1 %
A = 25 ˚C) PT2 3.0 W
GSS ±20 V
15.7 MAX.
1.06.0
123
19 MIN. 20.0±0.2
3.0±0.2
5.45 5.45
Gate
4
1.0±0.2
MP-88
Drain
3.2±0.2
4.5±0.2
1. Gate
2. Drain
3. Source
4. Fin (Drain)
Body
Diode
4.7 MAX.
1.5
7.0
2.8±0.10.6±0.12.2±0.2
Document No. D10296EJ1V0DS00 (1st edition)
Date Published August 1995 P
Printed in Japan
Gate Protection
Diode
Source
©
1995
Page 2
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
2SK2514
CHARACTERISTIC SYMBOL MIN. TYP. MAX. TEST CONDITIONS
Drain to Source On-Resistance RDS (on)1 11 15 VGS = 10 V, ID = 25 A
Drain to Source On-Resistance RDS (on)2 16 23 VGS = 4 V, ID = 25 A
Gate to Source Cutoff Voltage VGS (off) 1.0 1.5 2.0 VDS = 10 V, ID = 1 mA
Forward Transfer Admittance | yfs | 15 VDS = 10 V, ID = 25 A
Drain Leakage Current IDSS 10 VDS = VDSS, VGS = 0
Gate to Source Leakage Current IGSS ±10 VGS = ±20 V, VDS = 0
Input Capacitance Ciss 2 100 VDS = 10 V
Output Capacitance Coss 1 100 VGS = 0
Reverse Transfer Capacitance Crss 500 f = 1 MHz
Turn-On Delay Time td (on) 45 ID = 25 A
Rise Time tr 390 VGS(on) = 10 V
Turn-Off Delay Time td (off) 320 VDD = 30 V
Fall Time tf 360 R
Total Gate Charge QG 92 ID = 50 A
Gate to Source Charge QGS 6.0 VDD = 48 V
Gate to Drain Charge QGD 37 VGS = 10 V
Body Diode Forward Voltage VF (S-D) 1.0 IF = 50 A, VGS = 0
Reverse Recovery Time trr 90 IF = 50 A, VGS = 0
Reverse Recovery Charge Qrr 175 di/dt = 100 A/µs
UNIT
mΩ
mΩ
V
S
µ
A
µ
A
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
ns
nC
= 10 Ω
G
Test Circuit 1 Switching Time
D.U.T.
RG
G = 10 Ω
R
VGS
0
t = 1 s
PG.
t
µ
R
VDD
L
VGS
Wave Form
ID
Wave Form
VGS
10 %
0
ID
90 %
10 %
0
td (on) tr td (off) tf
ton toff
90 %
GS (on)
V
90 %
ID
Test Circuit 2 Gate Charge
PG.
10 %
D.U.T.
I
G = 2 mA
50
Ω
RL
VDD
Duty Cycle ≤ 1 %
The application circuits and their parameters are for references only and are not intended for use in actual design-in's.
2
Page 3
TYPICAL CHARACTERISTICS (TA = 25 ˚C)
2SK2514
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
100
80
60
40
20
dT - Percentage of Rated Power - %
0
20 40 60 80 100 120 140 160
T
C - Case Temperature - ˚C
FORWARD BIAS SAFE OPERATING AREA
1 000
ID(pulse)
100
R
DS(on)
Limited
ID(DC)
Dissipation Limited
10
ID - Drain Current - A
PW = 100 s
1 ms
10 ms
DC
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
175
150
125
100
75
50
25
PT - Total Power Dissipation - W
0
20
40 60 80 100 120 140 160
T
C - Case Temperature - ˚C
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
Pulsed
200
µ
100
VGS = 20 V
VGS = 10 V
VGS = 4 V
ID - Drain Current - A
TC = 25 ˚C
Single Pulse
1
0.1
1 10 100
V
DS - Drain to Source Voltage - V
FORWARD TRANSFER CHARACTERISTICS
1 000
100
TA = 125 ˚C
75 ˚C
25 ˚C
–25 ˚C
10
ID - Drain Current - A
1.0
0
246
GS - Gate to Source Voltage - V
V
Pulsed
VDS = 10 V
0
1.0
V
DS - Drain to Source Voltage - V
2.0
3.0
4.0
8
3
Page 4
1 000
2SK2514
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
1 000
100
100
10
1
0.1
0.01
rth(t) - Transient Thermal Resistance - ˚C/W
0.001
µ
100
1 m 10 m 100 m 1 10 100 1 000 10
µ
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
VDS = 10 V
Pulsed
TA = –25 ˚C
25 ˚C
75 ˚C
125 ˚C
PW - Pulse Width - s
Rth(ch-a) = 41.7 ˚C/W
Rth(ch-c) = 0.83 ˚C/W
Single Pulse
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
Pulsed
I
D = 25 A
60
40
10
1
| yfs | - Forward Transfer Admittance - S
1
10
D - Drain Current - A
I
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
80
60
40
20
0
RDS(on) - Drain to Source On-State Resistance - mΩ
1.0
ID - Drain Current - A
10 100
100 1 000
Pulsed
VGS = 4 V
VGS = 10 V
20
0
RDS(on) - Drain to Source On-State Resistance - mΩ
10
GS - Gate to Source Voltage - V
V
GATE TO SOURCE CUTOFF VOLTAGE vs.
CHANNEL TEMPERATURE
2
1
0
VGS(off) - Gate to Source Cutoff Voltage - V
–50
0 50 100 150
T
ch - Channel Temperature - ˚C
20 30
VDS = 10 V
I
D = 1 mA
4
Page 5
2SK2514
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
40
30
20
10
0
–50
RDS(on) - Drain to Source On-State Resistance - mΩ
0
ch - Channel Temperature - ˚C
T
50
100 150
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
100 000
10 000
VGS =4 V
VGS = 10 V
D = 25 A
I
VGS = 0
f = 1 MHz
Ciss
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
100
10
VGS = 0
1
0.1
ISD - Diode Forward Current - A
0
0.5
SD - Source to Drain Voltage - V
V
SWITCHING CHARACTERISTICS
1 000
100
td(off)
tf
1.0
Pulsed
1.5
tr
td(on)
1 000
Ciss, Coss, Crss - Capacitance - pF
100
0.1
1 10 100
V
DS - Drain to Source Voltage - V
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
1 000
100
10
trr - Reverse Recovery time - ns
1
0.1
1.0 10 100
I
D - Drain Current - A
Coss
Crss
di/dt = 100 A/ s
GS = 0
V
µ
10
td(on), tr, td(off), tf - Switching Time - ns
1.0
0.1
1.0 10 100
I
D - Drain Current - A
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
80
60
VDD =12 V
30 V
40
VDS
VDS
48 V
20
VDS - Drain to Source Voltage - V
0
40 80 120
Qg - Gate Charge - nC
V
DD = 30 V
VGS = 10 V
RG = 10 Ω
ID = 50 A
VGS
160
16
14
12
10
8
6
4
2
VGS - Gate to Source Voltage - V
0
5
Page 6
2SK2514
REFERENCE
Document Name Document No.
NEC semiconductor device reliability/quality control system. TEI-1202
Quality grade on NEC semiconductor devices. IEI-1209
Semiconductor device mounting technology manual. IEI-1207
Semiconductor device package manual. IEI-1213
Guide to quality assurance for semiconductor devices. MEI-1202
Semiconductor selection guide. MF-1134
Power MOS FET features and application switching power supply. TEA-1034
Application circuits using Power MOS FET. TEA-1035
Safe operating area of Power MOS FET. TEA-1037
The diode connected between the gate and source of the transistor serves as a protector against ESD. When
this device is actually used, an additional protection circuit is externally required if a voltage exceeding the
rated voltage may be applied to this device.
