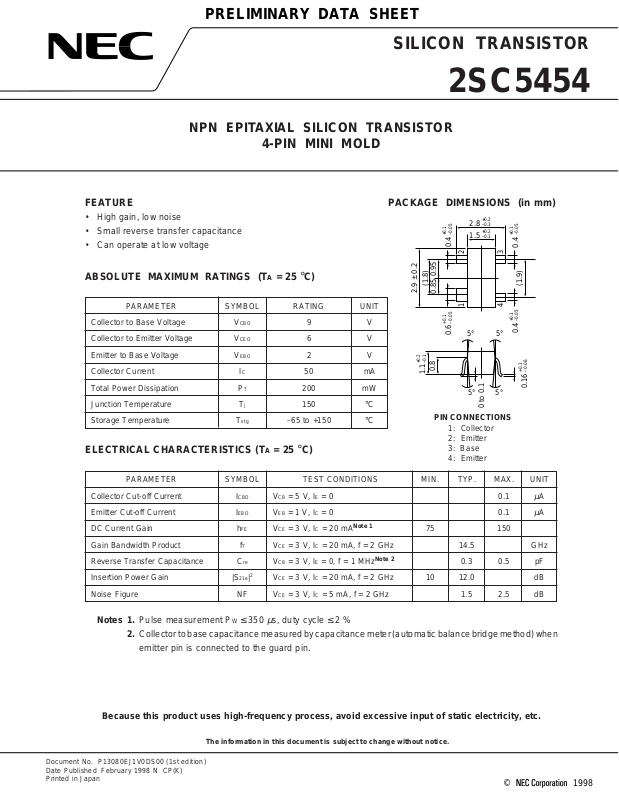

PRELIMINARY DATA SHEET

SILICON TRANSISTOR

NPN EPITAXIAL SILICON TRANSISTOR

4-PIN MINI MOLD

2SC5454

FEATURE

• High gain, low noise

• Small reverse transfer capacitance

• Can operate at low voltage

ABSOLUTE MAXIMUM RATINGS (TA = 25 °C)

PARAMETER SYMBOL RATING UNIT
Collector to Base Voltage VCBO 9V
Collector to Emitter Voltage VCEO 6V
Emitter to Base Voltage VEBO 2V
Collector Current IC 50 mA
Total Power Dissipation PT 200 mW
Junction Temperature Tj 150 °C
Storage Temperature Tstg –65 to +150 °C

PACKAGE DIMENSIONS (in mm)

+0.2

2.8

–0.3

+0.1

–0.05

1.5

0.4
2

0.950.85

(1.8)

2.9 ± 0.2
1

+0.1

–0.05

0.6

5° 5°

+0.2

–0.1

0.8

1.1

5° 5°

PIN CONNECTIONS

1: Collector

+0.2
–0.1

to 0.1

+0.1

–0.05

0.4

3

(1.9)

4

+0.1

–0.05

0.4

+0.1

–0.06

0.16

2: Emitter

ELECTRICAL CHARACTERISTICS (TA = 25 °C)

3: Base
4: Emitter

PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB = 5 V, IE = 0 0.1
Emitter Cut-off Current IEBO VEB = 1 V, IC = 0 0.1
DC Current Gain hFE VCE = 3 V, IC = 20 mA

Note 1

75 150
Gain Bandwidth Product fT VCE = 3 V, IC = 20 mA, f = 2 GHz 14.5 GHz
Reverse Transfer Capacitance Cre VCB = 3 V, IE = 0, f = 1 MHz
Insertion Power Gain |S21e|

2

VCE = 3 V, IC = 20 mA, f = 2 GHz 10 12.0 dB

Note 2

0.3 0.5 pF

Noise Figure NF VCE = 3 V, IC = 5 mA, f = 2 GHz 1.5 2.5 dB

µ

A

µ

A

Notes 1. Pulse measurement PW ≤ 350 µs, duty cycle ≤ 2 %

2. Collector to base capacitance measured by capacitance meter (automatic balance bridge method) when

emitter pin is connected to the guard pin.

Because this product uses high-frequency process, avoid excessive input of static electricity, etc.

Document No. P13080EJ1V0DS00 (1st edition)
Date Published February 1998 N CP(K)
Printed in Japan

The information in this document is subject to change without notice.

©

1998

hFE CLASSIFICATION

RANK FB

Marking R54

hFE 75 to 150

TYPICAL CHARACTERISTICS (TA = 25 °C)

2SC5454

TOTAL POWER DISSIPATION
vs. AMBIENT TEMPERATURE

Free Air

200

100

- Total Power Dissipation - mW

T

P

0 50 100 150

A

- Ambient Temperature - °C

T

COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE

30

25

20

15

10

- Collector Current - mA

C

I

5

IB = 20 A

01

23456

VCE - Collector to Emitter Voltage - V

200 A

µ

µ

180 A

µ

160 A
140 A

µ

120 A

µ

100 A

µ

80 A

µ

60 A

µ

40 A

µ

µ

COLLECTOR CURRENT vs. DC BASE VOLTAGE

50

V

CE

= 3 V

40

30

20

- Collector Current - mA

10

C

I

0

0.5 1.0

VBE - DC Base Voltage - V

DC CURRENT GAIN vs. COLLECTOR CURRENT

200

VCE = 3 V

FE

100

DC Current Gain - h

0

0.1

0.2 0.5 1 2 5 10 20 50 100

C

- Collector Current - mA

I

2

Preliminary Data Sheet

2SC5454

GAIN BANDWIDTH PRODUCT
vs. COLLECTOR CURRENT

16

VCE = 3 V
f = 2 GH

14

Z

12

10

8

6
4

- Gain Bandwidth Product - GHz

T

f

2

1

I

C

- Collector Current - mA

10 100

GAIN WITH MINIMUM NF/NOISE FIGURE
vs. COLLECTOR CURRENT

14

VCE = 3 V
f = 2 GH

12

Z

10

8

6

INSERTION POWER GAIN
vs. COLLECTOR CURRENT

14

VCE = 3 V
f = 2 GH

Z

12

10

8

- Insertion Power Gain - dB

2

|

6

21e

|S

4

1

C

- Collector Current - mA

I

10 20 100

REVERSE TRANSFER CAPACITANCE

0.8

G

a

vs. COLLECTOR TO BASE VOLTAGE

f = 1 MH

Z

0.6

0.4

4

- Gain with Minimum NF - dB

a

NF - Noise Figure - dB

G

2
0

1

IC - Collector Current - mA

10

NF

100

0.2

- Reverse Transfer Capacitance - pF

re

C

0

1

10 100

VCB - Collector to Base Voltage - V

Preliminary Data Sheet

3

2SC5454

MAXIMUM AVAILABLE GAIN/
MAXIMUM STABLE GAIN/INSERTION
POWER GAIN vs. FREQUENCY

30

MSG

20

- Insertion Power Gain - dB

2

|

10

21e

MAG - Maximum Available Gain - dB

MSG - Maximum Stable Gain - dB

|S

0

0.1
f - Frequency - GHz

OUTPUT POWER vs. INPUT POWER

20

16

12

MAG

|S

1

21e

OUTPUT POWER vs. INPUT POWER

VCE = 3 V
I

C

= 20 mA

20

16

12

8
4

- Output Power - dB

0

OUT

2

|

P

–4

VCE = 3 V
I

Q

= 5 mA

f = 1 GHz

–8

10

–20 –16 –10 –4

1004

PIN - Input Power - dB

8
4

- Output Power - dB

0

OUT

P

–4
–8

–20 –16 –10 –4

PIN - Input Power - dB

VCE = 3 V
I

Q

= 5 mA

f = 2 GHz

1004

4

Preliminary Data Sheet

2SC5454

2SC5454 S PARAMETER

VCE = 3 V, IC = 5 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.829 –19.2 14.261 164.7 0.015 78.1 0.972 –11.1

200.00 0.783 –37.0 13.252 150.7 0.029 69.1 0.913 –21.6

300.00 0.727 –54.1 12.245 139.2 0.040 59.1 0.843 –30.2

400.00 0.666 –68.7 10.804 129.3 0.048 52.8 0.764 –37.5

500.00 0.606 –82.9 9.964 118.9 0.053 49.2 0.699 –42.6

600.00 0.556 –95.8 9.028 111.1 0.057 44.9 0.645 –47.3

700.00 0.517 –106.6 8.120 104.1 0.061 42.4 0.591 –51.3

800.00 0.486 –117.5 7.393 98.0 0.063 40.0 0.557 –54.4

900.00 0.462 –126.8 6.709 92.5 0.065 39.3 0.518 –57.9

1000.00 0.446 –135.6 6.178 87.4 0.067 38.3 0.491 –60.3

1100.00 0.433 –143.5 5.702 82.9 0.069 38.2 0.470 –63.3

1200.00 0.426 –151.0 5.280 78.5 0.071 37.7 0.450 –65.9

1300.00 0.422 –157.9 4.919 74.6 0.072 38.3 0.433 –69.2

1400.00 0.420 –164.1 4.610 70.6 0.073 37.5 0.420 –71.6

1500.00 0.422 –170.2 4.331 67.0 0.075 37.7 0.408 –75.3

1600.00 0.424 –175.5 4.070 63.3 0.077 39.3 0.400 –78.3

1700.00 0.429 179.4 3.856 59.7 0.078 39.0 0.393 –81.8

1800.00 0.434 174.8 3.661 56.5 0.082 40.2 0.389 –84.7

1900.00 0.441 170.2 3.481 53.1 0.083 40.5 0.378 –89.2

2000.00 0.448 166.4 3.306 50.0 0.086 41.9 0.378 –91.4

2100.00 0.456 162.2 3.150 46.6 0.088 41.7 0.372 –96.5

2200.00 0.465 158.7 3.013 43.5 0.090 42.7 0.378 –98.3

2300.00 0.470 155.1 2.857 40.2 0.093 43.1 0.370 –104.0

2400.00 0.482 151.7 2.758 37.3 0.097 44.1 0.380 –105.1

2500.00 0.484 148.8 2.637 34.8 0.100 45.1 0.378 –110.7

2600.00 0.495 145.8 2.526 31.7 0.105 44.9 0.389 –112.3

2700.00 0.503 143.4 2.456 28.6 0.109 45.7 0.394 –117.8

2800.00 0.512 140.4 2.347 25.9 0.113 45.7 0.403 –120.2

2900.00 0.522 138.0 2.261 22.7 0.119 45.6 0.413 –125.1

3000.00 0.528 135.3 2.171 20.3 0.123 45.0 0.418 –128.1

VCE = 3 V, IC = 10 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.706 –27.6 23.264 159.2 0.014 75.1 0.940 –15.8

200.00 0.636 –52.0 20.474 141.9 0.026 64.8 0.837 –29.1

300.00 0.561 –73.4 17.706 128.5 0.033 57.4 0.724 –38.7

400.00 0.503 –90.1 14.932 118.5 0.039 52.2 0.628 –45.8

500.00 0.457 –105.7 12.978 109.0 0.042 50.5 0.557 –49.8

600.00 0.423 –119.0 11.348 102.1 0.046 49.0 0.503 –53.5

700.00 0.401 –130.0 9.988 96.1 0.049 48.7 0.457 –56.6

800.00 0.386 –140.1 8.935 90.8 0.052 48.1 0.424 –59.5

900.00 0.377 –148.8 8.023 86.3 0.055 48.0 0.394 –61.9

1000.00 0.373 –156.7 7.305 82.0 0.057 48.8 0.374 –64.3

1100.00 0.370 –163.6 6.687 78.2 0.061 48.6 0.355 –67.5

1200.00 0.371 –170.1 6.157 74.4 0.065 48.9 0.342 –69.5

1300.00 0.375 –175.8 5.720 70.9 0.068 49.7 0.326 –73.0

1400.00 0.378 178.9 5.332 67.6 0.071 50.0 0.320 –75.5

1500.00 0.384 174.1 4.997 64.4 0.074 50.5 0.309 –79.4

1600.00 0.389 169.7 4.693 61.1 0.078 50.2 0.307 –82.4

1700.00 0.397 165.8 4.450 58.0 0.081 50.4 0.298 –86.4

1800.00 0.403 162.1 4.192 55.0 0.084 50.5 0.296 –89.1

1900.00 0.413 158.6 3.978 51.8 0.089 49.8 0.289 –94.6

2000.00 0.420 155.7 3.791 49.0 0.092 49.7 0.293 –96.8

2100.00 0.431 152.1 3.590 46.1 0.096 49.8 0.286 –102.4

2200.00 0.441 149.5 3.450 43.2 0.100 49.5 0.292 –104.1

2300.00 0.447 146.4 3.276 40.3 0.103 49.3 0.289 –111.0

2400.00 0.461 143.8 3.139 37.8 0.107 48.9 0.296 –111.1

2500.00 0.462 141.3 3.011 35.5 0.111 49.2 0.293 –117.1

2600.00 0.475 138.7 2.882 32.7 0.117 48.7 0.307 –118.2

2700.00 0.484 136.9 2.803 29.9 0.122 48.2 0.315 –124.0

2800.00 0.494 134.2 2.689 27.4 0.127 47.3 0.323 –126.8

2900.00 0.504 132.3 2.588 24.5 0.132 46.8 0.334 –131.5

3000.00 0.511 129.7 2.493 22.3 0.136 46.1 0.341 –134.8

Preliminary Data Sheet

5

2SC5454 S PARAMETER

VCE = 3 V, IC = 20 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.550 –39.8 33.319 152.6 0.012 73.8 0.886 –21.4

200.00 0.478 –71.8 27.020 132.5 0.021 63.3 0.734 –36.5

300.00 0.420 –96.3 21.715 118.9 0.027 56.8 0.598 –45.6

400.00 0.381 –115.0 17.550 109.5 0.032 55.7 0.502 –51.2

500.00 0.363 –129.9 14.737 101.5 0.035 56.4 0.439 –54.1

600.00 0.351 –141.9 12.630 95.6 0.039 55.7 0.395 –57.3

700.00 0.344 –151.7 10.983 90.4 0.043 56.8 0.357 –59.7

800.00 0.344 –160.1 9.738 86.1 0.047 57.1 0.335 –61.7

900.00 0.343 –167.5 8.689 82.0 0.051 57.2 0.310 –64.5

1000.00 0.347 –173.7 7.876 78.3 0.055 57.8 0.294 –66.3

1100.00 0.350 –179.2 7.199 74.9 0.059 57.7 0.281 –69.5

1200.00 0.355 175.4 6.619 71.5 0.063 57.6 0.268 –72.1

1300.00 0.362 171.0 6.132 68.4 0.068 57.7 0.261 –75.9

1400.00 0.367 166.7 5.704 65.3 0.072 57.4 0.257 –78.1

1500.00 0.375 163.0 5.338 62.4 0.076 57.1 0.246 –82.3

1600.00 0.382 159.4 5.011 59.5 0.080 56.6 0.246 –86.2

1700.00 0.391 156.4 4.728 56.6 0.085 56.4 0.239 –90.0

1800.00 0.398 153.4 4.476 54.0 0.089 56.0 0.240 –93.9

1900.00 0.408 150.5 4.226 50.8 0.093 55.7 0.237 –99.8

2000.00 0.416 148.3 4.028 48.4 0.098 54.7 0.238 –102.1

2100.00 0.427 145.1 3.829 45.6 0.102 54.1 0.235 –108.6

2200.00 0.437 143.2 3.661 42.9 0.107 53.2 0.241 –109.3

2300.00 0.443 140.4 3.489 40.3 0.110 52.7 0.239 –116.7

2400.00 0.457 138.3 3.330 37.8 0.115 51.6 0.247 –117.1

2500.00 0.459 136.1 3.206 35.6 0.119 51.7 0.250 –124.4

2600.00 0.473 133.8 3.603 33.0 0.125 50.8 0.259 –124.2

2700.00 0.480 132.5 2.967 30.2 0.130 50.9 0.271 –131.1

2800.00 0.492 129.8 2.857 28.0 0.135 48.9 0.277 –133.2

2900.00 0.501 128.3 2.747 25.2 0.140 47.7 0.292 –138.6

3000.00 0.509 125.7 2.655 23.3 0.144 46.8 0.295 –141.0

2SC5454

VCE = 3 V, IC = 30 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.459 –49.1 38.164 148.7 0.011 70.7 0.849 –24.6

200.00 0.404 –85.8 29.422 127.7 0.019 62.8 0.674 –40.3

300.00 0.368 –111.3 22.866 114.5 0.024 58.5 0.537 –48.1

400.00 0.347 –129.3 18.143 105.5 0.029 57.5 0.445 –53.4

500.00 0.341 –142.9 15.068 98.2 0.033 59.4 0.386 –55.5

600.00 0.337 –153.4 12.826 92.7 0.037 60.8 0.350 –57.7

700.00 0.337 –162.3 11.115 87.9 0.040 60.4 0.317 –60.2

800.00 0.340 –169.5 9.819 83.9 0.046 61.1 0.296 –62.3

900.00 0.343 –176.0 8.752 80.1 0.049 61.1 0.278 –64.4

1000.00 0.349 178.6 7.932 76.6 0.054 61.0 0.264 –66.5

1100.00 0.354 173.9 7.224 73.3 0.058 61.2 0.253 –70.0

1200.00 0.360 169.2 6.638 70.2 0.063 61.4 0.243 –72.3

1300.00 0.368 165.4 6.149 67.2 0.068 61.1 0.234 –76.6

1400.00 0.374 161.6 5.716 64.2 0.073 61.1 0.231 –79.1

1500.00 0.382 158.3 5.351 61.4 0.077 59.7 0.226 –83.8

1600.00 0.389 155.1 5.015 58.5 0.081 59.8 0.223 –87.6

1700.00 0.399 152.5 4.742 55.6 0.085 58.8 0.221 –92.5

1800.00 0.405 149.7 4.476 52.9 0.090 57.8 0.223 –95.9

1900.00 0.415 147.1 4.229 50.2 0.095 57.0 0.217 –101.9

2000.00 0.423 145.1 4.021 47.5 0.100 56.1 0.220 –103.7

2100.00 0.434 142.2 3.814 44.8 0.104 55.3 0.218 –111.0

2200.00 0.444 140.5 3.659 42.2 0.109 54.6 0.225 –111.8

2300.00 0.450 137.8 3.473 39.6 0.114 53.5 0.225 –120.1

2400.00 0.464 135.8 3.323 37.2 0.117 53.2 0.231 –119.7

2500.00 0.465 133.7 3.194 34.9 0.122 52.7 0.236 –127.5

2600.00 0.479 131.8 3.056 32.5 0.127 52.0 0.247 –127.2

2700.00 0.487 130.4 2.981 30.0 0.133 50.5 0.258 –134.1

2800.00 0.498 127.9 2.852 27.8 0.138 49.6 0.267 –136.0

2900.00 0.508 126.4 2.740 25.0 0.143 47.8 0.279 –141.3

3000.00 0.515 124.0 2.652 23.0 0.147 47.4 0.285 –144.2

6

Preliminary Data Sheet

2SC5454

2SC5454 S PARAMETER

VCE = 5 V, IC = 5 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.836 –18.3 14.254 165.1 0.014 78.2 0.970 –10.4

200.00 0.792 –35.6 13.300 151.4 0.027 69.3 0.920 –20.6

300.00 0.736 –52.0 12.328 140.2 0.038 60.4 0.849 –28.9

400.00 0.675 –66.1 10.931 130.3 0.046 54.1 0.776 –35.8

500.00 0.612 –80.1 10.126 119.9 0.051 49.6 0.715 –40.9

600.00 0.561 –92.6 9.208 112.1 0.055 45.8 0.659 –45.5

700.00 0.521 –103.4 8.276 105.2 0.059 43.1 0.608 –49.2

800.00 0.487 –113.9 7.567 99.0 0.061 41.3 0.572 –52.4

900.00 0.461 –123.3 6.874 93.5 0.063 39.9 0.536 –55.6

1000.00 0.442 –132.2 6.347 88.3 0.064 39.2 0.509 –58.1

1100.00 0.429 –140.1 5.862 83.8 0.066 38.8 0.486 –61.0

1200.00 0.419 –147.9 5.432 79.4 0.068 38.5 0.468 –63.8

1300.00 0.414 –154.8 5.068 75.4 0.069 38.8 0.450 –66.7

1400.00 0.410 –161.3 4.754 71.4 0.071 39.0 0.437 –69.4

1500.00 0.411 –167.3 4.461 67.8 0.073 39.6 0.425 –72.7

1600.00 0.413 –172.9 4.195 64.1 0.074 40.2 0.418 –75.6

1700.00 0.417 –178.1 3.983 60.7 0.076 40.6 0.407 –79.1

1800.00 0.421 177.1 3.779 57.3 0.078 41.3 0.405 –81.9

1900.00 0.428 172.3 3.582 53.7 0.080 41.6 0.396 –86.2

2000.00 0.434 168.4 3.411 50.7 0.083 43.0 0.395 –88.6

2100.00 0.442 164.0 3.253 47.0 0.086 43.6 0.386 –93.7

2200.00 0.452 160.5 3.114 44.2 0.089 43.9 0.392 –95.3

2300.00 0.457 156.7 2.969 40.9 0.091 44.6 0.383 –100.7

2400.00 0.468 153.2 2.846 37.9 0.094 45.5 0.393 –102.0

2500.00 0.470 150.3 2.733 35.5 0.097 46.2 0.387 –107.2

2600.00 0.481 147.2 2.621 32.0 0.102 46.8 0.401 –108.9

2700.00 0.490 144.8 2.540 29.2 0.107 47.2 0.408 –114.1

2800.00 0.500 141.7 2.432 26.5 0.112 47.1 0.415 –117.1

2900.00 0.509 139.3 2.340 23.2 0.116 46.7 0.426 –121.8

3000.00 0.517 136.4 2.250 21.0 0.121 46.5 0.428 –125.0

VCE = 5 V, IC = 10 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.722 –26.0 23.176 159.8 0.013 77.0 0.943 –14.8

200.00 0.653 –49.0 20.533 142.9 0.024 65.3 0.844 –27.7

300.00 0.575 –69.4 17.914 129.9 0.032 57.6 0.738 –36.6

400.00 0.512 –86.2 15.194 119.8 0.037 52.9 0.647 –43.5

500.00 0.462 –101.1 13.254 110.1 0.041 51.2 0.575 –47.5

600.00 0.423 –113.9 11.637 103.2 0.045 49.3 0.522 –51.5

700.00 0.398 –125.2 10.262 97.1 0.047 48.9 0.475 –54.3

800.00 0.379 –135.3 9.193 92.0 0.050 48.9 0.443 –56.8

900.00 0.367 –144.3 8.257 87.4 0.054 48.6 0.413 –59.6

1000.00 0.361 –152.5 7.531 82.8 0.057 49.3 0.392 –61.6

1100.00 0.357 –159.6 6.895 79.0 0.059 49.6 0.374 –64.4

1200.00 0.356 –166.5 6.370 75.2 0.062 49.8 0.358 –66.6

1300.00 0.358 –172.4 5.906 71.9 0.065 50.2 0.345 –69.7

1400.00 0.361 –177.9 5.512 68.4 0.069 50.1 0.338 –72.1

1500.00 0.367 177.1 5.172 65.1 0.072 50.4 0.327 –75.9

1600.00 0.371 172.4 4.856 62.0 0.075 50.7 0.321 –78.9

1700.00 0.379 168.4 4.615 58.6 0.079 50.8 0.313 –82.6

1800.00 0.385 164.5 4.332 55.8 0.083 50.9 0.313 –85.5

1900.00 0.395 160.7 4.123 52.5 0.086 50.8 0.304 –90.4

2000.00 0.402 157.9 3.914 49.8 0.089 51.2 0.308 –92.6

2100.00 0.413 153.9 3.734 46.9 0.093 50.7 0.300 –98.1

2200.00 0.424 151.3 3.579 44.1 0.098 50.6 0.305 –99.6

2300.00 0.429 148.2 3.390 41.2 0.101 50.7 0.299 –106.1

2400.00 0.443 145.4 3.257 38.6 0.105 50.3 0.305 –106.8

2500.00 0.444 142.9 3.135 36.2 0.109 50.2 0.306 –112.7

2600.00 0.458 140.2 2.999 33.5 0.114 49.8 0.319 –113.7

2700.00 0.467 138.4 2.909 30.5 0.119 50.0 0.325 –119.6

2800.00 0.477 135.5 2.797 28.1 0.124 48.8 0.332 –122.0

2900.00 0.487 133.7 2.695 25.2 0.129 48.2 0.345 –127.6

3000.00 0.495 131.0 2.592 22.9 0.133 47.2 0.348 –130.5

Preliminary Data Sheet

7

2SC5454 S PARAMETER

VCE = 5 V, IC = 20 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.584 –36.1 33.272 153.6 0.012 73.1 0.896 –19.7

200.00 0.503 –65.9 27.312 134.0 0.020 63.7 0.751 –34.7

300.00 0.434 –89.4 22.196 120.4 0.027 58.1 0.618 –43.4

400.00 0.385 –107.3 18.070 110.8 0.031 56.3 0.526 –48.9

500.00 0.361 –122.5 15.219 102.7 0.034 56.6 0.459 –51.9

600.00 0.341 –135.0 13.079 96.8 0.038 57.0 0.415 –54.6

700.00 0.331 –145.4 11.392 91.4 0.042 57.1 0.374 –56.9

800.00 0.327 –154.4 10.113 87.1 0.046 57.1 0.353 –58.8

900.00 0.325 –162.3 9.025 83.0 0.049 57.2 0.326 –61.5

1000.00 0.326 –169.1 8.193 79.2 0.054 57.6 0.312 –63.2

1100.00 0.329 –175.0 7.486 75.8 0.057 57.9 0.300 –65.7

1200.00 0.334 179.1 6.878 72.4 0.061 58.2 0.288 –68.2

1300.00 0.338 174.5 6.379 69.3 0.066 58.0 0.278 –71.6

1400.00 0.344 169.9 5.935 66.2 0.070 57.7 0.270 –74.6

1500.00 0.352 165.9 5.566 63.2 0.074 57.3 0.263 –78.1

1600.00 0.358 162.1 5.220 60.3 0.078 57.4 0.260 –81.1

1700.00 0.367 158.9 4.949 57.4 0.082 57.0 0.255 –85.8

1800.00 0.373 155.7 4.651 54.6 0.087 56.6 0.254 –88.9

1900.00 0.385 152.7 4.411 51.8 0.091 55.6 0.248 –94.5

2000.00 0.391 150.3 4.195 49.0 0.096 55.2 0.250 –96.7

2100.00 0.403 147.2 3.990 46.3 0.099 54.3 0.246 –103.1

2200.00 0.414 145.1 3.817 43.9 0.104 53.8 0.252 –104.1

2300.00 0.421 142.2 3.633 41.0 0.108 53.5 0.247 –111.5

2400.00 0.435 140.0 3.488 38.6 0.113 52.6 0.256 –112.0

2500.00 0.436 137.8 3.349 36.3 0.116 52.3 0.258 –118.4

2600.00 0.450 135.4 3.203 33.9 0.121 51.7 0.269 –118.7

2700.00 0.459 134.0 3.126 31.2 0.127 51.2 0.275 –125.1

2800.00 0.470 131.3 2.995 28.7 0.132 49.6 0.285 –127.4

2900.00 0.481 129.7 2.881 26.0 0.137 48.8 0.296 –133.1

3000.00 0.489 127.2 2.788 24.0 0.141 48.0 0.302 –136.2

2SC5454

VCE = 5 V, IC = 30 mA, Z0 = 50 Ω

FREQUENCY S11 S21 S12 S22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.508 –42.8 38.283 149.9 0.011 72.3 0.861 –22.9

200.00 0.433 –76.3 30.011 129.4 0.019 61.8 0.692 –37.6

300.00 0.378 –100.7 23.555 116.0 0.023 59.8 0.558 –45.6

400.00 0.342 –119.6 18.822 107.1 0.028 59.3 0.472 –50.4

500.00 0.332 –133.8 15.690 99.5 0.032 59.2 0.411 –52.5

600.00 0.321 –145.1 13.390 93.9 0.036 61.0 0.369 –54.9

700.00 0.317 –154.9 11.613 89.1 0.041 60.5 0.337 –57.0

800.00 0.316 –163.1 10.259 84.9 0.045 60.7 0.315 –58.5

900.00 0.318 –169.9 9.171 81.1 0.048 61.6 0.297 –60.9

1000.00 0.323 –176.1 8.300 77.5 0.053 60.8 0.283 –62.7

1100.00 0.326 178.5 7.579 74.2 0.058 60.9 0.271 –65.6

1200.00 0.332 173.3 6.964 71.1 0.062 61.2 0.263 –67.9

1300.00 0.339 169.1 6.463 68.1 0.066 61.0 0.256 –71.6

1400.00 0.345 165.0 6.012 65.1 0.071 60.2 0.248 –74.6

1500.00 0.354 161.5 5.620 62.3 0.074 59.9 0.241 –78.7

1600.00 0.359 158.0 5.271 59.4 0.080 59.6 0.242 –82.4

1700.00 0.369 155.0 4.972 56.4 0.083 58.7 0.236 –86.8

1800.00 0.376 152.4 4.693 54.0 0.088 58.0 0.233 –90.5

1900.00 0.387 149.5 4.454 51.2 0.092 57.5 0.229 –96.2

2000.00 0.393 147.5 4.222 48.6 0.097 56.9 0.232 –97.9

2100.00 0.405 144.4 4.035 45.7 0.102 56.3 0.232 –104.8

2200.00 0.416 142.5 3.850 43.2 0.107 54.9 0.233 –106.3

2300.00 0.422 139.9 3.660 40.5 0.111 54.1 0.231 –114.3

2400.00 0.436 137.9 3.517 38.0 0.115 54.0 0.240 –113.8

2500.00 0.438 135.7 3.360 36.0 0.119 53.1 0.240 –120.9

2600.00 0.453 133.5 3.235 33.6 0.124 52.5 0.254 –121.0

2700.00 0.461 132.3 3.147 31.0 0.130 51.6 0.262 –127.4

2800.00 0.473 129.6 3.010 28.6 0.135 50.2 0.270 –129.8

2900.00 0.483 128.1 2.905 25.9 0.140 49.3 0.283 –135.7

3000.00 0.491 125.6 2.800 23.9 0.144 48.1 0.286 –138.5

8

Preliminary Data Sheet

[MEMO]

2SC5454

Preliminary Data Sheet

9

[MEMO]

2SC5454

10

Preliminary Data Sheet

[MEMO]

2SC5454

Preliminary Data Sheet

11

2SC5454

No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in
this document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual property
rights of third parties by or arising from use of a device described herein or any other liability arising from use
of such device. No license, either express, implied or otherwise, is granted under any patents, copyrights or other
intellectual property rights of NEC Corporation or others.
While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customers must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
NEC devices are classified into the following three quality grades:
"Standard", "Special", and "Specific". The Specific quality grade applies only to devices developed based on a
customer designated "quality assurance program" for a specific application. The recommended applications of
a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device
before using it in a particular application.

Standard: Computers, office equipment, communications equipment, test and measurement equipment,

audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots

Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster

systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)

Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life

support systems or medical equipment for life support, etc.
The quality grade of NEC devices is "Standard" unless otherwise specified in NEC's Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact an NEC sales representative in advance.
Anti-radioactive design is not implemented in this product.

M4 96.5

2
