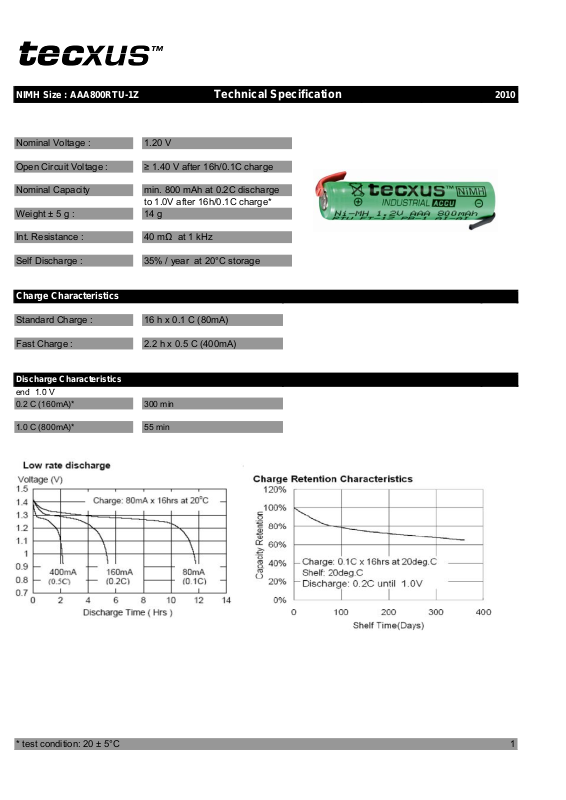

Datasheet 14088 Specification

NIMH Size : AAA800RTU-1Z

Technical Specification

Nominal Voltage : 1.20 V

Open Circuit Voltage : ≥ 1.40 V after 16h/0.1C charge

Nominal Capacity min. 800 mAh at 0.2C discharge

to 1.0V after 16h/0.1C charge*

Weight ± 5 g : 14 g

Int. Resistance : 40 mΩ at 1 kHz

Self Discharge : 35% / year at 20°C storage

Charge Characteristics

Standard Charge : 16 h x 0.1 C (80mA)

Fast Charge : 2.2 h x 0.5 C (400mA)

2010

Discharge Characteristics

end 1.0 V

0.2 C (160mA)* 300 min

1.0 C (800mA)* 55 min

* test condition: 20 ± 5°C 1

Performance Characteristics

Storage Temperature : min -20 °C max 40°C

Operating Temperature : min -20 °C max 50°C

Cycle life test : IEC standard up to 500 cycles

Cycle life performance (IEC)

Cycle number Charge

1 0.1C / 16h

2 to 48 0.25 C / 3.17h

49 0.25C / 3.17h

50 0.1C / 16h

no 0.25C 2.33 h

no

no

1-4h

DischargeRest

0.25C / 2.33h

0.25 C to 1.0 V

0.25 C to 1.0 V

The endurance test is considered complete when two such seccessive cycles give a discharge
duration less than 3 h of any 50th cycle

Safety Performance

Drop test Drop to an concrete floor from a height of 75 cm No machanical and

4 times after fully charge and discharge electrical abnormality

Short-circuit Short-circuit for 2 hours with 0,75qmm wire No explosion

after fully charge and discharge

Overcharge test 1 Charge 0.1C / 16h, charge 0.1C / 48h Discharge time should be

rest 1h, discharge 0.1C to 1.0V > 5h

Overcharge test 2 Charge 1.0C (-dV:5mV), rest 10 min, charge 1.0A (-dV:5mV) No leakage should

rest 10 min, charge 1.0C (-dV:5mV) occure

Drop-overcharge Discharge 1.0C to 1.0 V, discharge 0.2C to 1.0 V, drop to No explosion

an concrete floor 3 times, charge 1.0C / 5h

Drop short-circuit Charge 0.1C / 16h, drop to an concrete floor No explosion

3 times, short-circuit for 2 hours with 0,75qmm wire

2

Dimensions

3

Height (H) ± 0.50mm 43.00 mm

Diameter (D) ± 0.50mm 10.00 mm

Top height (h) 0.30 mm

Top diameter (d) ± 0.30mm 4.70 mm

Don´t dissasemble and don´t mix with used or other battery types.
Don´t dispose to fire.
Remove batteries when not in use for long periods.
