L Panel Cut-Out
Bezel
Dimensions
C
6.3 x 0.8
H
4.8 x 0.8
T
Solder
X
PCB 0.8Sq

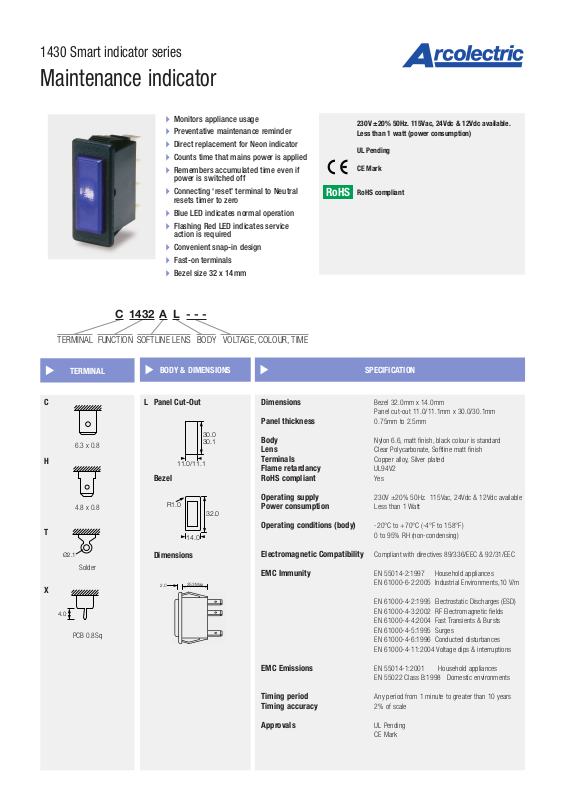

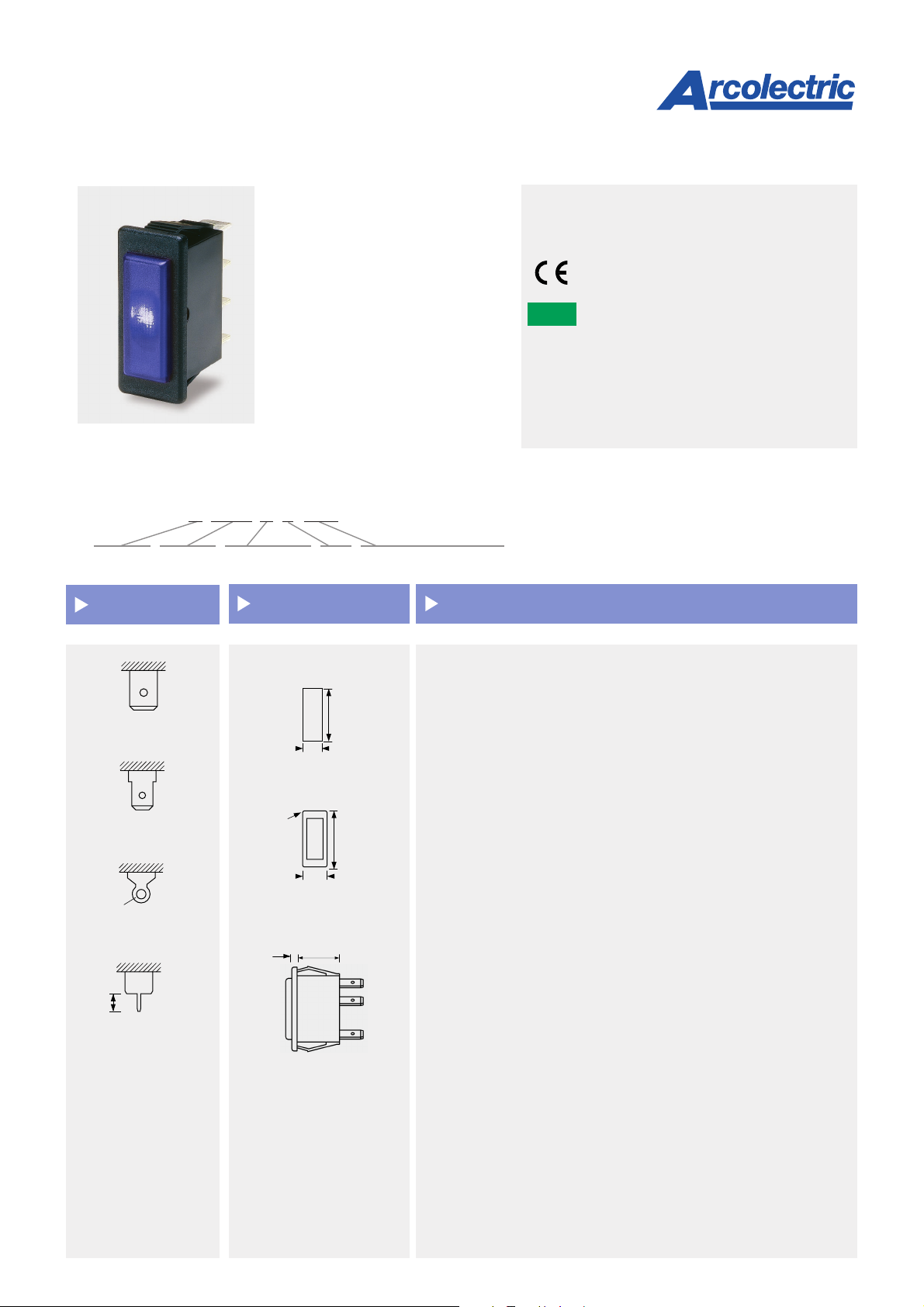

1430 Smart indicator series
Maintenance indicator
Monitors appliance usage
Preventative maintenance reminder
Direct replacement for Neon indicator
Counts time that mains power is applied
Remembers accumulated time even if
power is switched off
Connecting ‘reset’ terminal to Neutral
resets timer to zero
Blue LED indicates normal operation
Flashing Red LED indicates service
action is required
Convenient snap-in design
Fast-on terminals
Bezel size 32 x 14mm
230V ±20% 50Hz. 115Vac, 24Vdc & 12Vdc available.
Less than 1 watt (power consumption)
UL Pending
CE Mark
RoHS compliant
TERMINAL FUNCTION SOFTLINE LENS BODY VOLTAGE, COLOUR, TIME
C 1432 A L - - -
SPECIFICATION
TERMINAL
BODY & DIMENSIONS
Dimensions Bezel 32.0mm x 14.0mm
Panel cut-out 11.0/11.1mm x 30.0/30.1mm
Panel thickness 0.75mm to 2.5mm
Body Nylon 6.6, matt finish, black colour is standard
Lens Clear Polycarbonate, Softline matt finish
Terminals Copper alloy, Silver plated
Flame retardancy UL94V2
RoHS compliant Yes
Operating supply 230V ±20% 50Hz. 115Vac, 24Vdc & 12Vdc available
Power consumption Less than 1 Watt
Operating conditions (body) -20°C to +70°C (-4°F to 158°F)
0 to 95% RH (non-condensing)
Electromagnetic Compatibility Compliant with directives 89/336/EEC & 92/31/EEC
EMC Immunity EN 55014-2:1997 Household appliances
EN 61000-6-2:2005 Industrial Environments,10 V/m
EN 61000-4-2:1995 Electrostatic Discharges (ESD)
EN 61000-4-3:2002 RF Electromagnetic fields
EN 61000-4-4:2004 Fast Transients & Bursts
EN 61000-4-5:1995 Surges
EN 61000-4-6:1996 Conducted disturbances
EN 61000-4-11:2004 Voltage dips & interruptions
EMC Emissions EN 55014-1:2001 Household appliances
EN 55022 Class B:1998 Domestic environments
Timing period Any period from 1 minute to greater than 10 years
Timing accuracy 2% of scale
Approvals UL Pending
CE Mark
11.0/11.1
30.0
30.1
14.0
32.0
R1.0
RoHS
Ø2.1
4.0
2.0
25.3 Max
Page 2
APPLICATIONS OPERATION
CONNECTIONS
Coffee machines – decalcification
Deep fat fryer – oil change
Air conditioning – filter change, bleaching
Vacuum cleaner – filter cleaning
Motorised equipment – preventative maintenance, lubrication, belt
change
Petrol/Diesel engine generator – engine service
Central heating – gas appliance inspection
Inspection/cleaning interval reminder – washrooms, kitchens
Equipment calibration interval reminder
Electrical safety check interval reminder
The smart indicator operates like a standard neon indicator, giving visible
status indication for the appliance or application. Normal operation will
show continuous Blue LED illumination (contact factory for other colours).
When the accrued usage time exceeds the factory-set time limit, the LED
illumination changes colour to Red (contact factory for other colours) and
starts to flash on/off to attract user attention. The indicator will continue to
flash on subsequent appliance use, until the maintenance operation is
carried out and the reset procedure followed.
To reset the indicator after maintenance operations are completed, simply
link terminal 2 to terminal 3 while the indicator is powered. This could be a
key-operated switch or a service button within the appliance.
The service interval time is factory programmed, and can be any time
period from as little as one minute, up to tens of years.

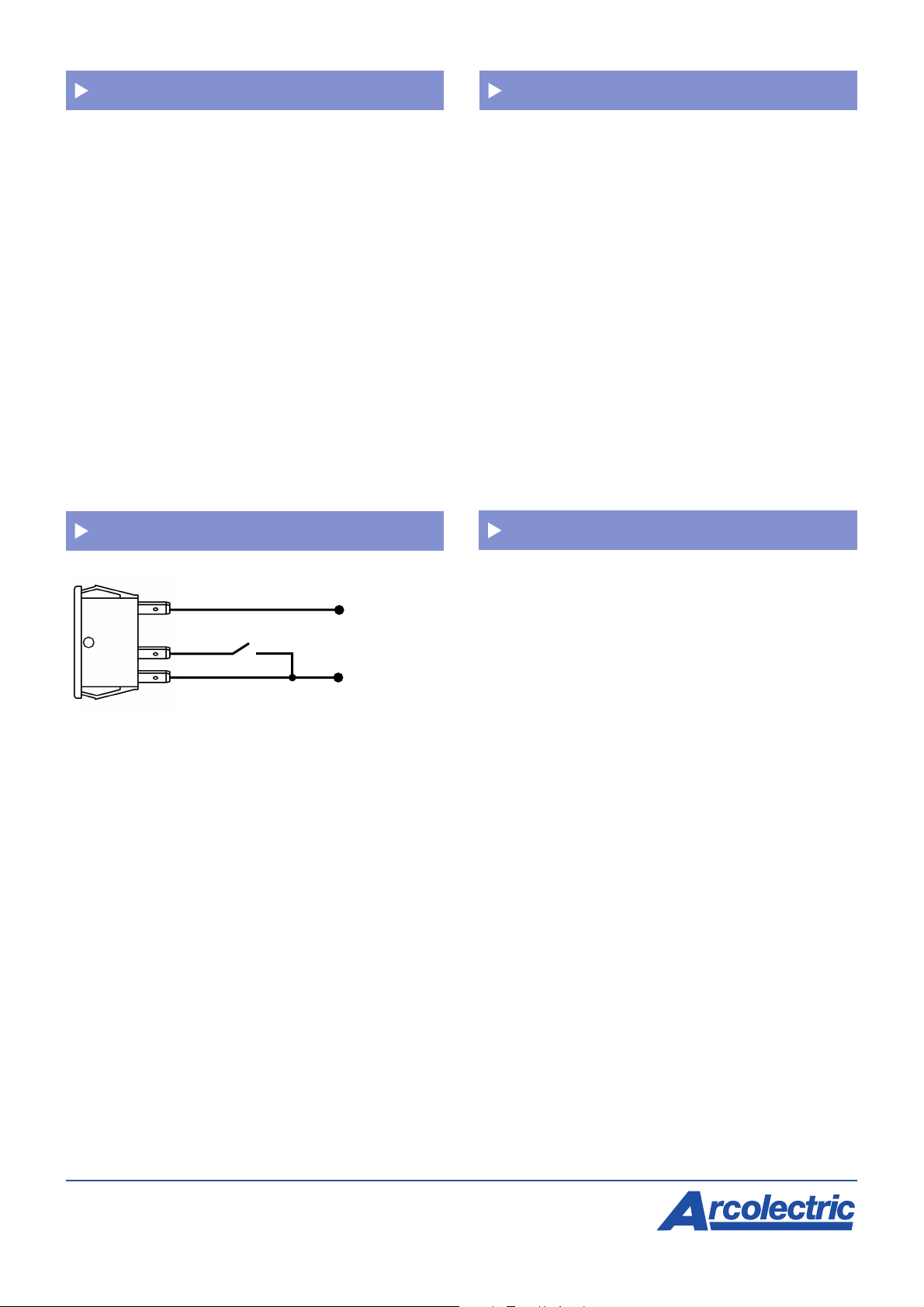

Live
Reset Switch
Neutral
PART NUMBER
1432AL
Specify Terminal Type: C, H, T, X
Specify Model Code: 1432AL
Specify Supply Voltage: 115Vac, 230Vac, 24Vdc, 12Vdc
Specify LED Colour: Red/Green, Red/Blue
Specify Time Setting: Time interval between 1 minute and 10 years.
Specify the required time in minutes, hours, days,
weeks or months.
Revision 5 10/2006 E&OE Copyright ©2006 Arcolectric
