XI’AN MOSVO ELECTRONICS TECHNOLOGY CO.,LTD http://www.mlarm.com

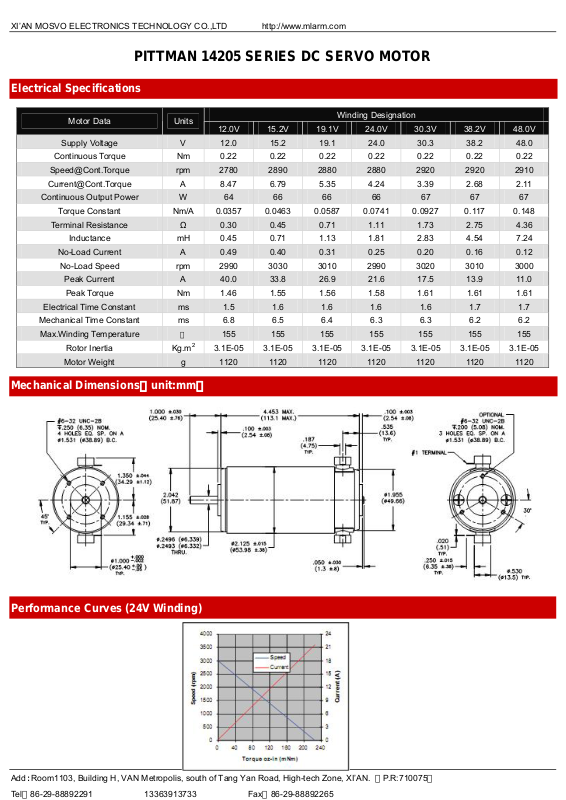

PITTMAN 14205 SERIES DC SERVO MOTOR
Electrical Specifications
Motor Data Units
Supply Voltage V 12.0 15.2 19.1 24.0 30.3 38.2 48.0
Continuous Torque Nm 0.22 0.22 0.22 0.22 0.22 0.22 0.22
[email protected] A 8.47 6.79 5.35 4.24 3.39 2.68 2.11
Continuous Output Power W 64 66 66 66 67 67 67
Torque Constant Nm/A 0.0357 0.0463 0.0587 0.0741 0.0927 0.117 0.148
Terminal Resistance Ω 0.30 0.45 0.71 1.11 1.73 2.75 4.36
Inductance mH 0.45 0.71 1.13 1.81 2.83 4.54 7.24
No-Load Current A 0.49 0.40 0.31 0.25 0.20 0.16 0.12
No-Load Speed rpm 2990 3030 3010 2990 3020 3010 3000
Peak Current A 40.0 33.8 26.9 21.6 17.5 13.9 11 .0
Peak Torque Nm 1.46 1.55 1.56 1.58 1.61 1.61 1.61
Electrical Time Constant ms 1.5 1.6 1.6 1.6 1.6 1.7 1.7
Mechanical Time Constant ms 6.8 6.5 6.4 6.3 6.3 6.2 6.2
Max.Winding Temperature
Rotor Inertia Kg.m2 3.1E-05 3.1E-05 3.1E-05 3.1E-05 3.1E-05 3.1E-05 3.1E-05
Motor Weight g 1120 1120 112 0 1120 112 0 1120 1120
℃
12.0V 15.2V 19.1V 24.0V 30.3V 38.2V 48.0V
155 155 155 155 155 155 155

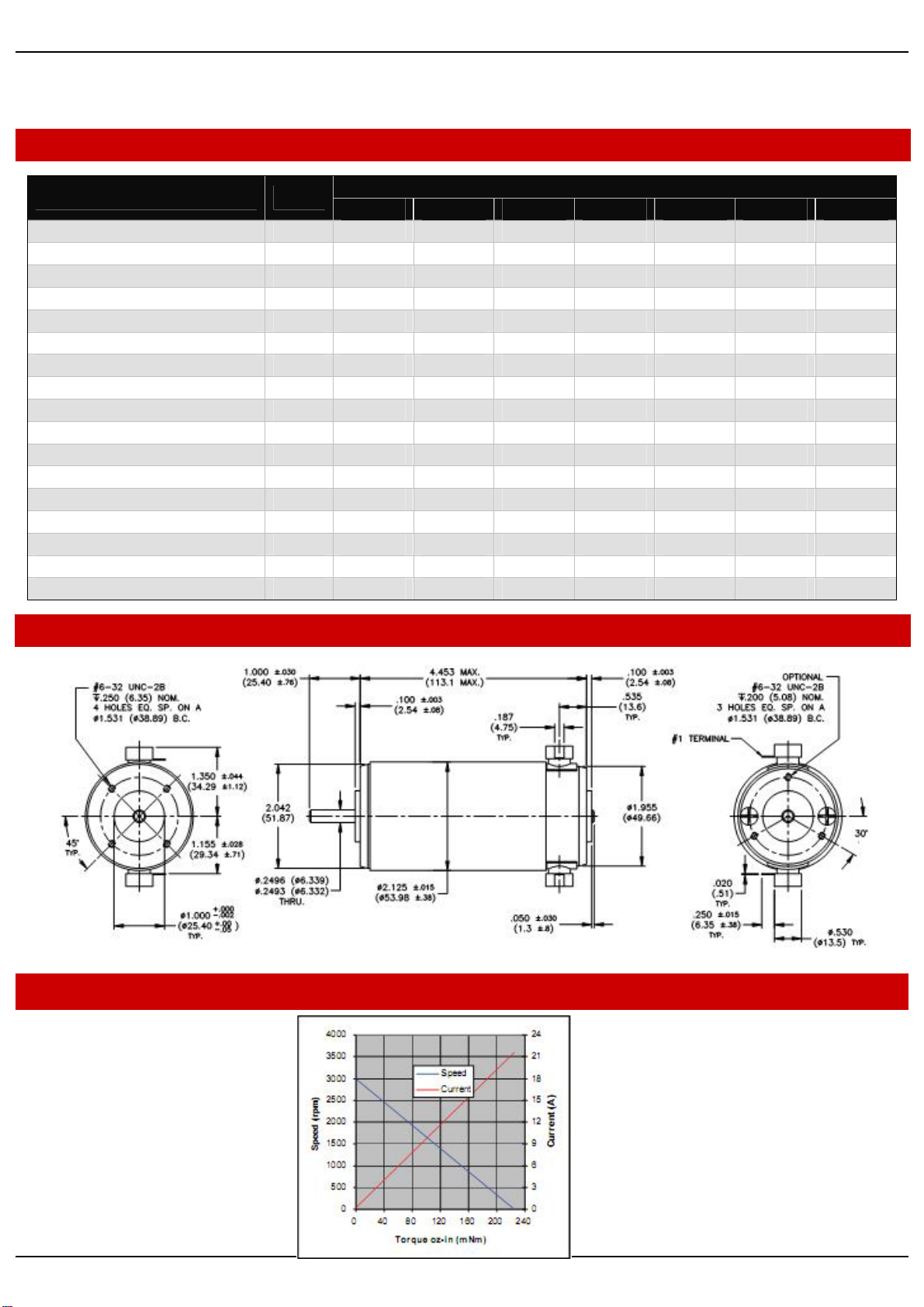

Mechanical Dimensions（unit:mm）
Winding Designation
Performance Curves (24V Winding)
Add:Room1103, Building H, VAN Metropolis, south of Tang Yan Road, High-tech Zone, XI’AN. （P.R:710075）
Te l：86-29-88892291 13363913733 Fax：86-29-88892265
