XI’AN MOSVO ELECTRONICS TECHNOLOGY CO.,LTD http://www.mlarm.com

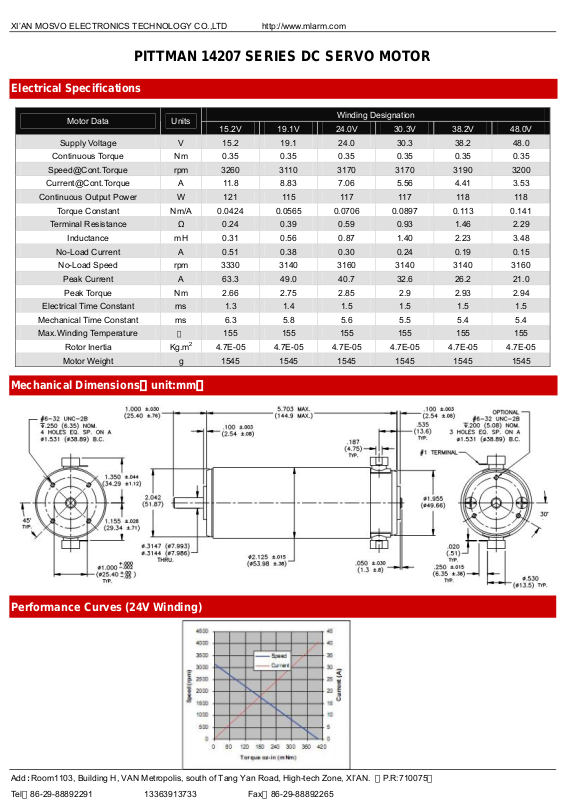

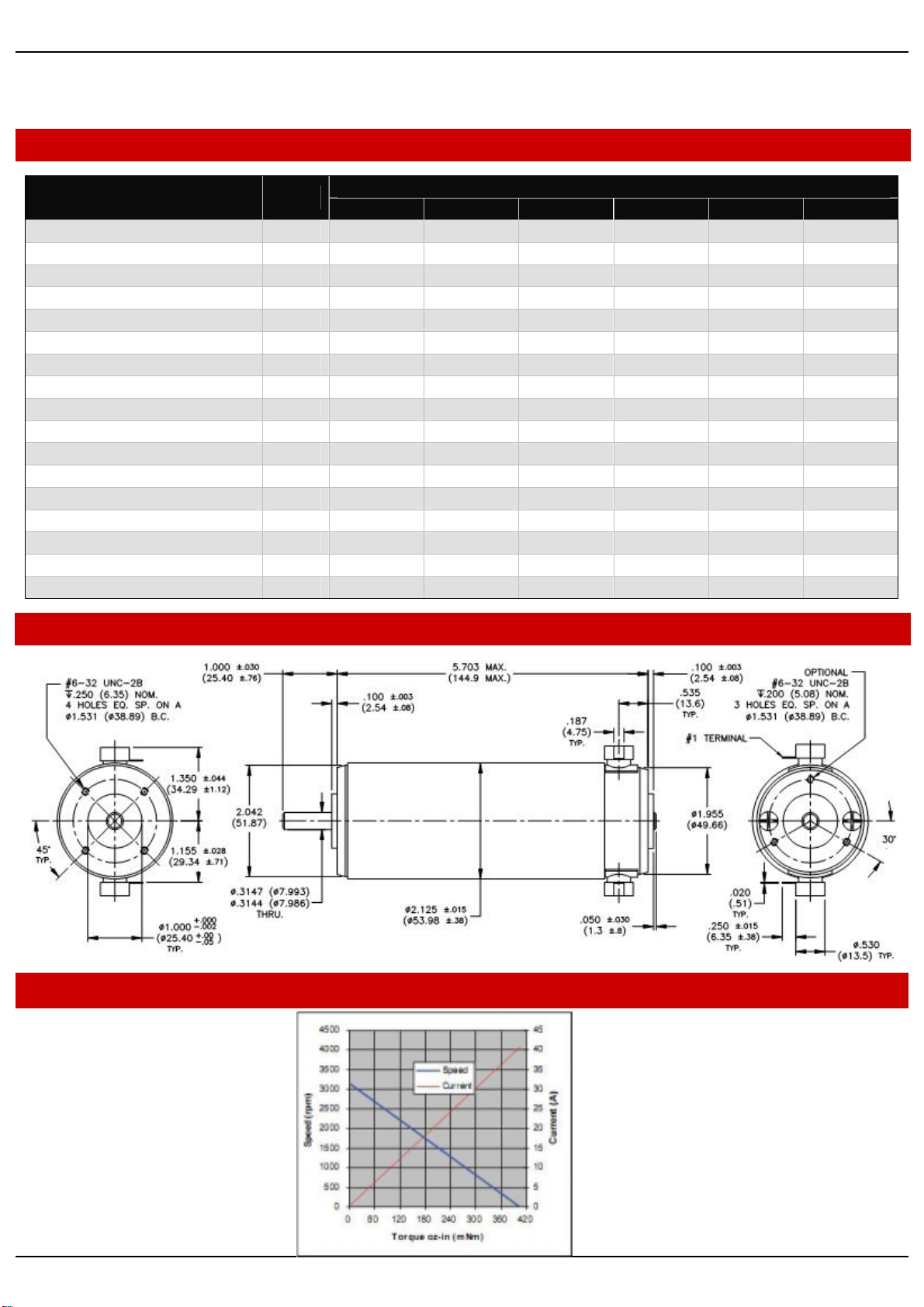

PITTMAN 14207 SERIES DC SERVO MOTOR
Electrical Specifications
Motor Data Units
Supply Voltage V 15.2 19.1 24.0 30.3 38.2 48.0
Continuous Torque Nm 0.35 0.35 0.35 0.35 0.35 0.35
[email protected] A 11.8 8.83 7.06 5.56 4.41 3.53
Continuous Output Power W 121 115 117 117 118 118
Torque Constant Nm/A 0.0424 0.0565 0.0706 0.0897 0.113 0.141
Terminal Resistance Ω 0.24 0.39 0.59 0.93 1.46 2.29
Inductance mH 0.31 0.56 0.87 1.40 2.23 3.48
No-Load Current A 0.51 0.38 0.30 0.24 0.19 0.15
No-Load Speed rpm 3330 3140 3160 3140 3140 3160
Peak Current A 63.3 49.0 40.7 32.6 26.2 21.0
Peak Torque Nm 2.66 2.75 2.85 2.9 2.93 2.94
Electrical Time Constant ms 1.3 1.4 1.5 1.5 1.5 1.5
Mechanical Time Constant ms 6.3 5.8 5.6 5.5 5.4 5.4
Max.Winding Temperature
Rotor Inertia Kg.m2 4.7E-05 4.7E-05 4.7E-05 4.7E-05 4.7E-05 4.7E-05
Motor Weight g 1545 1545 1545 1545 1545 1545
℃
15.2V 19.1V 24.0V 30.3V 38.2V 48.0V
155 155 155 155 155 155
Mechanical Dimensions（unit:mm）
Winding Designation
Performance Curves (24V Winding)
Add:Room1103, Building H, VAN Metropolis, south of Tang Yan Road, High-tech Zone, XI’AN. （P.R:710075）
Te l：86-29-88892291 13363913733 Fax：86-29-88892265
