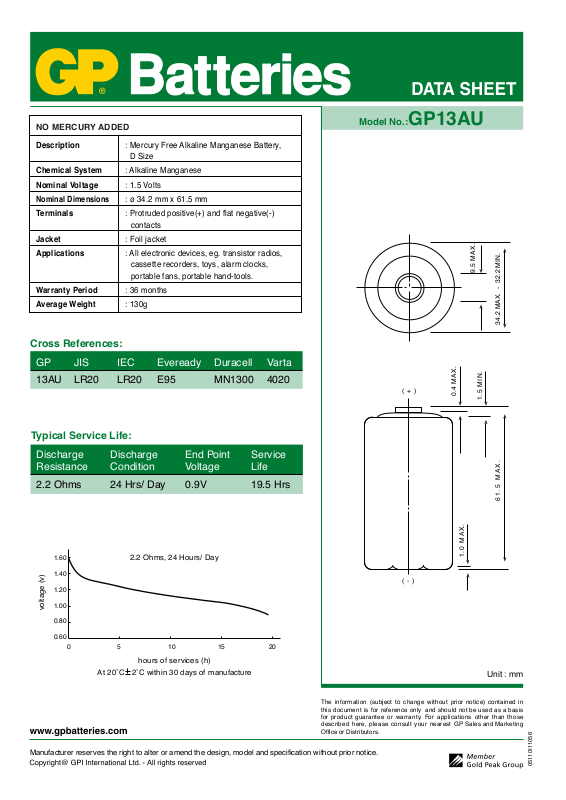

Page 1
NO MERCURY ADDED
Description : Mercury Free Alkaline Manganese Battery,
D Size
Chemical System : Alkaline Manganese
Nominal Voltage : 1.5 Volts
Nominal Dimensions
: ø 34.2 mm x 61.5 mm
Terminals : Protruded positive(+) and flat negative(-)
contacts
Jacket : Foil jacket
Applications : All electronic devices, eg. transistor radios,
cassette recorders, toys, alarm clocks,
portable fans, portable hand-tools.
Warranty Period : 36 months
Average Weight : 130g
Cross References:
GP JIS IEC Eveready Duracell Varta
13AU LR20 LR20 E95 MN1300 4020
Model No.:GP13AU
9.5 MAX.
( + )
0.4 MAX.
34.2 MAX. - 32.2 MIN.
1.5 MIN.
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition Voltage Life
2.2 Ohms 24 Hrs/ Day 0.9V 19.5 Hrs
1.60
1.40
1.20
1.00
voltage (v)
0.80
0.60
0 5 10 15 20
At 20˚C 2˚C within 30 days of manufacture
2.2 Ohms, 24 Hours/ Day
hours of ser vices (h)
61.5 MAX.
1.0 MAX.
( - )
Unit : mm
The information (subject to change without prior notice) contained in
this document is for reference only and should not be used as a basis
for product guarantee or warranty. For applications other than those
described here, please consult your nearest GP Sales and Mar keting
Office or Distributors.
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
