Datamax VMP-2000 User Manual

VMP-2000

110216-002

Vehicle Installation Guide

Table of Contents

General Operation and Handling Guidelines.....................................................1

Safety Guidelines ....................................................................................1

Liability Statement ..................................................................................1

Mounting Options ........................................................................................3

Integrated Dash Mount ............................................................................3

Wall Mount.............................................................................................4

Horizontal Mount.....................................................................................4

Other ....................................................................................................5

Mounting Requirements................................................................................6

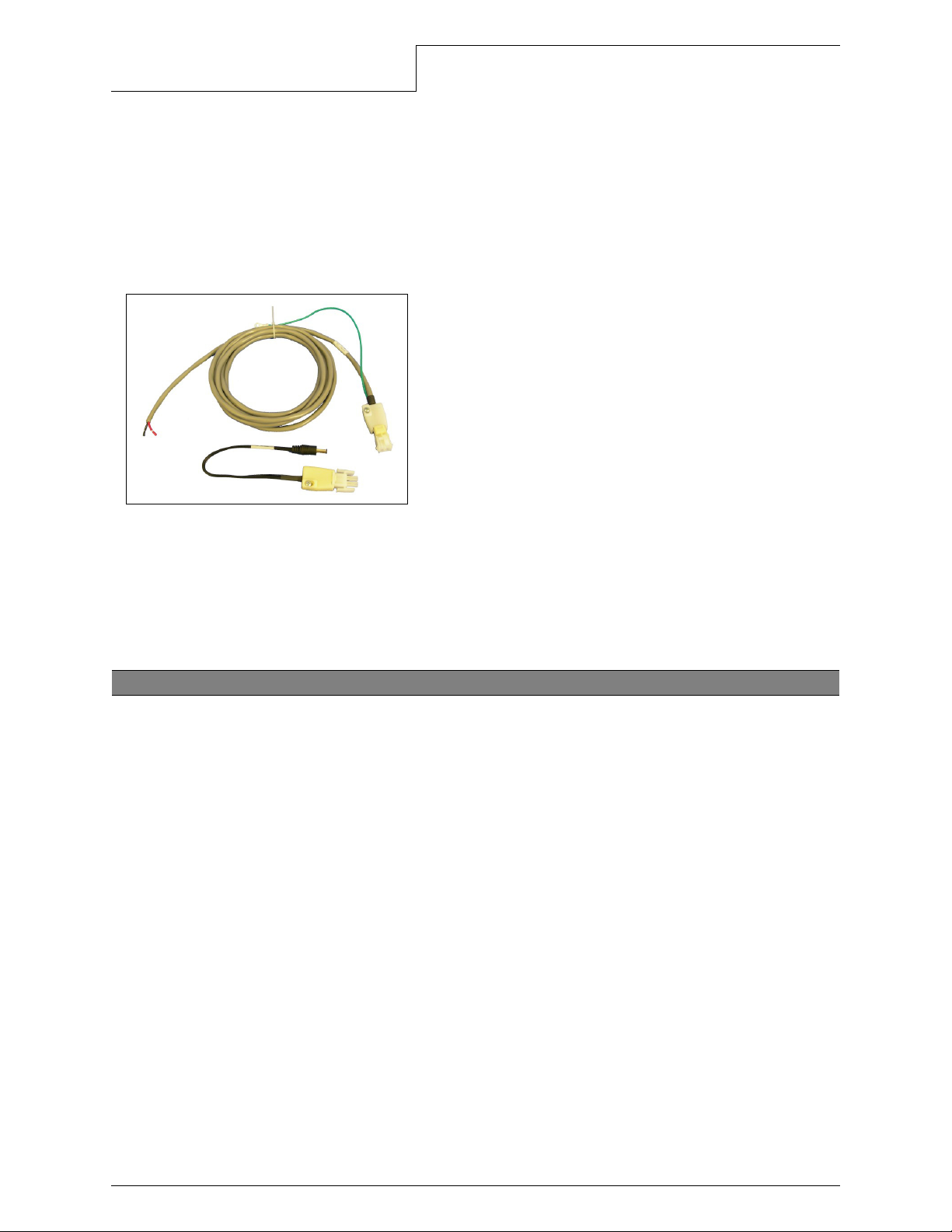

Input Power and Connection Requirements .....................................................8

Printer Input Power and Connection Requirements.......................................9

Data Connection........................................................................................12

Power Supply .......................................................................................13

Guidelines............................................................................................13

Ribbon Information....................................................................................14

Temperature ........................................................................................14

Printer Settings .........................................................................................15

Print Head Centering .............................................................................15

Skip Over Perforation ............................................................................15

Media Specifications...................................................................................16

Paper Guidelines ...................................................................................16

Continuous Form Specifications...............................................................16

Form Specifications ...............................................................................17

Radio/Bluetooth Guidelines .........................................................................18

Datamax-O’Neil VMP-2000 Vehicle Installation Guide

General Operation and Handling Guidelines

Safety Guidelines

Follow all installation, mounting, cabling and usage criteria set forth in this guide.

Liability Statement

Datamax-O’Neil does not accept liability for improperly mounted or poorly placed printers.

No Liability for Negligent Use: In no event shall Datamax-O’Neil be held liable for any damages whatsoever (including, without limitations, damages for loss of profits, business interruption, loss of information, or other pecuniary loss) arising out of negligence in use and care of the product.

Radio Frequency Interference: This equipment generates and can radiate radio frequency energy. If it is not installed and used in accordance with the user's guide, this energy may cause harmful interference to radio and television reception.

Software: Datamax-O’Neil warrants software will function in accordance with the user guide or written specifications provided with the software for ninety (90) days from date of shipment. If an item or software does not function as warranted, Datamax-O’Neil will, without charge, attempt to correct the software, the user guide, or the written specification.

For Vehicle Installations and Use

• Air bags deflate with great force. DO NOT place objects, including installed or portable wireless equipment, or printers in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

• Position your device within easy reach. Be able to access your device without removing your eyes from the road.

• Do not take notes or use the device while driving. Jotting down a “to do” list or flipping through your address book takes attention away from your primary responsibility, driving safely.

• Datamax-O’Neil is not responsible for damages or injuries resulting from improper installation or use.

Ergonomic Recommendations

Caution: Even the best-designed products can be a potential source of injury/illness if used

incorrectly. To avoid or minimize risk of ergonomic injury, follow these general recommendations. Consult with your local Health and Safety Manager to ensure that you are meeting your company's safety programs to prevent employee(s) injury.

• Reduce or eliminate repetitive motion

• Maintain a neutral posture and avoid awkward positions

• Reduce or eliminate excessive force

• Keep objects that are used frequently within easy reach

• Perform tasks at correct heights

• Reduce or eliminate vibration

• Reduce or eliminate direct pressure

• Avoid static exertions

Datamax-O’Neil VMP-2000 Installation Guide

General Operation and Handling Guidelines

• Provide adequate clearance

• Provide a suitable working environment

• Improve work procedures

• Take periodic rest breaks

Care and Prevention

During operation, do not expose printer to temperatures over 50°C/122°F or under

-40°C/-40°F. In storage, do not expose printer to temperatures over 70°C/158°F or under

-20°C/-4°F.

• Use only approved power supplies or damage may result.

• Do not spill liquids on printer or immerse.

• Do not attempt to service this unit. Refer all servicing to a Datamax-O’Neil authorized service center.

Copyright

This installation guide and any examples contained herein are provided “as is” and are subject to change without notice. Datamax-O’Neil makes no warranty of any kind with regard to this installation guide, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Datamax-O’Neil shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, or use of this installation guide or the examples herein. This guide is copyrighted. All rights are reserved. This guide may not, in whole or in part, be reproduced, translated, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photographic, or otherwise, without the prior written consent of Datamax-O’Neil.

Specifications are subject to change.

Datamax-O’Neil VMP-2000 Installation Guide

Mounting Options

VMP Dashmount Bracket (Part # 220151-100)

VMP Cradle Bracket Kit (Part # 220153-000)

Mounting Options

Note:

O’Neil customer service for installation information on the VMP-1000 printers.

The following options are available for mounting the VMP printer:

See the brief descriptions below for the scenario which best describes your mounting needs. Each bracket comes with vibration dampening hardware to aid in the life of your printer.

To obtain additional information about the mounting brackets, contact your salesperson or call (949) 458-0500.

The following instructions apply to the VMP-2000 printers only. Contact Datamax-

• Integrated dash mount

• Wall mount

• Horizontal mount

•Other

Integrated Dash Mount

The VMP-2000 can be mounted using the VMP Dashmount Kit, which includes an integrated paper supply tray, vibration bracket and a universal cradle mount bracket. The Dashmount Kit works where there is adequate area to support and mount the kit. The kit is designed to either work in a vehicle or on a desktop. Please review the specific instruction sheets for assembly and installation of the VMP-2000 Dashmount Bracket kit (part # 110092-xxx).

Datamax-O’Neil VMP-2000 Installation Guide

Mounting Options

VMP Wall Mount Vibration Bracket (Part # 220199-000)

0°

4’ (maximum height off of floor)

VMP Horizontal Mount

(Part # 220146-000)

Vibration Bracket

Wall Mount

The VMP-2000 has a wallmount bracket specifically design to mount the printer to a wall or bulk head in a vehicle. This installation is designed to pull paper from a free standing box or can utilize the VMP paper tray. Please review the specific instruction sheets for assembly and installation of the VMP-2000 Wallmount Bracket Kit (part # 110114-xxx).

Mounting Guidelines

Use the following information as a guide for orienting and/or mounting your printer:

VMP 2000 XY

0° to 15° 0° to 30°

Horizontal Mount

The VMP can also be mounted horizontally utilizing the horizontal mounting bracket. Please review the specific instruction sheets for assembly and installation of the VMP-2000 Horizontal Mount Bracket Kit (part # 110091-xxx).

VMP 2000 XY

0° to 30° 0° to 60°

Datamax-O’Neil VMP-2000 Installation Guide

Mounting Options

VMP Paper Tray (Part # 220155-000)

Other

The VMP-2000 paper tray is specifically designed to hold a box of standard tractor pin feed media for 8 ½” x 11” media. The tray can be mounted underneath the wall mount bracket. Please review the specific instruction sheet for assembly and installation of the VMP-2000 paper tray (part # 110098-xxx).

Datamax-O’Neil VMP-2000 Installation Guide
