F732 WIZARD™
User’s Manual
F732 WIZARD™
USER'S MANUAL
DATALOGIC S.p.A.
Via Candini 2
40012 - Lippo di Calderara di Reno
Bologna - Italy
Formula 732 Wizard™ - User's Manual
Ed.: 06/01
ALL RIGHTS RESERVED
Datalogic reserves the right to make modifications and improvements without
prior notification. Products names mentioned herein are for identification
purposes only and may be trademarks and or registered trademarks of their
respective companies.
© Datalogic S.p.A. 1997 - 2001
820042112 (Rev. B)
CONTENTS
1 GENERAL INFORMATION................................... 1
1.1 F732 WIZARD™ Terminal Description................. 1
1.2 Downloading EasyGen™ Demo............................ 3
1.3 Application Development Programs...................... 3
1.4 Purpose of the Manual.......................................... 4
1.5 Contents of Packing.............................................. 5
1.6 Terminal Identification........................................... 6
2 SAFETY REGULATIONS..................................... 7
2.1 General Safety Rules............................................ 7
2.2 Laser Safety.......................................................... 8
2.3 FCC Compliance - Information for the User........ 13
3 CONNECTION.................................................... 14
3.1 Cradle.................................................................. 14
3.2 Connection to the Host Computer....................... 16
3.2.1 RS-232 Connection............................................. 16
3.3 Connection Cables.............................................. 18
4 USE AND OPERATION...................................... 19
4.1 Loading Application Programs............................ 20
4.2 Bar Code Scanning............................................. 20
4.3 Description of Keys............................................. 21
4.4 Downloading Data to Host .................................. 24
5 MAINTENANCE.................................................. 25
5.1 Charging the Batteries ........................................ 25

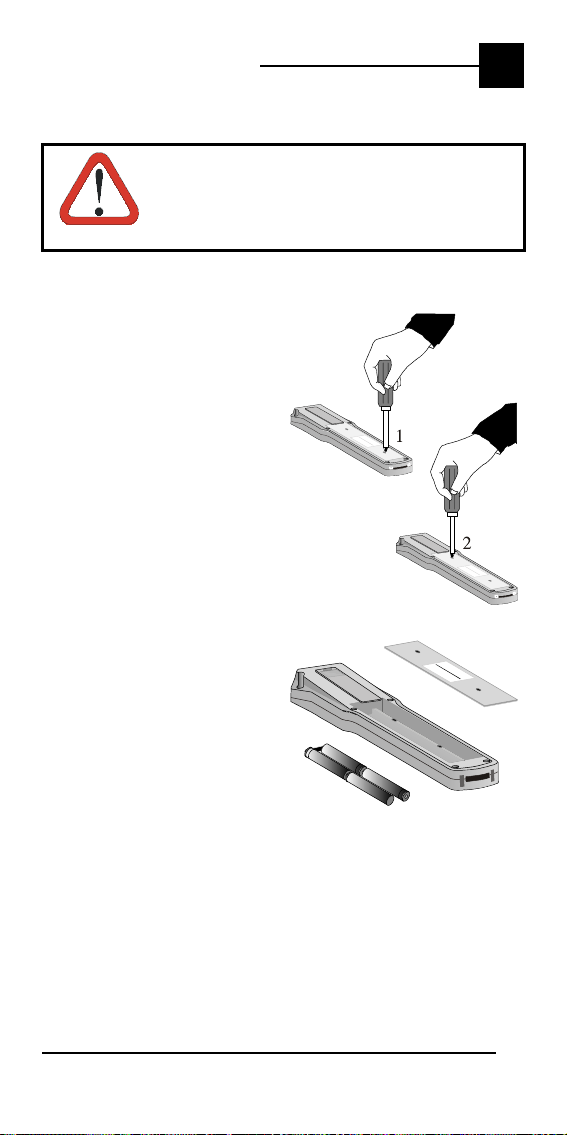

5.2 Replacing the Batteries....................................... 27
5.3 Cleaning the Terminal......................................... 28
6 TROUBLESHOOTING........................................ 29
7 TECHNICAL FEATURES ................................... 31
A F732 PRODUCTS AND ACCESSORIES ........... 34
iii
iv
GENERAL INFORMATION
1
1 GENERAL INFORMATION
1.1 F732 WIZARD™ TERMINAL DESCRIPTION
For vast majority of small businesses and retailers, the
complete Formula Wizard™ package represents the
simplest and most cost-effective solution for entering the
world of bar code data acquisition.
The Formula 732 Wizard™ (abbreviated in this manual to
F732) portable terminal with its integrated laser scanner is
at the heart of the Formula Wizard™ solution. Fast and
reliable in reading the most common symbologies, it comes
equipped with a handy 25-key alphanumeric keyboard and
has a large display with icons. Data transfer to the PC takes
place by simply placing the terminal into the Formula 952
Transceiver/Charger, which is equipped with a RS232 serial
port, and using Systools™ 2001 - an effective software
utility for transferring data to standard ASCII files.
By using the EasyGen™ software package, developers can
quickly build personalized applications according to the
required contexts by easily creating programs of average
complexity in a Windows environment.
Ed.: 06/01
1
1
A
F732 WIZARD™
The EasyGen™ Demo Version with five ready-to-use
example applications can be downloaded from the
Datalogic web site free of charge. They cover the most
common operating requirements in data collection, assisted
sales, inventory and goods picking, thus making the
Formula Wizard™ solution immediately productive.
The EasyGen™ package also includes Systools™ 2001
and OLE for Formula, the ActiveX software module that
allows data to be integrated into applications such as Visual
Basic, Excel, Access, Delphi, etc.
Furthermore, the Formula 732 terminals are fully
programmable in C language using DS for Formula, thus
solving even the most complex application needs.
B
C
D
EE
Key:
A) Laser beam output window
B) Two color LED
C) Reset key (shielded)
D) Cradle communications window
E) Contacts for battery recharging
2
Ed.: 06/01
GENERAL INFORMATION
1
The F732 terminal has an LCD graphic display of 16
characters by 4 lines plus a line in the upper part of the
display for the programmable icons:
The icons which can be
controlled by the
application program
FORMULA 732 WIZARD
POCKET LASER TERM
DATALOGIC S. P. A.
4 LINESx16 CHARS
The battery charge status
Time
1.2 DOWNLOADING EASYGEN™ DEMO
By completing the electronic form at our web site,
http:\\www.datalogic.com\pdc\easygen_demo.htm, you can
download for free EasyGen™ Demo Software package
containing the following items:
• EasyGen™ Demo Version (user-friendly and highly
productive application generator)
• Systools™ 2001 (efficient utility for data exchange with
the F732 terminal)
• OLE for Formula (useful ActiveX software module for
easy integration of Windows applications)
• The most common application examples (data
collection, inventory, goods picking, assisted sales)
available in 5 languages (English, French, German,
Italian, Spanish)
• The complete documentation in PDF format.
1.3 APPLICATION DEVELOPMENT PROGRAMS
"C" ANSI standard
The Formula 732 terminal is fully programmable in C
language, thus solving even the most complex application
needs.
• Development System for Formula Basic Line order
nr. 94A104860
• CA51 "C" Compiler KIT order nr. 94A104890
Ed.: 06/01
3
1
F732 WIZARD™
EasyGen™ Application Generator
By using the EasyGen™ software, developers can easily
and quickly build personalized applications of average
complexity in a Windows environment.
• EasyGen™ (Easy Application Generator Package)*
order nr. 94A104850.
*
32-bit software for Microsoft W indows 95/ 98/2000/ME and NT
(PC Pentium process or, 16MB of RAM, 30MB free hard disk
space required)
1.4 PURPOSE OF THE MANUAL
The information contained in this manual is divided in two
parts:
− For the everyday user:
Chapters 1, 2, 4 and 7:
supply general information, safety information, the
F732 terminal operating instructions and technical
specifications.
− For the person in charge of the management of the
terminals and for those who are familiar with the
Microsoft Windows 95/98/2000/ME and NT operating
system and possess basic programming skills:
Chapters 3, 4, 5, 6, and 7:
supply instructions for the connection of F732 terminals
to the host computer, and battery substitution.
4
Ed.: 06/01
GENERAL INFORMATION
1.5 CONTENTS OF PACKING
The F732 terminal package includes:
− nr. 1 F732 terminal complete with batteries;
− nr. 1 cradle F952 with power supply;
− nr. 1 cable 90A054000 for serial connection;
− nr. 1 user's manual
− nr. 1 test chart
Remove all components from their
packing and check that they are in good
condition and that they correspond to the
shipment documents.
Keep the packing and boxes in case it is
CAUTION
necessary to send the terminal back for
technical assistance. Damage caused by
improper packing is not covered by the
warranty
1
NOTE
Ed.: 06/01
Rechargeable battery packs (NiCd) are not
initially charged.
Therefore the first operation to perform is to
charge them in the appropriate cradle (see
par. 3.2.1 and par. 5.1).
5
1
n
1.6 TERMINAL IDENTIFICATION
F732 WIZARD™
CAUTION
SER 123456789
COD 941404020
MOD F732/B 128K
Datalogic SpA 00/0 1
SER 123456789
COD 941404020
MOD F732/B 128K
Datalogic SpA 00/01
Serial number
Production Code
Model identificatio
6
Ed.: 06/01
SAFETY REGULATIONS
2 SAFETY REGULATIONS
Read this manual carefully before
performing any type of connection or repair
on the F732 terminal.
The user is responsible for any damages
NOTE
caused by incorrect use of the equipment or
by inobservance of the indication supplied
in this manual.
2
2.1 GENERAL SAFETY RULES
Use only the components supplied by the manufacturer for
the specific F732 terminal being used. The use of cradles
other than those supplied with the F732 terminal or
indicated in the list in the appendix could cause serious
damage to the F732 terminal.
Do not attempt to disassemble the F732 terminal, as it does
not contain parts that can be repaired by the user. Any
tampering will invalidate the warranty.
When replacing the batteries or at the end of the operative
life of the F732 terminal, disposal must be performed in
compliance with the laws in force.
Do not submerge the F732 terminal in liquid products.
Ed.: 06/01
7
2
F732 WIZARD™
2.2 LASER SAFETY
The laser light is visible to the human eye and is emitted
from the window indicated in the figure.
Laser beam output window
AVOID EXPOSURE-LASER LIGH T
IS EMITTED FROM THIS APERTURE
680 nm LASER
1.0 MILLIWATT MAX OUTPUT
CLASS II LASER PROD UC T
CAUTION
SER 123456789
COD 941404020
MOD F732/B 128K
Datalogic SpA 00/01
IDFE
LA LUCE
LASER È
VISIBILE
ALL'OCCHIO
UMANO E
VIENE
EMESSA
DALLA
FINESTRA
INDICATA
NELLA
FIGURA.
8
DIE LASERSTRAHLUNG IST
FÜR DAS
MENSCHLICHE
AUGE SICHTBAR
UND WIRD AM
STRAHLAUSTRITTSFENTSTER
AUSGESENDET
(SIEHE BILD)
LE RAYON
LASER EST
VISIBLE À
L'OEIL MU ET IL
EST ÉMIS PAR
LA FENÊTRE
DÉSIGNÉE
SUR
L'ILLUSTRATIO
N DANS LA
FIGURE
A LUZ
LÁSER ES
VISIBLE AL
OJO
HUMANO Y
ES EMITIDA
POR LA
VENTANA
INDICADA
EN LA
FIGURA.
Ed.: 06/01
SAFETY REGULATIONS
2
IDFE
LUCE LASER
NON FISSARE
IL FASCIO
APPARECCHIO
LASER DI
CLASSE 2
MASSIMA
POTENZA
D'USCITA:
LUNGHEZZA
D'ONDA
EMESSA:
CONFORME A
EN 60825
(1993)
LASERSTRAHLUNG
NICHT IN DEN
STRAHL BLICKEN
PRODUKT DER
LASERKLASSE 2
MAXIMALE
AUSGANGSLEISTU
NG:
WELLENLÄGE:
ENTSPR. EN 60825
(1993)
RAYON LASER
EVITER DE
REGARDER LE
RAYON
APPAREIL
LASER DE
CLASSE 2
PUISSANCE DE
SORTIE:
LONGUER
D'ONDE EMISE:
CONFORME A
EN 60825
(1993)
RAYO
LÁSER NO
MIRAR FIJO
EL RAYO
APARATO
LÁSER DE
CLASE 2
MÁXIMA
POTENCIA
DE SALIDA:
LONGITUD
DE ONDA
EMITIDA:
CONFORME
A EN 60825
(1993)
ENGLISH
The following information is provided to comply with the
rules imposed by international authorities and refers to the
correct use of your terminal.
STANDARD LASER SAFETY REGULATIONS
This product conforms to the applicable requirements of
both CDRH 21 CFR 1040 and EN 60825 at the date of
manufacture.
For installation, use and maintenance, it is not necessary to
open the device.
Use of controls or adjustments or
performance of procedures other than
those specified herein may result in
CAUTION
exposure to hazardous visible laser light.
The product utilizes a low-power laser diode. Although
staring directly at the laser beam momentarily causes no
known biological damage, avoid staring at the beam as one
would with any very strong light source, such as the sun.
Avoid that the laser beam hits the eye of an observer, even
through reflective surfaces such as mirrors, etc.
Ed.: 06/01
9
2
F732 WIZARD™
ITALIANO
Le seguenti informazioni vengono fornite dietro direttive
delle autorità internazionali e si riferiscono all’uso corretto
del terminale.
NORMATIVE STANDARD PER LA SICUREZZA LASER
Questo prodotto risulta conforme alle normative vigenti sulla
sicurezza laser alla data di produzione: CDRH 21 CFR
1040 e EN 60825.
Non si rende mai necessario aprire l’appa-recchio per
motivi di installazione, utilizzo o manutenzione.
L'utilizzo di procedure o regolazioni
differenti da quelle descritte nella
documentazione può provocare
un'esposizione pericolosa a luce laser
ATTENZIONE
visibile.
Il prodotto utilizza un diodo laser a bassa potenza. Sebbene
non siano noti danni riportati dall’occhio umano in seguito
ad una esposizione di breve durata, evitare di fissare il
raggio laser così come si eviterebbe qualsiasi altra
sorgente di luminosità intensa, ad esempio il sole. Evitare
inoltre di dirigere il raggio laser negli occhi di un
osservatore, anche attraverso superfici riflettenti come gli
specchi.
DEUTSCH
Die folgenden Informationen stimmen mit den
Sicherheitshinweisen überein, die von internationalen
Behörden auferlegt wurden, und sie beziehen sich auf den
korrekten Gebrauch vom Terminal.
NORM FÜR DIE LASERSICHERHEIT
Dies Produkt entspricht am Tag der Herstellung den
gültigen EN 60825 und CDRH 21 CFR 1040 Normen für die
Lasersicherheit.
Es ist nicht notwendig, das Gerät wegen Betrieb oder
Installations-, und Wartungs-arbeiten zu öffnen.
10
Ed.: 06/01
SAFETY REGULATIONS
2
Jegliche Änderungen am Gerät sowie
Vorgehensweisen, die nicht in dieser
Betriebsanleitung beschreiben werden,
ACHTUNG
können ein gefährliches Laserlicht
verursachen.
Das Produkt benutzt eine Laserdiode. Obwohl zur Zeit
keine Augenschäden von kurzen Einstrahlungen bekannt
sind, sollten Sie es vermeiden für längere Zeit in den
Laserstrahl zu schauen, genauso wenig wie in starke
Lichtquellen (z.B. die Sonne). Vermeiden Sie es, den
Laserstrahl weder gegen die Augen eines Beobachters,
noch gegen reflektierende Oberflächen zu richten.
FRANÇAIS
Les informations suivantes sont fournies selon les règles
fixées par les autorités internationales et se refèrent à une
correcte utilisation du terminal.
NORMES DE SECURITE LASER
Ce produit est conforme aux normes de sécurité laser en
vigueur à sa date de fabrication: CDRH 21 CFR 1040 et EN
60825.
Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation,
l’utilisation ou l’entretien.
L'utilisation de procédures ou réglages
différents de ceux donnés ici peut
entrainer une dangereuse exposition à
ATTENTION
lumière laser visible.
Le produit utilise une diode laser. Aucun dommage aux
yeux humains n’a été constaté à la suite d’une exposition
au rayon laser. Eviter de regarder fixement le rayon, comme
toute autre source lumineuse intense telle que le soleil.
Eviter aussi de diriger le rayon vers les yeux d’un
observateur, même à travers des surfaces réfléchissantes
(miroirs, par example).
Ed.: 06/01
11
2
F732 WIZARD™
ESPAÑOL
Las informaciones siguientes son presentadas en
conformidad con las disposiciones de las autoridades
internacionales y se refieren al uso correcto del terminal.
NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER
Este aparato resulta conforme a las normativas vigentes de
seguridad láser a la fecha de producción: CDRH 21 CFR
1040 y EN 60825.
No es necesario abrir el aparato para la instalación, la
utilización o la manutención.
La utilización de procedimientos o
regulaciones diferentes de aquellas
describidas en la documentación puede
causar una exposición peligrosa a la luz
ATENCIÓN
láser visible.
El aparato utiliza un diodo láser a baja potencia. No son
notorios daños a los ojos humanos a consecuencia de una
exposición de corta duración. Eviten de mirar fijo el rayo
láser así como evitarían cualquiera otra fuente de
luminosidad intensa, por ejemplo el sol. Además, eviten de
dirigir el rayo láser hacia los ojos de un observador,
también a través de superficies reflectantes como los
espejos.
12
Ed.: 06/01
SAFETY REGULATIONS
2
2.3 FCC COMPLIANCE - INFORMATION FOR
THE USER
This device complies with PART 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
CAUTION
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
(2) this device must accept any
interference which may cause undesired
operation.
Ed.: 06/01
13
3
F732 WIZARD™
3 CONNECTION
3.1 CRADLE
To make the F732 terminal operative, it is necessary to
insert it in the Formula 952 Transceiver charger cradle
which has previously been connected to the power supply
and to a host computer with an available RS-232 serial line.
14
Ed.: 06/01
CONNECTION
The following figure describes the F952 cradle:
3
A
B
S/N 2019500252
Mod. F952
POWER
RS-232
+9V
PORT
C
Code n. 140901450
Datalogic SpA 99/10
D
Key:
A) Cradle on/off switch
B) Two color LED:
Continuous green = F732 terminal not inserted or
charge level being maintained
Continuous red = recharging taking place
C) RJ connector for connection to the host computer
D) Power jack
E) Cradle F952 identification label
The use of cradles other than those
expressly specified may damage the F732
CAUTION
Ed.: 06/01
terminal.
E
15
3
F732 WIZARD™
3.2 CONNECTION TO THE HOST COMPUTER
Before proceeding with this phase, make
sure that both the computer and the F732
terminal are switched off.
CAUTION
3.2.1 RS-232 Connection
To connect the F952 cradle to the host computer, proceed
as indicated below:
1- Connect the serial port of the host computer to cable
94A054000 for 9-pin connections or to cable
94A054010 for 25-pin connections;
2- Connect the other end of the same cable (RJ
connector) to the RS-232 port of the cradle (point C in
the previous figure);
3- Insert the power-supply plug into the jack on the base
of the cradle (point D in the previous figure);
4- Attach the power supply to a power outlet
5- Turn on the cradle (point A in the previous figure) and
the computer.
6- Put the F732 terminal into the cradle and, if necessary,
wait for battery recharging.
16
Ed.: 06/01
CONNECTION
A
B
94A054000
(
94A054010)
3
C
Key:
A) Host computer
B) Single cradle F952
C) Power supply
Ed.: 06/01
Power Supply
17
3
F732 WIZARD™
3.3 CONNECTION CABLES
Several types of cables are available depending on the type
of computer and connection.
The following cables are listed with their order number.
RS-232 Connection with PC/AT or compatible:
cable 94A054000 (included with terminal)
CRADLE sid e HOST/PC side
RJ
1
2
3
4
5
RS-232 Connection with PC/XT or compatible:
TX
RTS
GND
CTS
RX
cable 94A054010
CRADLE sid e HOST/PC side
RJ
1
2
3
4
5
TX
RTS
GND
CTS
RX
9-pin D-sub
(female)
2
8
5
7
3
4
1
25-pin D-sub
(female)
3
5
7
4
2
8
20
18
Ed.: 06/01
USE AND OPERATION
4
4 USE AND OPERATION
When an EasyGen™ application program is loaded onto
the F732 terminal (either a Demo example or an application
developed with EasyGen™ for Formula) to launch it, it is
necessary to extract the F732 terminal from the cradle and
press <SHIFT> and then the <UP ARROW> key.
If the barcode scanning function has been used in the
application, scanning is possible.
Ed.: 06/01
19
4
F732 WIZARD™
4.1 LOADING APPLICATION PROGRAMS
If you are using application programs for EasyGen™ (see
par. 1.2 or par. 1.3) refer to chapter 6 of the EasyGen™
User's Manual.
If you are using applications developed with DS for Formula
(see par. 1.3) refer to the "Tools" paragraph in the DS for
Formula Manual.
4.2 BAR CODE SCANNING
Point the F732 terminal laser beam at the code from an
appropriate distance and simultaneously press the <SCAN>
key. The beam emitted by the laser must completely cover
the barcode; the LED (and the acoustic signal, if activated)
will indicate if the scan was carried out correctly.
20
NOTE
NO
OK
NO
OK
Throughout the operation of the application,
the battery icon
, and the time icon will
always be activated, the latter in
accordance with the setting of the F732
terminal internal clock.
Ed.: 06/01
USE AND OPERATION
4
4.3 DESCRIPTION OF KEYS
Although EasyGen™ for Formula allows assigning
customized functions to function keys, there are some
standard functions common to all applications because they
are implemented in the interpreter software.
Refer to chapter 6 "EasyGen™
Interpreter Program" of the EasyGen™
User's Manual for more details about the
ATTENTION
NOTE
key functions.
Every time a key is pressed, the F732
terminal remains turned on for a maximum
of 20 seconds.
ARROW KEYS: only available for the
application when not in “Select or Data
Edit” mode.
Ed.: 06/01
SCAN KEY: activates the laser for
barcode scanning and turns on the
F732 terminal when it is off.
FUNCTION KEYS: keys <F1>, <F2>,
<F3> and <F4> are available for the
loaded application. Function F5
activates the “Select” mode and only
in this mode you can use F6, F7 and
F8 functions:
<SHIFT> followed by <F1> = F5
“Select” mode
<SHIFT> followed by <F2> = F6
Data search
<SHIFT> followed by <F3> = F7
Deletion
<SHIFT> followed by <F4> = F8
Data display
21
4
F732 WIZARD™
ESC KEY: used in the “Data display”
mode.
SHIFT KEY: Enables the entry of
alphabetical characters (written in
white on the keyboard) when followed
by the pressing of a numeric key: for
example if you want to enter the
alphabetical character “A”, you have to
press <SHIFT>+<7>.
The number of times the SHIFT key is
pressed determines the choice of
alphabetical character: for example if
you want to enter the alphabetical
character “N”, you have to press
<SHIFT>+<SHIFT>+<5>, if you want
to enter the alphabetical character “X”,
you have to press
<SHIFT>+<SHIFT>+<SHIFT>+<2>
and so on.
The fourth time the SHIFT key is
pressed, the SHIFT function is
disabled. The SHIFT function can also
be disabled by waiting for a time-out of
2 seconds after being pressed.
22
By pressing the <SHIFT> key followed
by the <RIGHT ARROW> key, the
graphic display’s contrast increases to
the allowed maximum, and then
returns to 0 value.
NUMERIC KEYS: allow the entry and
display of the main numeric symbol. If
the <SHIFT> has first been pressed,
the choice of alternative alphabetic
characters will be activated.
Ed.: 06/01
USE AND OPERATION
4
BACKSPACE KEY: deletes the last
character entered.
SPACE KEY: allows the introduction of
a blank space. If the <SHIFT> has
been pressed previously, the choice of
alternative characters will be activated.
ENTER KEY: allows validation of what
has been typed.
SHIELDED RESET
KEY: it is activated by
inserting a blunt object
in the slot while
simultaneously
pressing the <SCAN>
key.
Ed.: 06/01
23
4
F732 WIZARD™
4.4 DOWNLOADING DATA TO HOST
Data can be downloaded from the terminal to the host PC in
different ways, depending on the application loaded:
− automatically, by simply inserting the terminal into the
cradle;
− by direct operator intervention on the terminal or host
computer;
S
C
A
N
E
2
S
C
F
F
1
S
H
F
4
3
F
T
F
I
9
8
7
D
F
A
G
B
C
E
H
I
6
5
4
K
L
M
J
P
Q
N
R
O
3
2
1
S
T
U
V
W
*
X
Y
Z
E
¥
0
N
:
%
?
$
;
,
T
E
P
S
B
S
R
24
Ed.: 06/01
MAINTENANCE
5 MAINTENANCE
Rechargeable battery packs (NiCd) are not
initially charged. Therefore the first
operation to perform is to charge them in
the appropriate cradle. See chapter 3 and
NOTE
the following paragraph "Charging the
Batteries".
5
5.1 CHARGING THE BATTERIES
Battery charge life depends on many variables but, under
normal conditions, autonomy is more than enough for a
day’s work.
Information on the battery-charge status is provided by the
dedicated icon on the display
by the icon is valid only when the F732 terminal is not
inserted in the cradle.
Four different charge levels are given from a maximum
value (all the icon segments full) to a minimum one which
warns of pre-low-battery (icon empty and intermittently
flashing).
Ed.: 06/01
. The information provided
25
5
F732 WIZARD™
Recharging should be made after using the terminal until
the batteries are nearly flat.
When the F732 terminal display window
shows the message "BATTERY LOW",
wait until the F732 terminal is turned off
ATTENTION
before inserting it in the cradle.
Recharge the terminal by
simply inserting it into its
cradle; Datalogic S.p.A.
recommends a minimum
uninterrupted recharging
time of eight hours.
When batteries are new, or
have not been recharged
for a long time, it is
necessary to perform two or
three charge and discharge
cycles (with complete use)
before the batteries are able
to reach their maximum
capacity.
NOTE
ATTENTION
26
While the batteries are recharging, the color
of the LED on the cradle changes from red to
green. This switching takes place when 7080% of the complete charge is reached.
If the terminal remains inactive for a
prolonged period such as two weeks, it
is advisable to download all the stored
data onto a computer and extract the
battery pack.
Ed.: 06/01
MAINTENANCE
5.2 REPLACING THE BATTERIES
Before proceeding, ensure that the
terminal is switched off and that the data
it contains has been downloaded onto
ATTENTION
To replace the batteries correctly, proceed as follows.
1- Turn over the F732
terminal and remove
the two battery cover
screws.
the host computer.
5
2- Lift the battery cover as
shown in the figure and
extract the old battery
pack.
Ed.: 06/01
27
5
F732 WIZARD™
3- Replace the battery
pack, making sure the
batteries are inserted in
the right direction as
indicated on the cover.
4- Close the battery cover and tighten the screws.
Dispose of used batteries in accordance
with the relevant laws in force.
NOTE
5.3 CLEANING THE TERMINAL
Clean the terminal from time to time with a slightly damp
cloth.
Do not use alcohol, corrosive products or solvents.
28
Ed.: 06/01
TROUBLESHOOTING
6 TROUBLESHOOTING
PROBLEM CAUSE REMEDY
When the
<SCAN> button
is pressed the
terminal does not
come on.
When the
<SCAN> button
is pressed, the
terminal display s
the message
BATTERY LOW
switches itself off.
The terminal will
not load the
application
program.
Flat batteries. Recharge
Batteries
completely flat or
broken.
Flat batteries. Recharge
Batteries
completely flat or
and
broken.
There is no power
supply to the
cradle.
The serial cable is
not correctly
connected.
terminal.
Replace
batteries.
terminal.
Replace
batteries.
Connect the
power supply and
switch on the
cradle.
Check the
connection to the
cradle and the
serial port of the
computer.
6
Ed.: 06/01
29
6
F732 WIZARD™
PROBLEM CAUSE REMEDY
The terminal will
not load the
application
program.
The terminal
displays an error
message
CODE
FAULT
.
The terminal
already contains
an application
program.
The application
loaded is not
suitable for the
terminal in use.
The terminal
displays the
message
CODE P21C
FAULT
…
Other faults. The
terminal displays
an error message
other than
CODE P21C
FAULT
…
Follow
instructions to
cancel the
application.
Load the correct
application
program.
Contact your
Datalogic
representative for
technical
assistance.
30
Ed.: 06/01
TECHNICAL FEATURES
7 TECHNICAL FEATURES
Optical
Light source laser scanner, VLD source,
670 nm
Scan rate 36 ± 3 scan/sec
Minimum resolution 0.15 mm (5.90 mils)
Skew angle ± 65°
Pitch angle ± 55°
Depth of field 3 to 70 cm (1.18 to 27.55 in)
(depends on code density)
Electrical
Micro-controller 8 bits CMOS
8 KB bootstrap-loader PROM
Program memory 64 KB Flash-memory
Data RAM 128 KB SRAM
EEPROM 256 Bytes
Calendar/clock quartz RTC, programmable date
and time with automatic handling
of leap years
Power supply 4 Nickel/Cadmium 250 mA/h
batteries
Battery charger Formula 952
7
Ed.: 06/01
31
7
F732 WIZARD™
Physical
Technology SM T (S u rfa c e Mounting Technology)
Dimensions (LxWxH) 165 x 56 x 32 mm
(6.49 x 2.20 x 1.26 in)
Weight 184 gr. (6.49 oz.)
Buzzer piezoelectric, programmable in
frequency and duration
LED red/green LED
Display high contrast, LCD graphic display
with 97 x 32 matrix
Keyboard 25 silicone rubber keys, reset button
Environmental
Working temperature 0 °C to +50 °C (32 °F to +122 °F)
Storage temperature -20 °C to +70 °C (-4 °F to +158 °F)
Relative humidity 95% without condensation
Degree of protection protected from dust and sprinkled
water
Electrostatic charges IEC 801-2 up to 15 KV on air
Drop resistance IEC 68-2-32 up to 1 m (39 in) onto
concrete
Laser safety EN 60825 class 2 laser product
Programming
Bar codes decoded Standard 3/9
Interleaved 2/5
UPC - EAN
Codabar (NW7) - Monarch (2/7)
UPC only
UPC/EAN + Addon 2
UPC/EAN + Addon 5
Extended 3/9
Italian pharmaceutical
UPC - E only
UPC 8 only
UPC - A & EAN 13 only
PAKO
Code 128
EAN 128
Industrial 2/5
Matrix 2/5
∆ A IBM
MSI
Zellweger
Code 93
ITF 14
32
Ed.: 06/01
TECHNICAL FEATURES
Programming
Operating modes bootstrap loader application
program
Transmission
F952 interface via optical transceiver with serial
protocol
Cradle-Host interface RS-232
Transmission speed 300 to 19200 bit/sec
Transmission protocol program-definable
Transmission modes full-duplex
Parity mark, space, odd, even
7
Ed.: 06/01
33
A
A F732 PRODUCTS AND
ACCESSORIES
Formula 732 Terminals
− Formula 732 Pocket Laser Terminal
Hand-held programmable laser micro-terminal.
F732 WIZARD™
Cradles
− Formula 952 Transceiver charger
Battery charger and optical transceiver for connections
between terminal and host computer in RS-232.
Rubber Protection Cover
Development Tools
− EasyGen™: software for producing applications to
manage Formula terminals.
− DS for Formula + CA51 "C" Compiler
34
Ed.: 06/01
DATALOGIC S.p.A.,
Via Candini, 2
40012 - Lippo di Calderara
dichiara che
declares that the
déclare que le
bescheinigt, daß das Gerät
declare que el
F732, Wizard Laser Terminal
sono conformi alle Direttive del Consiglio Europeo sottoelencate:
are in conformity with the requirements of the European Council Directives listed below:
sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous:
den nachstehenden angeführten Direktiven des Europäischen Rats:
cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:
89/336/EEC EMC Directive e 92/31/EEC, 93/68/EEC emendamenti successivi
Bologna - Italy
e tutti i suoi modelli
and all its models
et tous ses modèles
und seine modelle
y todos sus modelos
and further amendments
et ses successifs amendements
und späteren Abänderungen
y succesivas enmiendas
73/23/EEC Low Voltage Directive
Basate sulle legislazioni degli Stati membri in relazione alla compatibilità elettromagnetica
ed alla sicurezza dei prodotti.
On the approximation of the laws of Member States relating to electromagnetic
compatibility and product safety.
Basées sur la législation des Etates membres relative à la compatibilité
électromagnétique et à la sécurité des produits.
Über die Annäherung der Gesetze der Mitgliedsstaaten in bezug auf elektromagnetische
Verträglichkeit und Produktsicherheit entsprechen.
Basado en la aproximación de las leyes de los Países Miembros respecto a la
compatibilidad electromagnética y las Medidas de seguridad relativas al producto.
Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:
This declaration is based upon compliance of the products to the following standards:
Cette déclaration repose sur la conformité des produits aux normes suivantes:
Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:
Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:
EN 55022, August 1994:L
EN 55024, September 1998:I
EN 60825, March 1993:R
IMITS AND METHODS O F M EASURE MENT S OF RADI O
DISTURBANCE CHARACTERISTICS OF INFORMATION
TECHNOLOGY EQUIPM E NT
NFORMATION TECHNO LOGY EQUIPMENT, IMMUNITY
CHARACTERISTICS
MEASUREMENTS
ADIATION SAFETY OF LASER PRODUCTS
EQUIPMENT CLASSIFICATION, REQUIREMENTS AND
S GUIDE
USER
'
(ITE)
IMITS AND METHODS OF
. L
Lippo di Calderara, 11.05.2001
Ruggero Cacioppo
,
Quality Assurance Supervisor
Loading...
