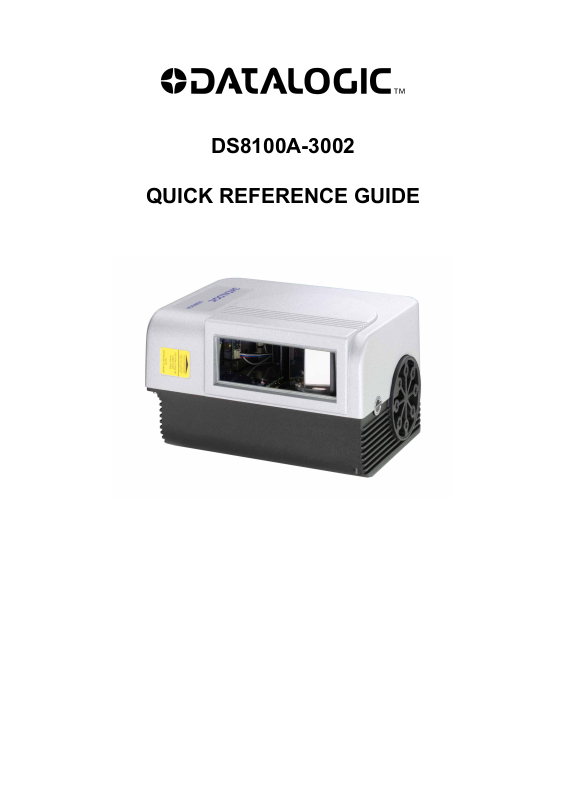

DS8100A-3002
QUICK REFERENCE GUIDE
General View:
DS8100A-3002 QUICK GUIDE
DS8100A-3002
1
1
Figure A
Laser Beam Output Window
1
2 3
Programming Keypad
1
Power On LED (Green)
2
Phase On LED (Yellow)
3
Encoder LED (Yellow)
4
1
Lonworks 17-pin Male Connector
1
Lonworks 17-pin Female Connector
2
4 5 6
Figure B
Figure C
TX Data LED (Green)
5
Network LED (Red)
6
LCD Display
7
7
2
2
NOTE
For further details on product installation, see the complete Reference Manual available on the
configuration CD-ROM included with this product.
DS8100A-3002 QUICK GUIDE
Technical Features:
ELECTRICAL FEATURES
Supply Voltage 20 - 30 Vdc
Power Consumption 1.0 to 0.67 A; 20 W typical
1.5 to 1.0 A; 30 W Max. (including startup current)
Communication Interfaces
RS232 1200 to 115200
Lonworks 1.25 Mb/s
OPTICAL FEATURES
Light Receiver Avalanche photodiode
Safety Class 630 to 680 nm
Wavelength Class 2-EN 60825-1; Class II-CDRH
Laser Control Security system to turn laser off in case of motor slow down
READING FEATURES
Scan Rate ≤ 1000 scans/s
Max. Resolution
Max. Read. Distance
Max. Read. Width
Max. Depth of Field
USER INTERFACE
LCD Display 2 lines by 20 characters LCD
Keypad 3 keys
LED Indicators Power ON (green)
Phase ON (yellow)
Encoder (yellow)
TX Data (green)
Network (red)
SOFTWARE FEATURES
Operating Modes PackTrack™
Config. Mode Genius™ utility program
Parameter Storage Non-volatile internal FLASH
Readable Codes Interleaved 2/5
Code 39 standard
Codabar
Code 128
EAN 128
Code 93 (standard & full ASCII)
EAN/UPC
Code Selection Up to 10 codes during one reading phase
ENVIRONMENTAL FEATURES
Operating Temperature 0° to +50 °C (+32 to +122 °F)
Storage Temperature 20° to +70 °C (-4° to +158 °F)
Humidity -90% non condensing
Vibration Resistance:
EN 60068-2-6
Shock Resistance:
EN 60068-2-27
Protection Class
EN 60529
PHYSICAL FEATURES
Dimensions mm (inch) 217 x 173 x 127 (8.54 x 6.79 x 4.98)
Weight 5 Kg (11 lbs.)
* IP65 cables and connectors required (CAB-850x or BTK-8500).
Auxiliary Baud Rate
Other
14 mm @ 2 to 10 Hz; 1.5 mm @ 13 to 55 Hz
2 g @ 70 to 200 Hz; 2 hours on each axis
30 g; 11 ms
3 shocks on each axis
IP65*
(see reading diagrams)
3
DS8100A-3002 QUICK GUIDE
Accessories:
NAME Description Part Number
PWO-480 Power and Connect System 480W 93ACC1767
FS-1 Frame Shaper (8 pcs) 93ACC1750
FBK-8100 Fast Bracket Kit (2 pcs) 93ACC1130
US-8100 Bracket Kit (10 pcs) 93ACC1140
GFC-80 90 Degree Mirror 93A251020
GFC-800 90 Degree Close Distance Mirror 93A201103
S30 Photocell Kit 93ACC1782
PH-1 Photocell Kit - PNP 93ACC1791
MEP-543 Photocell Kit - NPN 93ACC1728
OEK-2 Optical Encoder Kit (10 m cable + spring) 93ACC1770
OEK-1 Optical Encoder Kit + 10 m cable 93ACC1600
BTK-8100 Bus Terminator Kit (5 pcs) 93ACC1090
BTK-8500 IP65 Terminator Kit (2 pcs) 93A051286
PLL-8000 Optocoupled PLL device 93ACC1280
CAB-8100 10 wire shielded cable D 9.5 mm – 50 m 93ACC1120
CAB-8101 17-pin scanner/scanner connection cable 1.2 m 93A051020
CAB-8102 17-pin scanner/scanner connection cable 2.5 m 93A051030
CAB-8105 17-pin scanner/scanner connection cable 5 m 93A051040
CAB-8501 IP65 Cable Fam 8K 1,2 m 93A051283
CAB-8502 IP65 Cable Fam 8K 2,5 m 93A051284
CAB-8505 IP65 Cable Fam 8K 5 m 93A051285
Datalogic WebSentinel-005 Supervisor (up to 5 arrays) 93A101014
Datalogic WebSentinel-010 Supervisor (up to 10 arrays) 93A101015
Datalogic WebSentinel-020 Supervisor (up to 20 arrays) 93A101016
Datalogic WebSentinel-032 Supervisor (up to 32 arrays) 93A101017
Datalogic WebSentinel-064 Supervisor (up to 64 arrays) 93A101018
Datalogic WebSentinel-128 Supervisor (up to 128 arrays) 93A101019
Datalogic WebSentinel-256 Supervisor (up to 256 arrays) 93A101020
Electrical Connections:
Two 17-pin connectors provide access to the scanner’s local Lonworks network used for both input and output
connections to build a multi-sided or omni-station system.
17-pin Lonworks Connector Pinout
Pin Name
A1 GND Supply voltage (negative pin)
A2 VS Supply voltage 20 to 30 Vdc (positive pin)
1 CHASSIS
2 n.c. Not connected
3 CHASSIS
4 TXAUX
5 SGND Signal ground (connected to GND)
6 RXAUX
7 VS_I/O Supply voltage of I/O circuit
8 Lon A+ Lonworks a line (positive pin)
9 Lon A- Lonworks a line (negative pin)
10 Lon B+ Lonworks b line (positive pin)
11 Lon B- Lonworks b line (negative pin)
12 SYS_I/O System signal
13 SYS_ENC_I/O System signal
14 Reserved Internally connected
15 Ref_I/O Reference voltage of I/O circuit
Function
Cable shield A - internally connected by
capacitor to chassis
Cable shield B - internally connected by
capacitor to chassis
Transmit data of auxiliary RS232
(referred to SGND)
Receive data of auxiliary RS232
(referred to SGND)
1
A1
Male - Input
15
A1
1
Female - Output
17-pin Local Lonworks Connectors
A2
15
A2
4
Connectivity:
Host
HUB
DS8100A-3002 QUICK GUIDE
ETHERNET
SC6000
CAB-SC6003
Extended I/O
CAB-850x
CAB-850x
CAB-850x
DX8200A-3002
DS8100A-3002
DX8200A-3002
CAB-850x
up to 4
scanners per
branch
AUX
DS8100A-3002
CAB-SC6103
Cable
Power/Net
CAB-SC6013
LONWORKS
CAB-850x
up to 3
scanners
per
branch
VAC INPUT
BTK8500
Bus Return
DX8200A-3002
CAB-850x
DS8100A-3002
PWO
ENCODER
PS
PS Aux
BTK8500
Bus Return
CAB-850x
DS8100A-3002
DS8100A-3002 Typical Layout
Conveyor
SC6000
5
DS8100A-3002 QUICK GUIDE
to Host
ETHERNET
Working
Controller
SC6000
DX8200A-3002
CAB-SC6003
Extended I/O
CAB-850x
CAB-850x
DX8200A-3002
AUX
LONWORKS
CAB-SC6103
Power/Net
CAB-SC6013
CAB-850x
DS8100A-3002
Redundancy
CAB-PWO 03
VAC INPUT
CAB-850x
DS8100A-3002
PWO
ENCODER
PS
PS Aux
BTK8500
to Host
ETHERNET
SC6000
Power/Net
CAB-SC6013
CAB-SC6003
Extended I/O
VAC INPUT
PWO
Protecting
Controller
CAB-850x
LONWORKS
CAB-850x
CAB-850x
CAB-850x
ENCODER
PS
PS Aux
BTK8500
DX8200A-3002
Example of Redundant System Layout
DX8200A-3002
DS8100A-3002 DS8100A-3002
6
DS8100A-3002 QUICK GUIDE
Example of Redundant System
7
DS8100A-3002 QUICK GUIDE
Mechanical Installation:
DS8100A-3002 can be installed to operate in any position. There are 16 screw holes (M6 X 8) on the sides of the
scanner for mounting. The following diagrams give the overall dimensions of the reader standard model and
mounting bracket. They may be used for their installation:
127
[4.98]
173
[6.79]
M6 N°16
68
217
[8.54]
47
4
[1.84]
[2.66]
50
[1.97]
5
°
164
[6.45]
R 15
[0.59]
164
[6.45]
R 15 N°4
[0.59]
5
[0.19]
100
[3.93]
30
[1.18]
16
[0.63]
48
[1.88]
47
WARNING
68
[2.66]
4
5
°
80
[3.15]
[0.33]
8.5 N°4
45
[1.77]
mm
[1.84]
50
[1.97]
inch
100
[3.93]
15
[0.59]
17.5
[0.68]
DS8100A-3002 Overall Dimensions ST-163 Mounting Bracket Overall Dimensions
When installing several scanners, take care to position them correctly so that no laser beam
enters the reading window perpendicularly and at the same level of the output beam of the
other scanners. This condition could occur more frequently for side mounted applications. If
these precautions are not followed, it may occur that the laser of the blinded scanner starts
blinking due to an internal circuit which temporarily turns the laser off when detecting a power
anomaly. To resolve this problem, it is sufficient to slightly change the inclination and position
of one of the two scanners involved.
mm
mm
inch
inch
8
Reading Diagrams:
Note: (0,0) is the center of the laser beam output window.
DS8100A-3002 – 0.50 mm/20 mils
015 32
0
60
50
40
30
20
10
0
-10
-20
-30
-40
-50
-60
(cm)
CONDITIONS
Code = Interleaved 2/5 or Code 39
PCS = 0.90
“Pitch“ angle = 0°
“Skew“ angle = 10°
“Tilt“ angle = 0°
24
20
16
12
8
4
0
-4
-8
-12
-16
-20
-24
(in)
DS8100A-3002 QUICK GUIDE
(in)
24 40
40
60
100 120 140
80
48 56
64
160
(cm)
Safety Precautions:
3
2
1
Figure A
Laser Safety Label
1
Warning and Device Class Label
2
Identification Label
3
The scanner is classified as a Class 2 laser product according to EN60825-1 regulations and as a Class II laser
product according to CDRH regulations.
Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to
hazardous laser light.
There is a safety device, which allows the laser to be switched on only if the motor is rotating above the threshold
for its correct scanning speed.
9
DS8100A-3002 QUICK GUIDE
The laser beam can be switched off through a software command (see also the Genius™ Help On-Line).
AVOID EXPOSURE
LASER LIGHT IS EMITTED
FROM THIS APERTURE
CAUTION-CLASS 3B
LASER LIGHT
WHEN OPEN
AVOID
EXPOSURE TO BEAM
AVOID EXPOSURE
LASER RADIATION IS EMITTED FROM THIS APERTURE
Laser Safety Label
LASER LIGHT
DO NOT STARE INT O BEAM
CLASS 2 LASER PRODUCT
MAXIMUM OUTPUT RADIATION 1 mW
EMITTED WAVELENGTH 630~680 nm
TO EN 60825-1:2001
Warning and Device Class Label Device Identification Label
DATALOGIC S.P.A. Via Candini, 2
40012 Calderara di Reno - Bologna - Ital y
Manufactured Volt
Model No. Amp.
Serial N o.
This product conforms to the applicable requirements
of 21CFR1040 at the date of manufacture.
The laser diodes used in this device are classified as Class 3B laser products according to EN 60825-1
regulations and as Class IIIb laser products according to CDRH regulations. Any violation of the optic parts in
particular can cause radiation up to the maximum level of the laser diode (30 mW at 630~680 nm).
Power Supply
This product is intended to be installed by Qualified Personnel only.
This scanner is intended to be supplied by either a UL Listed power supply marked 'Class 2' or 'LPS', output rated
20 - 30 V dc, minimum 1.5 A or by a UL Listed computer with LPS outputs.
DS8100A-3002 must be supplied by a Class II Power Supply Unit conforming to the EN 60950 safety regulation.
Patents:
This product is covered by one or more of the following patents.
U.S. patents: Re. 36,251; 5,483,051; 5,992,740; 6,177,979 B1; 6,347,740 B1; 6,394,352 B1; 6,443,360 B1;
6,527,184 B1; 6,629,639 B2; 6,688,524 B1; 6,742,710 B2; 7,161,685 B1; 5,028,772; 5,124,538; 5,466,921;
5,548,107; 6,206,289 B1; 6,669,091 B2; 7,000,838 B2.
European patents: 652,530 B1; 789,315 B1; 851,376 B1; 926,615 B1; 959,426 B9; 1,363,228 B1.
Japanese patents: 3,793,585; 4,033,958.
Additional patents pending.
10
DECLARATION OF CONFORMITY
Datalogic Automation S.r.l.
Via S. Vitalino 13
40012 - Lippo di Calderara
dichiara che
declares that the
déclare que le
bescheinigt, daß das Gerät
declare que el
DS8100A-XXXX Laser Scanner e tutti i suoi modelli
and all its models
et tous ses modèles
und seine Modelle
y todos sus modelos
sono conformi alle Direttive del Consiglio Europeo sottoelencate:
are in conformity with the requirements of the European Council Directives listed below:
sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous:
der nachstehend angeführten Direktiven des Europäischen Rats:
cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:
89/336/EEC EMC Directive e 92/31/EEC, 93/68/EEC emendamenti successivi
and further amendments
et ses successifs amendements
und späteren Abänderungen
y succesivas enmiendas
2006/95/EC Low Voltage Directive
Basate sulle legislazioni degli Stati membri in relazione alla compatibilità elettromagnetica ed alla sicurezza dei prodotti.
On the approximation of the laws of Member States relating to electromagnetic compatibility and product safety.
Basée sur la législation des Etats membres relative à la compatibilité électromagnétique et à la sécurité des produits.
Über die Annäherung der Gesetze der Mitgliedsstaaten in bezug auf elektromagnetische Verträglichkeit und Produktsicherheit
entsprechen.
Basado en la aproximación de las leyes de los Países Miembros respecto a la compatibilidad electromagnética y las Medidas
de seguridad relativas al producto.
Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:
This declaration is based upon compliance of the products to the following standards:
Cette déclaration repose sur la conformité des produits aux normes suivantes:
Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:
Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:
EN 55022 (Class A ITE), September 1998:
EN 61000-6-2, September 2005: ELECTROMAGNETIC COMPATIBILITY (EMC)
EN 60950-1, December 2001:
EN 60950-1/A11, April 2004
EN 60825-1, March 1994:
EN 60825-1/A1, July 1996
EN 60825-1/A2, March 2001:
:
:
Lippo di Calderara, January 29th, 2008 Lorenzo Girotti
Bologna - Italy
INFORMATION TECHNOLOGY EQUIPMENT
RADIO DISTURBANCE CHARACTERISTICS
LIMITS AND METHODS OF MEASUREMENTS
P
ART 6-2: GENERIC STANDARDS - IMMUNITY FOR INDUSTRIAL ENVIRONMENTS
INFORMATION TECHNOLOGY EQUIPMENT - SAFETY -
PART 1 : GENERAL REQUIREMENTS
SAFETY OF LASER PRODUCTS -
PART 1 : EQUIPMENT CLASSIFICATION, REQUIREMENTS AND USER'S GUIDE
Product & Process Quality Manager
08
821001262 (Rev. B)
Loading...
