DS2400
INSTALLATION MANUAL
We
Datalogic S.p.A.
Via Candini, 2
40012 - Lippo di Calderara
Bologna - Italy
declare under our sole responsibility that the product
DS2400-XXXX, Laser Scanner and all its models
to which this declaration relat es is i n conform ity with the f ollowing standards or other norm ative
documents
IMITS AND METHODS OF MEASUREMENTS OF RADIO DISTURBANCE
EN 55022, August 1994
:L
CHARACTERISTICS OF INFORMATION TECHNOLOGY EQUIPMENT
(ITE)
EN 50082-2, March 1995
LECTROMAGNETIC COMPATIBILITY
:E
ART
NDUSTRIAL ENVIRONMENT
2: I
P
ENERIC IMMUNITY STANDARD
. G
Following the provision of the Directi ve(s):
89/336 CEE
AND SUCCESSIVE AMENDMENTS
, 92/31 CEE; 93/68 CEE
Ruggero Cacioppo
Lippo di Calderara, 09.11.1999
Quality Assurance Supervisor
Product names m entioned herein are for identification purposes only and may be trademarks
and or registered trademarks of their respective com pani es.
Datalogic reserves the right to make modifications and improvement s without prior notification.
© 1999 Datalogic S.p.A.
821000420
.
CONTENTS
GUIDE TO INSTALLATION
General View.....................................................................................vi
SAFETY PRECAUTIONS
Laser Safety...................................................................................... vii
Standard Regulations....................................................................... vii
Power Supply....................................................................................viii
1 GENERAL FEATURES
1.1 Introduction......................................................................................1.1
1.2 Description.......................................................................................1.1
1.3 Available Models..............................................................................1.3
1.4 GFC-2100 Accessory Installation....................................................1.4
2 INSTALLATION
2.1 Package Contents ...........................................................................2.1
2.2 Mechanical Installation ....................................................................2.2
2.3 Junction Box Installation..................................................................2.3
2.3.1 Junction Box Mounting ....................................................................2.3
2.3.2 Junction Box Electrical Connections................................................2.5
2.4 Electrical Connections.....................................................................2.8
2.4.1 Power Supply...................................................................................2.9
2.4.2 Main Serial Interface........................................................................2.9
RS232 Interface.............................................................................2.10
RS485 Full-duplex Interface..........................................................2.11
RS485 Half-duplex Interface .........................................................2.12
20 mA Current Loop Interface (INT-22 Accessory Only)...............2.13
2.4.3 Auxiliary RS232 Interface..............................................................2.14
2.4.4 Inputs.............................................................................................2.15
2.4.5 Outputs..........................................................................................2.17
2.5 Positioning.....................................................................................2.17
2.6 Typical Layouts..............................................................................2.19
2.6.1 Point-to-Point.................................................................................2.19
2.6.2 Pass Through ................................................................................2.20
2.6.3 RS232 Master/Slave......................................................................2.21
2.6.4 RS485 Master/Slave......................................................................2.22
2.6.5 Multiplexer .....................................................................................2.23
..............................................................................2.1
...............................................................v
................................................................ vii
...................................................................1.1
iii
3 READING FEATURES
....................................................................3.1
3.1 Step-Ladder Mode...........................................................................3.1
3.2 Picket-Fence Mode..........................................................................3.2
3.3 Performance....................................................................................3.3
3.3.1 Raster..............................................................................................3.3
3.4 Reading Diagrams...........................................................................3.4
4 MAINTENANCE
..............................................................................4.1
4.1 Cleaning...........................................................................................4.1
5 TECHNICAL FEATURES
................................................................5.1
iv
GUIDE TO INSTALLATION
The following can be used as a checklist to verify all of the steps neces sary
for complete installation of the DS2400 scanner.
1) Read all information in the section "Safety Precautions” at the beginning
of this manual.
2) Correctly position and mount the sc anner for barcode reading according
to the information in par. 2.2, 2.5 and 3.4.
3) Provide correct system cabling according to the signals necessary for
your application (see all sub-paragraphs under 2.3 and 2.4). See also
sub-paragraphs under 2.6 for reference.
4) Install the Configuration Disk.
Upon successful completion of the installation, the readme.hlp file is
opened, giving details about how to get started configuring your scanner.
See also the Guide To Rapid Configuration link.
Specific parameter details are available in the Help On Line.
NOTE
Fine tuning of the scanner position for
barcode reading can be accomplished using
the Test Mode as described in WinHost.
The installation is now complete.
v
DS2400
General View
1
2
8
3
4
7
5
6
Figure A
Power ON \ Data Tx LED
1
External Trigger LED
2
Good Read LED
3
Laser ON LED
4
vi
Warning and Device Class Labels
5
Laser Beam Output Window
6
Accessory Mounting Holes
7
Mounting Holes
8
SAFETY PRECAUTIONS
LASER SAFETY
The following information is provided to comply with the rules imposed by
international authorities and refers to the correct use of the DS2400 scanner.
Standard Regulations
This scanner utilizes a low-power laser diode. Although staring direc tly at the
laser beam mom entarily causes no known biological damage, avoid star ing
at the beam as one would with any very strong light source, such as the sun.
Avoid that the laser beam hits the eye of an observer, even through reflective
surfaces such as mirrors, etc.
This product conforms to the applicable requirements of both IEC 825-1 and
CDRH 21 CFR 1040 at the date of manufacture. T he s canner is c lass ified as
a Class 2 laser product according to IEC 825- 1 regulations and as a Clas s II
laser product according to CDRH regulations.
There is a safety device which allows the laser to be s witched on only if the
motor is rotating above the threshold for its correct scanning speed.
The laser beam can be s witched off through a software c ommand ( see also
«Beam Shutter»
in the WinHost Help On Line).
WARNING
Use of controls or adjustm ents or performance of
procedures other than those spec ified herein may
result in exposure to hazardous visible laser light.
The laser light is visible to the hum an eye and is emitted fr om the window on
6
the front of the scanner (Figure A,
).
vii
War ning labels indicating ex posure to las er light and the device class ific ation
are applied onto the body of the
5
scanner (Figure A,
).
LISTED
ACCESSORY
45AF
R
I.T.E.
This product conforms to the applicable
requirements of 21CFR1040 at the
R
date of manufacture.
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
MAX. OUTP UT RADIAT I ON 1 mW
EMITTED WAVE LENGTH 6 30~ 680 nm
TO IEC 825-1 (1993)
CAUTION - LASER LIGHT WHEN OPEN
AVOID EXPOSURE TO BEAM
Warning and device class labels
Disconnect the power supply when opening the
device during maintenance or installation to avoid
exposure to hazardous laser light.
The laser diode used in this device is
classified as a class 3B laser product
according to IEC 825-1 regulations and as
a Class IIIb laser product according to
CDRH regulations. As it is not possible to
LASER LIGHT
AVOID EXPOSURE TO BEAM
CLASS 3B LASER PRODUCT
MAX. OUTPUT RADIATION 7 mW
EMITTED WAVE LENGTH 630~680 nm
TO IEC 825-1 (1993)
apply a classification label on the laser
diode used in this device, the following
label is reproduced on the right.
Laser diode class label
Any violation of the optic parts in particular can cause radiation up to the
maximum level of the laser diode (7 mW at 630 to 680 nm).
POWER SUPPLY
- This product is intended to be installed by Qualified Personnel only.
- Models DS2400-XXX0:
This accessor y device is intended to be supplied by a UL Listed Power Unit
with «Class 2» or LPS power source which supplies power directly to the
scanner via the 25-pin connector.
- Model DS2400-XXX1:
This accessor y device is intended to be supplied via the Junc tion Box by an
NEC Class 2 Power Source rated 10-30 V, minimum 0.55 A.
viii
DATALOGIC DS2400
g
g
g
g
g
g
g
g
g
g
g
1 GENERAL FEATURES
1.1 INTRODUCTION
The DS2400 laser scanner satisfies the most advanced needs of a wide
range of users. It has been developed foc using on the realistic requirem ents
of its target market. T he outstanding result is an extremely compact, costeffective and easy to use industrial scanner.
The DS2400 belon
scanners that operate under the 'C' pro
environment, which is a recognized industry standard.
A standard application pro
the DS2400. This pro
serial port interfacin
operating and control parameters.
It is completely confi
h the WinHost utility program provided on
throu
diskette with the scanner, or throu
via the serial interface.
If the Standard Application Pro
requirements, please contact your local Datalo
distributor.
s to the generation of Datalogic
rammin
ram is factory-loaded onto
ram controls barcode reading,
, data formatting and many other
urable from a host computer
h ESC sequences
ram doesn’t meet your
1.2 DESCRIPTION
Some of the main features of DS2400 are listed below:
•
small dimensions and light weight.
•
software programm able scanning speed (400 to 1000 scans/sec) on all
models.
ic
•
linear and raster versions.
•
connector and junction box versions.
General Features -
1.1
DS2400 DATALOGIC
•
completely configurable via serial interface (WinHost).
•
2 serial communication interfaces.
•
supply voltage from 10 to 30 Vdc.
•
reads all popular codes.
•
test mode to verify the reading features and exact positioning of the
scanner without the need for external tools.
•
programmable in 4 different operating modes to suit the most various
barcode reading system requirements.
•
code verifier.
The DS2400 uses a solid state laser diode as a light s our c e; the light emitted
has a wavelength between 630 and 680 nm. Refer to the section “Safety
precautions” at the beginning of this manual for information on laser safety.
The protection class of the enc losure is IP65, the r eader is ther efor e suitable
for industrial environments where high protection against harsh external
conditions is required.
The four LEDs on the side of the scanner indicate the following:
PWR/TXD
LED (red) (Figure A,
1
) indicates the reader is connected
to the power supply or, when blinking (green), data
transmission.
GOOD READ
LED (red) (Figure A,
3
) is used to signal the possibility of a
successful barcode reading.
EXT TRIG
LED (yellow) (Figure A,
2
) indicates external trigger
activity. Refer to par. 2.4.4.
LASER ON
LED (green) (Figure A,
4
) indicates laser ON state.
The screw holes on the body of the reader are for m echanical f ixture (Figur e
8
).
A,
General Features
1.2 -
DATALOGIC DS2400
1.3 AVAILABLE MODELS
The DS2400 scanner is available in versions that differ in regard to the
following parameters:
•
Reading range
•
Serial interfaces
•
Linear or raster reading
•
Connections
The following models are therefore available:
DS2400 - X X X X
Reading Ran ge
1 = Medium range
2 = Long range
Serial Commu n ication Interface
0 = RS232 main + RS232 aux
1 = RS485 main + RS232 aux
The following tables display each version’s reading performance.
Connections
0 = Connector
1 = Junction Box
Linear/Raster
0 = Linear
1 = Raster
mm (mils) scans/s
1XXX 0.25 (10) 400 to 1000
2XXX 0.35 (14) 400 to 1000
1XXX 100 mm (4 in) - 440 mm (17 in) on 0.50 mm (20 mils) codes
2XXX 200 mm (8 in) - 600 mm (23.5 in) on 0.50 mm (20 mils) codes
See reading diagrams in par. 3.4 for further details.
General Features -
1.3
DS2400 DATALOGIC
1.4 ACCESSORIES
The following accessories are available on request for the DS2400:
•
90° deflection mirror GFC-2100
•
20 mA Current Loop interface INT-22
1.5 GFC-2100 ACCESSORY INSTALLATION
GFC-2100 is a 90° deflection mirror available on request for DS2400. The
installation of the 90° deflection mirror is very easy (Figure 1.1).
CAUTION
Avoid any contact with the deflection mirror,
mirrored rotor, the lenses or other optical
components, otherwise the performance of
the reader will be reduced.
1. Turn off the device.
2. Remove the DS2400 scanning window unscrewing the two cover screws.
3. Fix the mirror to the device by means of the two fixing screws.
4. Remount the sc anning window so that the opening face is now at 90° with
respect to the DS2400 body.
90° deflection mirror
Cover screws
Scanning window
Fixing screws
Figure 1.1 - Installation of the deflection mirror
General Features
1.4 -
DATALOGIC DS2400
2 INSTALLATION
2.1 PACKAGE CONTENTS
Verify that the DS2400 reader and all the parts supplied with the equipment
are present and intact when opening the packaging; the list of parts includes:
1. DS2400 reader with cable
2. Installation manual
3. Bar code test chart (PCS = 0.9)
4. DS2400 configuration program disk
5. Mounting kit: - bracket
- screws
* Junction box (for DS2400-XXX1 models only), see par. 1.3.
3
4
2
*
1
5
Figure 2.1 - DS2400 package contents
Installation
- 2.1
DS2400 DATALOGIC
2.2 MECHANICAL INSTALLATION
DS2400 can be installed to operate in different positions. The four screw
holes (M4 x 5) on the body of the reader are for m ec hanic al f ixtur e (F igure A,
5
). The diagrams below give the overall dimensions of the scanner and
mounting bracket and may be used for installation.
Refer to par. 2.5 for correct positioning.
- Installation
2.2
Figure 2.2 - DS2400 Overall dimensions
DATALOGIC DS2400
2.3 JUNCTION BOX INSTALLATION
The Junction Box provides a pass ive connection between your scanner and
the outside world in a fast and practical way. It represents an alternative to
the 25-pin connectors. Figure 2.3 shows the basic layout of a s canner using
the junction box.
DS2400
Figure 2.3 - Scanner using Junction Box
Scanner cable
System cables
Junction Box
For Junction Box connections, the sc anner has a cable that term inates in a
24 pin connector that plugs into the junction box. The system cables pass
through 6 glands in the side of the Junction Box and the individual wires
connect to spring clamp terminal blocks inside which provide access to all
scanner signals.
2.3.1 Junction Box Mounting
The diagram below shows the dimensions of the Junction Box and its relative
mounting holes.
GLANDS PG7 n°6
Figure 2.4 - Junction Box Overall dimensions
mm
inch
Installation
- 2.3
DS2400 DATALOGIC
The Junction Box is designed to be mounted to a panel of metal, plastic or other
appropriate material using the mounting screws provided in the package. T o do
this:
1) Open the junction box by unscrewing the 4 cover screws. If necessary,
using the two mounting holes inside the junction box as a pattern, m ark
the panel with an appropriate object and then drill two small pilot holes in
the panel.
Figure 2.5 - Mounting Junction Box
2) Align the junction box and insert the two self-threading s crews with their
washers and screw them into the panel until tight (see Figure 2.5).
- Installation
2.4
DATALOGIC DS2400
2.3.2 Junction Box Electrical Connections
The connection and wiring procedure for Junction Box is described as
follows:
1) Open the junction box by unscrewing the 4 cover screws.
2) Pass all System cables through the glands in the junction box housing.
3) To connect the power and input/output signals:
•
Prepare the individual wires of the system cables by stripping the
insulation back approximately 11 mm.
•
Using a device such as a screwdriver, push down on the orange lever
directly above the clamp (see Figure 2.6).
•
Insert the wire into the clamp and release the lever.
The wire will now be held in the spring clamp.
Figure 2.6 - System cable connections to the junction box
The wiring used can be solid or stranded but must meet the following
specifications:
Positions 1-4: 24 - 16 AWG 0,2 - 1,5 mm
Positions 5-39: 26 - 20 AWG 0,14 - 0,5 mm
2
2
The junction box pinouts are indicated in the following table:
Installation
- 2.5
DS2400 DATALOGIC
g
J. Box Pinout for DS2400
Pin Name
VS
01
GND
02
VS
03
GND
04
CHASSIS
05
VS
06
VS
07
EXT TRIG +
08
EXT TRIG -
09
GND
10
GND
11
VS
12
VS
13
N.C.
14
N.C.
15
GND
16
GND
17
OUT1 +
18
OUT REF
19
OUT2 +
20
N.C.
21
N.C.
22
N.C.
23
*24
*25
*26
27
28
29
30
31
32
33
34
35
36
37
38
39
Main interface signals
see table below
N.C.
GND
Main interface signals
Figure 2.8 - NEC Class 2 Power unit connections
*
see table below
GND
TXAUX
RTSAUX
GND
RXAUX
CTSAUX
Pin RS232 RS485
24,29 TX232 TX485+ RTX485+ CL OUT+
25,30 RTS232 TX485- RTX485- CL OUT26,31 SGND SGND SGND
32 RX232 RX485+ CL IN+
33 CTS232 RX485- CL IN-
Full-Duplex
18 39
117
J1
Figure 2.7 - Junction Box connector and pinout
5
To allow connection of an NEC Class 2
Power Unit, use a correct female plu
adapter.
Junction Box
NEC Class 2
Power supply
Female Plug
System cables
The signals on pins 24, 25, and 26 are repeated on
pins 29, 30, and 31 to facilitate network
connections (i.e. Mult iplexer using the RS485 Halfduplex interface). In this way the network bus can
enter and exit the junction box from different spring
clamps but be physic al l y connected together.
RS485
Half-Duplex
20 mA C.L.
(INT-22 Only)
- Installation
2.6
DATALOGIC DS2400
4) After wiring the junction box and while the scanner is unplugged fr om the
power, place the Scanner cable so that the rubber seal fits into the cutout
in the housing of the junction box and plug the 24 pin connector into
connector J1 on the PCB inside the junction box as shown in Figure 2.9.
Rubber seal
Scanner cable
Figure 2.9 - Scanner cable connections to the junction box
J1
5) Close the junction box using the 4 cover scr ews making sure the rubber
seal is fitted correctly between the parts of the housing.
The junction box is now installed which c ompletes the electric al connections
for your scanning system.
If it ever becomes necessary to disconnect the scanner from the Junction
Box, simply reverse the procedure in step 4.
Installation
- 2.7
DS2400 DATALOGIC
2.4 ELECTRICAL CONNECTIONS
DS2400 25-pin connector models are equipped with a cable term inated by a
25-pin female D-sub connector for connection to the power supply and
input/output signals.
The details of the connector pins are indicated in the following table:
Figure 2.10 - 25-pin female D-sub connector
25-pin D-sub connector pinout
Pin Name Function
13 VS Power supply input vol tage +
25 GND Power supply input voltage -
1 CHASSIS Chassis Ground
9 VS External Trigger supply vol t age +
18 EXT TRIG+ External Trigger +
19 EXT TRIG- External Trigger -
8 OUT1 + Output 1 +
11 OUT2 + Output 2 +
12 OUT REF Output reference
22 OUT REF Output reference
20 RXAUX Auxiliary RS232
21 TXAUX Auxiliary RS232
23 CTSAUX Auxiliary handshake RS232
24 RTSAUX Auxiliary handshake RS232
6, 10, 14, 15,
16, 17
Pin RS232
2 TX232 TX485+ RTX485+ CLOUT+
3 RX232 RX485+ CLIN+
4 RTS232 TX485- RTX485- CLOUT-
5 CTS232 RX485- CLIN-
7
NC Not Connected
Main
interface
signals,
see par.
2.4.2.
SGND SGND SGND
RS485
Full-Duplex
RS485
Half-Duplex
20 mA C.L.
(INT-22 Only)
- Installation
2.8
DATALOGIC DS2400
2.4.1 Power Supply
Power can be supplied to the scanner through the pins provided on the 25pin connector used for communication with the host:
DS2400
13
VS
25
GND
1
CHASSIS
Earth Ground
Figure 2.11 - Power supply connections
USER INTERFACE
V+ (10 - 30 Vdc)
VGND
CHASSIS
The power must be between 10 and 30 Vdc only.
It is recommended to connect pin 1 (CHASSIS) to a common earth ground.
2.4.2 Main Serial Interface
The signals relative to the following serial interface types are available on the
input/output connector of DS2400 depending on the DS2400 model (see par.
1.3).
If the interface type is not compatible with the current communication
handshaking, then the system forces the handshake to
none
.
The parameters relative to the interface select ed (baud rate, data bits, etc.)
can be defined using the WinHost utility program or "Host Mode"
programming procedure through ESC sequences provided on diskette.
Details regarding the connections and use of the inter faces are given in the
next paragraphs.
Installation
- 2.9
DS2400 DATALOGIC
RS232 Interface
The serial interface is used in this case for point to point connections; it
handles communication with the host computer and allows both transm is sion
of code data and the programming of the scanner. This is the default setting.
The following pins are used for RS232 interface connection:
Pin Name Function
2 TX232 Transmitted Data
3 RX232 Received Data
4 RTS232 Request To Send
5 CTS232 Clear To Send
7 SGND Signal Ground
DS2400
2
TX232
3
RX232
4
RTS232
CTS232
5
7
SGND
Figure 2.12 – RS232 main interface connections using hardw are handshaki ng
USER INTERFACE
RXD
TXD
DCD
DTR
SGND
The RTS232 and CTS232 signals control data transm ission and synchronize
the connected devices.
- Installation
2.10
DATALOGIC DS2400
END
OF TRANSMISSION
C5
IDLE
+ V
RTS
- V
+ V
TX DATA
- V
+ V
CTS
- V
START
OF TRANSMISSION
TRANSMISSION
C1
ENABLED
IDLE
DATA
C2
TRANSMISSION
STOPPED
DISABLED
DATA
TRANSMISSION
C4C3
ENABLED
Figure 2.13 - RS232 control signals
If the RTS/CTS handshaking protocol is enabled, the DS2400 activates the
RTS232 output to indicate a message is to be transm itted. T he receiving unit
activates the CTS232 input to enable the transmission.
RS485 Full-Duplex Interface
The RS485 full-duplex interface is used for non-polled communication
protocols in point to point connections over longer distances than those
acceptable for RS232 communications or in electrically noisy environments.
The connector pinout follows:
Pin Name Function
2 TX485+ RS485 transmitted data +
4 TX485- RS485 transmitted data –
3 RX485+ RS485 received data +
5 RX485- RS485 received data 7 SGND Signal Ground
Installation
- 2.11
DS2400 DATALOGIC
DS2400
2
4
3
5
7
TX485+
TX485-
RX485+
RX485-
SGND
USER INTERFACE
+
RX485
-
+
TX485
-
SGND
+
Figure 2.14 - RS485 full-duplex connections
RS485 Half-Duplex Interface
The RS485 half-duplex (3 wires + shield) interface is used for polled
communication protocols.
It can be used in a master/slave layout or for Multidrop connections with a
Datalogic Multiplexer, (see par. 2.6.4 and 2.6.5).
The connector pinout follows:
Pin Name Function
2 RTX485+ RS485 transmitted/received data +
4 RTX485- RS485 transmitted/received data 7 SGND Signal Ground
DS2400
2
4
7
RTX485 +
RTX485 -
SGND
MULTIPLEXER
RTX485 +
RTX485 RS485REF
Figure 2.15 - RS485 half-duplex connections
This interface is forced by software when the protocol selected is MUX32
protocol.
In a Multiplexer layout or for slaves, the Multidrop address must also be set
via serial channel by the WinHost utility or by ESC sequences.
- Installation
2.12
DATALOGIC DS2400
Figure 2.16 shows a multidrop configuration with DS2400 scanners
connected to a Multiplexer.
120 Ohm
max 2 m
DS2400
# x
(up to 31)
DS2400
max 1200 m
# 1
RTX485 +
CHASSIS
DS2400
# 0
Three wires +
RTX485 SGND
shield
RTX485 +
RTX485 -
MULTIPLEXER
RS485 REF
SHIELD
120 Ohm
Figure 2.16 - DS2400 Multidrop connection to a Multiplexer
20 mA Current Loop Interface (INT-22 Accessory Only)
When the INT -22 accessory board is installed, the DS2400 is equipped with
a 20 mA passive current loop interface.
The following pins of the 25-pin connector are used:
Pin Name Function
5 CLIN- Current Loop Input 3 CLIN+ Current Loop Input +
4 CLOUT- Current Loop Output 2 CLOUT+ Current Loop Output +
Installation
- 2.13
DS2400 DATALOGIC
USER INTERFACE
DS2400
DS2400
5
C.L. IN-
3
C.L. IN+
4
C.L. OUT-
2
C.L. OUT+
MAX. 300 METERS
USER INTERFACE
I = 20 mA
I = 20 mA
Figure 2.17 - 20 mA C.L. connections
2.4.3 Auxiliary RS232 Interface
The auxiliary serial interface is used exclusively for RS232 point to point
connections.
The parameters relative to the aux interface (baud rate, data bits, etc.) as
well as particular operating modes such as LOCAL ECHO can be defined
using the WinHost utility program installed fr om the diskette or "Host Mode"
programming provided on diskette.
The following pins of the 25-pin connector are used to connect the RS232
auxiliary interface:
Pin Name Function
20 RX232 Transmitted Data
21 TX232 Received Data
23 CTS232 Request To Send
24 RTS232 Clear To Send
7 SGND Signal Ground
Figure 2.18 - RS232 auxiliary interface connections using hardware handshaking
- Installation
2.14
20
21
23
24
7
RXAUX
TXAUX
CTSAUX
RTSAUX
SGND
TXD
RXD
DTR
DCD
SGND
DATALOGIC DS2400
The RTSAUX and CTSAUX signals control data transmission and
synchronize the connected devices. If the RTS/CTS handshaking protocol is
enabled, the DS2400 activates the RTSAUX output to indicate a mess age is
to be transmitted. The receiving unit ac tivates the CTSAUX input to enable
the transmission.
2.4.4 Inputs
The inputs available on the connector supplied with the scanner are the pins
relative to the External Trigger, as indicated below:
Pin Name Function
18 EXT TRIG+ External Trigger +
19 EXT TRIG- External Trigger -
The External Trigger input is used in the On- Line Operating Mode and tells
the scanner to scan for a code. The activ e state of this input is selected in
software. Refer to the WinHost Help On Line.
The yellow LED (Figure A, 2) is on when the External Trigger forces a
current flow through the EXT TRIG+ and EXT TRIG- pins.
This input is optocoupled and can be driven by both an NPN or PNP type
command. The connections are indicated in the following diagrams:
DS2400
+ 5V
Figure 2.19 - Input NPN command using external power
18
19
Vext
EXT TRIG+
EXT TRIG-
30 Vdc max.
EXTERNAL TRIGGER
V
Signal
Installation
- 2.15
DS2400 DATALOGIC
DS2400
+ 5V
9
EXT TRIG+
18
EXT TRIG-
19
25
VS
GND
EXTERNAL TRIGGER
V
Ground
Signal
Figure 2.20 - Input NPN command using DS2400 power
Vext
EXT TRIG+
EXT TRIG-
30 Vdc max.
V
Signal
Ground
DS2400 EXTERNAL TRIGGER
+ 5V
18
19
Figure 2.21 - Input PNP command using external power
EXTERNAL TRIGGER
V
Signal
Ground
+ 5V
DS2400
9
18
19
25
VS
EXT TRIG+
EXT TRIG-
GND
Figure 2.22 - Input PNP command using DS2400 power
Electrical features
: Maximum voltage: 30 Vdc
Maximum current: 25 mA
An anti-disturbance hardware filter is implemented on the External Trigger
input (about 1 millisecond delay).
An additional 15 ms (typical) delay can be implemented through a dedicated
software parameter (refer to WinHost Help On Line).
- Installation
2.16
DATALOGIC DS2400
2.4.5 Outputs
There are two general purpose outputs. The following pins are present on the
25-pin connector of the scanner:
Pin Name Function
8 OUT1+ Output 1 +
22 OUT REF Output reference
11 OUT2+ Output 2 +
12 OUT REF Output reference
40 Vdc max
DS2400
OUT 2
OUT REF
DS2400
11
and/or
12
Figure 2.23 Output 1 / Output 2 connections
22
8
OUT REF
USER INTERFACE
OUT 1
The meaning of the two outputs OUT1 and OUT2 can be defined by the user.
Refer to the WinHost Help On Line.
Vext
By default, OUT1 is associated with the No Read event, which activates
when the code signalled by the external trigger is not decoded, and OUT2 is
associated with the Right event, which activates when the code is correctly
decoded.
These outputs are both level or pulse configurable.
2.5 POSITIONING
The DS2400 scanner is able to decode m oving barc ode labels at a variety of
angles, however significant angular distortion may degrade reading
performance.
When mounting the DS2400 take into consideration these three ideal label
position angles:
Follow the suggestions for the best orientation:
Pitch 0°, Skew 10° to 30° and Tilt 0°
.
Installation
- 2.17
DS2400 DATALOGIC
g
g
Pitch
The
angle is represented by the
value P in Figure 2.24. Position the
reader in order to
minimize
the
Pitch
angle.
DS2400
Figure 2.24 - Pitch Angle
Skew
The
angle is represented by the
value S in Figure 2.25. Position the
reader to
Skew
reflection of the laser li
assure at least 10°
for the
angle. This avoids the direct
ht emitted by the
DS2400.
For the raster version, this an
le refers to
the most inclined or external raster line,
so that all other raster lines assure
more
than 10° Skew.
Tilt
The
angle is represented by the
value T in Figure 2.26. Position the
reader in order to
minimize
the
Tilt
angle.
- Installation
2.18
Figure 2.25 - Skew angle
DS2400
Figure 2.26 - Tilt angle
DATALOGIC DS2400
2.6 TYPICAL LAYOUTS
The following typical layouts refer to system hardware configurations. Dotted
lines in the figures refer to optional hardware configurations within the
particular layout.
These layouts also require the correct setup of the software configuration
parameters. Complete software configuration procedures can be found in the
Guide To Rapid Configuration
in the WinHost Help On Line.
2.6.1 Point-to-Point
In this layout the data is transmitted to the Host on the main serial interface.
Host Mode programming can be accomplished either through the main
interface or the auxiliary interface.
In Local Echo communication mode, data is transmitted on the RS232
auxiliary interface independently from the main interface selection.
When On-Line Operating mode is used, the scanner is activated by an
External Trigger (photoelectric sensor) when the object enters its reading
zone.
Terminal
1
2
Main serial interface
1
Auxiliary serial interface (Local Echo)
2
3
External Trigger (for On-Line mode)
Figure 2.28 - Point-to -P o int layout
Host
DS2400
3
Installation
- 2.19
DS2400 DATALOGIC
2.6.2 Pass Through
Pass through mode allows two or mor e devices to be connected to a single
external serial interface.
Each DS2400 transmits the messages received by the auxiliary interface
onto the main interface.
host.
When On-Line Operating mode is used, the scanner is activated by an
External Trigger (photoelectric sensor) when the object enters its reading
zone.
The main and auxiliary ports are connected as shown in the figure below:
All messages will be passed through this chain to the
1
Host
2
DS2400 DS2400
3 3
Main serial interface
1
Auxiliary serial interface
2
External Trigger (for On-Line mode)
3
Figure 2.29 - Pass through layout
1
- Installation
2.20
DATALOGIC DS2400
2.6.3 RS232 Master/Slave
The RS232 master/slave connection is used to collect data from several
scanners to build either an multi-point or a multi-sided reading system; there
can be one master and up to 9 slaves connected together.
The Slave scanners use RS232 only on the main and auxiliary serial
interfaces. Each slave DS2400 transmits the messages received by the
auxiliary interface onto the main interface. All messages will be passed
through this chain to the master.
The master sc anner is connected to the Host on the main serial interface.
The possible main interface types for the Master scanner are RS232 or
RS485. (20 mA C.L. can also be used if the INT-22 accessory is installed).
Either On-Line or Serial On-Line Operating modes can be used in this layout.
When On-Line Operating mode is used, the external trigger signal is
unique to the system, however it is not necessary to bring t he external
trigger signal to the Slave scanners.
The main and auxiliary ports are connected as shown in the figure below.
1
1
DS2400 Slave
2
DS2400
Slave
Main serial interface
1
Auxiliary serial interface
2
3
External Trigger (for On-Line mode)
Figure 2.30 - RS232 Master/Slave layout
3
DS2400
Master
2
Host
1
Installation
- 2.21
DS2400 DATALOGIC
2.6.4 RS485 Master/Slave
The RS485 master/slave connection is used to collect data from several
scanners to build either a multi-point or a multi-sided reading system ; there
can be one master and up to 5 slaves connected together.
The slave scanners are connected together using RS485 half-duplex on the
main serial interface. Every slave scanner must have a m ultidrop address in
the range 0-4.
The master scanner is also connected to the Host on the RS232 auxiliary
serial interface.
The External Trigger s ignal is unique to the system; there is a s ingle reading
phase and a single message from the master scanner to the Host computer.
It is necessary to bring the External Trigger signal to all the scanners.
The main and auxiliary ports are connected as shown in the figure below.
- Installation
2.22
DS2400
Slave
1
DS2400 Slave
1
3
Auxiliary serial interface
1
RS485 HD Main serial interface
2
External Trigger
3
Figure 2.31 - RS485 Master/Slave layout
2
1
DS2400 Master
Host
DATALOGIC DS2400
NOTE
The auxiliary serial interface of the slave scanners can be used
in Local Echo communication mode to control any single
scanner (visualize collected data) or to configure it using the
WinHost utility or Host Mode Programming procedure.
The termination resistors of the RS485 bus must not be
installed.
2.6.5 Multiplexer
Each scanner is connected to Multiplexer (for example MX4000) with the
RS485 half-duplex main interface.
MX4000
Host
1
2
0
2
3
RS485 HD Main interface
1
Auxiliary interface (Local Echo)
2
External Trigger (for On-Line mode)
3
Figure 2.32 - Multiplexer layout
1
2
3
31
3
The auxiliary serial interface of the slave scanners can be used in Local Echo
communication mode to control any single sc anner (visualize collected data)
or to configure it using the WinHost utility or Host Mode Programming
procedure.
When On-Line Operating mode is used, the scanner is activated by an
External Trigger (photoelectric sensor) when the object enters its reading
zone.
Installation
- 2.23
DS2400 DATALOGIC
- Installation
2.24
This page is intentionally left blank.
DATALOGIC DS2400
3 READING FEATURES
The number of scans perf ormed on the code by the DS2400 and therefore
the decoding capability is influenced by the following parameters:
•
number of scans per second
•
code motion speed
•
label dimensions
•
scan direction with respect to code motion
About 5 scans during the code passage should be allowed to ensure a
successful read.
3.1 STEP-LADDER MODE
If scanning is perpendicular to the code m otion direction (Figure 3.1 - "stepladder" mode), the number of effective scans performed by the reader is
given by the following formula:
SN = [(LH/LS) * SS] – 2
Figure 3.1 - "Step-Ladder" scanning mode
Where: SN = number of effective scans
LH = label height (in mm)
LS = label movement speed
in (mm/s)
SS = number of scans per second
Technical Features -
3.1
DS2400 DATALOGIC
For example, the DS2400 (800 scans/sec.) for a 25 mm high c ode m oving at
1250 mm/s performs:
[(25/1250) * 800] - 2 = 14 effective scans.

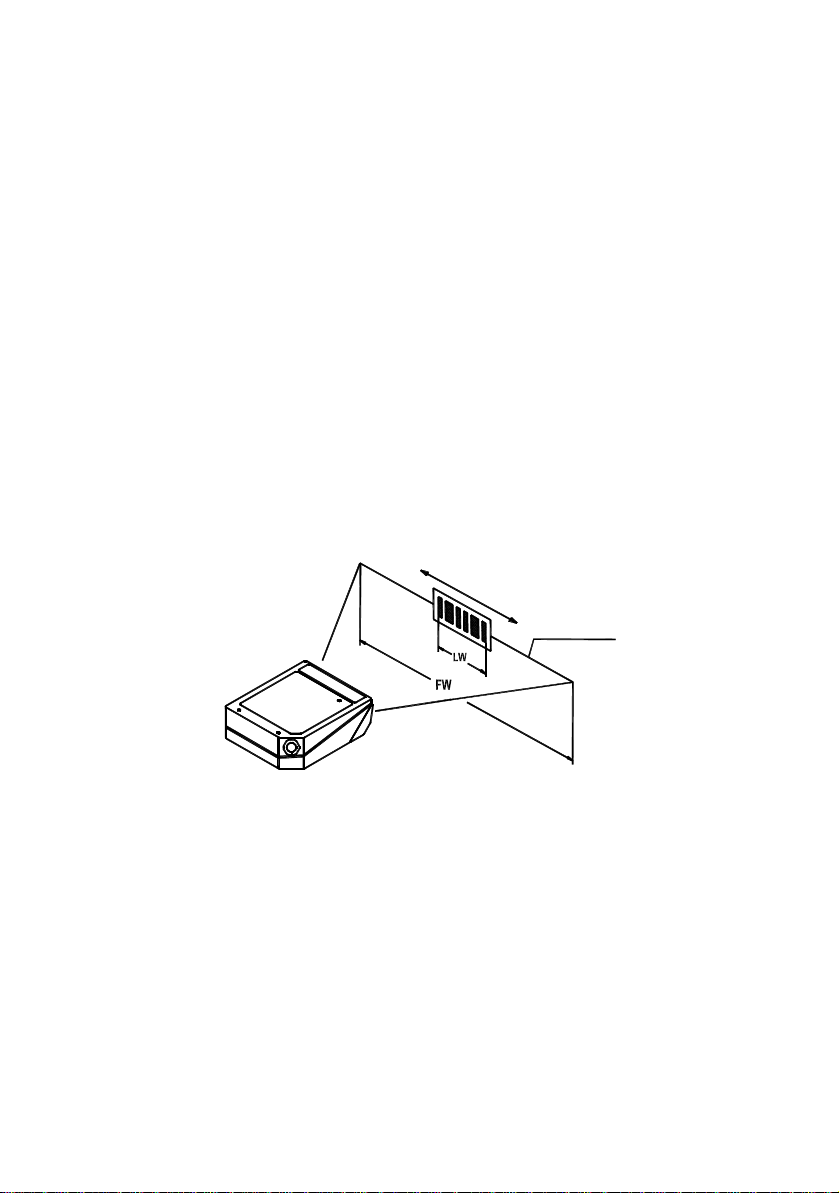

3.2 PICKET-FENCE MODE
If scanning is parallel to the code motion, (Figure 3.2 - "pick et-fence" m ode),
the number of effective scans is given by the following formula:
SN = [((FW-LW)/LS) * SS] -2
Where: SN = number of effective scans
FW = reading field width (in mm)
LW = label width (in mm)
LS = label movement speed
(in mm/s)
SS = scans per second
Code motion direction
at LS speed
Laser beam
Figure 3.2 - "Picket-Fence" scanning mode
For example, for a 100 m m wide code moving in a point where the reading
field is 200 mm wide at a 2000 mm/s speed, the DS2400 (800 scans per
sec.), performs:
[((200-100)/2000) * 800] - 2 = 38 scans
Technical Features
3.2 -
DATALOGIC DS2400
3.3 PERFORMANCE
The DS2400 scanner is available in different versions according to the
reading performance.
1XXX 0.25 (10) 400 to 1000
2XXX 0.35 (14) 400 to 1000
1XXX 100 mm (4 in) - 440 mm (17 in) on 0.50 mm (20 mils) codes
2XXX 200 mm (8 in) - 600 mm (23.5 in) on 0.50 mm (20 mils) codes
mm (mils) scans/s
Refer to the diagrams given in par. 3.4 for further details on the reading
features. They are taken on various resolution sample codes at a 25 °C
ambient temperature, depending on the conditions in the notes under the
diagrams.
3.3.1 Raster
Raster versions are available. If standard devices do not satisfy specific
requirements, contact your nearest Datalogic distributor, supplying code
samples, to obtain complete information on the reading possibilities.
The max. capture of the Raster version is 24 m m (0.95 inch) at 500 m m (20
inch).
Technical Features -
3.3
DS2400 DATALOGIC
3.4 READING DIAGRAMS
DS2400-1XXX
20
15
10
5
0
5
10
15
20
cm
CONDITIONS
(Medium Reading Range)
10 20 30
0.25 mm
(10 mils)
0.35 mm
(14 mils)
NOTE
(0,0) is the center of the
laser beam output window.
40 50 60 70 cm
≥
0.50 mm
(20 mils)
Code = Interleaved 2/5 or Code 39
PCS = 0.90
"Pitch" angle =
"Skew" angle =
"Tilt" angle =
Code Resolution*
°
0
°
10
°
0
=High – for 0.25 mm (10 mils) codes
and 0.35 mm, (14 mils) codes
Standard – for 0.50 mm (20 mils) codes
and greater
Code Reading Condition*
Scanning Speed*
= Standard
= Speed_3 (800 scans/sec)
* Parameters selectable in WinHost.
Technical Features
3.4 -
DATALOGIC DS2400
DS2400-2XXX
20
15
10
5
0
5
10
15
20
cm
(Long Reading Range)
10 20 30 40 50 60 70 cm
0.35 mm
(14 mils)
0.50 mm
≥
(20 mils)
NOTE
(0,0) is the center of the
laser beam output window.
CONDITIONS
Code = Interleaved 2/5 or Code 39
PCS = 0.90
"Pitch" angle =
"Skew" angle =
"Tilt" angle =
Code Resolution*
°
0
°
10
°
0
= High - for 0.35 mm (14 mils) codes
Standard - for 0.5 mm (20 mils) codes
and greater
Code Reading Condition*
Scanning Speed*
= Standard
= Speed_3 (800 scans/sec)
* Parameters selectable in WinHost.
Technical Features -
3.5
DS2400 DATALOGIC
Technical Features
3.6 -
This page is intentionally left blank.
DATALOGIC DS2400
4 MAINTENANCE
4.1 CLEANING
Clean the laser beam output window periodically for continued correct
operation of the reader.
Dust, dirt, etc. on the window may alter the reading performance.
Repeat the operation frequently in particularly dirty environments.
Use soft material and alcohol to clean the window and avoid any abrasive
substances.
WARNING
Clean the window of the DS2400 when the
scanner is turned off or, at least, when the
laser beam is deactivated.
Technical Features -
4.1
DS2400 DATALOGIC
Technical Features
4.2 -
This page is intentionally left blank.
DATALOGIC DS2400
5 TECHNICAL FEATURES
DS2400-1XXX DS2400-2XXX
ELECTRICAL FEATURES
Input Power
Supply voltage 10 to 30 Vdc
Power consumption max. 5 W
Serial Interfaces
Main RS232; RS485 Full-duplex / Half-duplex; 20 mA C.L.
Auxiliary RS232
Baud Rates 150 to 115200
Inputs
External Trigger (optocoupled NPN or PNP)
Voltage max. 30 Vdc
Input current max. 25 mA
Outputs
OUT1, OUT2 (optocoupled)
V
max. 40 Vdc
CE
Collector current max. 40 mA continuous; 130 mA puls ed
VCE saturation 1V at 10 mA max.
Power dissipation max.
OPTICAL FEATURES
Light source Semiconductor las er di ode
Wave length
Safety class Class 2 - IEC 825-1; Class II - CDRH
READING FEATURES
Scan rate software programmable (400 to 1000 scans/sec)
Aperture angle 50°
Maximum Reading distance
Maximum resolution
USER INTERFACE
LED indicators Laser ON, Good Read, External Trigger,
(depends on model)
(Note 1)
(Note 2)
(20 mA C.L. only with INT-22 ac cessory)
90 mW at 40 °C (Ambient temp.)
630 to 680 nm
440 mm
0.25 mm
(17 inch)
(10 mils)
Data TX / power ON
600 mm
0.35 mm
(23.5 inch)
(14 mils)
Technical Features -
5.1
DS2400 DATALOGIC
SOFTWARE FEATURES
READABLE CODE SYMBOLOGIES
• EAN/ UP C (i ncluding Add-on 2 and Add-on 5) • Code 93
• 2/5 Interleaved • Code 128
• Code 39 (Standard and Ful l A SCII) • EAN 128
• Codabar • Pharmacode
Other symbologies available on request.
Code Selection
Decoding Safety
Headers and Terminators
Operating Modes
Configuration Modes
up to six different codes during one reading phase
can enable multiple good reads of same code
up to four headers and four terminators
On-Line, Automatic , Serial-On-Line, Test
• through menus using WinHost ut ilit y
• receiving commands from one of t he serial ports (HOST
MODE)
Parameter Storage
Non-volatile internal EEPROM
ENVIRONMENTAL FEATURES
Operating temperature
Storage temperature
(Note 3)
0 to 40 °C (32 to 104 °F)
-20 to 70 °C (-4 to 158 °F)
Humidity max. 90% non condensing
Vibration resistance I EC 68-2-6 test FC 1.5 mm ;
10 to 55 Hz; 2 hours on each axis
Shock resistance IEC 68-2-27 test EA 30G;
11 ms; 3 shocks on each axis
Protection class IP65
PHYSICAL FEATURES
Mechanical dimensions 68 x 84 x 34 mm
Weight 330 g.
Note 1:
Note 2:
Note 3:
Technical Features
5.2 -
The features given are typical at a 25 °C ambient temperature (if not otherwise
indicated).
Further details given in par. 3.3.
If the reader is used in high temperature environments (over 35 °C), use of the
Beam-shutter is advised (see the WinHost configuration program)
.
Loading...
