Datalogic PD7100 User Manual

PowerScan

®

PD7100 Corded

Linear Imaging Reader

Quick Reference Guide

Datalogic Scanning, Inc.

959 Terry Street

Eugene, Oregon 97402

Telephone: [phone]

Fax: [phone]

An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures

described therein may be reproduced or transmitted in any form or by any means without prior written per-

mission of Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic Scanning”).

Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and

transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not

remove or alter any proprietary notices, including copyright notices, contained in this documentation and

shall ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contacting your

Datalogic representative. Electronic versions may either be downloadable from the Datalogic website

(www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to

make comments or suggestions about this or other Datalogic publications, please let us know via the "Con-

tact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is complete and accu-

rate, however, Datalogic reserves the right to change any specification at any time without prior notice.

Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trade-

mark of Datalogic S.p.A. All other brand and product names referred to herein may be trademarks of their

respective owners.

Paten ts

This product may be covered by one or more of the following patents: 4603262 • 4639606 • 4652750 • 4672215 • 4699447

• 4709369 • 4749879 • 4786798 • 4792666 • 4794240 • 4798943 • 4799164 • 4820911 • 4845349 • 4861972 • 4861973 •
4866257 • 4868836 • 4879456 • 4939355 • 4939356 • 4943127 • 4963719 • 4971176 • 4971177 • 4991692 • 5001406 •
5015831 • 5019697 • 5019698 • 5086879 • 5115120 • 5144118 • 5146463 • 5179270 • 5198649 • 5200597 • 5202784 •
5208449 • 5210397 • 5212371 • 5212372 • 5214270 • 5229590 • 5231293 • 5232185 • 5233169 • 5235168 • 5237161 •
5237162 • 5239165 • 5247161 • 5256864 • 5258604 • 5258699 • 5260554 • 5274219 • 5296689 • 5298728 • 5311000 •
5327451 • 5329103 • 5330370 • 5347113 • 5347121 • 5371361 • 5382783 • 5386105 • 5389917 • 5410108 • 5420410 •
5422472 • 5426507 • 5438187 • 5440110 • 5440111 • 5446271 • 5446749 • 5448050 • 5463211 • 5475206 • 5475207 •
5479011 • 5481098 • 5491328 • 5493108 • 5504350 • 5508505 • 5512740 • 5541397 • 5552593 • 5557095 • 5563402 •
5565668 • 5576531 • 5581707 • 5594231 • 5594441 • 5598070 • 5602376 • 5608201 • 5608399 • 5612529 • 5629510 •
5635699 • 5641958 • 5646391 • 5661435 • 5664231 • 5666045 • 5671374 • 5675138 • 5682028 • 5686716 • 5696370 •
5703347 • 5705802 • 5714750 • 5717194 • 5723852 • 5750976 • 5767502 • 5770847 • 5786581 • 5786585 • 5787103 •
5789732 • 5796222 • 5804809 • 5814803 • 5814804 • 5821721 • 5822343 • 5825009 • 5834708 • 5834750 • 5837983 •
5837988 • 5852286 • 5864129 • 5869827 • 5874722 • 5883370 • 5905249 • 5907147 • 5923023 • 5925868 • 5929421 •
5945670 • 5959284 • 5962838 • 5979769 • 6000619 • 6006991 • 6012639 • 6016135 • 6024284 • 6041374 • 6042012 •
6045044 • 6047889 • 6047894 • 6056198 • 6065676 • 6069696 • 6073849 • 6073851 • 6094288 • 6112993 • 6129279 •
6129282 • 6134039 • 6142376 • 6152368 • 6152372 • 6155488 • 6166375 • 6169614 • 6173894 • 6176429 • 6188500 •
6189784 • 6213397 • 6223986 • 6230975 • 6230976 • 6244510 • 6259545 • 6260763 • 6266175 • 6273336 • 6276605 •
6279829 • 6290134 • 6290135 • 6293467 • 6303927 • 6311895 • 6318634 • 6328216 • 6332576 • 6332577 • 6343741 •
6454168 • 6478224 • 6568598 • 6578765 • 6705527 • 6857567 • 6974084 • 6991169 • 7051940 • 7170414 • 7172123 •
7201322 • 7204422 • 7215493 • 7224540 • 7234641 • 7243850 • 7374092 • 601 26 118.6 • AU703547 • D312631 •
D313590 • D320011 • D320012 • D323492 • D330707 • D330708 • D349109 • D350127 • D350735 • D351149 • D351150

• D352936 • D352937 • D352938 • D352939 • D358588 • D361565 • D372234 • D374630 • D374869 • D375493 •
D376357 • D377345 • D377346 • D377347 • D377348 • D388075 • D446524 • EP0256296 • EP0260155 • EP0260156 •
EP0295936 • EP0325469 • EP0349770 • EP0368254 • EP0442215 • EP0498366 • EP0531645 • EP0663643 •
EP0698251 • EP01330772 • GB2252333 • GB2284086 • GB2301691 • GB2304954 • GB2307093 • GB2308267 •
GB2308678 • GB2319103 • GB2333163 • GB2343079 • GB2344486 • GB2345568 • GB2354340 • ISR107546 •
ISR118507 • ISR118508 • JP1962823 • JP1971216 • JP2513442 • JP2732459 • JP2829331 • JP2953593 • JP2964278 •
MEX185552 • MEX187245 • RE37166 • RE40.071 • Other Patents Pending

Statement of Agency Compliance

Statement of Agency Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two con­ditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

FCC Class B Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter­ference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult the dealer or an experienced radio or television technician for help.

Canadian Notice

This equipment does not exceed the Class B limits for radio noise emissions as described in the
Radio Interference Regulations of the Canadian Department of Communications.

Le present appareil numerique n’emet pas de bruits radioelectriques depassant les limites applicables
aux appareils numeriques de la classe B prescrites dans le Reglement sur le brouillage radioelectrique
edicte par le ministere des Communications du Canada.

Power Supply

Models require either a Listed class II or class III with a Limited Power Source (LPS).
For the safety certification to be valid, class III input power sources must be IEC/EN60950-1 (EN
60335-series, EN 60065 or relevant) approved. CEC IV Efficiency Regulations Compliance.
Input: 90-264 VAC Output: 5 VDC
Max. Current: 0.5 AMax. Power: 12.5 W Max.

Use only the authorized power supplies supplied by your Datalogic reseller. The use of any other
power supplies can damage the reader and void your warranty.

For USB Power Off Terminal applications, attach to USB 1.0, 1.1

or 2.0 host device only.

NOTE

Solids and Water Protection

The reader has an IEC rating of IP65.

Quick Reference Guide 1

Datalogic Scanning, Inc.

®

POWERSCAN

Notice to End User: The Datalogic Product you have acquired contains embedded Software, which is inte­gral to the product’s operation. This Software is being provided to you under license, subject to the terms
and conditions of this Agreement. If you use the Datalogic Product, you will be deemed to have accepted
the terms and conditions of this Agreement. If you do not intend to be bound to the terms of this Agree­ment, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the
Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.

This End User Software License Agreement (“Agreement”) is a legally binding agreement governing the licensing of
the Software and Documentation by Datalogic, Scanning Holdings, Inc. and its wholly owned subsidiaries and affili­ates (“Datalogic”) to the entity or person who has purchased or otherwise acquired a Datalogic Product (“End User”).
For purposes of this Agreement, any software that is associated with a separate end-user license agreement is
licensed to you under the terms of that license agreement. Datalogic and End User hereby agree as follows:

1. Definitions.

1.1 "Documentation" means materials such as user’s guides, program reference guides, quick reference guides,
manuals, or similar materials associated with or related to the Datalogic Product, whether in printed, “online”,
or other form.

1.2 "Proprietary Information" means: (a) source code, object code, software, documentation, and any related
internal design, system design, data base design, algorithms, technology, technical data or information, imple­mentation techniques, and trade secrets related to the Software, (b) any other trade secrets marked appropri­ately or identified as proprietary or confidential, and (c) any information that End User, under the
circumstances, should recognize as confidential. Proprietary Information does not include any information that
the receiving party can establish was (1) in the public domain, (2) already in the receiving party’s possession
or rightfully known prior to receipt, (3) rightfully learned from a third party not in violation of any other's propri­etary rights, or (4) independently developed without access to Proprietary Information.

1.3 “Datalogic Product” means the Datalogic PowerScan® series, PowerScan® Imager series, PowerScan® EP
series, PowerScan® LR series, PowerScan® HD series, PowerScan® PD series, and/or PowerScan® RF
series scanner product, including all embedded Software in and all Documentation related to such product,
which has been purchased or otherwise acquired by End User, whether obtained directly or indirectly from
Datalogic.

1.4 "Software" means any software or computer programs of Datalogic or its third party licensors in machine read­able form which is embedded in the Datalogic Product, whether obtained directly or indirectly from Datalogic,
including any replacement, update, upgrade, enhancement or modification.

2. Scope Of License Granted.

2.1 Datalogic grants to End User a non-exclusive, non-transferable, perpetual license to use the Software, solely
on the Datalogic Product in which it is embedded (“designated Datalogic Product”), in machine-readable form
only, solely for End User's internal business purposes. This Agreement does not convey ownership of the
Software to End User. Title to the Software shall be and remain with Datalogic or the third party from whom
Datalogic has obtained a licensed right. As used in this Agreement, the term “purchase” or its equivalents
when applied to the Software shall mean “acquire under license.” End User is not entitled to receipt or use of
the source code to any Software.

2.2 End User shall not copy, modify, decompile, disassemble, reverse engineer, or otherwise reproduce or reman­ufacture the Software, whether modified or unmodified, nor sell, assign, sublicense, distribute, lend, rent, give,
or otherwise transfer the Software to any other person or organization, for purposes other than as expressly
provided in this Agreement, without Datalogic’s prior written consent.

3. Transfers, Support.

3.1 Any copying, installing, reproduction, remanufacture, reverse engineering, electronic transfer, or other use of
the Software on other than the designated Datalogic Product will be a material breach of this Agreement.
However, Datalogic may elect not to terminate this Agreement or the granted licenses, but instead may elect
to notify End User that End User is deemed to have ordered and accepted a license for each breaching use.
End User shall pay Datalogic the applicable list price for such licenses as of the date of such breach.

3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or otherwise transfer the Datalogic
Product to any third party unless such third party agrees with Datalogic in writing to be bound by the terms
and conditions of this Agreement. Any such transfer of the Datalogic Product absent such agreement shall be
null and void.

3.3 End User may obtain support for Software from Datalogic at Datalogic’s standard support fees and under Dat­alogic’s standard support terms and conditions in effect at the time the support is requested.

4. Intellectual Property.

End User acknowledges that the Software constitutes valuable trade secrets of Datalogic or Datalogic’s third party
licensors and that the Software is protected by intellectual property laws and treaties. The license set forth in this
Agreement does not transfer to End User any ownership of Datalogic’s or its third party licensors' copyrights, patents,
trademarks, service marks, trade secrets, or other intellectual property rights and End User shall have no right to
commence any legal actions to obtain such rights. End User shall not remove, modify, or take any other action that
would obscure any copyright, trademark, patent marking, or other intellectual property notices contained in or on the
Datalogic Product.

5. Proprietary Information.

5.1 End User acknowledges that Proprietary Information is the confidential, proprietary, and trade secret property
of Datalogic and Datalogic’s third party licensors and End User acquires no right or interest in any Proprietary
Information.

END USER LICENSE AGREEMENT

2PowerScan

®

PD7100 Corded

Statement of Agency Compliance

5.2 End User shall not disclose, provide, or otherwise make available the Proprietary Information of Datalogic or
its third party licensors to any person other than End User’s authorized employees or agents who are under
confidentiality agreement, and End User shall not use the Proprietary Information other than in conjunction
with use of the Datalogic Product exclusively for End User’s internal business purposes. End User shall take
steps to protect the Proprietary Information no less securely than if it were End User's own intellectual prop­erty.

5.3 The provisions of this Proprietary Information Section shall sur vive and continue for five (5) years after the ter­mination of this Agreement.

6. Limited Warranty.

6.1 Datalogic warrants that, under normal use and operation, the Datalogic Product will conform substantially to
the applicable Documentation for the period specified in the Documentation. During this period, for all repro­ducible nonconformities for which Datalogic has been given written notice, Datalogic will use commercially
reasonable efforts to remedy nonconformities verified by Datalogic. End User agrees to supply Datalogic with
all reasonably requested information and assistance necessary to help Datalogic in remedying such noncon­formities. For all defects reported to Datalogic within the warranty period, Datalogic’s liability is limited to pro­viding End User with one copy of corrections or responding to End User's problem reports according to
Datalogic's standard assistance practices. Datalogic does not warrant that the product will meet End User's
requirements or that use of the product will be uninterrupted or error free, or that Datalogic's remedial efforts
will correct any nonconformance. This limited warranty does not cover any product that have been subjected
to damage or abuse, whether intentionally, accidentally, or by neglect, or to unauthorized repair or unautho­rized installation, and shall be void if End User modifies the product, uses the product in any manner other
than as established in the Documentation, or if End User breaches any of the provisions of this Agreement.

6.2 EXCEPT AS PROVIDED IN THIS AGREEMENT, THE DATALOGIC PRODUCT IS PROVIDED “AS IS” AND
DATALOGIC MAKES NO WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, WRITTEN OR ORAL,
WITH RESPECT TO THE PRODUCT, AND SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

7. Infringement.

7.1 Datalogic will defend End User against any claim in a lawsuit that the Datalogic Product furnished hereunder
infringe a United States patent or copyright of a third party and Datalogic will pay any damages finally
awarded against End User by a court of competent jurisdiction that are attributable to such claim or will pay
End User’s part of any settlement that is attributable to such claim, provided, that 1) End User notifies Data­logic promptly in writing of the claim, 2) Datalogic controls the defense or settlement of the claim, and 3) End
User cooperates fully with Datalogic in such defense or settlement. All notices of a claim should be sent to
Datalogic Scanning, Inc., Legal Department, 959 Terry St, Eugene, OR 97402.

7.2 In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right
to continue using the Datalogic Product, 2) modify the Datalogic Product so that it becomes non-infringing,

3) replace the Datalogic Product with an equivalent product not subject to such claim, or 4) provide End User
an opportunity to return the Datalogic Product and receive a refund of the purchase price paid, less a reason­able allowance for use.

7.3 Datalogic shall have no liability to End User for claims of infringement based upon 1) the use of any Datalogic
Product in combination with any product which Datalogic has not either furnished or authorized for use with
such Datalogic Product 2) the use of any Datalogic Product designed, manufactured, or modified to the spec­ifications of End User, or 3) End User’s modification of the Datalogic Product without written authorization
from Datalogic.

7.4 THE FOREGOING STATES DATALOGIC’S COMPLETE AND ENTIRE OBLIGATION CONCERNING
CLAIMS OF PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY INFRINGEMENT, CANCELS
AND SUPERCEDES ANY PRIOR AGREEMENTS, WHETHER ORAL OR WRITTEN, BETWEEN THE PAR­TIES CONCERNING SUCH CLAIMS, AND WILL NOT BE MODIFIED OR AMENDED BY ANY PAST, CON­TEMPORANEOUS, OR FUTURE AGREEMENTS OR DEALINGS BETWEEN THE PARTIES, WHETHER
ORAL OR WRITTEN, EXCEPT AS SET FORTH IN A FUTURE WRITING SIGNED BY BOTH PARTIES.

8. Limitation Of Liability.

EXCEPT AS PROVIDED IN SECTION 7, DATALOGIC SHALL NOT BE LIABLE FOR ANY CLAIMS AGAINST END
USER BY ANY OTHER PARTY. IN NO EVENT SHALL DATALOGIC'S LIABILITY FOR DAMAGES, IF ANY,
WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, STRICT LIA­BILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE PRICE OR FEE PAID BY END USER FOR THE DAT­ALOGIC PRODUCT. UNDER NO CIRCUMSTANCES SHALL DATALOGIC BE LIABLE TO END USER OR ANY
THIRD PARTY FOR LOST PROFITS, LOST DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY
OTHER SPECIAL, CONSEQUENTIAL, CONTINGENT, INDIRECT, INCIDENTAL, PUNITIVE, EXEMPLARY, OR
OTHER SIMILAR DAMAGES, EVEN IF DATALOGIC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAM­AGES.

9. Government Restricted Rights; International Use.

9.1 Use, duplication, or disclosure of the Software by the U.S. Government is subject to the restrictions for com­puter software developed at private expense as set forth in the U.S. Federal Acquisition Regulations at FAR

52.227-14(g), or 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS

252.227-7013(c)(1)(ii), whichever is applicable.

9.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the appli­cable local laws of the country in which the Datalogic Product is used, with U.S. export control laws, and with
the English language version of this Agreement. The provisions of the “United Nations Convention on Interna­tional Sale of Goods” shall not apply to this Agreement.

10. Termination.

10.1 Either party may terminate this Agreement or any license granted under this Agreement at any time upon writ­ten notice if the other party breaches any provision of this Agreement.

10.2 Upon termination of this Agreement, End User immediately shall cease using any non-embedded software
and shall return to Datalogic or destroy all non-embedded software covered by this Agreement, and shall fur-

Quick Reference Guide 3

nish Datalogic with a certificate of compliance with this provision signed by an officer or authorized represen­tative of End User. For embedded software, End User agrees to sign a waiver prepared by Datalogic
concerning further use of the embedded Software. End User’s resumed or continued use of the embedded
Software after termination shall constitute End User’s agreement to be bound by the terms and conditions of
this Agreement for such use.

11. General Provisions.

11.1 Entire Agreement; Amendment. This document contains the entire agreement between the parties relating to
the licensing of the Software and supersedes all prior or contemporaneous agreements, written or oral,
between the parties concerning the licensing of the Software. This Agreement may not be changed,
amended, or modified except by written document signed by Datalogic.

11.2 Notice. All notices required or authorized under this Agreement shall be given in writing, and shall be effective
when received, with evidence of receipt. Notices to Datalogic shall be sent to the attention of Contract Admin­istration, Datalogic Scanning Inc., 959 Terry Street, Eugene, OR 97402, or such other address as may be
specified by Datalogic in writing.

11.3 Waiver. A party’s failure to enforce any of the terms and conditions of this Agreement shall not prevent the
party’s later enforcement of such terms and conditions.

11.4 Governing Law; Venue:This Agreement and the rights of the parties hereunder shall be governed by and con­strued in accordance with the laws of the State of Oregon U.S.A, without regard to the rules governing con­flicts of law. The state or federal courts of the State of Oregon located in either Multnomah or Lane counties
shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have
the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory
in which End User resides, or in which any of End User's assets are located.

11.5 Attorneys’ Fees. In the event an action is brought to enforce the terms and conditions of this Agreement, the
prevailing party shall be entitled to reasonable attorneys’ fees, both at trial and on appeal.

- END -

Software Product Policy

Datalogic reserves the right to ship its products with the latest version of software/firmware avail­able. This provides our customers with the very latest in Datalogic software technology.

The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly
defines the terms and conditions for making software/firmware changes in products shipped to the
buyer.

Customers Under Software Support

Customers that elect to subscribe to Datalogic Software Maintenance and Support Agreement will
receive 30 days advance notification of: (1) the release of a new software version; and/or (2) discon­tinuation of any prior software version that will no longer be supported. Datalogic will provide
maintenance for a fee that will assist customers in transitioning to the next software version. If a
customer is currently using the software version being discontinued, the customer may elect to tran­sition to any one of the newer versions, depending on the hardware in use.

To arrange for a Software Maintenance and Support Agreement please contact your Datalogic sales
person.

4PowerScan

®

PD7100 Corded

Laser Cautions

Laser Cautions

The reader may contain a laser pointer (this is a value-added option), which is certified in the U.S.
to conform to the requirements of DHHS/CDRH 21CFR Subchapter J for Class II and IEC
60825-1 for Class 2 products. Class II (2) products are not considered to be hazardous. Laser
pointer models of the reader contain a Visible Laser Diode (VLD) at a wavelength of 655 nanome­ters and is designed so that there can be no human access to harmful levels of laser light during nor­mal operation, user maintenance, or during prescribed service operations. See the Product Reference
Guide (PRG) for laser pointer configuration information and barcodes.

Do not attempt to open or otherwise service any components in the

optics cavity. Opening or servicing any part of the optics cavity by unau-

thorized personnel may violate laser safety regulations.

CAUTION

Technical Specification

Item Description

Physical Characteristics

Color

Dimensions

Weight (without cable) Approximately 9.9 ounces/280 g (without cable)

Yellow/Black
Black/Black

Height 7.5”/190 mm
Length 4.5”/115 mm
Width 3.0”/75 mm

Electrical Characteristics

a

a

Voltage & Current

Input current at 5V = 285 mA (max)
135 mA (standby)

2.5 mA (RS-232 sleep mode)

2.5 mA (USB suspend)

Input Power = 1.5W max in the 4 - 14V range

Performance Characteristics

Light Source Dual LEDs

Roll (Tilt) Tolerance ± 30° from normal

Pitch Tolerance ± 65°

Skew (Yaw) Tolerance ± 60°

Field of View

2” wide at 1” from the reader
7” wide at 7” from the reader

Quick Reference Guide 5

Item Description

100 mil: typical 5.1" to 208.7" (13 cm to 530 cm)
55 mil: typical 1.9" to 118.1" (4.7 cm to 300 cm)
40 mil: typical 0.8" to 94.5" (2 cm to 240 cm)

Depth of Field

b

20 mil: typical 0.1" to 46.9" (0.3 cm to 119 cm)
13 mil: typical 0" to 31.5" (0.1 cm to 80 cm)
10 mil: typical 0" to 23.6" (0 cm to 60 cm)

7.5 mil: typical 0.1" to 17.3" (0.2 cm to 44 cm)
5 mil: typical 0.6" to 5.5" (1.5 cm to 14 cm)

Minimum Element Width 3 mil

Print Contrast Minimum 15% minimum reflectance

UPC/EAN/JAN, P2 /P5 add-ons; Code 39; Italian Pharmacode 39; Code

Decode Capability

Interfaces Supported

128; Code 128 ISBT; Code 128 add-ons; I 2 of 5; Standard 2 of 5; Code
11; Codabar; EAN 128; Code 93; DataBar Omnidirectional, DataBar
Limited, DataBar Expanded.

RS-232 Std., RS-232 Wincor-Nixdorf, RS-232 OPOS, IBM 46xx (ports
5B and 9B), USB Com Std., USB Keyboard, USB Alternate Keyboard,
USB OEM, Keyboard Wedge (AT with or w/o Alternate Key, IBM AT PS2
with or w/o Alternate Key, PC-XT, IBM 3153, IBM Terminals 31xx, 32xx,
34xx, 37xx make only and make break keyboard, Digital Terminals
VT2x, VT3xx, VT4xx, and Apple) and Wand Emulation.

User Environment

Operating Temperature -22° to 122° F (-30° to 50° C)

Storage Temperature -40° to 158° F (-40° to 70° C)

Humidity

Operating: 5% to 90% relative humidity, non-condensing
Storage: 5% to 95% relative humidity, non-condensing

Drop Specifications 50 drops from 2 meters (6.5 feet) to concrete, -30°C to 50°C

Ambient Light Immunity Up to 100,000 LUX in sunlight.

Contaminants

Spray/rain

Dust/particulates

IEC 529-IPX5

IEC 529-IP6X

Beeper Loudness 84 dBA typical for operator at a distance of 19” (50cm)

ESD Level 25 KV

Regulatory

Electrical Safety UL 60950, CAN/CSA-C22.2 No. 60950/IEC60950

Laser Safety

EMI/RFI

a.

Typical input current with factory default configuration. Max input current = 315 mA @ 5V with fac­tory default configuration. Changes to the default (scan mode or beeper settings) may increase
the max input current up to 410 mA @ 5V and the max power up to 2.05 W.

b.

13 mil DOF based on UPC. All others are Code 39. All labels grade A, minimum illumination 300
LUX, 20°C, label inclination 10°.

c.

USB cables CAB-465, CAB-467 and CAB-486 are certified to a residential level of immunity
according to the EN 55024 and not recommended for industrial level EN61000 6-2:2005.

6PowerScan

Complies with 21 CFR 1040 Class 2 and IEC/EN60825-1:2007 Class II
when laser pointer installed.

FCC Part 15 Class B, ICES-003 Class B, European Union EMC Direc-

c

, Australian SMA, Taiwan EMC, Japan VCCI/MITI, Korean EMC

tive

®

PD7100 Corded

Getting Started

Captive
Screws

Retainer Boss

Cable Connector

Getting Started

Connection

Use the appropriate instructions below to connect the reader to the ter­minal, PC or other host device. The reader cable connection is secured
using the “clamshell” retainer referenced in the enlarged area of
Fit and clamp the retainer over the cable connector as shown in the illus­tration, then fully seat the cable assembly into the reader, aligning both
the connector and the retainer boss with their respective openings.
Secure the captive screws.

Figure 1.

RS-232 Serial Connection —

and connect the reader to the terminal/PC serial port via the RS-232
cable as shown in
Off the Terminal) to supply reader power, use the approved power sup­ply (AC Adapter). Plug the AC Adapter barrel connector into the socket
on the RS-232 cable connector and the AC Adapter plug into a standard
power outlet.

Figure 1

Turn off power to the terminal/PC

Figure 1. If the terminal will not support POT (Power

. RS-232 Serial Connection

Quick Reference Guide 7

USB Connection —

U

S

B

I

B

M

K

e

y

b

o

a

r

d

W

e

d

g

e

W

a

n

d

or...

or...

or...

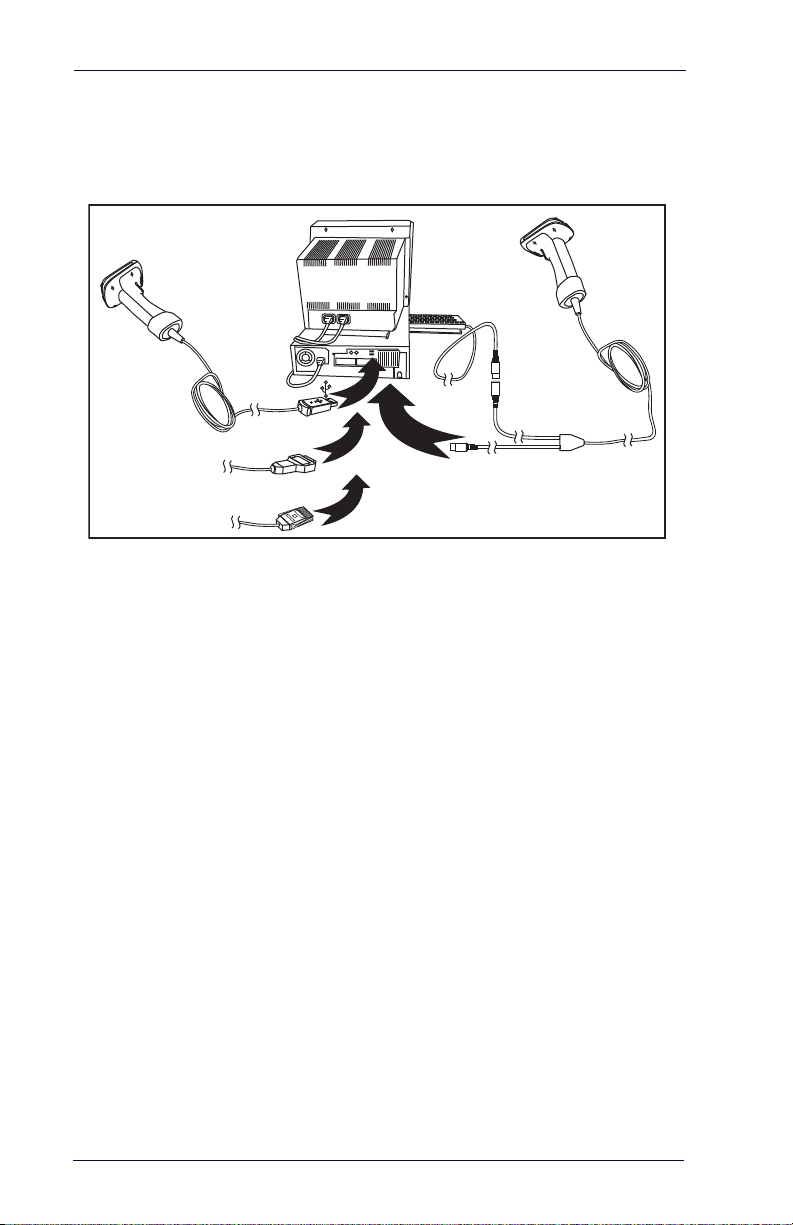

Connect the reader to a USB port on the termi­nal/PC using the correct USB cable for the interface type you ordered.
Reference

Figure 2. Other Interface Connections

Figure 2.

Wand Emulation Connection —

Connect the reader to the appro­priate port on the terminal/PC using the correct cable for the interface
type you ordered. Reference

IBM Connection —

minal/PC using the correct IBM cable. Reference

Keyboard Wedge Connection —

Figure 2.

Connect the reader to the IBM port on the ter-

Figure 2.

The Keyboard Wedge cable has a
‘Y’ connection from the reader. Connect the female to the male end
from the keyboard and the remaining end at the keyboard port at the
terminal/PC. Reference

Figure 2.

Programming

The reader is typically factory-configured with a set of default features.
Reference
ize your reader through use of the instructions and programming bar­codes available in the Product Reference Guide (PRG). You can view and
download this and other manuals from the website listed on the back
cover of this manual.

Defaults on page 11. You can select other options and custom-

8PowerScan

®

PD7100 Corded

Getting Started

Select the desired interface by scanning the associated barcode below.

INTERFACE SELECTION BARCODE

RS-232

Standard

RS-232

Wincor-Nixdorf

RS-232 for

OPOS/UPOS/

JavaPOS

Wand

Emulation

IBM 46XX

Por t 5B

IBM 46XX

Por t 9B

USB HID POS

USB Com

a

USB

Keyboard

USB Alternate

Keyboard

USB OEM

a.

Download the correct USB Com driver from www.datalogic.com

Quick Reference Guide 9

Interface selection — continued

INTERFACE SELECTION BARCODE

Keyboard AT

Keyboard Wedge for PS/2 25-286, 30-286, 50, 50Z,

60, 70, 80, 90 & 95 w/Standard Key Encoding

Keyboard

AT-N K

Keyboard

AT-A LT

Keyboard

AT-ALT-NK

Keyboard Wedge for IBM AT PS2 with standard key encoding

but without external keyboard

Keyboard Wedge for AT, PS/2 25-286, 30-286, 50,

50Z, 60, 70, 80, 90 & 95 w/Alternate Key

Keyboard Wedge for IBM AT PS2 with alternate key

encoding but without external keyboard

Keyboard XT

Keyboard Wedge for PC/XT w/Standard Key Encoding

Keyboard

IBM 3153

Keyboard Wedge for IBM Terminal 3153

Keyboard

IBM-M

10 PowerScan® PD7100 Corded

Keyboard Wedge for IBM Terminals

31xx, 32xx, 34xx, 37xx make only keyboard

Defaults

INTERFACE SELECTION BARCODE

Keyboard

IBM-MB

Keyboard

DIG-VT

Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx

Keyboard

USB-KBD-

Apple

Keyboard Wedge for IBM Terminals

31xx, 32xx, 34xx, 37xx make break keyboard

USB Keyboard for Apple computers

Defaults

For your convenience, standard defaults are shown here for each of the
major interface types. For more details or to change these settings, refer­ence the Product Reference Guide (PRG).

RS-232 Standard Default Settings —

9600 Baud, no Parity, 1
Stop Bit, Handshaking disabled, no Intercharacter Delay, Beep on
ASCII BEL disabled, Beep On Not On File enabled, ACK Character =
‘ACK’, NAK Character = ‘NAK’, ACK NAK Timeout Value = 600ms,
ACK NAK Retry Count = 3, ACK NAK Error Handling = Ignore, Indi­cate Transmission Failure enabled, Disable Reader Command = ‘D’,
Enable Reader Command = ‘E’.

Wand Emulation Standard Default Settings —

Wand Idle State =
Low, Wand Polarity = Quiet Zones & Spaces High - Bars Low, No Label
Symbology Conversion, Transmit Noise = Disabled.

OEM/IBM Standard Default Settings —

OEM-USB Device Usage
= Table Top Scanner, Transmit Labels in Code 39 Format = OEM Stan­dard Format, 46xx Number of Host Resets = 6.

USB Standard Default Settings —

USB Keyboard Speed = Fast

(1ms).

Quick Reference Guide 11

Keyboard Standard Default Settings (Keyboard AT) —

Standard Product Default Settings

try Mode = U.S., Caps Lock= OFF, Numlock Key =Unchanged, Send
Control Characters = Disabled, Wedge Quiet Interval = 100ms, No
Wedge Intercode Delay.

Coun-

Resetting the Standard Product Defaults

If programming settings for your reader are in an unknown condition,
factory settings can be restored by scanning the “Standard Product
Default Settings” barcode below. A listing of factory default settings is
available in the PRG. Settings can vary, depending upon the interface
type.

Symbologies

Symbologies are factory enabled or disabled in the reader as follows:

Enabled Symbologies

• UPC-A, UPC-E, EAN 13, EAN 8 — without add-ons, Check
Character Transmission enabled, no Expansion, Minimum Reads
= 1 (except In-Store Minumum Reads = 2), System Number
Transmission = enabled, 2D Components = disabled, EAN 8
Guard Insertion/Substitution Options = disabled (except EAN 8
Guard Substitution), Stitching = disabled.

• Code 39 — Check Character Calculation/Transmission enabled,
Start/Stop Character disabled, Full ASCII disabled, Quiet Zones =
auto, Minimum Reads = 1, Decoding Level and Aggressiveness =
3, Variable Length Control, Length One = 2, Length Two = 50,
Interdigit Ratio = 4, Character Correlation = Disabled, Stitching is
enabled.

• Code 128 — No Expansion, Check Character Transmission
enabled, SubCode Change not transmitted, Quiet Zones = Auto,
Minimum Reads = 1, Decoding Levels and Aggressiveness = 3,

12 PowerScan® PD7100 Corded

How to Scan

Variable Length Control, Length One = 1, Length two = 80, Char­acter Correlation = disabled, Stitching = enabled.

• Interleaved 2 of 5 — Zero Pattern and Check Character Calcula­tion = disabled, Check Character Transmission = enabled, Mini­mum Reads = 1, Decoding Levels and Aggressiveness = 3, Variable
Length Control, Length One = 12, Length Two = 100, Character
Correlation and Stitching = disabled.

Disabled Symbologies

Databar (Omnidirectional, Expanded and Limited), GTIN formatting,
Pharmacode 39, Codabar, Code 93, Code 11, Standard 2 of 5.

How to Scan

When the trigger is pressed, the reader projects a red, horizontal illumi­nating beam. This beam will remain on until the trigger is released, a
barcode is read, or until a time-out

1

period expires.

If the surface being scanned is highly reflective
(e.g., laminated), it may be necessary to tilt the item
or the reader slightly (15° to 18°) to prevent

NOTE

Linear Barcodes —

beam over the barcode as shown in

unwanted reflection.

To scan a linear barcode, center the illumination

Figure 3. The reader must “see” across

the width of all of the bars. Move the reader further away from the bar­code to increase the scanning coverage area, and closer in to read very
small barcodes.

1. Reference the Product Reference Guide (PRG) for more information about the aiming

beam time-out period.

Quick Reference Guide 13

Figure 3. Scanning Barcodes

Decrease...

...or Increase distance
from barcode to adjust
aiming beam width to
cross all bars.

(Green spot provides
good read feedback)

Troubleshooting

The reader will automatically perform a set of self-tests whenever you
turn it on. If your reader doesn’t seem to be functioning properly, follow
these steps to try and isolate the problem.

1. Is the power on? Does the illumination beam come on?
If no illumination beam, check that...

• all connections are fully seated and in the appropriate port(s).

• the host system power is on (if external power isn’t used).

• the trigger works.

2. Is the reader having trouble reading your symbols?
If the reader isn’t reading symbols well, check that the symbols...

• aren’t smeared, rough, scratched, or exhibiting voids.

• aren’t coated with frost or water droplets on the surface.

• are enabled in the reader. See the Product Reference Guide

(PRG) for more about configuring the reader to read symbolo­gies.

14 PowerScan® PD7100 Corded

How to Scan

3. Is the barcode displayed but not entered?
The barcode is displayed on the host device correctly, but you still
have to press a key to enter it (the Enter/Return or Tab key, for
example).

You need to program a suffix which enables the reader to output
the barcode data plus the key you need (such as a carriage return
“CR”) to enter the data into your application. Refer to the PRG
for further information.

4. Does the reader read the barcode incorrectly?
If the reader reads a barcode, but the data is not displayed correctly
on the host screen:

• The reader may not be programmed for the appropriate termi-

nal interface. For example, you scan “12345” and the host dis­plays “@es%.” Reprogram the reader with the correct interface
selection barcode. See

Programming in this manual and/or the

PRG.

• The reader may not be programmed to output your barcode

data properly. For example, you scan “12345” and the host dis­plays “A12345B.” Reprogram the reader with the proper Data
Editing selections. Reference the PRG.

5. The reader won’t read your barcode at all.

• Scan the part number barcode in the back of this manual or the

samples from the PRG. If the reader reads sample barcodes,
check that your barcode is readable.

• Verify that your barcode symbology is enabled. See the PRG.

6. If you aren’t sure what programming options have been set in the
reader, or if you want the factory default settings restored, go to the

Resetting the Standard Product Defaults section of this manual and

scan the standard factory default settings barcode.

Quick Reference Guide 15

Figure 4. Labeling and Nomenclature

This illustration shows label placement ONLY.
For actual regulatory, patent and other applicable
information, view the labels on the product intself,
or call your nearest sales or service office.

Scan
Window

Trigger

LASER RADIATION. DO NOT STARE INTO BEAM.
1mW — 635 - 670 nm Class 2 LASER PRODUCT

DATALOGIC 959 Terry St. Eugene, OR 97402 USA

S/N: BETA0085

INPUT: 4-14VDC

DATE: 2008-04-03

Model: PD7100

Class: PD7130-YB-PTR

S/N and Laser Safety Label

Safety/EMC Marks

Indicator
LEDs

Speaker
Port

Interface
(I/F) Cable

FOR LASER POINTER VERSION: COMPLIES WITH
21 CFR 1040.10 AND 1040.11 EXCEPT FOR
DEVIATIONS PURSUANT TO LASER NOTICE NO. 50
DATED JUNE 24, 2007. IEC/EN60825-1:2007. SEE
QRG FOR PATENT INFO.

N263

16 PowerScan® PD7100 Corded

EUROPEAN DECLARATION OF CONFORMITY

Datalogic Scanning,lnc. hereby declares that the apparatus specified
below has been tested and found compliant to the following European
Council Directives and Hannonized Standards:

Apparatus: PowerScan PD7100 family

Directives:

EMC 2004/108/EC
Low Voltage 2006/95/EC
RoHS 2002/95/EC
WEEE 2002/96/EC

Standards: EN 61000 6-4:2007 Generic Emissions — for Industrial environments

CISPR 22:2006 Generic Emissions

AN/NZS CISPR 22:2006 Generic Emissions

EN 61000 6-2:2005 Generic Immunity — for Industrial environments

(Includes EN61000-

4-2 (ESD), 4-3 (Radiated Immunity)

4-4 (EFT),

4-5 (Surge),

4-6 (Cond Immunity) and

4-11 (Voltage dips/interruptions)

EN 60950-1:2007 ITE Safety

EN 60825-1:2007 Laser Safety

EN 61000-3-2:2006 Harmonic Current

EN 61000-3-3:1995+A1:2001+A2:2005 Voltage Fluctuation/Flicker

Equipment Type:

Handheld Barcode Scanning Equipment

Interface Protocol:

RS-232, USB, Keyboard Wedge, IBM, Wand Emulation

Placed into EU Service:

July 2008 under the Datalogic logo.

Responsible

Manufacturer:

Datalogic Scanning, Inc. 959 Terry St. Eugene, OR 97402 USA

Brad West
Vice President
Supply Chain Operations
Datalogic Scanning, Inc.

July 18, 2008
