6K-8KA FAMILY
Host Mode Programming
Page 2
Datalogic Automation Srl
Via Lavino, 265
40050 - Monte S. Pietro
Bologna - Italy
6K-8KA Family Host Mode Programming
Ed.: 02/2013
This manual refers to software release 7.00 or later.
© 2009 – 2013 Datalogic Automation S.r.l. ALL RIGHTS RESERVED. Protected to the fullest
extent under U.S. and international laws. Copying, or altering of this document is prohibited without
express written consent from Datalogic Automation S.r.l.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries,
including the U.S.A. and the E.U.
ID-NET and Genius are trademarks of Datalogic Automation S.r.l. All other brand and product names
mentioned herein are for identification purposes only and may be trademarks or registered trademarks
of their respective owners.
Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for
incidental or consequential damages resulting from the use of this material.
05/02/13
Page 3
iii
CONTENTS
1
HOST MODE PROGRAMMING...................................................................................1
2 PROGRAMMING COMMANDS ................................................................................... 2
2.1 Connection To Device ..................................................................................................2
2.2 Disconnection From Device..........................................................................................3
2.3 Self Disconnection........................................................................................................4
3 PROGRAMMING STRINGS......................................................................................... 7
3.1 Definitions.....................................................................................................................7
3.2 How To Send Single Parameter To The Reader ........................................................ 11
3.3 How To Get Single Parameter From The Reader ......................................................13
3.4 How To Access Installer Parameters..........................................................................15
3.5 Save And Restore Commands ...................................................................................16
3.6 Examples....................................................................................................................19
4 PARAMETERS LIST..................................................................................................23
4.1 Code Definition ...........................................................................................................23
4.2 Operating Modes ........................................................................................................29
4.3 Reading System Layout..............................................................................................36
4.4 Reading Parameters...................................................................................................40
4.5 Data Communication Setting......................................................................................43
4.6 Digital I/O Setting........................................................................................................56
4.7 Scanner Cluster..........................................................................................................59
4.8 Diagnostics .................................................................................................................59
4.9 Statistics .....................................................................................................................62
4.10 Energy Saving ............................................................................................................62
4.11 User Information Section ............................................................................................64
A SPECIAL COMMANDS AND TABLES .....................................................................65
Control Rules Table....................................................................................................65
Error Codes Table ......................................................................................................67
ASCII Table ................................................................................................................68
Page 4
iv
Page 5
HOST MODE PROGRAMMING
1
1
1 HOST MODE PROGRAMMING
An alternative method of programming the 6K family and the 8KA family laser scanners is by
sending programming strings.
These strings must be transmitted from the Host system to the device either on the auxiliary
RS232 serial interface or on the main RS232/RS485 serial interface, or, if available, on the
Ethernet System Socket. This is called Host Mode Programming.
In order to send the programming strings, it is necessary to switch the reader into Host
Mode.
CAUTION
Genius
must not be connected to the reader through the selected
interface before entering in Host Control Mode.
Serial Interfaces
The programming commands and strings must be sent to the reader at the programmed
baud rate of the selected interface (e.g. if the baud rate of the Auxiliary interface is
programmed at 9600 bps the command must be sent at 9600 bps).
The selected communication channel must be programmed as follows:
Data Bits:
8 Bits
Parity:
None
Stop Bits:
1
Once the programming session has started on one of the interfaces, the other is disabled
until programming is over.
Ethernet System Socket (Server only)
The programming commands and strings must be sent only to the dedicated System socket
of the reader.
Ethernet System Socket Port Number:
51235 (default value)
Page 6
6K-8KA FAMILY HOST MODE PROGRAMMING
2
2
2 PROGRAMMING COMMANDS
2.1 CONNECTION TO DEVICE
DESCRIPTION HOST COMMAND REPLY MESSAGE
1 Enter Host Mode <ESC> [ C <ESC> H <CR><LF>
After entering this command, the device responds with the first reply message and
then waits for the following command.
From now on the device is in the CONNECTED state. Normal data flow is inhibited
until it comes back to the IDLE state.
2 Enter Terminal Mode <ESC> ] B <ESC> R <CR><LF>
After entering this command, the device responds with the second reply message
and then waits for the following command in Terminal mode.
3 Enter Programming Mode <ESC> c M <B0H> ADDR <ESC> c <CR><LF>
ADDR is a character indicating the address of the device in an LONWORKS
Master/Slave reading system layout
ADDR = <30
H
> + <Device Address> where:
Device Address = 0: Stand Alone device or Master LONWORKS device
Device Address = 1 to 31: Slave LONWORKS device
This means:
ADDR = <30
H
>: Stand Alone device or Master LONWORKS device
ADDR = <31
H
> to <4FH>: Slave LONWORKS device
After entering this command, the device responds with the third reply message and
then waits for one or more programming strings as shown in Chapter 3 and 4.
Page 7
PROGRAMMING COMMANDS
3
2
2.2 DISCONNECTION FROM DEVICE
DESCRIPTION HOST COMMAND REPLY MESSAGE
1 Exit Programming Mode <ESC> d M <B0H> ADDR <ESC> d <CR><LF>
Where ADDR is the address of the device in an LONWORKS Master/Slave layout.
This message must always be transmitted to exit from programming mode.
2 Exit Terminal Mode <ESC> I A <space> <ESC> K <CR><LF>
This message must always be transmitted to exit from Terminal mode.
3 Exit Host Mode <ESC> [ A <ESC> X <CR><LF>
This message must always be transmitted to end the programming session.
From now on device is in IDLE state. Communication channel may be used for
normal data flow.
Page 8
6K-8KA FAMILY HOST MODE PROGRAMMING
4
2
2.3 SELF DISCONNECTION
Specific situations exist where the device is automatically disconnected from the Host and is
restored to the IDLE state. Once connected, the following message could be sent:
DESCRIPTION HOST REPLY DEVICE MESSAGE
Self Disconnection - <ESC> [ A
This message notifies a forced disconnection from the Host.
This message must always be managed by the Host program to check when the
device has gone back to the IDLE state.
Normally programming sequences do not involve this message except for the occasions
listed below:
1. Inactivity Timeout Expiration
After connection, no programming commands or programming strings are sent to the
device (approximately 2 minutes as default).
2. Application Software Restart
Particular commands may force a restart of the device like Data Storage commands
(refer to the Paragraph 3.5). The Self Disconnection message is sent to notify these
cases.
3. General Error Conditio
n
After connection to the device, unexpected errors are notified by means of the Self
Disconnection message.
4. Protocol Error
When Host sends wrong messages like unexpected escape sequences.
DESCRIPTION HOST REPLY DEVICE MESSAGE
Self Disconnection <ESC> X <CR><LF> -
Host must confirm the disconnection event sending this reply message.
If not sent, after a timeout (about 300 ms as default) device goes back to the IDLE
state.
Page 9
PROGRAMMING COMMANDS
5
2

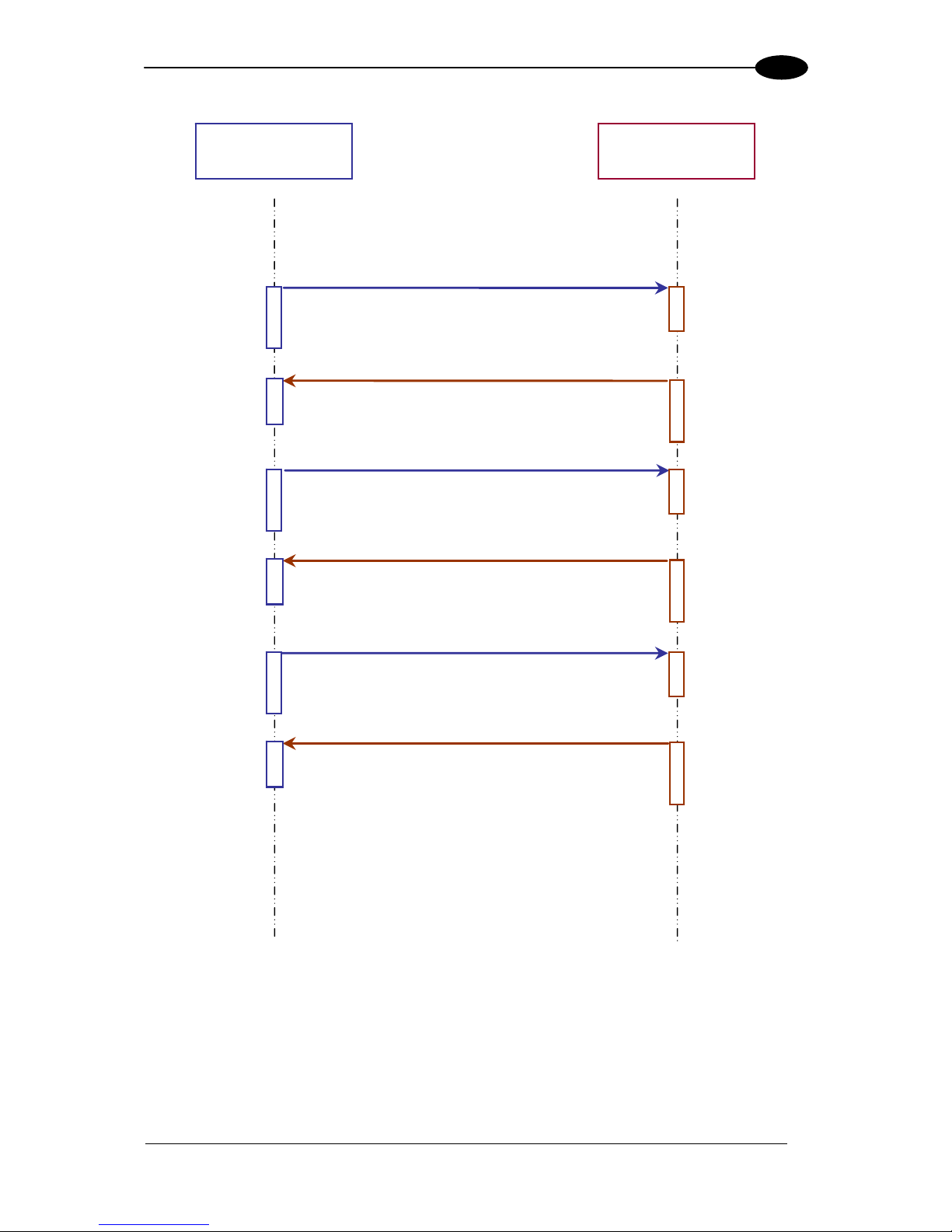

HOST DEVICE
<ESC> [ C
(Enter Host Mode)
<ESC> H <CR><LF>
<ESC> ] B
(Enter Terminal Mode)
<ESC> R <CR><LF>
<ESC> c <CR><LF>
<ESC> c M <B0H> 0
(Enter Programming Mode)
.
.
.
Figure 1 - Connection to Stand Alone Device
Page 10
6K-8KA FAMILY HOST MODE PROGRAMMING
6
2
HOST DEVICE
<ESC> d M <B0H> 0
(Exit Programming Mode)
<ESC> d <CR><LF>
<ESC> I A <space>
(Exit Terminal Mode)
<ESC> K <CR><LF>
<ESC> X <CR><LF>
<ESC> [ A
(Exit Host Mode)
.
.
.
Figure 2 - Disconnection from Stand Alone Device
Page 11
PROGRAMMING STRINGS
7
3
3 PROGRAMMING STRINGS
3.1 DEFINITIONS
Common definitions for each parameter are:
Path
The complete parameter path must have the following format:
/Folder1[#Depth1]/Folder2[#Depth2]/ … /FolderN[#DepthN]/Param[#DepthM]
Where:
FolderX:
Folder Name
[#DepthX]:
Folder or Parameter Depth (not necessary if equal to 1)
Param:
Parameter Name
Shortcut (SHC)
The short description replacing the complete parameter path (that allows implementation of
shorter programming strings) must have the following format:
Shortcut [#Depth]
Where:
Shortcut:
Short Parameter Description
[#Depth]:
Folder or Parameter Depth (not necessary if equal to 1)
Depth (Parameter Depth)
Depth of the parameter indicates if it is made up of a vector of values or a single value (e.g.
Code Symbology parameter has depth > 1 since we have one Code Symbology value for
each Code slot allowed; Code Combination parameter has depth =1).
Example
:
Label: Code Symbology
Path: /Codes/Code#3/Type
Shortcut: 2#3
Allows selecting the code symbology requested for Code slot 3.
Page 12
6K-8KA FAMILY HOST MODE PROGRAMMING
8
3
Type (Parameter Type)
Parameter type is essential in order to decide the parameter VALUE format used in the
programming strings. Types are:
Type 0
: Integer (Numeric)
Type 1
: Enumeration
Type 2
: String
Type 3
: Binary String
Type 4
: Floating Point
The other definitions change according to the parameter type.
Integer (Type = 0)
Range
Minimum and maximum values allowed for the parameter.
Example
: Reading Phase Timeout parameter (OPERATING MODES folder).
Path: /Operating/ONLTimeOut
Shortcut: 79
Type: 0
Label: Timeout (ms)
Range: 40 to 15.000
Default: 500
The sign can be omitted if the parameter value is not negative.
Enumeration (Type = 1)
Item List
List of the values allowed for the parameter (i.e. 0 = first entry of the list, 1 = second entry of
the list).
Example
: Operating Mode parameter (OPERATING MODES folder).
Path: /Operating/Selection
Shortcut: 31
Type: 1
Label: Operating Mode Selection
Item List: 0 = On Line
1 = Automatic
3 = Test
4 = Continuous
5 = PackTrack
Default: 0 (Entry 0 On Line)
Page 13
PROGRAMMING STRINGS
9
3
String (Type = 2)
Length
Minimum and maximum number of characters allowed for this parameter.
Example
: Device Name parameter (USER INFORMATION SECTION folder).
Path: /UserInfo/Name
Shortcut: 522
Type: 2
Label: Device Name (max. 128 chars)
Length: 0 to 128
Default: Empty string
Binary String (Type = 3)
The value of a Binary String parameter must have the following format:
NumChar<space>[Char1][Char2] … [CharK] … [CharN]
Where:
NumChar:
Number of Characters (DEC value)
[CharK]:
Character K (HEX value)
NOTE
A special case occurs If a character of the parameter value is equal to:
<DLE> (10
H), <ESC> (1BH ), <CR> (0DH) or <LF> (0AH)
In order to be recognized the character must be transmitted as <DLE> (10
H)
followed by its complementary character:
<~DLE> (EF
H), <~ESC> (E4H), <~CR> (F2H) or <~LF> (F5H )
Example: <ESC> (1B
H) must be transmitted as <DLE><~ESC> (10H E4H).
Length
List of the allowed values of the parameter
Example
: Header String parameter (DATA FORMAT folder).
Path: /Comms/OutForm/Standard/Header
Shortcut: 6
Type: 3
Label: Header String
Length: 0 to 128
Default: <STX>
Page 14
6K-8KA FAMILY HOST MODE PROGRAMMING
10
3
Floating Point (Type = 4)
The Floating Point parameter value has the following format:
XXX.YYY
Range
Minimum and maximum values allowed for the parameter.
Example
: Max Angle parameter (OSCILLATING MIRROR folder).
Path: /Reading/Oscillating/ContMaxAngle
Shortcut: 257
Type: 4
Label: Max Angle
Range: -2.5 to 37.5
Default: 25
The sign can be omitted if the parameter value is not negative.
Page 15
PROGRAMMING STRINGS
11
3
3.2 HOW TO SEND SINGLE PARAMETER TO THE READER
NOTE
To guarantee the complete compatibility with future software releases, It is
strongly suggested to use the shortcuts programming strings.
Using Complete Parameter Path
The 'Set Parameter' programming string must have the following format:
SP<space>PATH:VALUE<CR><LF>
Where:
SP:
'Set Parameter' command
PATH:
Complete Parameter Path
VALUE:
Parameter Value
After entering this command, the device responds with the proper reply message and then
waits for one or more programming strings.
If the programming is correct, the device updates the configuration and confirms with the
following message:
Y<space>VALUE<CR><LF>
Where:
VALUE:
Parameter Value
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message and programming data will not be
updated in this case:
N<space>ERRCODE<CR><LF>
Where:
ERRCODE:
Error Code (signed DEC value)
For information on Error Codes see the "Error Codes Table" in the Appendix.
Page 16
6K-8KA FAMILY HOST MODE PROGRAMMING
12
3
Using Short Parameter Description (Shortcut)
The 'Set Shortcut' programming string (based on the short parameter description) must
have the following format:
SS<space>SHORTCUT:VALUE<CR><LF>
Where:
SS:
'Set Shortcut' command
SHORTCUT:
Short Parameter Description (SHC)
VALUE:
Parameter Value
After entering this command, the device responds with the proper reply message and then
waits for one or more programming strings.
If the programming is correct, the device updates the configuration and confirms with the
following message:
Y<space>VALUE<CR><LF>
Where:
VALUE:
Parameter Value
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message and programming data will not be
updated in this case:
N<space>ERRCODE<CR><LF>
Where:
ERRCODE:
Error Code (signed DEC value)
For information on Error Codes see the "Error Codes Table" in the Appendix.
Page 17
PROGRAMMING STRINGS
13
3
3.3 HOW TO GET SINGLE PARAMETER FROM THE READER
NOTE
To guarantee the complete compatibility with future software releases, It is
strongly suggested to use the shortcuts programming strings.
Using Complete Parameter Path
The 'Get Parameter' programming string must have the following format:
GP<space>PATH<CR><LF>
Where:
GP:
'Get Parameter' command.
PATH:
Complete Parameter Path.
After entering this command, the device responds with the proper reply message and then
waits for one or more programming strings.
If the programming is correct, the device updates the configuration and confirms with the
following message:
Y<space>VALUE<CR><LF>
Where:
VALUE:
Parameter Value.
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message:
N<space>ERRCODE<CR><LF>
Where:
ERRCODE:
Error Code (signed DEC value)
For information on Error Codes see the "Error Codes Table" in the Appendix.
Page 18
6K-8KA FAMILY HOST MODE PROGRAMMING
14
3
Using Short Parameter Description (Shortcut)
The 'Get Shortcut' programming string (based on the short parameter description) must
have the following format:
GS<space>SHORTCUT<CR><LF>
Where:
GS:
'Get Shortcut' command.
SHORTCUT:
Short Parameter Description (SHC).
After entering this command, the device responds with the proper reply message and then
waits for one or more programming strings.
If the programming is correct, the device updates the configuration and confirms with the
following message:
Y<space>VALUE<CR><LF>
Where:
VALUE:
Parameter Value.
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message:
N<space>ERRCODE<CR><LF>
Where:
ERRCODE:
Error Code (signed DEC value)
For information on Error Codes see the "Error Codes Table" in the Appendix.
Page 19
PROGRAMMING STRINGS
15
3
3.4 HOW TO ACCESS INSTALLER PARAMETERS
Set Right Parameter Description
The 'Set Right' programming string allows the user to access some particular parameters
not available as standard user:
SR<space>L<space>PASSWORD<CR><LF>
Where:
SR:
'Set Right' command
L:
Access Level Description
PASSWORD:
Password for the Level accessing
After entering this command, the device responds with the proper reply message and then
waits for one or more programming strings.
If the programming is correct, the device updates the configuration and confirms with the
following message:
Y<space>L<CR><LF>
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message and programming data will not be
updated in this case:
N<space>ERRCODE<CR><LF>
Where:
ERRCODE:
Error Code (signed DEC value)
For information on Error Codes see the "Error Codes Table" in the Appendix.
NOTE
To set the INSTALLER level (the only one available outside the Datalogic
Company) use:
SR<space>1<space>STHD<CR><LF>
Page 20
6K-8KA FAMILY HOST MODE PROGRAMMING
16
3
3.5 SAVE AND RESTORE COMMANDS
The 'Data Storage' programming command must have the following format:
E<space>MODE<CR><LF>
Where:
E:
Data Storage command.
MODE:
Data Storage mode. The possible values are:
V = Storage in temporary (volatile) memory only.
P = Storage in temporary and permanent memory.
If the programming is correct, the device updates the configuration and confirms with the
following message:
Y<space>MODE<CR><LF>
Where:
MODE:
Data Storage mode.
CAUTION
Restart of the device is now forced. If no disconnection commands are sent
within a minimum timeout of 300 ms, the device will transmit the Self
Disconnection message (refer to the Paragraph 2.3).
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message and programming data will not be
updated in this case:
N<space>ERRCODE<CR><LF>
Where:
ERRCODE:
Error Code (signed DEC value).
For information on Error Codes see the "Error Codes Table" in the Appendix.
Page 21
PROGRAMMING STRINGS
17
3
The 'Restore Default Configuration' programming command must have the following
format:
SD<space>DEFNUM<CR><LF>
Where:
SD:
Restore Default configuration command
DEFNUM:
Default configuration number. The only possible value is currently:
0 = Factory Default
After entering this command, the device responds with the proper reply message and then
waits for one or more programming strings.
If the programming is correct, the device updates the configuration and confirms with the
following message:
Y<space>DEFNUM<CR><LF>
Where:
DEFNUM:
Default
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message:
N<space>ERRCODE<CR><LF>
Where:
ERRCODE:
Error Code (signed DEC value)
For information on Error Codes see the "Error Codes Table" in the Appendix.
CAUTION
This programming command will be applied to all Configuration and
Environmental parameters. Refer to the Genius
Help On Line of the
selected device for further details.
Page 22
6K-8KA FAMILY HOST MODE PROGRAMMING
18
3
HOST DEVICE
SP<space>PATH1:VALUE1<CR><LF>
(Set parameter 1)
Y<space>VALUE1<CR><LF>
Y<space>MODE<CR><LF>
E<space>MODE<CR><LF>
(Data Storage)
.
.
.
SP<space>PATH2:VALUE2<CR><LF>
(Set parameter 2)
Y<space>VALUE2<CR><LF>
.
.
.
Figure 3 - Two Parameters Programming Session With Data Storage
Page 23
PROGRAMMING STRINGS
19
3
3.6 EXAMPLES
- 1 -
Set Minimum Label Length parameter in CODE LABEL SETTING #2 folder:
Path: /Codes/Code#2/MinLength
Shortcut: 3
Type: 0 (Integer)
Range: 1 to 60
Value: 4
The 'Set Parameter' programming string is:
SP<space>/Codes/Code#2/MinLength:4<CR><LF>
The 'Set Shortcut' programming string is:
SS<space>3#2:4<CR><LF>
After entering the programming string, the reader responds with the message:
Y<space>4<CR><LF>
- 2 -
Set Operating Mode Selection parameter in OPERATING MODES folder:
Path: /Operating/Selection
Shortcut: 31
Type: 1 (Enumeration)
Item List: 0 = On Line
1 = Automatic
3 = Test
4 = Continuous
5 = PackTrack
Value:
1 (Entry 1 Automatic)
The 'Set Parameter' programming string is:
SP<space>/Operating/Selection:1<CR><LF>
The 'Set Shortcut' programming string is:
SS<space>31:1<CR><LF>
After entering the programming string, the reader responds with the message:
Y<space>1<CR><LF>
Page 24
6K-8KA FAMILY HOST MODE PROGRAMMING
20
3
- 3 -
Set Device Name parameter in USER INFORMATION SECTION folder:
Path: /UserInfo/Name
Shortcut: 522
Type: 2 (String)
Length: 0 to 128
Value: 6K_FAMILY
The 'Set Parameter' programming string is:
SP<space>/UserInfo/Name:6K_FAMILY<CR><LF>
The 'Set Shortcut' programming string is:
SS<space>522:6K_FAMILY<CR><LF>
After entering the programming string the reader responds with the message:
Y<space>6K_FAMILY<CR><LF>
- 4 -
Set Header String parameter in DATA FORMAT folder:
Path: /Comms/OutForm/Standard/Header
Shortcut: 6
Type: 3 (Binary String)
Length 0 to 128
Value: HEADER (HEX value: 48H 45H 41H 44H 45H 52H)
The 'Set Parameter' programming string is:
SP<space>/Comms/OutForm/Standard/Header:6<space>484541444552<CR><LF>
The 'Set Shortcut' programming string is:
SS<space>6:6<space>484541444552<CR><LF>
After enter the programming string, the reader responds with the message:
Y<space>6<space>484541444552<CR><LF>
Page 25
PROGRAMMING STRINGS
21
3
- 5 -
Set Min Angle parameter in OSCILLATING MIRROR folder:
Path: /Reading/Oscillating/ContMinAngle
Shortcut: 256
Type: 4 (Floating Point)
Range: -2.5 to 37.5
Value: -1.5
The 'Set Parameter' programming string is:
SP<space>/Reading/Oscillating/ContMinAngle:-1.5 <CR><LF>
The 'Set Shortcut' programming string is:
SS<space>256:-1.5<CR><LF>
After entering the programming string, the reader responds with the message:
Y<space>-1.5<CR><LF>
- 6 -
Get value of Digital Output 3 Activation Event parameter in DIGITAL OUTPUT LINES folder:
Path: /IO/Out/Out2/Active
Shortcut: 28
Type: 1 (Enumeration)
Current Value:
2 (Entry 2 Partial Read)
The 'Get Parameter' programming string is:
GP<space>/IO/Out/Out2/Active<CR><LF>
The 'Get Shortcut' programming string is:
GS<space>28<CR><LF>
After entering the programming string, the reader responds with the message:
Y<space>2<CR><LF>
Page 26
6K-8KA FAMILY HOST MODE PROGRAMMING
22
3
- 7 -
Get value of No Read String parameter in CODE DEFINITION folder:
Path: /Codes/NoReadStr
Shortcut: 9
Type: 3 (Binary String)
Current Value: Empty string
The 'Get Parameter' programming string is:
GP<space>/Codes/NoReadStr<CR><LF>
The 'Get Shortcut' programming string is:
GS<space>9<CR><LF>
After entering the programming string, the reader responds with the message:
Y<space>0<CR><LF>
Page 27
PARAMETERS LIST
23
4
4 PARAMETERS LIST
4.1 CODE DEFINITION
PARAMETER COMPLETE PATH SHC PT VALUE
CODE DEFINITION
Code Combination /Codes
/MultiLabel
72 1 0 = Single Label
1 = Standard Multi Label
2 = Logical Combination
3 = Code Collection
Logical Combination
Rule
/Codes
/LogicalComb
191 2 Length: 0 to 64
No Read Message /Codes
/NoRead
14 1 0 = Disable No Read
Message
1 = Global No Read
Message
2 = Local No Read(s)
Message
No Read String /Codes
/NoReadStr
9 3 Length: 0 to 128
Multiple Read
Message
/Codes
/Mulread
15 1 0 = Disable
1 = Enable
Multiple Read String /Codes
/MulReadMsg
16 3 Length: 1 to 128
Send All Multiple
Read Labels
/Codes
/SendAllMultipleLabels
3026 1 0 = Disable
1 = Enable
Partial Read Is
Treated As
/Codes
/PartialReadAs
- 1 0 = No Read
1 = Good Read
3 = Partial Read
Multi Filters /Codes
/Multifilter
- 1 0 = Disable
1 = Enable
Codes Different When
Scan Gap Is Greater
Than
/Codes
/ScanDistCheck
- 0 Range: 0 to 32765
Codes Different When
Code Position Gap Is
Greater Than
/Codes
/PositionDistCheck
- 0 Range: 0 to 255
Associate Same
Codes When Read By
Different Scanners
/Codes
/NetCodeAssociate
534 1 0 = Disable
1 = Enable
LOCAL NO READ STRINGS #N (DEPTH: N = 1 to 15)
Group Label Local No
Read String
/Codes
/LocNoReadComb
/LocalNoRead#N
17 3 Length: 0 to 48
LOCAL MULTIPLE READ STRINGS #N (DEPTH: N = 1 to 15)
Group Label Local
Multiple Read String
/Codes
/LocMultReadComb
/LocalMulRead#N
327 3 Length: 0 to 48
Page 28
6K-8KA FAMILY HOST MODE PROGRAMMING
24
4
PARAMETER COMPLETE PATH SHC PT VALUE
MULTI FILTER SETTINGS
Contained Filter /Codes/Filters
/FirstLevelFilter
Contained
- 1 0 = Disable
1 = Enable
Max Number of
Different Characters
/Codes/Filters
/ContainedFilter
NumberOfChar
- 0 Range: 0 to 5
Voting Filter /Codes/Filters
/SecondLevelFilter
Voting
- 1 0 = Disable
1 = Enable
Max Number of
Different Characters
/Codes/Filters
/VotingFilterNumber
OfChar
- Range: 1 to 5
Filter Out Low Height
Codes
/Codes/Filters
/SecondLevelFilterNEL
- 1 0 = Disable
1 = Enable
Strip Filter /Codes/Filters
/SecondLevelFilterStrip
- 1 0 = Disable
1 = Enable
STRIP FILTER PARAMETERS
Strip All Non Printable
Chars
/Codes/Filters
/StrepFilterPar
/StripFilterAllNoStpChars
- 1 0 = Disable
1 = Enable
Char(s) to be Striped /Codes/Filters
/StrepFilterPar
/StripFilterString
- 3 Length: 0 to 128
StripFIlterCollapse /Codes/Filters
/StrepFilterPar
/StripFIlterCollaps
- 1 0 = Disable
1 = Enable
Replacement Char /Codes/Filters
/StrepFilterPar
StripFilterRepChar
- 3 Length: 1
FILTER OUT LOW HEIGHT CODES PARAMETERS
Filter Out Single
Readings
/Codes/Filters
/SecondLevelFilterNELP
/FOSR
- 1 0 = Disable
1 = Enable
Minimum Difference in
Readings Between
Scanners
/Codes/Filters
/SecondLevelFilterNELP
/MRDBS
- 1 0 = Disable
1=1
2=2
3=3
4=4
5=5
6=6
7=7
8=8
9=9
10=10
CODE LABEL SETTING #N (DEPTH: N = 1 to 10)
Enable /Codes
/Code#N/Enable
1 1 0 = Disable
1 = Enable
Page 29
PARAMETERS LIST
25
4
PARAMETER COMPLETE PATH SHC PT VALUE
Code Symbology /Codes
/Code#N
/Type
2 1 0 = Code 128
1 = Interleaved 2 of 5
2 = Code 39
3 = Code GS1-128
4 = EAN-13
5 = EAN-8
6 = UPC-A
7 = UPC-E
8 = All EAN-UPC
9 = Codabar
10 = Code 93
16 = GS1 Databar
26 = GS1 Databar Limited
27 = GS1 Databar Expanded
EAN AddOn /Codes
/Code#N
/AddOn
32 1 0 = No Add On
1 = 2 digits Add On
2 = 5 digits Add On
Label Length /Codes
/Code#N
/Length
70 1 0 = Variable
1 = 1
2 = 2
3 = 3
4 = 4
5 = 5
6 = 6
…
60 = 60
Minimum Label
Length
/Codes
/Code#N
/MinLength
3 0 Range: 1 to 60
Maximum Label
Length
/Codes
/Code#N
/MaxLength
4
0 Range: 1 to 60
Label Length
(GS1 Databar
Expanded)
/Codes
/Code#N/
LengthGS1Expanded
5578 1 0 = Variable
2 = 2
3 = 3
4 = 4
5 = 5
6 = 6
…
74 = 74
Minimum Label
Length (GS1 Databar
Expanded)
/Codes
/Code#N
/MinLengthGS1
Expanded
5579 0 Range: 2 to 74
Maximum Label
Length (GS1 Databar
Expanded)
/Codes
/Code#N
/MaxLengthGS1
Expanded
5580 0 Range: 2 to 74
Bar Count
(only for Code 128,
GS1-128)
/Codes
/Code#N
/6ElBarCount
71 1 0 = Variable
1 = 25
2 = 31
3 = 37
4 = 43
Page 30
6K-8KA FAMILY HOST MODE PROGRAMMING
26
4
PARAMETER COMPLETE PATH SHC PT VALUE
5 = 49
6 = 55
7 = 61
8 = 67
9 = 73
10 = 79
11 = 85
12 = 91
13 = 97
14 = 103
15 = 109
16 = 115
17 = 121
18 = 127
19 = 133
20 = 139
21 = 145
22 = 151
23 = 157
24 = 163
25 = 169
26 = 175
27 = 181
28 = 187
29 = 193
30 = 199
31 = 205
32 = 211
33 = 217
34 = 223
35 = 229
36 = 235
37 = 241
38 = 247
39 = 253
40 = 259
41 = 265
42 = 271
43 = 277
44 = 283
45 = 289
46 = 295
47 = 301
48 = 307
49 = 313
50 = 319
51 = 325
52 = 331
53 = 337
54 = 343
55 = 349
56 = 355
57 = 361
Page 31
PARAMETERS LIST
27
4
PARAMETER COMPLETE PATH SHC PT VALUE
58 = 367
59 = 373
60 = 379
Bar Count
(only for Code 93)
/Codes
/Code#N
/6ElBarCount1
85 1 0 = Variable
1 = 31
2 = 37
3 = 43
4 = 49
5 = 55
6 = 61
7 = 67
8 = 73
9 = 79
10 = 85
11 = 91
12 = 97
13 = 103
14 = 109
15 = 115
16 = 121
17 = 127
18 = 133
19 = 139
20 = 145
21 = 151
22 = 157
23 = 163
24 = 169
25 = 175
26 = 181
27 = 187
28 = 193
29 = 199
30 = 205
31 = 211
32 = 217
33 = 223
34 = 229
35 = 235
36 = 241
37 = 247
38 = 253
39 = 259
40 = 265
41 = 271
42 = 277
43 = 283
44 = 289
45 = 295
46 = 301
47 = 307
48 = 313
49 = 319
Page 32
6K-8KA FAMILY HOST MODE PROGRAMMING
28
4
PARAMETER COMPLETE PATH SHC PT VALUE
50 = 325
51 = 331
52 = 337
53 = 343
54 = 349
55 = 355
56 = 361
57 = 367
58 = 373
59 = 379
60 = 385
Min Code Position
Filter
/Codes
/Code#N
/MinCodePos
262 0 Range: 0 to 255
Max Code Position
Filter
/Codes
/Code#N
/MaxCodePos
263 0 Range: 0 to 255
Check Digit /Codes
/Code#N
/CheckDigit
5 1 0 = Disable
1 = Enable
Check Digit Type
(only for Interleaved
2 of 5)
/Codes
/Code#N
/CheckDigit25IL
526 1 0 = Standard
1 = German
2 = DHL
3 = Daimler-Chrysler
4 = Bosch
Check Digit Type
(only for Code 39)
/Codes
/Code#N/
/CheckDigit39
527 1 0 = Standard
1 = Mod 7
Check Digit
Transmission
/Codes
/Code#N
/CheckDigitTx
524 1 0 = Disable
1 = Enable
Ink Spread
Equalization
/Codes
/Code#N/InkSpread
- 1 0 = Disable
1 = Enable
Decoding Safety /Codes
/Code#N/DecSaf
261 0 Range: 1 to 100
Decoding Severity /Codes
/Code#N/Severity
525 0 Range: 1 to 5
Match String Rule /Codes
/Code#N
/MatchStrRule
- 1 0 = Match
1 = Do Not Match
Pattern Match String /Codes
/Code#N
/PatMatch
- 3 Length: 0 to 200
Match Direction Rule /Codes
/Code#N
/MatchDirectionRule
- 1 0 = Disable
1 = Forward
2 = Reverse
Code Label Local No
Read String
/Codes
/Code#N
/LocNoRead
18 3 Length: 0 to 48
Code Label Local
Multiple Read String
/Codes
/Code#N
/LocMulRead
328 3 Length: 0 to 48
Page 33
PARAMETERS LIST
29
4
PARAMETER COMPLETE PATH SHC PT VALUE
Start Character
Transmission
(only for Codabar)
/Codes
/Code#N
/StartChTx
382 1 0 = Disabled
2 = Lower Case
3 = Upper Case
Stop Character
Transmission
(only for Codabar)
/Codes
/Code#N
/StopChTx
383 1 0 = Disabled
2 = Lower Case
3 = Upper Case
Stacked Code Margin /Codes
/Code#N
/StackedCodeMargin
713 1 0 = Disable
1 = Enable
4.2 OPERATING MODES
PARAMETER COMPLETE PATH SHC PT VALUE
OPERATING MODES
Operating Mode
Selection
/Operating
/Selection
31 1 0 = On Line
1 = Automatic
3 = Test
4 = Continuous
5 = PackTrack
On Line Options /Operating
/OnLOpt
73 1 0 = On Line 1 input
1 = On Line 2 input
2 = Serial On Line
Extended Phase /Operating
/ExtendedPhase
- 1 0 = Disable
1 = Enable
Test Mode Send
Data
/Operating
/TestSend
500 1 0 = Send Data To
All Selected Channels
1 = Send Data To
Aux Serial Only
2 = Do Not Send Data
Serial Start String /Operating
/SerialStart
86 3 Length: 1 to 32
Start Input Number /Operating
/ONLStartIn
74 0 Range: 1 to 4
Start Input Active
Level
/Operating
/ONLStartInLev
75 1 0 = Active Closed
1 = Active Open
Serial Stop String /Operating
/SerialStop
87 3 Length: 1 to 32
Stop Input Number /Operating
/ONLStopIn
76 0 Range: 1 to 4
Stop Input Active
Level
/Operating
/ONLStopInLev
77 1 0 = Active Closed
1 = Active Open
Stop Phase Edge /Operating
/PhaseOffLeadEdge
- 1 0 = Trailing
1 = Leading
Reading Phase
Timeout
/Operating
/OnLTimOutEn
78 1 0 = Disable
1 = Enable
Timeout (ms) /Operating
/ONLTimeOut
79 0 Range: 40 to 15000
Timeout Counting
From
/Operating
/ONLToutStart
- 1 0 = Start
1 = Stop
Page 34
6K-8KA FAMILY HOST MODE PROGRAMMING
30
4
PARAMETER COMPLETE PATH SHC PT VALUE
Stop Priority /Operating
/ONLStopPrio
80 1 0 = Input / SerialStop
1 = Always Timeout
Automatic Threshold
(number of scans)
Operating
/AutomaticThreshold
501 0 Range: 10 to 32765
Continuous
Threshold (number
of scans)
/Operating
/ContThreshold
- 0 Range: 10 to 32765
Physical Encoder /Operating
/PhyEnc
200 1 0 = Disable
1 = Enable
Encoder Step
(hundredths of
millimeter)
/Operating
/EncStep
201 0 Range: 1 to 10000
Conveyor Speed
(mm/sec)
/Operating
/PktrSpeed
216 0 Range: 50 to 10000
Ps Line (mm) /Operating
/PktrPsLine
202 0 Range: -32767 to 32767y
Presence Sensor
Input
/Operating
/PktrPsIn
203 0 Range: 1 to 4
Presence Sensor
Input Level
/Operating
/PktrPsLev
204 1 0 = Active Closed
1 = Active Open
Distance from PS
Line to TX Line (mm)
/Operating
/PktrTxLineDist
205 0 Range: 100 to 20000
Transmission Edge /Operating
/PktrTxLineEdge
206 1 0 = Leading
1 = Trailing
Max Number of
Packs
/Operating
/PktrMaxPacks
207 0 Range: 2 to 40
Minimum Distance
Error Behaviour
/Operating
/PktrMinDistEn
211 1 0 = Ignore Error
1 = Compose
2 = Discard Last
Minimum Distance
Between Packs
(mm)
/Operating
/PktrMinDist
208 0 Range: 10 to 10000
Minimum Pack
Length Error
Behaviour
/Operating
/PktrMinLenEn
212 1 0 = Ignore Error
1 = Discard Item
Minimum Pack
Length (mm)
/Operating
/PktrMinLen
209 0 Range: 50 to 1000
Window Dimension
(mm)
/Operating
/PktrWinDim
210 0 Range: 0 to 1000
Encoder Delay Error
Behaviour
/Operating
/PktrEncErr
214 1 0 = Ignore Error
1 = Fast Resync
2 = Safe Resync
Max. Encoder Delay
For Code
/Operating
/PktrEncMaxDelay
213 0 Range: 50 to 100000
Max. Consecutive
Delayed Codes For
Node
/Operating
/PktrMaxDelayOfCode
- 0 Range: 0 to 255
Max. Safe Resync
For Node
/Operating
/PktrMaxNodeResync
- 0 Range: 0 to 255
Bidirectional /Operating
/Bidirectional
- 1 0 = Disable
1 = Enable
Page 35
PARAMETERS LIST
31
4
PARAMETER COMPLETE PATH SHC PT VALUE
Direction Input /Operating
/PktrInDir
- 0 Range: 1 to 4
Reverse Direction
Level
/Operating
/PktrInDirLev
- 1 0 = Closed
1 = Open
Reverse Presence
Sensor Input
/Operating
/PktrPsRev
- 0 Range: 1 to 4
Reverse Presence
Sensor Input Level
/Operating
/PktrPsRevLev
- 1 0 = Active Closed
1 = Active Open
Distance from PS to
Reverse PS (mm)
/Operating
/PktrRevOffsY
- 0 Range: 100 to 20000
Start Input from Bus
(Profibus Models
Only)
/Operating
/PbusOnl
- 1 0 = Disable
1 = Enable
Start Input from Bus
(Ethernet Models
Only)
/Operating
/EthOnl
- 1 0 = Disable
1 = Enable
Use Encoder
(Continuous Mode
Only)
/Operating
/ContOpt
- 1 0 = Disable
1 = Physical Encoder
2 = Auto Encoder
Encoder Step
(hundredths of
millimeter)
/Operating
/ContEncEncStep
- 0 Range: 1 to 10000
Conveyor Speed
(mm/sec)
/Operating
/ContEncSpeed
- 0 Range: 50 to 10000
Encoder Delay Error
Behaviour
/Operating
/ContEncErr
- 1 0 = Ignore Error
1 = Fast Resync
2 = Safe Resync
Max. Encoder Delay
For Code
/Operating
/ContEncMaxDelay
- 0 Range: 50 to 10000
Max. Consecutive
Delayed Codes For
Node
/Operating
/ContEncMaxDelayOf
Code
- 0 Range: 0 to 255
Max. Safe Resync
For Node
/Operating
/ContEncMaxNode
Resync
- 0 Range: 0 to 255
Replicate same code
when symbologies
don't match
/Operating
/CodTypeFiltEn
- 1 0 = Disable
1 = Enable
Code Filter Depth /Operating
/CodeFilterDepth
502 0 Range: 0 to 127
Code Filter /Operating
/CodFiltToutEncEn
- 1 0 = Disable
1 = Timeout
2 = Encoder Steps
3 = Tx Line
Filter Timeout Value
(ms)
/Operating
/FilterTimeout
- 0 Range:40 to 15000
Filter Number of
Encoder Steps
/Operating
/FilterNumEncStep
- 0 Range:1 to 15000
Distance from (x,y,z)
origin to Tx Line
(mm)
/Operating
/ContTxLineDist
- 0 Range:100 to 20000
Page 36
6K-8KA FAMILY HOST MODE PROGRAMMING
32
4
PARAMETER COMPLETE PATH SHC PT VALUE
Replicate same code
when X positions
don't match
/Operating
/CodUseCoordinateX
- 1 0 = Disable
1 = Enable
Replicate same code
when Y positions
don't match
/Operating
/CodUseCoordinateY
- 1 0 = Disable
1 = Enable
Replicate same code
when Z positions
don't match
/Operating
/CodUseCoordinateZ
- 1 0 = Disable
1 = Enable
Protocol Index /Operating
/ProtocolIndex
- 1 0 = Disable
1 = Enable
Hybrid System /Operating
/HybridSystem
- 1 0 = Disable
1 = Use as Master
2 = Use as Slave
VERIFIER
Enable /Operating/Verifier
/EnVerifier
5121 1 0 = Disable
1 = Enable
Verifier Code /Operating/Verifier
/VerifierCode
5126 3 Length: 1 to 128
Store Input /Operating/Verifier
/Input
5124 1 1 = 1
2 = 2
3 = 3
4 = 4
Active Level /Operating/Verifier
/VerifInLev
5125 1 0 = Active Closed
1 = Active Open
Wrong Code Tx /Operating/Verifier
/EnWrongCode
5127 1 0 = Disable
1 = Enable
Wrong String Tx /Operating/Verifier
/EnWrong
5123 1 0 = Disable
1 = Enable
Wrong String /Operating/Verifier
/WrongString
5122 3 Length: 1 to 128
PROTOCOL INDEX PARAMETERS / AUX
Use Aux Serial Port /Operating
/ProtocolIndexParameters
/AuxPar/AuxEn
- 1 0 = Disable
1 = Enable Without
Request Message
2 = Enable With
Request Message
Header /Operating
/ProtocolIndexParameters
/AuxPar/StrAux
- 3 Length: 0 to 1
Terminator /Operating
/ProtocolIndexParameters
/AuxPar/StpAux
- 3 Length: 0 to 1
Page 37
PARAMETERS LIST
33
4
PARAMETER COMPLETE PATH SHC PT VALUE
Protocol Index
Length
/Operating
/ProtocolIndexParameters
/AuxPar/PILengthAux
- 1 0 = Length In
Message
1 = Variable length
3 = 3
4 = 4
5 = 5
…
12 = 12
No Index Char /Operating
/ProtocolIndexParameters
/AuxPar/NOIndexCharAux
- 3 Length: 0 to 1
Protocol Index
Request Message
/Operating
/ProtocolIndexParameters
/AuxPar/PIReqMsgAux
- 3 Length: 0 to 32
Distance from
Protocol Index to
Trigger Line (mm)
/Operating
/ProtocolIndexParameters
/AuxPar/TxPtFromRef_aux
- 0 Range:0 to 65532
PROTOCOL INDEX PARAMETERS / MAIN
Use Main Serial Port /Operating
/ProtocolIndexParameters
/MainPar/MainEn
- 1 0 = Disable
1 = Enable Without
Request Message
2 = Enable With
Request Message
Header /Operating
/ProtocolIndexParameters
/MainPar/StrMain
- 3 Length: 0 to 1
Terminator /Operating
/ProtocolIndexParameters
/MainPar/StpMain
- 3 Length: 0 to 1
Protocol Index
Length
/Operating
/ProtocolIndexParameters
/MainPar/PILengthMain
- 1 0 = Length In
Message
1 = Variable length
3 = 3
4 = 4
5 = 5
…
12 = 12
No Index Char /Operating
/ProtocolIndexParameters
/MainPar/NOIndexCharMain
- 3 Length: 0 to 1
Protocol Index
Request Message
/Operating
/ProtocolIndexParameters
/MainPar/PIReqMsgMain
- 3 Length: 0 to 32
Distance from
Protocol Index to
Trigger Line (mm)
/Operating
/ProtocolIndexParameters
/MainPar/TxPtFromRef_main
- 0 Range:0 to 65532
Page 38
6K-8KA FAMILY HOST MODE PROGRAMMING
34
4
PARAMETER COMPLETE PATH SHC PT VALUE
PROTOCOL INDEX PARAM. / ETH1 / PIUSERSOCKET #N (DEPTH: N = 1 to 3)
Use Socket /Operating
/ProtocolIndexParameters
/Eth1/PIUserSocket#N
/SockEn
- 1 0 = Disable
1 = Enable Without
Request Message
2 = Enable With
Request Message
Header /Operating
/ProtocolIndexParameters
/Eth1/PIUserSocket#N
/StrSock
- 3 Length: 0 to 1
Terminator /Operating
/ProtocolIndexParameters
/Eth1/PIUserSocket#N
/StpSock
- 3 Length: 0 to 1
Protocol Index
Length
/Operating
/ProtocolIndexParameters
/Eth1/PIUserSocket#N
/PILengthSock
- 1 0 = Length In
Message
1 = Variable length
3 = 3
4 = 4
5 = 5
…
12 = 12
No Index Char /Operating
/ProtocolIndexParameters
/Eth1/PIUserSocket#N
/NOIndexCharSock
- 3 Length: 0 to 1
Protocol Index
Request Message
/Operating
/ProtocolIndexParameters
/Eth1/PIUserSocket#N
/PIReqMsgSock
- 3 Length: 0 to 32
Distance from
Protocol Index to
Trigger Line (mm)
/Operating
/ProtocolIndexParameters
/Eth1/PIUserSocket#N
/TxPtFromRef_Sock
- 0 Range:0 to 65532
NVS9000 HYBRID SYSTEM SLAVE PARAMETERS
Enable NVS /Operating/NVSHS/NVS - 1 0 = Disable
1 = Simple
2 = Advanced
First NVS9000
Number
/Operating/NVSHS
/NVSFirstSlaveNB
- 0 Range: 1 to 31
Number of
NVS9000s in Cluster
/Operating/NVSHS
/NVSNBSlaves
- 0 Range: 0 to 9
Select User Socket
or Serial Port
/Operating/NVSHS
/NVSTransportInt
- 1 1 = User Socket 1
2 = User Socket 2
3 = User Socket 3
4 = Auxiliary Serial Port
5 = Main Serial Port
Select Serial Port /Operating/NVSHS
/NVSTransportSer
- 1 4 = Auxiliary Serial Port
5 = Main Serial Port
Page 39
PARAMETERS LIST
35
4
PARAMETER COMPLETE PATH SHC PT VALUE
NVS9000 HYBRID SYSTEM SLAVE PARAMETERS / READ INFO MESSAGE
Distance from Read
Info Message to
Trigger Line (mm)
/Operating/NVSHS/NVSRI
/NVSSockTxRI
- 0 -
Distance From NVS
Trigger Line And
6/8K Reference Line
(mm)
/Operating/NVSHS/NVSRI
/NVSDELTA
- 0 -
Encoder
Synchronization
Input
/Operating/NVSHS/NVSRI
/NVSENCIN
- 1 1 = Input 1
3 = Input 3
4 = Input 4
Group Separator /Operating/NVSHS/NVSRI
/NVSGS
- 3 Length: 0 to 1
Label Separator /Operating/NVSHS/NVSRI
/NVSLS
- 3 Length: 0 to 1
Field Separator /Operating/NVSHS/NVSRI
/NVSFS
- 3 Length: 0 to 1
Global Header /Operating/NVSHS/NVSRI
/NVSGH
- 3 Length: 0 to 1
Global Field
Separator
/Operating/NVSHS/NVSRI
/NVSGFS
- 3 Length: 0 to 1
Local No Read /Operating/NVSHS/NVSRI
/NVSLNR
- 3 Length: 0 to 1
NVS9000 HYBRID SYSTEM SLAVE PARAMETERS / DIAG. INFO MESSAGE
Diagnostic Info
Timeout (sec)
/Operating/NVSHS/NVSDI
/NVSSockTimeOutDI
- 0 Range: 5 to 3600
NVS9000 HYBRID SYSTEM SLAVE PARAMETERS / 6/8K SCANNER HEARTBEAT MSG
6/8K Scanner
Heartbeat Timeout
(sec)
/Operating/NVSHS/NVSHB
/NVSSockTimeOutHB
- 0 Range: 5 to 3600
NVS9000 HYBRID SYSTEM SLAVE PARAMETERS / NVS9000 HEARTBEAT MSG
NVS9000 Heartbeat
Timeout (sec)
/Operating/NVSHS
/NVSSlvHB
/NVSSlaveSockTimeOutHB
- 0 Range: 5 to 3600
NVS9000 HYBRID SYSTEM SLAVE PARAMETERS / CONVEYOR INFO MSG
Send Conveyor Info
Message
/Operating/NVSHS/NVSCI
/NVSSendCI
- 1 0 = Disable
1 = Enable
6/8K SCANNER HYBRID SYSTEM SLAVE PARAMETERS
Enable Scanner /Operating/SLVHS
/SLVEnableSlave
- 1 0 = Disable
1 = Enable
Select User Socket /Operating/SLVHS
/SLVTransportInt
- 1 1 = User Socket 1
2 = User Socket 2
3 = User Socket 3
Page 40
6K-8KA FAMILY HOST MODE PROGRAMMING
36
4
PARAMETER COMPLETE PATH SHC PT VALUE
6/8K SCANNER HYBRID SYSTEM SLAVE PARAMETERS / HEARTBEAT MSG
6/8K Scanner
Heartbeat Timeout
(sec)
/Operating/SLVHS/SLVHB
/SLVHBSockTimeOutHB
- 0 Range: 5 to 3600
4.3 READING SYSTEM LAYOUT
PARAMETER COMPLETE PATH SHC PT VALUE
READING SYSTEM LAYOUT
Device Assignment /Layout/DevAssO 196 1 0 = Alone
1 = Master RS232
(Type A)
2 = Master Lonworks and
RS232 (Type A)
3 = Slave RS232
(Type A)
4 = Controller Lon Old8k
Number of Slaves
(Type A)
/Layout/NumSlSer 34 0 Range: 1 to 9
Number of LonWorks
Slaves
/Layout/NumSlOld8k - 0 Range: 1 to 14
Number of LonWorks
Slaves
/Layout/NumSlNet 36 0 Range: 1 to 31
Display Installer Info /Layout/ShowDbg 38 1 0 = Disable
1 = Enable
Modify&Backup Lon
Slave Configuration
/Layout/Update 64 1 0 = Disable
1 = Enable
Enable A.S.R. /Layout/EnableASR 706 1 0 = Disable
1 = Enable
Motor Delay (ms) /Layout/EnableASR - 0 Range: 500 to 5000
LONWORKS SLAVES COMMON PARAMETERS (for backward compatibility)
CODE PARAMETERS
Code 3 of 9 /Layout/SlvPar/CodPar
/Cod39
140 1 0 = Disable
1 = Enable
Code 2 of 5
Interleaved
/Layout/SlvPar/CodPar
/Cod25
141 1 0 = Disable
1 = Enable
Code 2 of 5
Compressed
/Layout/SlvPar/CodPar
/Cod25Cmp
150 1 0 = Disable
1 = Enable
Code Codabar /Layout/SlvPar/CodPar
/CodBar
152 1 0 = Disable
1 = Enable
Code 93 /Layout/SlvPar/CodPar
/Cod93
151 1 0 = Disable
1 = Enable
Code 128 /Layout/SlvPar/CodPar
/Cod128
142 1 0 = Disable
1 = Enable
Code EAN 128 /Layout/SlvPar/CodPar
/CodEAN128
143 1 0 = Disable
1 = Enable
Code EAN 13 /Layout/SlvPar/CodPar
/EAN13
144 1 0 = Disable
1 = Enable
Page 41
PARAMETERS LIST
37
4
PARAMETER COMPLETE PATH SHC PT VALUE
Code EAN 8 /Layout/SlvPar/CodPar
/EAN8
145 1 0 = Disable
1 = Enable
Code UPC A /Layout/SlvPar/CodPar
/UPCA
146 1 0 = Disable
1 = Enable
Code UPC E /Layout/SlvPar/CodPar
/UPCE
147 1 0 = Disable
1 = Enable
EAN/UPC
ADD ON 2
/Layout/SlvPar/CodPar
/AddOn2
148 1 0 = Disable
1 = Enable
EAN/UPC
ADD ON 5
/Layout/SlvPar/CodPar
/AddOn5
149 1 0 = Disable
1 = Enable
CODE 3 OF 9 PARAMETERS
Decoding Severity /Layout/SlvPar/CodPar
/Code39Par/DecSev
161 0 Range: 0 to 4
Check Digit /Layout/SlvPar/CodPar
/Code39Par/ChkDgt
162 1 0 = Disable
1 = Enable
Length Type /Layout/SlvPar/CodPar
/Code39Par/Lentyp
180 1 0 = Variable
1 = Fixed
CODE 3 OF 9 FIXED LENGTH #N (DEPTH: N = 1 to 12)
Fixed Length /Layout/SlvPar/CodPar
/Code39Par/Digit#N
163 0 Range: 0 to 50
CODE 2 OF 5 INTERLEAVED PARAMETERS
Decoding Severity /Layout/SlvPar/CodPar
/Code25Par/DecSev
164 0 Range: 0 to 4
Check Digit /Layout/SlvPar/CodPar
/Code25Par/ChkDgt
165 1 0 = Disable
1 = Enable
Length Type /Layout/SlvPar/CodPar
/Code25Par/Lentyp
181 1 0 = Variable
1 = Fixed
CODE2 OF 5 INTERLEAVED FIXED LENGTH #N (DEPTH: N = 1 to 12)
Fixed Length /Layout/SlvPar/CodPar
/Code25Par/Digit#N
166 0 Range: 0 to 50
CODE 2 OF 5 COMPRESSED PARAMETERS
Decoding Severity /Layout/SlvPar/CodPar
/Code25CmpPar
/DecSev
167 0 Range: 0 to 4
Check Digit /Layout/SlvPar/CodPar
/Code25CmpPar/ChkDgt
168 1 0 = Disable
1 = Enable
Length Type /Layout/SlvPar/CodPar
/Code25CmpPar/Lentyp
182 1 0 = Variable
1 = Fixed
CODE2 OF 5 COMPRESSED FIXED LENGTH #N (DEPTH: N = 1 to 12)
Fixed Length /Layout/SlvPar/CodPar
/Code25CmpPar/Digit#N
169 0 Range: 0 to 50
CODABAR PARAMETERS
Check Digit /Layout/SlvPar/CodPar
/CodBarPar/ChkDgt
170 1 0 = Disable
1 = Enable
Page 42
6K-8KA FAMILY HOST MODE PROGRAMMING
38
4
PARAMETER COMPLETE PATH SHC PT VALUE
Length Type /Layout/SlvPar/CodPar
/CodBarPar/Lentyp
183 1 0 = Variable
1 = Fixed
CODABAR FIXED LENGTH #N (DEPTH: N = 1 to 12)
Fixed Length /Layout/SlvPar/CodPar
/CodBarPar/Digit#N
171 0 Range: 1 to 50
CODE 93 PARAMETERS
Decoding Severity /Layout/SlvPar/CodPar
/Code93Par/DecSev
172 0 Range: 0 to 4
Ink Spread /Layout/SlvPar/CodPar
/Code93Par/InkSp
173 1 0 = Disable
1 = Enable
Length Type /Layout/SlvPar/CodPar
/Code93Par/Lentyp
184 1 0 = Variable
1 = Fixed
CODE 93 FIXED LENGTH #N (DEPTH: N = 1 to 12)
Fixed Length /Layout/SlvPar/CodPar
/Code93Par/Digit#N
174 0 Range: 0 to 50
CODE 128 PARAMETERS
Decoding Severity /Layout/SlvPar/CodPar
/Code128Par/DecSev
177 0 Range: 0 to 4
Ink Spread /Layout/SlvPar/CodPar
/Code128Par/InkSp
178 1 0 = Disable
1 = Enable
Length Type /Layout/SlvPar/CodPar
/Code128Par/Lentyp
185 1 0 = Variable
1 = Fixed
CODE 128 FIXED LENGTH #N (DEPTH: N = 1 to 12)
Fixed Length /Layout/SlvPar/CodPar
/Code128Par/Digit#N
179 0 Range: 0 to 50
CODE GS1-128 (ex EAN 128) PARAMETERS
Length Type /Layout/SlvPar/CodPar
/CodeEAN128Par
/Lentyp
186 1 0 = Variable
1 = Fixed
CODE GS1-128 (ex EAN 128) FIXED LENGTH #N (DEPTH: N = 1 to 12)
Fixed Length /Layout/SlvPar/CodPar
/CodeEAN128Par
/Digit#N
187 0 Range: 0 to 50
CODE EAN-UPC PARAMETERS
Decoding Severity /Layout/SlvPar/CodPar
/CodeEANUPCPar
/DecSev
175 1 0 = Variable
1 = Fixed
Ink Spread /Layout/SlvPar/CodPar
/CodeEANUPCPar
/InkSp
176 0 Range: 0 to 50
RECONSTRUCTION PARAMETERS
Overflow /Layout/SlvPar/RecPar
/Ovrflw
153 0 Range: 2 to 50
Page 43
PARAMETERS LIST
39
4
PARAMETER COMPLETE PATH SHC PT VALUE
Reconstruction
Severity
/Layout/SlvPar/RecPar
/RecSev
154 0 Range: 1 to 5
Max Stacked Codes /Layout/SlvPar/RecPar
/MaxStCd
155 0 Range: 1 to 3
Out Codes Per
Cluster
/Layout/SlvPar/RecPar
/OutCdPC
156 0 Range: 1 to 3
Inter Character Gap /Layout/SlvPar/RecPar
/InterChG
157 0 Range: 2 to 8
LONWORKS SINGLE SLAVES PARAMETERS (for backward compatibility)
SLAVE NUMBER #N (DEPTH: N = 1 to 31)
Max Scan Gap /Layout/SngSlv/Slave#N
/MaxScG
158 0 Range: 1 to 10000
Direction /Layout/SngSlv/Slave#N
/X_Y_Inversion
- 1 0 = 0 (Forward)
3 = 90
1 = 180 (Reverse)
2 = 270
PS Offset (mm) /Layout/SngSlv/Slave#N
/Y_Adjust
- 0 Range: 0 to 65535
Reading Condition 8K /Layout/SngSlv/Slave#N
/LayoutReading
Condition8K
707 1 0 = Standard
1 = Skew 45
2 = Low Contrast
3 = External Mirror
4 = Max Gain Boost"
Reading Condition 6K /Layout/SngSlv/Slave#N
/LayoutReading
Condition6K
708 1 0 = Standard
1 = Low Contrast
2 = Toggle Standard/Low
Contrast"
Page 44
6K-8KA FAMILY HOST MODE PROGRAMMING
40
4
4.4 READING PARAMETERS
PARAMETER COMPLETE PATH SHC PT VALUE
READING PARAMETERS
Beam Shutter /Reading/BeamSh 8 1 0 = Disable
1 = Triggered
2 = Enable
Beam Shutter
Timeout
/Reading
/PktrBeamShutterTimeout
- 1 1 = 50 msec
2 = 100 msec
3 = 500 msec
4 = 1 sec
5 = 5 sec
6 = 10 sec
7 = 30 sec
8 = 1 min
9 = 5 min
10 = 10 min
11 = 15 min"
Overflow Start Ratio /Reading/Overflow 286 0 Range: 1 to 50
Overflow Stop Ratio /Reading/StopOverflow 604 0 Range: 1 to 50
Reading Mode /Reading/Linear 285 1 0 = Reconstruction
1 = Linear
Reading Condition
(8KA Only)
/Reading
/ReadingCondition8K
709 1 0 = Standard
1 = Skew 45
2 = Low Contrast
3 = External Mirror
4 = Max Gain Boost
5=External Mirror with
Skew 45°
Reading Condition
(6K Only)
/Reading
/ReadingCondition6K
710 1 0 = Standard,
1 = Low Contrast
2 = Toggle Standard/Low
Contrast"
RECONSTRUCTION PARAMETERS
Stacked Codes
Enhancement
/Reading/Reconstruction
/SafeStackedCodes
504 1 0 = Disable
1 = Enable
RECONSTRUCTION PARAMETERS / EXTENDED
MinMatch /Reading/Reconstruction
/Extended/MinMatch
- 0 Range: 0 to 500
Position Tolerance /Reading/Reconstruction
/Extended
/PositionTolerance
0 Range: 1 to 100
Duration Tolerance /Reading/Reconstruction
/Extended
/DurationTolerancePerc
0 Range: 1 to 100
Min Start/Stop
Number
/Reading/Reconstruction
/Extended
/MinStartStopNumber
- 0 Range: 1 to 50
Inter Char Gap /Reading/Reconstruction
/Extended/InterCharGap
- 0 Range: 2 to 8
Addon Overflow Start /Reading/Reconstruction - 0 Range: 1 to 50
Page 45
PARAMETERS LIST
41
4
PARAMETER COMPLETE PATH SHC PT VALUE
Ratio /Extended/AddonOverflow
Addon Overflow Stop
Ratio
/Reading/Reconstruction
/Extended
/AddonOverflowStop
- 0 Range: 1 to 50
Max Distance
between EAN/UPC
and Addon (in
modules)
/Reading/Reconstruction
/Extended/AddonDistance
- 0 Range: 1 to 256
SCAN LINE AMPLITUDE
Amplitude Settings
Enable
/Reading/ScanAmp
/Enable
282 1 0 = Disable
1 = Enable
Laser Turn On
Position
/Reading/ScanAmp
/OnPos
283 0 Range: 0 to 255
Laser Turn Off
Position
/Reading/ScanAmp
/OffPos
284 0 Range: 0 to 255
Zero Position Offset /Reading/ScanAmp
/ZeroOff
- 0 Range: -127 to 127
FLASH (DS6400 models only)
Flash Mode /Reading/Flash/Mode 219 1 0 = Off Line
1 = Fixed
2 = Triggered
3 = Continuous
6 = DFlash
Fixed Distance (cm) /Reading/Flash/FixedDist 220 0 Range: 0 to 255
Min Distance (cm) /Reading/Flash/ContMin 221 0 Range: 0 to 255
Max Distance (cm) /Reading/Flash/ContMax 222 0 Range: 0 to 255
Frequency (Hz) /Reading/Flash/ContFreq 223 1 2 = 0.1 Hz
3 = 0.2 Hz
5 = 0.3 Hz
6 = 0.4 Hz
7 = 0.5 Hz
9 = 0.6 Hz
10 = 0.7 Hz
11 = 0.8 Hz
12 = 0.9 Hz
13 = 1 Hz
20 = 1.5 Hz
27 = 2.0 Hz
33 = 2.5 Hz
40 = 3.0 Hz
67 = 5.0 Hz
134 = 10.0 Hz
201 = 15.0 Hz
255 = 19.0 Hz"
Stand-by Distance
(cm)
/Reading/Flash
/NoPackDist
224 0 Range: 0 to 255
Input 1 Distance (cm) /Reading/Flash/In1Dist 225 0 Range: 0 to 255
Input 2 Distance (cm) /Reading/Flash/In2Dist 226 0 Range: 0 to 255
Input 3 Distance (cm) /Reading/Flash/In3Dist 227 0 Range: 0 to 255
Input 4 Distance (cm) /Reading/Flash/In4Dist 228 0 Range: 0 to 255
Page 46
6K-8KA FAMILY HOST MODE PROGRAMMING
42
4
PARAMETER COMPLETE PATH SHC PT VALUE
Angle 1 (degrees) /Reading/ADRAngle1 233 0 Range: -2,5 to 37,5
Angle 2 (degrees) /Reading/ADRAngle2 234 0 Range: -2,5 to 37,5
Angle 3 (degrees) /Reading/ADRAngle3 235 0 Range: -2,5 to 37,5
Angle 4 (degrees) /Reading/ADRAngle4 236 0 Range: -2,5 to 37,5
Angle 5 (degrees) /Reading/ADRAngle5 237 0 Range: -2,5 to 37,5
Angle 6 (degrees) /Reading/ADRAngle6 238 0 Range: -2,5 to 37,5
Angle 7 (degrees) /Reading/ADRAngle7 239 0 Range: -2,5 to 37,5
Distance 1 (cm) /Reading/ADRDist1 241 0 Range: 0 to 255
Distance 2 (cm) /Reading/ADRDist2 242 0 Range: 0 to 255
Distance 3 (cm) /Reading/ADRDist3 243 0 Range: 0 to 255
Distance 4 (cm) /Reading/ADRDist4 244 0 Range: 0 to 255
Distance 5 (cm) /Reading/ADRDist5 245 0 Range: 0 to 255
Distance 6 (cm) /Reading/ADRDist6 246 0 Range: 0 to 255
Distance 7 (cm) /Reading/ADRDist7 247 0 Range: 0 to 255
Distance 8 (cm) /Reading/ADRDist8 248 0 Range: 0 to 255
FLASH (DS6400 models only) / DFLASH
DFlash Behaviour /Reading/Flash/DFlash
/DFlashBeah
300 1 0 = Nearest
1 = Background
Suppression
Distance 1 (cm) /Reading/Flash/DFlash
/MinDFlashD1
272 0 Range: 0 to 255
Distance 2 (cm) /Reading/Flash/DFlash
/MinDFlashD2
273 0 Range: 0 to 255
Distance 3 (cm) /Reading/Flash/DFlash
/MinDFlashD3
274 0 Range: 0 to 255
Distance 4 (cm) /Reading/Flash/ DFlash
/MinDFlashD4
275 0 Range: 0 to 255
Distance 5 (cm) /Reading/Flash/DFlash
/MinDFlashD5
276 0 Range: 0 to 255
Distance 6 (cm) /Reading/Flash/ DFlash
/MinDFlashD6
277 0 Range: 0 to 255
Distance 7 (cm) /Reading/Flash/DFlash
/MinDFlashD7
278 0 Range: 0 to 255
Distance 8 (cm) /Reading/Flash/DFlash
/MinDFlashD8
279 0 Range: 0 to 255
Stand-by Distance
(cm)
/Reading/Flash/DFlash
/MinDFlashStandBy
326 1 0 = Distance 1
1 = Distance 2
2 = Distance 3
3 = Distance 4
4 = Distance 5
5 = Distance 6
6 = Distance 7
7 = Distance 8
Offset Distance /Reading/Flash/DFlash
/Offset
325 0 Range: -255 to +255
Leg 1: Ignore From
Start (%)
/Reading/Flash/DFlash
/FilterOnStart
307 0 Range: 0 to 100
Leg 1: Ignore From
Stop (%)
/Reading/Flash/DFlash
/FilterOnStop
308 0 Range: 0 to 100
Leg 2: Ignore From
Start (%)
/Reading/Flash/DFlash
/FilterOnXStart
468 0 Range: 0 to 100
Page 47
PARAMETERS LIST
43
4
PARAMETER COMPLETE PATH SHC PT VALUE
Leg 2: Ignore From
Stop (%)
/Reading/Flash/DFlash
/FilterOnXStop
469 0 Range: 0 to 100
OSCILLATING MIRROR (DS6X00-105-XXX and 8KA-XXX5 models only)
Oscillating Mode /Reading/Oscillating
/Mode
254 1 0 = Off Line
1 = Fixed
2 = Continuous
Angle /Reading
/Oscillating/FixedAngle
255 4 Range: -2.5 to +37.5
Min Angle /Reading
/Oscillating/ContMinAngle
256 4 Range: -2.5 to +37.5
Max Angle /Reading
/Oscillating/ContMaxAngle
257 4 Range: -2.5 to +37.5
Frequency (Hz) /Reading
/Oscillating/ContFreq
258 4 Range: 0 to 19
Triggered /Reading
/Oscillating/Triggered
- 1 0 = Disable
1 = Enable
Second Zone Trigger /Reading/Oscillating
/TriggerIn
- 1 0 = Phase
1 = Input 1
2 = Input 2
3 = Input 3
4 = Input 4
Second Zone Trigger
Level
/Reading
/Oscillating/TriggerInLev
- 1 0 = Active Closed
1 = Active Open
Second Zone
Oscillating Mode
/Reading
/Oscillating/Mode1
- 1 0 = Off Line
1 = Fixed
2 = Continuous
Second Zone Angle /Reading
/Oscillating/FixedAngle1
- 4 Range: -2.5 to +37.5
Second Zone Min
Angle
/Reading/Oscillating
/ContMinAngle1
- 4 Range: -2.5 to +37.5
Second Zone Max
Angle
/Reading/Oscillating
/ContMaxAngle1
- 4 Range: -2.5 to +37.5
Second Zone
Frequency (Hz)
/Reading/Oscillating
/ContFreq1
- 4 Range: 0 to 19
4.5 DATA COMMUNICATION SETTING
PARAMETER COMPLETE PATH SHC PT VALUE
DATA COMMUNICATION SETTING
Host Application
Protocol Type
/Comms/Application 84 1 0 = Standard
1 = Crisplant
2 = Cargoscan
DATA FORMAT
Header TX Start /Comms/OutForm
/HeadTx
505 1 0 = With Data
1 = After Reading Phase
On
Page 48
6K-8KA FAMILY HOST MODE PROGRAMMING
44
4
PARAMETER COMPLETE PATH SHC PT VALUE
Termination after No
Read Message
/Comms
/OutForm
/TermAfter
506 1 0 = Disable
1 = Enable
Message Tx selection
(On Line
Operating Mode)
/Comms
/OutForm
/TxTrigSel
507 1 0 = On Decoding
1 = After Reading
Phase Off
Message TX
Selection (Automatic
Operating Mode)
/Comms/OutForm
/AutoTxTrig
- 1 0 = On Decoding
1 = After Reading Phase
Off
Format Type /Comms/OutForm
/FormatType
330 1 0 = Standard
1 = Advanced
Master Max Tx Delay
After Phase Off (ms)
/Comms/OutForm
/TX_TimeoutMaster
- 1 50 = 50
60 = 60
70 = 70
80 = 80
90 = 90
100 = 100
110 = 110
120 = 120
130 = 130
140 = 140
150 = 150
160 = 160
170 = 170
180 = 180
190 = 190
200 = 200
250 = 250
300 = 300
500 = 500
Stand Alone Max Tx
Delay After Phase Off
(ms)
/Comms/OutForm
/TX_TimeoutAlone
5177 1 0 = Disabled
50 = 50
60 = 60
70 = 70
80 = 80
90 = 90
100 = 100
110 = 110
120 = 120
130 = 130
140 = 140
150 = 150
160 = 160
170 = 170
180 = 180
190 = 190
200 = 200
250 = 250
300 = 300
500 = 500
Code Identifier /Comms
/OutForm
/codeID
399 1 0 = Disabled
1 = Standard AIM ID
2 = Custom
Page 49
PARAMETERS LIST
45
4
PARAMETER COMPLETE PATH SHC PT VALUE
DATA FORMAT / CUSTOM CODE IDENTIFIER STRINGS
Code 128 Identifier
String
/Comms/OutForm
/codIDStr/cod128
400 3 Length: 1 to 32
Code Interleaved 2/5
Identifier String
Comms/OutForm
/codIDStr/cod25IL
401 3 Length: 1 to 32
Code 39 Standard
Identifier String
Comms/OutForm
/codIDStr/cod39
402 3 Length: 1 to 32
Code GS1-128
Identifier String
/Comms/OutForm
/codIDStr/codEAN128
403 3 Length: 1 to 32
Code EAN 13
Identifier String
Comms/OutForm
/codIDStr/codEAN13
404 3 Length: 1 to 32
Code EAN 8 Identifier
String
Comms/OutForm
/codIDStr/codEAN8
405 3 Length: 1 to 32
Code UPCA Identifier
String
/Comms/OutForm
/codIDStr/codUPCA
406 3 Length: 1 to 32
Code UPCE Identifier
String
/Comms/OutForm
/codIDStr/codUPCE
407 3 Length: 1 to 32
Code Codabar
Identifier String
/Comms/OutForm
/codIDStr/codBAR
409 3 Length: 1 to 32
Code 93
Identifier String
/Comms/OutForm
/codIDStr/cod93
410 3 Length: 1 to 32
Code EAN 13 Addon
2 Identifier String
/Comms/OutForm
/codIDStr/codEAN13ADD2
419 3 Length: 1 to 32
Code EAN 8 Addon 2
Identifier String
/Comms/OutForm
/codIDStr/codEAN8ADD2
420 3 Length: 1 to 32
Code UPC A Addon 2
Identifier String
/Comms/OutForm
/codIDStr/codUPCAADD2
421 3 Length: 1 to 32
Code UPC E Addon 2
Identifier String
/Comms/OutForm
/codIDStr/codUPCEADD2
422 3 Length: 1 to 32
Code EAN 13 Addon
5 Identifier String
/Comms/OutForm
/codIDStr/codEAN13ADD5
423 3 Length: 1 to 32
Code EAN 8 Addon 5
Identifier String
/Comms/OutForm
/codIDStr/codEAN8ADD5
424 3 Length: 1 to 32
Code UPC A Addon 5
Identifier String
/Comms/OutForm
/codIDStr/codUPCAADD5
425 3 Length: 1 to 32
Code UPC E Addon 5
Identifier String
/Comms/OutForm
/codIDStr/codUPCEADD5
426 3 Length: 1 to 32
GS1 DataBar
Identifier String
/Comms/OutForm
/codIDStr/GS1DataBar
441 3 Length: 1 to 32
GS1 DataBar Limited
Identifier String
/Comms/OutForm
/codIDStr
/GS1DataBarLimited
444 3 Length: 1 to 32
GS1 DataBar Exp.
Identifier String
/Comms/OutForm
/codIDStr
/GS1DataBarExpanded
445 3 Length: 1 to 32
DATA FORMAT / STANDARD PARAMETERS
Header String /Comms/OutForm
/Standard/Header
6 3 Length: 0 to 128
Code Position Tx /Comms/OutForm
/Standard/CodePosition
- 1 0 = Disable
1 = Enable
Page 50
6K-8KA FAMILY HOST MODE PROGRAMMING
46
4
PARAMETER COMPLETE PATH SHC PT VALUE
Code Direction
Identifier Enable
/Comms/OutForm
/Standard/DirEn
508 1 0 = Disable
1 = Enable
Forward Direction
String
/Comms/OutForm
/Standard/FwDirection
509 3 Length: 0 to 32
Reverse Direction
String
/Comms/OutForm
/Standard/RvDirection
528 3 Length: 0 to 32
Unknown Direction
String
/Comms/OutForm
/Standard/NoDirection
550 3 Length: 0 to 32
Termination String /Comms/OutForm
/Standard/Terminator
7 3 Length: 0 to 128
Data Packet
Separators
/Comms/OutForm
/Standard/Separator
82 3 Length: 0 to 128
Code Field Length
Setting
/Comms/OutForm
/Standard/FieldType
45 1 0 = Variable Length
1 = Fixed Length
Code Field Length /Comms/OutForm
/Standard/FieldLen
46 0 Range: 0 to 48
Data Justification /Comms/OutForm
/Standard/FillDir
47 1 0 = Left
1 = Right
Fill Character /Comms/OutForm
/Standard/FillCh
48 3 Length: 1
DATA FORMAT / MULTIDATA
Address TX /Comms/OutForm
/Multidata/Address
- 1 0 = Disable
1 = Enable
Header /Comms/OutForm
/Multidata/AddrHeader
- 3 Length: 0 to 32
Separator /Comms/OutForm
/Multidata/AddrSeparator
- 3 Length: 0 to 32
CRISPLANT PARAMETERS
Crisplant
Manufacturer ID
/Comms/CrispPar
/ID
61 2 Length: 1
Heartbeat Message /Comms/CrispPar
/HBEnable
- 1 0 = Disable
1 = Enable
Heartbeat Message
Timing (ms)
/Comms/CrispPar
/HBTime
- 0 Range: 40 to 60000
Type of Crisplant
Protocol
/Comms/CrispPar
/Protocol
- 1 0 = CSC
1 = CMC
2 = P10
Reading Mask Tx /Comms/CrispPar
/ReadMask
- 1 0 = Disable
1 = Enable
Code Type Tx /Comms/CrispPar
/CodeType
- 1 0 = Disable
1 = Enable
GS1-128 AI Stripping /Comms/CrispPar
/Gs1128AIStrip
- 1 0 = Disable
1 = Enable
Discard Reading in
case of Missed Index
Telegram
/Comms/CrispPar
/MissedIdxDisc
715 1 0 = Disable
1 = Enable
CARGOSCAN PARAMETERS
Code Field Length
Setting
/Comms/CargoPar
/FieldType
- 1 0 = Variable Length
1 = Fixed Length
Page 51
PARAMETERS LIST
47
4
PARAMETER COMPLETE PATH SHC PT VALUE
Code Field Length /Comms/CargoPar
/FieldLen
- 0 Range: 0 to 48
Data Justification /Comms/CargoPar/FillDir - 1 0 = Left
1 = Right
Fill Character /Comms/CargoPar/FillCh - 3 Length: 1
Header String /Comms/CargoPar/Header - 3 Length: 0 to 128
Termination String /Comms/CargoPar
/Terminator
- 3 Length: 0 to 128
S/W Divide Encoder
Frequency
/Comms/CargoPar/DivEnc - 1 0 = Disable
1 = Enable
CARGOSCAN PARAMETERS / OUTPUT MESSAGES SETTING
Add AIM Prefix /Comms/CargoPar
/OutMsg/AddAimPrefix
- 1 0 = Disable
1 = Enable
Purolator Custom
Check
/Comms/CargoPar
/OutMsg
/PurolatorCustumCheck
- 1 0 = Disable
1 = Enable
AM/PM Behaviour /Comms/CargoPar
/OutMsg/AMPM
- 1 0 = Disable
1 = Enable
AM Message Target /Comms/CargoPar
/OutMsg/AMPort
- 1 0 = Main
1 = Aux
2 = Socket1
3 = Socket2
4 = Socket3
Heartbeat Function /Comms/CargoPar
/OutMsg/HBEn
- 1 0 = Disable
1 = Enable
Heartbeat Timeout
(ms)
/Comms/CargoPar
/OutMsg/HBTimeOut
- 0 Range: 40 to 60000
Heartbeat String /Comms/CargoPar
/OutMsg/HBString
- 3 Length: 0 to 18
Conveyor
Directionality Input
/Comms/CargoPar
/OutMsg/ConvDirIn
- 1 1 = Input 1
3 = Input 3
4 = Input 4"
Photoeye Counter
Function
/Comms/CargoPar
/OutMsg/PhtECnt
- 1 0 = Disable
1 = Enable
Photoeye Counter
Function Input
/Comms/CargoPar
/OutMsg/PhtEIn
- 1 1 = Input 1
3 = Input 3
4 = Input 4"
Photoeye Leading
Edge Message
/Comms/CargoPar
/OutMsg/PhtEMsg
- 3 Length: 0 to 16
Spontaneous Status
Message
/Comms/CargoPar
/OutMsg/ExtDiag
- 1 0 = Disable
1 = Enable
Multi Tx Transport
Disabled
/Comms/CargoPar
/OutMsg/MTxEnable
- 1 0 = Disable
1 = Enable
Diagnostic Data On
Main Serial Channel
/Comms/CargoPar
/OutMsg/DiagSerMain
- 1 0 = Disable
1 = Enable
Diagnostic Data on
Auxiliary Serial
Channel
/Comms/CargoPar
/OutMsg/DaigSerAux
- 1 0 = Disable
1 = Enable
Diagnostic Data on
User Socket
(depth: N = 1 to 3)
/Comms/CargoPar
/OutMsg/DiagUsrSock#N
- 1 0 = Disable
1 = Enable
Page 52
6K-8KA FAMILY HOST MODE PROGRAMMING
48
4
PARAMETER COMPLETE PATH SHC PT VALUE
Debug Data on Main
Serial Channel
/Comms/CargoPar
/OutMsg/DbgSerMain
- 1 0 = Disable
1 = Enable
Debug Data on
Auxiliary Serial
Channel
/Comms/CargoPar
/OutMsg/DbgSerAux
- 1 0 = Disable
1 = Enable
Debug Data on User
Socket
(depth: N = 1 to 3)
/Comms/CargoPar
/OutMsg/DbgUsrSock#N
- 1 0 = Disable
1 = Enable
CARGOSCAN PARAMETERS / CODE FILTERS
Enable UPS Code
Filter
/Comms/CargoPar
/CarCodes/UPSFlt
- 1 0 = Disable
1 = Enable
Enable German Post
2/5 IL Code Filter
/Comms/CargoPar
/CarCodes/GPFlt
- 1 0 = Disable
1 = Enable
Enable SSCC-18
Code Filter
/Comms/CargoPar
/CarCodes/EANFlt
- 1 0 = Disable
1 = Enable
Enable DPD Code
Filter
/Comms/CargoPar
/CarCodes/DPDFltEn
- 1 0 = Disable
1 = Enable
CARGOSCAN PARAMETERS / CODE FILTERS / UPS CODE TYPE FILTERS
UPS codes 1Z Type /Comms/CargoPar
/CarCodes
/UPSFIlter/UPS1Z
43 1 0 = Disable
1 = Enable
Service Upgrade,
'403' Start String
length 8
/Comms/CargoPar
/CarCodes
/UPSFIlter/UPSServ
- 1 0 = Disable
1 = Enable
Transmit all codes
PTN type except
codes below that
must be selected
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/UPSPTN
44 1 0 = Disable
1 = Enable
Including codes that
start with '400...'
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/PTN400
- 1 0 = Disable
1 = Enable
Including codes that
start with '420...'
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/PTN420
- 1 0 = Disable
1 = Enable
Including codes that
start with '421...'
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/PTN421
- 1 0 = Disable
1 = Enable
Including codes that
start with '51L...'
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/PTN51L
- 1 0 = Disable
1 = Enable
Including codes that
start with '52L...'
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/PTN52L
- 1 0 = Disable
1 = Enable
Including codes that
start with '54L...'
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/PTN54L
- 1 0 = Disable
1 = Enable
Including codes that
start with '55L...'
/Comms/CargoPar
/CarCodes
/UPSFIlter/PTN/PTN55L
- 1 0 = Disable
1 = Enable
Page 53
PARAMETERS LIST
49
4
PARAMETER COMPLETE PATH SHC PT VALUE
Start with '420' length
8 or 12
/Comms/CargoPar
/CarCodes
/UPSFIlter/POS/POS420
- 1 0 = Disable
1 = Enable
Start with '421' length
from 6 to 15
/Comms/CargoPar
/CarCodes
/UPSFIlter/POS/POS421
- 1 0 = Disable
1 = Enable
Start with '51L' length
8, 9, 12
/Comms/CargoPar
/CarCodes
/UPSFIlter/POS/POS51L
- 1 0 = Disable
1 = Enable
Start with '52L' length
8, 9, 12
/Comms/CargoPar
/CarCodes
/UPSFIlter/POS/POS52L
- 1 0 = Disable
1 = Enable
Start with '54L' length
from 6 to 19
/Comms/CargoPar
/CarCodes
/UPSFIlter/POS/POS54L
- 1 0 = Disable
1 = Enable
Start with '55L' length
from 6 to 19
/Comms/CargoPar
/CarCodes
/UPSFIlter/POS/POS55L
- 1 0 = Disable
1 = Enable
CARGOSCAN PARAMETERS / CODE FILTERS / DPD CODE TYPE FILTERS
Enable codes 2/5
with length 10 digits
filter
/Comms/CargoPar
/CarCodes
/DPDFlt/DPD10
- 1 0 = Disable
1 = Enable
Enable codes 2/5
with length 12 digits
filter
/Comms/CargoPar
/CarCodes
/DPDFlt/DPD12
- 1 0 = Disable
1 = Enable
Enable codes 2/5
with length 4 digits
starting with '0...' filter
/Comms/CargoPar
/CarCodes
/DPDFlt/DPD0
- 1 0 = Disable
1 = Enable
Enable codes 2/5
with length 4 digits
starting with '90..'
filter
/Comms/CargoPar
/CarCodes
/DPDFlt/DPD90
- 1 0 = Disable
1 = Enable
Enable codes 128
with length 28 digits
filter
/Comms/CargoPar
/CarCodes
/DPDFlt/DPD128
- 1 0 = Disable
1 = Enable
MAIN SERIAL PORT
Main Serial Interface
Dedicated to ID-NET
/Comms/SerMain
/SlaveIface
712 1 0 = Disable
1 = Enable
Data Tx /Comms/SerMain
/SerMain
510 1 0 = Disable
1 = Enable
Heartbeat /Comms/SerMain
/Heartbeat
- 1 0 = Disable
1 = Enable Unconditioned
2 = Enable Conditioned
Heartbeat Timeout /Comms/SerMain
/HeartbeatTimeOut
- 0 Range: 1 to 3600
Heartbeat Header
String
/Comms/SerMain
/heartbeatStart
- 3 Length: 0 to 32
Heartbeat Terminator
String
/Comms/SerMain
/HeartbeatStop
- 3 Length: 0 to 32
Page 54
6K-8KA FAMILY HOST MODE PROGRAMMING
50
4
PARAMETER COMPLETE PATH SHC PT VALUE
Send Diagnostic Info /Comms
/SerMain/SDSMAIN
- 1 0 = Disable
1 = Enable
MAIN SERIAL PORT PARAMETERS
Main Port
Communication Mode
/Comms/SerMain
/Line/Mode
33 1 0 = Standard
1 = MUX 32 Slave
2 = Siemens 3964
3 = Siemens RK512
Main Port Electrical
Interface
/Comms/SerMain
/Line/MainHW
10 1 0 = RS232
1 = RS485 Full Duplex
MUX 32 Protocol
Address
/Comms/SerMain
/Line/Addr
58 0 Range: 0 to 31
Handshake (RS232) /Comms/SerMain
/Line/FlowCtrl
57 1 0 = None
1 = Hardware (RTS/CTS)
2 = Software (Xon/Xoff)
Handshake (RS485) /Comms/SerMain
/Line/Flow485
60 1 0 = None
1 = Software (Xon/Xoff)
Baud Rate /Comms/SerMain
/Line/StdBaud
49 1 8 = 1200
1 = 2400
2 = 4800
3 = 9600
4 = 19200
5 = 38400
6 = 57600
7 = 115200
Baud Rate
(Mux32 Slave)
/Comms/SerMain
/Line/MuxBaud
59 1 1 = 2400
2 = 4800
3 = 9600
4 = 19200
5 = 38400
6 = 57600
Parity /Comms/SerMain
/Line/Parity
50 1 0 = None
1 = Odd
2 = Even
Data Bits /Comms/SerMain
/Line/Data
51 1 0 = 7
1 = 8
Stop Bits /Comms/SerMain
/Line/Stop
52 1 0 = 1
1 = 2
Checksum (Siemens) /Comms/SerMain
/Line/S3964Chk
- 1 0 = Disable
1 = Enable
Priority (Siemens) /Comms/SerMain
/Line/S3964Prio
- 1 0 = Low
1 = High
Header n. 5
(Siemens RK512)
/Comms/SerMain
/Line/SRKHead5
- 3 Length: 1
Header n. 6
(Siemens RK512)
/Comms/SerMain
/Line/SRKHead6
- 3 Length: 1
Header n. 9
(Siemens RK512)
/Comms/SerMain
/Line/SRKHead9
- 3 Length: 1
Header n. 10
(Siemens RK512)
/Comms/SerMain
/Line/SRKHead10
- 3 Length: 1
Filler Character
(Siemens RK512)
/Comms/SerMain
/Line/SRKFillChar
- 3 Length: 1
Page 55
PARAMETERS LIST
51
4
PARAMETER COMPLETE PATH SHC PT VALUE
Filler Position
(Siemens RK512)
/Comms/SerMain
/Line/SRKFillerPos
- 1 0 = Before Data
1 = After Data
AUXILIARY SERIAL PORT
Search For Backup
Memory at Device
Startup
/Comms/SerAux
/SearchForCBX
5247 1 0 = Disable
1 = Enable
Data Tx /Comms/SerAux
/SerAux
511 1 0 = Disable
1 = Enable
Heartbeat /Comms/SerAux
/Heartbeat
- 1 0 = Disable
1 = Enable Unconditioned
2 = Enable Conditioned
Heartbeat Timeout /Comms/SerAux
/HeartbeatTimeOut
- 0 Range: 1 to 3600
Heartbeat Header
String
/Comms/SerAux
/heartbeatStart
- 3 Length: 0 to 32
Heartbeat Terminator
String
/Comms/SerAux
/HeartbeatStop
- 3 Length: 0 to 32
Pass Through /Comms/SerAux
/PTSource
512 1 0 = Disable
1 = Enable
Send Diagnostic Info /Comms/SerAux
/SDSAUX
- 1 0 = Disable
1 = Enable
PASS THROUGH OPTIONS
String Max Length /Comms/SerAux
/PTOpt/PTMaxDim
513 0 Range: 0 to 32767
Termination String /Comms
/SerAux/PTOpt
/PTTerm
514 3 Length: 1 to 32
AUXILIARY SERIAL PORT PARAMETERS
Baud Rate /Comms/SerAux
/Line/StdBaud
53 1 8 = 1200
1 = 2400
2 = 4800
3 = 9600
4 = 19200
5 = 38400
6 = 57600
7 = 115200
Parity /Comms/SerAux
/Line/Parity
54 1 0 = None
1 = Odd
2 = Even
Data Bits /Comms/SerAux
/Line/Data
55 1 0 = 7
1 = 8
Stop Bits /Comms/SerAux
/Line/Stop
56 1 0 = 1
1 = 2
ETHERNET / LINE PARAMETERS
Status /Comms/Ethernet
/System/Status
90 1 0 = Disable
1 = Enable
SW Release
(Read-only)
/Comms/Ethernet
/System/Sw_release
91 2 Length: 0 to 10
Page 56
6K-8KA FAMILY HOST MODE PROGRAMMING
52
4
PARAMETER COMPLETE PATH SHC PT VALUE
MAC Address
(Read-only)
/Comms/Ethernet
/System/MAC
92 2 Length: 0 to 16
Ethernet Speed /Comms/Ethernet
/System/Eth_speed
94 1 0 = Auto
1 = 10Mbit Half
2 = 10Mbit Full
3 = 100Mbit Half
4 = 100Mbit Full"
DHCP /Comms/Ethernet
/System/DHCP
95 1 0 = Disable
1 = Enable
IP Address /Comms/Ethernet
/System/IP_address
96 2 Length: 0 to 16
Subnet Address /Comms/Ethernet
/System/IP_netmask
97 2 Length: 0 to 16
Gateway Address /Comms/Ethernet
/System/IP_gateway
98 2 Length: 0 to 16
DNS Address 1 /Comms/Ethernet
/System/IP_dns1
99 2 Length: 0 to 16
DNS Address 2 /Comms/Ethernet
/System/IP_dns2
100 2 Length: 0 to 16
ETHERNET / SERVICES / ETHERNET IP
Status /Comms/Ethernet
/Services/EthernetIP
/Status
66 1 0 = Disable
1 = Enable
Input 1 Echo /Comms/Ethernet
/Services/EthernetIP
/IO/In/Input1
291 1 0 = Disable
1 = Enable
Input 2 Echo /Comms/Ethernet
/Services/EthernetIP
/IO/In/Input2
292 1 0 = Disable
1 = Enable
Input 3 Echo /Comms/Ethernet
/Services/EthernetIP
/IO/In/Input3
293 1 0 = Disable
1 = Enable
Input 4 Echo /Comms/Ethernet
/Services/EthernetIP
/IO/In/Input4
294 1 0 = Disable
1 = Enable
Phase Echo /Comms/Ethernet
/Services/EthernetIP
/IO/In/PhaseEcho
295 1 0 = Disable
1 = Enable
Output 1 /Comms/Ethernet
/Services/EthernetIP
/IO/Out/Output1
296 1 0 = Disable
1 = Enable
Output 2 /Comms/Ethernet
/Services/EthernetIP
/IO/Out/Output2
297 1 0 = Disable
1 = Enable
Output 3 /Comms/Ethernet
/Services/EthernetIP
/IO/Out/Output3
298 1 0 = Disable
1 = Enable
Page 57
PARAMETERS LIST
53
4
PARAMETER COMPLETE PATH SHC PT VALUE
ETHERNET / SERVICES / MODBUS CLIENT
Status /Comms/Ethernet
/Services/ModbusClient
/Status
125 1 0 = Disable
1 = Enable
Data Tx /Comms/Ethernet
/Services/ModbusClient
/ModbusC
- 1 0 = Disable
1 = Enable
Server Address /Comms/Ethernet
/Services/ModbusClient
/Server_address
126 2 Max Length: 256
Start Register
Number
/Comms/Ethernet
/Services/ModbusClient
/Start_reg
127 0 Range: 0 to (231-1)
Number Of Registers /Comms/Ethernet
/Services/ModbusClient
/Num_reg
128 0 Range: 1 to (231-1)
ETHERNET / SERVICES / WEBSENTINEL CLIENT
Enable /Comms/Ethernet
/Services/SentinelClient
/Enable
- 1 0 = Disable
1 = Enable
WebSentinel Socket /Comms/Ethernet
/Services/SentinelClient
/SentinelSocket
- 1 0 = Socket 1
1 = Socket 2
2 = Socket 3
Conveyor Speed
Check Type
/Comms/Ethernet
/Services/SentinelClient
/ConvSpeedCheck
/ConvSpeedCheckType
- 1 0 = Percent
1 = Absolute
Max Conveyor Speed
Percent Error (%)
/Comms/Ethernet
/Services/SentinelClient
/ConvSpeedCheck
/MaxConvSpeed
PercentError
- 0 Range: 0 to 20
Max Conveyor Speed
Absolute Error (mm/s)
/Comms/Ethernet
/Services/SentinelClient
/ConvSpeedCheck
/MaxConvSpeedAbs
Error
- 0 Range: 0 to 3000
Input timeout (secs) /Comms/Ethernet
/Services/SentinelClient
/InputCheck
/InputTimeOut
- 0 Range: 3 to 10
Send
Autoconfiguration
Message
/Comms/Ethernet
/Services/SentinelClient
/SentineAuto
configurationMessage
- 1 0 = Disable
1 = Enable
Send Extended
Parcel Message
/Comms/Ethernet
/Services/SentinelClient
/SentinelExteNded
Parcel
- 1 0 = Disable
1 = Enable
Page 58
6K-8KA FAMILY HOST MODE PROGRAMMING
54
4
PARAMETER COMPLETE PATH SHC PT VALUE
ETHERNET / SERVICES / USER SOCKET #N (DEPTH: N = 1 to 3)
Status /Comms/Ethernet
/Services/UserSocket#N
/Status
134 1 0 = Disable
1 = Enable
Data Tx /Comms/Ethernet
/Services/UserSocket#N
/Sock
- 1 0 = Disable
1 = Enable
Heartbeat /Comms/Ethernet
/Services/UserSocket#N
/Heartbeat
- 1 0 = Disable
1 = Enable Unconditioned
2 = Enable Conditioned
Heartbeat Timeout /Comms/Ethernet
/Services/UserSocket#N
/HeartbeatTimeOut
- 0 Range: 1 to 3600
Heartbeat Header
String
/Comms/Ethernet
/Services/UserSocket#N
/heartbeatStart
- 3 Length: 0 to 32
Heartbeat Terminator
String
/Comms/Ethernet
/Services/UserSocket#N
/HeartbeatStop
- 3 Length: 0 to 32
Send Diagnostic Info /Comms/Ethernet
/Services/UserSocket#N
/SDSSOCK
- 1 0 = Disable
1 = Enable
Socket Type /Comms/Ethernet
/Services/UserSocket#N
/Type
135 1 0 = Server
1 = Client
Server Address /Comms/Ethernet
/Services/UserSocket#N
/Server_address
136 2 Length: 0 to 256
Protocol /Comms/Ethernet
/Services/UserSocket#N
/Protocol
137 1 0 = TCP
1 = UDP
Port Number /Comms/Ethernet
/Services/UserSocket#N
/Port
138 0 Range: 0 to 65535
DEVICENET
Data Tx /Comms/DeviceNet
/DeviceNet
381 1 0 = Disable
1 = Enable
DEVICENET / INTERNAL PARAMETERS
Parameters Updating /Comms/DeviceNet
/System/UpdatePar
- 1 0 = Disable
1 = Enable
DEVICENET / DATA PORT PROTOCOL
Serial Protocol /Comms/DeviceNet
/SerialData/Protocol
- 1 0 = Generic/Std
1 = Generic/Rev
4 = Header/Std
5 = Header/Rev
Termination Char
Enable
/Comms/DeviceNet
/SerialData
/InStrSuffixEnable
- 1 0 = Disable
1 = Enable
Page 59
PARAMETERS LIST
55
4
PARAMETER COMPLETE PATH SHC PT VALUE
Termination Char
Value
/Comms/DeviceNet
/SerialData
/InStrSuffixValue
- 0 Range: 0 to 31
Buffer Flush Enable /Comms/DeviceNet
/SerialData
/BufFlushEnable
- 1 0 = Disable
1 = Enable
Buffer Flush Delay
(milliseconds)
/Comms/DeviceNet
/SerialData
/BufFlushDelay
- 0 Range: 8 to 9999
DEVICENET / BUS COMMUNICATION
Data Rate /Comms/DeviceNet
/BusData/BusRate
- 1 0 = 125K
1 = 250K
2 = 500k
Node Address
(MAC ID)
/Comms/DeviceNet
/BusData/NodeAddr
- 0 Range: 0 to 63
Protocol /Comms/DeviceNet
/BusData/Protocol
- 1 0 = Polled
1 = Bit Strobe
2 = Change of State
Master Input Area
Size
/Comms/DeviceNet
/BusData/TxMsgSize
- 0 Range: 0 to 254
Master Output Area
Size
/Comms/DeviceNet
/BusData/RxMsgSize
- 0 Range: 0 to 254
PROFIBUS
Data Tx /Comms/ProfiBus
/ProfiBus
266 1 0 = Disable
1 = Enable
Heartbeat /Comms/ProfiBus
/Heartbeat
- 1 0 = Disable
1 = Enable Unconditioned
2 = Enable Conditioned
Heartbeat Timeout /Comms/ProfiBus
/HeartbeatTimeOut
- 0 Range: 1 to 3600
Heartbeat Header
String
/Comms/ProfiBus
/heartbeatStart
- 3 Length: 0 to 32
Heartbeat Terminator
String
/Comms/ProfiBus
/HeartbeatStop
- 3 Length: 0 to 32
Send Diagnostic Info /Comms/ProfiBus
/SDSPBUS
- 1 0 = Disable
1 = Enable
Host Heartbeat /Comms/ProfiBus
/HostHeartbeat
- 1 0 = Disable
1 = Enable
Host Heartbeat
Timeout
/Comms/ProfiBus
/HostHeartbeatTimeOut
- 0 Range: 0 to 3600
PROFIBUS / BUS COMMUNICATION
Node Address /Comms/ProfiBus
/BusData/NodeAddr
268 0 Range: 0 to 125
Data Flow Control
(up to SW 6.85)
/Comms/ProfiBus
/BusData/FlowControl
269 1 0 = Disable
1 = DPD Driver
2 = DAD Driver
3 = SDP Driver
Page 60
6K-8KA FAMILY HOST MODE PROGRAMMING
56
4
PARAMETER COMPLETE PATH SHC PT VALUE
Data Flow Control
(SW 7.00 and later)
/Comms/ProfiBus
/BusData/Fieldbus
FlowControl
717 1 0 = Disable
1 = DPD Driver
2 = DAD Driver
Data Consistency /Comms/ProfiBus
/ConsistencyAbil
290 1 0 = Disable
1 = Enable
PROFIBUS / DIGITAL I/O CONDITIONING
Input 1 Echo /Comms/ProfiBus
/BusData/IO/In/Input1
- 1 0 = Disable
1 = Enable
Input 2 Echo /Comms/ProfiBus
/BusData/IO/In/Input2
- 1 0 = Disable
1 = Enable
Input 3 Echo /Comms/ProfiBus
/BusData/IO/In/Input3
- 1 0 = Disable
1 = Enable
Input 4 Echo /Comms/ProfiBus
/BusData/IO/In/Input4
- 1 0 = Disable
1 = Enable
Phase Echo /Comms/ProfiBus
/BusData/IO/In/PhaseEcho
- 1 0 = Disable
1 = Enable
Output 1 /Comms/ProfiBus
/BusData/IO/Out/IOutput1
- 1 0 = Disable
1 = Enable
Output 2 /Comms/ProfiBus
/BusData/IO/Out/Ioutput2
- 1 0 = Disable
1 = Enable
Output 3 /Comms/ProfiBus
/BusData/IO/Out/Ioutput3
- 1 0 = Disable
1 = Enable
4.6 DIGITAL I/O SETTING
PARAMETER COMPLETE PATH SHC PT VALUE
DIGITAL INPUT LINES
Debouncing For Input 1,
3 and 4
/IO/In/Debounce_0_2_3 11 1
1 = 500 s
3 = 5 ms
Debouncing For Input 2 /IO/In/Debounce_1 13 1
1 = 500 s
3 = 5 ms
Input 1 Active Level
Overridden by Operating
Mode
/IO/In/In1Lev 229 1 0 = Active Closed
1 = Active Open
Input 2 Active Level
Overridden By Operating
Mode
/IO/In/In2Lev 230 1 0 = Active Closed
1 = Active Open
Input 3 Active Level
Overridden By Operating
Mode
/IO/In/In3Lev 231 1 0 = Active Closed
1 = Active Open
Input 4 Active Level
Overridden By Operating
Mode
/IO/In/In4Lev 232 1 0 = Active Closed
1 = Active Open
DIGITAL OUTPUT LINES / OUTPUT 1
Line State /IO/Out/Out0/Idle 19 1 0 = Normally Open
1 = Normally Closed
Page 61
PARAMETERS LIST
57
4
PARAMETER COMPLETE PATH SHC PT VALUE
Activation Event /IO/Out/Out0/Active 20 1 0 = None
1 = Complete Read
2 = Partial Read
3 = No Read
5 = Phase On
6 = Phase Off
8 = Multiple Read
9 = Right
10 = Wrong
Alternative Activation
Event
/IO/Out/Out0/Active1 515 1 0 = None
1 = Complete Read
2 = Partial Read
3 = No Read
5 = Phase On
6 = Phase Off
8 = Multiple Read
9 = Right
10 = Wrong
Deactivation Event /IO/Out/Out0/Deactive 21 1 0 = None
7 = Timeout
5 = Phase On
6 = Phase Off
Alternative Deactivation
Event
/IO/Out/Out0/Deactive1 516 1 0 = None
5 = Phase On
6 = Phase Off
Activate On Any
Diagnostics Error
/IO/Out/Out0
/ActiveDiagnoErr
- 1 0 = Disable
1 = Enable
Deactivate When All
Diagnostic Errors
Recovered
/IO/Out/Out0
/DeactiveDiagnoNoErr
- 1 0 = Disable
1 = Enable
Deactivation Timeout
(ms)
/IO/Out/Out0/Timeout 22 0 Range: 40 to 15000
DIGITAL OUTPUT LINES / OUTPUT 2
Line State /IO/Out/Out1/Idle 23 1 0 = Normally Open
1 = Normally Closed
Activation Event /IO/Out/Out1/Active 24 1 0 = None
1 = Complete Read
2 = Partial Read
3 = No Read
5 = Phase On
6 = Phase Off
8 = Multiple Read
9 = Right
10 = Wrong
Page 62
6K-8KA FAMILY HOST MODE PROGRAMMING
58
4
PARAMETER COMPLETE PATH SHC PT VALUE
Alternative Activation
Event
/IO/Out/Out1/Active1 517 1 0 = None
1 = Complete Read
2 = Partial Read
3 = No Read
5 = Phase On
6 = Phase Off
8 = Multiple Read
9 = Right
10 = Wrong
Deactivation Event /IO/Out/Out1/Deactive 25 1 0 = None
7 = Timeout
5 = Phase On
6 = Phase Off
Alternative Deactivation
Event
/IO/Out/Out1/Deactive1 518 1 0 = None
5 = Phase On
6 = Phase Off
Activate On Any
Diagnostics Error
/IO/Out/Out1
/ActiveDiagnoErr
- 1 0 = Disable
1 = Enable
Deactivate When All
Diagnostic Errors
Recovered
/IO/Out/Out1
/DeactiveDiagnoNoErr
- 1 0 = Disable
1 = Enable
Deactivation Timeout
(ms)
/IO/Out/Out1
/Timeout
26 0 Range: 40 to 15000
DIGITAL OUTPUT LINES / OUTPUT 3
Line State /IO/Out/Out2/Idle 27 1 0 = Normally Open
1 = Normally Closed
Activation Event /IO/Out/Out2/Active 28 1 0 = None
1 = Complete Read
2 = Partial Read
3 = No Read
5 = Phase On
6 = Phase Off
8 = Multiple Read
9 = Right
10 = Wrong
Alternative Activation
Event
/IO/Out/Out2/Active1 519 1 0 = None
1 = Complete Read
2 = Partial Read
3 = No Read
5 = Phase On
6 = Phase Off
8 = Multiple Read
9 = Right
10 = Wrong
Deactivation Event /IO/Out/Out2/Deactive 29 1 0 = None
7 = Timeout
5 = Phase On
6 = Phase Off
Alternative Deactivation
Event
/IO/Out/Out2/Deactive1 520 1 0 = None
5 = Phase On
6 = Phase Off
Page 63
PARAMETERS LIST
59
4
PARAMETER COMPLETE PATH SHC PT VALUE
Activate On Any
Diagnostics Error
/IO/Out/Out2
/ActiveDiagnoErr
- 1 0 = Disable
1 = Enable
Deactivate When All
Diagnostic Errors
Recovered
/IO/Out/Out2
/DeactiveDiagnoNoErr
- 1 0 = Disable
1 = Enable
Deactivation Timeout
(ms)
/IO/Out/Out2
/Timeout
30 0 Range: 40 to 15000
4.7 SCANNER CLUSTER
PARAMETER COMPLETE PATH SHC PT VALUE
LOCAL DEVICE NETWORK SETTING
Cluster Description /Cluster/Descr 197 2 Length: 0 to 32
Topology Role /Cluster/TopRole 193 1 0 = Master (Synchronized)
1 = Master (Multidata)
2 = Slave (Synchronized)
3 = Other
12 = Slave (Multidata)
Lonworks Slave
Address
/Cluster/SlAddr 35 1 1 = Slave1
2 = Slave2
3 = Slave3
…
29 = Slave29
30 = Slave30
31 = Slave31
100 = Slave Jolly
DEVICE IDENTIFICATION #N (DEPTH: N = 1 to 31)
Device Enable /Cluster/Device#N
/Enable
198 1 0 = Disable
1 = Enable
Device Cluster /Cluster/Device#N
/Descr
199 2 Length: 0 to 32
4.8 DIAGNOSTICS
PARAMETER COMPLETE PATH SHC PT VALUE
DIAGNOSTICS
PackTrack Debug
Message Tx
/Diagno
/PkTrDbg_MsgTx
- 1 0 = Disable
1 = Enable
PackTrack Debug
Message Target
/Diagno/MsgPort - 1 0 = Main
1 = Aux
2 = Socket1
3 = Socket2
4 = Socket3
Page 64
6K-8KA FAMILY HOST MODE PROGRAMMING
60
4
PARAMETER COMPLETE PATH SHC PT VALUE
PackTrack Debug
Message Digital Input
/Diagno/PkTrDbg_Input - 1 0 = None
1 = Input 1
2 = Input 2
3 = Input 3
4 = Input 4
Enable /Diagno/Enable - 1 0 = Disable
1 = Enable
Conveyor Info /Diagno/ConveyorInfo - 1 0 = Not Available
1 = Available
Conveyor Info
Provider
/Diagno
/ConveyorInfoProvider
- 1 0 = Application SW
1 = Input_1
2 = Input_2
3 = Input_3
4 = Input_4
Refresh Time /Diagno/RefreshT - 1 1 = 1 sec
2 = 2 sec
5 = 5 sec
10 = 10 sec
30 = 30 sec
60 = 1 min
Slave Diagnostics /Diagno/NetDiag 37 1 0 = Disable
1 = Enable
Local Network
Failure
/Diagno/LocalNetBoard - 1 0 = Disable
1 = Enable
No Scan /Diagno/NoScan - 1 0 = Disable
1 = Enable
No Sync /Diagno/NoSync - 1 0 = Disable
1 = Enable
Start/Stop Input
Failure
/Diagno/InFail - 1 0 = Disable
1 = Enable
No Phase Timeout /Diagno/NoPhaseTO - 1 0 = Disable
1 = 1 sec
2 = 5 sec
3 = 10 sec
4 = 20 sec
5 = 1 min
6 = 5 min
7 = 10 min
8 = 20 min
Presence Sensor
Failure
/Diagno/PSFail - 1 0 = Disable
1 = Enable
Presence Sensor
Stuck Timeout
/Diagno/PSStuck - 1 0 = Disable
1 = 1 sec
2 = 2 sec
5 = 5 sec
10 = 10 sec
30 = 30 sec
60 = 1 min
Page 65
PARAMETERS LIST
61
4
PARAMETER COMPLETE PATH SHC PT VALUE
Encoder Failure
Timeout
/Diagno/EncFailTO - 1 0 = Disable
1 = 1 sec
2 = 2 sec
5 = 5 sec
10 = 10 sec
30 = 30 sec
60 = 1 min
Encoder Failure /Diagno/EncFail - 1 0 = Disable
1 = Enable
DIGITIZER:
Motor Warning
/Diagno/DgtzMotWarn - 1 0 = Disable
1 = Enable
DIGITIZER:
Motor Failure
/Diagno/DgtzMotFail - 1 0 = Disable
1 = Enable
DIGITIZER:
Motor Life End
/Diagno/DgtzMotEnd - 1 0 = Disable
1 = Enable
DIGITIZER:
Laser Fail
/Diagno/DgtzLasFail - 1 0 = Disable
1 = Enable
DIGITIZER:
Laser Life End
/Diagno/DgtzLasEnd - 1 0 = Disable
1 = Enable
OSCILLATING
MIRROR:
Motor Failure
/Diagno/OmMotFail - 1 0 = Disable
1 = Enable
FLASH:
Motor Failure
/Diagno/AfMotFail - 1 0 = Disable
1 = Enable
Protocol Index
Alarms
/Diagno/ProtocolIndexEn - 1 0 = Disable
1 = Enable
DIAGNOSTICS / ACTIONS
TX Mode /Diagno/Actions
/TxMode
- 1 0 = On Timeout
1 = With Code"
TX Refresh /Diagno/Actions
/AsyncTO
- 1 1 = 1 sec
2 = 2 sec
5 = 5 sec
10 = 10 sec
20 = 20 sec
30 = 30 sec
60 = 1 min
300 = 5 min"
Message Position
/Diagno/Actions
/SyncOpt
- 1 0 = Append to Code
1 = Replace Code
Aux
/Diagno/Actions
/SerAuxTx
- 1
0 = Disable
1 = Enable
Main
/Diagno/Actions
/SerMainTx
- 1
0 = Disable
1 = Enable
Ethernet IP
/Diagno/Actions
/Eth/ethIP
- 1
0 = Disable
1 = Enable
Modbus Client
/Diagno/Actions
/Eth/modBusC
- 1
0 = Disable
1 = Enable
User Socket#N
(Depth: N = 1 to 3)
/Diagno/Actions
/Eth/UsrSocket#N
- 1
0 = Disable
1 = Enable
Page 66
6K-8KA FAMILY HOST MODE PROGRAMMING
62
4
PARAMETER COMPLETE PATH SHC PT VALUE
DIAGNOSTICS / FORMAT
Header String /Diagno/Format
/Header
- 3 Length: 1 to 128
Terminator String /Diagno/Format
/Terminator
- 3 Length: 1 to 128
Error Message Type /Diagno/Format
/MsgType
- 1 0 = Numeric
1 = Global String
Global String /Diagno/Format
/GlobalStr
- 3 Length: 1 to 32
4.9 STATISTICS
PARAMETER COMPLETE PATH SHC PT VALUE
STATISTICS
Enable /Statisti/Enable 217 1 0 = Disable
1 = Enable
Separator /Statisti/Separator - 3 Length: 0 to 32
Time (hh mm) /Statisti/Clock_hm - 1 0 = Disable
1 = Enable
Phase Counter /Statisti/PhaseCnt - 1 0 = Disable
1 = Enable
Good Read Counter /Statisti/GoodrCnt - 1 0 = Disable
1 = Enable
Partial Read Counter /Statisti/PartialRCnt - 1 0 = Disable
1 = Enable
No Read Counter /Statisti/NoRCnt - 1 0 = Disable
1 = Enable
Motor OFF Counter /Statisti/MotorOFFCnt - 1 0 = Disable
1 = Enable
Multiple Read
Counter
/Statisti/MulRCnt - 1 0 = Disable
1 = Enable
4.10 ENERGY SAVING
PARAMETER COMPLETE PATH SHC PT VALUE
ENERGY SAVING
Energy Saving
Configuration
/ES/ESE - 1 0 = Disable
1 = Enable
ACTIVATION & DEACTIVATION
Use Digital Input For /ES/ESAD/ADdi - 1 0 = None
1 = Deactivation
2 = Activation
3 = Activation &
Deactivation
Page 67
PARAMETERS LIST
63
4
PARAMETER COMPLETE PATH SHC PT VALUE
Select Digital Input /ES/ESAD/Di - 1 1 = Input 1
3 = Input 3
4 = Input 4"
Use Auxiliary Port For /ES/ESAD/ADAux - 1 0 = None
1 = Deactivation
2 = Activation
3 = Activation &
Deactivation
Header /ES/ESAD/AuxPar
/ADStrAux
- 3 Length: 0 to 1
Terminator /ES/ESAD/AuxPar
/ADStpAux
- 3 Length: 0 to 1
Activation String /ES/ESAD/AuxPar
/ADActStringAux
- 2 Length: 0 to 10
Deactivation String /ES/ESAD/AuxPar
/ADDeactStringAux
- 2 Length: 0 to 10
Use Main Port For /ES/ESAD/ADMain - 1 0 = None
1 = Deactivation
2 = Activation
3 = Activation &
Deactivation
Header /ES/ESAD/MainPar
/ADStrMain
- 3 Length: 0 to 1
Terminator /ES/ESAD/MainPar
/ADStpMain
- 3 Length: 0 to 1
Activation String /ES/ESAD/MainPar
/ADActStringMain
- 2 Length: 0 to 10
Deactivation String /ES/ESAD/MainPar
/ADDeactStringMain
- 2 Length: 0 to 10
Use Encoder For /ES/ESAD/ADEnc - 1 0 = None
1 = Deactivation
2 = Activation
3 = Activation &
Deactivation
Activation Encoder
Timeout
/ES/ESAD/ACEncT - 1 5 = 5 min
10 = 10 min
15 = 15 min
20 = 20 min
25 = 25 min
30 = 30 min"
Deactivation Encoder
Timeout
/ES/ESAD/DCEncT - 1 5 = 5 sec
10 = 10 sec
20 = 20 sec
30 = 30 sec
1 = 1 min
2 = 2 min"
ETHERNET / USER SOCKET #N (DEPTH: N = 1 to 3)
Use User Socket For /ES/ESAD/ADBltEth
/ADUserSocket#N
/ADBlt
- 1 0 = None
1 = Deactivation
2 = Activation
3 = Activation &
Deactivation
Page 68
6K-8KA FAMILY HOST MODE PROGRAMMING
64
4
PARAMETER COMPLETE PATH SHC PT VALUE
Header ES/ESAD/ADBltEth
/ADUserSocket#N
/ADBltStrSock
- 3 Length: 0 to 1
Terminator ES/ESAD/ADBltEth
/ADUserSocket#N
/ADBltStpSock
- 3 Length: 0 to 1
Activation String ES/ESAD/ADBltEth
/ADUserSocket#N
/ADActStringBltSock
- 2 Length: 0 to 10
Deactivation String ES/ESAD/ADBltEth
/ADUserSocket#N
/DDeactStringBltSock
- 2 Length: 0 to 10
4.11 USER INFORMATION SECTION
PARAMETER COMPLETE PATH SHC PT VALUE
USER INFORMATION SECTION
User Name /UserInfo/EndUser 521 2 Length: 0 to 32
Device Name /UserInfo/Name 522 2 Length: 0 to 128
Line Name /UserInfo/Line 523 2 Length: 0 to 128
Page 69
SPECIAL COMMANDS AND TABLES
65
A
A SPECIAL COMMANDS AND TABLES
CONTROL RULES TABLE
This paragraph provides a list of the most important control rules that can be applied to the
6K and 8KA Family parameters.
PARAMETER CONTROL RULES
CODE DEFINITION
Code Combination
Must be Single Label and Code Collection if Host Application
Protocol Type = Crisplant.
Must be Standard Multi Label and Logical Combination if
Operating Mode Selection
= Continuous.
Must be Code Collection if No Read Message
= Local No Read(s)
Message.
No Read Message
Must be Local No Read(s) Message if Code Combination
= Single
Label.
Must be Local No Read(s) Message if Code Combination
= Code
Collection.
Associate Same
Codes When
Coming From
Different Scanners
Not available if Scanner Cluster Topology Role
Master
Synchronized or Master Multidata.
CODE LABEL SETTINGS #N (DEPTH: n = 1 to 10)
Minimum Label
Length
Value must be Maximum Label Length
Maximum Label
Length
Value must be Minimum Label Length
Minimum Code
Position
Value must be Maximum Code Position
Maximum Code
Position
Value must be Minimum Code Position
OPERATING MODES
Operating Mode
Selection
Must be Automatic and Continuous if Host Application Protocol
Type Crisplant.
Must be Continuous if Code Combination
Single Label.
Must be Automatic and Continuous if Scanner Cluster Topology
Role Master Synchronized.
Must be Automatic and Continuous if Scanner Cluster Topology
Role Slave Synchronized.
On Line Options
Must be Serial On Line if Host Application Protocol Type
=
Crisplant.
Stop Phase Edge
(only for On Line 2
Input)
Must be Leading if Extended Phase
Enable
Page 70
6K-8KA FAMILY HOST MODE PROGRAMMING
66
A
PARAMETER CONTROL RULES
VERIFIER
Code Verifier
Not available if Code Combination
Single Label.
Not available if Operating Mode Selection
On Line and Automatic
and Continuous.
READING SYSTEM LAYOUT
Device Assignment
Must be Master RS232 (Type A) and Slave RS232 (Type A) if
Auxiliary Serial Port Data TX
Enable.
Must be Master RS232 (Type A) and Slave RS232 (Type A) if
Auxiliary Serial Port Pass Through
Enable.
DATA COMMUNICATION SETTING
Host Application
Protocol Type
Must be Crisplant if Operating Mode Selection
On Line or
PackTrack.
Must be Cargoscan if Operating Mode Selection
Continuous.
Must be Crisplant and Cargoscan if On Line Options
Serial On
Line.
Must be Crisplan and Cargoscan t if Main Port Communication
Mode Standard.
Must be Crisplant and Cargoscan if Auxiliary Serial Port Pass
Through Enable.
MAIN SERIAL PORT
Main Port
Communication
Mode
Must be Standard if Host Application Protocol Type
Standard.
AUXILIARY SERIAL PORT
Data Transmission
Must be = Disable if Device Assignment
Master RS232 (Type A) or
Slave RS232 (Type A).
Pass Through
Must be = Disable if Host Application Protocol Type
Standard.
Must be = Disable if Device Assignment
= Master RS232 (Type A) or
= Slave RS232 (Type A).
DIGITAL OUTPUT LINES SETTING
Activation Event,
Alternative
Activation Event,
Deactivation Event,
Alternative
Deactivation Event
Not available if Activate On Any Diagnostics Error
Enabled.
STATISTICS
Enable
Not available if Scanner Cluster Topology Role
Slave
Synchronized.
Page 71
SPECIAL COMMANDS AND TABLES
67
A
ERROR CODES TABLE
This paragraph provides a list of the most important error codes.
CODE INTERPRETATION
COMMAND PARSING
-3 Parameter does not exist.
-4 Invalid range.
-8 Wrong syntax error.
-9 Wrong shortcut error.
-12 Path not found.
-13 Unknown command.
-14 Too many parameters in the programming string.
-15 No command is present in the programming string.
-16 Wrong number of parameters in the programming string.
-17 Unexpected error.
-19 One or more parameters are not applicable.
PARAMETERS PROGRAMMING
3 The current Path is not valid.
7 The current Path is a Folder
8 Parameter Type is not correct.
9 Parameter Value is not correct.
12 One or more Control Rules are not satisfied.
13 Access denied.
Page 72
6K-8KA FAMILY HOST MODE PROGRAMMING
68
A
ASCII TABLE
CHARACTER TO HEX CONVERSION TABLE
CHAR HEX CHAR HEX CHAR HEX
NUL
00
*
2A
U
55
SOH
01
+
2B
V
56
STX
02
,
2C
W
57
ETX
03
-
2D
X
58
EOT
04
.
2E
Y
59
ENQ
05
/
2F
Z
5A
ACK
06
0
30
[
5B
BEL
07
1
31
\
5C
BS
08
2
32
]
5D
HT
09
3
33
^
5E
LF
0A
4
34
_
5F
VT
0B
5
35
`
60
FF
0C
6
36
a
61
CR
0D
7
37
b
62
SO
0E
8
38
c
63
SI
0F
9
39
d
64
DLE
10
:
3A
e
65
DC1
11
;
3B
f
66
DC2
12
<
3C
g
67
DC3
13
=
3D
h
68
DC4
14
>
3E
i
69
NAK
15
?
3F
j
6A
SYN
16
@
40
k
6B
ETB
17
A
41
l
6C
CAN
18
B
42
m
6D
EM
19
C
43
n
6E
SUB
1A
D
44
o
6F
ESC
1B
E
45
p
70
FS
1C
F
46
q
71
GS
1D
G
47
r
72
RS
1E
H
48
s
73
US
1F
I
49
t
74
SPACE
20
J
4A
u
75
!
21
K
4B
v
76
"
22
L
4C
w
77
#
23
M
4D
x
78
$
24
N
4E
y
79
%
25
O
4F
z
7A
&
26
P
50
{
7B
'
27
Q
51
|
7C
(
28
R
52
}
7D
)
29
S
53
~
7E
T
54
DEL
7F
Page 73
www.datalogic.com
Loading...
