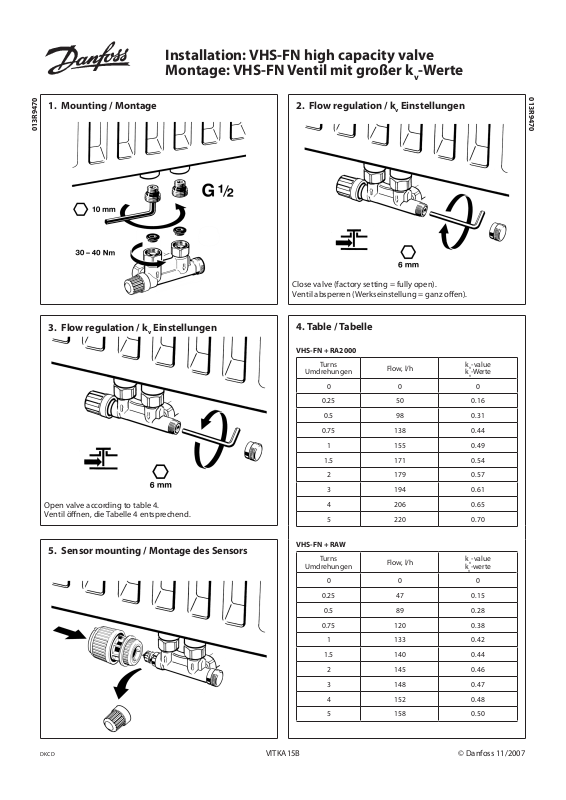

Danfoss VHS-FN Installation guide [de]
|
|
Installation: VHS-FN high capacity valve |
||
|
|
Montage: VHS-FN Ventil mit großer kv-Werte |
||
| <![if ! IE]> <![endif]>013R9470 |
|
|
|
|
1. Mounting / Montage |
|
|
2. Flow regulation / kv Einstellungen |
|
|
|
|
||
Close valve (factory setting = fully open).
Ventil absperren (Werkseinstellung = ganz offen).
3. Flow regulation / kv Einstellungen
Open valve according to table 4.
Ventil öffnen, die Tabelle 4 entsprechend.
5. Sensor mounting / Montage des Sensors
4. Table / Tabelle
VHS-FN + RA2000
Turns |
Flow, l/h |
kv-value |
Umdrehungen |
|
kv-Werte |
0 |
0 |
0 |
|
|
|
0.25 |
50 |
0.16 |
|
|
|
0.5 |
98 |
0.31 |
|
|
|
0.75 |
138 |
0.44 |
|
|
|
1 |
155 |
0.49 |
|
|
|
1.5 |
171 |
0.54 |
|
|
|
2 |
179 |
0.57 |
|
|
|
3 |
194 |
0.61 |
|
|
|
4 |
206 |
0.65 |
|
|
|
5 |
220 |
0.70 |
|
|
|
VHS-FN + RAW |
|
|
|
|
|
Turns |
Flow, l/h |
kv-value |
Umdrehungen |
|
kv-werte |
0 |
0 |
0 |
|
|
|
0.25 |
47 |
0.15 |
|
|
|
0.5 |
89 |
0.28 |
|
|
|
0.75 |
120 |
0.38 |
|
|
|
1 |
133 |
0.42 |
|
|
|
1.5 |
140 |
0.44 |
|
|
|
2 |
145 |
0.46 |
|
|
|
3 |
148 |
0.47 |
|
|
|
4 |
152 |
0.48 |
|
|
|
5 |
158 |
0.50 |
|
|
|
<![endif]>013R9470
DKCD |
VITKA15B |
© Danfoss 11/2007 |
Draining the radiator
Entleeren der Heizkörper
| <![if ! IE]> <![endif]>013R9470 |
1. |
|
2. |
|
|
||
|
|
|
|
3. |
|
4. |
|
|
|
<![endif]>013R9470
DKCD |
VITKA15B |
© Danfoss 11/2007 |
