PLUS+1 Compliant S4 PVEO Function Block User Manual
142.0 mm
[5.59]
97.0 mm
[3.82]
144.5 mm
5.69
158.2 mm
6.23
PIN #1
INDICATED
2x 25.2 mm
[1.0]
2x 7.0
[.28]
MOUNTING
DIRECTION
#2
LED INDICATO R
LIGHTS
TM
COMPLIANT
CONNECTOR MATES
WITH DEUTCH
CONNECTOR #DTM-06-125A
51.6 mm
47.1 mm
[1.85]
[2.03]
1
12
6
7
1
12
6
7
CONNECTOR MATES
WITH DEUTCH
CONNECTOR #DTM-06-125A
PLUS+1 Compliant S4 PVEO Function Block
T
f
User Manual
About this Manual
Organization
and Headings
o help you quickly find information in this manual, the material is divided into sections,
topics, subtopics, and details, with descriptive headings set in red type. Section titles
appear at the top of every page in large red type.
In the PDF version of this document, clicking an item underlined in blue italic type jumps
you to the referenced page in the document.
Special Text Formatting Controls and indicators are set in bold black type.
Table o
Contents
A Table of Contents (TOC) appears on the next page. In the PDF version of this document,
the TOC entries are hyperlinked.
Revision History
Revision Date Comment
Rev BA November 2012
©2012 Sauer-Danfoss. All rights reserved.
Sauer-Danfoss accepts no responsibility for possible errors in catalogs, brochures and other printed material.
Sauer-Danfoss reserves the right to alter its products without prior notice. This also applies to products already
ordered provided that such alterations can be made without affecting agreed specifications.
All trademarks in this material are properties of their respective owners.
PLUS+1, GUIDE, and Sauer-Danfoss are trademarks of the Sauer-Danfoss Group. The PLUS+1 GUIDE, PLUS+1
2
Compliant, and Sauer-Danfoss logotypes are trademarks of the Sauer-Danfoss Group.
11009789 l Rev BA l November 2012
PLUS+1 Compliant S4 PVEO Function Block
User Manual
Contents
S4_PVEO Function Block ............................................................................................................................... 4
Overview .................................................................................................................................................... 4
Inputs ........................................................................................................................................................... 4
Outputs ....................................................................................................................................................... 5
Fault Logic ................................................................................................................................................. 6
About Function Block Connections .................................................................................................. 6
MC Controller—Output Configuration ............................................................................................ 7

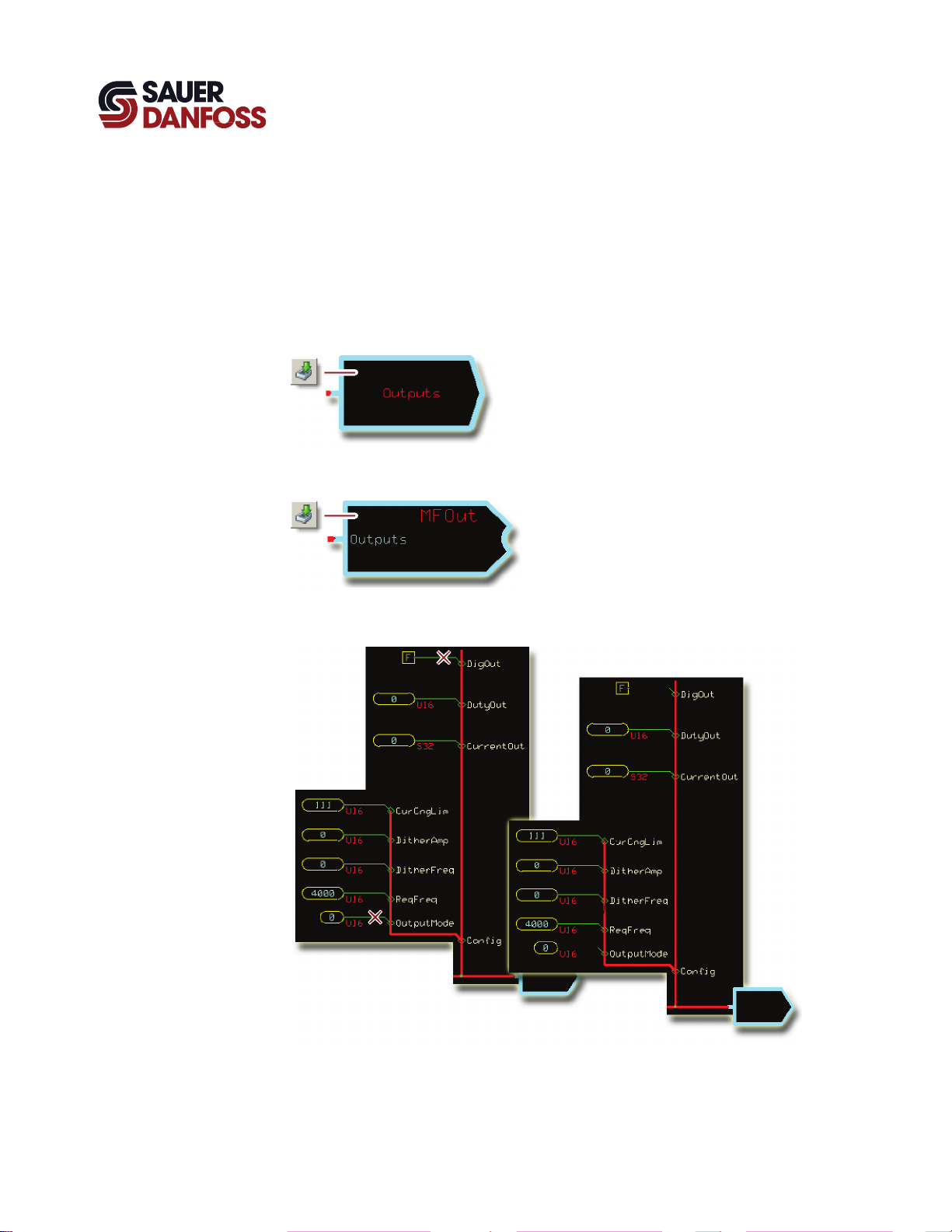

How to Configure a MFOut .......................................................................................................... 7
How to Configure a DigOut ......................................................................................................... 8
SC Controller—Output Configuration ............................................................................................. 9
How to Configure a MFOut .......................................................................................................... 9
How to Configure a DigOut ....................................................................................................... 10
11009789 l Rev BA l November 2012
3
PLUS+1 Compliant S4 PVEO PVG Function Block
User Manual
Overview
S4 PVEO Function Block
This function block controls the output of a Sauer-Danfoss PVEO Series 4 Electrical
Actuator.
The PVEO Actuator provides on/off control of Sauer-Danfoss PVG 32, PVG 100, and
PVG 120 valves.
See About Function Block Connections on page 6 for more about this function block’s
connections and signals.
Inputs
Function Block Inputs
Input Type Range Description
Enable BOOL —— Enables and disables Output A and Output B.
– T = Enables Output A and Output B.
– F = Disables Output A and Output B.
Fdbk A —— Input for the Status bus that reports the status of the output that is used by the function block’s Output A.
Each output has a Status bus (available through the Input bus) that reports on its status.
Fdbk B —— Input for the Status bus that reports on the status of the output that is used by the function block’s Output_B.
Each output has a Status bus (available through the Input bus) that reports on its status.
Input A BOOL Controls Output A.
– T = Turn on Output A.
– F = Turn off Output A.
Input B BOOL Controls Output B.
– T = Turn on Output B.
– F = Turn off Output B.
4
11009789 l Rev BA l November 2012
