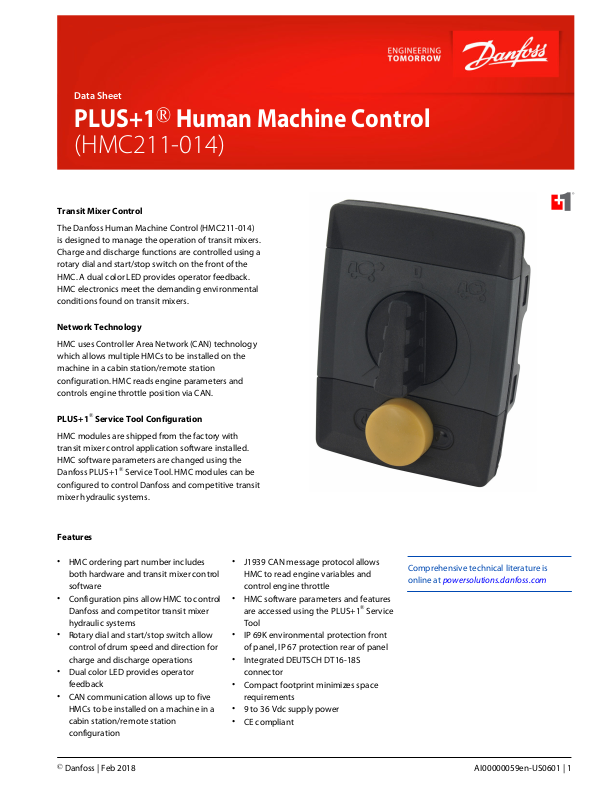

Danfoss HMC211-014 Data sheet
Data Sheet
PLUS+1® Human Machine Control
(HMC211-014)
Transit Mixer Control
The Danfoss Human Machine Control (HMC211-014) is designed to manage the operation of transit mixers. Charge and discharge functions are controlled using a rotary dial and start/stop switch on the front of the HMC. A dual color LED provides operator feedback. HMC electronics meet the demanding environmental conditions found on transit mixers.
Network Technology
HMC uses Controller Area Network (CAN) technology which allows multiple HMCs to be installed on the machine in a cabin station/remote station configuration. HMC reads engine parameters and controls engine throttle position via CAN.
PLUS+1® Service Tool Configuration
HMC modules are shipped from the factory with transit mixer control application software installed. HMC software parameters are changed using the Danfoss PLUS+1® Service Tool. HMC modules can be configured to control Danfoss and competitive transit mixer hydraulic systems.
Features
•HMC ordering part number includes both hardware and transit mixer control software
•Configuration pins allow HMC to control Danfoss and competitor transit mixer hydraulic systems
•Rotary dial and start/stop switch allow control of drum speed and direction for charge and discharge operations
•Dual color LED provides operator feedback
•CAN communication allows up to five HMCs to be installed on a machine in a cabin station/remote station configuration
•J1939 CAN message protocol allows HMC to read engine variables and control engine throttle
•HMC software parameters and features are accessed using the PLUS+1® Service Tool
•IP 69K environmental protection front of panel, IP 67 protection rear of panel
•Integrated DEUTSCH DT16-18S connector
•Compact footprint minimizes space requirements
•9 to 36 Vdc supply power
•CE compliant
Comprehensive technical literature is online at powersolutions.danfoss.com
© Danfoss | Feb 2018 |
AI00000059en-US0601 | 1 |
Data Sheet
Human Machine Control (HMC211-014)
112.0 |
85.0 |
[4.4] |
[3.35] |
93.0
[3.66]
84.0 [3.3] |
64.0 [2.52] |
|
72.0 [2.83] |
Dual Color (amber/red) LED |
|
|
P108 256 |
Specifications
Supply voltage |
|
9 to 36 Vdc |
|
|
|
Operating temperature (ambient) |
-40°C to 70°C [-40°F to 158°F] |
|
|
|
|
Storage temperature |
-40°C to 85°C [-40°F to 185°F] |
|
|
|
|
Programming temperature |
0°C to 70°C [32°F to 158°F] |
|
|
|
|
IP rating (with mating connector |
IP 69K (front) |
|
attached) |
|
|
|
IP 67 (rear) |
|
|
|
|
|
|
|
EMI/RFI rating |
|
100 V/M |
|
|
|
Weight |
|
0.23 kg [0.50 lb] |
|
|
|
Maximum current, sourcing |
11.5 A |
|
|
|
|
Maximum current, sinking |
3 A |
|
|
|
|
18 |
13 |
|
4 x R4
93.80 ± 0.50 [3.69 ± 0.20]
72.80 ± 0.50
[2.87 ± 0.20]
P108255
C Caution
This device is not field serviceable. Opening the device housing will void the warranty.
HMC Configuration Table
Function |
Config 0 |
Config 1 |
HMC Slave |
0 |
0 |
|
|
|
HMC with Danfoss hydraulics |
1 |
0 |
|
|
|
HMC with Bosch-Rexroth hydraulics |
0 |
1 |
|
|
|
HMC with Eaton hydraulics |
1 |
1 |
|
|
|
6 |
1 |
|
|
Pin |
Controller function |
C1-P1 |
Power ground - |
|
|
C1-P2 |
Power supply + |
|
|
C1-P3 |
CAN + |
|
|
C1-P4 |
CAN - |
|
|
C1-P5 |
CAN shield |
|
|
C1-P6 |
5 Vdc sensor power + |
|
|
C1-P7 |
Motor Speed PPU |
|
|
C1-P8 |
Pump Speed PPU |
|
|
C1-P9 |
Config 0* |
C1-P10 |
Config 11 |
C1-P11 |
Not used |
|
|
C1-P12 |
Not used |
|
|
C1-P13 |
PWMOUT (Charge) |
|
|
C1-P14 |
PWMOUT (Discharge) |
|
|
C1-P15 |
Not used |
|
|
C1-P16 |
Not used |
|
|
C1-P17 |
Not used |
|
|
C1-P18 |
Not used |
|
|
* See HMC Configuration table
Use care when wiring mating connector.
Above pinouts are for device pins.
All current returns must be directly wired to the machine’s battery ground.
2 | © Danfoss | Feb 2018 |
AI00000059en-US0601 |
