Installation Guide

ECtemp 532

Electronic Thermostat

www.EH.danfoss.com

ECtemp 532

Table of Contents

1 Introduction ............... 3

2 Mounting Instructions ......... 6

3 Settings ................. 10

4 Warranty ................. 11

5 Disposal Instruction .......... 12

1 Introduction

ECtemp 532 is an electronic thermostat provided with a 2­pole switch, a room sensor to control the room tempera­ture, and an additional floor sensor to limit the maximum
floor temperature. It can be either flush-mounted or sur­face-mounted.

The thermostat has a button for adjusting the temperature
setting with a scale from ( ) 5-35°C. Furthermore, it has a
LED indicator showing standby periods (green light) and
heating periods (red light).

More information on this product can also be found at:
ectemp.danfoss.com

1.1 Technical Specifications ..... 4

1.2 Safety Instructions ........ 5

Installation Guide 3

ECtemp 532

1.1 Technical Specifications

Operation voltage 220-240V~, 50Hz
Standby power consump-

tion
Relay:
Resistive load Max 15A / 3450W @ 230V
Inductive load cos φ= 0.3 max 1A
Sensing units NTC 15kOhm at 25°C
Sensing values:
0°C 42 kOhm
25°C 15 kOhm
50°C 6 kOhm
Hysteresis ± 0.4°C
Ambient temperature -10 to +30°C
Frost protection tempera-

ture
Temperature range 5-35°C room temperature

Cable specification max
Ball pressure temperature 75°C
Pollution degree 2 (domestic use)

Max 0.25W

5°C -

20-50°C floor temperature
limiter - default 35°C

1x4mm2 or 2x2,5mm

2

4 Installation Guide

ECtemp 532

Type 1C
Storage temperature -20 to +65°C
IP class 31
Protection class
Dimensions 85 x 85 x 36mm
Weight 90g

The product complies with the EN/IEC Standard "Automatic
electrical controls for household and similar use":

EN/IEC 60730-1 (general)

▪

EN/IEC 60730-2-9 (thermostat)

▪

1.2 Safety Instructions

Make sure the mains supply to the thermostat is turned off
before installation.

IMPORTANT: When the thermostat is used to control a
floor heating element in connection with a wooden floor or
similar material, always use a floor sensor and never set the
maximum floor temperature to more than 35°C.

Class II -

Installation Guide 5

ECtemp 532

Please also note the following:

The installation of the thermostat must be done by an

▪

authorized and qualified installer according to local
regulations.

The thermostat must be connected to a power supply

▪

via an all-pole disconnection switch.
The sensor is to be considered as live voltage. Have

▪

this in mind if the sensor must be extended.
Always connect the thermostat to continuous power

▪

supply.
Do not expose the thermostat to moisture, water, dust,

▪

and excessive heat.

2 Mounting Instructions

Please observe the following placement guidelines:

Place the thermostat at a suitable height
on the wall (typically 80-170cm.).

In wet rooms, always place the thermostat
according to local regulation on IP classes.

6 Installation Guide

ECtemp 532

Do not place the thermostat on the inner
side of an exterior wall.

Always install the thermostat at least 50
cm. from windows and doors.

Do not place the thermostat in a way that
it will be exposed to direct sunlight.

Note: A floor sensor enables a more accu­rate temperature control and is recom­mended in all floor heating applications
and mandatory under wooden floors to
reduce the risk of over-heating the floor.

Installation Guide 7

devireg™550

20

30

40

50

20

30

35

15

25

ECtemp 532

Place the floor sensor in a conduit in an appropriate

▪

place where it is not exposed to sunlight or draft from
door openings.

Equally distant and >2cm from two heating cables.

▪

The conduit should be flush with the floor surface -

▪

countersink the conduit if necessary.
Route the conduit to the connection box.

▪

The bending radius of the conduit must be min 50mm.

▪

Follow the steps below to mount the thermostat:

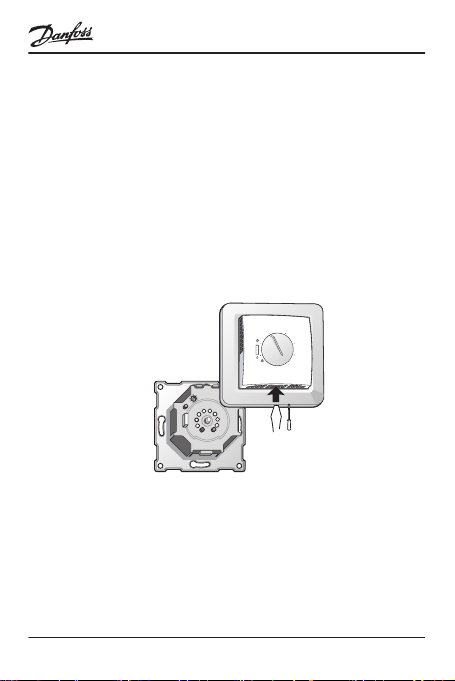

1. Open the thermostat:

Press the release tab in the bottom of the thermostat

▪

using a flat object.
Carefully detach the front cover.

▪

▪

Carefully detach the frame.

8 Installation Guide

IP31

-10T30

D532

Mains
220-240V~

Max. Load
15 (1)

A

Sensor

N

L

N

TC

N

LOADLLOAD

ECtemp 532

2. Connect the thermostat according to the connection
diagram.

The screen of the heating cable must be connected to

the earth conductor of the power supply cable by us­ing a separate connector.

Note: Always install the floor sensor in a conduit in the
floor.

3. Set the maximum floor temperature between 20˚ and

50˚C by turning the screw with temperature indica­tions in the upper left corner.

4. Mount and reassemble the thermostat:

Fasten the thermostat to a flush-mounting box or a

▪

surface-mounting box by driving the screws through
the holes in each side of the thermostat.

Install the frame and front cover in the reverse order

▪

of disassembly.

5. Turn on the power supply.

Installation Guide 9

devireg™550

20

30

40

50

20

30

35

15

25

ECtemp 532

3 Settings

How to change the minimum and maximum floor tem­peratures

1. Remove the adjust­ment button.

2.

Move the pins to the
desired positions.

3. Put the adjustment
button back in place.

Note Please be aware of the following:

The floor temperature is measured where the floor

▪

sensor is placed.
The temperature of the bottom of a wooden floor can

▪

be up to 10 degrees higher than the top.
Floor manufactures often specify the max temperature

▪

on the top surface of the floor (usually 27-28˚C).
By default, the maximum floor temperature is set to

▪

35°C.
Always use a floor sensor or a room + floor sensor

▪

combination to control floor heating. Without a floor
sensor, the temperature control may be less accurate
and you risk overheating the floor.

10 Installation Guide

2

Y E A R

ECtemp 532

Thermal
resist­ance
[m2K/W]

Examples of floor­ing

0.05 8 mm HDF based
laminate

0.10 14 mm beech par­quet

0.13 22 mm solid oak
plank

< 0.17 Max. carpet thick-

ness suitable for
floor heating

0.18 22 mm solid fir
planks

Details Approximate

> 800 kg/m

650 - 800

3

kg/m
> 800 kg/m

acc. to EN
1307

450 - 650

3

kg/m

setting for
25˚C floor
temperature

3

28˚C

31˚C

3

32˚C

34˚C

35°C

4 Warranty

Installation Guide 11

5 Disposal Instruction

ECtemp 532

12 Installation Guide

ECtemp 532

Installation Guide 13

ECtemp 532

14 Installation Guide

ECtemp 532
