Data Sheet
Flow directors for tube segment radiators - apply
with integrated valve 013G1382
Application
Code Nos. and Technical
Data
Flow director 013G1525/013G1557
Flow director
Flow director type Connection radiator
For tube segment
radiators
For tube segment
radiators
1” RH thread ½” 120 °C 013G1525
1” LH thread ½” 120 °C 013G1557
The Danfoss flow directors
013G1525/013G1557 are designed to be used
with Danfoss integrated valve type 013G1382
for incorporation into tube segment radiators.
Tube segment radiators are constructed by a
series of elements, which are welded together.
The first segment is used as inlet pipe, while
return is through the bottom of the second
segment.
When integrated valves are used in tube
segment radiators, the water flow needs to be
directed correctly through the valve to avoid
noise problems. This is made with the Danfoss
flow director.
Connection
integr. valve
Max. water
temperature
Code no.
Integrated valve for flow directors
Valve type
For Danfoss RA
type sensors
Accessories and spare parts for integrated valve 013G1382
Product Code no.
Gland seal 013G0290
Protection cap (red) 013G0951

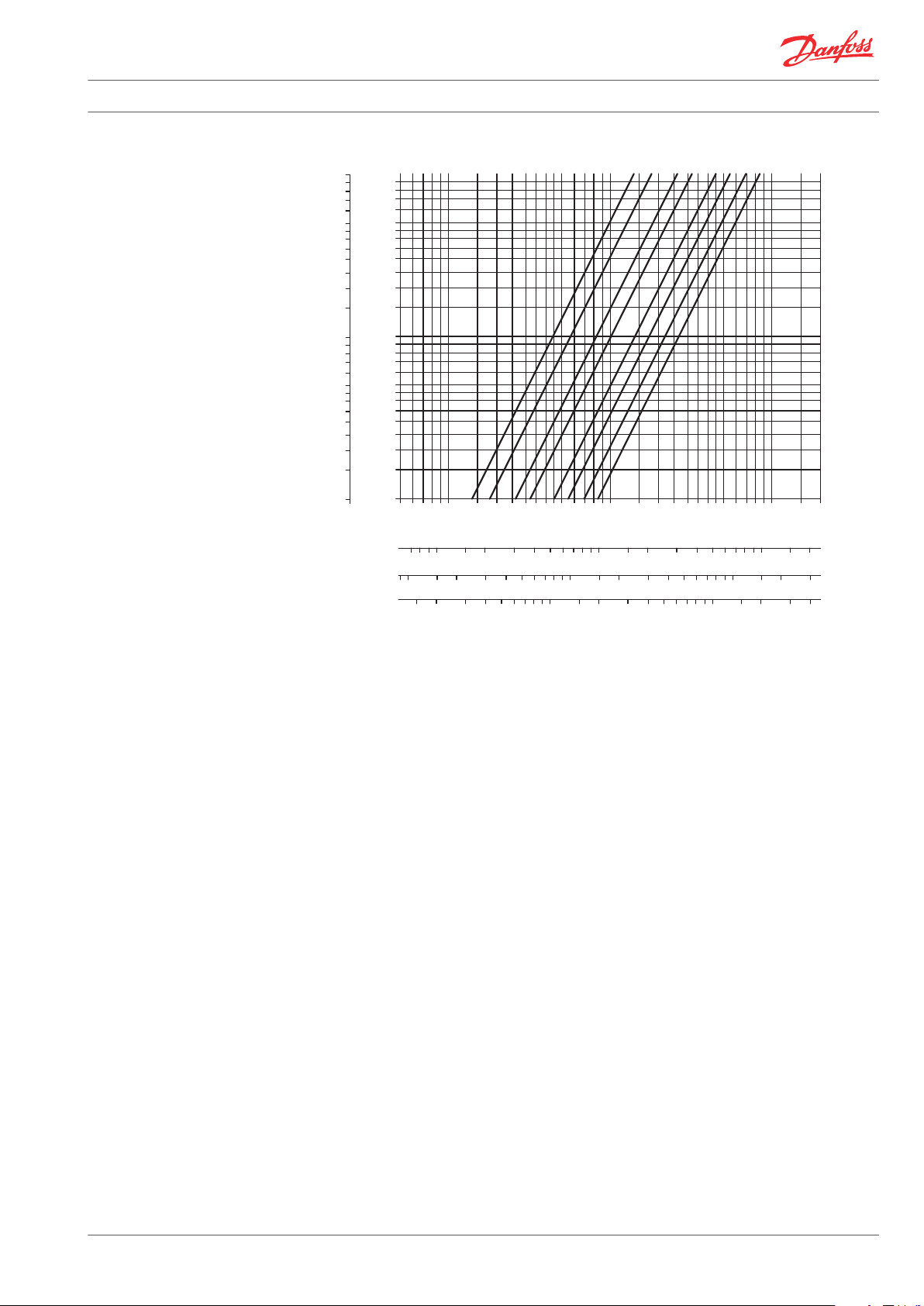

Pre-setting values, flow director + integrated valve
Flow director + integrated valve
Flow director + RA 013G1382 0.14 0.18 0.26 0.32 0.45 0.55 0.69 0.84 1.18
Danfoss Heating Solutions VDCNE202 © Danfoss 02/2011 1
Differential pressure
Recom. Technical
0.05-0.2 bar 0.6 bar 16 bar 10 bar 120 °C 013G1382
1)
Test pressure Work. pressure
Presetting
kv-value
1 2 3 4 5 6 7 N N
2)
Max. water
temp.
Code no.
k
vs
47.7 ± 0.75
44
25
12.7
10.6
G1/2”
ISO 228/1
Ø 44
Ø 11.95
32
G1” ISO 228/1
Ø 28.55 ± 0.15
1
2 3
3.2
No welding
material
20°
38 ± 0.5
G1” ISO 228/1
Ø 31 ± 0.3
min. 47
min. 11
A
Ø 28.85 ± 0.06
0.1
AØ 0.3
Data Sheet Flow directors for tube segment radiators - apply with integrated valve 013G1382
1)
The technical differential pressure indicates the upper limit for a proper valve function. In most twopipe systems the recommended differential pressure is sufficient. In order to achieve a noiseless
function we recommend in smaller systems to apply automatic bypass valves or automatic balancing
valves. If pump differential pressure exceeds the recommended max. valve differential pressure it is
recommended that an automatic balancing valve type ASV-P/PV is added to the system.
2)
kv-values indicate the flow volume (Q) in m³/h at a pressure loss (Δp) across the valve of 1 bar ;
. At setting N, the kv-value in accordance with EN 215 can be stated as Xp = 2 K. At lower preset
values, Xp will be reduced until approximately Xp 0.5 at presetting 1. The table shows the average
measured values for integrated valves with radiator. The kvs-values indicate the valve capacity, when
the valve is fully open. If a remote temperature adjuster is used, the P-band is increased by a factor of
1.1. If a liquid filled radiator thermostat is used, the P-band is increased by a factor of 1.6.
Design and Dimensions
Flow director 013G1522
Materials
Plug Nickel plated steel
1.
2. Flow director body PPS
3. O-ring EPDM
Radiator dimensions
2 VDCNE202 © Danfoss 02/2011 Danfoss Heating Solutions
