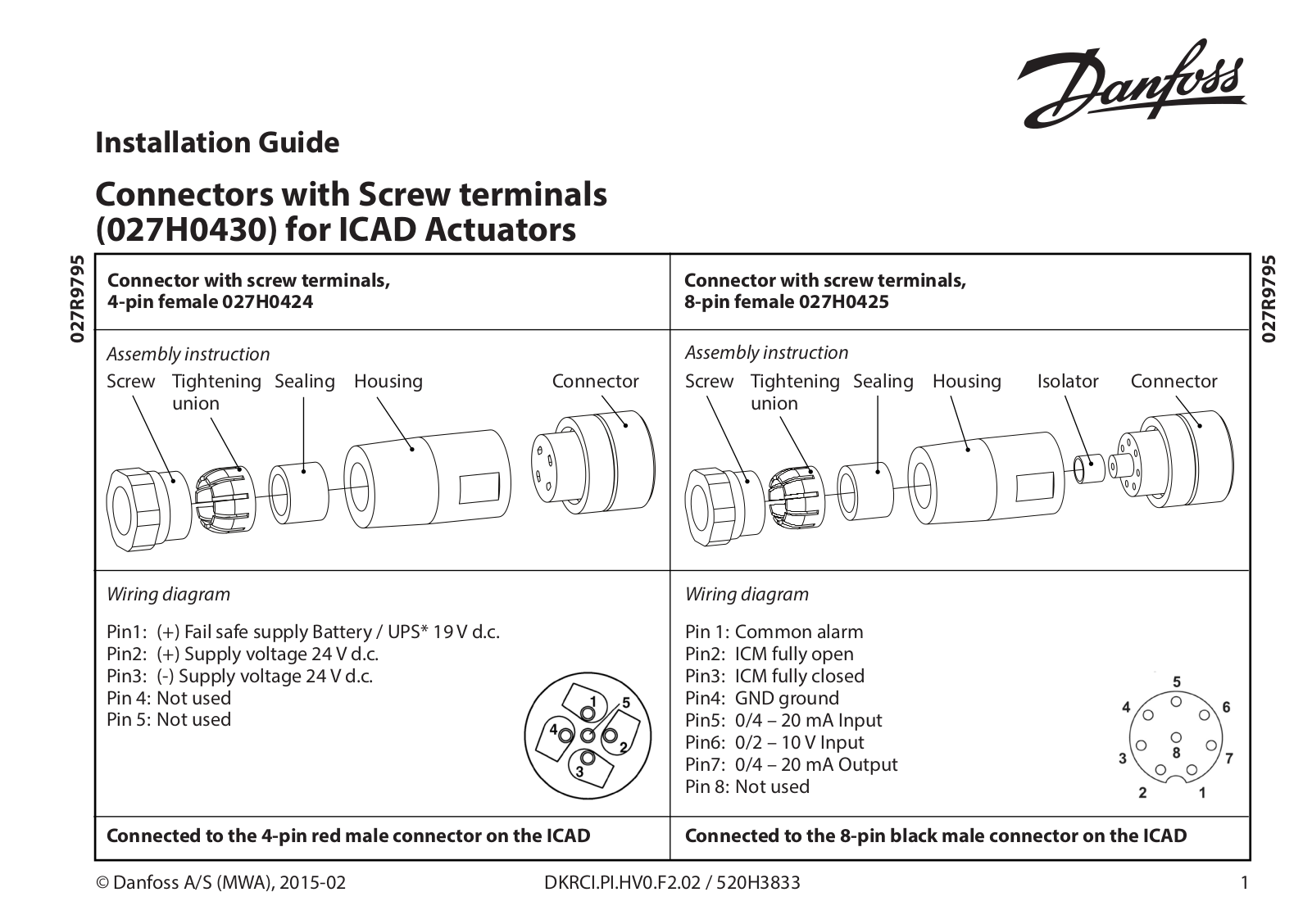

Installation Guide
Connectors with Screw terminals (027H0430) for ICAD Actuators
Connector with screw terminals, |
|
Connector with screw terminals, |
|
|
4-pin female 027H0424 |
|
8-pin female 027H0425 |
|
|
Assembly instruction |
|
Assembly instruction |
|
|
Screw Tightening Sealing Housing |
Connector |
Screw Tightening Sealing Housing |
Isolator |
Connector |
union |
|
union |
|
|
Wiring diagram |
Wiring diagram |
Pin1: (+) Fail safe supply Battery / UPS* 19 V d.c. |
Pin 1: Common alarm |
Pin2: (+) Supply voltage 24 V d.c. |
Pin2: ICM fully open |
Pin3: (-) Supply voltage 24 V d.c. |
Pin3: ICM fully closed |
Pin 4: Not used |
Pin4: GND ground |
Pin 5: Not used |
Pin5: 0/4 – 20 mA Input |
|
Pin6: 0/2 – 10 V Input |
|
Pin7: 0/4 – 20 mA Output |
|
Pin 8: Not used |
|
|
Connected to the 4-pin red male connector on the ICAD |
Connected to the 8-pin black male connector on the ICAD |
