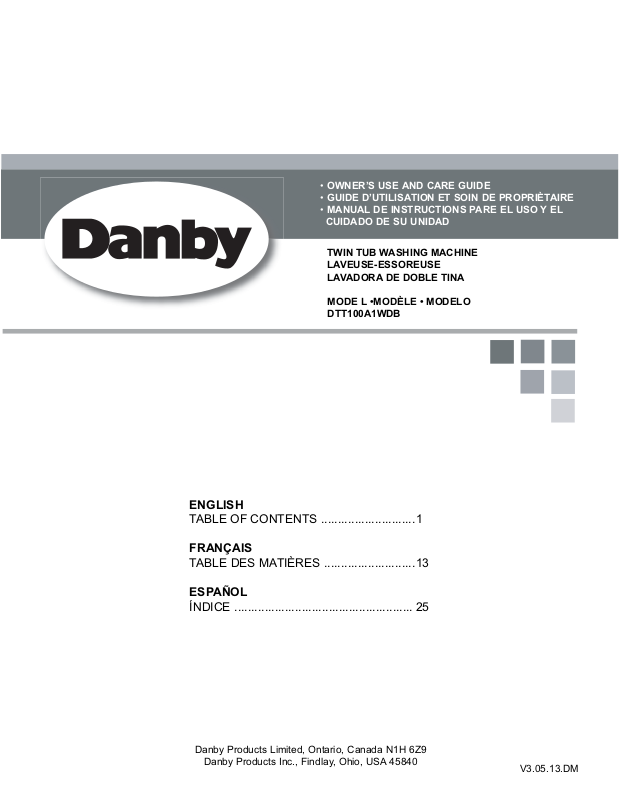

Danby DTT100A1WDB User Manual [en, es, fr]
• OWNER’S USE AND CARE GUIDE
• GUIDE D’UTILISATION ET SOIN DE PROPRIÈTAIRE
• MANUAL DE INSTRUCTIONS PARE EL USO Y EL
CUIDADO DE SU UNIDAD
TWIN TUB WASHING MACHINE
LAVEUSE-ESSOREUSE
LAVADORA DE DOBLE TINA
MODE L •MODÈLE • MODELO
Model • Modèle • Modelo
DTT100A1WDB
ENGLISH
TABLE OF CONTENTS ............................
FRANÇAIS
TABLE DES MATIÈRES ...........................
ESPAÑOL
ÍNDICE .....................................................
Danby Products Limited, Ontario, Canada N1H 6Z9
Danby Products Inc., Findlay, Ohio, USA 45840
1
13
25
V3.05.13.DM
TABLE OF CONTENTS
Safety instructions .....................................................................................................
Parts identification .....................................................................................................
Cautions regarding use .............................................................................................
Grounding instructions ..............................................................................................
Installation Instructions ..............................................................................................
Washing procedure ...................................................................................................
Laundry method with intermediate spin ....................................................................
Cleaning after use .....................................................................................................
Before requesting service .........................................................................................
Warranty ....................................................................................................................
2
4
5
5
6
7
10
10
11
12
INTRODUCTION
Thank you for buying a Danby appliance. Before operating this unit please read and save these
instructions.
Model Number: Serial Number:
Date of Purchase: Place of Purchase:
Dealer’s Name and Address:
This information will be required if your unit requires servicing and/or for general inquiries. To contact
a Customer Service Representative, call Danby TOLL FREE. 1-800-26 -DANBY
CAREFULLY READ AND SAVE THESE INSTRUCTIONS
These instructions for use are intended for the user. They describe the appliance and correct installation and operating procedures for safe use.
NOTE:
This appliance was carefully packed and thoroughly inspected before leaving our factory.
Responsibility for its safe delivery was assumed by the carrier upon acceptance of the shipment.
Claims for loss or damage sustained during transit must be made directly to the carrier.
1
SAFETY INSTRUCTIONS
Save these instructions
1. Please read this instruction manual carefully
before operating.
2. Refer to the Grounding Instructions in the
Installation manual for the proper grounding of
the washer.
3. Do not wash articles that have been
previously cleaned in, washed in, soaked in or
spotted with gasoline, dry-cleaning solvents,
other flammable or explosive substances as
they give off vapors that could ignite or
explode.
4. Do not allow children to play on or in the
washer. Close supervision of children is
necessary when the washer is used near
children.
5. Do not reach into the washer if the inner tub or
agitator is revolving.
6. Do not install or store the washer where it will
be exposed to water and/or weather.
7. Do not tamper with the controls.
8. Do not repair or replace any part of the
washer, or attempt any servicing unless
specifically recommended in the user
maintenance instructions trouble shooting
guide that you understand and have the skills
to carry out.
9. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to
the wash water. These substances give off
vapors that could ignite or explode.
10. Under certain conditions, hydrogen gas may
be produced in a hot water system that has
not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a
period, before using this washer, turn on all
hot water faucets and let the water flow from
each for several minutes. This will release
any accumulated hydrogen gas. THE GAS IS
FLAMMABLE, DO NOTSMOKE OR USE AN
OPEN FLAME DURING THIS TIME.
11. Replace worn power cords and/or loose
plugs.
12. To reduce the risk of an electric shock or fire,
DONOTuse an extension cord or an adapter
to connect the washer to the electrical power
source.
13. Use your washer only for its intended
purpose, washing clothes.
14. ALWAYS disconnect the washer from
electrical supply before attempting any
service. Disconnect the power cord by
grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain electrical power
and grounding must comply with local codes
and be made by licensed personnel when
required. Do not do it yourself unless you
know how!
16. To reduce the risk of fire, clothes which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner etc. or anything
containing wax or chemicals such as in mops
and cleaning cloths, must not be put into the
washer. These flammable substance may
cause the fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or
product.
18. Keep your washer in good condition.
Bumping or dropping the washer can
damage safety features. If this occurs, have
your washer checked by a qualified
serviceman.
19. Be sure water connections have a shut-off
valve and fill hose connections are tight.
CLOSE the shut-off valves at the end of each
wash day.
20. The LID MUST BE CLOSED any time the
washer is to spin. DO NOTby-pass the safety
switch by permitting the washer to spin with
the lid open. A brake will stop the inner tub
within seconds if the lid is opened during
spinning. If the inner tub does not stop when
the lid is opened, remove the washer from
use and call a serviceman.
2
SAFETY INSTRUCTIONS
21. Always follow the fabric care instructions
supplied by the garment manufacturer.
22. Never operate the washer with any guards
and/or panels removed.
23. DO NOT operate the washer with broken or
missing parts.
24. DO NOTby-pass any safety devices.
25. Failure to install, maintain, and/or operate
this machine according to these instructions
may result in conditions which can produce
bodily injury and/or property damage.
3
The WARNING AND IMPORTANT SAFETY
INSTRUCTIONS appearing in this manual
are not meant to cover all possible conditions and situations that may occur. It must
be understood that common sense, caution
and carefulness are factors which CAN
NOT be built into the washer. These factors
MUST BE supplied by the person(s)
installing, maintaining, or operating the
washer.
Always contact your dealer, distributor,
service agent or the manufacturer about
any problems or conditions you do not
understand.
IMPORTANT
To reduce the risk of electric shock, disconnect this appliance from the power
supply before attempting any user maintenance. Turning the controls to the OFF
position does not disconnect this appliance
from the power supply.
WARNING
PARTS IDENTIFICATION
1. Water Inlet
2. Wash timer
3. Wash action selector
4. Drain strainer
5. Drain selector
6. Spin-tub lid
7. Spin timer
8. Spin-tub inner lid
9. Power cord
10. Spin-tub
11. Hose-hook
12. Panel front
13. Drain hose
14. Rub-wash section
15. Overflow strainer
16. Pulsator (with lint filter)
17. Wash-tub
18. Wash-tub lid
4
Lint Filter
2
7
3
1
4
5
6
CAUTIONS REGARDING USE
Heat
Many parts of this washing machine are made of
plastic; never place hot or burning objects on or
near the washing machine.
Using Hot Water
Use only water under 50C. If the hot water to be
used is 50C or above, first partly fill the washing
machine with cold water, and then add the hot
water.
Articles that shouldn’t be washed or
spun
Don’t put shoes, utensils etc. into the tub to wash
or spin. Doing so could cause trouble.
Putting in the clothes
• Do not overload the washing machine.
• Fold up bulky clothing before putting it into the
tub
• Do not let the clothes cover the top of the
agitator. Doing so could cause a decline in the
washing efficiency.
Water tap
Control the water supply by adjusting the tap
valve If the water pressure is too high, the water
can be sprinkled on the floor
CAUTIONS REGARDING USE
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire for the electric current. This appliance is equipped
with a cord having a grounding wire with a grounding plug. This plug must be plugged into an outlet
that is properly installed and grounded.
USE A 3 PRONGED PLUG
3-pronged plug
Recepticle box cover
3-pronged
recepticle
5
This appliance is equipped with a “Water
Overflow” safety feature, designed to automatically activate the pump in the event of
accidental water overflow. However, this
feature is only operational while the appliance remains connected to an electrical
source.
IMPORTANT
Improper use of the grounding plug can
result in a risk of electric shock. Consult a
qualified electrician or service person if the
grounding instructions are not completely
understood, or if doubt exists as to
whether the appliance is properly grounded. If it is necessary to use an extension
cord, use only a three wire extension cord
that has a three blade grounding plug, and
a three slot receptacle that will accept the
plug on the appliance. The marked rating of
the extension cord should be equal to or
greater than the electrical rating of the
appliance.
WARNING
INSTALLATION INSTRUCTION
Place of installation
Choose a place on a horizontal solid floor. If the
machine is installed on an unstable floor, heavy
vibration will result during spin.
Keep the machine body more than 5 cm apart
from the wall surface. If it comes into contact
vibration may occur.
Hose Installation
For your convenience, this washing machine is
equipped with a “Quick Connect” hose kit.
Please follow these instructions:
1. Connect the “faucet adapter” to your water
supply
2. Pressure fit the open end of the hose
assembly at least half way down the “water
inlet” nipple. No clamps are required to secure
this connection because it is not a pressurized
line application.
3. Install the “quick connect” fitting to the faucet
adapter by pulling down the white collar. Pull
down on the white collar to disconnect.
4. For portable applications, avoid disconnecting
the water hose assembly from the “water inlet
nipple” connection. Always disconnect the
hose from the “quick connect” side. A “hanger
hook” is provided on the “quick connect” which
allows you to conveniently hang the hose on
the side of the cabinet.
Installing the drain hose
Install the drain hose properly as shown below.
Secure the drain hose to the drain outlet pipe,
using the clamp provided.
Faucet Adaptor
Quick connect
Water inlet nipple
Hook drain hose over the edge of sink or
directly into your drain pipe.
6
WASHING PROCEDURE
A) Laundry Guide
Wash
Load
Type
of fabric
Wash
Time
Wash
Action
Water
Level
Amount of
Detergent
Up to 1.4 kg
Wool, Silk, Polyester
Rayon, Thin Clothes
2 min. Soft
LOW
36 L
Approx.
40 g
Cotton, Linen
T-shirts, underwear
7 min. Normal
Heavy soiled cotton
Workclothes, Sheets
10 min.
Normal
1.4-2.8 kg
Wool, Silk, Polyester
Rayon, Thin Clothes
Cotton, Linen
T-shirts, underwear
Heavy soiled cotton
Workclothes, Sheets
4 min.
7 min.
10 min.
Soft
Normal
Normal
MEDIUM
43 L
Approx.
47 g
Above 2.8 kg
Wool, Silk, Polyester
Rayon, Thin Clothes
Cotton, Linen
T-shirts, underwear
Heavy soiled cotton
Workclothes, Sheets
4 min.
7-10 min
10-15 min
Soft /
Normal
Normal
Heavy
HIGH
50 L
Approx.
55 g
• The amount of laundry detergent will vary according to the type of detergent used; carefully read
the instructions accompanying the detergent.
B) Preparation
• Connect the inlet hose to water tap
• Unhook the drain hose and set it properly
• Plug the power cord into an electric outlet.
7
WASHING PROCEDURE
.C) Wash
1. Water Level
Set the water level properly according to the
size of the load to be washed.
2. Drain Valve selection switch
Set the drain valve selection switch on
“Wash/Rinse” position
3. Detergent
Put in the laundry detergent (If the detergent
does not dissolve easily, fill the washing
machine with a small amount of water and mix
the detergent with the water for a few minutes)
4. Clothes
Put in the clothes
(remove any matches, coins, pins, etc., that
may be in the pockets of the clothes.)
5 Water supply
Open the water tap and fill the tub to a suitable
water level for the wash load.
6. Wash action
Select a wash action according to the type of
fabric to be washed: Gentle, Normal
7. Wash-tub lid
Close the wash tub lid
8. Wash timer
Turn the wash timer clockwise, until you reach
the desired wash time position. The wash cycle
starts immediately.
D) Rinse
1. Drain
Set the drain valve selector switch on DRAIN
position It takes about two minutes for the water
to drain thoroughly away.
2. Drain switch
Set the drain valve selector switch on
WASH/RINSE position again, to stop the drain
cycle
3. Water supply
Open the water tap and fill the tub to a suitable
level for the laundry
4. Rinse-wash timer
Turn the wash timer to clockwise
Set the time to 2-4 minute position
5. Repeat processes 1 to 4 twice or three
times according to the condition of the
washed laundry.
8
Wash/Rinse Drain
Wash timer
Soft
Wash action
Heavy
WASHING PROCEDURE
E) Spin
1. Putting in the clothes
Put the wet clothes into the spin-tub
Distribute the clothes in the tub being sure that
they are well balanced. Put the safety cover properly
on top of the clothes
2. Closing the lids
Close the spin-tub lid and inner lid
The machine will not spin if the spin-tub lid is
open
3. Spin timer
Turn the timer clockwise until you reach the
desired spin time position
Safety Cover
Correct
Incorrect
Inner lid
Spin tub
lid
Spin Time
Type of Fabric
Clothes that wrinkle easy
(synthetics, fibers, delicate materials)
Clothes that do not wrinkle easy
(workclothes, sheets, underwear)
Spin Time
1 - 3 min.
3 - 5 min.
Unbalance
If there is any abnormal vibration during spinning, open the lids to stop the spin-tub and
rearrange the clothes evenly.
Simultaneous Drain
If the drainage from the wash-tub and spin-tub
occur simultaneously, the drainage from spin-tub
will be obstructed and there may be a malfunction. Therefore, if you need to drain the wash-tub
while spinning, be sure to drain the wash-tub
after at least one minute’s spinning.
9
Spin dry timer
LAUNDRY METHOD WITH INTERMEDIATE SPIN
You can improve the rinsing effect and save
rinsing water by using an intermediate spin
between wash and rinse process:
1. WASH
• Operate the wash process as described in
wash procedure
2. Drain
• Drain the wash-tub by turning the drain valve
selection switch to DRAIN position
3. Intermediate Spin
• Move the laundry to the spin-tub
• Operate the spin process for about three
minutes as described in the spin procedure
4. Rinse
• Move the laundry to the wash-tub
• Operate the rinse process for about two to
three minutes
5. Intermediate spin
• Move the laundry to the spin-tub
• Operate the spin process for about three
minutes as described in the spin procedure
6. Overflow Rinse
• Move the laundry to the wash-tub
• Open the water tap
• Operate the rinse process for about two to
three minutes continuing water supply
7. Final spin
• Move the laundry to the spin-tub
• Operate the spin process
CLEANING AFTER USE
Cleaning after use will extend the life of your
washing machine. Before cleaning, shut off the
power switch and disconnect the power cord
from the electrical outlet, being sure to take
hold of the plug.
Cleaning the body
• Wipe with a soft cloth
• If extremely dirty, wipe with a cloth soaked in
a solution of water and dish detergent or
soap.
• Do not spray the washing machine with water
or use paint thinner, abrasive cleanser,
benzene, alcohol, etc., to clean it.
Cleaning the overflow strainer
• Remove the
filter frame by
pulling it
upward
• Turn the filter
inside out and
wash the lint
off with water
• Insert the
filter frame
into the center
agitator as it
was
• Remove
the strainer
by pulling it
forward
• Wash off
the lint
stuck in the
strainer
during
overflow
• Re-install
the strainer
1) Remove the drain
strainer from the bottom
of the tub using a sharp
tool such as a screw
driver
2) Wash off the lint stuck
in the strainer
3) Re-install the strainer
10
Cleaning the lint filter Cleaning the drain strainer
BEFORE REQUESTING SERVICE
When you suspect your washing machine requires maintenance before calling for service, please
check the following points to save unnecessary cost. You may be pleasantly surprised that an
apparent malfunction can be easily rectified by following the chart below.
Problem
Location to be checked
The washing machine
will not operate at all
The washing machine
will not drain properly
There is an abnormal
noise during washing
Water is not supplied
The washing machine
will not spin
There is a bumping
noise of the spin-tub
against the wash-tub
• Is there a power blackout?
• Is the power cord correctly connected to an electricla outlet?
• Is the electric fuse or breaker blown?
• Did you turn the “Wash Timer” knob or “Spin Timer” knob to
begin operation?
• Is the drain hose clogged with lint?
• Is the drain hose kinked?
• Is any part of the hose higher than 90 cm (35 inches)?
• Is extension hose longer than 3 m (9 feet)?
• Is a narrow hose being used?
• Is something touching the agitator as it rotates?
• Is the inlet hose connected and the water shut off?
• Has the water supply been shut off due to a water shortage in
your area?
• Is foreign matter clogging the water inlet?
• Is the spin-tub lid open?
• Have any clothes dropped between the spin-tub and the
wash-tub?
• Is the washing machine level?
• Have the clothes in the tub collected on one side?
(Redistribue them evenly)
11
Loading...
