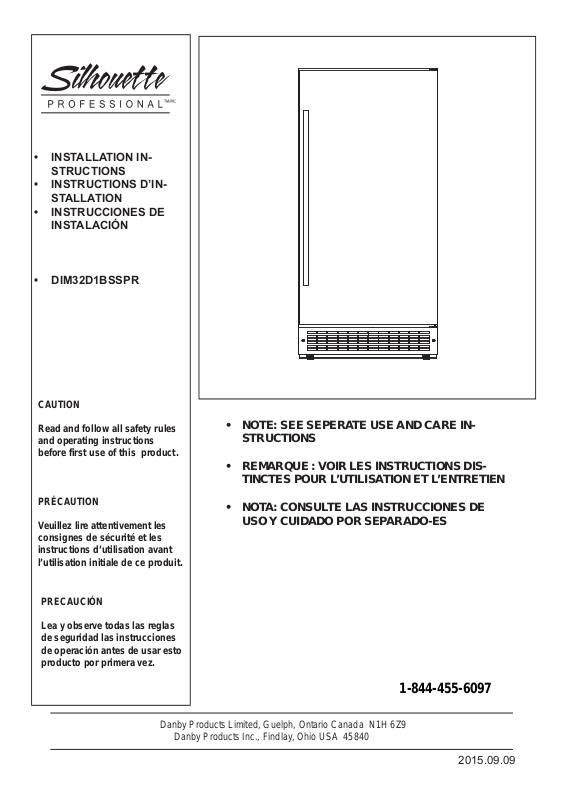

Danby DIM32D1BSSPR Installation
• INSTALLATION IN-
OWNER’S USE AND
STRUCTIONS
CARE GUIDE
• INSTRUCTIONS D’IN-
GUIDE D’UTILISATION
STALLATION
ET SOIN DE PROPRI-
• INSTRUCCIONES DE
ÈTAIRE
INSTALACIÓN
GUÍA DE UTILIZACIÓN
Y CUIDADO PARA EL
PROPIETARIO
• DIM32D1BSSPR
CAUTION
Read and follow all safety rules
and operating instructions
before first use of this product.
PRÉCAUTION
Veuillez lire attentivement les
consignes de sécurité et les
instructions d’utilisation avant
l’utilisation initiale de ce produit.
PRECAUCIÓN
Lea y observe todas las reglas
de seguridad las instrucciones
de operación antes de usar esto
producto por primera vez.
• NOTE: SEE SEPERATE USE AND CARE INSTRUCTIONS
• REMARQUE : VOIR LES INSTRUCTIONS DISTINCTES POUR L’UTILISATION ET L’ENTRETIEN
• NOTA: CONSULTE LAS INSTRUCCIONES DE
USO Y CUIDADO POR SEPARADO-ES
1-844-455-6097
Danby Products Limited, Guelph, Ontario Canada N1H 6Z9
Danby Products Inc., Findlay, Ohio USA 45840
s.01.
2015.09.09
CONTENTS
TABLE DES MATIÈRES
ÍNDICE
BUILT IN ICE MAKER
Installation Instructions .....................................................1-8
• Ice maker installation
• Connecting ice maker to water supply
• Location of parts
• Connecting ice maker to drain
• Door reversal instructions
MACHINE À GLAÇONS
Instruction d’installation...................................................9-16
• Installation de votre machine à glaçons
• Raccordement de la machine à glaçons à l’arrivée
d’eau
• Emplacement des pièces
• Raccorder la machine à glaçons à la vidange
• Directives pour l’inversion de la porte
CAUTION:
Read and follow all safety rules and operating
instructions before fi rst use of this product.
PRÉCAUTION :
Veuillez lire attentivement les consignes de
sécurité et les instructions d’utilisation avant
l’utilisation initiale de ce produit.
EQUIPO PARA FABRICAR HIELO
Instrucciones de instalación...........................................17-24
• Instalación de su dispositivo pare hacer hielo
• Cómo conectar el dispositivo pare hacer hielo
al suministro de agua
• Ubicación de las piezas
• Cómo conectar el equipo para hacer hielo al
drenaje
• Instrucciones para cambiar el sentido de
apertura de la puerta
Volts / Hertz / Amps / Watts 115V 60Hz 2.6A 240W
Volts / Hertz / Ampères / Watts 115V 60Hz 2.6A 240W
Volts / Hertz / Amperios / Vatios 115V 60Hz 2.6A 240W
PRECAUCIÓN:
Lea y observe todas las relgas de seguridad y
las instrucciones de operación antes de usar
este producto por la primera vez.
• Makes up to 32 lbs daily / ice box capacity is 25 lbs
• Produit jusqu’à 32 lb par jour / capacité de la glacière e 25 lb
• Produce hasta 32 lb al día / la capacidad de la caja de hielo es de 25 lb
Model • Modèle • Modelo
DIM32D1BSSPR
INSTALLATION INSTRUCTIONS
IMPORTANT
It is recommended that this appliance be installed
by a recognized installation professional following
any or all National Safety codes or Municipal bylaws for the installation area.
BEFORE USING ICE MAKER
• Remove the exterior and interior packaging.
• Before connecting the ice maker to the power source, let it stand upright for approximately 2 hours. This will
reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• Attach the water inlet and outlet pipe, loosen the screw nut, choose the function switch (see connecting ice
maker).
• Note: After installation, dispose of the fi rst two full batches of ice to clear any dust resulting from transport.
ICE MAKER INSTALLATION
• Place your ice maker on a fl oor that is strong enough to support it when it is fully loaded. To level your ice
maker adjust the front leveling leg at the bottom of the unit. (see leveling instructions below)
• Locate the ice maker away from direct sunlight and sources of heat (stove, heater, radiator, etc.) Direct
sunlight and heat sources may increase electrical consumption. Extreme cold ambient temperatures may
also cause the unit not to perform properly.
• Avoid locating the unit in damp areas.
• Plug the unit into an 115/120-volt, 60Hz electrical outlet with three-prong ground receptacle. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or
grounding should be directed toward a qualifi ed electrician or an authorized service center.
LEVELING INSTRUCTIONS
1) Move the ice maker to its fi nal location.
2) Have someone gently tilt the front of the ice maker to take some weight off of the leveling leg.
3) Turn the leveling leg clockwise to raise and counterclockwise to lower the ice maker. Adjust until level.
Raises
Lowers
Front of the
unit
1
INSTALLATION INSTRUCTIONS
INSTALLATION SPECIFICATIONS - BUILT-IN
TOOLS REQUIRED
FOR YOUR SAFETY:
During installation gloves, safety glasses or goggles should be worn.
Adjustable
Wrench
Safety Glasses Gloves
Drill & Hole Saw Set
Level
Flash Light
Measuring
Tape
Flat Blade
Screwdriver
Carpenters
Square
Phillips
Phillips
Screwdriver
Screwdriver
• It is recommended that you do not install the unit directly adjacent to a wall. This is to allow the door to have a
greater than 90° opening swing. A limited door swing can cause damage to the door gasket and you will not be
able to remove the bucket.
• The cabinet opening must be at least 25” deep by 15” wide. The opening should also have a height of at least 35”.
• The electrical outlet may be positioned in either side of the adjacent cabinetry, or the rear of the shaded area
shown below.
Plug in the unit before pushing it into position within the cabinet.
• If the electrical outlet is located inside the adjacent cabinetry, cut a 1-1/2” diameter hole to allow the power cord to
pass through it. If the cabinet wall is metal, the hole edge must be covered with a bushing or grommet.
35” from
underside of
countertop to
c
fl oor.
1-1/2” diam. hole
* If electrical outlet is in
adjacent cabinetry.
15”
6”
NOTE: This unit is front breathing. Do not
block the front air vent. Blockage of the vent
will result in high operating temperatures and
25”
Min
2”
Cabinets
square and
plumb
system failure.
2
INSTALLATION INSTRUCTIONS
CONNECTING ICE MAKER TO WATER SUPPLY
WARNING
To avoid electrical shock, which can cause death
or severe personal injury, disconnect the ice maker
from power outlet before connecting a water supply
line to the ice maker.
DO NOT install water supply tubing in areas where temperatures fall below freezing.
Connect the ice maker to a potable water source that is not tied into a water softening system. Chemicals from
the softener may damage the ice maker, causing it to malfunction.
CAUTION
Plastic tubing is not recommended since it greatly
increases the potential for water leaks. The manufacturer will not be responsible for any damage if
plastic tubing is used for the supply line.
IMPORTANT
Ensure that your water supply line connections
comply with all local plumbing codes.
Before installing the water supply line, you will need:
1. Basic tools: an adjustable wrench and a standard fl at blade screwdriver.
2. Access to a household cold water line with water pressure between 20 and 60 psi.
3. A water supply line made of 1/4 inch (6.4 mm) OD copper tubing. To determine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the ice maker to your cold
water pipe. Then add approximately 3 feet (0.9144 meters) coil of water line so the ice maker can be moved out of
the cabinet for cleaning.
4. A shutoff valve to connect the water supply line to your household water system. (DO NOT use a self-piercing type
shutoff valve.)
5. A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.
6. A clamp and a number 8, 1/2” screw to secure water line to the unit.
To Connect Water Supply Line to Ice Maker Inlet Valve
1. Disconnect ice maker from electric power supply.
2. Place end of house water supply line into sink or bucket. Turn ON water supply and fl ush supply line until water is
clear, turn OFF water supply at shutoff valve. Remove plastic cap from water valve inlet and store in safe place.
3. Slide brass compression nut, then ferrule (sleeve), onto water supply line, as shown in Fig. A.
4. Push water supply line into water valve inlet as far as it will go (1/4 inch.) Slide ferrule (sleeve) into water valve
inlet and tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over-tighten.
5. Secure the water supply line by putting it through the clamp and fastening with a screw into the screw hole on the
back panel (Fig. A.)
6. Coil about 3 feet of the excess water supply line behind the ice maker and arrange coils so they do not vibrate or
wear against any other surface.
7. Turn ON water supply at shutoff valve and tighten any connections that leak.
8. Reconnect ice maker to electric power supply.
NOTE:
It takes approximately 1 hour for the fi rst batch of ice
to be made. New plumbing may cause ice to be
discolored or have poor fl avour. Discard fi rst 2 batches
and any other discoloured ice.
Although the unit has been tested and cleaned at
the factory, due to long-term transit and storage, the
fi rst batch of cubes must be discarded.
• Never turn the water supply tap off when the ice
maker is working!
• Never touch evaporator when unit is running!
• To reduce melting and ensure proper ice formation
keep the door closed at all times except when taking ice from the unit.
Furrele (sleeve)
Brass
Compression
Nut
Water Supply
Line
Water inlet valve
Clamp and Screw
Fig. A
3
INSTALLATION INSTRUCTIONS
LOCATION OF PARTS
1. Ice bucket: Stores ice
2. Bottom board of ice box: Separate the ice and unneces-
sary water during ice making.
3. Drain nut (front): Stops water from draining through the
front. Please leave nut in place during continuous drain
mode and drain pump mode.
4. Drain seal (front): Stops water from draining through the
front. Please leave nut in place during continuous drain
mode and drain pump mode.
5. Water level sight: Allows you to observe ice level.
6. Drain seal (back): Stops water from draining through the
back. Please leave this in place for manual drain mode.
7. Drain nut (back): Stops water from draining through the
back. Please leave this in place for manual drain mode.
8. Drain pump switch: Turns the drain pump on and off.
9. Water inlet tube connector: Used to connect water supply
line to the ice maker inlet valve.
10. Drain pump outlet: Used to connect the drain hose when
using drain pump mode.
11. Drain pump cap: Used to close the drain pump outlet when
you are not using the drain pump mode.
12. Direct drain cap: To close the outlet if you are not using
continuous drain mode.
13. Continuous drain outlet: To close the outlet if you are not
using continuous drain mode.
14. Drain tank: Stores unnecessary water from the ice maker
when using continuous drain mode.
Fig.B
Fig.C
1
2
3
4
8
9
10
5
67
ON OFF
Fig.D
14
Garden hose
diameter no
less than 1/2”
Fig.E
Connection
Drain Hose
Connection
1’’ N.P.T
11
13
12
Washer
Tube
Tubing
Switch
A
B
4
INSTALLATION INSTRUCTIONS
WARNING
Please disconnect unit from power and make sure
no water is near the ice maker or fl oor board to
avoid electric shock before following the steps
below.
CONNECTING ICE MAKER TO DRAIN
Drain pipe connection (drain hose not provided)
• You will need to purchase the external drain pipe, available at your local hardware store. The connection instructions
are as follows: Choose drain option A, B or C (see below,) insert a washer between drain pipe and the chosen drain
outlet of the ice maker, and put the other side of the drain pipe into a drain hole (see Fig E).
A - Is a drain pump option
B - Is a continuous drain option
C - Is a manual drain option (meaning there is no drain hole in the room). We recommend this option for temporary use.
NOTE: When using drain pump “A,” the switch (on back) must be turned to the “ON” position during operation.
Your ice maker has three different drain types, you can choose the most suitable mode according to your requirements. See detailed instructions on the following page.
WARNING
Please read the following instructions before using
this appliance. Choose the correct drain mode
according to your preference and set up your
appliance accordingly.
IMPORTANT
When installing the unit DO NOT kink the drain
hose!
IMPORTANT
Make sure that you connect the ice maker drain to
your household drain in accordance with all Federal
and local codes and ordinances. This ice maker
provides three types of draining system, follow
these guidelines when installing the drain lines.
5
INSTALLATION INSTRUCTIONS
CONNECTING ICE MAKER TO DRAIN
Drain Type Drain Drain Height Operation Instructions
Continuous
Drain Mode
Note: This
mode requires
the drain hose
outlet to be
below the
drain-hose inlet
on the unit to
perform as required. This will
help keep water from fl owing
back into the
unit and potentially fl owing
onto the fl oor
causing water
damage.
Drain Pump
Mode
Note: Pump will
not work during
a power outage. If the drain
hose becomes
twisted and
water cannot
drain, your ice
maker will not
work.
• Excess water
will drain out
of the continuous outlet
on the back of
the unit using
the force of
gravity.
• Excess water
will be drained
out by the internal pump.
• The height of the drain
hole in the room
≤ 100 mm (3-15/16”)
≤ 100 mm
≤ 3-15/16”
• The height of the drain
hole in the room is between 101 mm ~ 1500
mm (3-15/16” ~ 59”)
101mm~1500mm
Reference Fig. C, D and E.
Drain nut and drain pump switch Condi-
Drain nut (front) (3) + drain seal (front) (4) Closed
Drain nut (back) (7) + drain seal (back) (6) Open
Drain cap (11) Closed
Drain cap (12) Open
Drain pump switch (8) OFF
1. Please ensure the drain nut and switch are
in the above condition;
2. Connect one side of the drain pipe to the
continuous drain outlet and the other side
to the drain hole. The drain must slop
downwards towards the drain hole. Please
ensure the connection is tight.
Reference Fig. C, D and E.
Drain nut and drain pump switch Condi-
Drain nut (front) (3) + drain seal (front) (4) Closed
Drain nut (back) (7) + drain seal (back) (6) Open
Drain cap (11) Open
Drain cap (12) Closed
Drain pump switch ON
1. Please ensure the drain nut and switch are
3-15/16”~59”
in the above condition;
2. Using a drain pipe no longer than 16 feet
(192”), connect one side to the drain pump
outlet and the other side to the drain hole.
tion
tion
WARNING
The length of drain pipe cannot exceed 16
feet (192”) in order to prevent water from
coming back.
t
e
e
f
”
2
6
9
1
1
6
INSTALLATION INSTRUCTIONS
CONNECTING ICE MAKER TO DRAIN
Drain Type Drain Drain Height Operation Instructions
Manual Drain
Mode
When water
reaches the
tray in the ice
bucket, remove
ice bucket and
drain the water
(to reduce the
ice from sticking together).
• Manually drain
the water from
the ice bucket
• There is no drain hole
in the room
Reference Fig. B, C and D
Drain nut and drain pump switch Condi-
Drain nut (front) (3) + drain seal (front) (4) Closed
Drain nut (back) (7) + drain seal (back) (6) Closed
Drain cap (11) Closed
Drain cap (12) Closed
Drain pump switch (8) OFF
1. Ensure the screw nut and switch are in the
above condition to avoid water leakage.
2. Periodically check the ice bucket (1) and
water level sight (5). If the water level
exceeds the sight water level, drain off
unnecessary water.
3. When draining off the water, you can remove the ice bucket (1), drain nut (front) (3)
and drain seal (front) (4). Use the ice tray to
take out the unnecessary water, then tighten the above screw and seal washer.
tion
NOTE: When pushing the unit into place, make sure the water line and drain lines are not kinked. The lines
should not be left in such a way that they may rattle against the unit.
To view our online installation video, visit: www.silhouetteappliances.com
7
Loading...
