Danby DDW1804EB User Manual

DISHWASHER

Owner’s Manual............................1 - 14

OWNER’S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO

MODEL • MODÈLE • MODELO

LAVE-VAISSELLE

Manuel du propriétaire................15 - 28

LAVAPLATOS

Manual del propietario................29 - 42

DDW1804EW

DDW1804EB

DDW1804EBSS

www.Danby.com

DANBY PRODUCTS LIMITED, ONTARIO, CANADA N1H 6Z9

DANBY PRODUCTS INC., FINDLAY, OHIO, USA 45840

2019.02.01

Welcome

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner’s manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty. You must provide the original purchase receipt to validate your warranty and receive service.

Model Number: _________________________________________________

Serial Number: _________________________________________________

Date of Purchase: _______________________________________________

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner’s manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

1-800-26- Danby

(1-800-263-2629)

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance is equipped with a cord that has a grounding wire and grounding plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualiﬁ ed electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

DO NOT USE AN EXTENSION CORD

SAFETY REQUIREMENTS

• Children should be supervised to ensure that they do not play with the appliance.

• Do not stand, sit or lean on the door or dish rack. Do not place heavy items on the door when it is open.

• Do not touch the heating element during or immediately after use.

• Do not operate the appliance unless all enclosure panels are properly installed.

• Open door carefully during operation, water may leak. Proceed with caution as water may be hot.

• Do not wash plastic items unless they are marked dishwasher safe.

• Use only detergent and rinse additives that are designed for an automatic dishwasher.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualiﬁ ed person in order to avoid hazard.

Ensure that component parts are replaced with like components and that servicing is done by factory authorized service personnel to minimize the risk of possible ignition due to incorrect parts or improper service.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

• Never use soap, laundry detergent or hand washing detergent in the dishwasher.

• Keep detergent and rinse aid out of the reach of children.

• Check that the detergent dispenser is empty after completion of the wash cycle.

• Dishwasher detergents are strongly alkaline and can be extremely dangerous if swallowed. Avoid contact with the skin and eyes.

• Remove the door of the appliance when removing from service or discarding.

• The hot water supply line pressure must be between 0.04 - 1 MPa.

• The water supply inlet temperature should be between 48 - 65°C (120 - 149°F).

SAVE THESE INSTRUCTIONS!

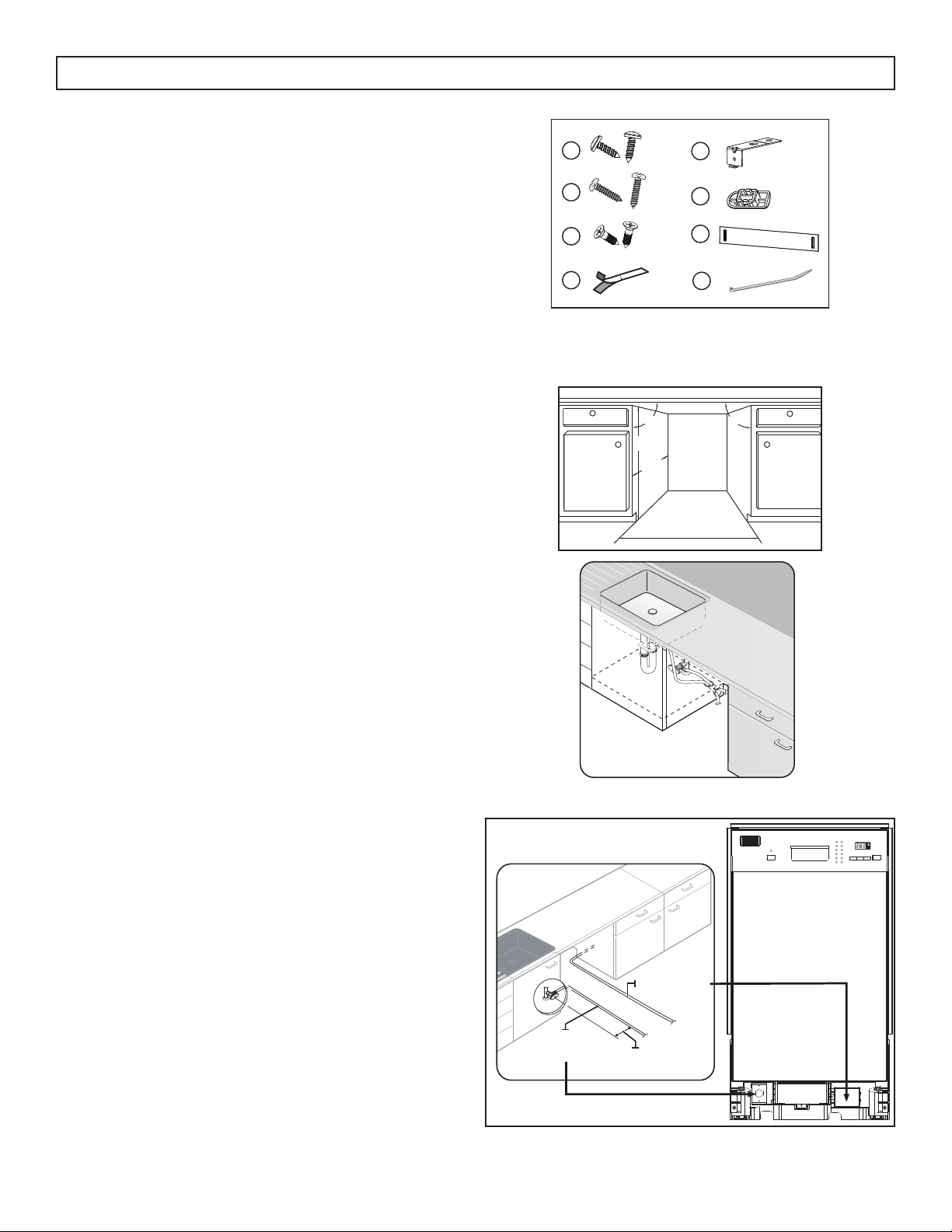

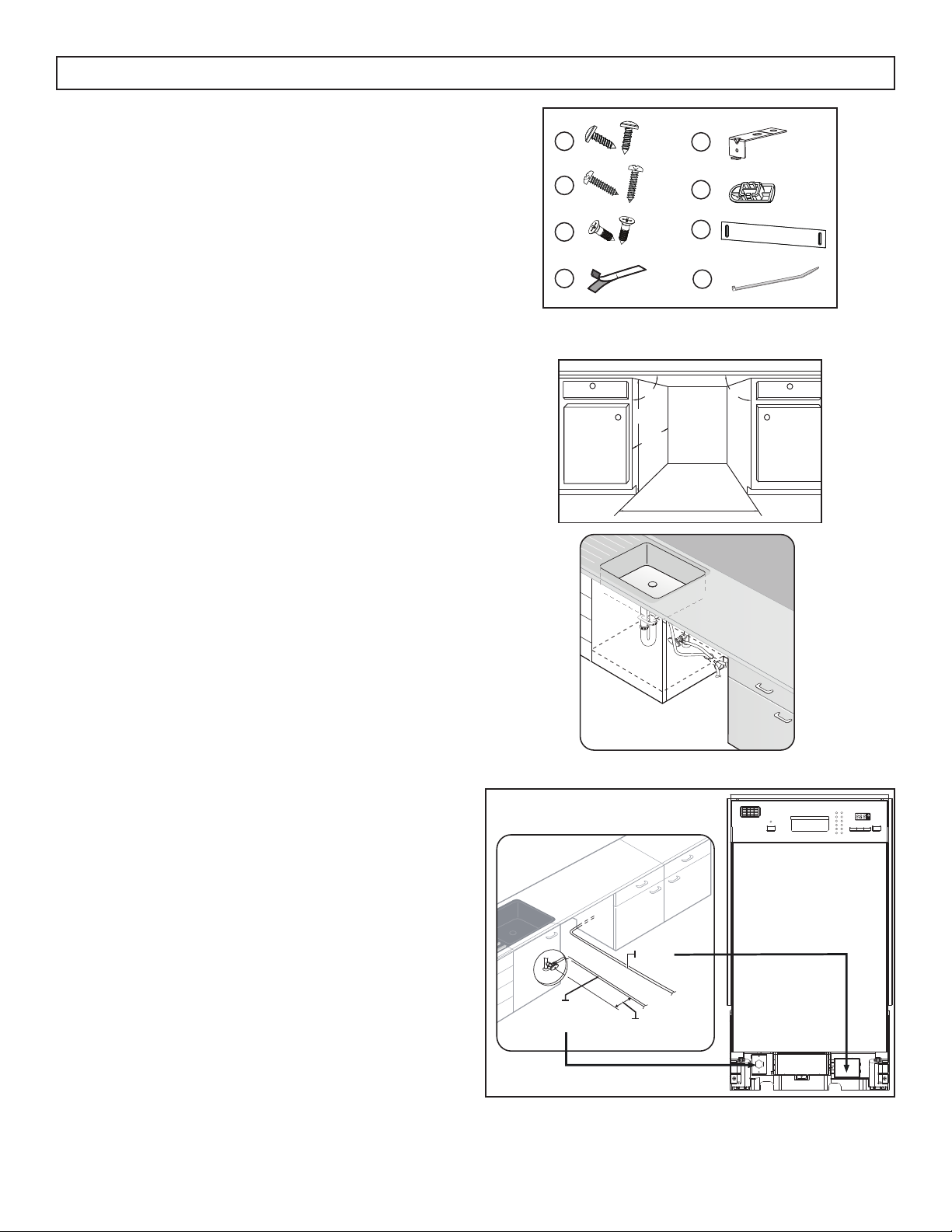

INSTALLATION INSTRUCTIONS

ACCESSORIES

1. ST3.5*9 screws for the installation brace (x2)

2. ST3.9*13 screws for the kick plate (x2)

3. ST4*14 screws for the installation brace (x2)

4. Condensation strip

5. Installation brace (x2)

6. Adjustment caps (x2)

7. Kick plate

8. Cable tie to secure the drain hose

ENCLOSURE

The installation location must have a solid ﬂ oor that is able to support the appliance when it is fully loaded and ﬁ lled with water. The location must be within 9.8 feet (3 meters) of a sink with easy access to the water supply, the drain and an electrical outlet. The location must have enough space in front of it for the door to open to 90° so that the dishwasher can be loaded.

90 r

32.5 inches (82.5 cm)

22.8 inches (58 cm)

17.7 inches (45 cm)

90 r

The installation enclosure should have the following dimensions: 17.7 inches (45 cm) wide by 32.5 inches (82.5 cm) tall by 22.8 inches (58 cm) deep. There should be less than 5 mm between the top of the dishwasher and the cabinet and the dishwasher door should align with the cabinet face.

If necessary, cut holes in the surrounding cabinetry to provide access the water and power connections.

WATER CONNECTION INSTRUCTIONS

The hot water supply line pressure must be between

0.04 - 1 MPa.

The water supply inlet temperature should be between 48 - 65°C (120 - 149°F). Ensure that the water temperature does not exceed 65°C (149°F) to avoid damage to dishes.

Ensure that the circuit breaker and the water supply valve are turned off before connecting the hot water supply line to the dishwasher.

The power cable will connect to the junction box on the front right side of the appliance. The hot water supply line will connect to the water port on the front left side of the appliance.

Hot water supply line

Power cable

135 - 185 mm (5 1/3 - 7 1/3”)

Note: It is recommended to only use soft water in the appliance to achieve the best washing results.

INSTALLATION INSTRUCTIONS

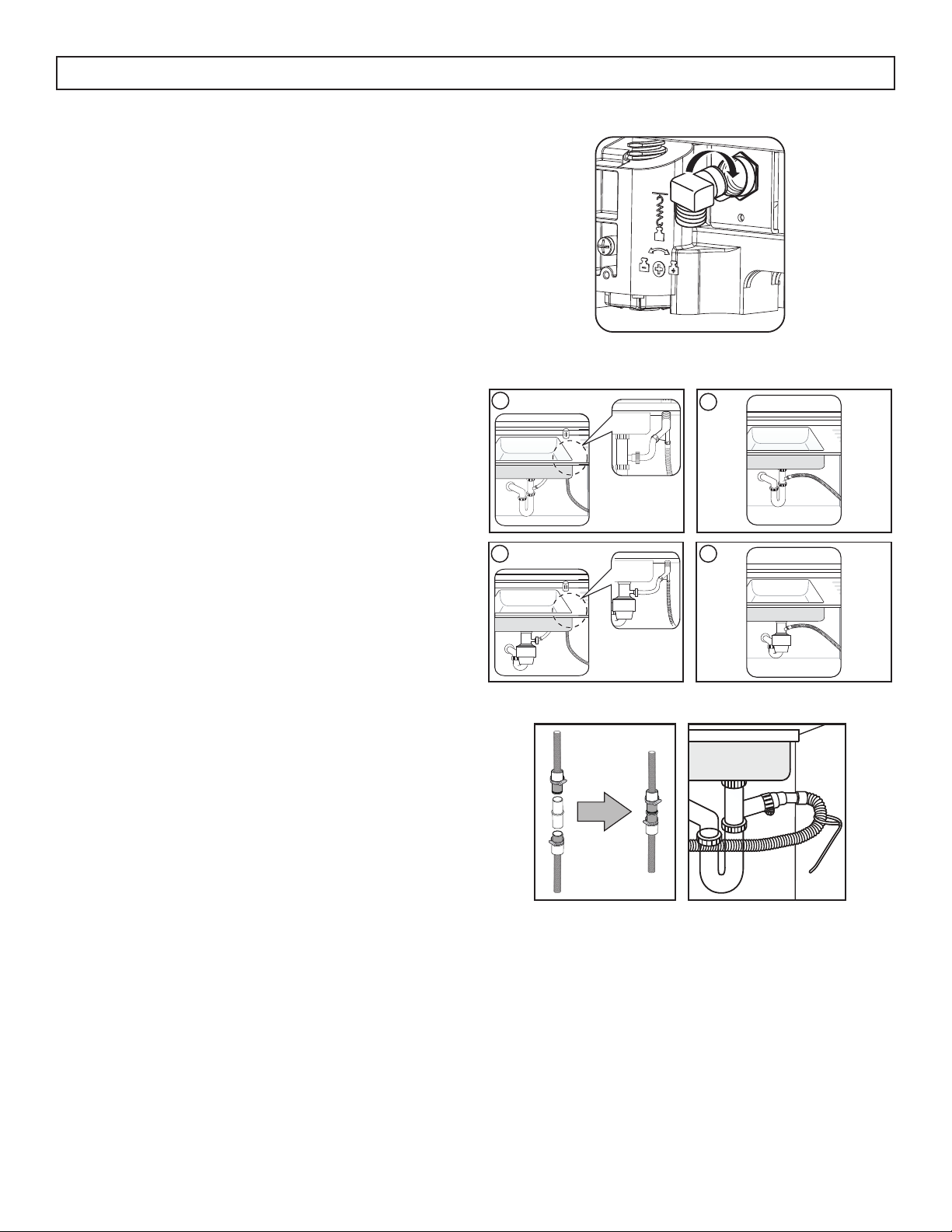

Connecting the hot water line

Run the hot water line through the channel on the bottom left side of the appliance. Make sure the hot water line is not twisted and then connect it to the appliance using an elbow joint. Use Teﬂ on tape or sealing compound on the connection to avoid leaks.

Do not over tighten the 90° elbow. This can damage the water inlet and cause a leak.

Connecting the drain line

The drain hose will connect to the drain pump on the bottom of the appliance. Run the drain line in the same channel on the bottom of the appliance as the hot water line. Ensure there is nothing inside the drain hose and that it does not tear during the installation process.

There are a number of different ways to connect the drain hose depending on the conﬁ guration of the sink. Review the different ways of connecting the drain system and choose a method that best suits the application. Local codes may require the installation of an air gap kit. Check with a qualiﬁ ed plumber if there is any doubt.

1. Air gap

2. Air gap with garbage disposal

3. No air gap

4. No air gap with garbage disposal

Use a rubber connector to connect drain hoses and hose clamps on all connection points.

Secure the drain hose to the sink wall using cable ties or other fastening materials. If not fastened, the drain hose may bend causing drainage problems.

The drain hose internal diameter is 0.8 inches (21 mm).

The top of the drain hose must be less than 39 inches (100 cm) from the ﬂ oor.

If the drain hose is not looped up the water may siphon out during a wash cycle.

Any bends in the drain hose must be supported so that the hose will not kink or bend.

INSTALLATION INSTRUCTIONS

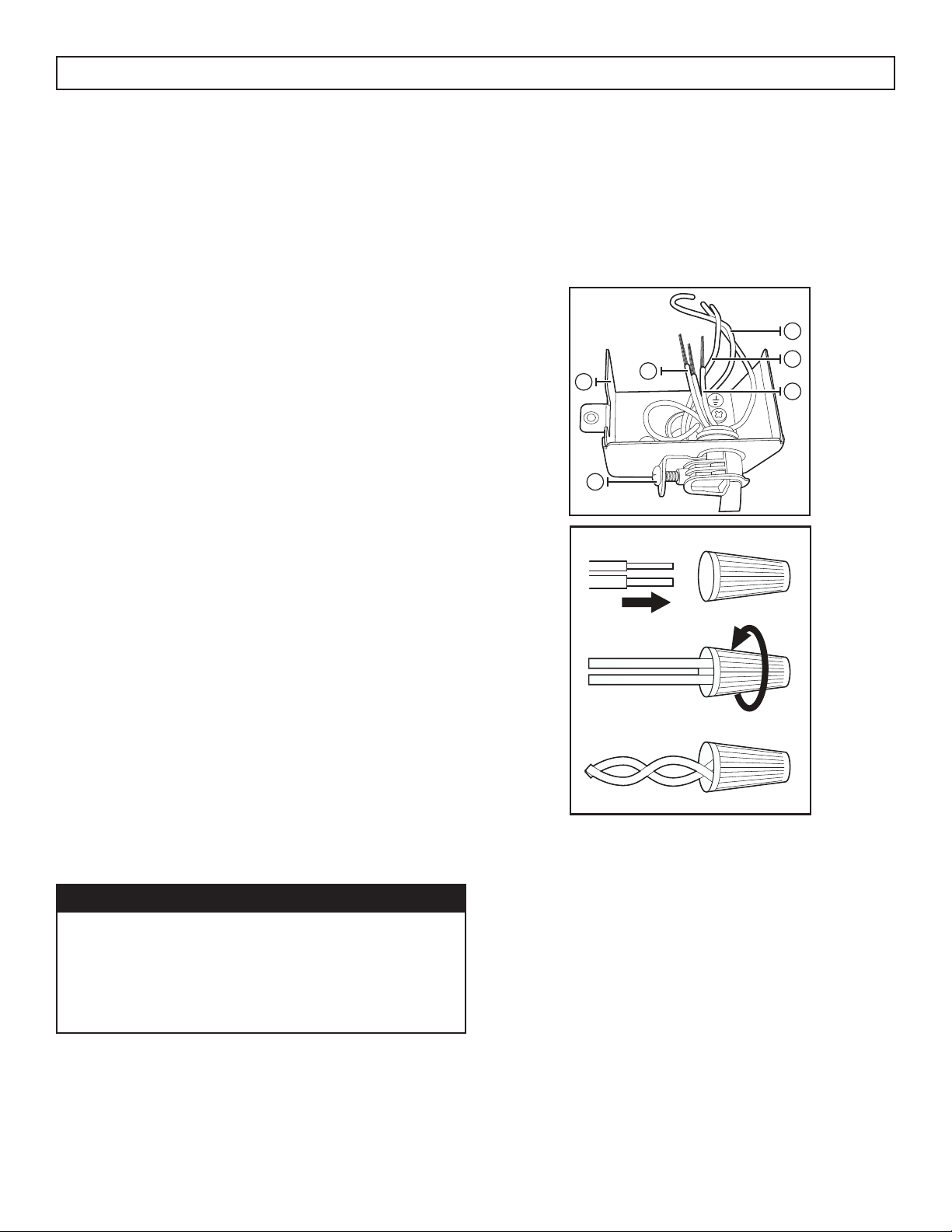

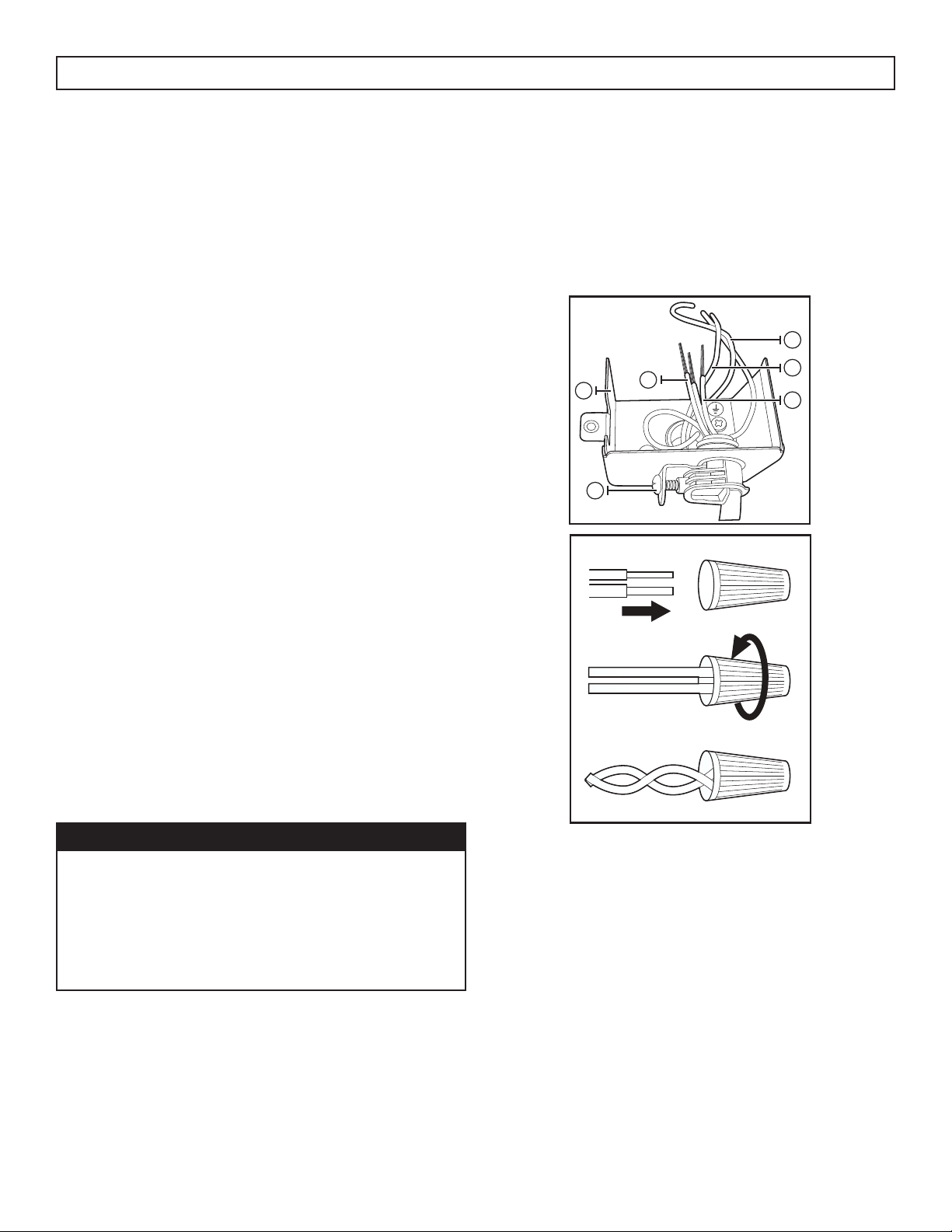

WIRING CONNECTION INSTRUCTIONS

Before connecting the power cable to the dishwasher, make sure the circuit breaker is off.

In the junction box located at the front bottom right of the dishwasher, ﬁ nd the three power wires from the dishwasher including the grounding line.

Pass the power cable through the strain relief, and then into the junction box.

Connect the black wire of the dishwasher to the black wire of the power cable by inserting both into a wire nut and then rotating the wire connector.

Connect the white wire to the white wire and the green to the green in the same manner.

Recheck each wire to ensure it is connected correctly and securely.

Each colored wire should be connected to the corresponding wire of the same color.

1. Junction box

2. Power cable

3. Black to black

4. White to white

5. Green to green (ground to ground)

6. Strain relief

3 4

White should be connected to white, black to black, and green to green.

Replace the junction box cover on the dishwasher.

Recheck each wire to ensure it is connected correctly and securely. Each coloured wire should be connected to the corresponding wire of the same colour.

WARNING ELECTRICAL SHOCK HAZARD

To avoid electrical shock, do not work on an energized circuit. Doing so could result in serious injury or death. To avoid a ﬁ re hazard, make sure electrical work is properly installed. Only qualiﬁ ed electricians should perform electrical work.

INSTALLATION INSTRUCTIONS

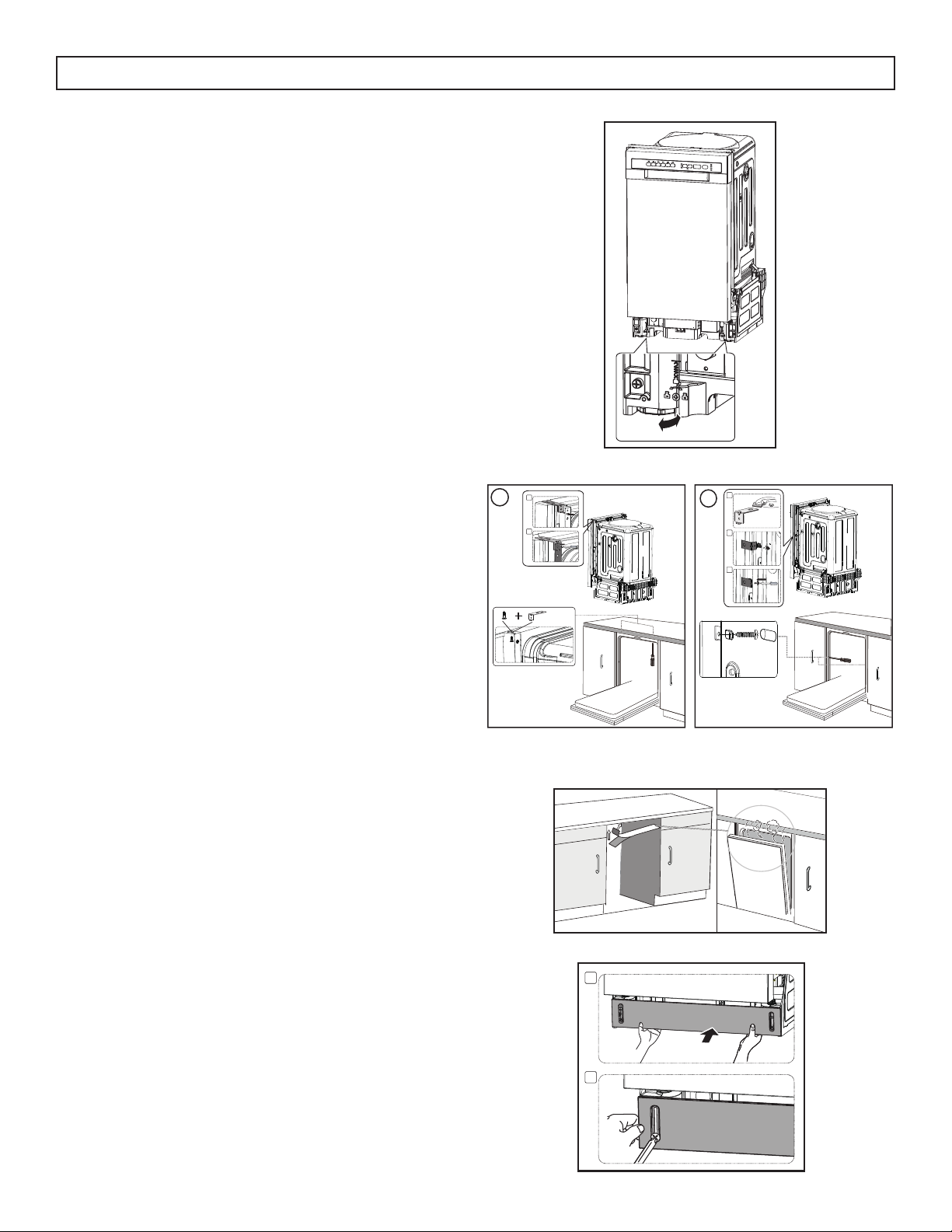

LEVELING INSTRUCTIONS

Ensure that the appliance is level before placing it into the enclosure. The rear foot can be adjusted from the front of the dishwasher by turning. Use a ﬂ at screwdriver to adjust the front feet until the appliance is level.

INSTALLATION BRACES

The appliance must be secured in place with the installation braces. There are two different ways to use the braces.

A. Normal work surface

Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws.

B. Marble or granite counter top

Fix the side with the screw. Place the screw covers over the internal screws to protect them from water.

CONDENSATION STRIP

Attach the condensation strip under the work surface of the cabinet. Ensure that the strip is ﬂ ush with the edge of the work surface.

TOE KICK INSTALLATION

Install the toe kick on the bottom of the appliance.

OPERATING INSTRUCTIONS

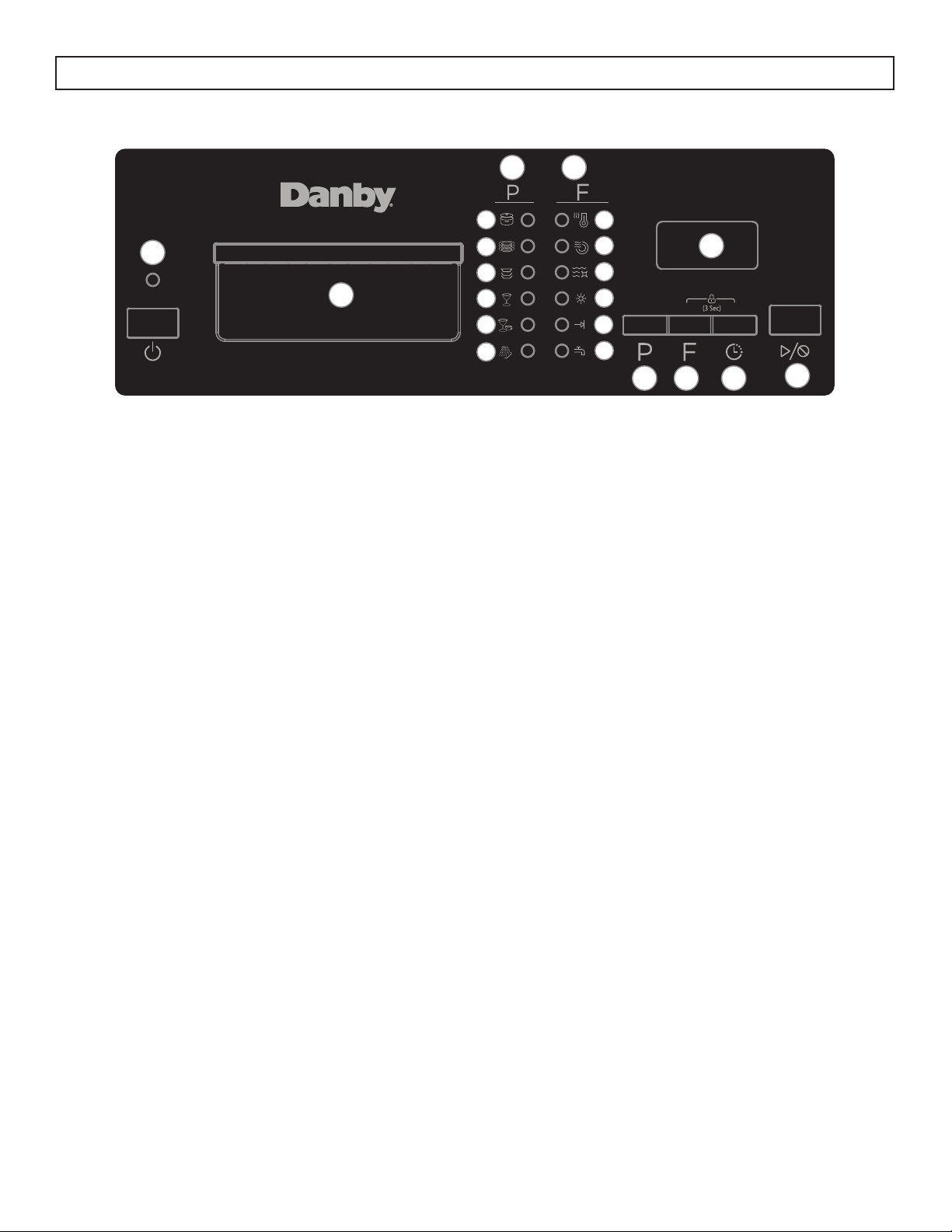

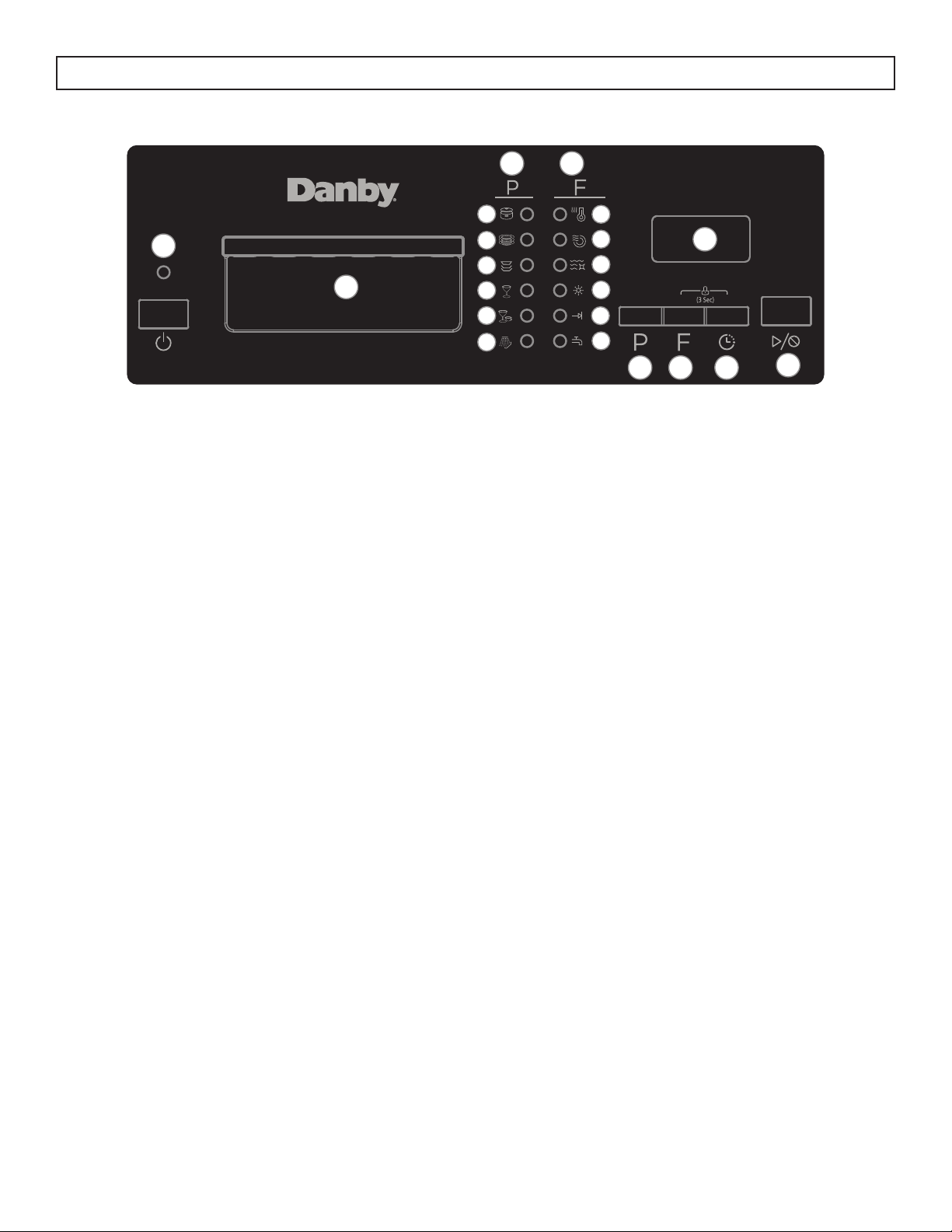

CONTROL PANEL

3 4

B C D E

G H

6 7 8

1. Power button: Use to turn the appliance on or off.

2. Handle

3. Programs: The light will illuminate to show which program has been selected. A: Heavy wash B: Normal wash C: ECO wash D: Glass wash E: Rapid wash F: Rinse

4. Features: The light will illuminate to show which features have been selected. G: High temp wash - water temperature will be maintained at 60°C (140°F) H: Heated dry - the heater will operate during the drying cycle I: Sanitize - water temperature will be maintained at 69°C (156°F) J: Rinse aid indicator light - light will illuminate when the rinse aid dispenser is empty K: Cycle end indicator light - light will illuminate when the program is ﬁ nished L: Faucet warning indicator light - light will illuminate when the appliance is not receiving enough

water; turn on the nearby water faucet to correct the water ﬂ ow

5. Display screen: Shows the remaining running time in the current program.

6. Program button: Press to select the desired program.

7. Features button: Press to select the desired features.

8. Timed delay button: Press to set the desired time delay.

9. Start/Cancel button: Press to start the desired program. Press to cancel a program which it is in

operation.

OPERATING INSTRUCTIONS

WASH CYCLE TABLE Press the program button to select the desired wash program.

Note: Cycle times are approximate and will vary based on the options selected.

Program Cycle Description Cycle Breakdown Running Time Water Use

Heavy For heavily soiled loads

such as pots and pans

Normal For normally soiled loads;

standard daily cycle

ECO Energy conserving cycle

for lightly soiled loads

Glass For lightly soiled

glassware

Pre-Wash Wash (60°C) Rinse (65°C) Rinse (with sani 69°C) Drying

Pre-Wash Wash (50-55°C) Rinse (58-60°C) Rinse (with sani 69°C) Drying

Pre-Wash Wash (45-50°C) Rinse (50-55°C) Rinse (with sani 69°C) Drying

Pre-Wash Wash (48-50°C) Rinse (50-55°C) Drying

155 minutes 21.5 litres

(5.7 gallons)

100~130 minutes 10.5~21.5 litres

(2.8~5.7 gallons)

115 minutes 18 litres

(4.8 gallons)

105 minutes 18 litres

(4.8 gallons)

Rapid A fast cycle for lightly

soiled loads

Rinse Rinse cycle only Pre-Wash

Pre-wash Wash (50°C) Rinse (50°C)

Wash

SMART WASH SYSTEM

This appliance is equipped with a Smart Wash System. When a partial load of lightly soiled dishes is placed in the appliance, a wash cycle similar to a short wash will automatically be performed.

When a full load of heavily soiled dishes is placed in the appliance, a heavy wash cycle will automatically be performed.

When a cycle is running, the remaining time could suddenly increase or drop several minutes. This indicates that the Smart Wash System has checked the soil level and determined in additional water ﬁ lls are needed or if water ﬁ lls can be deleted.

60 minutes 14 litres

(3.7 gallons)

20 minutes 7.5 litres

(2 gallons)

CHILD LOCK FUNCTION

Press and hold the features button and the time delay button for three seconds to engage the child lock function. The display screen will show a lock icon and the buttons on the control panel will not respond. Press and hold the features button and the time delay button for three seconds to disengage the child lock function.

OPERATING INSTRUCTIONS

LOADING THE DISHWASHER

• Scrape all dishes to remove any large food residue before placing in this appliance.

• Only place dishes in this appliance that are marked as dishwasher safe.

• Use a mild detergent.

Items that should not be placed in a dishwasher

• Cutlery with wooden, bone china or mother-ofpearl handles.

• Plastic items that are not heat resistant.

• Items that have been repaired with glue that is not heat resistant.

• Pewter, copper or steel items.

• Wooden platters.

• Items made from synthetic ﬁ bers.

• Items with glazed patterns may fade if machine washed frequently.

Tips for efﬁ cient loading

• Load hollow items such as cups, glasses or pans with the opening downward so that water cannot collect in the container.

• Items must not lie inside one another or cover one another.

• To avoid damage to glasses, they should not touch.

• Sharp items of cutlery such as carving knives should be loaded horizontally in the basket to avoid injury when unloading.

• Do not overload the appliance.

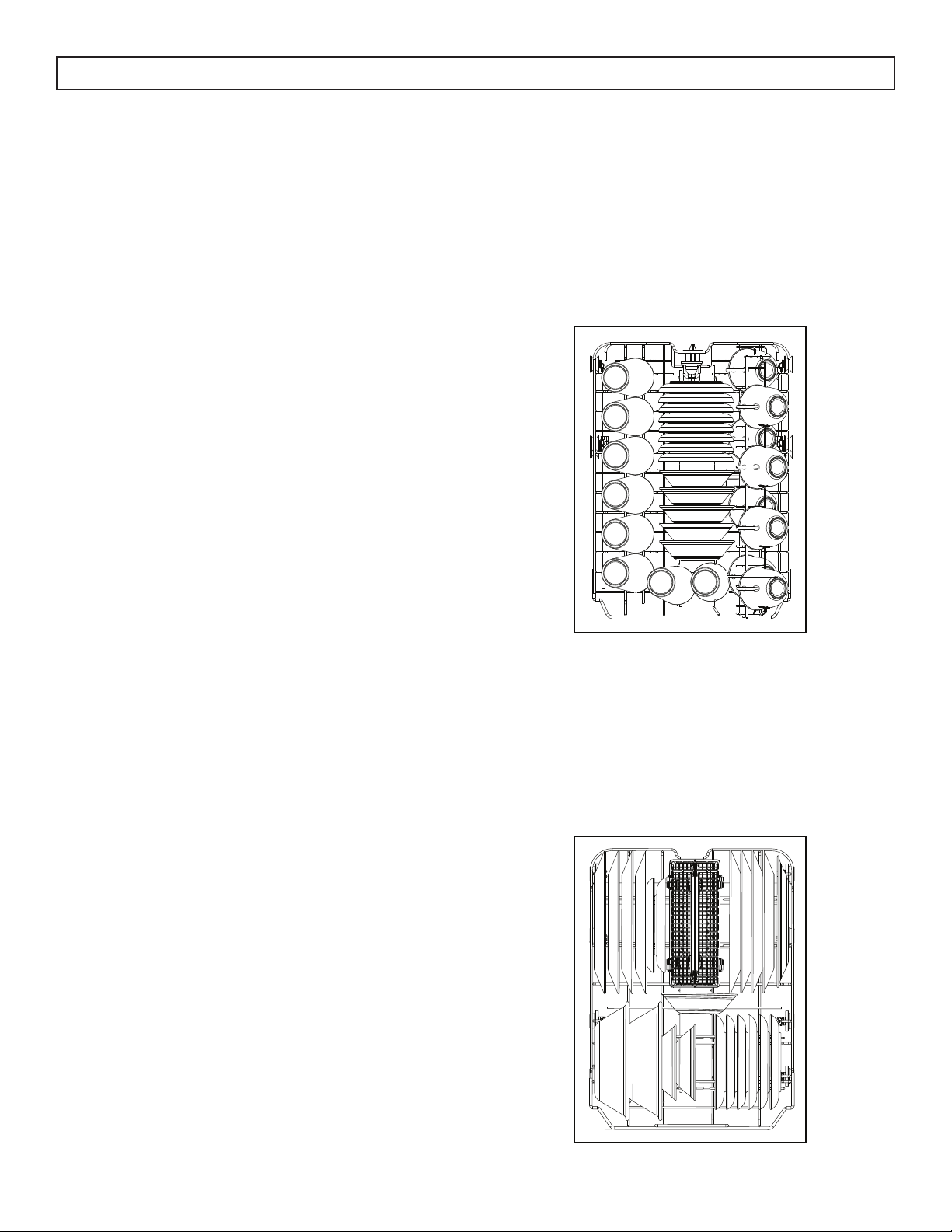

LOADING THE CUTLERY BASKET

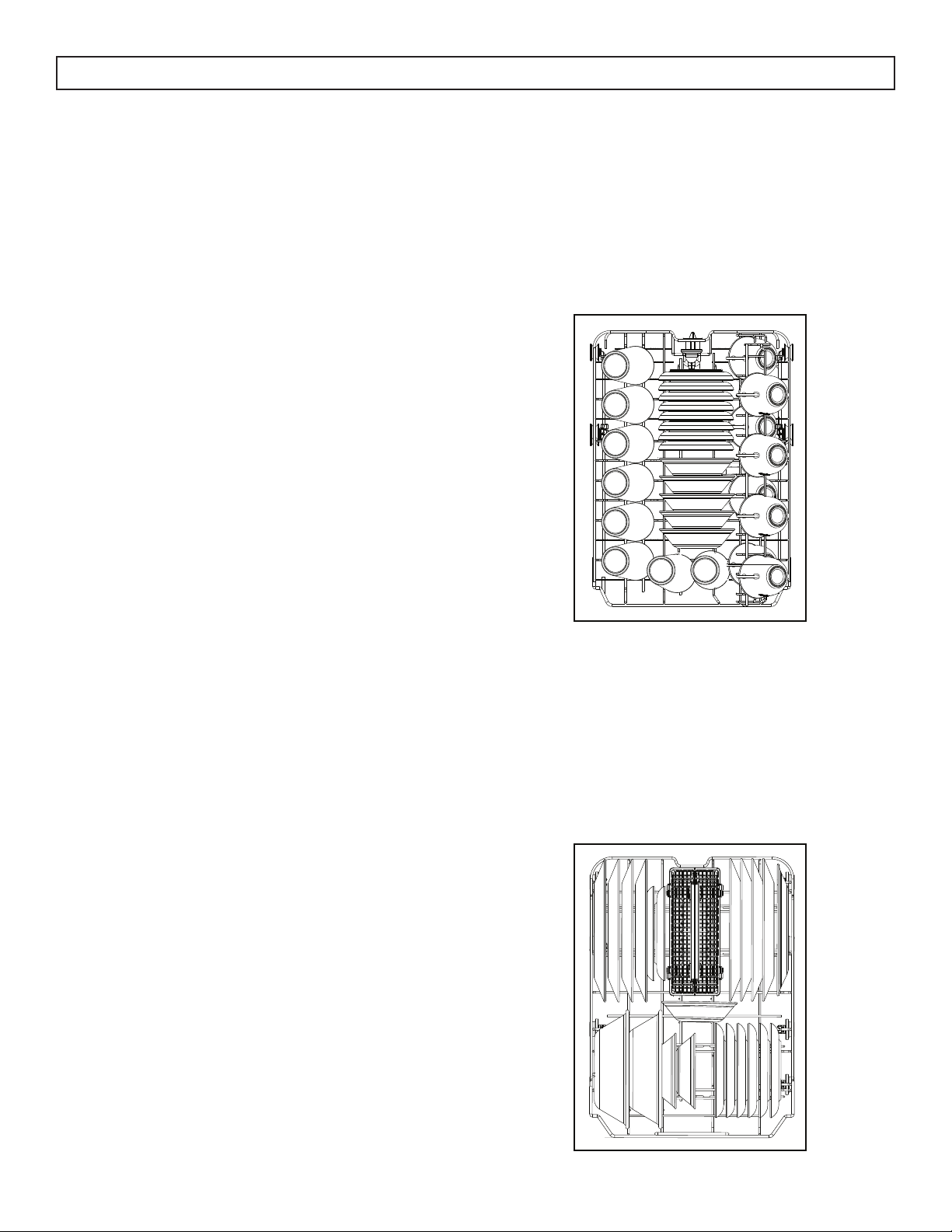

LOADING THE UPPER BASKET

The upper basket is designed for cups, glasses, small plates, bowls and plastic items that are marked dishwasher safe.

Make sure the loaded dishes do not interfere with the rotation of the spray arm located on the bottom of the upper basket.

LOADING THE LOWER BASKET

The lower basket is designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes and plates.

Load large items such as pans and pots should be loaded with their open sides facing downwards.

Cutlery should be placed in the cutlery basket with the handles facing down. Ensure that cutlery items do not nest inside of one another as this can affect cleaning performance.

Sharp or pointed items should be placed in the cutlery basket with points facing down to avoid injury when unloading.

Do not place excessively small items into the dishwasher as they could fall through the basket and impact the operation of the appliance.

OPERATING INSTRUCTIONS

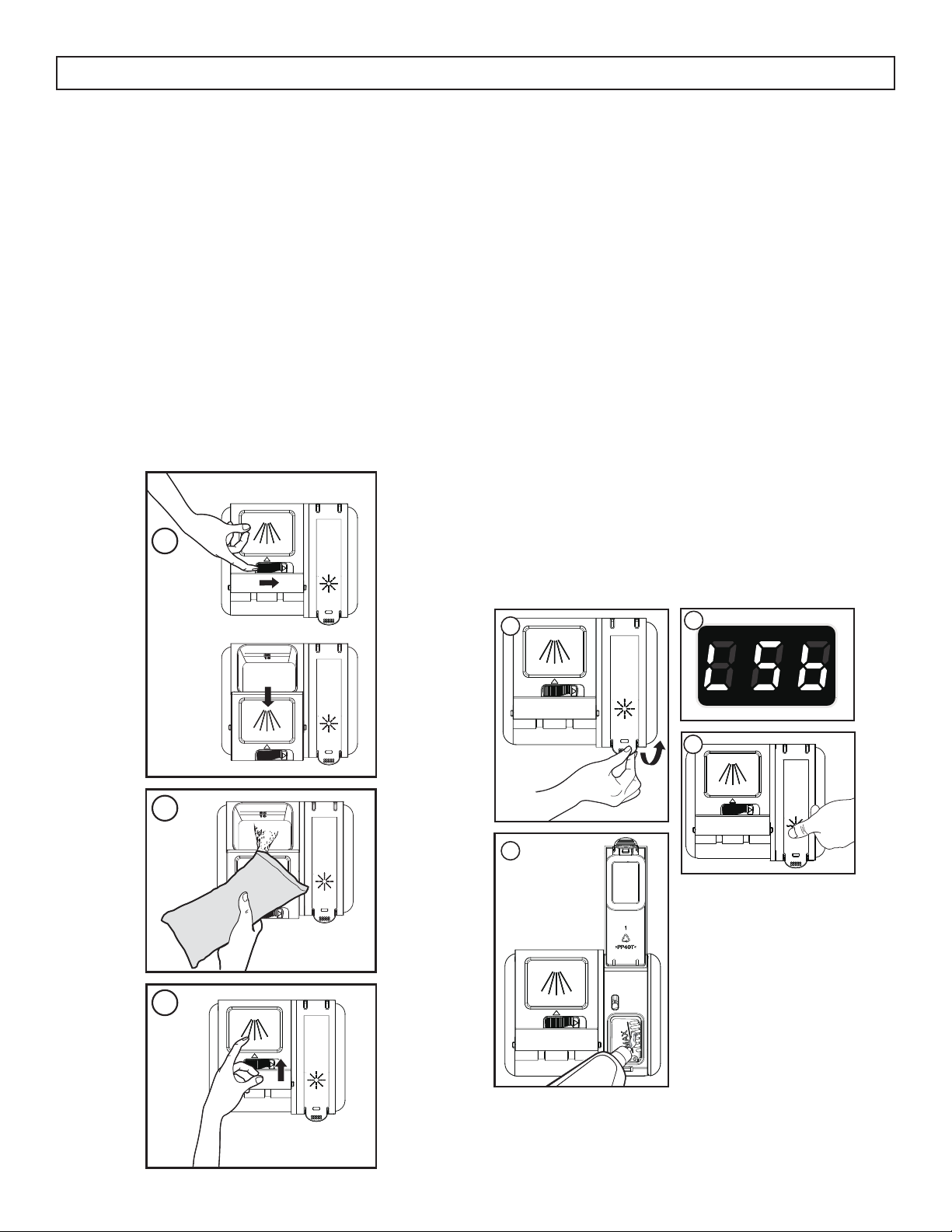

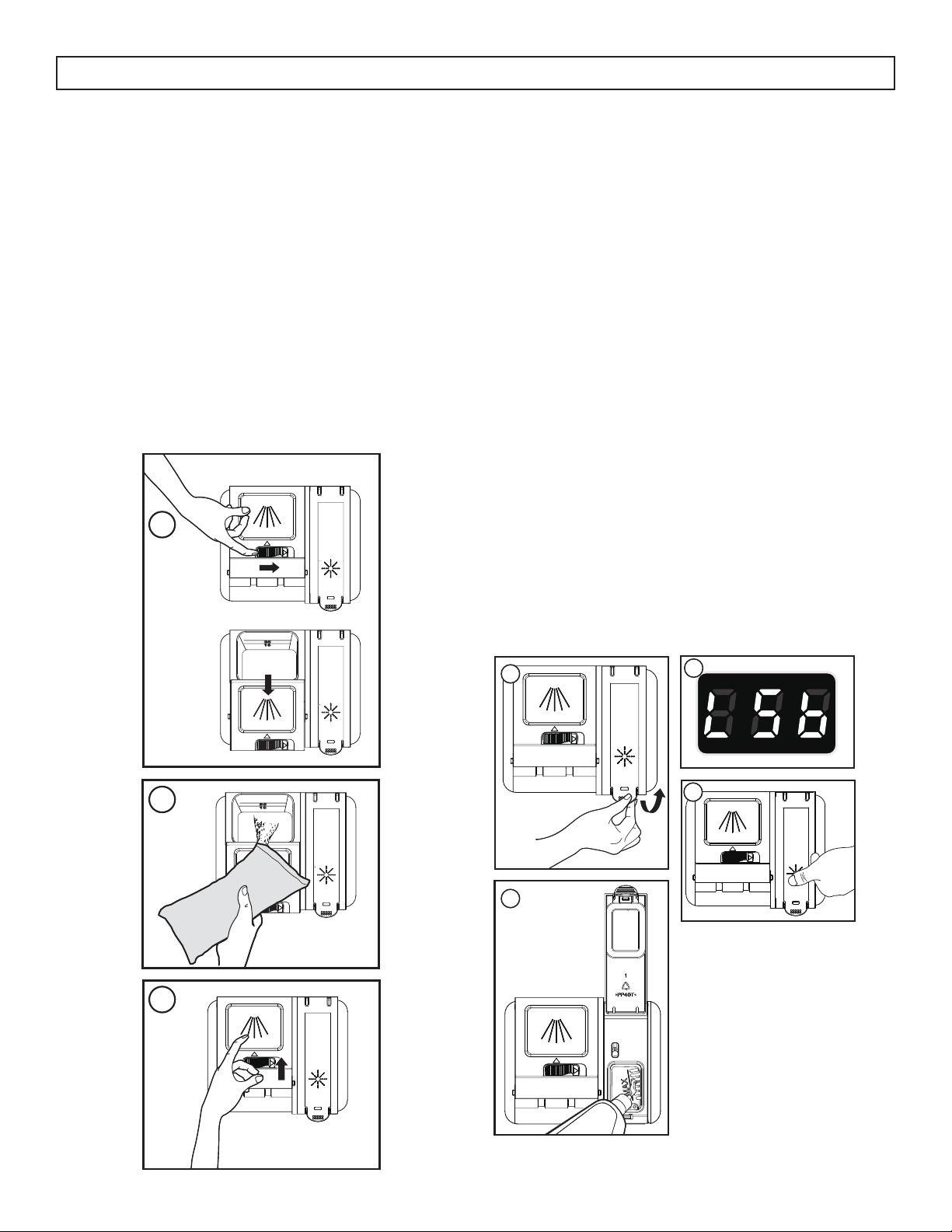

DETERGENT DISPENSER

The detergent dispenser must be ﬁ lled before the start of each wash cycle. Add the detergent just before starting the wash cycle. Adding the detergent to the appliance too soon can cause it to become damp and it may not dissolve properly.

1. If the detergent dispenser is closed, press the latch to open it.

2. Add the recommended amount of detergent to the main detergent component.

3. Close the ﬂ ap by sliding it to the left and pressing down.

RINSE AID DISPENSER

Rinse aid can be used to prevent water droplets or streaks from forming on dishes. The rinse aid will be released automatically during the ﬁ nal rinse. This appliance is designed to use liquid rinse aid only. Do not use a powdered rinse aid as it will clog the reservoir opening. Do not put any other substance in the rinse aid dispenser as this can damage the appliance.

1. Open the rinse aid dispenser by lifting the lid.

2. Use the viewing port when ﬁ lling the rinse aid reservoir. Do not ﬁ ll the reservoir above the full level indicator.

3. If the display screen shows “LSb”, the rinse aid dispenser is empty.

4. Close the rinse aid cap by pressing down.

OPERATING INSTRUCTIONS

CARE & MAINTENANCE

STARTING A WASH CYCLE

1. Load the dishwasher as per the loading instructions.

2. Add detergent and rinse aid as required.

3. Close the dishwasher door and press the power button to turn on the appliance.

4. Press the Program button repeatedly to choose the desired wash program. The programs will cycle in the following order: Heavy -> Normal

-> ECO -> Glass -> Rapid -> Rinse

5. Press the Options button to select the desired options.

6. Run the hot water faucet nearest the appliance until the water is hot and then turn it off.

7. Press the Start/Pause button to begin the cycle.

Note: When a wash program is ﬁ nished the appliance will buzz 8 times and END will appear on the display screen.

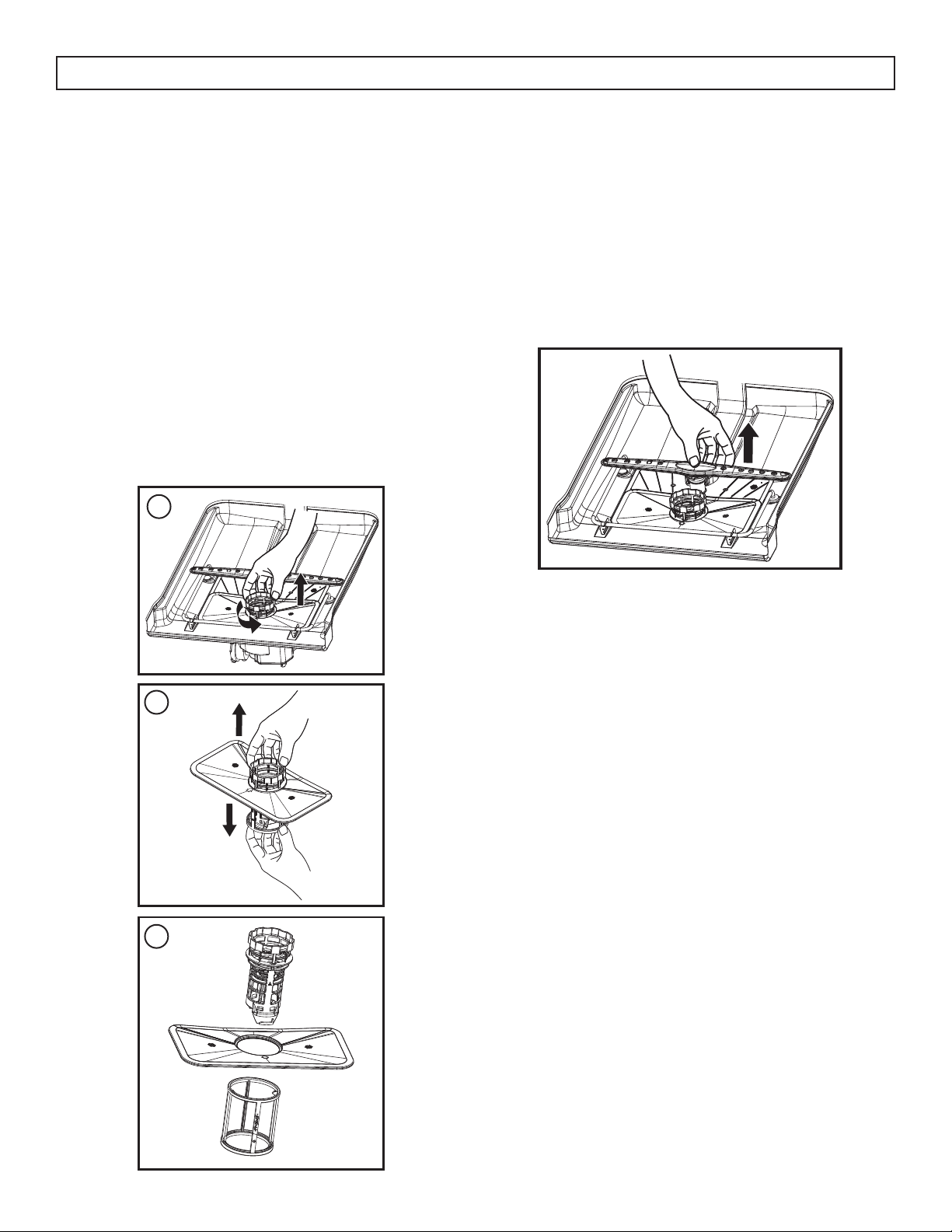

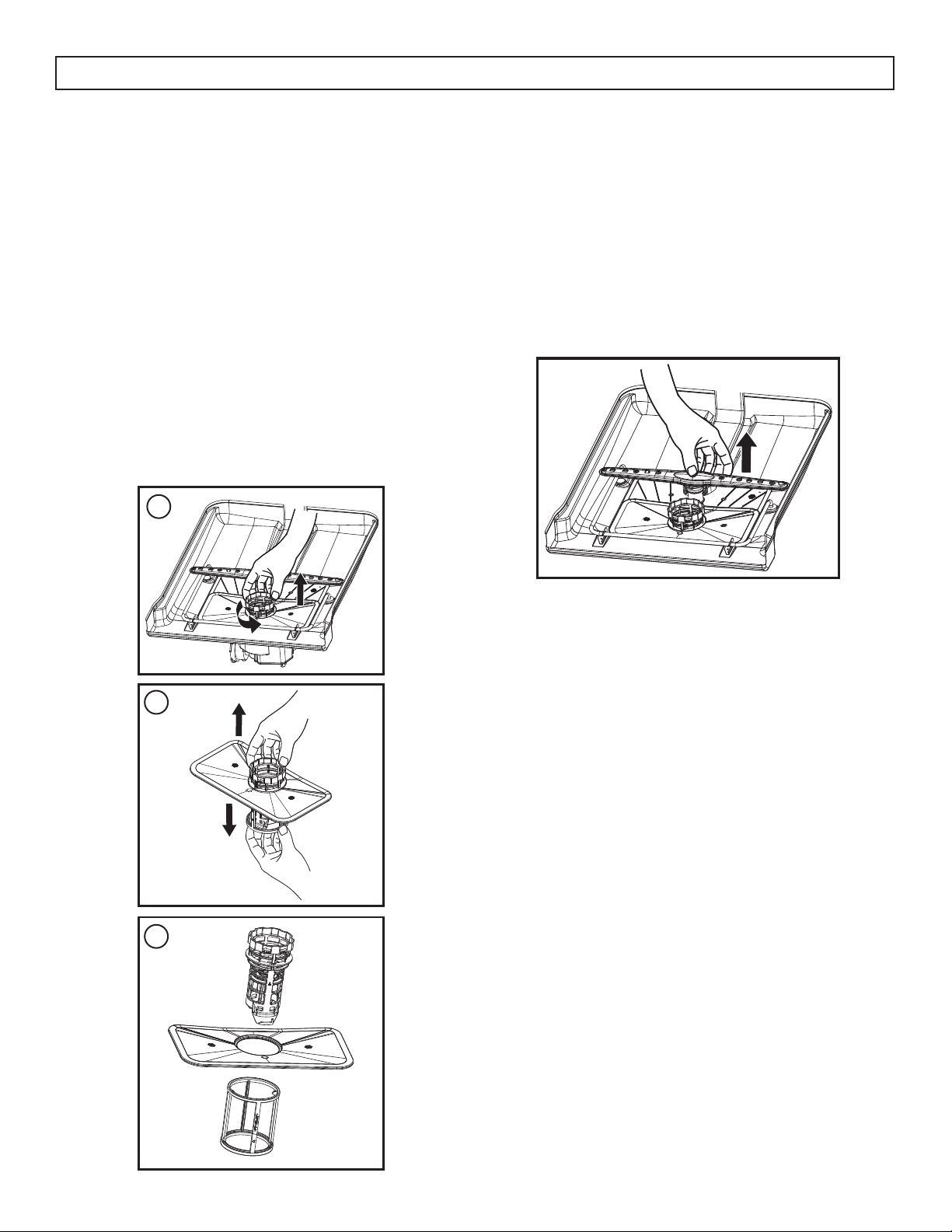

CLEANING

• After every wash, leave the door slightly open so that moisture and odors are not trapped inside the appliance.

• Only use a soft cloth and mild detergent to clean the appliance. Never use solvents or abrasive cleaning agents as this can damage the appliance.

• To remove water spots from the interior of the appliance, use a soft cloth dampened with a small amount of vinegar.

• If the appliance will not be used for a long period of time, it is recommended to run a normal wash cycle with the dishwasher empty and then leave the door open until the interior of the appliance is completely dry. This will help the door seals last longer and will help prevent odors from forming inside the appliance.

• Clean the door seals with a damp sponge regularly to prevent odors from food particles that can become trapped in the door seal.

ADDING A FORGOTTEN DISH

A forgotten dish can be added to a running cycle any time before the detergent dispenser has opened. If the detergent has already been released into the appliance, it is recommended not to add more dishes as they will not receive adequate cleaning.

To add a dish:

1. Open door slightly and wait a few seconds until the wash action stops before completely opening.

2. Add the forgotten item.

3. Close the door ﬁ rmly to latch within 4 seconds and the cycle will automatically resume.

Caution: Wait until wash action completely stops before opening the door. Hot water may splash out of the dishwasher and can cause injury.

CARE & MAINTENANCE

FILTER SYSTEM

The ﬁ lter system removes food particles from the wash water and traps them. It is highly recommended to empty and clean the ﬁ lters after every wash cycle.

To clean the ﬁ lter system:

1. Turn off the dishwasher. Turn the ﬁ lter and lift upwards to remove the ﬁ lter system from the appliance.

2. Rotate the ﬁ lter insert counterclockwise to unfasten and then detach the ﬁ lter insert.

3. Rinse and clean the ﬁ lters with water and replace them inside the appliance.

SPRAY ARM

The spray arm can be removed from the appliance by pulling gently upwards. Rinse the spray arm with warm water to remove any debris that can clog the nozzles. Replace the spray arm in the appliance by pushing downward until it clicks into place. Ensure that the spray arm movement is not impeded before running another cycle.

ERROR CODES

E1: Water intake is restricted or water pressure is

too low.

E3: Malfunction of heating element E4: Water overﬂ ow

If the appliance displays any error code, a power reset may resolve the issue. Unplug the appliance, wait approximately 5 minutes and then plug the unit back in.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE

No power • A fuse may be blown or the circuit breaker tripped

• Power surge

• Plug not fully inserted into the wall outlet

• Door not closed correctly

Water not drained from dishwasher • Kink in drain hose

• Filter clogged

• Drain pump malfunction

Detergent left in the dispenser • Dishes blocking dispenser from fully opening; unit may be

over loaded

Suds left in the appliance • Too much detergent or wrong kind of detergent

• Too much rinse aid

White ﬁ lm or cloudiness on dishes or interior tub

Noise inside the tub while running • The spray arm is hitting an item in the basket

Dishes are not clean • Dishes were loaded incorrectly

• Hard water minerals

• Too much detergent

• Not enough rinse aid

• An item has fallen out of the basket and is on the bottom of the wash tub

• The wash program was not powerful enough

• Not enough detergent

• Items are blocking the spray arm; unit may be over loaded

• Filter clogged

Dishes are not drying • Dishes were loaded incorrectly

• Too many dishes were loaded

• Not enough rinse aid

• Dishes removed too quickly

+ 30 hidden pages
