Owner’s Use and Care Guide

Guide d’utiliser et soin de Propriètaire

Model • Modèle

DAC 5209M

CAUTION: Read and follow all safety rules and operating instructions before first use of this product.

MISE EN GARDE : Veuillez lire attentivement les consignes de sécurité et les directives d'utilisation avant l'utilisation initiale de ce produit.

AIR CONDITIONER



Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

CLIMATISEUR



Table des matières . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: If the air conditioner changes ownership, be sure this manual accompanies the unit.

CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTÉRIEURE: En cas de revente du climatiseur, ce manuel doit être inclus avec l’appareil.

Danby Products Ltd, PO Box 1778, Guelph, Ontario Canada N1H 6Z9

Danby Products Inc, PO Box 669, Findlay, Ohio USA 45839-0669

Version 1A.11.08 JF

TABLE OF CONTENTS

UNIT SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. .2

PART IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. .3

IMPORTANT SAFETY INFORMATION



Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. .3

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. .4

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-6

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . 5

OPERATING INSTRUCTIONS



Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . 7

Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. 7

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . .

. .8

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.9

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1

WELCOME

Thank you for choosing a Danby Room Air Conditioner to cool your home. This Owner’s Use and Care Guide will provide you with valuable information necessary for the proper care and maintenance of your new appliance. If properly maintained, your Danby appliance will give you many years of trouble free operation. Please take a few moments to read the instructions thoroughly and familiarize yourself with all of the operational aspects of this appliance.

NOTE: This unit is NOT designed for “Through-the-wall” installation.

For easy reference, may we suggest you attach a copy of your sales slip/receipt to this page, along with the following information, located on the manufacturers nameplate on the rear panel of the unit.

Model Number:

Serial Number:

Date of Purchase:

This information will be necessary if your unit requires servicing and/or for general inquiries. To contact a Customer Service Representative, call Danby TOLL

FREE: 1-800-26- (1-800-263-2629)

CAUTION: Do not leave a room air conditioner unattended in a room where people or animals who cannot react to a failed unit are located. A failed unit can cause extreme overheating and fire in an enclosed, unattended space.







UNIT SPECIFICATIONS







































Model Number

DAC5209M











Voltage/Frequency

115V-60Hz











Noise Level

53 dB











Fan/Cooling Speeds

2











Cooling Capacity

5200 BTU











Energy Efficiency Rating (EER)

9.7











Input Wattage

515











Unit Dimensions (W) x (D) x (H)(inches)

16.5”x 13.8”x 12.4”











Window Kit Dimensions Max Width

37.8” (960mm)











Min. Width

23.22” (590mm)











Min. Height

12.8” (325mm)











Unit Weight

15.5 kg (34.1 lbs)





NOTE: Continuing research results in steady improvement. Therefore, this information and these specifications are subject to change without notice.

2

Danby DAC 5209M User Manual

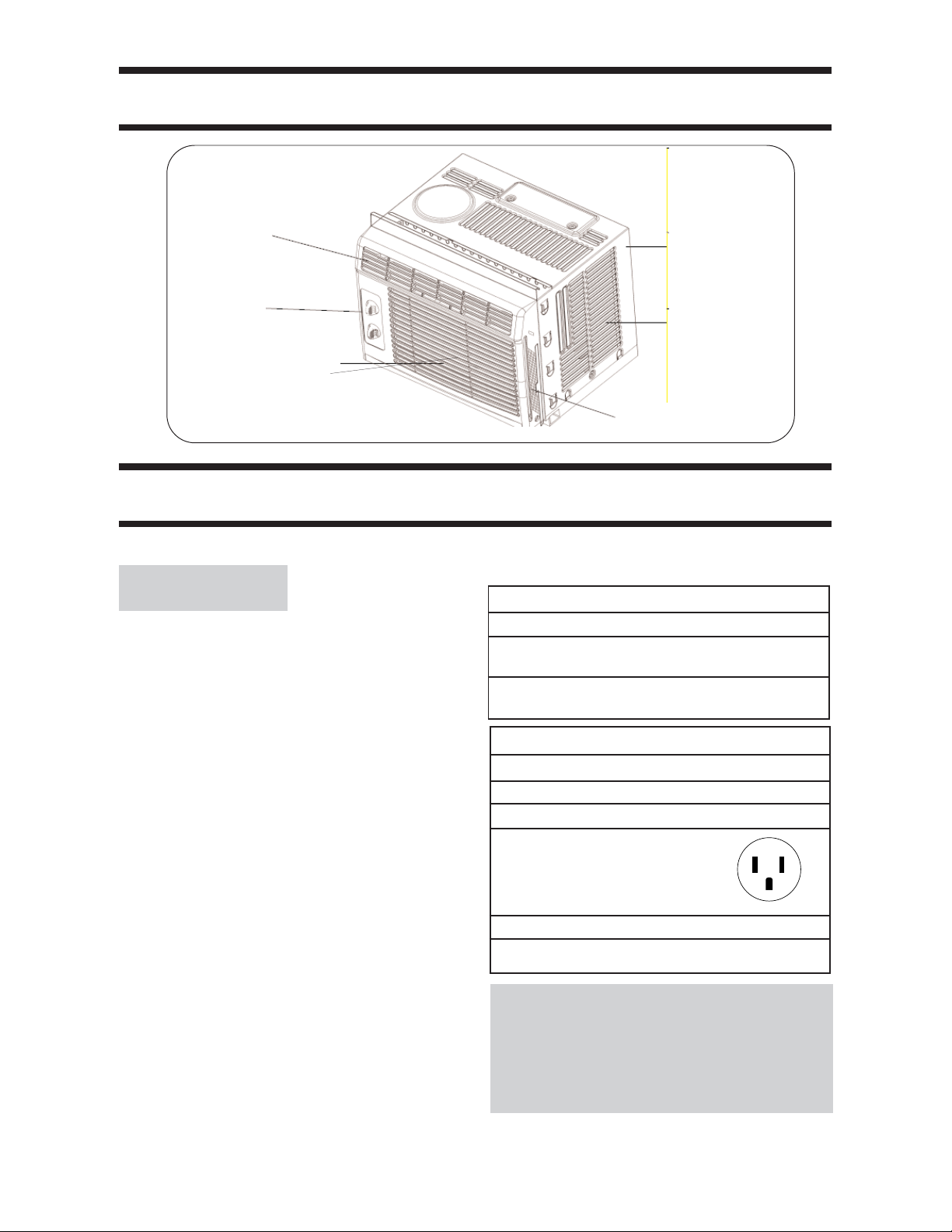

PART IDENTIFICATION

Interior Air Inlet

Cabinet

Control Panel

Exterior Air

Inlet

Interior Air Inlet

Air FIlter

IMPORTANT SAFETY INFORMATION

READ ALL SAFETY INFORMATION BEFORE USING

ELECTRICAL

SPECIFICATIONS

1)All wiring must comply with local and national electrical codes and must be installed by a qualified electrician. If you have any questions regarding the following instructions, contact a qualified electrician.

2)Check available power supply and resolve any wiring problems BEFORE installing and operating this unit.

3)This 115V air conditioner uses 10.0 or less nameplate amps and may be used in any properly wired, general purpose household receptacle. See Table 1 for specifications for individual branch circuit.

4)For your safety and protection, this unit is grounded through the power cord plug when plugged into a matching wall outlet. If you are not sure whether your wall outlet is properly grounded, please consult a qualified electrician.

5)The wall outlet must match the 3-prong plug on the service cord supplied with the unit. DO NOT use plug adapters. See Table 2 for receptacle and fuse information. If it is necessary to use an extension cord to connect your air conditioner, use an approved “air conditioner” extension cord only (available at most local hardware stores).

6)The rating plate on the unit contains electrical and other technical data. The rating plate is located on the right side of the unit, above the power cord.

TABLE 1

Suggested Individual Branch Circuit

Nameplate Amps

*AWG Wire Size

5.0 to 10

18

AWGAmerican Wire Gauge

*Based on copper wire at 60°C temperature rating.

TABLE 2

Receptacle and Fuse Types

Rated Volts

120





Amps

10





Wall Outlet















Fuse Size

15

















Time Delay Fuse

Plug Type

(or Circuit Breaker)











3



IMPORTANT SAFETY INFORMATION









POWER

The power cord supplied with this air conditioner contains a device that senses

SUPPLY CORD

damage to the power cord. To test if your power cord is working properly, you

must do the following:

1)Connect the power supply cord to an electrical outlet.

2)The power supply cord has two buttons located on the head of the plug. One button is marked “TEST”, and the other is marked “RESET”. Press the “TEST” button; you will hear a click as the “RESET” button pops out.

3)Press the “RESET” button; you will hear a click as the button engages.

4)The power supply cord is now energized and supplying electricity to the air conditioner (on some products this is also indicated by a light on the plug head).

NOTE: The power cord supplied with this air conditioner contains a current leakage detection device designed to reduce the risk of fire. In the event the power supply cord is damaged, it cannot be repaired and must be replaced with a new cord from the product manufacturer.

Under no circumstances should this device be used to turn the unit on or off.

The “RESET” button must always be pushed in (engaged) for correct operation.

The power supply cord must be replaced if it fails to reset when the “TEST” button is pushed in.

ENERGY-

Your Danby appliance is designed to be highly efficient in energy

SAVING TIPS

savings. Follow these recommendations for greater efficiency.

1)Select a thermostat setting that suits your comfort needs and leave at that chosen setting.

2)The filter is very efficient in removing airborne particles. Keep the air filter clean. Normally, filters should be cleaned every 2 weeks. More frequent cleaning my be necessary depending on indoor air quality.

3)Use drapes, curtains or shades to keep direct sunlight from penetrating and heating room, but do not allow drapes or curtains to obstruct the air flow around the unit.

4) Start your air conditioner before the outdoor air becomes hot and uncomfortable, to avoid an initial period of discomfort while the unit is cooling off the room.

5) When outdoor temperatures are cool enough, use HIGH or LOW FAN only. This circulates indoor air, providing some cooling comfort, and utilizes less electricity than when operating on a cooling setting.

4

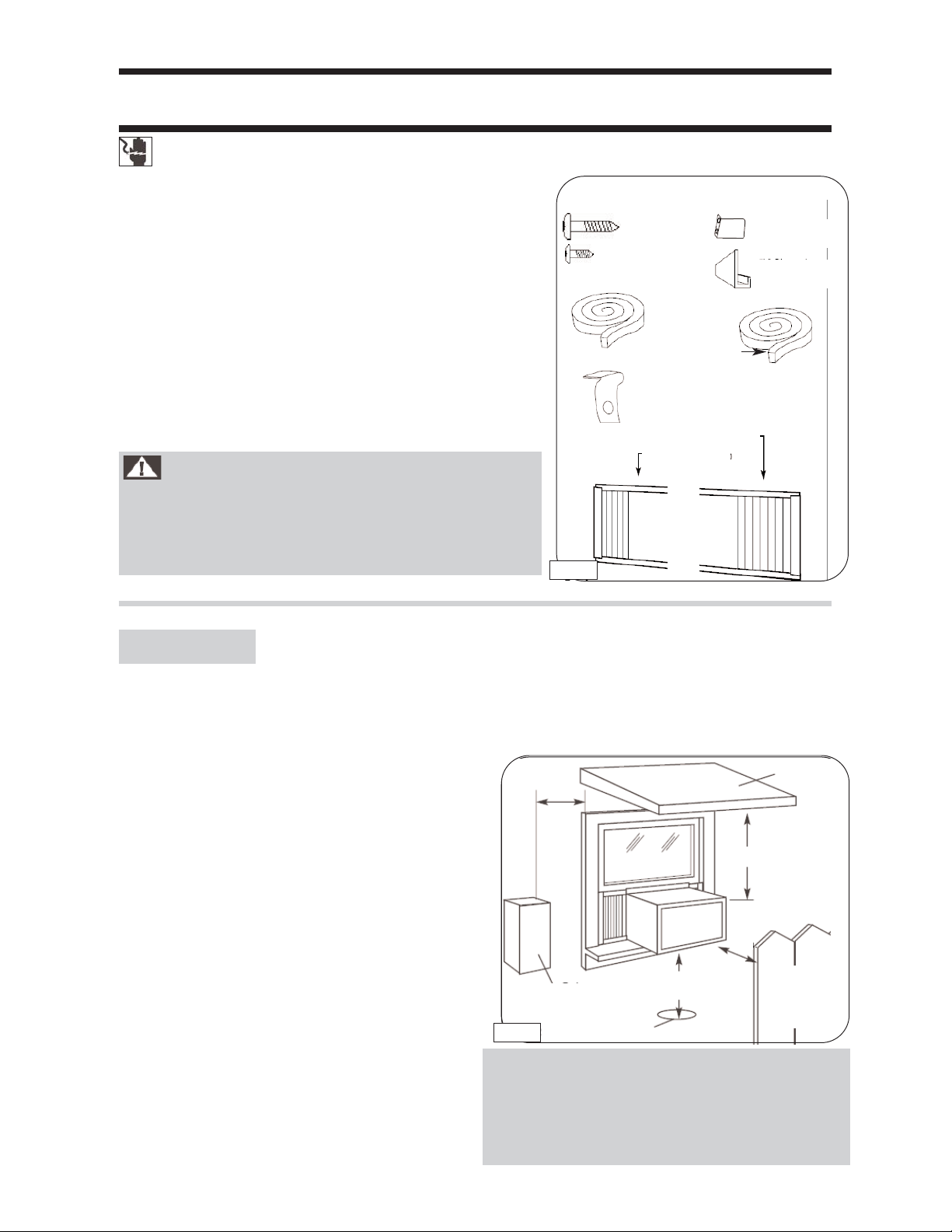

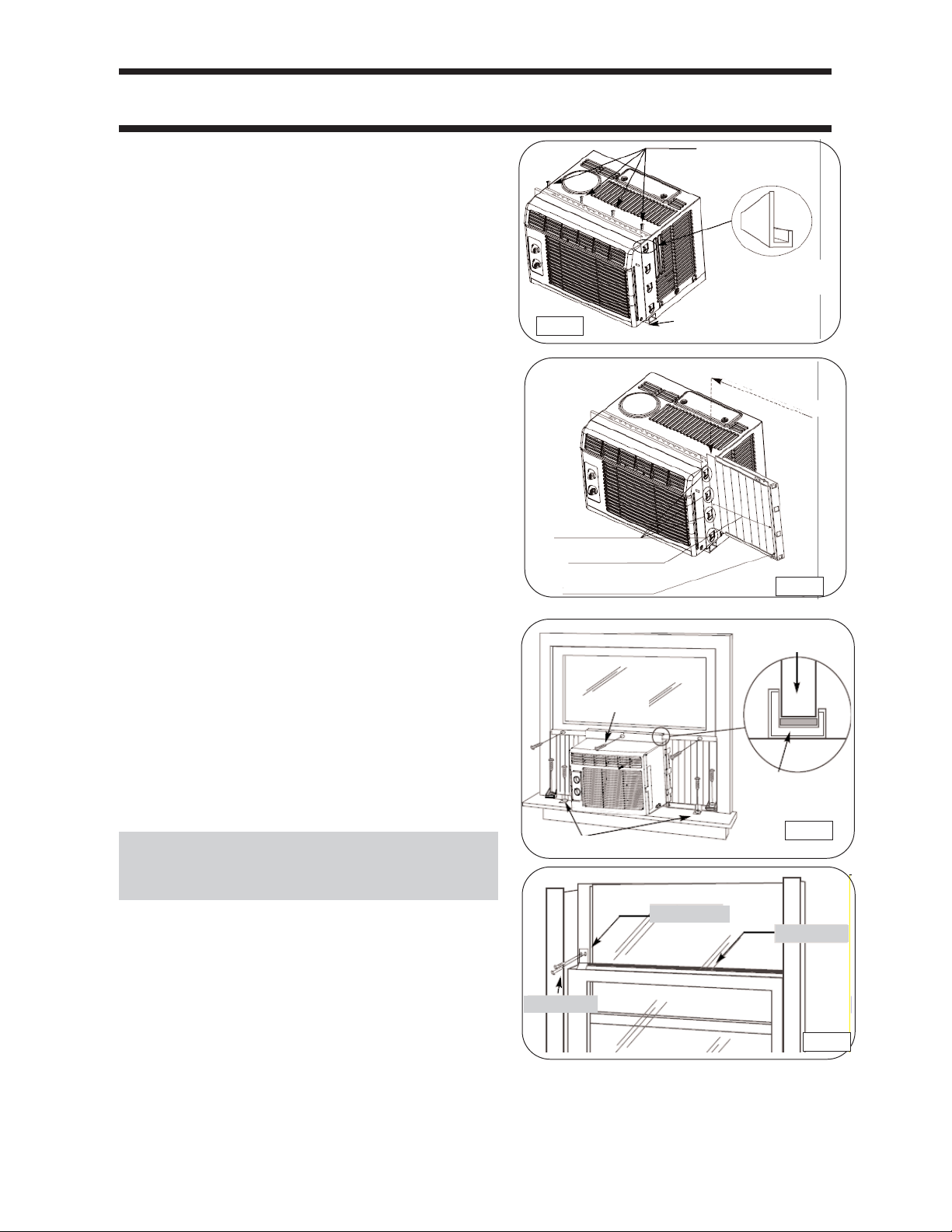

INSTALLATION

ELECTRIC SHOCK HAZARD: To avoid the possibility of personal injury, disconnect power to the unit before installing or servicing.

TOOLS NEEDED FOR INSTALLATION:

Screw Drivers: Both Phillips and flat head

Power Drill: 1/8 inch diameter drill bit

Pencil

Scissors

Measuring Tape

Carpenters Level

Your Room Air Conditioner is designed for easy installtion in a single or double-hung window. This unit is NOT designed for vertical (slider type) windows and/or through-the-wall applications.

NOTE: Save the shipping carton and packing materials for future storage or transport of the unit. From carton, remove the plastic bag containing the installation hardware kit necessary for the installation of your air conditioner. Please check the contents of hardware kit against the corresponding model check list, prior to installation of the unit. See Fig. 1.

CAUTION: Because the compressor is located on



the controls side of the unit (left side), this side will be



heavier and more awkward to manipulate. Inadequate



support on control side of the unit can result in personal



injury and damage to your unit and property. Therefore, it



is recommended that you have someone assist you during



the installation of this unit.

Fig. 1

INSTALLATION HARDWARE

3/4” screws (9)

Safety Lock (1)



3/8” screws (4)

Adhesive

Foam Seal (1)

Regular Foam

Seal (1)

Frame Lock

(2)

Side Curtain RH (1)

Side Curtain LH (1)

LOCATION

A)This room air conditioner is designed to fit easily into a single or double hung window. However, since window designs vary, it may be necessary to make some modifications for safe, proper installation.

B)Make sure window and frame are structurally sound and free from dry and rotted wood.

C)For maximum efficiency, install the air conditioner on a side of the house or building which favours more shade than sunlight. If the unit is in direct sunlight, it is advisable to provide an awning over the unit.

D)Provide sufficient clearance around the cabinet to allow for ample air circulation through the unit (See Fig. 2). The rear of the unit should be outdoors and not in a garage nor inside a building. Keep unit as far away as possible from obstacles/obstructions and at least 30” above the floor or ground. Curtains and other objects within a room should be prevented from blocking the air flow.

E)Be certain the proper electrical outlet is within reach of the installation. Use only a single outlet circuit rated at 15 amps. All wiring should be in accordance with local and national electrical codes.

F) DO NOT install unit where leakage of combustible gas is suspected. Your air conditioner may fail to operate in air containing oils (including machine oils), sulfide gas, near hot springs, etc.

Awning

20” Min

12” Min

















20”



















Min







































Fence,













30”

























wall, or



Side





Min









Obstruction













other



































obstacle



























Ground











Fig. 2





































Your unit is designed to evaporate condensation under normal conditions. However, under extreme humidity conditions, excess condensation may cause basepan to overflow to the outside. The unit should be installed where condensation run-off cannot drip on pedestrains or neighboring properties
