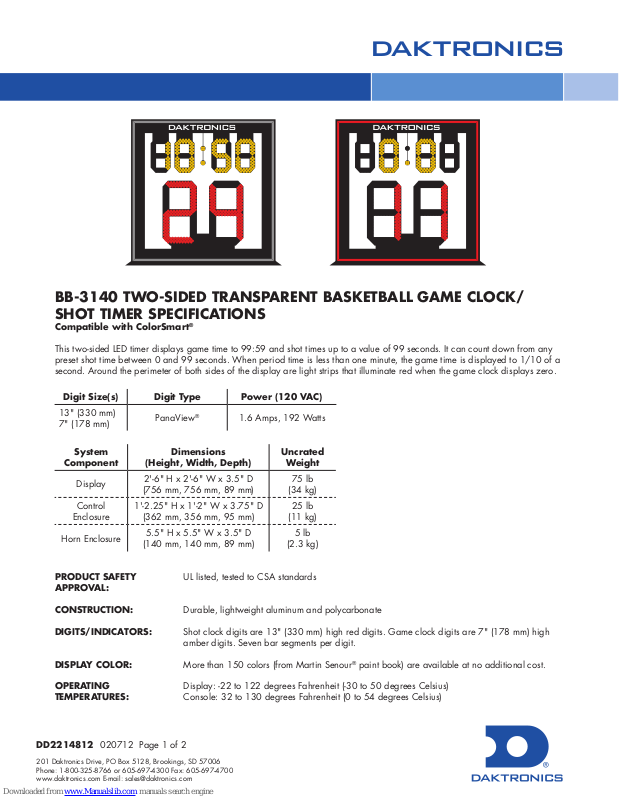

BB-3140 TWO-SIDED TRANSPARENT BASKETBALL GAME CLOCK/
SHOT TIMER SPECIFICATIONS
Compatible with ColorSmart
This two-sided LED timer displays game time to 99:59 and shot times up to a value of 99 seconds. It can count down from any
preset shot time between 0 and 99 seconds. When period time is less than one minute, the game time is displayed to 1/10 of a
second. Around the perimeter of both sides of the display are light strips that illuminate red when the game clock displays zero.
Digit Size(s) Digit Type Power (120 VAC)
13" (330 mm)
7" (178 mm)
PanaView
®
®
1.6 Amps, 192 Watts
System
Component
Display
Control
Enclosure
Horn Enclosure
1'-2.25" H x 1'-2" W x 3.75" D
Dimensions
(Height, Width, Depth)
2'-6" H x 2'-6" W x 3.5" D
(756 mm, 756 mm, 89 mm)
(362 mm, 356 mm, 95 mm)
5.5" H x 5.5" W x 3.5" D
(140 mm, 140 mm, 89 mm)
PRODUCT SAFETY UL listed, tested to CSA standards
APPROVAL:
CONSTRUCTION: Durable, lightweight aluminum and polycarbonate
DIGITS/INDICATORS: Shot clock digits are 13" (330 mm) high red digits. Game clock digits are 7" (178 mm) high
amber digits. Seven bar segments per digit.
DISPLAY COLOR: More than 150 colors (from Martin Senour
OPERATING Display: -22 to 122 degrees Fahrenheit (-30 to 50 degrees Celsius)
TEMPERATURES: Console: 32 to 130 degrees Fahrenheit (0 to 54 degrees Celsius)
DD2214812 020712 Page 1 of 2
201 Daktronics Drive, PO Box 5128, Brookings, SD 57006
Phone: 1-800-325-8766 or 605-697-4300 Fax: 605-697-4700
www.daktronics.com E-mail: sales@daktronics.com
Uncrated
Weight
75 lb
(34 kg)
25 lb
(11 kg)
5 lb
(2.3 kg)
®
paint book) are available at no additional cost.
BB-3140 PRODUCT SPECIFICATIONS (CONTINUED)
ALL SPORT® 5500 CONTROL CONSOLE:
Control console electronics are housed in a rugged aluminum case. Console has a 32-character liquid crystal prompting
display to verify entries and recall information currently displayed. Case and sealed membrane keyboard make console
face water-resistant. Console is capable of controll ing other sports using keyboard inserts. A 20’ (6096 mm) control cable
and a 6’ (1829 mm) power cord are supplied. The power cord plugs into a standard grounded 120 VAC outlet.
Maximum power demand is 6 watts.
The shot clock display may be controlled by the same All Sport 5500 series control console that controls the basketball
scoreboard. A hand-held start/stop/reset switch is included with purchase.
HORN:
A separate, remotely-mounted vibrating horn sounds automatically when the period clock counts down to zero or manually as
controlled by the operator.
CONTROL ENCLOSURE:
Control enclosure will be separately mounted no more than 30' (9.1 m) from the shot clock. Verify the structure measurements of
14" x 14" x 4" (356 mm, 356 mm, 102 mm).
GENERAL INFORMATION:
Shot timer comes completely assembled with 100% solid state electronics housed in an aluminum cabinet. Mounting hardware
supplied by the customer. Specifications and pricing are subject to change without notice.
OPTIONS:
• BB-3141 Auxiliary Shot Clock (see DD2214816)
• Camera mount
• NBA Backboard Light Strip BB-2134 (see SL-05474)
• NBA 24 Second Violation Backboard Light Strip
• 2.4 GHz spread spectrum radio control (see SL-04370)
FOR ADDITIONAL INFORMATION REFER TO:
• Electrical Specifications, Control Enclosure: DWG-235687 (included)
• Architectural Specifications: DD2214792 (online)
• Manual: Transparent Shot Clock ED-15168 (online)
For more information on Daktronics scoring/timing products, call 1-800-DAKTRONICS (1-800-325-8766) or visit www.daktronics.com
DD2214812 020712 Page 2 of 2
