Daikin FTXS-G Technical Data

FTXS-G

Technical Data

E E D E N 1 2 - 1 0 0

W a l l m o u n t e d u n i t

Air Conditioners

• Split - Sky Air • Indoor Unit

1

• Indoor Unit • Wall mounted unit • FTXS-G

TABLE OF CONTENTS

FTXS-G

1Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4 Centre of gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

• Indoor Unit • Wall mounted unit • FTXS-G

1

1

• Split - Sky Air • Indoor Unit

2

1 Features

Indoor Unit Split - Sk FTXS-GWall mounte

• Movement sensor saves power consumption in unoccupied rooms:
when the room is empty, the unit switches to economy mode after 20
minutes and restarts when a person enters the room.

• 24 hour timer can be set to start heating or cooling anytime during a
24 hour period

• ECONO mode decreases power consumption so that other
appliances that need large power consumption can be used

• Weekly timer can be set to start heating or cooling anytime on a daily
or weekly basis

• 2 area intelligent eye: air flow is sent to a zone other than where the
person is located at that moment; if two people are detected in the
room, the air flow is projected away from the occupants; if no people
are detected, the unit will automatically switch over to the energy­efficient setting.

• 3-D air flow combines vertical and horizontal auto swing to circulate
a stream of warm or cool air right to the corners of even large spaces
(50,60,71 class only)

• Comfort mode guarantees draught free operation by preventing that
warm or cold air is directly blown on to the body

• Night set mode saves energy by preventing overcooling or
overheating during night time

• Indoor/outdoor unit silent operation: "silent" buttons on the remote
control lower the operating sound of the indoor and/or outdoor unit by
3dBA each

• Titanium apatite photocatalytic air purification filter removes airborne
microscopic particles, powerfully decomposes odours and helps to
prevent the propagation of bacteria, viruses, microbes to ensure a
steady supply of clean air

• Powerful mode can be selected for rapid heating or cooling; after the
powerful mode is turned off, the unit returns to the preset mode.

• Centralised control of several units can be achieved via 3 wired
controls: centralised remote control, unified on/off control, schedule
timer

5 steps

3
1

2

• Split - Sky Air • Indoor Unit

3

• Indoor Unit • Wall mounted unit • FTXS-G

2 Specifications

Standard Accessories : ; Quantity : Titanium apatite photocatalytic air purification filter without frame;
Standard Accessories : Indoor unit fixing screws; Quantity : 2;
Standard Accessories : Mounting plate; Quantity : 1;
Standard Accessories : Remote control holder; Quantity : 1;
Standard Accessories : Batteries; Quantity : 2;
Standard Accessories : Wireless remote control; Quantity : 1;
Standard Accessories : Installation manual; Quantity : 1;

2-1 Technical Specifications FTXS60G FTXS71G

Power input Cooling Nom. kW 0.040 0.045

Heating Nom. kW 0.045 0.060
Casing Colour White
Dimensions Unit Height/Width/Depth mm 290/1,050/250

Packed unit Height/Width/Depth mm 361/1,145/364
Weight Unit kg 12

Packed unit kg 18
Packing Weight kg - 6
Heat exchanger Length mm 863

Rows Quantity 2

Fin pitch mm 1.4

Stages Quantity 16

Tube type ø7 Hi-XD

Fin Type ML fin (Multi louver)
Fan Type Cross flow fan

Air flow rate Cooling High m³/min 16.0 17.2

cfm 565 607

Nom. m³/min 13.5 14.5

cfm 477 512

Low m³/min 11.3 11.5

cfm 399 406

Silent
operation

m³/min 10.1 10.5
cfm 357 371

Heating High m³/min 17.2 19.5

cfm 607 689

Nom. m³/min 14.9 16.7

cfm 526 590

Low m³/min 12.6 14.2

cfm 445 501

Silent
operation

m³/min 11.3 12.6
cfm 399 445

Fan motor Model ARW3001DA

Speed Steps 5 + silent, + auto

Cooling High/

Medium/
Low/Silent
operation

rpm 1,330/1,170/1,010/920 1,410/1,220/1,040/950

Heating High/

Medium/
Low/Silent
operation

rpm 1,360/1,200/1,040/950 1,520/1,330/1,150/1,040

Output High W 43
Sound power level Cooling High dBA 61 62

Heating High dBA 60 62
Sound pressure level Cooling High/Nom./Low/

Silent operation

dBA 45/41/36/33 46/42/37/34

Heating

Super high/High/Nom./
Low/Silent operation

dBA -/44/40/35/32 -/46/42/37/34

Refrigerant Type R-410A ­Temperature control Microcomputer control
Air direction control Right, Left, Horizontal, Downward
Air filter Type Removable / washable / mildew proof

• Indoor Unit • Wall mounted unit • FTXS-G

1

2

• Split - Sky Air • Indoor Unit

4

2 Specifications

Standard Accessories : Operation manual; Quantity : 1;
Standard Accessories : Titanium apatite photocatalytic air purification filter; Quantity : 2;
Standard Accessories : Titanium apatite photocatalytic air purification filter without frame; Quantity : 2;

Notes

(1) SL: The silent fan level of the air flow rate setting
(2) 220V
(3) 230V
(4) 240V

2-2 Electrical Specifications FTXS60G FTXS71G

Power supply Name V1

Phase 1~
Frequency Hz 50
Voltage V 220-240

Current Nominal running

current (RLA) - 50Hz

Cooling A 0.19 (2) / 0.18 (3) / 0.17 (4) 0.21 (1) / 0.20 (2) / 0.19 (3)

Heating A 0.21 (2) / 0.20 (3) / 0.19 (4) 0.28 (1) / 0.27 (2) / 0.26 (3)
Current - 60Hz Nominal running current A ­Wiring connections - 50Hz

For power supply Remark 3 for power supply, 4 for interunit wiring (Earth wire included)

3
1

3

• Split - Sky Air • Indoor Unit

5

• Indoor Unit • Wall mounted unit • FTXS-G

3 Dimensional drawings

3 - 1 Dimensional Drawings

• Indoor Unit • Wall mounted unit • FTXS-G

1

4

• Split - Sky Air • Indoor Unit

6

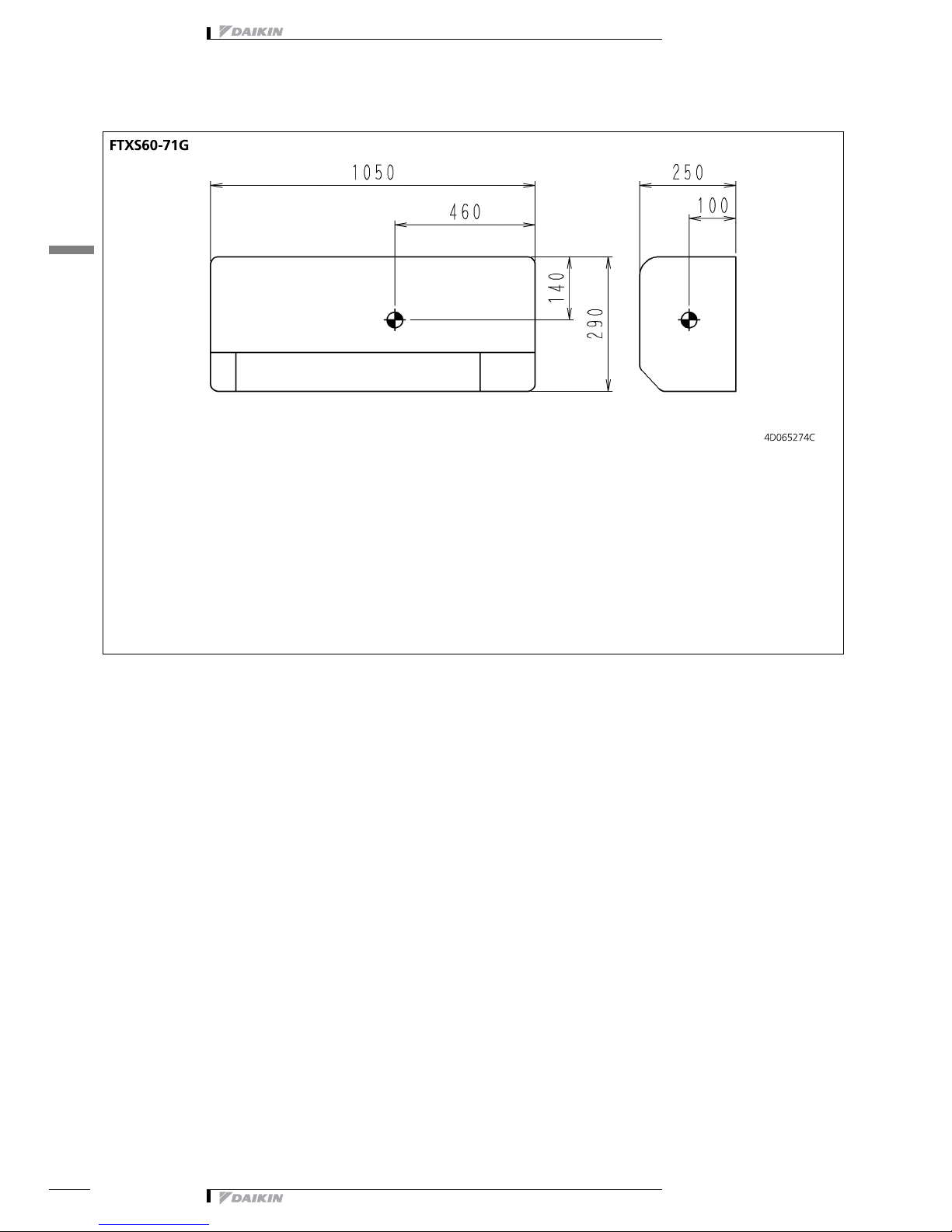

4 Centre of gravity

4 - 1 Centre of Gravity

3
1

5

• Split - Sky Air • Indoor Unit

7

• Indoor Unit • Wall mounted unit • FTXS-G

5 Piping diagrams

5 - 1 Piping Diagrams

• Indoor Unit • Wall mounted unit • FTXS-G

1

6

• Split - Sky Air • Indoor Unit

8

6 Wiring diagrams

6 - 1 Wiring Diagrams - Single Phase

∼

∼

∼

3
1

7

• Split - Sky Air • Indoor Unit

9

• Indoor Unit • Wall mounted unit • FTXS-G

7 Sound data

7 - 1 Sound Pressure Spectrum
