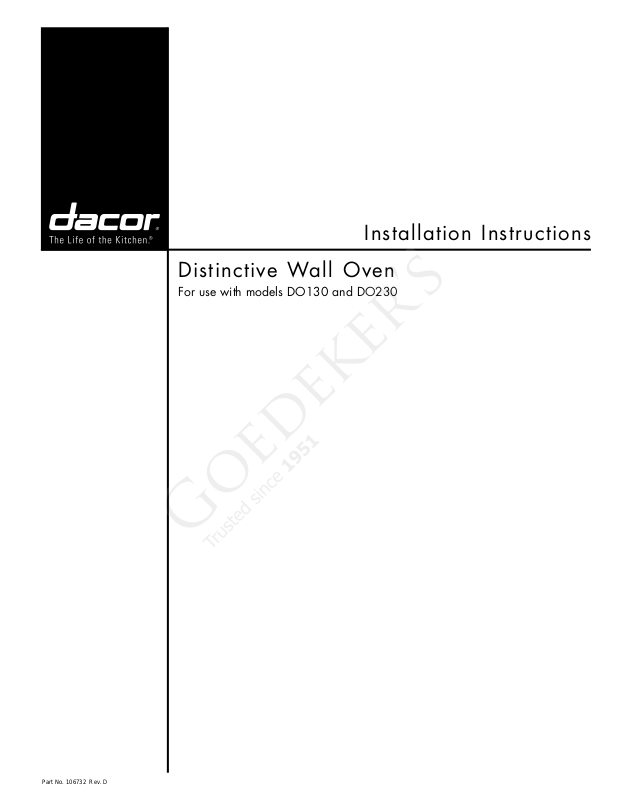

Page 1
Installation Instructions
Distinctive Wall Oven
For use with models DO130 and DO230
Part No. 106732 Rev. D
Page 2
Table of Contents
Important Safety Instructions ..........................................1
Important Information About Safety Instructions .............. 1
Safety Symbols and Labels .............................................1
General Safety Precautions ............................................. 2
Product Specifications .....................................................3
Product Dimensions ......................................................... 3
Installation Specifications ................................................ 4
Electrical Specifications ...................................................4
Installation Planning ......................................................... 4
Installation Instructions ....................................................6
Verify the Package Contents ............................................6
Remove the Oven Door(s) ............................................... 6
Electrical Connection .......................................................7
Installing the Oven in the Cabinet .................................... 9
Reinstalling the Oven Door(s) ........................................ 10
Verifying Proper Operation .............................................10
Installation Checklist .......................................................11
Notes.................................................................................12
Before You Begin...
Important:
Installer:• In the interest of safety and to minimize problems, read these installation instructions completely and care-
fully before you begin the installation process. Leave these installation instructions with the customer.
Customer:• Keep these installation instructions for future reference and the local electrical inspector’s use.
Customer Service Information
If You Need Help...
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have the
model and serial number of the appliance ready. The model
and serial number are printed on the product data label.
Dacor Customer Service
Phone: (800) 793-0093 (U.S.A. and Canada)
Monday — Friday 6:00
Web site: www.Dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: (877) 337-3226 (U.S.A. and Canada)
Monday — Friday 6:00
a.m. to 5:00 p.m. Pacific Time
a.m. to 4:00 p.m. Pacific Time
Product Data Label
The product data label contains the model and serial •
number information and the electrical specifications.
It can be seen through the grill located directly below •
the control panel. Open the door to expose the grill.
View data label
through grill
All specifications are subject to change without notice. Dacor
© 2009 Dacor, all rights reserved.
®
assumes no liability for changes to specifications.
Page 3
Important Safety Instructions
Important Information About
Safety Instructions
The • Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or operating this or any other appliance.
Always contact the Dacor Customer Service Team •
about problems and conditions that you don’t understand. See Customer Service Information.
Safety Symbols and Labels
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
DANGER
IMPORtANt: Do not store or use combustible, flam-
mable or explosive vapors and liquids (such as gasoline)
inside or in the vicinity of this or any other appliance. Also
keep items that could explode, such as aerosol cans,
away from the oven. Do not store flammable or explosive
materials in adjacent cabinets or areas.
WARNING
WARNING – NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
overheating of the appliance.
WARNING
WARNING – NEVER cover any slots, holes or passages
in the oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow through
the oven and may cause a fire hazard.
WARNING
Do not install this appliance outdoors and/or near water,
for example, near a pool.
CAUtION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.
WARNING
When using the BROIL and CONVECtION BROIL settings, the oven door must be completely shut.
READ AND SAVE tHESE INStRUCtIONS
1
Page 4
Important Safety Instructions
General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following:
WARNING
Read the accompanying use and care manual •
before operating this appliance.
Keep packaging materials away from children. •
Plastic sheets and bags can cause suffocation.
If you receive a damaged product, immediately con-•
tact your dealer or builder. Do not install or use a
damaged appliance. Do not install or use the appliance if the conduit is damaged.
This oven must be properly installed and grounded •
by a qualified installer according to these installation instructions prior to use. The installer must
show the customer the location of the circuit breaker panel or fuse box so that they know where and
how to turn off electric power to the oven. Dacor
is not responsible for service required to correct a
faulty installation. The owner is responsible to make
sure this appliance is properly installed.
Do not use the door handle(s) to lift or move the •
oven.
A minimum of two people are required to safely •
install this appliance.
Do not install, repair or replace any part of the oven •
unless specifically recommended in the literature
accompanying it. A qualified service technician
should perform all other service.
Before performing any type of service or installa-•
tion, make sure that the electric power to the oven
is turned off at the circuit breaker or fuse box.
Only use the oven for cooking tasks expected of a •
home appliance as outlined in the literature accompanying it. This oven is not intended for commercial
use.
Do not climb on any part of the appliance.•
Do not leave children alone or unattended in the •
area around the oven. Do not allow children to play
with the controls, pull on the handle(s) or touch
other parts of the oven.
Do not store items of interest to children above the •
oven. Children could be burned or injured while
climbing on the appliance.
Do not tamper with the controls. Do not adjust •
or alter any part of the oven unless specifically
instructed to do so in this manual.
To prevent injury due to the unit tipping forward, •
secure the oven to the cabinet using the supplied
mounting screws.
WARNING
Keep flammable items, such as paper, cardboard, •
plastic and cloth away from hot surfaces. Do not put
such items in the oven. Do not allow pot holders to
touch hot surfaces.
Do not wear loose or hanging apparel while using •
the oven. Do not allow clothing to come into contact
with the interior of the oven and the surrounding
areas during and immediately after use.
Do not use the oven for storage.•
Do not touch the interior surfaces of the oven during •
use. After use, make sure these surfaces have had
sufficient time to cool before touching them.
Do not touch the outside surfaces of the oven dur-•
ing the self-clean cycle. They will be hot. Venting
from the oven may cause the trim to become hot.
For your safety, do not use the oven to cook without •
the convection filter installed. When the filter is not
installed, the spinning fan blades at the back of the
oven are exposed.
Non-stick coatings, when heated, can be harmful to •
birds. Remove birds to a separate, well-ventilated
room during cooking.
To prevent damage, remove the meat probe from •
the oven when it is not being used.
Do not line the oven with aluminum foil or other •
materials. These items can melt or burn up during
self-cleaning and cause permanent damage to the
oven.
Do not leave objects that may melt at high tempera-•
ture, such as aluminum foil or the meat probe, on
the bottom of the oven.
Do not allow heating elements in the top of the oven •
chamber to become covered up by cookie sheets,
aluminum foil, pots, pans, etc. Covering the heating
elements could cause them to over-heat, creating a
fire hazard or damaging the oven.
Always ensure that the light fixture lens covers are •
in place when using the oven. The lens covers protect the light bulbs from breakage caused by high
oven temperatures or mechanical shock.
2
Page 5
Product Specifications
C
J
B
H
G
F
A
Chassis Notch
Side View
Control panel
front
Top of
chassis
Top of
chassis
Utility
cutout
¾” Conduit:
60” (152 cm)
long
K
L
M
E
D
C
J
B
H
G
F
A
K
L
M
E
Chassis Notch
Side View
Control panel
front
Top of
chassis
Top of
chassis
Utility
cutout
Conduit:
60” (152 cm)
Long
D
21 1/8”
(53.7 cm)
Product Dimensions
Model DO130
All tolerances: ±1/16 (±1.6 mm), unless otherwise stated.
DO130
DO230
* To top of chassis notch behind control panel
Utility
Cutout
Width (F)
5”
(12.7 cm)
Model
Utility
Cutout
Height (G)
5 ¼”
(13.3 cm)
Model DO230
Overall
Width (A)
29 3/4”
(75.6 cm)
Cutout
Depth (H)
(15.2 cm)
Chassis
Width (B)
(72.1 cm)
Utility
6”
28 3/8”
Control
Panel
Depth (J)
(2.5 cm)
Overall
Height (C)
28 7/16”
(72.2 cm)
49 15/16”
(126.8 cm)
1”
Height (D)*
Notch
Depth (K)
1 5/8”
(4.1 cm)
Chassis
27 1/2”
(69.9 cm)
49 1/16”
(124.6 cm)
Chassis
Depth (L)
24”
(61.0 cm)
Overlay (E)
15/16”
(2.4 cm)
Notch
Height (M)
1”
(2.5 cm)
3
Page 6
Installation Specifications
Electrical Specifications
It is the owner’s responsibility to ensure that a licensed •
electrician performs the installation of the electrical supply for this appliance. The electrical installation, including minimum supply wire size, must comply with the
National Electric Code ANSI/NFPA 70 (latest revision)
and local codes and ordinances.
A copy of this standard may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct voltage, frequency and amperage must be •
supplied to the appliance from a dedicated, grounded,
single phase circuit that is protected by a properly sized
circuit breaker or time-delay fuse. If a time-delay fuse is
utilized, fuse both sides of the line (L1 and L2).
The required voltage, frequency and amperage ratings •
are listed on the product data label (see inside cover)
and in the table below.
Preheat times and cavity temperature recovery times •
will be increased slightly if operating the unit with less
than a 240 Vac circuit.
This appliance is provided with electrical wiring in a flex-•
ible metal conduit.
Model
Number
DO130
DO230
* Two 120 Vac hot (L1 and L2), one neutral, one ground.
The above specifications are for reference only. See the
product data label (see inside cover) for exact specifications.
Dedicated Circuit
Requirements
240 Vac 60 Hz,
4 wire*, 30 Amp.
240 Vac 60 Hz,
4 wire*, 40 Amp.
total Connected
Load
5.3 kW (23 Amp.)
7.8 kW (33 Amp.)
Installation Planning
WARNING
Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information.
IMPORtANt
Locate the junction box so that the oven may be easily •
disconnected in the event that it needs to be removed
from the wall completely for service.
If the oven is not installed level it may deliver poor or •
inconsistent baking results.
A qualified technician must complete the installation of •
this built-in appliance. Proper installation is the responsibility of the customer.
Carefully check the location where the oven is to be •
installed. The oven should be placed for convenient
access. Make certain that electrical power, meeting
the Electrical Specifications, can be provided in the
selected location.
Dacor recommends installing the electrical junction box •
in one of the locations shown.
Install the junction box in a location that allows the oven •
to be removed from the the cutout for service without
being disconnected.
Plan the installation so that all minimum clearances •
are met or exceeded. Dimensions shown provide minimum clearances, unless otherwise noted. Be certain
that proper clearance is provided for the oven door
when it is in the open position according the Product
Dimensions.
The c• abinet cutout dimensions must be used as indi-
cated. The specified minimum cabinet depth and width
must be provided. The cabinet depth and width must
completely enclose the recessed portion of the oven.
All contact surfaces between the appliance and the •
cabinet must be solid and level.
Provide a platform within the cabinet to support the •
oven. It must be installed straight and level, and must
be 24” (61.0 cm) deep. The top edge of the platform
must be flush with the cutout at the front of the cabinet.
There are no provisions to level the oven after it has
been installed. 3/4” (1.9 cm) thick plywood is recommended.
4
Page 7
Recommended
electrical
location
Alternate
electrical
location
4” typical toe kick
N
P
R
3/4” (1.9 cm)
support platform
31 1/4” (79.4 cm)
recommended
1” (2.5 cm) Min.
to bottom of
cabinet door
1” (2.5 cm) Min.
to top of
cabinet door
4” typical toe kick
Recommended
electrical
location
N
P
R
3/4” (1.9 cm)
support platform
1” (2.5 cm) min.
to bottom of
cabinet door
1” (2.5 cm) Min.
to top of
drawer face
9 5/8” (24.4 cm)
recommended
Installation Specifications
1 1/2”
(3.8 cm)
typical counter
1“ (2.5 cm) Min.
to combustible floor
3/4” (1.9 cm)
support platform
1“ (2.5 cm) Min. to combustibles
Recommended
electrical
location
4” typical toe kick
36”
(91.4 cm)
P
R
Cabinet tolerances: +1/16 (1.6 mm), -0,
unless otherwise stated.
Min. interior cabinet depth: 24” (61.0 cm)
Model
Number
DO130
DO230 49 1/8” (124.8 cm)
Min. Cabinet
Width (N)
30”
(76.2 cm)
Min. Cutout
Width (P)
28 ½”
(72.4 cm)
Min. Cutout
Height (R)
27 5/8” (70.2 cm)
Single Oven Cabinet Cutout Dimensions Double Oven Cabinet Cutout Dimensions
Cutout Dimensions - Single Oven Installed Under Counter
5
Page 8
Installation Instructions
Verify the Package Contents
Verify that all the components below have been provided. If any item is missing or damaged, please contact your dealer
immediately. Do not install a damaged or incomplete appliance. Make sure that you have everything necessary to ensure
proper installation before proceeding.
Product literature•
Mounting screws (wood, #6 X ¾, Dacor PN 83331) •
4 for single ovens, 6 for double ovens
Remove the Oven Door(s)
Remove the door(s) to reduce weight and make the
oven easier to lift:
WARNING
Do not attempt to disengage the hinge catches with •
the door(s) removed from the oven. The hinge springs
could release, causing personal injury.
Do not lift or carry the oven door(s) by the handle.•
On double ovens, remove the lower door first to avoid •
damage.
Oven racks, 3 for single ovens, 6 for double ovens•
Meat probe•
To Remove the Oven Door(s):
Open the door to its fully opened position.1.
Rotate the catch over the retaining arm on 2. both hinges.
Lifttheovendoortoabouta30˚anglefromthehori-3.
zontal.
Pull the door away from the oven while continuing to lift.4.
Catch
Step 2
Gripping
point
Grab both sides of the
door and pull out at a 30°
angle to remove.
Gripping
point
Steps 3 and 4
30°
6
Page 9
Installation Instructions
Electrical Connection
WARNING
If the electrical service provided does not meet the •
Electrical Specifications (see page 4), do not proceed with the installation. Call a licensed electrician to
correctly install the required wiring.
Failure to disconnect power prior to installation may •
result in an electrical shock or fire hazard.
Do not turn on power to the appliance until the oven is •
properly grounded according to these instructions.
The installer must connect the ground terminal (or •
lead) on the appliance to a grounded, metallic, permanent wiring system or grounding conductor. Failure to
do so may result in an electric shock hazard.
Do not install a fuse in the neutral or ground circuit. A •
fuse in the neutral or ground circuit may result in an
electric shock hazard.
The appliance must be connected to the power supply •
with copper wire only. The use of aluminum wire may
result in unsatisfactory conditions.
IMPORtANt
Provide slack in the conduit to allow the oven to slide •
forward for servicing.
The electrical connection leads from the supplied •
appliance conduit may be a smaller gage than the
standard household wiring of the dedicated supply circuit. They are suitable for connection to household wiring under the jurisdiction of the National Electric Code,
and/or the local inspection authority.
Before proceeding, turn off power to the junction box at 1.
the circuit breaker panel or fuse box.
Position the oven directly in front of the cabinet cutout.2.
Feed the appliance conduit into the electrical junction 3.
box and attach it using a UL approved strain relief.
Depending upon local codes, utilize one of three meth-4.
ods to connect the appliance to the electrical power:
Connect to a 4-wire electrical system◊
Connect to a 3-wire electrical system with external ◊
ground, according to local codes.
Connect to a 3-wire electrical system, where local ◊
codes permit
Connecting to a 4-Wire Electrical System
Separate the wires coming out of the appliance conduit.1.
Connect the white wire from the appliance conduit to 2.
the white (neutral) supply wire in the junction box.
Connect the black wire from the appliance conduit to 3.
the black (L1) supply wire in the junction box.
Connect the red wire from the appliance conduit to the 4.
red (L2) supply wire in the junction box.
Connect the green wire from the appliance conduit to 5.
the green (ground) wire in the junction box.
Junction box
Incoming
power
Wire nut,
4 places
Conduit to
oven
7
Page 10
Installation Instructions
RED
RED
GREEN
WHITE
WHITE
BLACK
BLACK
GREEN
Connecting to a 3-Wire Electrical System
with External Ground
WARNING
Do not ground the appliance to a gas supply pipe or •
hot water pipe.
Do not connect the green appliance conduit wire to an •
external ground unless local building codes permit.
If connecting the ground wire to a grounded cold water •
pipe, connect using a separate copper grounding
wire (No. 10 minimum) and a clamp with an external
grounding screw. The grounded cold water pipe must
have metal continuity to electrical ground and must not
be interrupted by insulating materials. See diagrams.
NOtE
If the junction box has been properly grounded by a licensed electrician, the appliance green (ground) wire
may be connected to the junction box using a loop terminal.
to connect the green appliance conduit wire to a
grounded cold water pipe:
Separate the wires coming out of the 1. appliance conduit.
Connect the white wire2. from the appliance conduit to
the white (neutral) supply wire in the junction box.
Connect the black wire from the appliance conduit to 3.
the black (L1) supply wire in the junction box.
Connect the red wire from the appliance4. conduit to the
red (L2) supply wire in the junction box.
Connect the green wire from the 5. appliance conduit to a
grounded cold water pipe as shown.
Jumper any insulating materials as shown at below 6. with
a length of No. 4 copper wire. Securely clamp the wire
to bare metal at both ends.
Separate 10 AWG wire Min.
Incoming
power
Junction box
Conduit to
oven
4 AWG wire Min.
Insulating
device
Clamp wire
tightly to pipe
Wire nut,
4 places
Insulated Pipe
Jumper
Clamps
Bare metal
Connecting to a 3-Wire Electrical System
WARNING
Do not connect the green appliance conduit wire to the
neutral (white) junction box wire unless local building
codes permit.
Separate the wires coming out of the appliance conduit.1.
Connect the green and white wires from the appliance 2.
conduit to the white (neutral) supply wire in the junction
box.
Connect the black wire from the appliance conduit to 3.
the black (L1) supply wire in the junction box.
Connect the red wire from the appliance conduit to the 4.
red (L2) supply wire in the junction box.
8
Junction box
Incoming
power
Wire nut,
3 places
Conduit to
oven
Page 11
Installation Instructions
Installing the Oven in the Cabinet
WARNING
Failure to properly install the mounting screws may •
result in movement or tipping of the oven during use
resulting in personal injury.
Do not block the oven air exhaust located at the bot-•
tom of the oven. Blocking the intake may result in a
fire hazard, cabinet damage or poor performance.
The wall oven is heavy. Do not attempt to install it in •
the cabinet with less than two people.
Do not use the exhaust grill or the bottom edge of •
the oven opening as a gripping point. Damage to the
exhaust grill may result.
Lift the wall oven up to the cabinet cutout, using the 1.
upper edge of the cavity opening and the bottom of the
oven case side as gripping points. Be certain to take all
necessary safety precautions due to the weight of the
appliance.
Locate the mounting holes in the trim on both sides of 3.
the oven.
For single ovens there are 4 holes, 2 on each side.◊
For double ovens there are 6 holes, 3 on each side.◊
Use a 1/16” drill bit to drill pilot holes in the cabinet 4.
through all of the trim mounting holes.
Install all of the provided #6 screws through the oven 5.
trim into the cabinet to secure the oven. Do not overtighten the screws.
Gripping
point
Do not
grip here!
Resting the oven on the cabinet mounting platform, 2.
slide the oven into the recessed area until the rear edge
of the oven frame is flush with the cabinet face and the
oven is centered within the cutout. Ensure that the electrical conduit slides through the opening in the cabinet
platform or coils above the oven chassis as the oven
is slid into place. The cable must be placed into the
recessed area located along the rear vertical edge of
the oven or coiled above the oven chassis. Do not trap
the appliance cable between the oven case back and
the rear wall.
Gripping point:
case bottom
both sides
Mounting Screw Locations
9
Page 12
Installation Instructions
Reinstalling the Oven Door(s)
WARNING
Failure to fully rotate the hinge catches will result in a •
safety hazard and may cause personal injury due to
the door falling off its hinges. Also damage to the oven
and/or improper door alignment may occur.
On double ovens, install the upper door first to avoid •
damage.
Grasp the oven door on opposite sides and lift it until 1.
the door hinges are aligned with the openings in the
oven frame.
Holdingthedooratabouta30˚anglefromthehorizon-2.
tal, slide the hinges into the openings until the bottom
hinge arms drop fully into the hinge receptacles.
Lower the door to the fully opened position. Rotate 3. both
hinge catches toward the oven. Open and close the
door slowly and completely to ensure that it is properly
installed.
Insert door at
30° angle
Verifying Proper Operation
Peel off the protective layer of plastic that covers the 1.
stainless steel surfaces.
Remove any packaging from inside the oven.2.
Slide the oven racks onto the supports inside the oven 3.
chamber according to the use and care manual.
Turn on power to the oven at the circuit breaker or fuse 4.
box.
Set the clock according to the use and care manual.5.
Press the 6. BAKE key on the control panel (on double
ovens press the BAKE key for the upper oven). The
default bake temperature should appear on the display.
Press 7. StARt. After approximately 3 minutes, the oven
should begin to heat.
Press 8. CANCEL/SECURE.
If the oven does not operate properly, follow these trou-9.
bleshooting steps:
Verify that power is being supplied to the oven.◊
If power is being properly supplied, turn off power at ◊
the circuit breaker or fuse box and check the electrical connections.
Turn on power and repeat the above heating test.◊
If the appliance still does not work, contact Dacor ◊
Distinctive Service at (877) 337-3226. Do not
attempt to repair the appliance yourself. If you need
service, be sure to have the model and serial numbers available when you call. See inside cover for
location.
Dacor is not responsible for the cost of correcting problems
caused by a faulty installation.
10
30°
Catch
Page 13
Installation Instructions
Installation Checklist
WARNING
To ensure proper installation, the installer must complete
the checklist below to make sure that no part of the installation has been overlooked.
□
Is the oven mounted on a level platform? See page 5.
Is the oven wired and grounded according to these □
instructions and in accordance with all applicable electrical codes? See pages 4 and 7 through 8.
Is the oven secured into the cabinet with all four (4) □
mounting screws ? See page 9.
□
Is/are the oven door(s) properly installed according to
these instructions. See page 10.
Has proper operation been verified? □
Has the warranty been activated on-line or the warranty □
card been filled out completely and mailed?
11
Page 14
Notes
12
Page 15
Page 16
Dacor ● Phone: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com
Loading...
