PWR Play
Owner's Manual
PP-ACO, PP-ACOFS, PP-ADC, PP-AP, PP-AP41, PP-AXO, PP-BLNKSHRD, PP-BM, PP-BX,
PP-CORE, PP-DIP, PP-DPH, PP-DPL, PP-FCO, PP-FXO, PP-HAR, PP-HL, PP-LP, PP-LPD, PP-PP,
PP-RP, PP-RPL, PP-RW, PP-RWD, PP-SB, PP-SC, PP-STP, PP-SX, PP-TP
Part Number
1005632-0001 AA
Table of Contents
Safety
Safety Information..............................................................4
Access Control.....................................................................4
Installation...........................................................................4
Proper Usage.......................................................................4
Inspection.............................................................................4
Operating Warnings............................................................5
Selectorized Weight Stack Systems................................5
Warnings and Cautions......................................................5
Product Labels....................................................................6
Label Locations...................................................................7
Customer Service
Product Registration........................................................35
Ordering Parts...................................................................35
Return Material Authorization (RMA)............................35
Damaged Parts..................................................................36
Product Information
Attached Cable Crossover (PP-ACO).............................37
Free Standing Cable Crossover (PP-ACOFS)...............39
Dip/Chin Assist (PP-ADC).................................................41
Adjustable Cable Column (PP-AP)................................43
Adjustable Pulley 4:1 (PP-AP41).....................................45
Embedded Cable Crossover (PP-AXO).........................47
Blank Shroud (PP-BLNKSHRD)......................................49
Cable Crossover Connector (PP-BM)............................50
Boxing (PP-BX)...................................................................51
Core (PP-CORE).................................................................53
Dip (PP-DIP).......................................................................54
Dual Pulley High (PP-DPH)..............................................55
Dual Pulley Low (PP-DPL)...............................................57
Attached High Low Crossover (PP-FCO)......................59
Embedded High Low Crossover (PP-FXO)...................61
Handle Accessory Rack (PP-HAR)..................................63
High Low (PP-HL)..............................................................64
Lat Pull (PP-LP)..................................................................66
Dual Handle Lat Pull (PP-LPD).......................................68
Power Pivot (PP-PP).........................................................70
Rope Pull - Power Pivot (PP-RP)....................................72
Rope Pull (PP-RPL)...........................................................74
Low Row (PP-RW).............................................................76
Dual Handle Low Row (PP-RWD)...................................78
Stall Bars (PP-SB)..............................................................80
Storage Station (PP-SC)..................................................82
Step (PP-STP)....................................................................83
Storage Connector (PP-SX).............................................84
Triceps Pushdown (PP-TP).............................................85
Recommended Live Area Details...................................87
Example of Product Live Area........................................88
Maintenance Procedures
Maintenance Schedule....................................................89
Clean...................................................................................89
Wax......................................................................................89
Inspect.................................................................................89
Lubricate.............................................................................90
Once a Day.........................................................................90
Once a Week......................................................................90
Once a Month....................................................................90
Notes...................................................................................90
Cleaning the Shrouds.......................................................90
Minimize Scratches...........................................................90
Approved Cleaners...........................................................91
Compatible Cleaners.......................................................91
Remove of Paint, Marking Pen, and Labels.................91
Important Hazards...........................................................91
Warranty
What is Covered................................................................92
Who is Covered..................................................................92
Who Pays Transportation and Insurance For
Service...........................................................................92
What We Will Do To Correct Covered Defects.............92
What is Not Covered.........................................................92
Owners Manual.................................................................92
Exclusive Warranty...........................................................92
Changes in Warranty Not Authorized...........................93
Effects of State Laws........................................................93
Our Pledge To You............................................................93
Warranty Coverage...........................................................93
Cybex®and the Cybex logo are registered trademarks of Cybex International, Inc.
DISCLAIMER: Cybex International, Inc. makesno representationsor warranties regarding the contentsof thismanual. We reserve the rightto revisethis document
at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
©
Copyright 2017, Cybex International, Inc.
Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893
www.cybexintl.com • 1005632-0001 AA • May 2017
Page 3 of 94
Safety
Safety Information
It is the sole responsibility of the purchaser of CYBEX INTERNATIONAL INC. products to read the owner’s manual
and warning labels and instruct all individuals, whether they are the end user or supervising personnel, on proper
usage of the equipment.
UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. IF ANY OF THESE WARNINGS ARE
UNCLEAR, CONTACT CYBEX INTERNATIONAL INC. CUSTOMER SERVICE IMMEDIATELY AT 1-800-351-3737.
This equipmentiscategorized as class Sper EN ISO 20957-1. Assuch this equipment isonlyintended for commercial,
institutional and/or studio facilities. It is not intendedforhomeuse. Contact CYBEX INTERNATIONAL INC. with any
questions regarding this classification.
It is recommended that all users of CYBEX INTERNATIONAL INC. exercise equipment be informed of the following
information prior to use.
Access Control
CYBEX INTERNATIONAL INC. recommends that all commercial fitness equipment be used in a supervised area. It
is recommended that the equipment be located in an access controlled area. Control is the responsibility of the
facility owner.
Installation
SECURING EQUIPMENT - CYBEX INTERNATIONAL INC. requires that all equipment be secured to a solid, level
surface to stabilize it and eliminate rocking or tipping over. This must be performed by a licensed contractor. See
Bolt to Floor Guidelines for installation procedure.
Proper Usage
• Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative
that CYBEX INTERNATIONAL INC. equipment is used properly to avoid injury.
• Injuries may result if exercising improperly or excessively. It is recommended that all individuals consult a
physician prior to commencing an exercise program. If at any time during exercise you feel faint, dizzy or
experience pain, STOP EXERCISING and consult your physician.
• Keep body parts (hands, feet, hair, etc.), clothing and jewelry away from moving parts to avoid injury.
• When adjusting any seat, knee hold down pad, range of motion limiter, foothold pad, pulley or any other type
of adjuster, make certain that the adjusting pin is fully engaged in the hole to avoid injury.
Inspection
• DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all CYBEX
INTERNATIONAL INC. equipment use only replacement parts supplied by CYBEX INTERNATIONAL INC..
• Cables and belts pose an extreme liability if used when frayed. Always replace any cable at first sign of wear
(consult CYBEX INTERNATIONAL INC. if uncertain).
• Routinely inspect all accessory clips that join attachments to the cables and replace them at the first sign of
wear.
• MAINTAIN LABELSAND NAME PLATES -Donot remove labelsforany reason. They containimportant information.
If unreadable or missing, contact CYBEX INTERNATIONAL INC. for a replacement.
• EQUIPMENT MAINTENANCE - Preventative maintenance is the key to smooth operating equipment as well as
to keep your liability to a minimum. Equipment needs to be inspected at regular intervals.
Page 4 of 94
• Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to
do so. CYBEX INTERNATIONAL INC. willprovide service and maintenance training at our corporate facility upon
request or in the field if proper arrangements are made.
• Before any use, examine all accessories approved for use with the CYBEX INTERNATIONAL INC. equipment for
damage or wear.
• DO NOT ATTEMPT TO USE OR REPAIR ANY ACCESSORY APPROVED FOR USE WITH THE CYBEX INTERNATIONAL
INC. EQUIPMENT WHICH APPEARS TO BE DAMAGED OR WORN.
Operating Warnings
• It is the purchaser’s sole responsibility to properly instruct its end users and supervising personnel as to the
proper operating procedures of all equipment.
• Keep children away from strength equipment. Parents or others supervising children must provide close
supervision of children if the equipment is used in the presence of children.
• Do not allow users to wear loose fitting clothing or jewelry while using equipment. It is also recommended to
have users secure long hair back and up to avoid contact with moving parts.
• All bystanders must stay clear of all users, moving parts and attached accessories and components while
machine is in operation.
• Health and Environmental Regulations Warning - This product may contain chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm. For more information related to the
European Commission Regulation(EC) No. 1907/2006 (REACH) andtheCalifornia Safe Drinking Water andToxic
Enforcement Act of 1986 (Proposition 65), please visit
https://www.lftechsupport.com/web/guest/environmental-regulations-information.
Selectorized Weight Stack Systems
• Use only weight selector pins supplied by CYBEX INTERNATIONAL INC. on weight stacks. Substitutes are
forbidden.
• Fully insert weight selector pins. Partial insertion can cause weights to fall unexpectedly.
• Never pin the weight stack in an elevated position.
• Never remove selector pin if any weights are suspended.
• Never attempt to release jammed weights or parts.
• Never use dumbbells or other means to incrementally increase the weight resistance. Use only those means
provided by CYBEX INTERNATIONAL INC..
Warnings and Cautions
Warning labelsindicatea potentially hazardous situationthat could result in seriousinjury or death iftheprecautions
are not observed.
Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to machine
if the precautions are not observed.
Contact Cybex Customer Service to replace any worn or damaged labels.
Page 5 of 94
Product Labels
Serial Number LabelBody Weight Strap Training LabelGeneral Warning Label
Weight Stack Label
Carriage Label
Pinch Hazard Label
Power Pivot Label
Page 6 of 94
Label Locations
Attached Cable Crossover (PP-ACO)
Page 7 of 94
QtyDescription
4Pinch Hazard Label1
2Carriage Label2
2Weight At Handle Label3
1Serial Number Label4
2Body Weight Strap Training Label5
1General Warning Label6
2Placard7
Free Standing Cable Crossover (PP-ACOFS)
Page 8 of 94
QtyDescription
4Body Weight Strap Training Label1
2Carriage Label2
4Pinch Hazard Label3
2Weight At Handle Label4
2General Warning Label5
1Serial Number Label6
2Placard7
Dip/Chin Assist (PP-ADC)
QtyDescription
1Serial Number Label1
1Placard2
Page 9 of 94
Adjustable Cable Column (PP-AP)
Page 10 of 94
QtyDescription
1Pinch Hazard Label1
1Carriage Label2
1Weight At Handle Label3
1Serial Number Label4
1Placard5
Adjustable Pulley 4:1 (PP-AP41)
Page 11 of 94
QtyDescription
1Pinch Hazard Label1
1Carriage Label2
1Weight At Handle Label3
1Serial Number Label4
1Placard5
Embedded Cable Crossover (PP-AXO)
Page 12 of 94
QtyDescription
4Pinch Hazard Label1
2Carriage Label2
2Weight At Handle Label3
1Serial Number Label4
2Placard5
Crossover Boom (PP-BM)
Page 13 of 94
QtyDescription
1Serial Number Label1
Boxing (PP-BX)
Page 14 of 94
QtyDescription
1Serial Number Label1
1Placard2
Core (PP-CORE)
Page 15 of 94
QtyDescription
1General Warning Label1
4Body Weight Strap Training Label2
1Serial Number Label3
Dip (PP-DIP)
Page 16 of 94
QtyDescription
1Serial Number Label1
Dual Pulley High (PP-DPH)
Page 17 of 94
QtyDescription
1Serial Number Label1
1Weight At Handle Label2
1Placard3
Dual Pulley Low (PP-DPL)
Page 18 of 94
QtyDescription
1Weight At Handle Label1
1Serial Number Label2
1Placard3
Attached High Low Crossover (PP-FCO)
Page 19 of 94
QtyDescription
2Weight At Handle Label1
1Serial Number Label2
2Body Weight Strap Training Label3
1General Warning Label4
2Placard5
Embedded High Low Crossover (PP-FXO)
Page 20 of 94
QtyDescription
2Weight At Handle Label1
1Serial Number Label2
2Placard3
Handle Accessory Rack (PP-HAR)
Page 21 of 94
QtyDescription
1Serial Number Label1
High Low (PP-HL)
Page 22 of 94
QtyDescription
1Weight At Handle Label1
1Serial Number Label2
1Placard3
Lat Pull (PP-LP)
Page 23 of 94
QtyDescription
1Pinch Hazard Label1
1Serial Number Label2
1Placard3
Dual Handle Lat Pull (PP-LPD)
Page 24 of 94
QtyDescription
1Weight At Handle Label1
1Pinch Hazard Label2
1Serial Number Label3
1Placard4
Power Pivot (PP-PP)
Page 25 of 94
QtyDescription
1Serial Number Label1
1Power Pivot Label2
1Placard3
Rope Pull - Power Pivot (PP-RP)
Page 26 of 94
QtyDescription
1Power Pivot Label1
1Serial Number Label2
1Placard3
Rope Pull (PP-RPL)
Page 27 of 94
QtyDescription
1Serial Number Label1
1Placard2
Low Row (PP-RW)
Page 28 of 94
QtyDescription
1Serial Number Label1
1Placard2
Dual Handle Low Row (PP-RWD)
Page 29 of 94
QtyDescription
1Weight At Handle Label1
1Serial Number Label2
1Placard3
Stall Bars (PP-SB)
Page 30 of 94
QtyDescription
1Serial Number Label1
1Placard2
Storage Station (PP-SC)
Page 31 of 94
QtyDescription
1Serial Number Label1
Step (PP-STP)
Page 32 of 94
QtyDescription
1Serial Number Label1
Storage Connector (PP-SX)
Page 33 of 94
QtyDescription
1Serial Number Label1
Triceps Pushdown (PP-TP)
Page 34 of 94
QtyDescription
1Serial Number Label1
1Placard2
Customer Service
Product Registration
To register product do the following:.
1. Visit www.cybexintl.com.
2. Locate Product Registration in the Support section.
3. Fill out form completely.
4. Click the Submit button to register product.
Ordering Parts
To order parts online go to www.cybexintl.com.
To speak with a customer service representative, call 800-351-3737 (for customers living within the USA) or
847-288-3700 (for customers outside the USA).
The following information located on the serial number decal will assist our Cybex representatives in serving you.
• Unit Serial Number, Product Name and Model Number
• Part Description and Part Number if you have it. All parts can be found on the web at www.cybexintl.com
• Shipping Address
• Contact Name
• Include a description of the problem.
In addition to your shippingaddress and contact name, your account number is helpful butnotrequired. You may
also fax orders to 800-216-8893.
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system is used when returning material for placement, repair or credit.
The system assures that returned materials are properly handled and analyzed. Follow the following procedures
carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA
from Cybex,if applicable. Under nocircumstanceswill defective partsorequipment be acceptedbyCybex without
proper RMA and an Automated Return Service (ARS) label.
Please contact Cybex Customer Service for the return of any item that is defective.
Provide the technician with adetaileddescription of the problem you are having or the defect intheitem you wish
to return. Provide the model and serial number of your Cybex equipment.
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and
repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label
and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be
returned. Include the description of the problem, the serial number of the equipment and the name and address
of the owner in the package along with the part(s).
Merchandise returned without an RMA number on the outside of the package or shipments sent COD will not be
accepted by the Cybex receiving department.
Page 35 of 94
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the
carrier (UPS, Federal Express, trucking companies, etc.)
Apparent Damage
Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on
the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers refusal to honor your
damage claim. The carrier will provide you with the required forms for filing such claims.
Concealed Damage
Damage not seen with a visual check upon receipt of a shipment but notices later must be reported to the carrier
as soon as possible. Upon discovery of the damage, a written or phone request to the carrier asking them to
perform an inspection of the materials must be made within ten days of the delivery date. Keep all shipping
containers and packing materials as they will be needed in the inspection process. The carrier will provide you
with an inspection report and the necessary forms for filing a concealed damage claim. Concealed damage claim
is the carrier’s responsibility.
Page 36 of 94
Product Information
Attached Cable Crossover (PP-ACO)
Product Specifications
Product Dimensions
MeasurementDescription
720 lbs/326.6 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
190 lbs/95 kgWeight Stack (per weight stack):
95 lbs/47.5 kgEffective User Resistance (at the handle):
Page 37 of 94
Placard
Page 38 of 94
Free Standing Cable Crossover (PP-ACOFS)
Product Specifications
Product Dimensions
MeasurementDescription
980 lbs/444.5 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
190 lbs/95 kgWeight Stack (per weight stack):
95 lbs/47.5 kgEffective User Resistance (at the handle):
Page 39 of 94
Placard
Page 40 of 94
Dip/Chin Assist (PP-ADC)
Product Specifications
Product Dimensions
MeasurementDescription
610 lbs/291 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
290 lbs/145 kgWeight Stack:
118.75 lbs/59.38 kgEffective User Resistance:
Page 41 of 94
Placard
Page 42 of 94
Adjustable Cable Column (PP-AP)
Product Specifications
Product Dimensions
MeasurementDescription
260 lbs/117.9 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
190 lbs/95 kgWeight Stack:
95 lbs/47.5 kgEffective User Resistance:
Page 43 of 94
Placard
Page 44 of 94

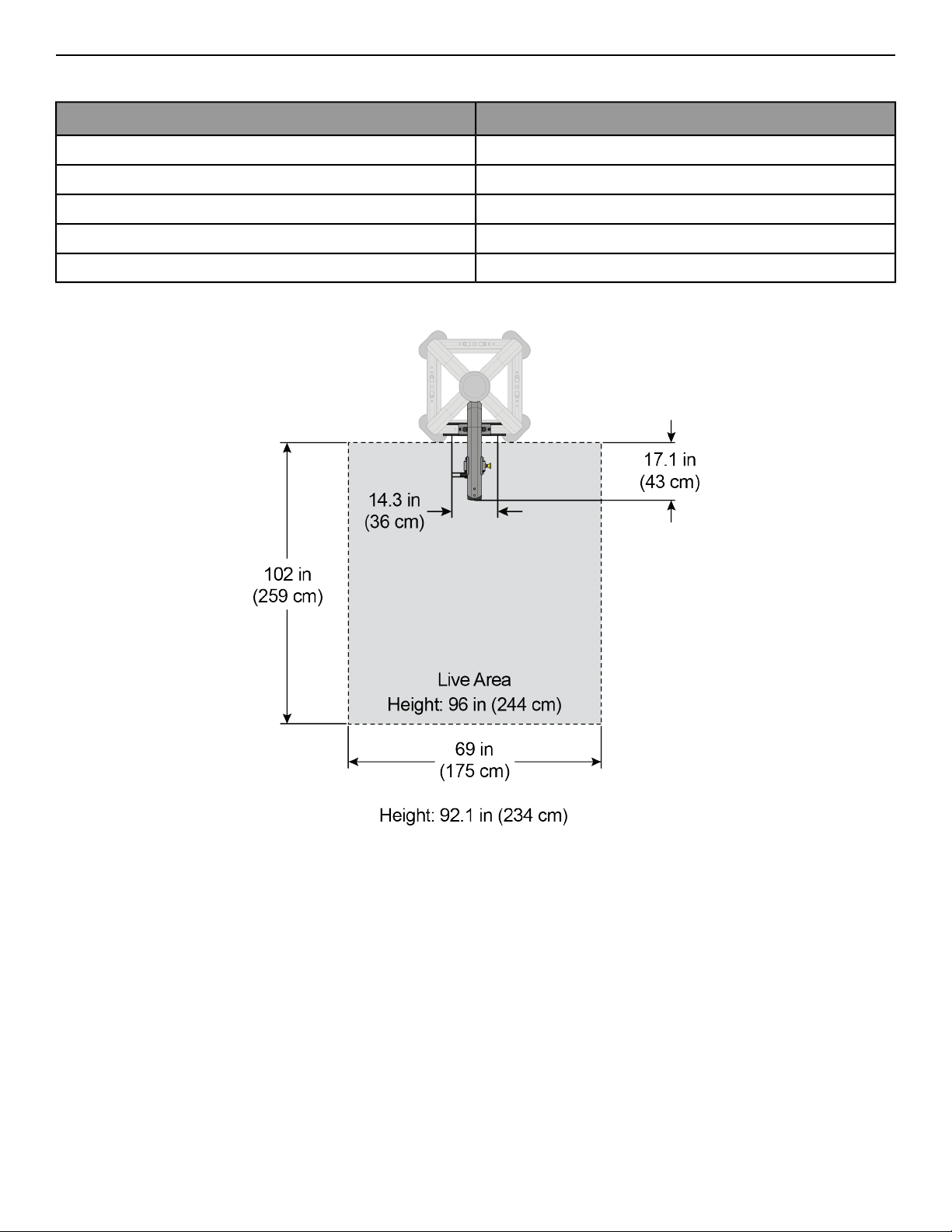

Adjustable Pulley 4:1 (PP-AP41)
Product Specifications
Product Dimensions
MeasurementDescription
460 lbs/208.7 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
4:1Resistance Ratio:
390 lbs/195 kgWeight Stack:
97.5 lbs/48.75 kgEffective User Resistance:
Page 45 of 94
Placard
Page 46 of 94
Embedded Cable Crossover (PP-AXO)
Product Specifications
Product Dimensions
MeasurementDescription
600 lbs/272.2 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
190 lbs/95 kgWeight Stack (per weight stack):
95 lbs/47.5 kgEffective User Resistance (at the handle):
Page 47 of 94
Placard
Page 48 of 94
Blank Shroud (PP-BLNKSHRD)
Product Specifications
MeasurementDescription
15 lbs/6.8 kgMachine Weight:
Page 49 of 94
Cable Crossover Connector (PP-BM)
Product Specifications
Cable Crossover Connector - Short
Cable Crossover Connector - Medium
Cable Crossover Connector - Long
Product Dimensions
MeasurementDescription
300 lbs/136 kgMaximum User Weight:
56 lbs/25.4 kgMachine Weight:
60 lbs/27.2 kgMachine Weight:
64.5 lbs/29.3 kgMachine Weight:
Page 50 of 94
Boxing (PP-BX)
Product Specifications
Product Dimensions
MeasurementDescription
70 lbs/31.8 kgMachine Weight:
Page 51 of 94
Placard
Page 52 of 94

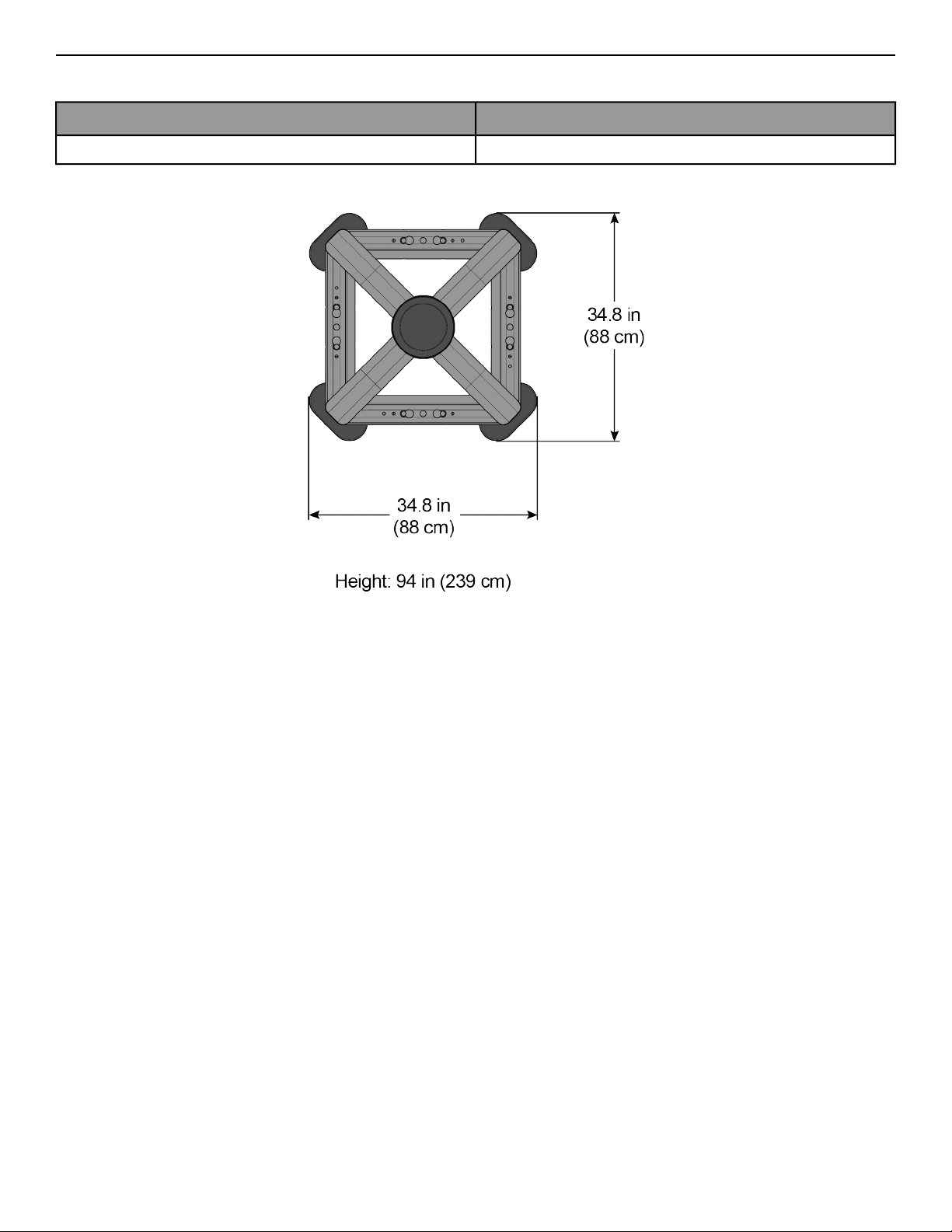

Core (PP-CORE)
Product Specifications
Product Dimensions
MeasurementDescription
225 lbs/102.1 kgMachine Weight:
Page 53 of 94
Dip (PP-DIP)
Product Specifications
Product Dimensions
MeasurementDescription
27 lbs/12.2 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
Page 54 of 94
Dual Pulley High (PP-DPH)
Product Specifications
Product Dimensions
MeasurementDescription
430 lbs/195 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
4:1Resistance Ratio:
290 lbs/145 kgWeight Stack:
72.5 lbs/36.25 kgEffective User Resistance (per handle):
Page 55 of 94
Placard
Page 56 of 94
Dual Pulley Low (PP-DPL)
Product Specifications
Product Dimensions
MeasurementDescription
435 lbs/197.3 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
4:1Resistance Ratio:
290 lbs/145 kgWeight Stack:
72.5 lbs/36.25 kgEffective User Resistance (per handle):
Page 57 of 94
Placard
Page 58 of 94
Attached High Low Crossover (PP-FCO)
Product Specifications
Product Dimensions
MeasurementDescription
650 lbs/294.8 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
190 lbs/95 kgWeight Stack (per weight stack):
95 lbs/47.5 kgEffective User Resistance (at the handle):
Page 59 of 94
Placard
Page 60 of 94
Embedded High Low Crossover (PP-FXO)
Product Specifications
Product Dimensions
MeasurementDescription
530 lbs/240.4 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
190 lbs/95 kgWeight Stack (per weight stack):
95 lbs/47.5 kgEffective User Resistance (at the handle):
Page 61 of 94
Placard
Page 62 of 94
Handle Accessory Rack (PP-HAR)
Product Specifications
Product Dimensions
MeasurementDescription
31 lbs/14.1 kgMachine Weight:
Page 63 of 94
High Low (PP-HL)
Product Specifications
Product Dimensions
MeasurementDescription
260 lbs/117.9 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
190 lbs/95 kgWeight Stack:
95 lbs/47.5 kgEffective User Resistance:
Page 64 of 94

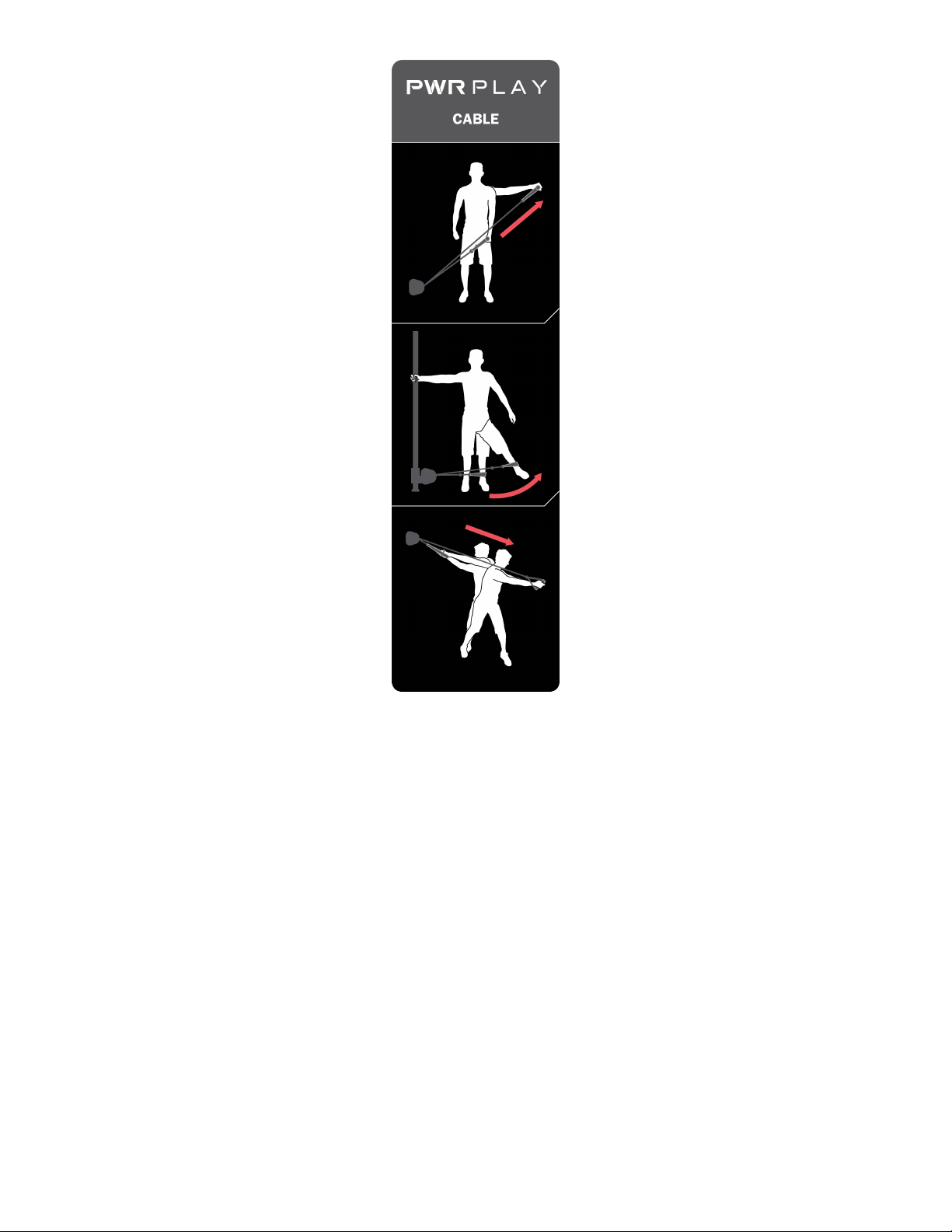

Placard
Page 65 of 94
Lat Pull (PP-LP)
Product Specifications
Product Dimensions
MeasurementDescription
340 lbs/154.2 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:1Resistance Ratio:
260 lbs/130 kgWeight Stack:
260 lbs/130 kgEffective User Resistance:
Page 66 of 94
Placard
Page 67 of 94
Dual Handle Lat Pull (PP-LPD)
Product Specifications
Product Dimensions
MeasurementDescription
340 lbs/154.2 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
260 lbs/130 kgWeight Stack:
130 lbs/65 kgEffective User Resistance (per handle):
Note: *Width with the Strap Handles only and without the Lat Bar
Page 68 of 94
Placard
Page 69 of 94
Power Pivot (PP-PP)
Product Specifications
Product Dimensions
MeasurementDescription
80 lbs/36.3 kgMachine Weight:
Page 70 of 94
Placard
Page 71 of 94
Rope Pull - Power Pivot (PP-RP)
Product Specifications
Product Dimensions
MeasurementDescription
179 lbs/81.2 kgMachine Weight:
Page 72 of 94
Placard
Page 73 of 94
Rope Pull (PP-RPL)
Product Specifications
Product Dimensions
MeasurementDescription
99 lbs/44.9 kgMachine Weight:
Page 74 of 94
Placard
Page 75 of 94
Low Row (PP-RW)
Product Specifications
Product Dimensions
MeasurementDescription
360 lbs/163.3 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:1Resistance Ratio:
260 lbs/130 kgWeight Stack:
260 lbs/130 kgEffective User Resistance:
Page 76 of 94
Placard
Page 77 of 94
Dual Handle Low Row (PP-RWD)
Product Specifications
Product Dimensions
MeasurementDescription
360 lbs/163.3 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:2Resistance Ratio:
260 lbs/130 kgWeight Stack:
130 lbs/65 kgEffective User Resistance (per handle):
Page 78 of 94
Placard
Page 79 of 94
Stall Bars (PP-SB)
Product Specifications
Product Dimensions
MeasurementDescription
100 lbs/45.4 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
Page 80 of 94
Placard
Page 81 of 94

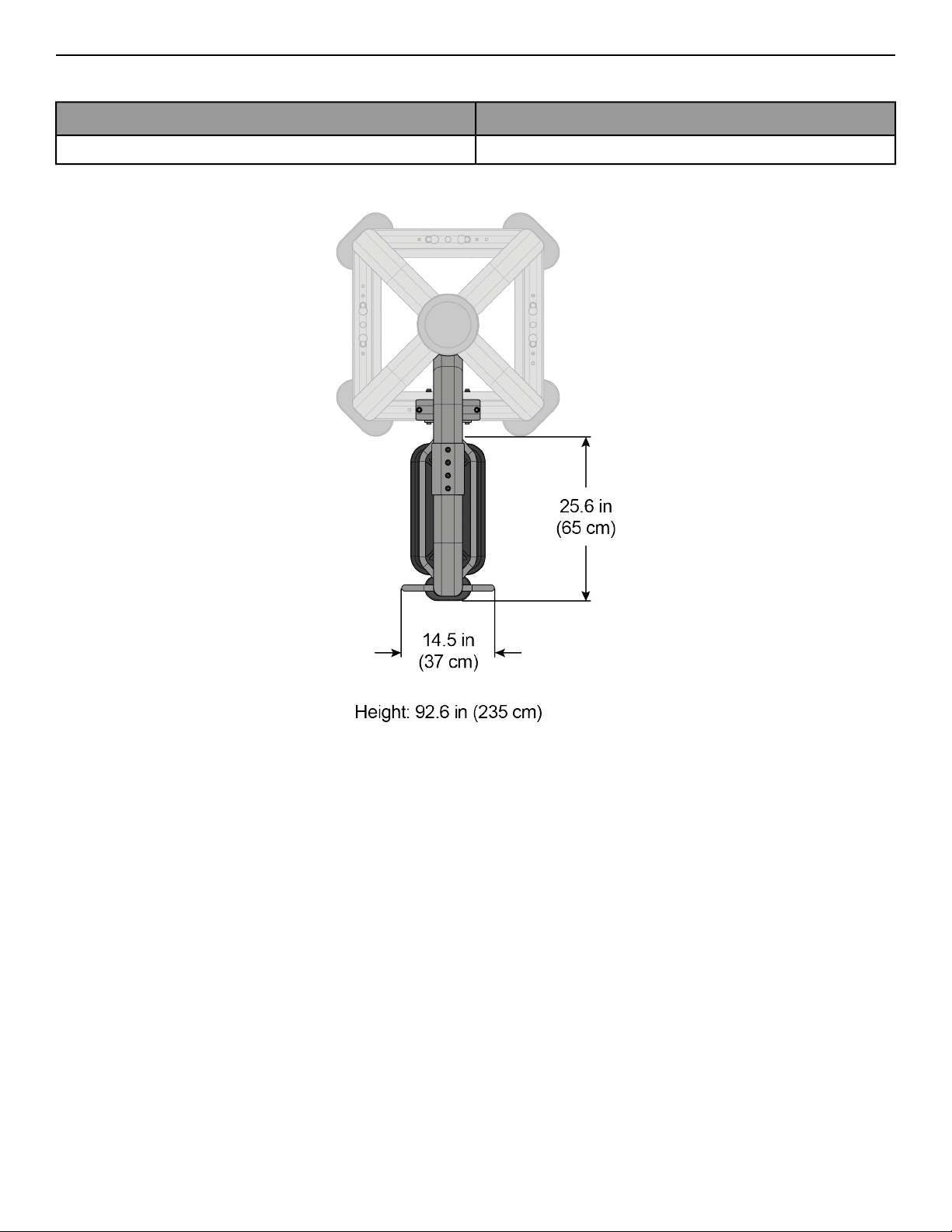

Storage Station (PP-SC)
Product Specifications
Product Dimensions
MeasurementDescription
189 lbs/85.7 kgMachine Weight:
Page 82 of 94
Step (PP-STP)
Product Specifications
Product Dimensions
MeasurementDescription
50 lbs/22.7 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
Page 83 of 94
Storage Connector (PP-SX)
Product Specifications
Product Dimensions
MeasurementDescription
164 lbs/74.4 kgMachine Weight:
Page 84 of 94

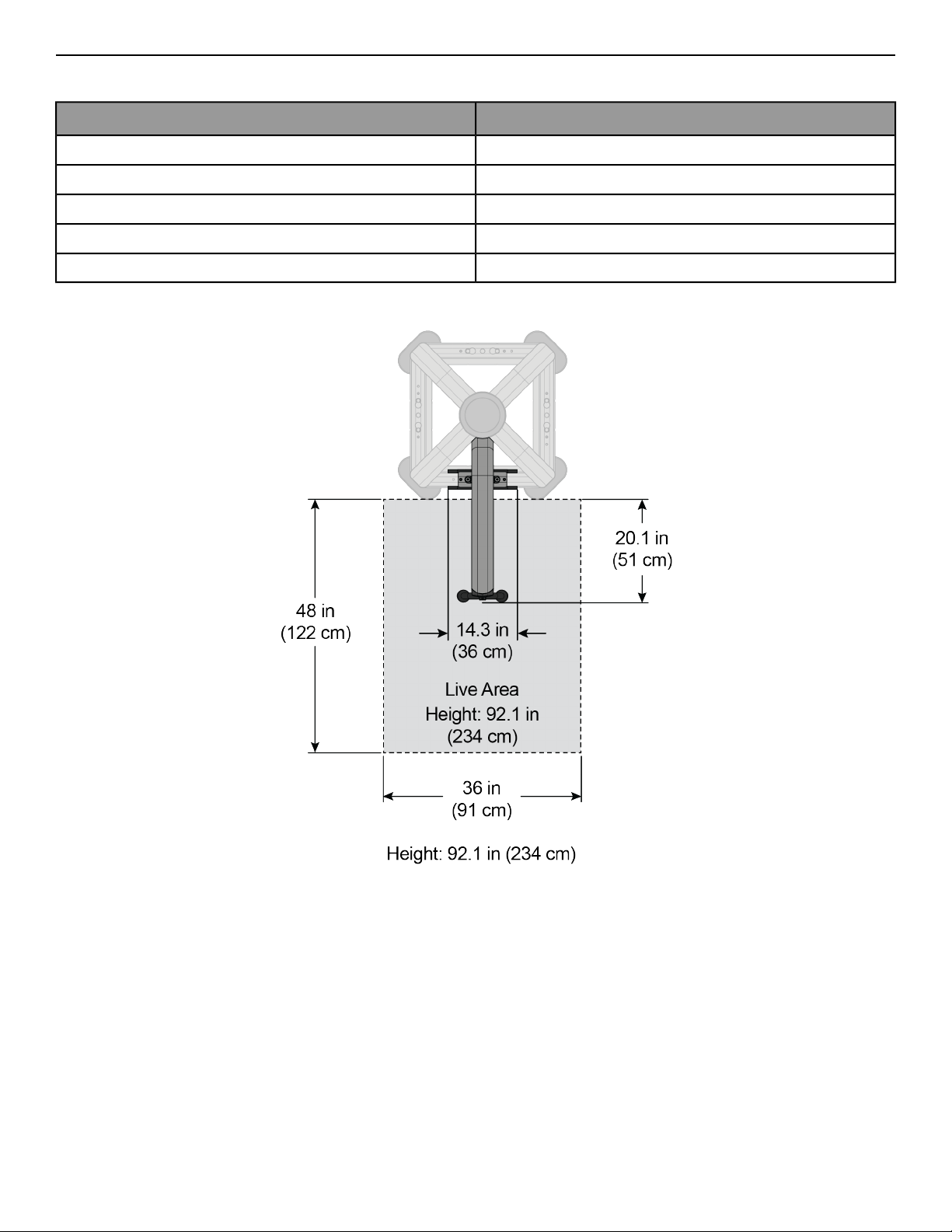

Triceps Pushdown (PP-TP)
Product Specifications
Product Dimensions
MeasurementDescription
225 lbs/102.1 kgMachine Weight:
300 lbs/136 kgMaximum User Weight:
1:1Resistance Ratio:
190 lbs/95 kgWeight Stack:
190 lbs/95 kgEffective User Resistance:
Page 85 of 94
Placard
Page 86 of 94
Recommended Live Area Details
Zone #1
• Boxing
• Rock Chin
• Stall Bar
• Suspension Chin
• Step & Dip
Zone #2
• Power Pivot
• Rope Pull
• Stall Bar with TRX Suspension Trainer
• Suspension Chin with TRX Suspension Trainer
• Cable
• Elastic Bands
Zone #3
• Battle Rope
Page 87 of 94
Example of Product Live Area
Functional Four Station
Page 88 of 94
Maintenance Schedule
CLEAN
Maintenance Procedures
AS NEEDEDMONTHLYWEEKLYDAILYACTION
Upholstery
WAX
INSPECT
LUBRICATE
X
XGuide Rods
XShrouds
XHand Grips
XFrames
XPaint
XCable
XHardware
XFrame
XHand Grips
XShrouds
XGuide Rods
Clean
1. Upholstery with an approved or compatible cleaner.
2. Guide Rods with a cotton cloth.
3. Hand Grips with an approved or compatible cleaner.
Wax
Frames with a standard, non-abrasive, wax finish.
Inspect
1. Cables. Look for wear or damage and proper tension. Pay close attention at bends and attachment points.
2. Hardware. Check for loosening. Tighten as required.
3. Frames. Inspect for wear and damage.
4. Handgrips. Check for wear and damage.
5. For paint chips. Fill in immediately with CYBEX INTERNATIONAL INC. touch-up paint.
6. Jam Nut at top of weight stack for tightness.
Page 89 of 94
Lubricate
Lubricate guide rods with Break-Free® brand lubricant (part number SK50-P0005-0000). Apply the lubricant to a
cotton cloth, and then run the cotton cloth up and down the guide rods as needed.
Note: Only a few drops of lubricant are required for each guide rod.
Once a Day
1. Wipe down upholstery with a mild soap and water or comparable all purpose cleaner.
2. Visually inspect cables for wear at and around connections and along the entire length of the cable. Always
replace at first sign of wear.
Once a Week
1. Visually inspect all hardware for loosening, tampering or wear.
2. Check Jam Nut at top of weight stack for tightness.
3. Inspect all accessories, connecting links, and carabiner clips for wear.
4. Check condition of hand grips.
5. Check cables for stretch and adjust as necessary by loosening the large Jam Nut on top of the weight stack
and by screwing in the Threaded Plug until cable is tight and the weight stack pin goes in all holes easily.
Securely tighten the large Jam Nut when finished.
6. Inspect Shrouds for damage and clean as necessary.
Once a Month
1. Clean Guide Rods with Break-Free® brand lubricant (part number SK50-P0005-0000). Clean tops of bearings
at stack andinspect for heavy buildup on rodsbelow the head plate. Lift halfof stack and do a visualinspection,
then clean as necessary.
2. Inspect hardware on all machines and tighten any bolts or nuts that may have loosened over the life of the
product.
Notes
Use polishing compound (such as car wax) and remove shoe scuffs from powder coated surfaces as necessary.
Cleaning the Shrouds
Adherence to regular and proper cleaning procedures is recommended to preserve the appearance.
Note: Spray the approved cleaner on a towel, and then wipe down the shrouds to avoid saturation of
shroud inlays.
Minimize Scratches
Wash the shrouds with an approved or compatible cleaner. Do not scrub brushes on the shrouds. Fresh paint
splashes, grease and smeared glazing compounds can be removed easily before drying by rubbing lightly with
isopropyl alcohol. Afterward, a warm final wash should be made.
Page 90 of 94
Approved Cleaners
(United States Availability Only)
Two preferred cleaners have been approved by CYBEX INTERNATIONAL INC. reliability experts: PureGreen 24 and
Gym Wipes. Both cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24
and theAntibacterial Force formula ofGym Wipes are bothdisinfectants that are effectiveagainst MRSA and H1N1.
PureGreen 24 is available in a spray which is convenient for gym staff to use. Apply the spray to a microfiber cloth
and wipe down the equipment. Use PureGreen 24 on the equipment for at least 2 minutes for general disinfection
purposes and at least 10 minutes for fungus and viral control.
Gym Wipes are large, durable pre-moistened wipes to use on the equipment before and after workouts. Use Gym
Wipes on the equipment for at least 2 minutes for general disinfection purposes.
Contact Customer Support Services to order these cleaners (1-888-462-9239 or email: www.cybexintl.com).
Compatible Cleaners
Mild soap andwater or a mild non-abrasive householdcleaner can also be used toclean the display and all exterior
surfaces. Use a soft microfiber cloth only. Apply the cleaner to the microfiber cloth before cleaning. DO NOT use
ammonia oracid based cleaners. DONOT use abrasivecleaners. DO NOT usepaper towels. DONOT apply cleaners
directly to the equipment surfaces.
Remove of Paint, Marking Pen, and Labels
Butyl cellosolve works well for removal of paints, marking pen inks, lipstick, etc.
Labels, stickers, etc. may be removed using kerosene. When the solvent will not penetrate sticker material, apply
heat (hair dryer) to soften the adhesive and promote removal. GASOLINE SHOULD NOT BE USED.
Important Hazards
• DO NOT use abrasive or highly alkaline cleaners on the shrouds.
• NEVER scrape shrouds with squeegees, razor blades or other sharp instruments.
• DO NOT clean shrouds in hot sun or at elevated temperatures.
• NEVER use benzene, gasoline, acetone or carbon tetrachloride on the shrouds.
• Manufacturer recommends that cables be inspected daily after installation and replaced annually.
Page 91 of 94
Warranty
What is Covered
This CYBEX INTERNATIONAL INC. commercial exercise equipment is warranted to be free of all defects in material
and workmanship.
Who is Covered
The original purchaser or any person receiving the product as a gift from the original purchaser.
Who Pays Transportation and Insurance For Service
If the Product or any covered part must be returned to a service facility for repairs, We, Cybex International, Inc.,
will pay all transportation and insurance charges for the first year. You are responsible for transportation and
insurance charge after the first year.
What We Will Do To Correct Covered Defects
We will ship to you any new or rebuilt replacement part or component, or at our option, replace the Product. Such
replacement parts are warranted for the remaining portion of the original warranty period.
What is Not Covered
Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or
installation, debris resulting from any construction activities in the Product’s environment, rust or corrosion as a
result of the Product’s location, alterations or modifications without our written authorization, or by failure on
your part to use, operate and maintain the Product as set out in your Operation Manual.
All terms of this warranty are void if this product is moved beyond the continental borders of the United States of
America (excluding Alaska, Hawaii and Canada) and are then subject to the terms provided by that country’s
local authorizedCybex International, Inc. representative.
Owners Manual
It is VERY IMPORTANT THAT YOU READ THIS MANUAL before operating the Product. Remember to perform the
periodic maintenance requirements specified in the Manual to assure proper operation and your continued
satisfaction.
Exclusive Warranty
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND EITHER EXPRESSED OR IMPLIED,
INCLUDING BUTNOT LIMITED TOTHE IMPLIED WARRANTIESOF MERCHANTABILITYANDFITNESS FORAPARTICULAR
PURPOSE, AND ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART. We neither assume nor authorize any
person to assureforus any other obligation or liabilityconcerning the sale of this Product. Underno circumstances
shall we be liable under this warranty, or otherwise, of any damage to any person or property, including any lost
profits or lost savings, for any special, indirect, secondary, incidental or consequential damages of any nature
arising out of the use of or inability to use this Product. Some states do not allow the exclusion or limitation of
implied warranties or of liability for incidental or consequential damages, so the above limitations or exclusions
may not apply to you. Warranty coverages and terms may differ outside the United States. Please contact the
Cybex International, Inc. office servicing your country (contact information found at the front of this manual) or
visit the applicable local Cybex International, Inc. website to receive the specific warranty information for your
country.
Page 92 of 94
Changes in Warranty Not Authorized
No one is authorized to change, modify or extend the terms of this limited warranty.
Effects of State Laws
This warranty gives you specific legal rights, and you may have other rights which vary from state to state and
country by country.
Our Pledge To You
Our Products are designed and manufactured to the highest standards. We want you to be completely satisfied
with our Products and will do everything possible under the terms of this warranty to keep you secure in knowing
you have bought the best!
Warranty Coverage
Note: There is no warranty coverage for labor on Strength Products.
90 Days1 Year5 Years10 YearsItem
XFrame
XPillow Blocks
XPulleys
XWeight Plates
XGuide Rods
XCables
XGrips
XBearings
XBelts / Springs
XUpholstery
XHardware / Mechanical
XItems Not Specified
Page 93 of 94
Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893
www.cybexintl.com
Loading...
