CAT25C32/64

32K/64K-Bit SPI Serial CMOS E2PROM
FEATURES

■ 10 MHz SPI Compatible

■ 1.8 to 6.0 Volt Operation

■ Hardware and Software Protection

■ Zero Standby Current

■ Low Power CMOS Technology

■ SPI Modes (0,0 &1,1)

■ Commercial, Industrial and Automotive

Temperature Ranges

■ 1,000,000 Program/Erase Cycles

■ 100 Year Data Retention

■ Self-Timed Write Cycle

■ 8-Pin DIP/SOIC, 16-Pin SOIC, 14-Pin TSSOPand

20-Pin TSSOP

■ 64-Byte Page Write Buffer

■ Block Write Protection

– Protect 1/4, 1/2 or all of E2PROM Array

PIN CONFIGURATION

PIN FUNCTIONS

Pin Name Function

SO Serial Data Output
SCK Serial Clock

WP Write Protect
V

CC

+1.8V to +6.0V Power Supply

V

SS

Ground
CS Chip Select
SI Serial Data Input
HOLD Suspends Serial Input

NC No Connect

BLOCK DIAGRAM

© 1999 by Catalyst Semiconductor, Inc.
Characteristics subject to change without notice

Advanced Information

DESCRIPTION

The CAT25C32/64 is a 32K/64K-Bit SPI Serial CMOS
E2PROM internally organized as 4Kx8/8Kx8 bits.
Catalyst’s advanced CMOS Technology substantially
reduces device power requirements. The CAT25C32/
64 features a 64-byte page write buffer. The device
operates via the SPI bus serial interface and is enabled
though a Chip Select (CS). In addition to the Chip Select,
the clock input (SCK), data in (SI) and data out (SO) are

required to access the device. The HOLD pin may be
used to suspend any serial communication without
resetting the serial sequence. The CAT25C32/64 is
designed with software and hardware write protection
features including Block write protection. The device is
available in 8-pin DIP, 8-pin SOIC, 14-pin TSSOP and
20-pin TSSOP packages.

Doc No. 25087-00 8/99 SPI-1

DIP Package (P)

TSSOP Package (U20)SOIC Package (S)

SENSE AMPS

SHIFT REGISTERS

SPI

CONTROL

LOGIC

WORD ADDRESS

BUFFERS

I/O

CONTROL

E2PROM

ARRAY

COLUMN

DECODERS

XDEC

HIGH VOL T A GE/

TIMING CONTROL

SO

STATUS

REGISTER

BLOCK

PROTECT

LOGIC

CONTROL LOGIC

DATA IN

STORAGE

SI

CS

WP

HOLD

SCK

SO

WP

CS

V

CC
HOLD
SCK

SI

1
2
3
4

8
7
6
5

V

SS

V

SS

SO

WP

V

CC

HOLD
SCK
SI

1
2
3
4

8
7
6
5

CS

NC

NC

CS

WP

HOLD

HOLD

VCC

NC
NC

NC

NC

NC
NC

SO

NC

NC

SO

V

SS

SCK
SI

1
2
3
4

5
6
7
8

9
10 11

12

13

14

15

16

17

18

19

20

TSSOP Package (U14)

CS

WP

HOLD

VCC
NC

NC

NC NC

SO

NC

NC

V

SS

SCK
SI

1
2
3
4

5
6
7

8

9

10

11

12

13

14

2

CAT25C32/64

Doc. No. 25087-00 8/99 SPI-1

Advanced Information

D.C. OPERATING CHARACTERISTICS

VCC = +1.8V to +6.0V, unless otherwise specified.

Limits

Symbol Parameter Min. Typ. Max. Units Test Conditions

I

CC1

Power Supply Current 10 mA VCC = 5V @ 10MHz
(Operating Write) SO=open; CS=Vss

I

CC2

Power Supply Current 2 mA VCC = 5.0V
(Operating Read) F

CLK

= 10MHz

I

SB

Power Supply Current 0 µA CS = V

CC

(Standby) VIN = VSS or V

CC

I

LI

Input Leakage Current 2 µA

I

LO

Output Leakage Current 3 µAV

OUT

= 0V to VCC,

CS = 0V

V

IL

(3)

Input Low Voltage -1 VCC x 0.3 V

V

IH

(3)

Input High Voltage VCC x 0.7 V

CC

+ 0.5 V

V

OL1

Output Low Voltage 0.4 V

V

OH1

Output High Voltage VCC - 0.8 V

V

OL2

Output Low Voltage 0.2 V 1.8V≤VCC<2.7V

V

OH2

Output High Voltage VCC-0.2 V IOL = 150µA

IOH = -100µA

ABSOLUTE MAXIMUM RATINGS*

Temperature Under Bias ................. –55°C to +125°C

Storage Temperature....................... –65°C to +150°C

Voltage on any Pin with

Respect to V

SS

1)

................... –2.0V to +VCC +2.0V

VCC with Respect to V

SS

................................

–2.0V to +7.0V

Package Power Dissipation

Capability (Ta = 25°C)................................... 1.0W

Lead Soldering Temperature (10 secs)............ 300°C

Output Short Circuit Current

(2)

........................ 100 mA

*COMMENT

Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device.
These are stress ratings only, and functional operation
of the device at these or any other conditions outside of
those listed in the operational sections of this specifica­tion is not implied. Exposure to any absolute maximum
rating for extended periods may affect device perfor­mance and reliability.

RELIABILITY CHARACTERISTICS

Symbol Parameter Min. Max. Units Reference Test Method

N

END

(3)

Endurance 1,000,000 Cycles/Byte MIL-STD-883, Test Method 1033

T

DR

(3)

Data Retention 100 Years MIL-STD-883, Test Method 1008

V

ZAP

(3)

ESD Susceptibility 2000 Volts MIL-STD-883, Test Method 3015

I

LTH

(3)(4)

Latch-Up 100 mA JEDEC Standard 17

Note:
(1) The minimum DC input voltage is –0.5V. During transitions, inputs may undershoot to –2.0V for periods of less than 20 ns. Maximum DC

voltage on output pins is VCC +0.5V, which may overshoot to VCC +2.0V for periods of less than 20 ns.
(2) Output shorted for no more than one second. No more than one output shorted at a time.
(3) This parameter is tested initially and after a design or process change that affects the parameter.
(4) Latch-up protection is provided for stresses up to 100 mA on address and data pins from –1V to VCC +1V.

4.5V≤VCC<5.5V
IOL = 3.0mA
IOH = -1.6mA

3

CAT25C32/64

Doc No. 25087 -00 8/99 SPI-1

Advanced Information

Limits

Vcc= VCC =V

CC

=

1.8V-6.0V 2.5V-6.0V 4.5V-5.5V Test

SYMBOL PARAMETER Min. Max. Min. Max. Min. Max. UNITS Conditions

t

SU

Data Setup Time 50 50 20 ns

t

H

Data Hold Time 50 50 20 ns

t

WH

SCK High Time 250 125 40 ns

t

WL

SCK Low Time 250 125 40 ns

f

SCK

Clock Frequency DC 1 DC 3 DC 10 MHz

t

LZ

HOLD to Output Low Z 50 50 50 ns

t

RI

(1)

Input Rise Time 2 2 2 µs

t

FI

(1)

Input Fall Time 2 2 2 µs

t

HD

HOLD Setup Time 100 100 40 ns

t

CD

HOLD Hold Time 100 100 40 ns

t

WC

Write Cycle Time 10 10 5 ms

t

V

Output Valid from Clock Low 250 250 80 ns

t

HO

Output Hold Time 0 0 0 ns

t

DIS

Output Disable Time 250 250 75 ns

t

HZ

HOLD to Output High Z 150 100 50 ns

t

CS

CS High Time 500 250 200 ns

t

CSS

CS Setup Time 500 250 100 ns

t

CSH

CS Hold Time 500 250 100 ns

NOTE:

(1) This parameter is tested initially and after a design or process change that affects the parameter.

A.C. CHARACTERISTICS

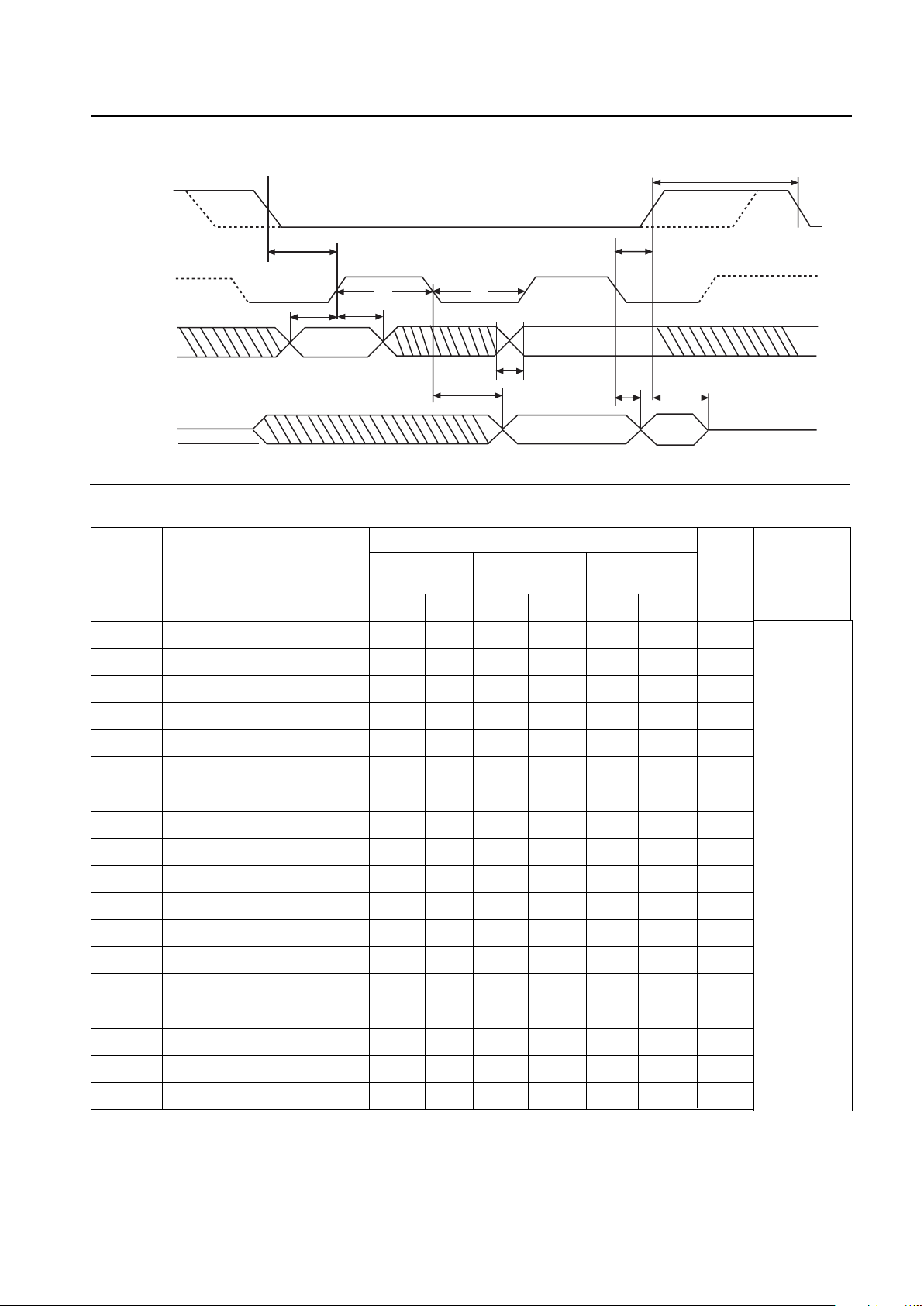

Figure 1. Sychronous Data Timing

CL = 50pF

Note: Dashed Line= mode (1, 1) — — — —

VALID IN

V

IH

V

IL

t

CSS

V

IH

V

IL

V

IH

V

IL

V

OH

V

OL

HI-Z

t

SU

t

H

t

WH

t

WL

t

V

t

CS

t

CSH

t

HO

t

DIS

HI-Z

CS

SCK

SI

SO

t

RI

t

FI
