Deli Shop Parts Manual List of Figures
List of Figures
Figure Title Page
Section A: Exterior Door................................................................................................ 2
1 ..... ......Trim and Pa n el s - Part 1........... ........ ........ ........ ......... ........ ........ ........ ........ ........ ........................... 2
2 ..... ......Trim and Pa n el s - Part 2........... ........ ........ ........ ......... ........ ........ ........ ........ ........ ........................... 4
3 ..... ......Door Lock and H a n d l e Assembly .................... ......... ........ ........ ........ ........ ........ ........ ........ ........... 6
4 ..... ......Lock Bar Assembly .......... ........ ........ ........ ........ ......... ........ ........ ........ ........ ........ ........................... 8
5 ...........Shadow Box and Blower Assembly........................................................................................... 10
6 ...........Blower Assembly .............................................................................................................. ........ . 12
Section B: Interior Door............................................................................................... 14
7 ..... ......Inner Doo r Ex t erior ...... ........ ........ ........ ........ ........ ......... ........ ........ ........ ........ ........ ..................... 14
8 ..... ......Inner Doo r Interior ..... ........ ........ ........ .............. ......... ........ ........ ........ ........ ........ ........ ........ ........ . 16
9 ..... ......Vend Door ........ ........ ................ ........ ........ ........ ......... ........ ........ ........ ........ ........ ......................... 18
10 .........Vend Door Sol enoid Ass e m b l y.......... ........ ........ ......... ................ ........ ........ ........ ........ ........ ....... 20
Section C: Cabinet......................................................................................................... 22
11 .........Major Cabinet Assemblies .................................................................................................... ..... 2 2
12 .........Switch and Mounting Bracket Assembly.................................................................................. . 24
13 .........Inner Pan e l s ........ ........ ........ ........ ........ ........ ........ ......... ........ ........ ........ ........ ............................... 26
14 .........Return Air Light Assembly ..................................................................................................... ... 28
15 .........Power Pane l A ssembly............. ........ ........ ........ ......... ........ ................ ........ ........ ........ .............. ... 30
16 .........Base Plate Accessory and Miscellaneous Cabinet Parts ............................................................ 32
17 .........Upper Hinge Assembly .............................................................................................................. 34
18 .........Leg Assemblies .......................................................................................................................... 36
19 .........Duct Support Assemblies ......................................................................... .................................. 38
20 .........Cabinet Components - Rear............................................................... .............. .............. ........ ..... 4 0
Section D: Turret........................................................................................................... 42
21 .........Turret Assemb l y................ .............. .............. ............. .............. .............. ........ ............................ 42
22 .........Tray Half Assembly........................................................................................................ ........ ... 44
23 .........Turret Motor Assembly ..................................................................................................... ........ . 46
Section E: Refrigeration ................................................................................................ 48
24 ......... Refrigeration - Part 1.................................................................................................................. 48
25 ......... Refrigeration - Part 2.................................................................................................................. 50
26 ......... Refrigeration - Part 3.................................................................................................................. 52
27 .........Insulation.................................................................................................................................... 54
28 ......... Refrigeration - Part 4.................................................................................................................. 56
29 ......... Refrigeration - Part 5.................................................................................................................. 58
30 ......... Refrigeration - Part 6.................................................................................................................. 60
31 ......... Refrigeration - Part 7.................................................................................................................. 62
Section F: Monetary...................................................................................................... 64
32 .........Monetary - Part 1................................................................................................................. ....... 64
33 .........Monetary - Part 2................................................................................................................. ....... 66
34 .........Monetary - Part 3................................................................................................................. ....... 68
37 .........Money Box Assembly .. ........ ........ ........ ........ ........ ......... ........ ........ ........ ........ ........ ..................... 72
Section G: Miscellaneous.............................................................................................. 74
38 .........Wiring Harnesses........................................................................................................................ 74
June, 2002 i 4360000
List of Figures Deli S ho p Pa r ts Man ua l
NOTES
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
4360000 ii June, 2002
Deli Shop Parts Manual List of Tables
List of Tables
Table Title Page
Section A: Exterior Door................................................................................................ 2
1 ..... ......Trim and Pa n el s - Part 1........... ........ ........ ........ ......... ........ ........ ........ ........ ........ ........................... 3
2 ..... ......Trim and Pa n el s - Part 2........... ........ ........ ........ ......... ........ ........ ........ ........ ........ ........................... 5
3 ..... ......Door Lock and H a n d l e Assembly .................... ......... ........ ........ ........ ........ ........ ........ ........ ........... 7
4 ..... ......Lock Bar Assembly .......... ........ ........ ........ ........ ......... ........ ........ ........ ........ ........ ........................... 9
5 ...........Shadow Box and Blower Assembly........................................................................................... 11
6 ...........Blower Assembly .............................................................................................................. ........ . 13
Section B: Interior Door............................................................................................... 14
7 ..... ......Inner Doo r Ex t erior ...... ........ ........ ........ ........ ........ ......... ........ ........ ........ ........ ........ ..................... 15
8 ..... ......Inner Doo r Interior ..... ........ ........ ........ .............. ......... ........ ........ ........ ........ ........ ........ ........ ........ . 17
9 ..... ......Vend Door ........ ........ ................ ........ ........ ........ ......... ........ ........ ........ ........ ........ ......................... 19
10 .........Vend Door Sol enoid Ass e m b l y.......... ........ ........ ......... ................ ........ ........ ........ ........ ........ ....... 21
Section C: Cabinet......................................................................................................... 22
11 .........Major Cabinet Assemblies .................................................................................................... ..... 2 3
12 .........Switch and Mounting Bracket Assembly.................................................................................. . 25
13 .........Inner Pan e l s ........ ........ ........ ........ ........ ........ ........ ......... ........ ........ ........ ........ ............................... 27
14 .........Return Air Light Assembly ..................................................................................................... ... 29
15 .........Power Pane l A ssembly............. ........ ........ ........ ......... ........ ................ ........ ........ ........ .............. ... 31
16 .........Base Plate Accessory and Miscellaneous Cabinet Parts ............................................................ 33
17 .........Upper Hinge Assembly .............................................................................................................. 35
18 .........Leg Assemblies .......................................................................................................................... 37
19 .........Duct Support Assemblies ......................................................................... .................................. 39
20 .........Cabinet Components - Rear............................................................... .............. .............. ........ ..... 4 1
Section D: Turret........................................................................................................... 42
21 .........Turret Assemb l y................ .............. .............. ............. .............. .............. ........ ............................ 43
22 .........Tray Half Assembly........................................................................................................ ........ ... 45
23 .........Turret Motor Assembly ..................................................................................................... ........ . 47
Section E: Refrigeration ................................................................................................ 48
24 ......... Refrigeration - Part 1.................................................................................................................. 49
25 ......... Refrigeration - Part 2.................................................................................................................. 51
26 ......... Refrigeration - Part 3.................................................................................................................. 53
27 .........Insulation.................................................................................................................................... 55
28 ......... Refrigeration - Part 4.................................................................................................................. 57
29 ......... Refrigeration - Part 5.................................................................................................................. 59
30 ......... Refrigeration - Part 6.................................................................................................................. 61
31 ......... Refrigeration - Part 7.................................................................................................................. 63
Section F: Monetary...................................................................................................... 64
32 .........Monetary - Pa rt 1 ............................................................................................................. ........ ... 65
33 .........Monetary - Pa rt 2 ............................................................................................................. ........ ... 67
34 .........Monetary - Pa rt 3 ............................................................................................................. ........ ... 69
35 .........Coin Unit Optio n s.. .................... .............. ................... .............. .................... .............................. 70
36 .........Bill Validator Options ............... ............ .......... ....... .... ............ .......... ............ ............ .................. 71
June, 2002 iii 4360000
List of Tables Deli Sho p Pa r ts Man ual
Table Title Page
37 .........Money Box Assembly .. ........ ........ ........ ........ ........ ........ ......... ........ ........ ........ ........ ..................... 73
Section G: Miscellaneous.............................................................................................. 74
38 .........Wiring Harnesses........................................................................................................................ 75
40 .........Bag Assembly - U.K.............................................................................................................. ..... 7 6
41 .........Bag Assembly - Me x i c o............................ .............. ............. .............. .................... .................... 76
39 .........Bag Assembly - U .S./canada......... ........ .................... ............. ........ .................... ........................ 76
4360000 iv June, 2002
Deli Shop Parts Manual
NOTES
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
____________________________
4360000 1 June, 2002
Section A: Exterio r Door Deli Shop Parts Manual
Section A: Exterior Door
Figure 1. Trim and Panels - Part 1
4360000 2 June, 2002
Deli Shop Parts Manual Section A: Exterior Door
T A BLE 1. TRIM AND PANELS - PART 1
INDEX PART NUMBER DESCRIPTION QTY
1
2 4362017 PANEL - RH TRIM - FLAT"T"BLACK 1
3
4 1172190 LEVER - LOCK 1
5 1172191 BASE - LEVER - LOCK 1
6
7 4362021 PANEL - LOWER - MIDDLE - FLAT"T"BLK 1
8
9 4272046 PANEL - LOWER - HORZ. - FLAT T BLACK 1
10 1572011 TRIM - COIN CUP - BLACK 1
11 4272060 PRODUCT GUIDE EDGE TRIM 4”
12
13 4272060 PRODUCT GUIDE EDGE TRIM 2”
14 1575106 CASTING - MONET ARY FRAME - BLACK 1
15 4362019 TRIM - HORIZ - DOOR - FLAT"T"BL 1
16 4362032 DOOR ASSEMBLY - COMMON 1
1592032 TRIM - DOOR - SIDE - CLEAR (CLEAR TRIM)
1592069 TRIM - DOOR - SIDE - BLACK (BLACK TRIM)
1592031 TRIM - DOOR - INSIDE - CLEAR
1592068 TRIM - DOOR - INSIDE - BLACK
4362023 TRIM - DOOR - HORIZONTAL - CLEAR
4362031 TRIM - DOOR - HORIZONTAL - BLACK
4272040 TRIM - DOOR - HORIZONTAL - CLEAR
4272069 TRIM - DOOR - HORIZ - BLACK
4362015 PANEL - LH TRIM - F LAT"T"BLAC K
4362016 PANEL - LH TRIM
2
2
1
1
1
June, 2002 3 4360000
Section A: Exterio r Door Deli Shop Parts Manual
Figure 2. Trim and Panels - Part 2
4360000 4 June, 2002
Deli Shop Parts Manual Section A: Exterior Door
T A BLE 2. TRIM AND PANELS - PART 2
INDEX PART NUMBER DESCRIPTION QTY
1 G1472028 SCREW - #6 X .38 SHEET MET A L 40
2
3 9900081 NUT #8 - 32 KEPS ZINC PLATE -
4 2222110 T BOLT - TRIM 15
5
6
7 9900078 NUT #6 - 32 KEPS ZINC PLATE -
8 1572060 TEE BOLT - TRIM - #6 - 32 X 3/8 4
9 4362019 TRIM - HORIZ - DOOR - FLAT "T"BL 1
10
1592031 TRIM - DOOR - INSIDE - CLEAR
1592068 TRIM - DOOR - INSIDE - BLACK
4272040 TRIM - DOOR - HORIZONTAL - CLEAR
4272069 TRIM - DOOR - HORIZ - BLACK
4362023 TRIM - DOOR - HORIZONTAL - CLEAR
4362031 TRIM - DOOR - HORIZONTAL - BLACK
1592032 TRIM - DOOR - SIDE - CLEAR
1592069 TRIM - DOOR - SIDE - BLACK
2
1
2
2
June, 2002 5 4360000
Section A: Exterio r Door Deli Shop Parts Manual
Figure 3. Door Lock and Handle Assembly
4360000 6 June, 2002
Deli Shop Parts Manual Section A: Exterior Door
TABLE 3. DOOR LOCK AND HANDLE ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY
1 1172190 LEVER - LOCK 1
2 1302291 PIVOT - LEVER LOCK 1
3 1172191 BASE - LEVER LOCK 1
4 1302289 CUP SPACER 1
5 9900160 SCREW - #8 - 18 X 1/2" PHIL. PAN HD. 5
6 2272052 ACTUATOR ASSEMBLY - LOCK BAR 1
7 1302326 SHIELD - LATCH 1
8 9900121 WASHER - STEEL - 7/16 X .203 X .032 1
9 1302324 CATCH - DOOR LATCH 1
10 1302290 LATCH - LOCK LO WER 1
11
- 3112164
9992400 CYLINDER - LOCK
3112163 VAN LOCK
KEY (NOT SHOWN)
VAN LOCK APPLICATION (NOT SHOWN)
OPT.
OPT.
June, 2002 7 4360000
Section A: Exterio r Door Deli Shop Parts Manual
Figure 4. Lock Bar Assembly
4360000 8 June, 2002
Deli Shop Parts Manual Section A: Exterior Door
TABLE 4. LOCK BAR ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY
1
2 1472178 LOCK BAR ASS EMBLY 1
3 G1472028 SCREW - SHEET METAL - #6 X .38 -
4 1472250 GUIDE - LOCK BAR 1
5 4362032 DOOR ASSEMBLY - COMMON 1
1592032 TRIM - DOOR - SIDE - CLEAR
1592069 TRIM - DOOR - SIDE - BLACK
2
June, 2002 9 4360000
Section A: Exterio r Door Deli Shop Parts Manual
Figure 5. Shadow Box and Blower Assem bly
4360000 10 June, 2002
Deli Shop Parts Manual Section A: Exterior Door
TABLE 5. SHADOW BOX AND BLOWER ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY
1 4362032 DOOR ASSEMBLY-COMMON REF
2 1212140 SCREW - #4 - 40 X 1/4 RHS 4
3 4362059 SPACER - TAPE - TOP 1
4 1217159 4-40 KEPS W/EXT L/WAS H ZP -
5 4362049 CHANNEL ASSY - WARM AIR 1
6 9900081 NUT #8-32 KEPS ZINC PLATE 4
7 9900130 SCREW #6 - 32 X 1/4 PHS S/T -
8 1141046 SCREW - #10 - 32X3/8 HEX W/H -
9 3502097 BUSHING #OCB - 500 1
10 4272060 PRODUCT GUIDE EDGE TRIM 3’
11 4362057 COVER - HEATER ASSY 1
12 4362051 CLAMP - HEATER 1
13
14 4362052 MOUNT - HEATER 1
15 4362060 SPACER - TAPE - MOUNTING 1
16 4362053 PLATE - VENT OPENING 1
17 4362058 SPACER - TAPE - BOTTOM 1
18 4311211 GASKET-FOAM-1/8 X 1/2 A/R
19 9900081 NUT #8-32 KEPS ZINC PLATE 20 9900035 WASHER - STL 7/16 X 3/16 X 3/64 21 4362006 WELD ASSY - SHADOW BOX 1
22 4362013 RETAINER - COVER 1
23 - BL OWER ASSEMBLY (SEE FIGURE 6) 1
4272053 HEATER - 230V - 125W
4272052 HEATER - 115 V - 125 W
1
June, 2002 11 4360000
Section A: Exterio r Door Deli Shop Parts Manual
Figure 6. Blower Assembly
4360000 12 June, 2002
Deli Shop Parts Manual Secti on A: Exterior Door
T A BLE 6. BLOWER ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY
--
1 4362071 WELD ASSEMBLY - SHADOW BOX 1
2 436 2049 CHANNEL ASSEMBLY - WARM AIR 1
3 1 141046 SCREW - #10 - 32X3/8 ACORN HEX W/H 1
4 436 2055 MOUNTING ASSEMBLY - BLOWER 1
5
6 427 2002 GUARD - BLOWER FAN 1
7 4721035 SCREW - #8 - 18 X .38 - LGM 3
8 145 1097 SCREW - #8 - 32X.31 HEX HD.TF-BL 1
9 427 9033 HARNESS - AC POWER & PANEL 1
10 4369004 HARNESS - POWER & RELAYS TO PCB 1
11 6231189 LABEL - WARNING - HIGH VOLTAGE 1
12 4271098 COVER - MOTOR 1
13 3502097 BUSHING #OCB-500 1
14 9900081 NUT #8 - 32 KEPS ZINC PLATE 1
4362054 BLOWER & MOUNTING ASSEMBLY (115 V)
4362061 BLOWER & MOUNTING ASSEMBLY - 230V
4312210 BLOWER ASSEMBLY - 120V
431221 1 BLOWER ASSEMBLY - 230V
1
1
June, 2002 13 4360000
Section B: Interior Door Deli Shop Parts Manual
Section B: Interior Door
Figure 7. Inner Door Exterior
4360000 14 June, 2002
Deli Shop Parts Manual Section B: Interi or Door
T A BLE 7. INNER DOOR EXTERIOR
INDEX PART NUMBER DESCRIPTION QTY
1 4293001 INNER DOOR ASSY - FOAMED 1
2 4363028 BRACKET - LATCH MOUNTING 1
3 1451097 SCREW - #8 - 32X.31 HEX HD.TF - BLK. -
4 4273039 LATCH - COLD FOOD DOOR 1
5 4361001 HINGE - DOOR - INNER 2
6 4361002 STIFFENER - HINGE 4
7 4273093 SCREW FLT HD #10 - 32 X 1/2 6
8 4271057 BUSHING - 1.0" - OPEN/CLOSED 2
9 4732024 RETAINER - HARNESS 1
10 3157060 SCREW - #8-32 X .31 HEX W/ HD. SLOTTED-T/F-ZINC PL 11 4270025 LABEL - LOCATE FOOD HERE 1
June, 2002 15 4360000
Section B: Interior Door Deli Shop Parts Manual
Figure 8. Inner Door Interior
4360000 16 June, 2002
Deli Shop Parts Manual Section B: Interi or Door
TABLE 8. INNER DOOR INTER IO R
INDEX PART NUMBER DESCRIPTION QTY
1 4312124 TAPE FLOCKED - .25" WIDE 88.0”
2 4271057 BUSHING - 1.0" - OPEN/CLOSED 2
3 1452139 RETAINER - HARNESS 1
4 9987852 PROBE - TEMP.SEN SOR 1
5 1211161 CABLE CLAMP - RICHCO # N4 1
6 4272093 COVER ASSY - SENSOR 1
7 9900092 SCREW - #6 - 32 X 3/8 PHIL.PH. -
8 3502097 BUSHING #OCB - 500 1
9 9900016 NUT #6 - 32 10 4363007 COVER - SOLENOID - INNER DOOR - BLK 1
11 4273044 TAB - LOCK - HOLDER PLATE 1
12 1451097 SCREW - #8 - 32X.31 HEX HD.TF - BLK. 13 4293014 STOP - DOOR - REINFORCEMENT 1
14 5201266 PUSH ON RETAINER .187 2
15 4293001 INNER DOOR ASSY - FOAMED 1
June, 2002 17 4360000
Section B: Interior Door Deli Shop Parts Manual
Figure 9. Vend Door
4360000 18 June, 2002
Deli Shop Parts Manual Section B: Interi or Door
TABLE 9. VEND DOOR
INDEX PART NUMBER DESCRIPTION QTY
1 4273021 INNER GUARD BUSHING 6
2 9900220 SCREW - #6 - 20 X 1.25 PH PHILLIPS 40
3 4273112 DOOR GASKET - 427 FOODKING 1
4 4363023 TRACK - DOOR - VEND 10
5 4312124 TAPE FLOCKED-.25" WIDE 88”
6 4112095 TAPE-FOAM 88”
7 4293001 INNER DOOR ASSY - FOAMED 1
8 1451097 SCREW - #8 - 32X.31 HEX HD.TF - BLK. -
9 4293014 STOP - DOOR - REINFORCEMENT 1
10 4273115 DOOR STOP & PRICE HOLDER 9
11 4273023 PRICE TAG RETAINER 9
12 4273114 VEND DOOR 9
13 4273044 TAB - LOCK - HOLDER PLATE 1
14 5201266 PUSH ON RETAINER .187 2
15 4363008 SHIELD - TRAY 10
16 4273106 TAPE - DOUBLE SIDED - 1/2"W X 1/32THK. 4.17’
June, 2002 19 4360000
Section B: Interior Door Deli Shop Parts Manual
Figure 10. Vend Door Solenoid Assembly
4360000 20 June, 2002
Deli Shop Parts Manual Section B: Interi or Door
T A BLE 10. VEND DOOR SOLENOID ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY
1 4363000 BRACKET ASSY - SOLENOID MTG. 1
2 9900090 SCREW #6 - 32 X 3/16 RHS W/LKW -
3 9900081 NUT #8 - 32 KEPS ZINC PLATE -
4 4252029 SOLENOID - 24 VDC 6
5 9984633 SWITCH - LEVER 1
6 5262141 SCREW 4 - 40 X 9/16 PHP 2
7 4273019 SPRING 1
8 9900140 COTTER PIN 1/16 X 7/16 -
9 4273079 BRACKET - S WITCH MOUNTING 1
10 1236050
- 4363029
11 4363014 SHAFT - RO LL ER - SPR IN G 1
12 4363030 BRACKET-SPR ING-VEND DOOR 1
13 4273050 STUD PUSHNUT 1
14 4245186 SCREW - #8 32 X 1/4 PHS - T/F 9
15 4363031 WASHER-VEND DOOR SPRING ASSY. 2
16 4363032 SPRING-VEND DOOR RETURN 1
17 4363013 ROLLER - SPRING 1
18 4363016 PLATE - SOLENOID MOUNTING 1
19 1452139 RETAINER - HARNESS 1
SWITCH 1
SWITCH (POLYVEND U.K. ONLY) 2
SPRING ASSEMBLY - VEND DOOR (INCLUDES ITEM NUMBERS 11
THROUGH 13, AND 15 THROUGH 17)
9
June, 2002 21 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Section C: Cabinet
Figure 11. Major Cabinet Assemblies
4360000 22 June, 2002
Deli Shop Parts Manual Section C: C abinet
T A BLE 11. MAJOR CABINET ASSEMBLIES
INDEX PART NUMBER DESCRIPTION QTY
1 4271066 SCREEN ASSEMBLY 1
2 - TURRET (SEE FIGUR E 2 1) 1
3 - SWITCH AND MOUNTING BRACKET ASSEMBLY (SEE FIGURE 12) 1
4 - INNER DOOR ASSEMBLY (SEE FIGURE 7) 1
5 4362032 DOOR ASSEMBLY - COMMON 1
6
7 4277012 SPROCKET - 60 TOOTH - MODIFIED (SEE FIGURE 21) 1
4271088X TURRET MOTOR ASSEMBLY - 115V (SEE FIGURE 23)
4271108X TURRET MOTO R ASSEMBLY - 230V (SEE FIGURE 23)
1
June, 2002 23 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 12. Switch and Mounting Bracket Assembly
4360000 24 June, 2002
Deli Shop Parts Manual Section C: C abinet
TABLE 12. SWITCH AND MOUNTING BRACKET ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY.
1 4369003 HARNESS - COLD AC 1
2 4751060 RETAINER-HARNESS 1
3 1451097 SCREW - #8 - 32X.31 HEX HD.TF - BLK. -
4 4361059 BRACKET - S WITCH MOUNTING 1
5 1211141 SWITC H 1
June, 2002 25 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 13. Inner Panels
4360000 26 June, 2002
Deli Shop Parts Manual Section C: C abinet
TABLE 13. INNER PANELS
INDEX PART NUMBER DESCRIPTION QTY.
1 4721035 SCREW - #8 - 18 X .38 - LGM -
2 4271152 BRACKET - SPACING - LEFT - BLACK 3
3 4361042 BAFFLE - DISCHARGE - LEFT - BLK 1
4 4361041 PANEL - INNER CENTER - BLK 1
5 4361040 PANEL - INNER RIGHT - BLK 1
6 4271151 PANEL - INNER - LEFT - BLACK 1
7 4361027 LIGHT & RETU RN AIR ASSY - BLK 1
8 4361030 DUCT - EXTENSION - BLK 1
June, 2002 27 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 14. Return Air Light Assembly
4360000 28 June, 2002
Deli Shop Parts Manual Section C: C abinet
T A BLE 14. RETURN AIR LIGHT ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY.
1 4361028 PANEL - AIR - RETURN - BLK 1
2 1451097 SCREW - #8-32 X .31 HEX HD.TF - BLK. -
3 4361026 SHIELD - LIGHT - BLK 1
4 3157060 SCREW - #8-32 X .31 HEX W/ HD. SLOTTED - T/F - ZINC PL 3
5 4361029 BRACKET - LI G H T - BLK 3
6 1217159 4-40 KEPS W/EXT L/WAS H ZP -
7 4271086 SAFETY LAMP SLEEVE W/END CAPS 2
8 4302277 FLUORESCENT SOCKET - LOWER 1
9 5262139 01440106 # 4-40X3/8 PPHD M SCR ZP 10 4031148 LAMP FLUORESCENT 13W #F13T5CW 2
June, 2002 29 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 15. Power Panel Assembly
4360000 30 June, 2002
Deli Shop Parts Manual Section C: C abinet
TABLE 15. POWER PANEL ASSEM BLY
INDEX PART NUMBER DESCRIPTION QTY.
-
1 4732024 RETAINER - HARNESS 3
2 3157060 SCREW - #8 - 32 X .31 HEX W/HD. 7
3 9989677 RELAY - SPDT 24 VDC - PANEL MOUNT 2
4 9989674 CIRCUIT BREAKER - 4 AMP 1
5 9984629 SWITCH - TOGGLE - DPST - 20 AMP 1
6 1451056 8 - 32X.31 HWS TY23 ZB WAX -
7 4271129 BRACKET - EL ECTRICAL PANEL 1
8 9989100 INTERFERENCE FILTER 1
9 9989046 24V TRANSFORMER - DUAL PIR. - .187 TERM. 1
10 4271128 PANEL - ELECT RIC AL 1
4291107 POWER PANEL ASSY - FOODKING - UK (230 V)
4291089 POWER PANEL ASSY - FOODKING - DOM (115 V)
1
June, 2002 31 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 16. Base Plate Access ory and Miscellaneous Cabinet Parts
4360000 32 June, 2002
Deli Shop Parts Manual Section C: C abinet
TABLE 16. BASE PLATE ACCESSORY AND MISCELLANEOUS CABINET PARTS
INDEX PART NUMBER DESCRIPTION QTY.
- 4271105
1 1571074 LOCK ARM - CABINET 1
2 4271066 SCREEN ASSEMBLY 1
3 1451097 SCREW - #8 - 32X.31 HEX HD.TF - BLK. -
4 4271077 SUPPORT ASSEMBLY - DOOR CHECK 1
5 9900098 COTTER PIN - 3/32 X 3/4 IN 2
6 1411194 SLIDE - BASE PLATE - RIGHT HAND 1
7 4271103 BASE PLATE ASSEMBLY 1
8 1411195 SLIDE - BASE PLATE - LEFT HAND 1
9 6231087 BRACKET - BA SE PLATE 2
10 4242145 BEARING - THRUST - LOWER HINGE 1
BASE PLATE AND ACCESSORY ASSEMBLY (INCLUDES INDEX NUMBERS 5 THROUGH 9)
OPT.
June, 2002 33 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 17. Upper Hinge Assembly
4360000 34 June, 2002
Deli Shop Parts Manual Section C: C abinet
TABLE 17. UPPER HINGE ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY.
1 1171021 5/16 - 18X3/4 CARR BOLT ZP -
2 4271037 HINGE ASSEMBLY - UPPER 1
3 6232036 SCREW - 5/16-18X.75 FLT.HDSOCKET 1
4 6232208 WELD SCREW - #1/4-20 X 1"LG 1
5 1211105 1/4-20 KEPS NUT EXT LW ZP -
6 6232028 PLATE ASSY - HINGE MTG 1
June, 2002 35 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 18. Leg Assemblies
4360000 36 June, 2002
Deli Shop Parts Manual Section C: C abinet
TABLE 18. LEG ASSEMBLIES
INDEX PART NUMBER DESCRIPTION QTY.
1 9900081 NUT #8-32 KEPS ZINC PLATE 1
2 6232028 PLATE ASSY-HINGE MTG 1
3 6232031 HINGE ASSY-DOOR-LOWER 1
4 6232208 WELD SCREW-#1/4-20 X 1"LG 1
5 6232036 SCREW-5/16-18X.75 FLT.HDSOCKET 1
6 4242145 BEARING-THRUST-LOWER HINGE 1
7 6231203 PLATE - HINGE LEG BOLT 1
8 1211112 TRAY BOLT 2
9 9900218 SCREW - #5/16 X 1 W/LOCKING RING 10 6231163 L EG,HINGE & LEVELER ASSY 1
11 1471098 LEVELER - CABINET 4
12 1471237 LEG & LEVELER ASSY - CABINET 3
13 1172021 NUT - 1/4-20 WHIZ - LOCK 14 1452016 HOLE PLUG #BPF-S/B (B659) 2
June, 2002 37 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual

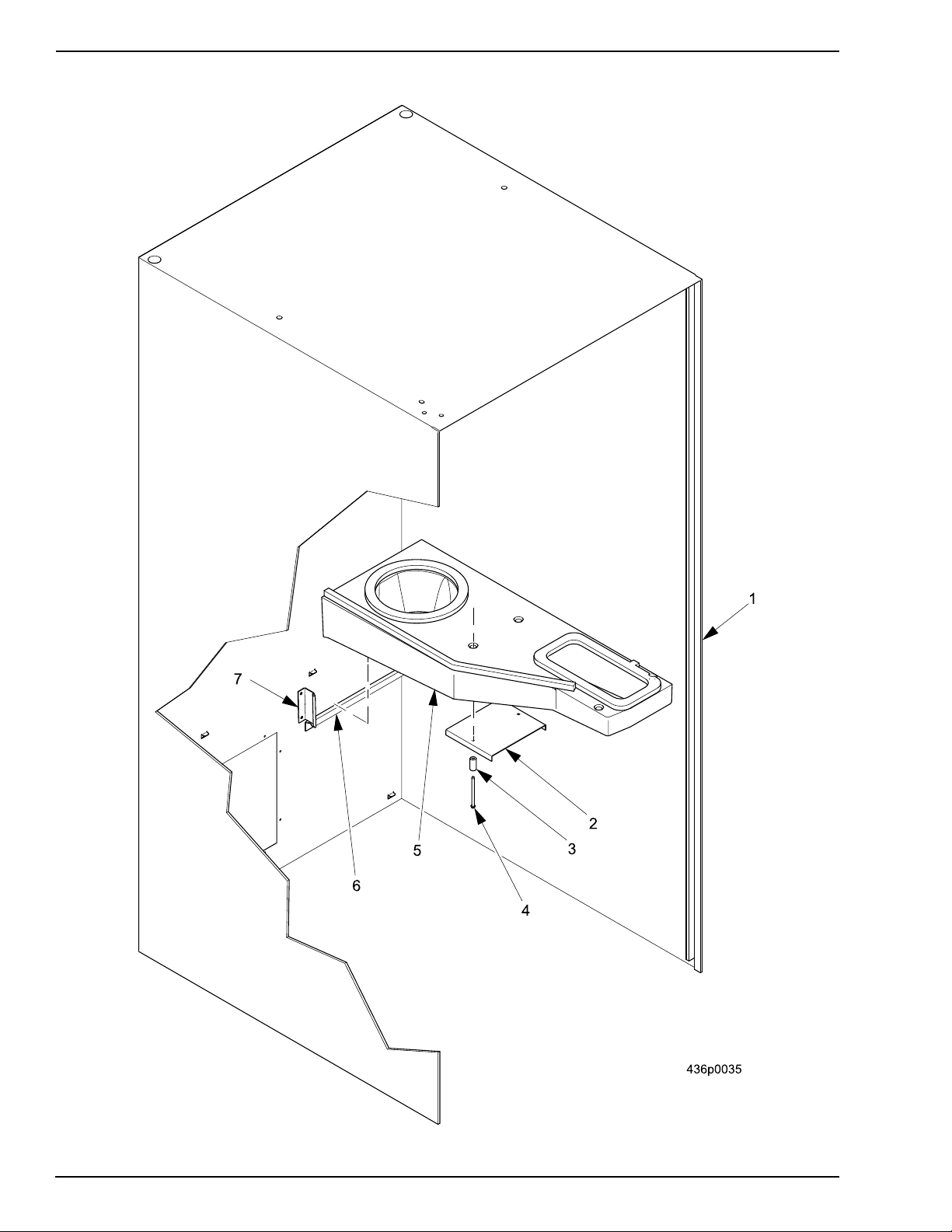

Figure 19. Duct Support Assemblies
4360000 38 June, 2002
Deli Shop Parts Manual Section C: C abinet
T A BLE 19. DUCT SUPPORT ASSEMBLIES
INDEX PART NUMBER DESCRIPTION QTY.
1 4361032 FOAMED CAB ASSY - BLK/NV BLK 1
2 4361018 SUPPORT - DUCT - CENTER 1
3 4274009 SPACER - NYLON - 1.0L X .5 OD 8
4 4361039 SCREW - #10 - 32 X 2.5 HX WASHER 4
5 4361017 DUCT & SEAL ASSY - SUPPLY/RETURN 1
6 4361019 SUPPORT - DUCT - REAR - HORIZ 1
7 4361020 SUPPORT - DUCT - REAR - VERTICAL 1
June, 2002 39 4360000
Sectio n C: Cabinet Deli S ho p Parts Manual
Figure 20. Cabinet Components - Rear
4360000 40 June, 2002
Deli Shop Parts Manual Section C: C abinet
T A BLE 20. CABINET COMPONENTS - REAR
INDEX PART NUMBER DESCRIPTION QTY
1
2 4271081 SCREEN A SSEMBLY - REAR 1
3 1451097 SCREW - #8 - 32X.31 HEX HD.TF - BLK. -
4 3104056 BUSHING - STRAIN RELIEF #5R - 7W - 2 1
9989781 POWER CORD - 14 AWG - DOMESTIC (U.S.)
9989576 POWER CORD - W ITH BSI PLUG (U.K. )
1
June, 2002 41 4360000
Section D: Turret Deli Shop Par ts Manual
Section D: Turret
Figure 21. Turret Assembly
4360000 42 June, 2002
Deli Shop Parts Manual Section D: Turret
TABLE 21. TURRET ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY.
1 4277055 BASEPLATE WELD ASSY - BLACK 2
2 4727144 SCREW - #8 - 18X.62 HEX HEAD -
3 4277011 BEARING - FLANGE - .625,SF - 2428 - 12 2
4 4277012 SPROCKET - 60 TOOTH - MODIFIED 1
5 4277031 ROLL PIN - .250 X 2.25 1
6 4277060 TRAY SEGMENT ASSY - TOP - BLACK 1
7
8
9 4271058 CLAMP - DOUBLE MOUNT - .43 1
10 4271130 STOP - COLD FOOD DOOR LATCH 1
11 4271163 COVER - MOTOR - BLACK 1
12 4721035 SCREW - #8 - 18 X .38 - LGM 13 4361025 COVER - GUARD - CHAIN - BLK 1
14 4361043 JAMB - LINER - TOP - BLK 1
4297004 6 PRODUCT SHELF - BLACK (SEE FIGURE 22) 14
4297003 12 PRODUCT SHELF - BLACK (S EE FIGURE 22) 4
4277004 CAROUSEL ASSEMBLY
4277052 CAROUSEL ASSEMBLY-BLACK
1
June, 2002 43 4360000
Section D: Turret Deli Shop Par ts Manual
Figure 22. Tray Half Assembly
4360000 44 June, 2002
Deli Shop Parts Manual Section D: Turret
TABLE 22. TRAY HALF ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY.
1 4277030 HOLDER 12
2 4277053 PLATE HOLDER - BLACK 4
3 4277029 TRAY DIVIDER 6
4 4277042 SCREW - #8 - 10 X.5 T/F - PHS -
5 4277024 SCREW - #6 - 32 X 3 PHILLIPS P/H 4
6 4277049 SUPPORT - DIVIDER - TRAY 4
7 4297001 TRAY SEGMENT ASSY - BLACK 4
June, 2002 45 4360000
Section D: Turret Deli Shop Par ts Manual
Figure 23. Turret Motor Assembly
4360000 46 June, 2002
Deli Shop Parts Manual Section D: Turret
TABLE 23. TURRET MOTOR ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY.
-
1 4277013 CHAIN REPAIR LINK - 3/8 1
2 4277038 CHAIN - DRIVE 1
3 4271002 SPROCKET - 10 TOOTH - STEEL 1
4 4277008 SET SCREW - 1/4 - 20 X 3/8 CUP -
5 4271166 SUPPORT - MOTOR 1
6 4271154 BRACKET - SUPPOR T - MO TOR MOUNTI NG - TURRET 1
7 1451097 SCREW - #8 - 32X.31 HEX HD.TF - BLK. -
8 4271173 BRACKET - MOTOR MOUNT - TURRET 1
9 4271055 SPACER - MOTOR/BRKT - TURRE T 1
10 3502078 RIVET - POP - .125 DIA X .265 -
11
12 4271001 CAM ASSEMBLY - MOTOR COLUMN 1
13 6104219 ROLL PIN - .094 X 5/8 1
14 5262141 SCREW - 4 - 40 X 9/16 PHP 2
15 4271004 MICROSWITCH VL3 1
16 6112042 INSULATOR SWITCH
17 4271080 NUT - WING - #8 - 32 WITH NYLON INSERT 1
18 5202012 SPACER - EXTENSION BAR 2
19 4042094 SPRING - OVERRIDE 1
20 4271065 BOLT - ANCHOR - #8 - 32 X 2.25 1
21 4361051 BRACKET - INDICATOR - NV BLACK 1
4271088X TURRET MOTOR ASSEMBLY - 115V
4271108X TURRET MOTO R ASSEMBLY - 230V
4277050 DRIVE MOTOR ASSEMBLY - TURRET - 115V (PART OF 4271088X)
4277051 DRIVE MOTOR ASSEMBLY - TURRET - 230V (PART OF 42711 08X)
1
1
June, 2002 47 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual
Section E: Refrigeration
Figure 24. Refrigeration - Part 1
4360000 48 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 24. REFRI GERATION - PART 1
INDEX PART NUMBER DESCRIPTION QTY
-
1 4364046 WRAPPER - COMPRESSOR -
2 4319008 STARTER SOCKET ASSEMBLY 2
3 4271057 BUSHING - 1.0" - OPEN/CLOSED 2
4 4031150 STARTER FS - 4,FLUORESCENT LAMP 2
5 4364045 BAFFLE - CONDENSER -
6 4364049 WALL - DIVIDER - CONDENSER -
7
8 9984095 BUSHING - OPEN/CLOSED - .625 1
9 4271143 COVER - BALLAST 1
10 4273046 BUSHING - 3/4" SPLIT 11 4364026 CHASSIS & STUD ASSY. - REFR. 1
12 4614027 IN SEAL - 1.00 X .87 -
4364005 REFRIG. UNIT - 115/60
4364006 REFRIG. UNIT - 230/50
4279015 BALLAST ASSY - 13W - 115V
6396028 BALLAS T ASSY - 13 WATT - 230V
1
2
June, 2002 49 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual
Figure 25. Refrigeration - Part 2
4360000 50 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 25. REFRI GERATION - PART 2
INDEX PART NUMBER DESCRIPTION QTY
1 4364048 RETAINER - GASKET - SUPPLY 1
2 4364011 GASKET-EVAPORATOR-SUPPLY --
3 4364056 WRAPPER - EVAPORATOR - TOP
4 4364047 RETAINER - GASKET - RETURN 1
5 4364010 GASKET-EVAPORATOR-RETURN --
6
7 4402043 NUT-#8-32 W/L.W .-S.S. -
8 9900115 SCREW #8-32 X 3/4 RHS -
4364019 FAN - EVAPORATOR - AXIAL - 230/50 HZ
4314014 FAN - EVAPORATOR - AXIAL (115 V)
1
June, 2002 51 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual
Figure 26. Refrigeration - Part 3
4360000 52 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 26. REFRI GERATION - PART 3
INDEX PART NUMBER DESCRIPTION QTY
1 4364056 WRAPPER - EVAPORATOR - TOP 1
2 4364024 WRAPPER - EVAPORA T OR - FRONT 1
3 4364029 WRAPPER - EVAP. - CENTER - FRONT 1
4 4364026 CHASSIS & STUD ASSY. - REFR. 1
5 4364030 WRAPPER - EVAP. - CENTER - REAR 1
6 4364025 WRAPPER - EVAPORATOR - OUTER 1
June, 2002 53 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual
Figure 27. Insulation
4360000 54 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 27. INSULATION
INDEX PART NUMBER DESCRIPTION QTY
1 4364051 INSULATION - .25 - COVER - OUTER -
2 4364069 INSULATION - .12 - SIDE - OUTER -
3 4364013 INSULATION - 1.00 - RIGHT -
4 4364018 INSULATION - 1.00 - FRONT -
5 4364028 RETAINER - INSULATION - FRONT 1
6 4364012 INSULATION - 1.15 - BOTTOM
7 4364016 INSULATION - 1.00 - CENTER - FRONT -
8 4314105 SHIM - FRONT -
9 4364017 INSULATION - 1.00 - CENTER - REAR 1
10 4364015 INSULATION - 1.00 - REAR 11 4551173 TAPE-FOAM-1.00W X .38TH 68.5”
12 4364057 INSULATION - 1.00 - TOP -
June, 2002 55 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual
Figure 28. Refrigeration - Part 4
4360000 56 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 28. REFRI GERATION - PART 4
INDEX PART NUMBER DESCRIPTION QTY
1
2
3 1211105 1/4-20 KEPS NUT EXT LW ZP -
4 4364065 SHROUD - CONDENSER 1
5 4364001 CONDENSER - .312 DIA. - 3R - 24T - 1 X.625 1
6 4274055 BRACKET - MO TOR - F A N 1
4304231 MOTOR - CONDENSER - 16 WATT (115 V)
4364066 MOTOR - FAN - CONDENSER - 18W - 230V
4364068 BLADE - FAN - CONDENSER - 9.75 DIA. (115 V)
4364067 BLADE - FAN - CONDENSER - 9.75 DIA. (230 V)
1
1
June, 2002 57 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual

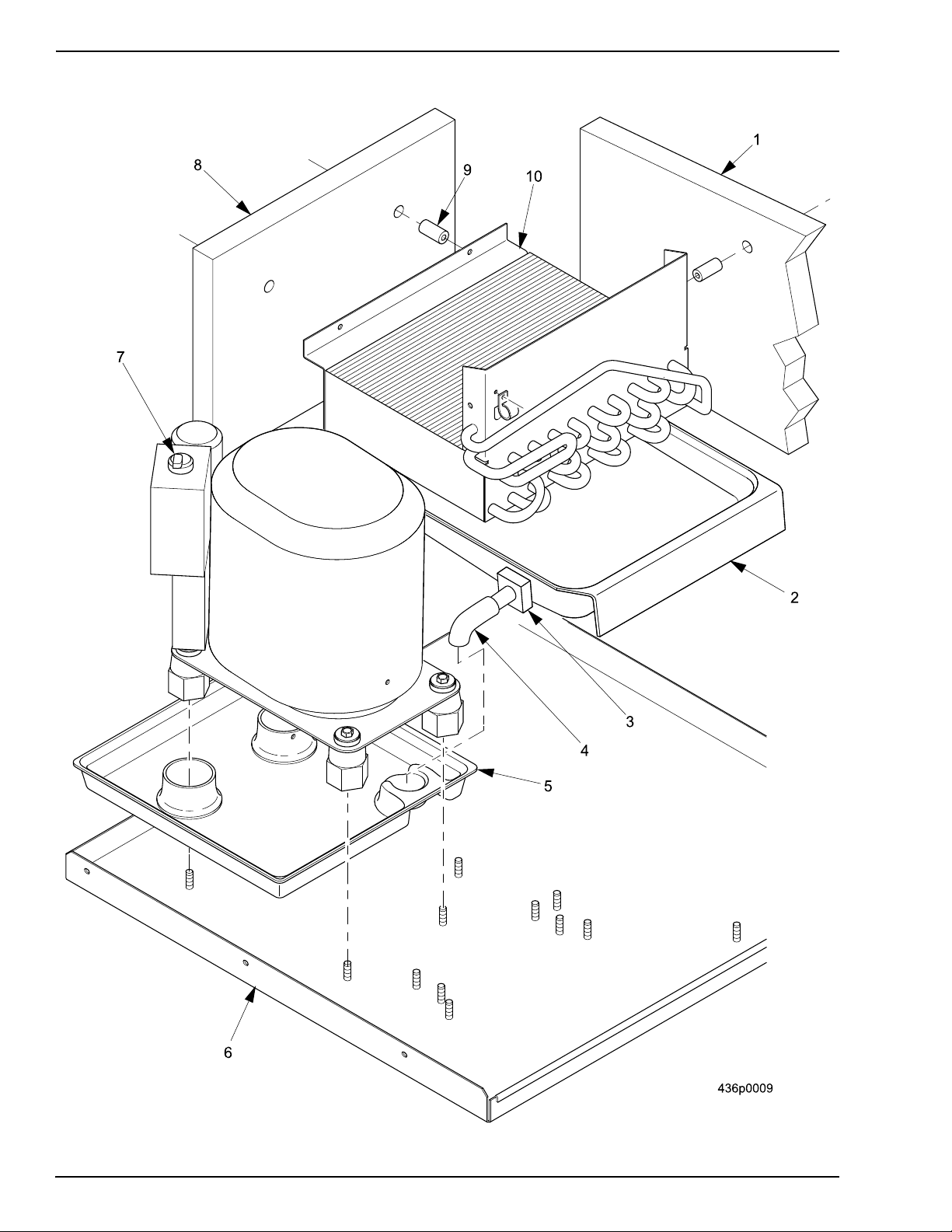

Figure 29. Refrigeration - Part 5
4360000 58 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 29. REFRI GERATION - PART 5
INDEX PART NUMBER DESCRIPTION QTY
1 4364013 INSULATION - 1.00 - RIGHT 1
2 4364004 PAN & TUBE ASSY. - CONDENSATE 1
3 4314114 SEAL - TUBE - DRAIN 1
4 4274082 TUBE - DRAIN - CONDENSATE 1
5 4364002 PAN - EVAPORATION 1
6 4364026 CHASSIS & STUD ASSY. - REFR. 1
7 4304151 BUSHIN G -STRAIN RELIEF -
8 4364015 INSULATION - 1.00 - REAR 1
9 4274009 SPACER - NYLON - 1.0L X .5 OD 10 4364058 EVAPORATOR - .375 DIA. - 3R - 28T - 1 1
June, 2002 59 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual
Figure 30. Refrigeration - Part 6
4360000 60 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 30. REFRI GERATION - PART 6
INDEX PART NUMBER DESCRIPTION QTY
1 4364022 SCREW - .25 - 20 X 1.5L. - HEX SER.W 4
2 4304236 WASHER - .88 O.D.X.38 I.D.X.063 4
3 4254027 GROMMET - 15/16 HEIGHT 4
4 4254028 SLEEVE - 55/64 LENGTH 4
5 4364007 SPACER - COMPRESSOR 4
June, 2002 61 4360000
Section E: Re fr iger ati on Deli S ho p Par ts Manual
Figure 31. Refrigeration - Part 7
4360000 62 June, 2002
Deli Shop Parts Manual Section E: Refrigeration
TABLE 31. REFRI GERATION - PART 7
INDEX PART NUMBER DESCRIPTION QTY
1 3124083 INSULATION - VALVE - BULB 1
2 4364008 SEAL - TUBE - EVAPORATOR 2
3 1452139 RETAINER - HARNESS 1
4 4274176 TXV VALVE - BIJ - 1/8T 1
5 4364061 TUBE - DRI ER TO TXV 1
6 1211161 CABLE CLAMP - RICHCO#N4 1
7 4302134 SPACER - P.C.BOARD 1
8 4364034 FILTER/DRIER - REFRIGERANT 1
9 3104053 TAPE-INSULATION 10 4364044 TUBE - PROCESS - STUB 1
11 4364060 TUBE - CONDENSER TO DRIER
12 4364041 TUBE - COMP.TO CONDENSER 1
13 4364043 TUBE - PROCESS - EL 1
14
15 9072706 TUBING UNICELLULAR 3/8 ID X 1.7’
16 4364059 TUBE - EVAPORATOR TO COMPRESSOR 1
17 3114114 WIRE TIE RICHCO#BT-10-10-BL 2
18 3154059 CLAMP-STAINLESS STEEL 2
4274000 COMPRESSOR - AKA4460YXA 115V 60 HZ
4314055 COMPRESSOR - 220V - R134A
1
June, 2002 63 4360000
Section F: Monetary Deli Shop Parts Manual
Section F: Monetary
Figure 32. Monetary - Part 1
4360000 64 June, 2002
Deli Shop Parts Manual Section F: Monetary
TABLE 32. MONETARY - PART 1
INDEX PART NUMBER DESCRIPTION QTY.
-
1
2 1472223 COIN INSERT 1
3 1472222 COIN BLOCK (U.S./MEXICO ONLY) 1
4 1472251 LENS - PUSH BUTTON 21
5 4270017 LETTER SHEET - SELECT SWITCH 1
6 9984621 MEMBRANE SWITCH ASSEMBLY - SELECT 1
7 1575091 PLATE - SELECT SWITCH - BACK UP - W/STUD 1
8 1475089 1/8 NUT - SELF - THREADING 4
4275023 FACE PLATE ASSEMBLY - GPL - (U.S.)
4275025 FACEPLATE ASSEMBL Y - POLYVEND
1595013 FRAME - MONETARY PANEL - GPL
4525002 FACEPLATE - MONET ARY PANEL - POLYVEND
1
1
June, 2002 65 4360000
Section F: Monetary Deli Shop Parts Manual
Figure 33. Monetary - Part 2
4360000 66 June, 2002
Deli Shop Parts Manual Section F: Monetary
TABLE 33. MONETARY - PART 2
INDEX PART NUMBER DESCRIPTION QTY.
1 4272066 COVER - CONTROL/INTERFACE PCB 1
2 9900081 NUT #8 - 32 KEPS ZINC PLATE -
3 4362025 MOUNTING ASSY - CHANGER PLATE 1
4 6231037 CLAMP - CABLE 1
5 4305043 HARNESS CLIP - 1.00 1
6 9900106 SCREW #8 - 32 X 3/8 ACORN HEX HD -
7 1127808 SPRING - SHELF RESET 1
8 2204093 WASHER - SCAVE NGER BAR 1
9 3122056 MAGNET-RETAINR-COIN CHANGER KB 2
10 1571113 ARM - SCAV ENGER 1
11 2228011 SPACER - RELEASE ARM 2
12 1571079 BRACKET - COI N RETURN BUTTON 1
13 1475072 SHAFT - RETU RN B UTTO N 1
14 1475026 BUTTO N - COIN RET U RN 1
15 1575003 COIN CHUTE ASSEMBL Y 1
16 1575048 PLATE - INSERT BACKING 1
17 4275022 PLATE ASSEMBLY - MONET ARY 1
18 1575035 INSER T - INSTR - LOWER - ENGLISH 1
19 - FACE PLATE ASSEMBLY (SEE FIGURE 32) 20 4272003 LENS - DISPLAY 1
21 4275006 INSERT - INSTRUCTIONS - ENGLISH 1
22 5305318 WASHER - .257X.50X.062 6
23 4366000 PCB ASSEMBLY W/EPROM (INCLUDES THE NEXT TWO ITEMS) 1
- 9989744 PCB ASSEMBLY - GPL MAIN CONTROL 1
- -
EPROM ASSEMBLY (SOFTWARE VERSIONS WILL VARY. CHECK THE
LABEL ON YOUR EPROM BEFORE ORDERING.)
1
June, 2002 67 4360000
Section F: Monetary Deli Shop Parts Manual
Figure 34. Monetary - Part 3
4360000 68 June, 2002
Deli Shop Parts Manual Section F: Monetary
TABLE 34. MONETARY - PART 3
INDEX PARTNUMBER DESCRIPTION QTY.
1 - MONETARY ASSEMBLY (SEE FIGU R E 3 3) 1
2 9900081 NUT #8 - 32 KEPS ZINC PLATE -
3 - BILL VALIDATOR (SEE TABLE 36) OPT.
4 1575048 PLATE - IN SERT BA CK I N G OPT.
5 1127808 SPRING - SHELF RESET 1
6 4362027 MOUNTING ASSY - CHANGER BASE 1
7 3122056 MAGNET - RETAINR - COIN CHANGER KB 3
8 9900160 SCREW - #8 - 18 X 1/2"PHIL.PAN HD. -
9 4362025 MOUNTING ASSY - CHANGER PLATE (SEE FIGUR E 33) 1
10 - COIN MECHANISM ( SEE TA BL E 3 5) OPT.
11
12 2302053 SPACER - CUP 4
13 9900160 SCREW - #8 - 18 X 1/2"PHIL.PAN HD. 14 - MONEY BOX AND HOUSING ASSEMBLY (SEE FIGURE 37) 1
15 6231242 CHUTE - PAYOUT 1
16 4275001 MOUNT - PAYOUT CHUTE 1
17 1451097 SCREW - # 8-32X.31 HEX HD.TF - BLK. -
18
19 4245084 SHAFT - DOOR - COIN RETURN 1
20 1572011 TRIM - COIN CUP - BLACK 1
21 4245083 SPRING - COIN RETURN DOOR 1
22 1575106 CASTING - MONET ARY FRAME - BLACK 1
1572010 CUP - COIN RETURN (U.S./MEXICO)
7212154 CUP ASSY - COIN RETURN - METAL (U.K.) (NOT SHOWN)
4245082 GATE - COIN RETURN (U.S ./MEXICO)
7212191 GATE - COIN RETURN DOOR - STAINLES (U.K.) (NOT SHOWN)
1
1
June, 2002 69 4360000
Section F: Monetary Deli Shop Parts Manual
TABLE 35. COIN UNIT OPTIONS
PART NUMBER DESCRIPTION
5900244 COIN UNIT - COINCOUSD - G701MD
5900205 VALIDATOR - MARSVN2512 - U5E24
6400002 COIN CHANGER - MARS# TRC6010XV
5900243 COIN UNIT - TRC6512,1195500,CN
5900213 COIN UNIT - COINCO - 9302GXMDB
5900209 COIN - CONLUXUSLZ - 001"MDB"
5900210 VAL.MARS - VN2512 - U5M/500K
5900243 COIN UNIT - TRC6512,1195500,CN
5900213 COIN UNIT - COINCO - 9302GXMDB
5900272 VAL. - COINCOBA30S A ( O BS )
5900214 COIN UNIT - MEI - VN4510 - MDB - CNS
5900192 COIN - CONLUXUSLX00401F
5900237 COIN MECH - CONLUXUSLX - OO1
5900279 COIN MECH - CO N LUX CCM5G - 4
5900276 COIN UNIT - VN4510 - 5/10/25/25
5900269 COINCO USQ - G701 - MDB - 4TUBE
4360000 70 June, 2002
Deli Shop Parts Manual Section F: Monetary
TABLE 36. BILL VALIDATOR OPTIONS
PART NUMBER DESCRIPTION
5900267 BILL VAL - CONLUX NBM3140MDB - 4
5900284 VAL - COINCO - MAGPRO - 30SA
5900285 VAL - COINCO - MAGPRO - 32SA
5900247 VAL - MARS AE2612 - U5M**MDB**
5900210 VAL.MARS - VN2512 - U5M/500 K
5900283 VAL - COINCO - MAGPRO - 32R
June, 2002 71 4360000
Section F: Monetary Deli Shop Parts Manual
Figure 37. Mone y Box Assembly
4360000 72 June, 2002
Deli Shop Parts Manual Section F: Monetary
TABLE 37. MONEY BOX ASSEMBLY
INDEX PART NUMBER DESCRIPTION QTY.
1 4271031 MONEY BOX ASSEMBLY 1
2 4520864 MONEY BOX LOCK (INCLUDES ITEM 3) 1
3 4521035 KEY, MSU - 48, #352 - 48 (PART OF ITEM 2) 1
4 4275005 COIN BOX HOUSING ASSEMBLY 1
June, 2002 73 4360000
Section G: Misce llan eo u s D eli S hop Pa rts Manual
Section G: Miscellaneous
Figure 38. Wiring Harnesses
4360000 74 June, 2002
Deli Shop Parts Manual Section G: Miscellaneous
T A BLE 38. WIRING HARNESSES
CONNECTOR PART NUMBER DESCRIPTION
J37 4279004 HARNESS - POWER & RELAYS TO PCB
J39 4279009 HARN ESS COI N C O BA 3 2 S A
J40 4279013 HARNESS 24V DUMB MECH
J42 4279008 HARNESS 24V MARS PULSE
J56 4279004 HARNESS - POWER & RELAYS TO PCB
J58 4369002 HARNESS SOLENOIDS
J58 4369005 J UMPER - COLD DOOR
J59 4369002 HARNESS SOLENOIDS
J60 4369002 HARNESS SOLENOIDS
J80 4279004 HARNESS - POWER & RELAYS TO PCB
J94 4279033 HARNESS AC POWER AND PANEL
J96 4279004 HARNESS - POWER & RELAYS TO PCB
J97 4279033 HARNESS AC POWER & PANE L
J100 4279030 HARNESS CO LD AC
J101 4279013 HARNESS 24V DUMB MECH
J126 4369002 HARNESS SOLENOIDS
J130 4369000 HARNESS REFRIGERATION ASSY
J133 4369000 HARNESS REFRIGERATION ASSY
J134 4279003 HARNESS FLST LIGHTS & POWER
J136 4279005 HARNESS FLST LIGHTS
J137 4279014 HARNESS DOOR FAN
J142 4279003 HARNESS FLST LIGHT & POWER
J143 4369002 HARNESS SOLENOIDS
J143 4369005 JUMPER - COLD DOOR
J144 4369002 HARNESS SOLENOIDS
J149 4279030 HARNESS CO LD AC
J152 4279003 HARNESS FLST LIGHT & POWER
J177 4279030 HARNESS CO LD AC
J200 4279009 HARNESS CO I N C O BA 3 2SA
J302 4369000 HARNESS REFRIGERATION ASSY
J304 4279004 HARNESS - POWER & RELAYS TO PCB
J306 4279004 HARNESS - POWER & RELAYS TO PCB
J307 4279004 HARNESS - POWER & RELAYS TO PCB
NOTE:
If the wiring diagram and/or harness list included with your machine is different from
those shown in this manual, use the newe st inform ation.
June, 2002 75 4360000
Section G: Misce llan eo u s D eli S hop Pa rts Manual
TABLE 39. BAG ASSEMBLY - U.S./CANADA
PART NUMBER DESCRIPTION QTY
WD436001 WIRING DIAGRAM - 436 - 115V/230V 1
4270022 COLUMN NUMBER CARD 4270025 LABEL - LOCATE FOOD HERE 1
4270048 LABELS - PRICE - DOM. - 40 CENTS T 1
4360001 SETUP MANUAL - DELI SHOP 1
4360002 INSTR - DELI SHOP MONETARY SET 1
4369001 LIST - WIRE HARNESSES 1
TABLE 40. BAG ASSEMBLY - U.K.
PART NUMBER DESCRIPTION QTY
WD436001 WIRING DIAGRAM - 436 - 115V/230V 1
1575083 COIN CHUTE & BRACKET ASSEMBL 1
1575086 INSTR.SHE ET - COIN CHUTE & BRK 1
4270022 COLUMN NUMBER CARD 4270025 LABEL - LOCATE FOOD HERE 1
4290004 LABELS - PRICE - U.K. - 25P TO 2L6 1
4290005 LABELS - PRICE - U.K. - 2L65P - 3L10 1
4360001 SETUP MANUAL - DELI SHOP 1
4360002 INSTR - DELI SHOP MONETARY SET 1
4369001 LIST - WIRE HARNESSES 1
T A BLE 41. BAG ASSEMBLY - MEXI C O
PART NUMBER DESCRIPTION QTY
WD436001 WIRING DIAGRAM - 436 - 115V/230V 1
4270022 COLUMN NUMBER CARD 4270025 LABEL - LOCATE FOOD HERE 1
4270048 LABELS - PRICE - DOM. - 40 CENTS T 1
4360001 SETUP MANUAL - DELI SHOP 1
4360002 INSTR - DELI SHOP MONETARY SET 1
4369001 LIST - WIRE HARNESSES 1
4360000 76 June, 2002
Deli Shop Parts Manual Part Number Index
Part Number Page Part Number Page Part Number Page
1127808 ..........................67, 69
1141046 ..........................11, 13
1171021 ................................35
1172190 ..................................7
1172191 ..................................7
1211105 ..........................35, 57
1211112 ................................37
1211141 ................................25
1211161 ..........................17, 63
1212140 ................................11
1217159 ..........................11, 29
1302289 ..................................7
1302291 ..................................7
1302324 ..................................7
1302326 ..................................7
1401110 ................................21
1411194 ................................33
1411195 ................................33
1451056 ................................31
1451097 .............15, 17, 19, 25,
......................29, 33, 41, 47, 69
1452139 ....................17, 21, 63
1471098 ................................37
1471237 ................................37
1472222 ................................65
1472223 ................................65
1472251 ................................65
1475026 ................................67
1475072 ................................67
1475089 ................................65
1571074 ................................33
1571079 ................................67
1571113 ................................67
1571195 ................................37
1572010 ................................69
1572011 ................................69
1575003 ................................67
1575035 ................................67
1575048 ..........................67, 69
1575083 ................................76
1575086 ................................76
1575091 ................................65
1575106 ................................69
1592031 ..................................3
1592032 ..................................3
1592068 ..................................3
1592069 ..................................3
1595013 ................................65
2204093 ................................67
2228011 ................................67
2272052 ..................................7
2302053 ................................69
3104053 ................................63
3104056 ................................41
3112163 ..................................7
3112164 ..................................7
3114114 ................................63
3122056 ..........................67, 69
3124083 ................................63
3154059 ................................63
3157060 ....................15, 29, 31
3502078 ................................47
3502097 ..........................11, 17
4031148 ................................29
4031150 ................................49
4042094 ................................47
4112095 ................................19
4242145 ................................37
4245082 ................................69
4245084 ................................69
4245186 ................................21
4248083 ................................69
4252029 ................................21
4254027 ................................61
4254028 ................................61
4270017 ................................65
4270022 ................................76
4270025 ..........................15, 76
4270048 ................................76
4271001 ................................47
4271002 ................................47
4271004 ................................47
4271031 ................................73
4271037 ................................35
4271048 ................................31
4271055 ................................47
4271057 ....................15, 17, 49
4271058 ................................43
4271065 ................................47
4271066 ..........................23, 33
4271077 ................................33
4271080 ................................47
4271081 ................................41
4271086 ................................29
4271088X ........................23, 47
4271098 ................................13
4271103 ................................33
4271105 ................................33
4271108X ........................23, 47
4271129 ................................31
4271130 ................................43
4271143 ................................49
4271151 ................................27
4271152 ................................27
4271154 ................................47
4271163 ................................43
4271166 ................................47
4271173 ................................47
4272002 ................................13
4272003 ................................67
4272040 ..................................3
4272052 ................................11
4272053 ................................11
4272060 ................................11
4272066 ................................67
4272069 ..................................3
4272093 ................................17
4273019 ................................21
4273021 ................................19
4273023 ................................19
4273039 ................................15
4273044 ..........................17, 19
4273046 ................................49
4273050 ................................21
4273079 ................................21
4273093 ................................15
4273106 ................................19
4273112 ................................19
4273114 ................................19
4273115 ................................19
4274000 ................................63
4274009 ................................59
4274055 ................................57
4274082 ................................59
4274176 ................................63
4275001 ................................69
4275005 ................................73
4275006 ................................67
4275022 ................................67
4275023 ................................65
4275025 ................................65
4277004 ................................43
4277008 ................................47
4277011 ................................43
4277012 ..........................23, 43
4277013 ................................47
4277024 ................................45
June, 2002 Index - 1 4360000
Deli Shop Parts Manual Part Number Index
Part Number Page Part Number Page Part Number Page
4277029 ................................45
4277030 ................................45
4277031 ................................43
4277038 ................................47
4277042 ................................45
4277049 ................................45
4277050 ................................47
4277051 ................................47
4277052 ................................43
4277053 ................................45
4277055 ................................43
4277060 ................................43
4279003 ................................75
4279004 ..........................13, 75
4279005 ................................75
4279008 ................................75
4279009 ................................75
4279013 ................................75
4279014 ................................75
4279015 ................................49
4279030 ................................75
4279033 ..........................13, 75
4290004 ................................76
4290005 ................................76
4291089 ................................31
4291107 ................................31
4293001 ....................15, 17, 19
4293014 ..........................17, 19
4297001 ................................45
4297003 ................................43
4297004 ................................43
4302134 ................................63
4302277 ................................29
4302290 ..................................7
4304151 ................................59
4304231 ................................57
4304236 ................................61
4305043 ................................67
4311211 ................................11
4312124 ..........................17, 19
4312210 ................................13
4312211 ................................13
4314014 ................................51
4314055 ................................63
4314105 ................................55
4314114 ................................59
4319008 ................................49
4360001 ................................76
4360002 ................................76
4361001 ................................15
4361002 ................................15
4361025 ................................43
4361026 ................................29
4361027 ................................27
4361028 ................................29
4361029 ................................29
4361030 ................................27
4361040 ................................27
4361041 ................................27
4361042 ................................27
4361043 ................................43
4361051 ................................47
4361059 ................................25
4362006 ..........................11, 13
4362013 ................................11
4362019 ..............................3, 5
4362025 ..........................67, 69
4362027 ................................69
4362032 ......................3, 11, 23
4362049 ..........................11, 13
4362051 ................................11
4362052 ................................11
4362053 ................................11
4362054 ................................13
4362055 ................................13
4362057 ................................11
4362058 ................................11
4362059 ................................11
4362060 ................................11
4362061 ................................13
4363000 ................................21
4363007 ................................17
4363008 ................................19
4363013 ................................21
4363014 ................................21
4363016 ................................21
4363023 ................................19
4363028 ................................15
4363029 ................................21
4363030 ................................21
4363031 ................................21
4363032 ................................21
4364001 ................................57
4364002 ................................59
4364004 ................................59
4364005 ................................49
4364006 ................................49
4364007 ................................61
4364008 ................................63
4364012 ................................55
4364013 ..........................55, 59
4364015 ..........................55, 59
4364016 ................................55
4364017 ................................55
4364018 ................................55
4364019 ................................51
4364022 ................................61
4364024 ................................53
4364025 ................................53
4364026 ....................49, 53, 59
4364028 ................................55
4364029 ................................53
4364030 ................................53
4364034 ................................63
4364041 ................................63
4364043 ................................63
4364044 ................................63
4364045 ................................49
4364046 ................................49
4364047 ................................51
4364048 ................................51
4364049 ................................49
4364051 ................................55
4364056 ..........................51, 53
4364057 ................................55
4364058 ................................59
4364059 ................................63
4364060 ................................63
4364061 ................................63
4364065 ................................57
4364066 ................................57
4364067 ................................57
4364068 ................................57
4364069 ................................55
4366000 ................................67
4369000 ................................75
4369001 ................................76
4369002 ................................75
4369003 ................................25
4369005 ................................75
4402043 ................................51
4520864 ................................73
4521035 ................................73
4525002 ................................65
4551173 ................................55
4551188 ................................51
4614027 ................................49
June, 2002 Index - 2 4360000
Deli Shop Parts Manual Part Number Index
Part Number Page Part Number Page Part Number Page
4721035 ....................13, 27, 43
4727144 ................................43
4732024 ..........................15, 31
4751060 ................................25
5201266 ..........................17, 19
5202012 ................................47
5262139 ................................29
5262141 ..........................21, 47
5305318 ................................67
5900192 ................................70
5900205 ................................70
5900209 ................................70
5900210 ..........................70, 71
5900213 ................................70
5900214 ................................70
5900237 ................................70
5900243 ................................70
5900244 ................................70
5900247 ................................71
5900267 ................................71
5900269 ................................70
5900272 ................................70
5900276 ................................70
5900279 ................................70
5900283 ................................71
5900284 ................................71
5900285 ................................71
6104219 ................................47
6112042 ................................47
6231034 ................................37
6231037 ................................67
6231087 ................................33
6231163 ................................37
6231189 ................................13
6231203 ................................37
6231242 ................................69
6232028 ..........................35, 37
6232031 ................................37
6232036 ..........................35, 37
6232208 ..........................35, 37
6396028 ................................49
6400002 ................................70
7212154 ................................69
7212191 ................................69
9072706 ................................63
9900016 ................................17
9900035 ................................11
9900081 .............11, 13, 21, 37,
........................................67, 69
9900090 ................................21
9900092 ................................17
9900098 ................................33
9900106 ................................67
9900115 ................................51
9900121 ..................................7
9900130 ................................11
9900140 ................................21
9900160 ............................7, 69
9900218 ................................37
9900220 ................................19
9984095 ................................49
9984625 ................................65
9984629 ................................31
9984633 ................................21
9987852 ................................17
9989046 ................................31
9989100 ................................31
9989576 ................................41
9989674 ................................31
9989677 ................................31
9989744 ................................67
9989781 ................................41
9992400 ..................................7
W
WD436001 ............................76
June, 2002 Index - 3 4360000
Loading...
