Craftsman 137.407530 User Manual

Operator’s Manual

10 IN. COMPACT SLIDE MITER SAW
Model No. 137.407530

●

CAUTION:

Before using this Miter Saw,
read this manual and follow
all its Safety Rules and
Operating Instructions

Customer Help Line

For Technical Support

1-800-843-1682

Sears Brands Management Corporation Hoffman Estates, IL 60179 USA

See the full line of Craftsman® products at craftsman.com
Click on the Craftsman Club
Part No. 137407530001 Printed in China

®

link and join today!

Safety Instructions

●

Assembly

●

Operation

●

Maintenance

●

Parts List

Sears Parts &
Repair Center

1-800-488-1222

TABLE OF CONTENTS

SECTION PAGE

Warranty ................................................................................................................ 2

Product Specifications ........................................................................................... 3

Symbols.................................................................................................................. 4

Power Tool Safety .................................................................................................. 5

Compound Miter Saw Safety ................................................................................. 8

Electrical Requirements and Safety ....................................................................... 10

Accessories and Attachments ................................................................................ 12

Tools Needed for Assembly ................................................................................... 13

Carton Contents .................................................................................................... 14

Know Your Sliding Compound Miter Saw .............................................................. 15

Glossary of Terms .................................................................................................. 16

Assembly ............................................................................................................... 18

Adjustments ........................................................................................................... 24

Operation ............................................................................................................... 31

Maintenance .......................................................................................................... 46

Troubleshooting Guide .......................................................................................... 48

Parts List ............................................................................................................... 50

Repair Protection Agreement ................................................................................ 54

WARRANTY

FOR ONE YEAR from the date of purchase, this product is warranted against defects in

CRAFTSMAN ONE YEAR FULL WARRANTY

material or workmanship. A defective product will receive free repair or replacement if repair
is unavailable. For warranty coverage details or to obtain free repair or replacement, visit the
web page: www.craftsman.com/warranty

This warranty does not cover the blade, which is an expendable part that can wear out from
normal use within the warranty period. This ONE YEAR warranty is void if this product is
ever used while providing commercial services or if rented to another person. For 90 DAY
commercial and rental use terms, see the Craftsman warranty web page. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

CALIFORNIA PROPOSITION 65

WARNING

!

Some dust created by power sanding, sawing, grinding, drilling and other construction
activities contains chemicals known to the state of California to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:

● Lead from lead-based paints,

● Crystalline silica from bricks, cement and other masonry products, and

● Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, such as those dust masks that are specially designed to
filter out microscopic particles. Avoid prolonged contact with dust from power sanding,
sawing, grinding, drilling, and other construction activities. Wear protective clothing and
wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or
lay on the skin may promote absorption of harmful chemicals.

2013/11

2

PRODUCT SPECIFICATIONS

MOTOR:

Power Source ........................................ 120V AC, 60 Hz, 15 Amp

Speed .................................................... 4800 RPM (No load)

Electric Brake ........................................ Ye s

Double Insulated ................................... Yes

Arbor Shaft Size .................................... 5/8 in.

BLADE:

Diameter ................................................ 10 in.

Arbor Hole ............................................. 5/8 in.

MITER SAW:

Miter Detent Stops ................................. 0°, 15°, 22.5°, 31.6°, 45° Right & Left

Bevel Positive Stops .............................. 0°, 33.9°, 45° Left

CUTTING CAPACITY:

Crosscut (Maximum Height) .................. 3-1/2 in. x 11-1/2 in.

Crosscut (Maximum Width) ................... 2-1/2 in. x 12-1/2 in.

Miter 45° Right & Left ............................ 3-1/2 in. x 8 in.

Bevel 45° Left ........................................ 1-3/4 in. x 11-1/2 in.

45° Miter and 45° Bevel Left ................. 1-3/4 in. x 8 in.

Crown Molding Nested .......................... 5-3/4 in.

Base Molding Against Fence ................. 3-1/2 in.

WARNING

!

To avoid electrical hazards, fire hazards or damage to the tool, use proper
circuit protection. This tool is wired at the factory for 110-120 Volt operation.
It must be connected to a 110-120 Volt / 15 Ampere time delay fuse or circuit
breaker. To avoid shock or fire, replace power cord immediately if it is worn,
cut or damaged in any way. Before using your tool, it is critical that you read
and understand these safety rules. Failure to follow these rules could result
in serious injury to you or damage to the tool.

3

SYMBOLS

WARNING ICONS
Your power tool and its Operator’s Manual may contain “WARNING ICONS”
(a picture symbol intended to alert you to, and/or instruct you how to avoid,
a potentially hazardous condition). Understanding and heeding these
symbols will help you operate your tool better and safer. Shown below are
some of the symbols you may see.

SAFETY ALERT: Precautions that involve your safety.

PROHIBITION

WEAR EYE PROTECTION: Always wear safety goggles or safety

glasses with side shields.

WEAR RESPIRATORY AND HEARING PROTECTION: Always wear
respiratory and hearing protection.

READ AND UNDERSTAND INSTRUCTION MANUAL: To reduce
the risk of injury, user and all bystanders must read and understand
instruction manual before using this product.

DANGER

!



WARNING

!



CAUTION

!



CAUTION

KEEP HANDS AWAY FROM BLADE: Failure to keep your hands

away from the blade will result in serious personal injury.

SUPPORT AND CLAMP WORK

DANGER: indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING: indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.

CAUTION: indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate injury.

CAUTION: used without the safety alert symbol indicates
a potentially hazardous situation which, if not avoided, may
result in property damage.

4

POWER TOOL SAFETY

GENERAL SAFETY INSTRUCTIONS
BEFORE USING THIS POWER TOOL

Safety is a combination of common
sense, staying alert and knowing how
to use your power tool.

WARNING

!

To avoid mistakes that could cause
serious injury, do not plug the tool in
until you have read and understood
the following.

1. READ and become familiar
with the entire Operator’s
Manual. LEARN the tool’s

application, limitations and possible
hazards.

2. KEEP GUARDS IN PLACE and in

working order.

3. REMOVE ADJUSTING KEYS

AND WRENCHES. Form the habit
of checking to see that keys and
adjusting wrenches are removed
from the tool before turning ON.

4. KEEP WORK AREA CLEAN.

Cluttered areas and benches invite
accidents.

7. MAKE WORKSHOP CHILD
PROOF with padlocks, master
switches or by removing starter
keys.

8. DO NOT FORCE THE TOOL. It will
do the job better and safer at the
rate for which it was designed.

9. USE THE RIGHT TOOL. Do not
force the tool or an attachment
to do a job for which it was not
designed.

10. USE PROPER EXTENSION
CORDS. Make sure your extension
cord is in good condition. When
using an extension cord, be sure to
use the one heavy enough to carry
the current that the product will
draw. An undersized cord will result
in a drop in line voltage and in
loss of power which will cause the
tool overheat. The table on page
11 shows the proper wire gauge
size usage to each extension cord
length and ampere rating. If in
doubt, use the next heavier gauge.
The smaller the gauge number, the
heavier the cord.

5. DO NOT USE IN DANGEROUS
ENVIRONMENTS. Do not use
power tools in damp locations, or
expose them to rain or snow. Keep
work area well lit.

6. KEEP CHILDREN AWAY. All visitors
and bystanders should be kept a
safe distance from work area.

11. WEAR PROPER APPAREL. Do
not wear loose clothing, gloves,
neckties, rings, bracelets or other
jewelry which may get caught in
moving parts. Nonslip footwear is
recommended. Wear protective
hair covering to contain long hair.

5

12. ALWAYS WEAR EYE
PROTECTION. Any power
tool can throw foreign

objects into the eyes and could
cause permanent eye damage.
ALWAYS wear Safety Goggles (not
glasses) that comply with ANSI
Safety standard Z87.1. Everyday
eyeglasses have only impact–
resistant lenses. They ARE NOT
safety glasses. Safety Goggles are
available at Sears.

or goggles not in compliance with
ANSI Z87.1 could seriously injure
you when they break.

13. WEAR A FACE MASK
OR DUST MASK. Sawing
operation produces dust.

1 4 . SECURE WORK. Use

clamps or a vice to hold
work when practical. It is

safer than using your hand and
it frees both hands to operate
the tool.

NOTE: Glasses

17. USE RECOMMENDED
ACCESSORIES. Consult
this Operator’s Manual for
recommended accessories.

The use of improper accessories
may cause risk of injury to yourself

or others.

18. NEVER STAND ON THE TOOL.
Serious injury could occur if the
tool is tipped or if the cutting tool is
unintentionally contacted.

19. CHECK FOR DAMAGED PARTS.
Before further use of the tool, a
guard or other part that is damaged
should be carefully checked to
determine that it will operate
properly and perform its intended
function – check for alignment of
moving parts, binding of moving
parts, breakage of parts, mounting
and any other conditions that may
affect its operation. A guard or
other part that is damaged should
be properly repaired or replaced.

15. DISCONNECT TOOLS FROM
POWER SOURCE before servicing,
and when changing accessories
such as blades, bits and cutters.

16. REDUCE THE RISK OF
UNINTENTIONAL STARTING.
Make sure switch is in the OFF
position before plugging the tool in.

20. NEVER LEAVE THE TOOL

RUNNING UNATTENDED. TURN
THE POWER “OFF”. Do not walk

away from a running tool until the
blade comes to a complete stop
and the tool is unplugged from the
power source.

21. DO NOT OVERREACH. Keep
proper footing and balance at all
times. NEVER reach across the
path of the cutting blade while tool
is in operation.

6

22. MAINTAIN TOOLS WITH CARE.
Keep tools sharp and clean for best
and safest performance. Follow
instructions for lubricating and
changing accessories.

23. DO NOT use power tool in
presence of flammable liquids

or gases.

24. DO NOT operate the tool if you are
under the influence of any drugs,
alcohol or medicationn that could
affect your ability to use the tool
properly.

25. WARNING: Dust generated from
certain materials can be hazardous
to your health. Always operate saw
in well-ventilated area and provide
for proper dust removal.

26. People with

27. WEAR HEARING

DANGER

!



devices, such as pacemakers,
should consult their physician(s)
before using this product. Operation
of electrical equipment in close
proximity to a heart pacemaker
could cause interference or failure
of the pacemaker.

PROTECTION to reduce the
risk of induced hearing loss.

electronic

7

COMPOUND MITER SAW SAFETY

SPECIFIC SAFETY INSTRUCTIONS
FOR THIS COMPOUND MITER SAW

1. DO NOT operate the miter saw
until it is completely assembled
and installed according to these
instructions.

2. IF YOU ARE NOT thoroughly
familiar with the operation of miter
saws, seek guidance from your
supervisor, instructor or other
qualified person.

3. ALWAYS hold the work firmly
against the fence and table.
DO NOT perform any operation
free hand (use clamp wherever
possible).

4. KEEP HANDS out of the path of
the saw blade. If the workpiece
you are cutting would cause your
hands to be within 7.5 in. of the

saw blade, the workpiece should
be clamped in place before making
the cut.

5. BE SURE the blade is sharp, runs
freely and is free of vibration.

10. USE only blade collars specified for
your saw.

11. NEVER use blades larger in
diameter than 10 inches.

12. NEVER apply lubricants to the
blade when it is running.

13. ALWAYS check the blade for
cracks or damage before operation.
Replace a cracked or damaged
blade immediately.

14. NEVER use blades recommended
for operation at less than 4800 RPM.

15. ALWAYS keep the blade guards in
place and use at all times.

16. NEVER reach around the saw blade.

17. MAKE SURE the blade is not
contacting the workpiece before the
switch is turned ON.

18. IMPORTANT: After completing the
cut, release the trigger and wait for
the blade to stop before returning
the saw to the raised position.

6. ALLOW the motor to come up to
full speed before starting a cut.

7. KEEP THE MOTOR AIR SLOTS
CLEAN and free of chips or dust.

8. ALWAYS MAKE SURE all handles
are tight before cutting, even if the
table is positioned in one of the
positive stops.

9. BE SURE both the blade and the
collar are clean and the arbor bolt
is tightened securely.

19. MAKE SURE the blade has come
to a complete stop before removing
or securing the workpiece,
changing the workpiece angle or
changing the angle of the blade.

20. NEVER cut metals or masonry
products with this tool. This miter
saw is designed for use on wood
and wood-like products.

8

21. NEVER cut small pieces. If the
workpiece being cut would cause
your hand or fingers to be within

7.5 in. of the saw blade the
workpiece is too small.

22. PROVIDE adequate support to the
sides of the saw table for long work
pieces.

immediately. Be alert at all times

- especially during repetitive,
monotonous operations. Don’t be
lulled into carelessness due to a
false sense of security. Blades
are extremely unforgiving. Clean
the lower guard frequently to help
visibility and movement. Unplug
before adjustment or cleaning.

23. NEVER use the miter saw in an
area with flammable liquids or
gases.

24. NEVER use solvents to clean
plastic parts. Solvents could
possibly dissolve or otherwise
damage the material.

25. SHUT OFF the power before
servicing or adjusting the tool.

26. DISCONNECT the saw from
the power source and clean the
machine when finished using.

27. MAKE SURE the work area is
clean before leaving the machine.

28. SHOULD any part of your miter saw
be missing, damaged, or fail in any
way, or any electrical component
fail to perform properly, lock the
switch and remove the plug from
the power supply outlet. Replace
missing, damaged, or failed parts
before resuming operation.

29. Because of the downward cutting
motion, your safety requires that
you stay very alert to keeping
hands and fingers away from the
path that the blade travels.

30. Be sure all guards are in place and
working. If a guard seems slow
to return to its normal position or
“hangs-up”, adjust or repair it

31. Abrasive cut-off wheels should
not be used on miter saws. Miter
saw guards are not appropriate for
abrasive cut-off wheels.

32. To avoid loss of control or placing
hands in the path of the blade,
hold or clamp all material securely
against the fence when cutting. Do
not perform operations freehand.

33. Support long material at the same
height as the saw table.

34. After completing a cut, release
the trigger switch and allow the
blade to come to a complete stop,
then raise the saw blade from the
workpiece.

35. Lock the miter saw head in the
down position during transport or
when not in use.

36. DRY RUN - It is important to know
where the blade will intersect
with the workpiece during cutting
operations. Always perform a
simulated cutting sequence with the
power tool switched OFF to gain an
understanding of the projected path
of the saw blade. At some extreme
angles, the right or left side fence
might have to be removed to
ensure proper clearance prior to
making a cut.

9

ELECTRICAL REQUIREMENTS AND SAFETY

POWER SUPPLY AND MOTOR
SPECIFICATIONS

The AC motor used in this saw is
a universal, nonreversible type.
See “MOTOR” in the “PRODUCT
SPECIFICATIONS” section on page 3.

WARNING

!

To avoid electrical hazards, fire
hazards, or damage to the tool, use
proper circuit protection. Your saw
is wired at the factory for 120 V
operation. Connect to a 120 V,
15 A circuit and use a 15 A time
delay fuse or circuit breaker. To
avoid shock or fire, if power cord is
worn or cut, or damaged in any way,
have it replaced immediately.

ELECTRICAL REQUIREMENTS –
DOUBLE INSULATED

The power tool is double insulated to
provide a double thickness of insulation
between you and tool’s electrical
system. All exposed metal parts are
isolated from the internal metal motor
components with protecting insulation.

Replacement parts – When servicing
use only identical replacement parts.

Polarized plugs – This saw has a plug
that looks like the one shown below:

To reduce the risk of electrical shock,
this saw has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one
way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to
install the proper outlet. Do not change
the plug in any way.

WARNING

!

Double insulation does not take the
place of normal safety precautions
when operating this tool.
To avoid electrocution:

1. Use only identical replacement

parts when servicing a tool with
double insulation. Servicing
should be performed by a
qualified technician.

2. Do not use power tools in wet or

damp locations or expose them
to rain or snow.

MOTOR SAFETY PROTECTION

IMPORTANT:

To avoid motor damage, the motor
should be blown out or vacuumed
frequently to keep sawdust from
interfering with the motor ventilation.

1. CONNECT this saw to a 120 V, 15 A

circuit with a 15 A time-delay fuse or
circuit breaker. Using the wrong size
fuse can damage the motor.

2. If the motor won’t start, release the

trigger switch immediately. UNPLUG
THE SAW. Check the saw blade to
make sure it turns freely. If the blade
is free, try to start the saw again. If
the motor still does not start, refer to
the TROUBLESHOOTING GUIDE.

10

3. If the tool suddenly stalls while
cutting wood, release the trigger
switch, unplug the tool, and free the
blade from the wood. The saw may
now be started and the cut finished.

4. FUSES may “blow” or circuit
breakers may trip frequently if:

a. MOTOR is overloaded –
overloading can occur if you feed
too rapidly or make too many
start/stops in a short time.
b. LINE VOLTAGE is more than
10% above or below the
nameplate voltage rating. For
heavy loads, the voltage at
motor terminals must equal the

voltage specified on the nameplate.
c. IMPROPER or dull saw blades
are used.

5. Most motor troubles may be traced

to loose or incorrect connections,
overload, low voltage or inadequate
power supply wiring. Always check
the connections, the load and
supply circuit if the motor doesn’t
run well. Check minimum gauge for
the length of cord you are using on
the chart below.

GUIDELINES FOR EXTENSION
CORDS

Use a proper extension cord. Make

sure your extension cord is in good
condition. When using an extension
cord, be sure to use one heavy enough
to carry the current your product will
draw. An undersized cord will cause a
drop in line voltage, resulting in loss
of power and cause overheating. The
table below shows the correct size
to use depending on cord length and
nameplate ampere rating. If in doubt,
use the next heavier gauge. The
smaller the gauge number, the heavier
the cord.

Be sure your extension cord is
properly wired and in good condition.

Always replace a damaged extension
cord or have it repaired by a qualified
person before using it. Protect your
extension cords from sharp objects,
excessive heat and damp or wet areas.

Use a separate electrical circuit for
your tools. This circuit must not be less

than a #12 wire with a 20 A time-lag
fuse or a #14 wire with a 15 A time-lag
fuse. NOTE: When using an extension
cord on a circuit with a # 14 wire, the
extension cord must not exceed 25 feet
in length. Before connecting the tool to
the power line, make sure the switch
is in the OFF position and the electric
current is rated the same as the current
stamped on the motor nameplate,
running at a lower voltage will damage
the motor.

MINIMUM GAUGE FOR EXTENSION CORDS (AWG)

More Than Not More Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12

(When usng 120 volts only)

Ampere Rating Total length of Cord

25ft. 50ft. 100ft. 150ft.

Not Recommended

CAUTION

In all cases make certain the
receptacle in question is properly
grounded. If you are not sure, have
a certified electrician check the
receptacle.

11

ACCESSORIES AND ATTACHMENTS

RECOMMENDED ACCESSORIES

WARNING

!

● Use only accessories recommended

for this miter saw. Follow
instructions that accompany
accessories. Use of improper
accessories may cause hazards.

● The use of any cutting tool except

10 in. saw blades which meet the
requirements under recommended
accessories is prohibited. Do not
use accessories such as shaper
cutters or dado sets. Ferrous metal
cutting and the use of abrasive
wheels is prohibited.

● Do not attempt to modify this

tool or create accessories not
recommended for use with this tool.
Any such alteration or modification
is misuse and could result in a
hazardous condition leading to
possible serious injury.

ACCESSORIES

Visit your Sears Hardware Department
or see the Sears Power and Hand Tool
Catalog to purchase recommended
accessories for this power tool.

WARNING

!

● To avoid the risk of personal injury,

do not modify this power tool or use
accessories not recommended by
Sears.

●

Read warnings and conditions on
your CARBIDE TIPPED SAW BLADE.
Do not operate the saw without the
proper saw blade guard in place.
Carbide is a very hard but brittle
material. Care should be taken while
mounting, using, and storing carbide
tipped blades to prevent accidental
damage. Slight shocks, such as
striking the tip while handling, can
seriously damage the blade. Foreign
objects in the workpiece, such as
wire or nails, can also cause tips
to crack or break off. Before using,

always visually examine the blade
and tips for bent blade, cracks,
breakage, missing or loose tips, or
other damage. Do not use if damage
is suspected. Failure to heed safety
instructions and warnings can
result in serious bodily injury.

BLADE INFORMATION

● Always use a crosscut blade that is
designed for cutting across the wood
grain. NEVER use Rip, Combination,
Plywood, Dado or Abrasive type saw
blades at any time

● Always use a 10 in. diameter blade with
either a 5/8” arbor hole, speed rating
must be at least 4800 RPM.

● Read and understand all instructions
provided with each blade before using
on this miter saw.

There are two main materials used for
saw blades; high-speed steel (HSS) and
carbide tipped (TCT). While the HSS
blades are generally less expensive
than carbide tipped, TCT blades will
stay sharper longer than HSS. As a
general rule the more teeth per inch (TPI)
the smoother the cut. Please read the
information provided on the blade for
more details for their use.

General Purpose Wood Cutting: 24 - 40 TPI
Fine Woodworking Cutting: 60 - 80 TPI
Non-ferrous Metal Cutting:

Use only special blades designed for
cutting this type of material.

Plastic Cutting:

Use only special blades designed for
cutting plastic.

NOTE: When cutting non-ferrous or
plastic, be sure to clean up completely
after each use. Take special care with
metal shavings after each cut, these can
cause damage to the table top. ALWAYS
WEAR EYE PROTECTION.

12

TOOLS NEEDED FOR ASSEMBLY

Supplied

Blade Wrench

COMBINATION SQUARE MUST BE TRUE

Should not gap or overlap when square is flipped over (see dotted figure).

Draw light line on
board along this edge.

Not supplied

Adjustable Wrench

Combination Square Slotted Screwdriver

Straight edge or a 3/4 in. board, this
edge must be perfectly straight.

Phillips Screwdriver

Should not gap or overlap when square is
flipped over (see dotted figure).

13

CARTON CONTENTS

UNPACKING YOUR MITER SAW

WARNING

!

To avoid injury from unexpected
starting or electrical shock, do not
plug the power cord into a source
of power during unpacking and
assembly. This cord must remain
unplugged whenever you are
working on the saw.

1. Remove the miter saw from the
carton.

IMPORTANT: Do not lift miter saw

by the trigger switch handle. It may
cause misalignment. Lift machine
by the built-in carry handle.

2. Place the saw on a secure
stationary work surface.

3. Separate all parts from the packing
material. Check each one with the
illustration to make certain all items
are accounted for before discarding
any packing material.

WARNING

!

If any part is missing or damaged,
do not attempt to assemble the
miter saw, or plug in the power cord
until the missing or damaged part is
correctly replaced. To avoid electric
shock, use only identical replacement
parts when servicing double insulated
tools. Call 1-800-4-MY-HOME® for
replacement parts.

Miter Saw

Operator’s Manual

Hold-Down Clamp

14

Miter Handle

Hardware Bag

Blade WrenchDust Bag

KNOW YOUR SLIDING COMPOUND MITER SAW

Slide Carriage
Lock Knob

Slide
Carriage

Bevel Locking
Handle

Hold-down
Clamp

Sliding Fence

Left Extension
Wing

Laser Trac® Laser Guide

Arbor Lock Button

Blade

Cover Plate

Stop Plate

Laser ON/OFF
Switch

Miter Detent

Base

Override

Built-in Carry Handle
(Lift unit here)

ON/OFF
Trigger Switch
Handle

Motor Brush Cap

Laser Vertical
Adjustment
Knob

Laser Horizontal
Adjustment
Knob

Lower Blade
Guard

Table

Positive Stop
Locking Lever

Blade Wrench
Storage

Stop Knob

Hold-down
Latch

Mounting Holes

Table Insert

Miter Handle

Miter Scale
Quick-cam Miter
Locking Lever

Power Cord
Storage

Stop Plate

Motor

Scaled Fence

Right Extension Wing

Extension Locking Lever

15

GLOSSARY OF TERMS

AMPERAGE (AMPS) – A measure

of the flow of electric current. Higher
ratings generally means the tool is
suited for heavier use.

ARBOR LOCK – Allows the user to
keep the blade from rotating while
tightening or loosening the arbor bolt
during blade replacement or removal.

BASE – Supports the table, holds
accessories and allows for workbench
or leg set mounting.

BEVEL LOCKING HANDLE – Locks
the miter saw at a desired bevel angle.

BEVEL SCALE – To measure the
bevel angle of the saw blade 0° to 45°
left.

CARBIDE TIPPED – Extremely hard
steel pieces with sharp cutting edges
fastened to cutting tools such as saw
blades.

COVER PLATE SCREW – Loosen this
screw and rotate the plate for access to
the blade arbor bolt.

EXTENSION CORD – An electric cord
used between power tools and outlets to
extend the range of the tools. The more
amerage your tool uses, the longer the
distance, the larger the size of the wire
needed in your extension cord.

EYE PROTECTION – Googles or
spectacles intended to protect your
eyes. Eye protection should meet the
requirements of ANSI Z.87.1 (USA) or
CSA Z94.3-M88 (Canada).

FACE SHIELD – An impact resistant
shield that helps to protect your face
from chips, sparks, small debris.
Should only be used in conjunction with
additional eye protection.

FENCE – Helps to keep the workpiece
from moving when sawing. Scaled to
assist with accurate cutting.

GUARD – Protective devise that forms
a barrier between a hazardous object
such as a blade, wheel or cutter and
the operator.

HOLD-DOWN LATCH – Locks the
miter saw in the lowered position for
compact storage and transportation.

INSTRUCTION OR OPERATOR’S
MANUAL – Booklet accompanying

your power tool that describes the
hazards and safe operation procedures,
outlines basic tool operation, care and
maintenance.

MITER HANDLE – Used to rotate the
table, and to rotate the saw to a right or
left cutting position.

MITER SCALE – Measures the miter
angle of the saw blade. Positive stop
index points have been provided at 0°,
15°, 22.5°, 31.6° and 45° right and left.

MOUNTING HOLES – To mount the
miter saw to a stable surface.

ON/OFF TRIGGER SWITCH – To start
the tool, squeeze the trigger. Release
the trigger to turn off the miter saw.

16

POSITIVE STOP LOCKING LEVER –
Locks the miter saw at a preset positive
stop for the desired miter angle.

SWITCH HANDLE – The switch
handle contains the trigger switch and
the laser on/off switch. The blade is
lowered into the workpiece by pushing
down on the handle. The saw will
return to its upright position when the
handle is released.

WARNING LABELS – Read and
understand for your own safety. Make
sure all labels are present on machine
and legible.

BLADE WRENCH STORAGE –
Convenient storage to prevent
misplacing the blade wrench.

WOODWORKING TERMS

ARBOR – The shaft on which a blade

is mounted.

BEVEL CUT – An angle cut made
through the face of the workpiece.

COMPOUND CUT – An angled cut
to both the edge and face of a board,
most common use is with crown
molding.

CROSS CUT – A cut which runs across
the board perpendicular to the grain.

FREEHAND – Performing a cut without
using a fence (guide), hold down or
other proper device to prevent the
workpiece from twisting during the
cutting operation.

KICKBACK – sudden and unintended
movement of the tool or workpiece. It is
typically caused by binding or pinching
of the workpiece.

MITER CUT – A miter is a type of joint
where the two parts to be joined are cut
at an angle, and typically the finished
joint forms a 90-degree angle. Also
commonly spelled “mitre”.

REVOLUTIONS PER MINUTE (RPM)
– The number of turns completed by a
spinning object in one minute.

SAW BLADE PATH – The area of the
workpiece or table top directly in line
with the travel of the blade or the part
of the workpiece which will be cut.

SET – The distance between two saw
blade tips, bent outward in opposite
directions to each other. The further
apart the tips are, the greater the set.

THIN-KERF BLADE – Thinner than
normal blades, remove less material,
smaller kerfs (between 0.065 in. and

0.070 in.). Blade thinness also may
increase the heat generated while
cutting.

WORKPIECE – The wood being
cut. The surfaces of a workpiece are
commonly referred to as faces, ends
and edges.

HEEL – Misalignment of the blade.

KERF – The width of a saw cut,

determined by the thickness and set of
the blade.

17

ASSEMBLY

WARNING

!



To avoid injury, do not connect this
miter saw to the power source until
it is completely assembled and
adjusted and you have read and
understood this Operator’s Manual.

RELEASING CUTTING HEAD (FIG. A)
Raising

1. Push down slightly on the trigger
switch handle (1).

2. Pull out the hold-down latch (2).

3. Raise the cutting head to the
uppermost position.

NOTE: This cutting head is spring

loaded.

WARNING

!



To avoid injury and damage to the
saw, transport and store the miter
saw with the cutting head locked
in the down position. Never use
the stop latch to hold the cutting
head in a down position for cutting
operations.

Fig. A

1

2

1. Push the cutting head down.

2. Press the hold-down latch (2) in
to lock.
IMPORTANT: To avoid damage, never
carry the miter saw by the trigger
switch handle or the cutting arm.

INSTALLING THE DUST BAG (FIG. B)

1. Install the dust bag assembly (1)
onto the exhaust port (2) on the
miter saw. Fit the connecting tube of
dust bag assembly and the exhaust
port together.

NOTE:

●

The dust bag assembly should be

angled toward the right side of the
saw for best results. This will also
avoid any interference during the
saw operation.

●

o empty the dust bag, pull out the

T

dust bag assembly from exhaust
port. Open zipper on underside of
bag and empty into waste container.

IMPORTANT: Check frequently and
empty bag before it gets full.

WARNING

!



Do not use this saw to cut and/or sand
metals. The hot chips or sparks may
ignite sawdust from the bag material.

Locking

When transporting or storing the miter
saw, the cutting head should always be
locked in the down position.

Fig. B

1

2

18

INSTALLING THE MITER HANDLE
(FIG. C)

1. Insert the miter handle (1) into the
hole in front of the miter saw and
align the hole (2) on the miter

handle (1) with the hole (3) in the

front of the table.

2. Thread the screw (4) through the
hole (3) in the table into the hole (2)
on the miter handle (1).

3. Tighten the screw (4) with a
screwdriver.

Fig. C

4

3

2

1

SAW BLADE WRENCH STORAGE
(FIG. D)

For convenient storage and prevention
of loss, there is a slot in the side of the
trigger switch handle (1) for storing the
blade wrench (2) when not in use.

Fig. D

2

1

INSTALLING THE HOLD-DOWN
CLAMP ASSEMBLY (FIG. E, F)

Place the hold-down clamp assembly (1)
in one of the mounting holes (2) located
behind the fence.

Fig. E

1

2

Fig. F

2

2

UNLOCKING THE SLIDE CARRIAGE
(FIG. G)

After removing the saw from the carton,
loosen the slide carriage lock knob (1),
located on the left side of the slide
carriage. When transporting or storing
the miter saw, the slide carriage should
always be locked in position.

Fig. G

1

19

REMOVING AND INSTALLING THE
BLADE

WARNING

!



● Do not use a blade larger than
10 in. in diameter. To avoid injury
from an accidental start, make
sure the switch is in the OFF
position and the plug is

not connected to the power

source outlet.
NOTE: The miter saw comes with

the saw blade already installed.

● Make sure the blade is installed
correctly and is tight before
operating saw.

Removing the Blade (Fig. H, H-1, I, J)

1. Unplug the saw from the outlet.

2. Raise the cutting head to the upright
position.

3. Remove the cover plate screw (2)
with a Phillips screwdriver (Fig. H)

4. Raise the lower blade guard (1) to
the uppermost position. (Fig. H-1)

5. Rotate the cover plate (3) back to
expose the arbor bolt (4). (Fig. H-1)

6. Place the provided blade wrench
over the arbor bolt (4).

Fig. H

2

7.

Locate the arbor lock button (5) below
the trigger switch handle. (Fig. I)

8. Press the arbor lock
holding it in firmly while turning the
blade wrench clockwise. This will
engage the arbor lock allowing the
arbor bolt to be loosened with the
blade wrench. Continue to hold the
arbor lock button (5), while turning
the wrench clockwise to loosen the
arbor bolt.

Fig. I

5

9. Remove the arbor bolt (4), the outer
blade collar (6), and the blade (7).
Do not remove the inner blade collar.
(Fig. J)

10. Raise the lower blade guard (1) to
the upright position to remove the
blade. (Fig. H-1)

NOTE: Pay attention to the pieces
removed, noting their position and
direction they face. Wipe the blade
collars clean of any sawdust before
installing a new blade.

button

(5),

Fig. H-1

Fig. J

1

1

3

4

20

7

6

4

Installing the Blade (Fig. H, H-1, I, J)

1. Install a 10 in. blade with a 5/8 in.
arbor hole making sure the rotation
arrow on the blade matches the
clockwise rotation arrow on the
upper guard, and the blade teeth
are pointing downward at the front
of the saw.

2. Place the outer blade collar (6)
against the blade and on the arbor.
Thread the arbor bolt (4) onto the
arbor in a anti-clockwise direction.
(Fig. J)

IMPORTANT:

blade collar must be placed against
the blade. Do not install the collar with
the curved side against the blade.

3. Place the blade wrench on the arbor
bolt (4).
Press the arbor lock button (5),

4.
holding it in firmly while turning
the blade wrench anti-clockwise.
Continue to press it in while tightening
the arbor bolt securely. (Fig. I)

5. Rotate the cover plate (3) and lower
blade guard (1) back to its original
position. (Fig. H-1)

6. Lower the blade guard and replace
the cover plate screw (2) and
tighten with a Phillips screwdriver.
(Fig H)

7. Pull the main handle down and

up several times to confirm the
lower blade guard operates
without binding.

8. Be sure the arbor lock button (5) is
released so the blade turns freely.

The flat side of the

WARNING

!



● To avoid injury, never use the

saw without the cover plate
secure in place. It keeps the
arbor bolt from falling out if it
accidentally loosens, and helps
prevent the spinning blade from
coming off the saw.

● Make sure the collars are clean

and properly arranged. Lower the
blade into the table and check for
any contact with the metal base
or the saw table.

REMOVING AND INSTALLING THE
TABLE INSERT (FIG. K)

WARNING

!



To avoid injury:

● Always unplug the saw to avoid
accidental starting. Remove all
small pieces of material from the
table cavity before performing
any cuts. The table insert may
be removed for this purpose, but
always reattach the table insert
prior to performing a cutting
operation.

● Do not start the sliding compound
miter saw without checking for
interference between the blade
and table insert. Damage could
result to the blade, table insert or
turntable if blade strike occurs
during the cutting operation.

1. To remove, loosen and remove the
six screws (1) on the table insert (2)

with a Phillips screwdriver and

remove the insert.

21

2. To install, reposition the table insert,
install the six screws and tighten.

3. Check for blade clearance by
moving the slide carriage through
the full motion of the blade in the
table slot.

Fig. K

MOUNTING THE MITER SAW
(FIG. L, M)

WARNING

!



To avoid injury from unexpected
saw movement:

● Before moving the saw,
disconnect the power cord from
the outlet, and lock the cutting
arm in the lower position using
the head hold-down latch.
NOTE: The head hold-down latch
is for carrying or storing the tool.
It is not to be used for holding the
saw while cutting. Lower blade
and press in head hold-down
latch to secure saw for transport
or storage.

● Never carry the miter saw by
the power cord or by the trigger
switch handle. Carrying the tool
by the power cord could cause
damage to the insulation or wire
connections resulting in electric
shock or fire.

1

2

● To avoid injury from flying debris,

do not allow visitors to stand
behind the saw.

● Place the saw on a firm, level

workbench where there is
room for handling and properly
supporting the workpiece.

● Support the saw on a level work

surface.

●

Bolt or clamp the saw to its support.

Mounting instructions:

1. For stationary use, place the saw
in the desired location, directly on a
workbench where there is room for
handling and proper support of the
workpiece. The base of the saw has
eight mounting holes, four 1/4 in.
holes and four 3/8 in. holes. Select
the proper mounting holes based on
the size of bolts used. Bolt the base
of the miter saw (1) to the work
surface (5), using the fastening
method as shown in Fig L.

Fig. L

2

3

4

1

5

6

7

8

9

NOTE: Mounting hardware is not
included with this tool. Bolts, nuts,
washers, and screws must be
purchased separately.

1. Miter saw base

2. Hex head bolt

3. Rubber washer

4. Flat washer

5. Workbench

6. Flat washer

7. Lockwasher

8. Hex nut

9. Jam nut

22

2. For portable use, place the saw on
a 3/4 in. thick piece of plywood. Bolt
the base of the miter saw securely
to the plywood using the mounting
holes on the base. Use C-clamps
to clamp this mounting board to a
stable work surface at the worksite.
(Fig. M)

Fig. M

3/4 in.
plywood

NOTE: If a miter saw stand is used,
please follow all instructions shown in
that product’s instructions for proper
mounting.

THE POWER CORD STORAGE (FIG. N)

For convenience and to prevent
damage to the power cord when
the miter saw is not in use or is in
transportation, the slide carriage has
two brackets (1) on the side for cord
storage.

Fig. N

1

23

ADJUSTMENTS

BEVEL STOP ADJUSTMENT

WARNING

!

To avoid injury from an accidental
start, make sure the switch is in the
OFF position and the plug is not
connected to the power source outlet.

90° (0°) Bevel Adjustment (Fig. O)

1. Loosen bevel locking handle (1)
and tilt the cutting arm completely to
the right. Tighten the bevel locking
handle (1).

2. Place a combination square (2)
on the miter table (3) with the ruler
against the table and heel of the
square against the saw blade.

3. If the blade is not 90° square with the
miter table, loosen the bevel locking
handle (1), tilt the cutting head to the
left, loosen the jamb nut (4) and turn
the bevel angle adjustment

bolt (5) in or out with a 10 mm

wrench until the blade is square
with the table. Once alignment is
achieved, tighten the lock nut (4) to
secure the bolt (5).

4. Tighten the bevel locking handle (1)
after alignment is achieved.

Fig. O

4

5

1

3

2

90° Bevel Pointer Adjustment (Fig. P)

1. When the blade is exactly 90° (0°)
to the table, loosen the bevel

indicator screw (1) using a Phillips
screwdriver.

2. Adjust bevel indicator (2) to the
“0” mark on the bevel scale and
retighten the screw.

Fig. P

2

1

45° Bevel Stop Adjustment (Fig. P, Q)

1. Set the miter angle to zero degrees.
Fully extend the sliding fence
completely to the left then pull the
bevel detent pin (3) toward the front
of the machine. (Fig. P)

NOTE: When retracting the bevel

detent pin, it may be required to shift
the miter saw upper arm assembly
to the left.

2. Loosen the bevel locking handle (4)
and tilt the cutting arm completely to
the left. (Fig. Q)

3. Using a combination square, check
to see if the blade is 45° to the table.

4. If the blade is not at 45° to the miter
table, tilt the cutting arm to zero
degree, loosen the lock nut (5) and
turn the bolt (6) in or out accordingly.

24

3

5. Tilt the cutting arm back to the left
and recheck alignment.

6. Repeat above steps until the blade
is 45° to the table. Once alignment
is achieved, tighten the lock nut (5)
to secure the bolt (6).

Fig. Q

7

5

4

6

the blade at the desired angle quickly
and accurately. Follow the process
below for quickest and most accurate
adjustments.

Adjusting Miter Angles:

1. Lift up on the quick-cam miter
locking lever (1) to unlock the table.

2. Move the turntable while lifting up
on the positive miter stop locking
lever (2) to align the indicator (3) to
the desired degree measurement.

3. Lock the table into position by
pressing down on the quick-cam
miter locking lever (1).

View from rear of machine

33.9° Bevel Adjustment (Fig. P, Q)

1. Set the miter angle to zero degree.
Fully extend the left sliding fence.

2. Loosen the bevel locking handle

(4 - Fig. Q) and tilt cutting arm to the

33.9° left bevel positive stop

by pushing in on the bevel detent

pin (3 - Fig. P) toward the rear of
the machine.

3. Using a combination square,

check to see if the blade is 33.9° to

the table.

4. To adjust, turn the screw (7) in or
out with a wrench until the blade is

33.9° to the table.

MITER SCALE (FIG. R)

The sliding compound miter saw scale
can be easily read, showing miter
angles from 0° to 50° to the left, and 0°
to 50° to the right. The miter saw table
has positive stops at most common
angle settings at 0°, 15°, 22.5°, 31.6°,
and 45°. These positive stops position

Miter Angle Pointer Adjustment:

1. Move the table to the 0° positive
stop.

2. Loosen the screw (4) that holds the
indicator with a Phillips screwdriver.

3. Adjust the indicator (3) to the 0°
mark and retighten the screw.

Fig. R

4

3

2

ADJUSTING FENCE SQUARENESS
(FIG. S)

Loosen the four fence locking bolts (1).

1.

2. Lower the cutting arm and lock in
position.

3. Using a square (3), lay the heel of
the square against the blade and the
ruler against the fence (2) as shown.

25

1

4.

Adjust the fence 90° to the blade and
tighten the four fence locking bolts (1).

NOTE: If the saw has not been
used recently, recheck blade
squareness to the fence and
readjust if needed.

5. After fence has been aligned, using
a scrap piece of wood, make a cut
at 90° then check squareness on
the piece. Readjust if necessary.

Fig. S

2

1

1

3

ADJUSTING CUTTING DEPTH
(FIG. T, T-1)

The maximum depth travel of the
cutting head was set at the factory.

3. Recheck the blade depth by moving
the cutting head front to back
through the full motion of a typical
cut along the control arm.

Fig. T

1

3

4

2

Setting the maximum height travel
of the cutting head, follow the below
steps (Fig. T-1):

1. Turn the stop knob (1) anti-clockwise
until the stop knob is not protruded
out of the stop block (4) bottom while
moving the cutting head upward.

2. Rotate the stop plate (2) anti­clockwise to touch the stop seat (5).

3. Make sure the stop block (4) touches
the stop plate (2) completely.

Setting the maximum width travel of
the cutting head, follow the below
steps (Fig. T):

1. Turn the stop knob (1) anti-clockwise
until the stop knob is not protruded
out of the stop block (4) bottom while
moving the cutting head upward.

2. Rotate the stop plate (2) clockwise
to touch the stop rod (3).

Fig. T-1

1

4

5

2

26

Setting the cutting depth (Fig. T-1):

The depth of cut can be preset for even
and repetitive shallow cuts.

1. Adjust the cutting head down until
the teeth of the blade are at the
desired depth.

2. While holding the upper arm in that
position, turn the stop knob (1) until
it touches the stop plate (2).

3. Recheck the blade depth by moving
the cutting head front to back
through the full motion of a typical
cut along the control arm.

QUICK-CAM MITER TABLE LOCK
ADJUSTMENT (FIG. U)

1. Press down and lock the quick-cam
miter table lock (1).

2. If the table moves with the quick­cam miter table lock in the down
position, turn the stop nut (2) to
the left as shown using a 13 mm
wrench to extend the locking arm
against the base of the miter saw.

3. Test the quick cam miter lock to
verify it locks the table into position
securely.

4. Turn the lock nut (3) to the right
as shown to lock the miter locking
mechanism into place.

Fig. U

2

3

1

5

4

TABLE SUPPORT ROD ADJUSTMENT
(FIG. U)

1. Put the miter saw on a flat surface.

2.

Check the miter saw whether the
miter saw is level with the flat surface.

3. If not, loosen the nut (4) and turn
the table support rod (5) clockwise
or anti-clockwise to adjust the
height of the table support rod (5)
until the miter saw is level with the
flat surface.

4. Tighten the nut (4).

TURNING LASER GUIDE ON (FIG. V)

1. To turn laser on, press on/off rocker
switch (1) to “ON” position.

2. To turn laser off, press on/off rocker
switch to “OFF” position.

Fig. V

1

ALIGNING THE LASER GUIDE

The laser beam must always be
correctly aligned with the blade to
ensure straight, even cutting. Your
tool is equipped with the Laser Guide
cutting guide using Class IIIa laser
beam. The laser beam will enable you
to preview the saw blade path on the
stock to be cut before starting the miter
saw. This laser guide is powered by the
transformed alternating current supply
directly through the power lead. The

saw must be connected to the power
source and the laser on/off switch
must be turned on for the laser line
to show.

27

WARNING

!

Do not remove the lock from the ON/OFF
switch during any laser adjustments.

AVOID DIRECT EYE CONTACT (FIG. W)

WARNING

!

● Laser radiated when laser guide
is turned on. Avoid direct eye
contact.

● Laser Warning Label:

Max. Output < 5 mW Wavelength:

630-660nm, Complies with 21 CFR

1040.10 and 1040.11. Class IIIa
Laser Product. (FIG. W)

● Laser Aperture Label: AVOID
EXPOSURE: Laser radiation is
emitted from this aperture. (Fig. W)

● NOTE: All the adjustments for the
operation of this machine have
been completed at the factory.
Due to normal wear and use,
some occasional readjustments
may be necessary.

● CAUTION: Use of controls or
adjustments or performance of
procedures other than those
specified herein may result in
hazardous radiation exposure.

● CAUTION: The use of optical
instruments with this product will
increase eye hazard.

● WARNING: Do not attempt to
repair or disassemble the laser.
If unqualified persons attempt to
repair this laser product, serious
injury may result. Any repair
required on this laser product
should be performed by an
authorized service center personnel.

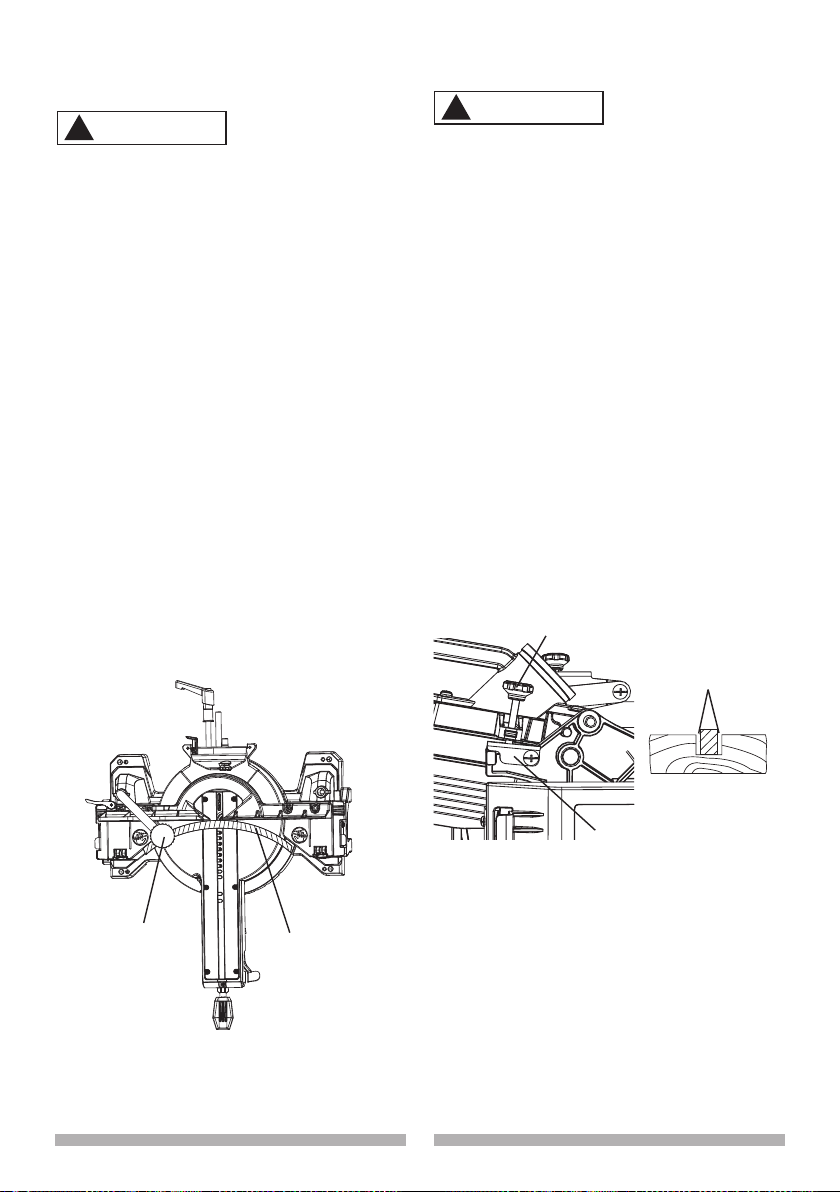

Fig. W

Laser
Aperture
Label

LASER GUIDE ADJUSTMENT
(FIG. X, Y, Z)
NOTE: All the adjustments for the

operation of this machine have been
completed at the factory. Due to
normal wear and use, some occasional
readjustments may be necessary.

A. Checking Laser Beam Alignment

1. Set the saw to a 0° miter and 0°
bevel setting.

2. Take a board and, using a straight
edge (not included), mark a 90° line
on the top and front of the board.
This line will serve as a “pattern
line” for all laser beam alignments.
Place the board on the saw table.

Laser
Warning
Label

28

3. Carefully lower the saw head down
to align the saw blade with the
pattern line. Position the saw

blade to the left, center or right
side of the “pattern line” depending

on your preference for the laser
beam location.

4. With the saw plugged in, turn on
the laser guide. Your saw has been
preset with the laser beam to the
left side of the blade.

5. Looking at the front of the board,
if the laser beam is not parallel
to the “pattern line” please follow
the instructions listed below under
Procedure A.

6. Looking at the top of the board,
if the laser beam is not parallel
to the “pattern line” please follow
the instructions listed below under
Procedure B.

Procedure B (Fig. X, Z)

2. Slightly turn the laser horizontal
adjustment knob (2) to adjust the
horizontal angle of laser beam on
the top of the board. If the laser
beam is out of parallel from left
to right, turn the laser horizontal
adjustment knob (2) clockwise; If the
laser beam is out of parallel from
right to left, turn the laser horizontal
adjustment knob (2) anti-clockwise
until the laser beam is parallel with
the horizontal “pattern line”.

3. Recheck the laser beam alignment.

NOTE:

● Laser beam is calibrated and set up
to project to the left of the blade.

● If you have any problem or question
on the laser guide, please call the
Sears Service Center.

B. Adjusting the Position of the

Laser Beam (Fig. X, Y, Z)

Procedure A (Fig. X, Y)

1. Slightly turn the laser vertical

adjustment knob (1) to adjust the
vertical angle of laser beam on the
front of the board. When laser beam
angled from left to right, turn the
laser vertical adjustment knob (1)

clockwise; if the laser beam angles

right to left, turn laser vertical
adjustment knob (1) anti-clockwise
until the laser beam is parallel with
the vertical “pattern line”.

Fig. X

Fig. Y

Laser beam

29

1

2

Anti-clockwise Clockwise

Pattern line

Fig. Z

Anti-clockwise Clockwise

Laser beam

Pattern line

EXTENSION WING USE AND
ADJUSTMENT (FIG. AA)

The left and right side extension
wings can offer extra support for long
workpieces.

1. Lift up on the locking lever (1) and
pull out the left extension wing to
the desired support length. Push
down on the locking lever (1) to
tighten the extension wing.

Repeat for the right side extension

wing if needed.

2. If the locking lever (1) will not
tighten, adjust the nut (2), located
under the base, 1/4 turn clockwise
using a 10 mm wrench until tight.

REPETITIVE CUTTING USING THE
STOP PLATE (FIG. AA)

The stop plate is designed for making
repetitive cuts of the same length.
NOTE: Use only one stop plate at a
time, NEVER use both stop plates.

1. Rotate the stop plate (3) to vertical
position.

2. If stop plate will not rotate, loosen
the locking screw (4) 1/4 turn using
a screwdriver and 8 mm wrench.

Fig. AA

3

4

1

2

30

OPERATION

SAFETY INSTRUCTIONS FOR BASIC
SAW OPERATION

BEFORE USING THE MITER SAW

!

WARNING

To avoid mistakes that could cause
serious, permanent injury, do not
plug the tool in until the following
steps are completed:

● Completely assemble and adjust
the saw, following the instructions.

(ASSEMBLY & ADJUSTMENTS)

● Learn the use and function of the
ON/OFF trigger switch, on/off switch
for laser, upper and lower blade
guards, head hold-down latch, bevel
lock handle, and cover plate screw.

● Review and understand all
safety instructions and operating
procedures in this Operator’s
Manual. (SAFETY & OPERATION)

● Review the MAINTENANCE and
TROUBLESHOOTING GUIDE for

your miter saw.

● To avoid injury or possible death
from electrical shock:

Make sure your fingers do not

touch the plug’s metal prongs
when plugging or unplugging
your miter saw. (ELECTRICAL

EQUIREMENTS AND SAFETY)

BEFORE EACH USE INSPECT YOUR
SAW.

● Disconnect the miter saw.
To avoid injury from accidental
starting, unplug the saw before any
adjustments, including set-up and
blade changes.

● Compare the direction of rotation
arrow on the guard to the direction

arrow on the blade. The blade teeth
should always point downward at
the front of the saw.

● Tighten the arbor bolt.

● Tighten the cover plate screw.

● Check for damaged parts.

Check for:

● Alignment of moving parts

● Damaged electric cords

● Binding of moving parts

● Mounting holes

● Function of arm return spring

and lower guard: Push the
cutting arm all the way down,
then let it rise until it stops.
The lower guard should fully
close. Follow instructions in
TROUBLESHOOTING GUIDE
for adjustment if necessary.

● Other conditions that may affect

the way the miter saw works.

● Keep all guards in place, in working
order and proper adjustment. If any
part of this miter saw is missing,
bent, damaged or broken in any
way, or any electrical parts don’t
work, turn the saw off and unplug it.

● Replace bent, damaged, missing or
defective parts before using the saw
again.

● Maintain tools with care. Keep the
miter saw clean for best and safest
performance. Follow instructions for
lubricating. Do not put lubricants on
the blade while it is spinning.

● Remove adjusting wrench from the
tool before turning it on.

31

● To avoid injury from jams, slips,
or thrown pieces, use only
recommended accessories.

● Check the dust bag before you
work. Empty the bag if it is more
than half-full.

RECOMMENDED ACCESSORIES

● Consult the ACCESSORIES and
ATTACHMENTS section of this
Operator’s Manual for recommended
accessories. Follow the instructions
that come with the accessory. The
use of improper accessories may
cause risk of injury to persons.

● Choose the correct 10 in. diameter
blade for the material and the type
of cutting you plan to do.

● Make sure the blade is sharp,
undamaged and properly aligned.
With the saw unplugged, push
the cutting arm all the way down.
Manually spin the blade and check
for clearance. Tilt the power-head to
a 45° bevel and repeat the test.

● Make sure the blade and arbor
collars are clean.

● Make sure all clamps and locks are
tight and there is no excessive play
in any parts.

KEEP YOUR WORK AREA CLEAN

Cluttered areas and benches invite
accidents.

WARNING

!



To avoid burns or other fire damage,
never use the miter saw near
flammable liquids, vapors, or gases.

● Plan ahead to protect your eyes,
hands, face and ears.

● Know your miter saw. Read and
understand this Operator’s Manual
and labels affixed to this tool. Learn
its application and limitations as well
as the specific potential hazards
peculiar to this tool. To avoid injury
from accidental contact with moving
parts, do not do layout, assembly, or
setup work on the miter saw while
any parts are moving.

● Avoid accidental starting, make sure
the trigger switch is disengaged
before plugging the miter saw into a
power outlet.

PLAN YOUR WORK

● Use the right tool. Don’t force a tool
or attachment to do a job it was not
designed to do. Use a different tool
for any workpiece that can’t be held
in a solidly braced, fixed position.

CAUTION

!



This machine is not designed for
cutting masonry, masonry products,
ferrous metals (steel, iron, and iron­based metals.) Use this miter saw to
cut only wood, wood-like products,
or non-ferrous metals. Other material
may shatter, bind the blade, or create
other dangers. Remove all nails that
may be in the workpiece to prevent
sparking that could cause a fire.
Remove dust bag when cutting non­ferrous metals.

32

DRESS FOR SAFETY

Any power tool can throw
foreign objects into the eyes.

This can result in permanent eye
damage. Everyday eyeglasses have
only impact resistant lenses and are not
safety glasses. Glasses or goggles not
in compliance with ANSI Z87.1 could
seriously injure you when they break.

● Do not wear loose clothing, gloves,

neckties or jewelry (rings, watches).
They can get caught and draw you
into moving parts.

● Wear non-slip footwear.

● Tie back long hair.

● Roll long sleeves above the elbow.

● Noise levels vary widely. To avoid

possible hearing damage, wear ear
plugs when using any miter saw.

● For dusty operations, wear a dust

mask along with safety goggles.

Never cut freehand:

● Brace your workpiece firmly against
the fence and table stop so it will
not rock or twist during the cut.

● Make sure there is no debris
between the workpiece and the
table or fence.

● Make sure there are no gaps
between the workpiece, fence and
table that will let the workpiece shift
after it is cut.

● Keep the cut off piece free to
move sideways after it is cut off.
Otherwise, it could get wedged
against the blade and thrown
violently.

● Only the workpiece should be on
the saw table.

● Secure work. Use clamps or a vice
to help hold the work when it’s
practical.

INSPECT YOUR WORKPIECE

● Make sure there are no nails or
foreign objects in the part of the
workpiece being cut.

● Plan your work to avoid small pieces
that may bind or are too small to
clamp and hold securely.

● Plan the way you will grasp the
workpiece from start to finish. Avoid
awkward operations and hand
positions. A sudden slip could cause
your fingers or hand to move into
the blade.

DO NOT OVER-REACH

Keep good footing and balance. Keep
your face and body to one side, out of
the line of a possible kickback. NEVER
stand in the line of the blade.

USE EXTRA CAUTION WITH LARGE
OR ODD SHAPED WORKPIECES.

● Use extra supports (tables,
sawhorses, blocks, etc.) for
workpieces large enough to tip.

● Never use another person as a
substitute for a table extension, or as
an additional support for a workpiece
that is longer or wider than the basic
miter saw table, or to help feed,
support, or pull the workpiece.

● Do not use this saw to cut small
pieces. If the workpiece being cut
would cause your hand or fingers
to be within 7.5 inches of the saw
blade the workpiece is too small.
Keep hands and fingers out of the
“no hands zone” area marked on
the saw table.

33

● When cutting odd shaped
workpieces, plan your work so
it will not bind in the blade and
cause possible injury. Molding, for
example, must lie flat or be held by
a fixture or jig that will not let it move
when cut.

● Properly support round material
such as dowel rods, or tubing, which
have a tendency to roll when cut,
causing the blade to “bite”.

WARNING

!

To avoid injury, follow all applicable
safety instructions, when cutting
non-ferrous metals:

● Use only saw blades specifically
recommended for non-ferrous metal
cutting.

● Do not cut metal workpieces
that must be hand held. Clamp
workpieces securely.

● Cut non-ferrous metals only if you
are under the supervision of an
experienced person and the dust bag
has been removed from the saw.

WHEN SAW IS RUNNING

WARNING

!

Do not allow familiarity from
frequent use of your miter saw
to result in a careless mistake.
A careless fraction of a second is
enough to cause a severe injury.

Before cutting, if the saw makes an
unfamiliar noise or vibrates, stop
immediately. Turn the saw OFF.
Unplug the saw. Do not restart until
finding and correcting the problem.

MAKING A BASIC CUT

WARNING

!

Body and Hand Position (Fig. BB)

Never place hands near
the cutting area. Proper

positioning of your body and
hands when operating the miter
saw will make cutting easier and
safer. Keep children away. Keep all
visitors at a safe distance from the
miter saw. Make sure bystanders
are clear of the saw and workpiece.
Don’t force the saw. It will do the job
better and safer at its designed rate.

Starting a cut:

● Place hands at least 7.5 in. away

from the path of the blade – out of
the “no-hands zone” (see (1) in

Fig. BB on next page).

● Hold workpiece firmly against the

fence to prevent movement toward
the blade.
Turn the laser guide on for pre-

●

alignment of your cut.

● With the power switch OFF, bring the

saw blade down to the workpiece to
see the cutting path of the blade.

● Squeeze trigger switch to start saw.

● Lower blade into workpiece with a

firm downward motion.

Finishing a cut:

● Hold the cutting arm in the down

position.

● Release trigger switch and wait

for all moving parts to stop before
moving your hands and raising the
cutting arm.

34

● If the blade doesn’t stop within

6 seconds, unplug the saw and
follow the instructions in

TROUBLESHOOTING GUIDE section.

Before freeing jammed material:

● Release trigger switch.

● Wait for all moving parts to stop.

● Unplug the miter saw.

Fig. BB

1

NOTE: To make the ON/OFF switch
childproof. Insert a padlock (not
provided), or chain with padlock, through
the hole (2) in the trigger switch, locking
the tool’s switch, preventing children
and other unqualified users from turning
the machine on.

NOTE: The miter saw is equipped
with an electric blade brake. When
the trigger switch is released, the
blade brake will stop the blade within
approximately 6 seconds.

Fig. CC

1

7.5 in.

BASIC SAW OPERATIONS

WARNING

!

For your convenience, your saw
has a blade brake. The brake is not
a safety device. Never rely on it to
replace the proper use of the guard
on your saw. If the blade doesn’t
stop within approximately 6 seconds,
wait for the blade to stop, unplug the
saw and contact Sears or another
qualified service dealer.

TURNING THE SAW ON (FIG. CC)

This miter saw is equipped with an
ON/OFF trigger switch (1). When the
trigger switch is squeezed, the miter
saw will be turned on.

7.5 in.

2

SLIDING FENCE (FIG. DD)

WARNING

!

The sliding fence must be extended
when making any bevel cut. Failure
to extend the sliding fence will not
allow enough space for the blade to
pass through which could result in
serious injury. At extreme miter or
bevel angles the saw blade may also
contact the fence.

1. Unlock the fence cam locking
lever (1) by pushing it toward the

rear of the machine.

2. Extend the fence (2) by sliding it out.

Lock the fence cam locking lever (1)
by pulling it in toward the fence.

35

NOTE: When transporting the saw,

always secure the sliding fence in
the collapsed position and locking it.

Fig. DD

2

1

REMOVING OR INSTALLING THE
SLIDING FENCE (FIG. EE)

WARNING

!

DRY RUN - It is important to know
where the blade will intersect
with the workpiece during cutting
operations. Always perform a
simulated cutting sequence with the
power tool switched OFF to gain an
understanding of the projected path
of the saw blade. At some extreme
angles, the left side fence might
have to be removed to ensure proper
clearance prior to making the cut.

Removing

1. Unlock the fence cam locking
lever (1) by pushing it out toward

the rear of the machine.

2. Align the slot (2) with the bolt (3) in

the rear of the fence, and then lift up
the sliding fence to remove it from
the saw.

Installing

1. Align the slot (2) with the bolt (3)
in the rear of the fence to place
the sliding fence onto the miter
saw fence.

2. Slide the nut (4) to align the nut (4)

with the slot (5).

3. To lock the sliding fence, push the

cam locking lever (1) in toward the
front of the machine.

Fig. EE

2

4

1

3

5

CAUTION

!

The left side sliding fence must be
removed when making any left bevel
angle cuts greater than 33.9° in
combination with any right or left
miter angle. This fence must also be
removed whenever a 45° bevel angle
is desired with a miter angle greater
than 31.6°.

SLIDING CARRIAGE SYSTEM
(FIG. FF)

WARNING

!

To reduce the risk of injury, return
carriage to the full rear position after
each crosscut operation.

36

1. For chop cutting operations on
small workpieces, slide the cutting
head assembly completely toward
the rear of the unit and tighten the
sliding carriage lock knob (1).

2. To cut wide boards up to 12-1/2 in.,

the sliding carriage lock knob (1)

must be loosened to allow the
cutting head to slide freely.

Fig. FF

NOTE: The quick-cam miter

table lock should lock the table
and prevent it from moving. If
adjustment is needed, see the
section of “QUICK-CAM MITER

TABLE LOCK ADJUSTMENT”.

Fig. GG

1

3

1

QUICK-CAM MITER TABLE LOCK
OPERATION (FIG. GG)

If miter angles required are NOT one of
the nine positive stops, the miter table
can be locked at any angle between
these positive stops by using the quick­cam miter table lock.

Unlock the miter table by lifting up

1.
on the quick-cam miter table lock (1).

2. While holding the positive stop
locking lever (2) up, grasp the miter
handle (3) and move the miter table
left or right to the desired angle.

3. Release the positive stop locking
lever (2).

4. Press down on the quick-cam miter
table lock (1) until it locks the miter
table in place.

2

MITER DETENT OVERRIDE (FIG. HH)

The miter detent override allows for the
table to be micro adjusted, disengaging
the positive detent stops feature. When a
required miter angle is close to a positive
detent stop, this override prevents the
wedge on the miter arm from slipping
into that detent slot on the base.

1. Unlock the miter table by pulling
up on the quick-cam miter locking
lever (1).
NOTE: The miter handle (2) does

not lock or unlock the table.

2. While holding the miter handle (2),
pull upward the positive miter stop
locking lever (3) and press the
override lock (4) IN, then release the
positive stop locking lever (3) while
holding the override lock (4) in. The
detent override is now engaged.

3. Turn the table to the desired angle,
secure the table at the desired
angle by pressing the quick-cam
miter locking lever (1).

37

4. To disengage the detent override,
pull the quick-cam miter locking

lever (1), pull the positive stop

locking lever (3) up. This will release
the override lock and the table will
now stop at the positive detent angles.

Fig. HH

1

2

4

3

BEFORE LEAVING THE SAW

● Never leave tool running
unattended. Turn power OFF.

Wait for all moving parts to stop.

● Make workshop childproof. Lock the
shop. Disconnect master switches.
Store tool away from children and
other unqualified users.

WARNING

!

To avoid injury from materials being
thrown, always unplug the saw
to avoid accidental starting, and
remove small pieces of material from
the table cavity. The table insert may
be removed for this purpose, but
always reattach the table insert prior
to performing a cutting operation.

left and right. These locations represent
the most common angles for cutting
operation. To make a miter cut:

1. Unlock the miter table by lifting up on
the quick-cam miter locking lever (2).

2. While raising the positive stop
locking lever (3) up, grasp the miter
handle (4) and rotate the miter table
left or right to the desired angle.

3. Release the positive stop locking
lever and set the miter at the desired
angle making sure the lever snaps
into place.
NOTE: The lever will only lock into
place at one of the nine positive stops.

4. Once the desired miter angle is
achieved, press down on the quick­cam miter table lock (2) to secure the
table into position.

5. If the miter angle desired is NOT
one of the nine positive stops noted
above, simply lock the table at the
desired angle by pressing down on
the quick-cam miter locking lever (2).

6. Turn the laser guide on and position
the workpiece on the table for pre­alignment of your cut.

Fig. II

4

3

2

MITER CUT (FIG. II)

The sliding compound miter saw is
equipped with nine positive miter stops
(1) on the saw base. The locations are
at 0, 15, 22.5, 31.6 and 45 degrees

1

38

BEVEL CUT (FIG. JJ)

WARNING

!

● The sliding fence must be
extended to the left when making
bevel cuts. The sliding fences note
three bevel angles where the user
must adjust the fences to match
the degree of the bevel cut. Failure
to extend the sliding fence will not
allow enough space for the blade
to pass through which could result
in serious injury. At extreme miter
or bevel angles the saw blade may
also contact the fence.

● The right side sliding fence must
be removed when making any
right bevel angle cuts greater
than 35° in combination with any
right hand miter angle. This fence
must also be removed whenever

bevel angle is desired with a

a 45°
miter angle greater than 22.5°.

1. When a bevel cut is required,
loosen the bevel locking handle (1)
by turning it clockwise.

2. Tilt the cutting head to the desired
angle, as shown on the bevel
scale (2).

3. The blade can be positioned at
any angle, from a 90° straight
cut (0° on the scale) to a 45° left
bevel. Tighten the bevel locking
handle (1) to lock the cutting head
in position. Positive stops are
provided at 0°, 33.9° and 45°.

NOTE: The saw comes with a

33.9° bevel detent pin for setting
up crown molding cuts when the
angle of the walls equals 90°.

4. Turn the laser guide on and
position the workpiece on the table
for pre-alignment of your cut.

Fig. JJ

2

1

33.9° BEVEL DETENT PIN FOR
CROWN MOLDINGS (FIG. KK)

1. Push the bevel detent pin (1) in
toward the rear of the machine.

2. Loosen the bevel locking handle (2).

3. Rotate the cutting head until the
bevel detent pin (1) stops the bevel
angle at 33.9° on the bevel scale (3).

4. Tighten the bevel locking handle (2)
before you make your cut.

Fig. KK

1

3

COMPOUND CUT (FIG. LL)

A compound cut is the combination of a
miter and a bevel cut simultaneously.

1. Extending the fence by sliding
it out to the required location or
remove the left sliding fence if
necessary. See “SLIDING FENCE”
or “REMOVING OR INSTALLING
THE SLIDING FENCE.”

39

2

2. Set the desired bevel angle using
the bevel locking handle (1).

3. Set the desired miter angle and lock
into position. See “MITER CUT.”

Fig. LL

1

SLIDE CUTTING WIDE BOARDS UP
TO 12-1/2 IN. WIDE (FIG. MM)

WARNING

!

To avoid injury:

● Never pull the cutting head
assembly and spinning blade
toward you during the cut. The
blade may try to climb up on the
top of the workpiece, causing the
cutting assembly and spinning
blade to kick back, forcefully. The
cutting head assembly should be
drawn back completely then pushed
forward when sawing.

● Let the blade reach full speed
before cutting. This will help reduce
the risk of a thrown workpiece.

To Slide Cut Wide Boards (Fig. MM)

1. Unlock the sliding carriage lock
knob (1) and allow the cutting head
assembly to move freely.

2. Set both the desired bevel angle
and/or the miter angle and lock into
position.

3. Use a hold-down clamp to secure
the workpiece.

4. Turn the laser guide on and position
the workpiece on the table for pre­alignment of your cut.

5. Grasp the trigger switch handle (2)
and pull the carriage (3) forward
until the center of the saw blade is
over the front of the workpiece (4).

6. Engage the trigger to turn the

saw on.

7. When the saw reaches full speed,
slowly push the saw handle down,
cutting through the leading edge of
the workpiece.

8. Slowly move the trigger switch
handle back toward the fence,
completing the cut.

9. Release the trigger and allow the
blade to stop spinning before raising
the cutting head and removing the
workpiece.

Fig. MM

2

1

3

40

4

CUTTING BOWED MATERIAL
(FIG. NN)

WARNING

!

To avoid injury from materials being
thrown, always unplug the saw
to avoid accidental starting and
remove small pieces of material
from the table cavity underlying the
table insert.

The table insert may be removed for
this purpose, but always reattach table
insert prior to performing a cutting
operation. A bowed workpiece (1) must
be positioned against the fence and
secured with a hold-down clamp (2) as
shown before cutting. Do not position
workpiece incorrectly or try to cut the
workpiece without the support of the
fence. This will cause the blade to bind
and could result in personal injury.

Fig. NN

CUTTING GROOVES (FIG. OO)

WARNING

!

DO NOT USE A DADO BLADE, use
only the standard 10 in. diameter saw
blade for this operation.

1. Mark lines identifying the width
and depth of the desired cut on
the workpiece and position on the
table so the outside tip of the blade
is positioned on the inside edge of
the line. Use a clamp to secure the
workpiece beside the blade.

2. Lower the cutting head to the depth
marked on the workpiece, holding
the upper arm, and adjust the stop
knob (1) until it touches the stop
plate (2). (SEE “Setting the cutting
depth” on page 27).

3. Cut two parallel grooves as shown.

Fig. OO

1

Cut these grooves

with saw

Use a chisel to cut

out the middle

2

AUXILIARY WOOD FENCE (FIG. PP)

When making multiple or repetitive cuts

2

1

that result in cut-off pieces of one inch
or less, it is possible for the saw blade
to catch the cut-off piece and throw
it out of the saw or into the blade
guard and housing, possibly causing
damage or injury. To minimize this, an
auxiliary wood fence can be mounted
to your saw.

41

Holes are provided in the saw fence
to attach an auxiliary wood fence. This
fence is to be constructed of straight
wood approximately 3/4 in. thick by
2-1/2 in. high by 22 in. long.

Attach the wood fence securely and
make a full depth cut to make a
blade slot.

Check for interference between the
wood fence and the lower blade guard.
Adjust if necessary.

NOTE: This auxiliary fence is used
only with the saw blade in the 0° bevel
position (90° to the table). The auxiliary
wood fence must be removed when
bevel cutting.

Fig. PP

CUTTING BASE MOLDING (FIG. QQ)

Base moldings and many other
moldings can be cut on a compound
miter saw. The setup of the saw
depends on molding characteristics
and application, as shown. Perform
practice cuts on scrap material to
achieve best results:

1. Always make sure moldings rest
firmly against fence and table. Use
hold-down, crown molding vice
or C-clamps, whenever possible,
and place tape on the area being
clamped to avoid marks.

2. Reduce splintering by taping the cut
area prior to making the cut. Mark
the cut line directly on the tape.

3. Splintering typically happens due to
an incorrect blade application and
thinness of the material.

Fig. QQ

Blade slot

F

e
n
c
e

Miter at 45°,
bevel at 0°

42

Workpiece

Miter saw table

F
e
n

c

e

Workpiece

Miter saw table

Miter at 0°,
bevel at 45°

CUTTING CROWN MOLDING
(FIG. RR, SS)

Your compound miter saw is suited
for the difficult task of cutting crown
molding. To fit properly, crown molding
must be compound-mitered with
extreme accuracy. The two surfaces
on a piece of crown molding that fit
flat against the ceiling and wall are at
angles that, when added together,

equal exactly 90°.

Most crown molding has a top rear
angle (the section that fits flat against
the ceiling) of 52° and a bottom rear
angle (the section that fits flat against
the wall) of 38°.

In order to accurately cut crown molding
for a 90° inside or outside corner, lay the
molding with its broad back surface flat
on the saw table.

When setting the bevel and miter angles
for compound miters, remember that the
settings are interdependent; changing
one changes the other, as well.

Fig. RR

F
e
n

c

e

Workpiece

Miter saw table

Fig. SS

Bevel/Miter Settings

Settings for standard crown molding
lying flat on compound miter saw table

Inside corner

IL

IR

OL

OR

Outside corner

Compound cut crown moldings

43

NOTE: The chart below references a compound cut for crown molding ONLY
WHEN THE ANGLE BETWEEN THE WALLS EQUALS EXACTLY 90°.

KEY

BEVEL

SETTING

MITER

SETTING

Inside corner - Left side

IL 33.9° 31.6° Right

Inside corner - Right side

IR 33.9° 31.6° Left

Outside corner - Left side

OL 33.9° 31.6° Left

Outside corner - Right side

OR 33.9° 31.6° Right

TYPE OF CUT

1. Position top of molding against fence.

2. Miter table set at RIGHT 31.6°.

3. LEFT side is finished piece.

1. Position bottom of molding against fence.

2. Miter table set at LEFT 31.6°.

3. LEFT side is finished piece.

1. Position bottom of molding against fence.

2. Miter table set at LEFT 31.6°.

3. RIGHT side is finished piece.

1. Position top of molding against fence.

2. Miter table set at RIGHT 31.6°.

3. RIGHT side is finished piece.

44

CROWN MOLDING CHART
Compound Miter saw

Miter and Bevel Angle Settings
Wall to Crown Molding Angle

52/38° Crown Molding 45/45° Crown Molding

Angle

Between

Miter

Setting

Walls

67 42.93 41.08 46.89 36.13
68 42.39 40.79 46.35 35.89
69 41.85 40.50 45.81 35.64
70 41.32 40.20 45.28 35.40
71 40.79 39.90 44.75 35.15
72 40.28 39.61 44.22 34.89
73 39.76 39.30 43.70 34.64
74 39.25 39.00 43.18 35.38
75 38.74 38.69 42.66 34.12
76 38.24 38.39 42.15 33.86
77 37.74 38.08 41.64 33.60
78 37.24 37.76 41.13 33.33
79 36.75 37.45 40.62 33.07
80 36.27 37.13 40.12 32.80
81 35.79 36.81 39.62 32.53
82 35.31 36.49 39.13 32.25
83 34.83 36.17 38.63 31.98
84 34.36 35.85 38.14 31.70
85 33.90 35.52 37.66 31.42
86 33.43 35.19 37.17 31.34
87 32.97 34.86 36.69 30.86
88 32.52 34.53 36.21 30.57
89 32.07 34.20 35.74 30.29
90 31.62 33.86 35.26 30.00
91 31.17 33.53 34.79 29.71
92 30.73 33.19 34.33 29.42
93 30.30 32.86 33.86 29.13
94 29.86 32.51 33.40 28.83
95 29.43 32.17 32.94 28.54
96 29.00 31.82 32.48 28.24
97 28.58 31.48 32.02 27.94
98 28.16 31.13 31.58 27.64

99 27.74 30.78 31.13 27.34
100 27.32 30.43 30.68 27.03
101 26.91 30.08 30.24 26.73
102 26.50 29.73 29.80 26.42
103 26.09 29.38 29.36 26.12
104 25.69 29.02 28.92 25.81
105 25.29 28.67 28.48 25.50
106 24.89 28.31 28.05 25.19
107 24.49 27.96 27.62 24.87
108 24.10 27.59 27.19 24.56
109 23.71 27.23 26.77 24.24
110 23.32 26.87 26.34 23.93
111 22.93 26.51 25.92 23.61
112 22.55 26.15 25.50 23.29
113 22.17 25.78 25.08 22.97
114 21.79 25.42 24.66 22.66
115 21.42 25.05 24.25 22.33
116 21.04 24.68 23.84 22.01
117 20.67 24.31 23.43 21.68
118 20.30 23.94 23.02 21.36
119 19.93 23.57 22.61 21.03

120 19.57 23.20 22.21 20.70
121 19.20 22.83 21.80 20.38
122 18.84 22.46 21.40 20.05
123 18.48 22.09 21.00 19.72

Bevel

Setting

Miter

Setting

Bevel

Setting

Angle

Between

Walls

124 18.13 21.71 20.61 19.39
125 17.77 21.34 20.21 19.06
126 17.42 20.96 19.81 18.72
127 17.06 20.59 19.42 18.39
128 16.71 20.21 19.03 18.06
129 16.37 19.83 18.64 17.72
130 16.02 19.45 18.25 17.39
131 15.67 19.07 17.86 17.05
132 15.33 18.69 17.48 16.71
133 14.99 18.31 17.09 16.38
134 14.66 17.93 16.71 16.04
135 14.30 17.55 16.32 15.70
136 13.97 17.17 15.94 15.36
137 13.63 16.79 15.56 15.02
138 13.30 16.40 15.19 14.62
139 12.96 16.02 14.81 14.34
140 12.63 15.64 14.43 14.00
141 12.30 15.25 14.06 13.65
142 11.97 14.87 13.68 13.31
143 11.64 14.48 13.31 12.97
144 11.31 14.09 12.94 12.62
145 10.99 13.71 12.57 12.29
146 10.66 13.32 12.20 11.93
147 10.34 12.93 11.83 11.59
148 10.01 12.54 11.46 11.24
149 9.69 12.16 11.09 10.89
150 9.37 11.77 10.73 10.55
151 9.05 11.38 10.36 10.20
152 8.73 10.99 10.00 9.85
153 8.41 10.60 9.63 9.50
154 8.09 10.21 9.27 9.15
155 7.77 9.82 8.91 8.80
156 7.46 9.43 8.55 8.45
157 7.14 9.04 8.19 8.10
158 6.82 8.65 7.83 7.75
159 6.51 8.26 7.47 7.40
160 6.20 7.86 7.11 7.05
161 5.88 7.47 6.75 6.70
162 5.57 7.08 6.39 6.35
163 5.26 6.69 6.03 6.00
164 4.95 6.30 5.68 5.65
165 4.63 5.90 5.32 5.30
166 4.32 5.51 4.96 4.94
167 4.01 5.12 4.61 4.59
168 3.70 4.72 4.25 4.24
169 3.39 4.33 3.90 3.89
170 3.08 3.94 3.54 3.53
171 2.77 3.54 3.19 3.10
172 2.47 3.15 2.83 2.83
173 2.15 2.75 2.48 2.47
174 1.85 2.36 2.12 2.12
175 1.54 1.97 1.77 1.77
176 1.23 1.58 1.41 1.41
177 0.92 1.18 1.06 1.06
178 0.62 0.79 0.71 0.71
179 0.31 0.39 0.35 0.35

52/38° Crown Molding 45/45° Crown Molding

Miter

Setting

Bevel

Setting

45

Miter

Setting

Bevel

Setting

MAINTENANCE

MAINTENANCE

!

DANGER

To avoid injury, never put lubricants
on the blade while it is spinning.

!

WARNING

●

To avoid fire or toxic reaction,
never use gasoline, naphtha
acetone, lacquer thinner or
similar highly volatile solvents to
clean the miter saw.

● To avoid injury from unexpected

starting or electrical shock,
unplug the power cord before
working on the saw.

●

To avoid electrical shock, fire or
injury, use only parts identical
to those identified in the parts
list. Reassemble exactly as
the original assembly to avoid
electrical shock.

REPLACING CARBON BRUSHES
(FIG. TT)

The carbon brushes furnished will last
approximately 50 hours of running time,
or 10,000 ON/OFF cycles. Replace both
carbon brushes when either has less
than 1/4 in. length of carbon remaining,
or if the spring or wire is damaged or
burned. To inspect or replace brushes,
first unplug the saw. Then remove the
black plastic cap (1) on the side of the
motor (2). Remove the cap cautiously,
because it is springloaded. Then pull
out the carbon brush (3) and replace. To
reassemble, reverse the procedure. The
ears on the metal end of the assembly
go in the same hole the carbon part fits

into. Tighten the cap snugly, but do not
overtighten. Repeat for the carbon brush
located on the other side of motor.
NOTE: To reinstall the same brushes,
first make sure the brushes go back in
the way they came out. This will avoid
a break-in period that reduces motor
performance and increases wear.

Fig. TT

2

1

LOWERING BLADE GUARD

Do not use the saw without the lower
blade guard. The lower blade guard is
attached to the saw for your protection.
Should the lower guard become
damaged, do not use the saw until the
damaged guard has been replaced.
Regularly check to make sure the lower
guard is working properly. Also check
before each use that all bolt/screws are
tight. Clean the lower guard of any dust
or buildup with a damp cloth.

!

WARNING

When cleaning the lower guard,

●

unplug the saw from the power
source receptacle to avoid
unexpected start-up.

● Do not use solvents on the guard.

They could make the plastic
“cloudy” and brittle.

46

3

SAWDUST

Periodically, sawdust will accumulate
under the work table and base. This
could cause difficulty in the movement
of the worktable when setting up
a miter cut. Frequently blow out or
vacuum up the sawdust.

Central pivot of plastic guard: Use light
household oil (sewing machine oil) on
metal-to-metal or metal-to-plastic guard
contact areas as required for smooth,
quiet operation. Avoid excessive oil, to
which sawdust will cling.

Fig. UU

If need to remove small pieces of
material from the table cavity, see the
section on Removing and Installing the
Table Insert on page 21.

To empty the dust bag, remove the
sawdust bag from the dust port. Open
the zipper on the sawdust bag and
empty out the sawdust inside. Close
the zipper and reinstall the dust bag on
the dust port as described on page 18.

!

WARNING

Wear proper eye protection to keep
debris from entering eyes when
removing sawdust from unit.

LUBRICATION (FIG. UU)

All the motor bearings in this tool are
lubricated with a sufficient amount of
high grade lubricant for the life of the
unit under normal operating conditions;
therefore, no further lubrication
is required.

Central pivot of
plastic guard (oil here)

Chop Pivot (oil here
and on opposite side)

Lubricate the following as necessary:

Chop pivot: Apply light machine oil to
points indicated in illustration.

47

TROUBLESHOOTING GUIDE

!

WARNING

To avoid injury from accidental starting, always turn switch OFF and unplug
the tool before moving, replacing the blade or making adjustments.

TROUBLESHOOTING GUIDE - MOTOR

PROBLEM PROBLEM CAUSE

Brake does
not stop
blade within
6 seconds.

Motor does
not start.

Brush spark
when switch
released.

1. Motor brushes not sealed or
lightly sticking.

2. Motor brake overheated
from use of defective or
wrong size blade or rapid
ON/OFF cycling.

3. Arbor bolt loose.

4. Brushes cracked, damaged,
etc.

5. Other.

1. Limit switch failure.

2. Brush worn.

3. Fuse blown or circuit
breaker tripped on home
panel.

1. Brush worn.

2. Other.

SUGGESTED CORRECTIVE

ACTION

1. Inspect/clean/replace brushes.
See MAINTENANCE section.

2. Use a recommended blade. Let
cool down. See REMOVING
OR INSTALLING THE BLADE
section.

3. Retighten. See REMOVING
OR INSTALLING THE BLADE
section.

4. Replace brushes.

5. Contact Sears Service Center.

1. Replace limit switch.

2. Replace brushes. See
MAINTENANCE section.

3. Verify there is electrical power
at the outlet.

1. Replace brushes. See
MAINTENANCE section.

2. Contact Sears Service Center.

48

TROUBLESHOOTING GUIDE - SAW OPERATION

PROBLEM PROBLEM CAUSE

Blade hits table. 1. Misalignment. 1.

Angle of cut not
accurate. Can not
adjust miter.

Cutting arm

1. Miter table unlocked.

1.

2. Sawdust under table.

2. Vacuum or blow out dust. WEAR

1. Loose pivot points. 1.

wobbles.

Cutting arm will
not fully raise, or
blade guard
won’t fully close.

Blade binds,
jams, burns
wood.

1. Pivot spring not
replaced properly
after service.

2. Sawdust build-up.

1. Improper operation.

2. Dull or warped blade.

3. Improper blade size.

4 Wood is moving

1. Clean and lubricate moving parts.

2. Contact Sears Service Center.

1. See BASIC SAW OPERATION

2. Replace or sharpen blade.

3. Replace with 10 in. diameter

during cut.

4. Use clamp to secure workpiece

Saw vibrates or
shakes.

1. Saw blade not round /

damaged / loose.

1. Replace blade.

2. Tighten arbor bolt.

2. Arbor bolt loose.

SUGGESTED CORRECTIVE

ACTION

See ADJUSTMENT- CUTTING

ARM TRAVEL section.

See OPERATION - MITER

ANGLE ADJUSTMENT section.

EYE PROTECTION.

Contact Sears Service Center.

section.

blade.

to fenceunit and table.

49

PARTS LIST

10 IN. COMPACT SLIDE MITER SAW MODEL NO. 137.407530

!

WARNING

When servicing use only CRAFTSMAN replacement parts. Use of any other
parts many create a HAZARD or cause product damage. Any attempt to
repair or replace electrical parts on this Miter Saw may create a HAZARD
unless repair is done by a qualified service technician. Repair service is
available at your nearest Sears Service Center.

PARTS LIST FOR MITER SAW (A)

I.D. Description Size Q’ty I.D. Description Size Q’ty

082J CUSHION 1 0K74 CR. RE. TRUSS HD. SCREW M6*1.0-8 1

082L BOLT 1 0K7X

082P SCREW STOP 1 0K7Z

082Q LOCK NUT 1 0KA0 CR. RE. PAN HD. TAPPING SCREW M5*12-20 2

083S TRIGGER 23# 1 0KA1 CR. RE. PAN HD. TAPPING SCREW M3*24-6 1

083Z CORD CLAMP 1 0KB7 CR. RE. PAN HD. TAPPING SCREW M4*18-16 3

0CES COMPRESSION SPRING 1 0KB8 CR. RE. PAN HD. TAPPING SCREW M4*18-20 5

0CKS SPRING WIRE 1 0KBD CR. RE. PAN HD. TAPPING SCREW M4*18-25 1

0CPD CENTER BOLT 1 0KD3 CR. RE. PAN HD. SCREW M6*1.0-50 2

0D9A ANCHOR BLOCK 1 0KD5 CR. RE. PAN HD. SCREW M4*0.7-6 2

0DVJ BLADE WRENCH 1 0KD6 CR. RE. PAN HD. SCREW M4*0.7-8 1

0J4C FLAT WASHER φ4*8-1 2 0KD7 CR. RE. PAN HD. SCREW M4*0.7-10 6

0J4D FLAT WASHER φ5*10-1 3 0KD8 CR. RE. PAN HD. SCREW M4*0.7-12 1

0J4E FLAT WASHER φ6*13-1 4 0KDG CR. RE. PAN HD. SCREW M5*0.8-6 3

0J4F FLAT WASHER φ8*16-2.5 1 0KDH CR. RE. PAN HD. SCREW M5*0.8-8 2

0J4M FLAT WASHER φ12*21-1 1 0KDJ CR. RE. PAN HD. SCREW M5*0.8-12 4

0J6P FLAT WASHER φ6*16-2 1 0KDM CR. RE. PAN HD. SCREW M5*0.8-20 1

0JAZ WAVE WASHER WW-6 1 0KDV CR. RE. PAN HD. SCREW M6*1.0-16 4

0JB0 WAVE WASHER WW-8 4 0KL1

0JBG DISC SPRING WASHER φ12 1 0KMS HEX. NUT M6*1.0 T=5 2

0JC8 SPRING PIN 1 0KQW LOCK NUT M5*0.8 T=5 1

0JCT SPRING PIN 2 0KQX NUT M6*1.0 T=6 5

0JE7 C-RING 1 0KQY LOCK NUT M8*1.25 T=8 1

0JMN O-RING 1 0KR0 NUT M12*1.75 T=12 1

0JMP O-RING 1 0KR2 LUCK NUT M5*0.8 T=5 2

0JNR O-RING ROD 2 0KR3 LOCK NUT M6*1.0 T=6 1

0JPF HEX. HD. BOLT M6*1.0-25 2 0KTP CABLE CLAMP 1

0JUJ HEX. SOC. HD. CAP BOLT M6*1.0-12 1 0KUW TERMINAL 2

0JX9 HEX. SOC. SET SCREW M6*1.0-10 1 0LU2 LIMIT SWITCH 1

0JXB HEX. SOC. SET SCREW M6*1.0-16 1 0LYH DUST GUARD 1

0JZF HEX. SOC. SET SCREW M6*1.0-10 2 0S1S COLLAR 1

0JZN ARBOR BOLT M8*1.25-20 1 0U6V FLAT WASHER 1

0K29 HEX. SOC. HD. CAP SCREW M6*1.0-12 2 20PL CLAMP HANDLE 6# 1

0K2N HEX. SOC. HD. CAP SCREW M8*1.25-25 4 21GM FLAT WASHER φ4*10-1 1

0K30

HEX. SOC. TRUSS HEAD & WASHER ASSEMBLIED

0K51 CR. RE. COUNT HD. SCREW M4*0.7-8 4 22QE CR. RE. ROUND WASHER HD. SCREW M5*0.8-16 2

0K55 CR. RE. COUNT HD. SCREW M5*0.8-8 4 23NF ARBOR COLLAR 2

0K5D CR. RE. COUNT HD. SCREW M6*1.0-20 1 23NX CORD GUARD 1

0K71 CR. RE. TRUSS HD. SCREW M5*0.8-8 3 250Z HEX. SOC. HD. CAP SCREW M5*0.8-35 3

M6*1.0-16 2 224U ROLL PIN 1

CR. RE. TRUSS HD. ROUND NECK SCREW

CR. RE. TRUSS HD. ROUND NECK SCREW

CR. RE. PAN HD. ROUND NECK SCREW

M6*1.0-10 1

M6*1.0-14 1

M6*1.0-12 1

50

10 IN. COMPACT SLIDE MITER SAW MODEL NO. 137.407530
PARTS LIST FOR MITER SAW (B)

I.D. Description Size Q’ty I.D. Description Size Q’ty

262V ANCHOR PLATE 1 3DJS ARM MITER COVER 6# 1
26LU WARNING LABEL 1 3DJT CABLE SHIELD 6# 1
27PQ ROLL PIN 1 3DK9 BOLT 1
2840 COMPRESSION SPRING 1 3DKA BOLT 1
290M CAUTION LABEL 1 3DKC SEGMENT HANDLE 6# 1
2B7H HEX. SOC. SET SCREW M6*1.0-12 1 3DKD LEVER 1
2BLQ HEX. SOC. HD. CAP SCREW M5*0.8-40 3 3DKE LEVER BRACKET 1
2BQA PLATE 1 3DKF PIVOT SHAFT 1
2D7E COMPRESSION SPRING 1 3DKJ TORSION SPRING 1
2D92 CONTROLLER ASS’Y 1 3DKM LOCKING HANDLE ASS’Y 23# 1
2DWP NEEDLE POINTER 23# 1 3DL1 NEEDLE POINTER 23# 1
2F39 CLEVIS PIN 1 3DL4 FENCE 6# 1
2JAP BLADE 1 3DL5 KNOB 6# + 23# 1
2K96 WARNING LABEL 1 3DLE MOTOR HANDLE (UP) 6# 1
2MC3 ROLL PIN 2 3DLF MOTOR HANDLE (DOWN) 6# 1
2MMC CR. RE. TRUSS HD. SCREW M5*0.8-6 3 3DLG TABLE 6# 1
2N7W BRACING PLATE 6# 1 3DLH FOLLOWER PLATE 6# 1
2NAH CR. RE. TRUSS HD. SCREW M4*0.7-8 1 3DLJ FOLLOWER PLATE (LEFT) 6# 1
2QM7 FLAT WASHER φ6*10-1 3 3DLK PLUNGER HANDLE 23# 1
2S45 CR. RE. COUNT HD. SCREW M3*0.5-6 2 3DLL ARM AW# 1
2T9B ROCK SWITCH ASS’Y 1 3DLM BASE 6# 1
2VEP SHAFT 1 3DLZ CLAMP HANDLE 23# 2
2VH6 LINEAR MOTION BEARING 2 3DMM BEARING COVER 3
2VN7 BLANKET WASHER 4 3DRT CLAMP BOLT 23# 1
2VS0 LEAD WIRE ASS’Y 1 3DTM SHAFT SLEEVE 1
2VZ1 RUBBER INSERT 8 3DTQ POWER CORD CLAMP 6# 1
2WPX POWER CABLE 1 3DTZ RUBBER PAD 1
2WUT TRADEMARK LABEL 1 3DWQ PLATE 1
2YR6 SPRING GUARD 1 3DWT INSERT 1

CR. RE. TRUSS HD. ROUND NECK SCREW

31VX
31XE SLIDE PLATE 3 3DWV PIN 2
349F PLATE (RIGHT) 23# 1 3DWW LASER SET 1
349G PLATE (LEFT) 23# 1 3DWY PIVOT-SUPPORT 6# 1
34BN COMPRESSION SPRING 1 3DWZ LASER PLUNGER HOUSING 1
34DK LOCK NUT M6*1.0 T=9 1 3DXM LINEAR MOTION BEARING 1
34HH LEAD WIRE ASS’Y 1 3DXN VISE ASS’Y 1
34NJ UPER TUBE 2 3DY0 ASSIST-FENCE 6# 1
34NK UPER TUBE 2 3E72 SPECIAL BOLT 1
35CH HEX. SOC. SET SCREW M6*1.0-16 1 3EVA OPERATOR’S MANUAL 1
35QJ LEVER 1 3EVM DUST BAG ASS’Y 1
3BKA EXTENSION WING 6# 1 3F4X SHAFT 1
3BKB RIGHT EXTENSION WING 6# 1 3F8Q PLUNGER HOUSING 1
3BKC MITER ARM 6# 1 3FKJ CR. RE. TRUSS HD. ROUND NECK SCREW M5*0.8-12 1
3BKD SLIDE-BAR SEAT (FRONT) 6# 1 3FM3 SPECIAL BOLT 1
3BMZ TABLE INSERT (LEFT) 23# 1 3FSY WARNING LABEL 1
3BN0 TABLE INSERT (RIGHT) 23# 1 3FSZ LABEL 1
3CBQ PC-GUARD 1 3FT0 TRADEMARK LABEL 1
3CBR CUTTER SHAFT GUARD 6# 1 3FT1 CAUTION LABEL 1
3CD5 CLAMP BOLT 23# 1 3FT3 CAUTION STICKER 1
3CD6 HANDLE KNOB 23# 1 3FT4 WARNING LABEL 1
3DHP MOTOR ASS’Y 1 3FT5 LASER STICKER 1
3DJ8 LOCATING BAR 1 3FT6 CAUTION LABEL 1
3DJ9 FRAME ENDCAP 1 3FT7 SCALE 1
3DJA WASHER BEARING 1 3FT8 TILTING SCALE 1
3DJG SPACER 2 3FVK LASER COVER 6# 1
3DJH PLUNGER HANDLE 23# 1 3FVL COVERLASER COVER 6# 1
3DJL SET PLATE 1 3FVM LEVELING PAD 6# 1
3DJP MITER BAR ASS’Y
3DJR MITER BAR ASS’Y 1 Y3XN CLAMP HANDLE 1

M6*1.0-14 1 3DWU BUTTON 23# 2

1 3FVQ ADJUSTABLE NUT 1

51

10 IN. COMPACT SLIDE MITER SAW MODEL NO. 137.407530
SCHEMATIC

3EV7

52

10 IN. COMPACT SLIDE MITER SAW MODEL NO. 137.407530
PARTS LIST FOR MOTOR

I.D. Description Size Q’ty

0HX9 NEEDLE BEARING 1

0JCD SPRING PIN 1

0JX2 HEX. SOC. SET SCREW M5*0.8-6 2

0K43 CR. RE. PAN HD. SCREW & WASHER M5*0.8-16 2

0K44 CR. RE. PAN HD. SCREW & WASHER M5*0.8-12 1

0KBC CR. RE. PAN HD. TAPPING SCREW M5*16-25 2

0KCP CR. RE. PAN HEAD TAPPING & WASHER SCREW M5*12-60 2

0QGR COMPRESSION SPRING 1

0QM2 BRUSH HOLDER ASSEMBLY 2

0QQT BRUSH ASSEMBLY 2

0QR0 BRUSH COVER 2

2DW9 WAVE WASHER 1

2VGY GEAR BOX AW# 1

2VP2 MOTOR COVER 6# 1

2VP4 ARMATURE ASSEMBLY 1

2VPU FLOW GUIDE 1

2WPR LEAD WIRE ASSEMBLY 1

3236 CR. RE. PAN HD. SCREW & WASHER M6*1.0-55 4

32GU CUTTER SHAFT ASSEMBLY 1

336U FIELD ASSEMBLY 1

3CE3 BRACKET STOP ASSEMBLY 1

3DU5 MOTOR COVER 6# 1

53

REPAIR PROTECTION AGREEMENTS

Congratulations on making a smart purchase.

is designed and manufactured for years of dependable operation. But like all
products, it may require repair from time to time. That’s when having a Repair
Protection Agreement can save you money and aggravation.

Here’s what the Repair Protection Agreement* includes:

 Expert service by our 10,000 professional repair specialists
 Unlimited service and no charge for parts and labor on all covered

repairs

 Product replacement up to $1500 if your covered product can’t be fixed
 Discount of 25% from regular price of service and related installed

parts not covered by the agreement; also, 25% off regular price of
preventive maintenance check

 Fast help by phone – we call it Rapid Resolution – phone support from a

Sears representative. Think of us as a “talking owner’s manual.”

Once you purchase the Repair Protection Agreement, a simple phone call is all
that it takes for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.

The Repair Protection Agreement is a risk-free purchase. If you cancel for any
reason during the product warranty period, we will provide a full refund. Or, a
prorated refund anytime after the product warranty period expires. Purchase
your Repair Protection Agreement today!

Your new Craftsman® product

Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details call Sears
Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers,
water heaters, and other major home items, in the U.S.A. or Canada call

1-800-4-MY-HOME®.

54

NOTES

55

56 56
