Craftsman 137.2191 User Manual

Owner's Manual

Bench Mode_

1/2 HP (Maximum Developed)

5 Speeds (540 =3600 R,PoMo)
!/2 inch Chuck

104NCH DR_LL PRESS

Model No°
137o219100

®

CAUTmON°o

Before using this Dril! Press,
read this manual and foltow

at! its Safety Rules and
Operating Instructions.

• Safety _nstructions
o KnstatJation

o Operation
o Maintenance

o Parts List
o Espa_oi

@ustemer He_p L_n÷

t °8@@°843°1682

Sears, Roebuck and Co=, Hoffman Estates, mL60179 USA

Part No. 1372!910001

SECTION PAGE

Warranty ................... " ..... 2

Product Specifications ........... ........................................... 2

Safety instructions ......................................................... 3

Accessories and Attachments ............................................... 6

Carton Contents ........................................................... 6

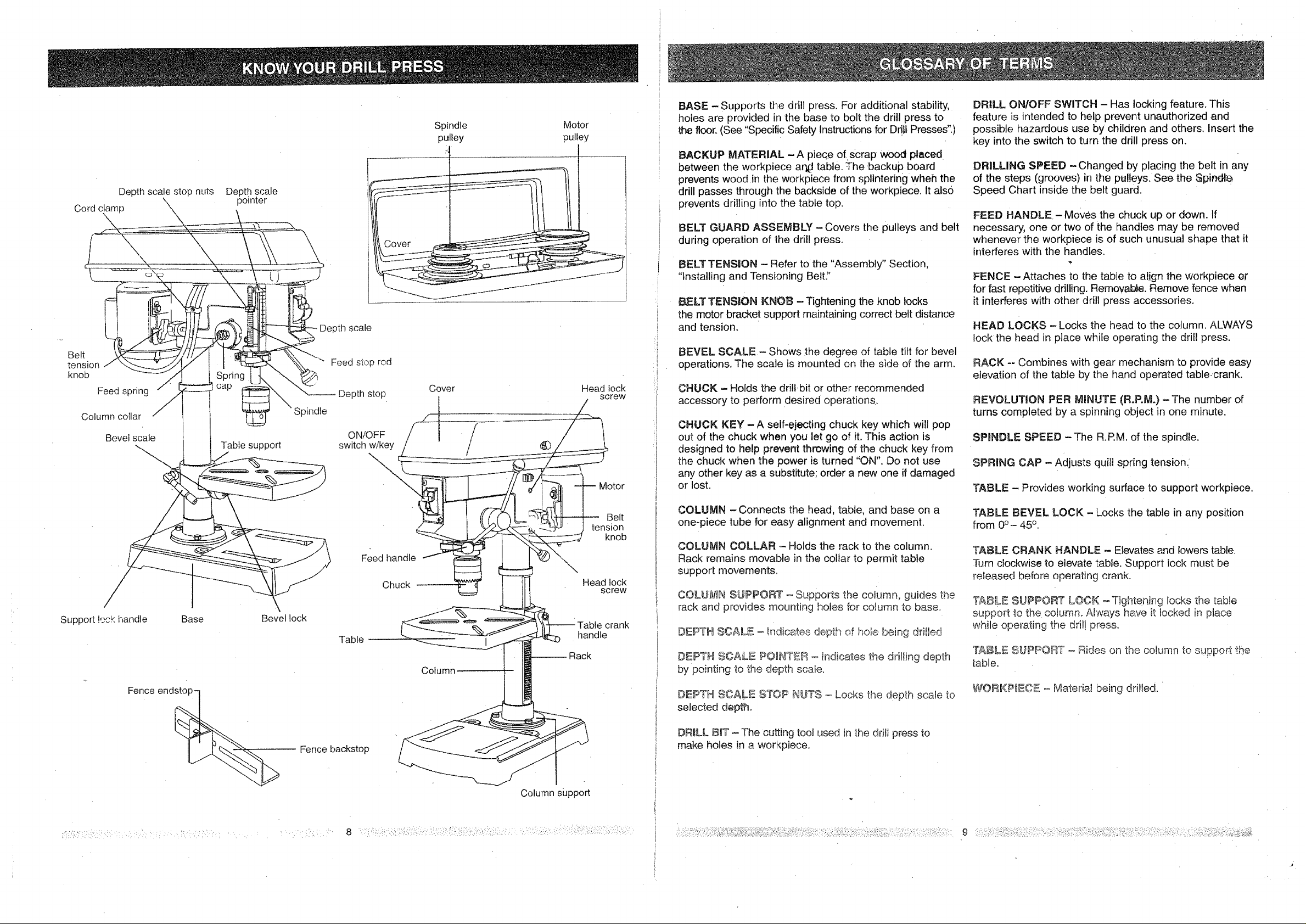

Know Your DYII Press ...................................................... 8

Glossary of Terms ........................................................ 9

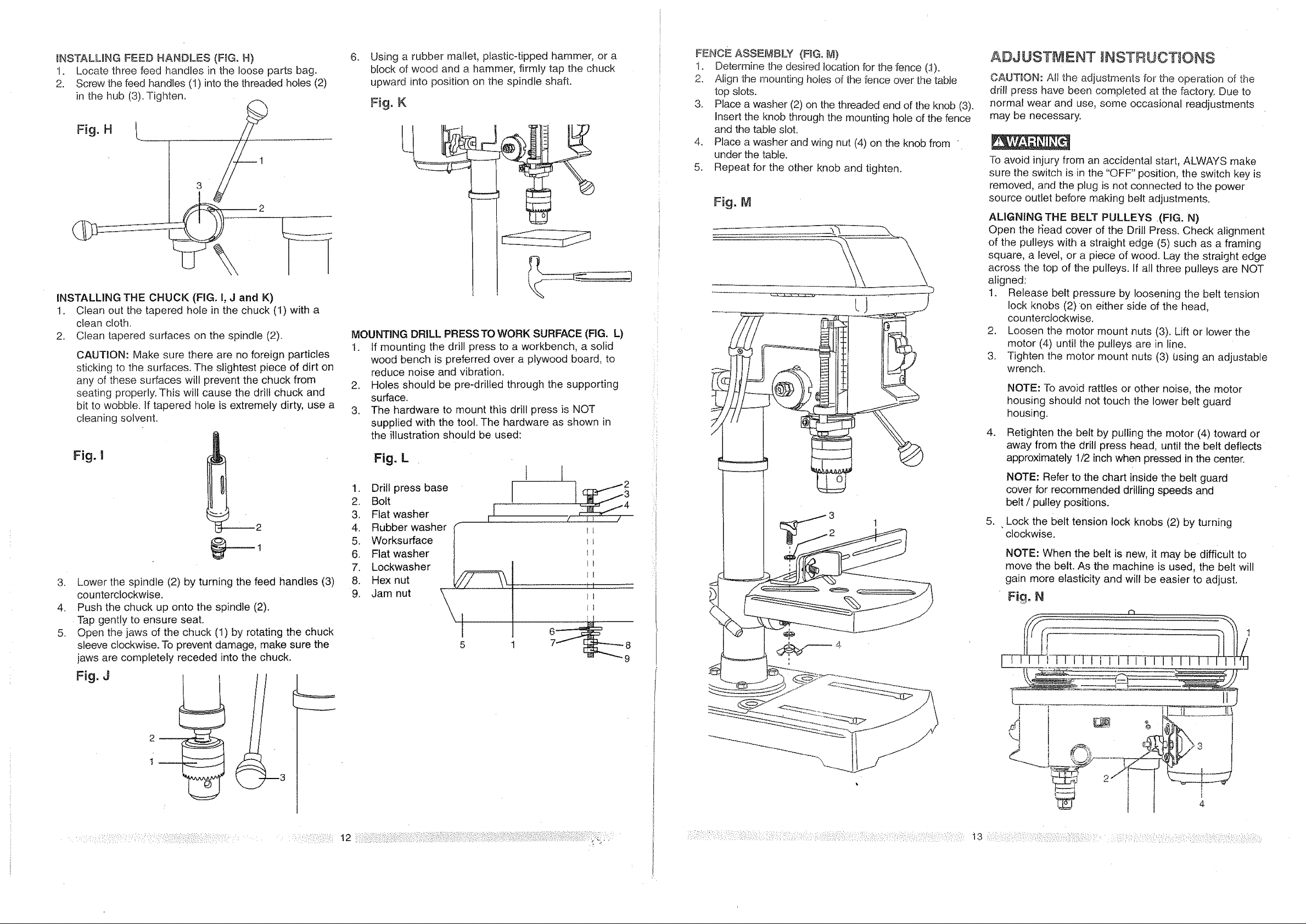

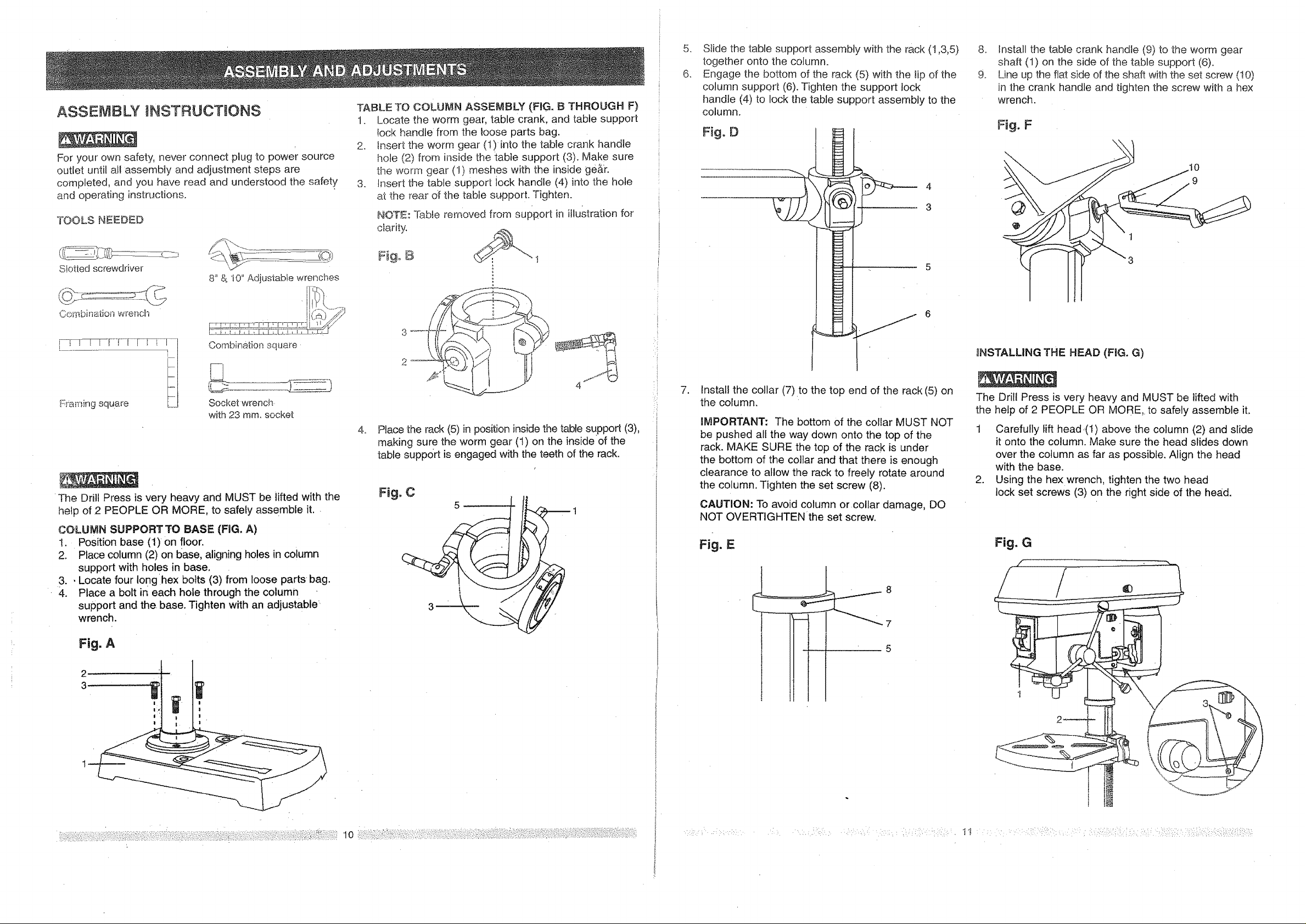

Assembly and Adiustments ................................................. 10

• . .............................. t6

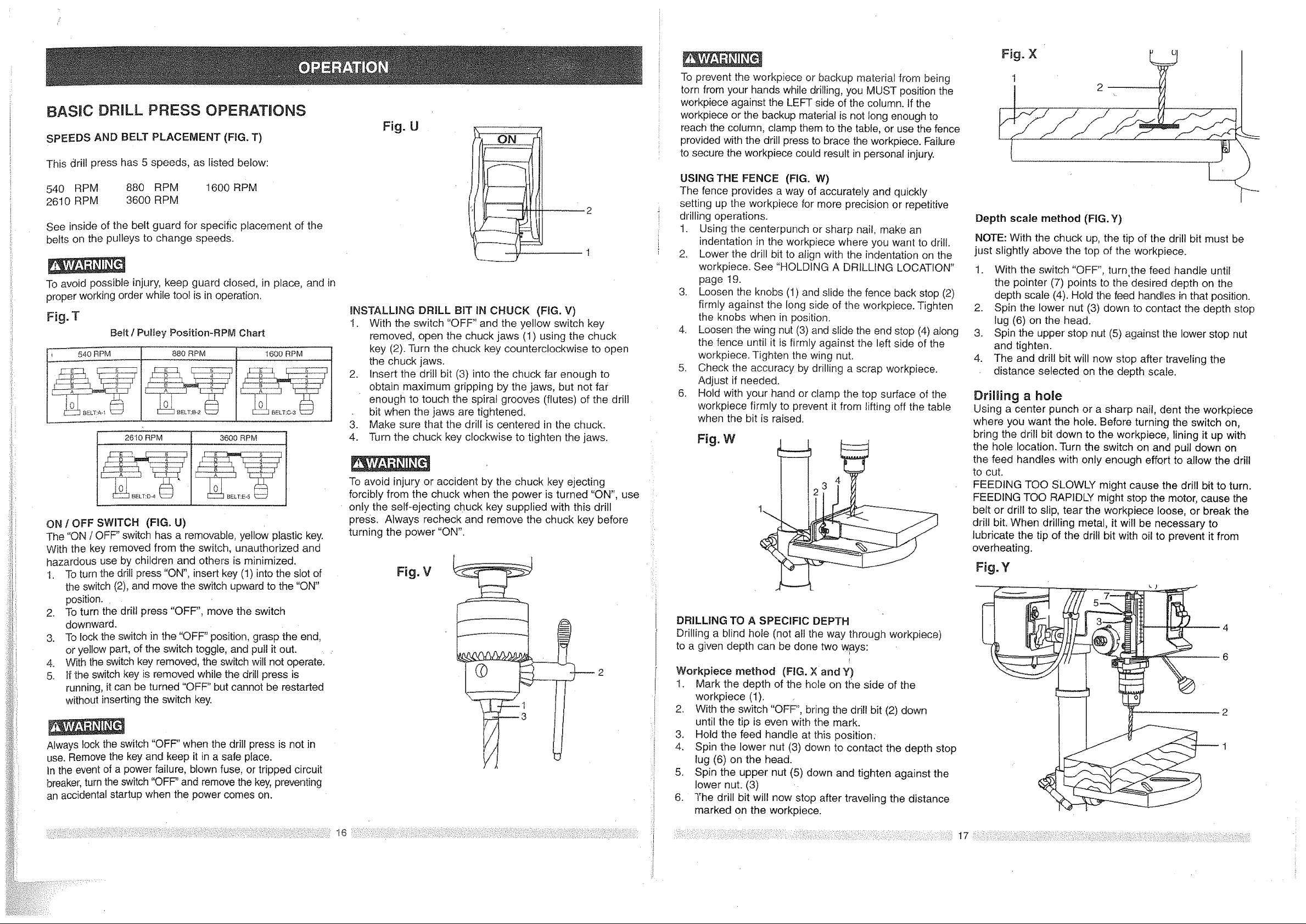

Operation ............................... .20

Maintenance ............................................................

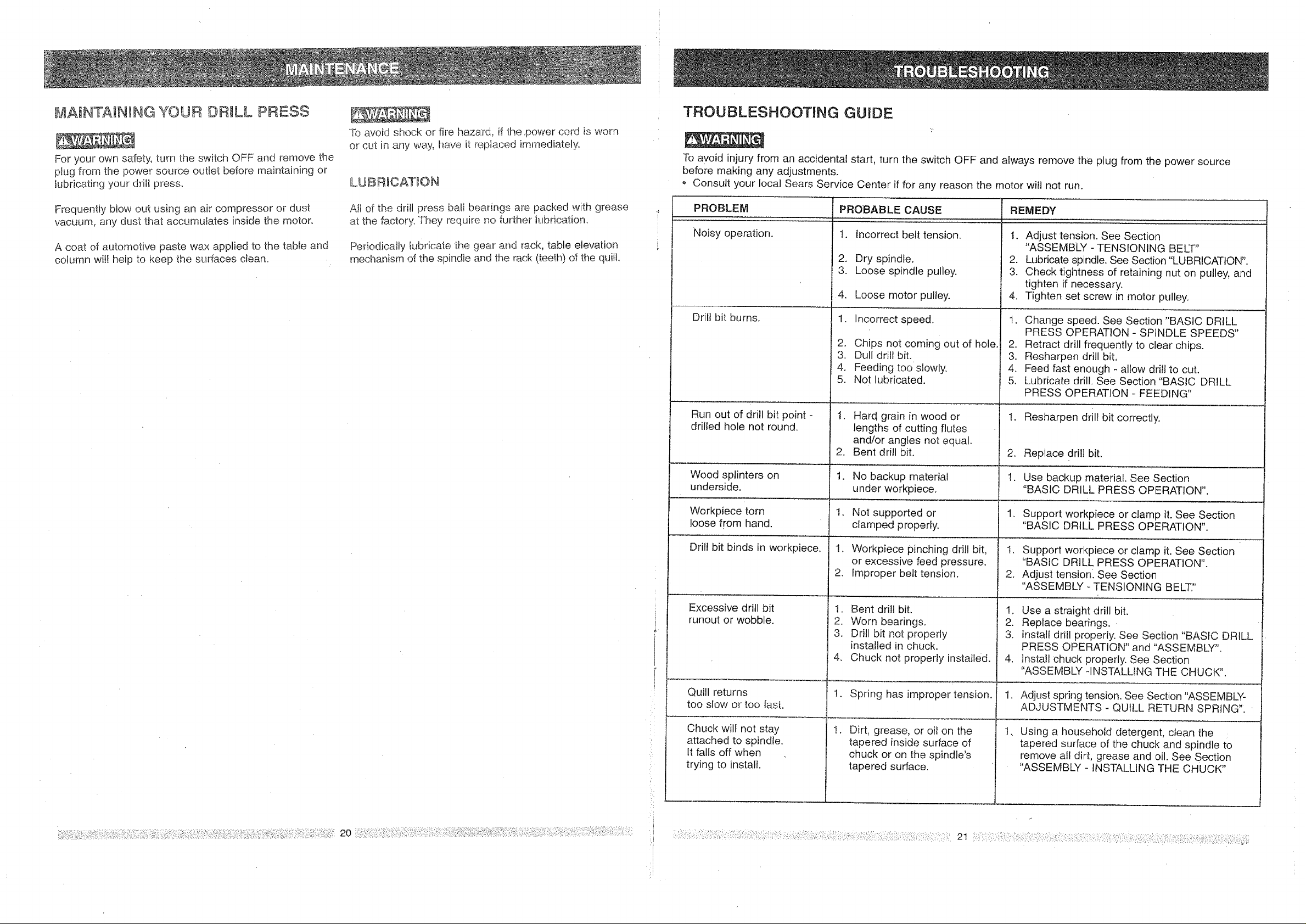

Troubl÷shooting guide .................................................... 21

Parts ................................................................... 22

Espaiol ........................ ".............................. 25

FULL ONE YEAR WARRANTY
If this product fails due to a defect in material or workmanship within one year from the date of purchase, Sears

will repair it free of charge.
Contact a Sears Service Center for repair.

_fthis product is used for commercial or rental purposes, this warranty applies onfy for 90 days from the date of

purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Soars, Roebuck and Co., Dept. 817 WA, Hoffman Estates, JL 60179

GENERAL SAFETY INSTRUCTIONS

BEFORE USING THE DRILL PRESS
Safety is acombination of common sense, staying alert

and knowing how to use your drill press.

To avoid mistakes that could cause serious injury, do not
plug the drill press in until you have read and understood

the following:

1'. READ and become familiar with this entire instruction

manual. LEARN the tool's applications, limitations, and
possible hazards.

ii

2. KEEP GUARDS IN PLACE and in working order.

3. DON'T USE IN A DANGEROUS ENVIRONMENT.
Don't use power tools in damp or wet locations, or

expose them to rain. Keep work area well lighted.

4. DO NOT use power tools in the presence of flammable

liquids or gases.

5. KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

i!

]

6. KEEP CHILDREN AWAY.All visitors should be kept at

!

!

a safe distance from the work area.

,

DON'T FORCE THE TOOL. It will do the job better
and safer at the rate for which it was designed.

,

USE THE RIGHTTOOL. Don't force tool or the
attachment to do a job for which it was not designed.

g÷

WEAR PROPER APPAREL. DO NOT wear loose

clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.

!4.

REMOVE ADJUSTING KEYS AND WRENCHES.

From the habit of checking to see that keys and
adjusting wrenches are removed from the t0ol before

turning "ON".

15.

NEVER LEAVE TOOL RUNNING UNATTENDED.

TURN THE POWER "OFF". Don't leave the tool untit
it comes to a complete stop.

16.

NEVER STAND ON TOOL. Serious iniury coutd occur
if the tool is tipped o_'i_the cutting too! is unintentonalty

contacted.

17.

DON'T OVERREACH° Keep proper footing and

balance at all t._,__s._

18.

MAINTAIN TOOLS WiTH CARE. Keep tools sharp

and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.

19.

CHECK FOR DA_]AGED PARTS. Before. further use of
the tool, a guard or other part that is damaged should

be carefully checked to determine that it wi!l operate
properly and perform its intended function. Check for

alignment of moving parts, binding of rnoving parts,
breakage of parts, mounting, and any other conditions

that may affect its operation. A guard or other part that
is damaged should be Properly repaired or replaced.

20.

MAKE WORKSHOP KID PROOF with padlocks, master
switches, or by removing starter keys.

2t.

DO NOT operate the tool if you are under the influence
of any drugs, alcohol or medication that could affect

your ability to use the tool properly.

22,

Dust generated from certain materials can be

hazardous to your health. Always operate the drill
pres.s in a weflwentilated area and provide for proper

du#t removal. Use dust collection systems whenever
possible.

CHUCK SIZE ......... 1/2"

SPEEDS ............. 5 (540-3,600 RPM)

£aOTOR .............. 120V, 60 HZ, 6 AMPS,

HORSEPOWER ........ 1/2 HP (Max. Developed)

TABLE SIZE .......... 8-!/4" x 7-1/4"

To avoid electrical hazards, fire hazards, or damage to
the tool, use proper circuit protection.

Your drill press is wired at the fac[[ory for 120V operation.
Connect to a 120V, t5 AMP branch circuit and use a

i5 AMP time delay fuse or circuit breaker. To avoid shock

TABLE TILT ........... 450 RIGHT OR LEFT

SPINDLE TRAVEL ..... 2-3/8"

or fire, replace power cord immediately if it is worn, cut or

damaged in any way.

THROAT ............. 5"

BASE SIZE ........... 14-318" x 8-114"

H51GHT ............... 28-3/8"

)i:i;;i:!ii!!i)]!;::)::::!;:::i_::)!i,::_):i¸¸i;::i,<Sfi::,_<:?::i,:::i:/:_:::¸:LI:,i:::_!:,:47T,!,:¸:;:::::':ii:i!:i_::):::i'i;i:il:)!::!:i!f:i:!i::i;i:!:IT_)!:i:!_!:iI:I:I:_::,':):i,:_):::!i:):))):ili:!i_:i!::2 :i_:i:i!,i_:ii::)!!::::i;i!;i::i:Tj_::?:i::i!::<i'::_:!::!:2_ii::i:)¸I:::i!I_IY_)IU::)i,I)::(:_::_;i:ii{:::::::::,:!;i:ii=_::{::ii!)(i¸;i::i!;!;!_'::::!?::¸!::I:?i!i:::i:!:i:;:i':!::_%)_i:_))i);:!:i!i!)::':ii:!_<];::

10.

WEAR A FACE MASK OR DUST MASK.
Drilling operation produces dust.

11.

DISCONNECT TOOLS before servicing, and when
changing accessories, such as blades, bits, cutters,

and the like.

12,

REDUCE THE RISK OF UNINTENTIONAL STARTING..
Make sure the switch is in "OFF" position before

plugging in.

13.

USE RECOMMENDED ACCESSORIES. Consult the
owner's manual for the recommended accessories.

The use of improper accessories may cause risk of
injury to persons.

SAVE THESE

W_AaYOUa 23. ALWAYS WEAR EYE

PROTECTION. Any drit press

can throw foreign objects into
the eyes which could cause

permanent eye damage.
ALWAYS wear Safety Goggles

(not glasses) that comply with
ANSI safety standard Z87.!. Everyday eyeglasses
have only impact-resistant lenses. They ARE NOT

safety glasses, Safety Goggtes are available at Sears.

NOTE: Glasses or goggles not in compliance with

ANSI Z87.1 could seriously hurt you when they break.

INSTRUCTIONS

3

SPECnFIC SAFETY NSTRUCTMONS
FOR THE DR LL PRESS

For your own safety, do not try to use your drill press
or plug it in until it is completely assembled and installed
according tOthe instructions, and until you have read and

understood this instruction manual:

YOUR DRILL PRESS MUST BE BOLTED securely

1.

to a workbench. In addition, ff there is any tendency
for your drill press to move during certain operations,

bolt the workbench to the floor.

2. THIS DRILL PRESS is intended for use in dry
conditions, indoor use only.

. WEAR EYE PROTECTION. USE face or dust mask

along with safety goggles if drilling operation is dusty.
USE ear protectors, especially during extended periods
of operation.

4. DO NOT wear gloves, neckties, or loose clothing. :

5. DO NOT try to drill material too small to be securely
held.

6. ALWAYS keep hands out of the path of a drill bit.
Avoid awkward hand positions where a sudden slip
could cause your hand to move into the drill bit.

DO NOT install or use any drill bit that exceeds

.

!75 mm (7") in length or extends 150 mm (6") below

the chuck jaws. They can suddenly bend outward or

break.

8. DO NOT USE wire wheels, router bits, shaper cutters,
circle (fly) cutters, or rotary planers on this drill press.

9. WHEN;cutting a large piece of material make sure it
is fully'supported at the table height.

10. DO NOT perform any operation freehand. ALWAYS
hold the workpiece firmly against the table so it will

not rock or twist. Use clamps or a vise for unstable

workpieces.

11. MAKE SURE there are no nails or foreign objects in 26.
the part of the workpiec.e to be drilled. 27.

CLAMP WORK:PIECE OR BRACE against the left

t2

side of the column to prevent rotation. Ifit is too short
or the table is tilted, clamp solidly to the table and

use the fence provided,
IF THE WORKP1ECE overhangs the table such that

13.
it will fall or tip if not held, clamp it to the table or

provide auxiliary support.

SAVE THESE

INSTRUCTmONS

I4. SECURE WORK. Use clamps or a vise to hold the

work when practical. It's safer than using your hand
and it Frees both hands to operate tool.

15.

WHEN using a drill press vise, always fasten to the
table.

MAKE SURE all clamps and locks are firmly

16.
tightened before drilling.

SECURELY LOCK THE HEAD and table support to

17.
the column, and the table to the table support before

operating the drill press.

18.

NEVER turn your drill press on before clearing the

table of all objects (-tools, scraps of wood, etc.)

BEFORE STARTING the Operation, jog' the motor

I9.

switch to make sure the drill bit does not wobble or
vibrate.

20.

LETTHE SPINDLE REACH FULL SPEED before
starting to drill. Ifyour drill press makes an unfamiliar

noise or if it vibrates excessively, stop immediately,
turn the drill press off and unplug. Do not restart until
the problem is corrected

21,

DO NOT perform layout assembly or set up work on

the table while the drill press is in operation.

USE RECOMMENDED SPEED for drill accessory and

22.
workpiece material. SEE INSTRUCTIONS that come

with the accessory.

23.

WHEN DRILLING large diameter holes, clamp the
workpiece firmly to the table. Otherwise, the bit may
grab and spin the workpiece at high speed. DO NOT

USE fly cutters or multiple-part hole cutters, as they

can come apart or become unbalanced in use.

24.

MAKE SURE the spindle has come to a complete
stop before touching the workpiece.

TO AVOID INJURY from accidental starting, always

25.
turn the switch "OFF" and unplug the drill press before

installing or removing any accessory or attachment
or making any adjustment.

KEEP GUARDS lN PLACE and in working order.

USE ONLY SELF-EJECTING TYPE CHUCK KEY as
provided with the drill press.

GROUNDING INSTRUCTIONS

INTHE EVENT OF A MALFUNCTION OR BREAKDOWN,
grounding provides a path of least resistance for electric
current and reduces the risk of electric shock. This tool

is equipped with an electric cord that has an equipment
grounding conductor and a grounding plug. The plug

MUST be plugged into a matching receptacle that is
properly installed and grounded in accordance with ALL

local codes and ordinances.

DO NOT MODIFYTHE PLUG PROVIDED. tfit wilt no[ fit [he
receptacle, have the proper receptacle installed by a

qualified electrician.

IMPROPER CONNECTION of the equipment grounding

conductor can result in risk of electric shock. The
conductor with the green insulation (with or without yeltow

stripes) is the equipment grounding conductor. If repair
or replacement of the electric cord or plug is necessary,

DO NOT connect the equipment grounding conductor to

a live terminal.

CHECK with a qualified electrician or service personnel if
you do not completely understand the grounding instructions,

or if you are not sure the tool is properly grounded.

::}i

q

USE ONLY 3oWIRE EXTENSION CORDS THAT HAVE
3-PRONG GROUNDING PLUGS AND 3opOLE

RECEPTACLES THAT ACCEPT THE TOOL'S PLUG.
REPAIR OR REPLACE DAMAGED OR WOF_?,_CORD

IMMEDIATELY.

GU_DEUNES FOR EXTENSION CORDS

Make sure your extension cord is in good condition.

When using an extension cord, be sure to use one heaw

enough to carry the current your product wil! draw. An
undersized cord will cause a drop in line voltage resulting

in loss of power and overheating. The table below shows

the correct size to use according to cord length and

nameplate ampere rating. If in doubt, use the next heavier

gauge. The smaller the gauge number, the heavier the cord.

Be sure your extension cord _s property wired and in

good condition. Always replace a damaged extension
cord or have it repaired by a qualified person before

using it. Protect your extension cords from sharp objects,
excessive heat and damp or wet areas.

Use a separate electrical circuit for your tools. This circuit
must not be less than #t2 wire and should be protected
with a 15 Amp time tag fuse. Before connecting the motor

to the power line, make sure the switch is in the "OFF"

position and the electric current is rated the same as the
current stamped on the motor nameplateo Running at a

lower voltage will damage the motor.

SAVE THESE NSTRUCT ONS

This tool is intended for use on a circuit that has a

receptacle iike the one illustrated in FIGURE A.
FIGURE A shows a 3-prong electrical plug and receptacle

that has a grounding conductor. If a properly grounded

receptacle is not available, an adapter (F_GURE B) can.
be used to temporarily connect this plug to a 2-contact

ungrounded receptacle. The adapter (RGURE B) has a
rigid lug extending from it that MUST be connected to a

permanent earth ground, such as a properly grounded

receptacle box. The temporary adapter should be used

only until a properly grounded outle_ can be installed by a
qualified electrician . The Canadian E!ectrical Code

prohibits the use of adapters.
CAUTION: In all cases, make certain the receptacle in

question is property grounded. If you are not sure have a
codified electrician check the receptacle.

This drill press is for indoor use only. Do not expose to
rain or use in damp locations.

Fig° A

(

3-Prong Plug

Grounding Prong

Properly Grounded

3-Prong Receptacle

F_9. B

GroundingLug

is Connected to a
Known Ground

I Make Sure This

2-Prong

Receptacle

This toof must be grounded while in use to protect the
operator from electrical shock.

(when using 120 volts only)

Arc@ere Rating l Total length of cord in feet

more than not mere then

0 6
6 10
10 12
12 16

25' 50' 100' t 50'

[

! 18 16 16 14

18 16 14 1216 16 14 12

| 14 12 Not recommended

±

! }:i::i::':::: : :: :i :::::i:::: :.':4 :::: 5 ::: :::::: :: :.:.::: :::::::::::::::::::::::::::

z

i

AVAILABLE ACCESSORIES

Use only accessories recommended [or this drill press.
Follow instruction,s that accompany accessories, Use of

improper accessories may cause hazards.

Visit your Sears Hardware Department or see the Sears
Power and Hand _bol Catalogue for the following

accessories:

o Dri_ bits
o_ Hold-Down and Guide

Drill Press Vises
Clamping Kit

Use oniy accessories designed for this drill press to

avoid injury from thrown broken parts or workpieces.

Sears may reco_.-nmendother accessories not listed in
this manual. See your nearest Sears store or Power and

!..-landTool Catalogue for other accessories.

Do not t_seany accessory unless you have completely
read the instruction or owner's manual for that accessory.

UNPACKmNG AND CHECKmNG

CONTENTS

If any part is missing or damaged, do not plug the drill

press in until the missing or damaged part is replaced,
and assembly is complete.

Carefully unpack the drill press and al! its parts, and
compare against the illustration below.

To protect the drill press from moisture, a protective

coating has been applied to the machined surfaces.
Remove this coating with a soft cloth moistened with
kerosene or WD-40.

-Foavoid fire or toxic reaction, never use gasoline,
naphtha, acetone, facquer thinner or similar highly

volatite solvents to clean the drill press.

TABLE OF LOOSE PARTS

ITEM DESCRIPTION QUANTITY

A. Head assembly

B. Base

C. Table

D. Coiumn assembly
E. Collar

R Rack

1
t

1
1

1
1

D

E

::ii

q

i

B

C

Loose parts bag:

G. Feed handles
H. Worm gear

I. Crank handle

J. Lock handle
K. Hex bolts

L. Fence assembly
M. Triangle knobs

N. Wing nuts
O. Washers

R Hex keys

Box:

Q. Chuck key

R. Chuck

3

1
t

1

4

t

2
2

4
2

1
t

G I J"

L M N O

P

Q R

K
