Craftsman 137.219001 User Manual

Operator's Manual

10 in. DRILL PRESS

With Laser Trac ®

Model No. 137.219001

®

CAUTION:

Before using this Drill Press,
read this manual and follow

all its Safety Rules and

Operating Instructions

e Safety Instructions
e Installation

e Operation
e Maintenance

e Parts List

Customer Help Line

1-800-843-1682

Sears Brands Management Corporation Hoffman Estates, IL 60179 USA
See the full line of Craftsman ® products at craftsman.com

Click on the Craftsman Club ®link and join today!

Part No. 137.219001001 Printed in China

SECTION PAGE

Warranty ................................................... 2

Product Specifications .............................. 2

Safety Guidelines - Definition ................... 3

Power Tool Safety ..................................... 4

Drill Press Safety ...................................... 6

Electrical Requirements And Safety .......... 8

Accessories And Attachments ................... 9

Tools Needed For Assembly ..................... 9

Carton Contents ........................................ 9

SECTION PAGE

Know Your Drill Press ................................ 11

Glossary Of Terms .................................... 12

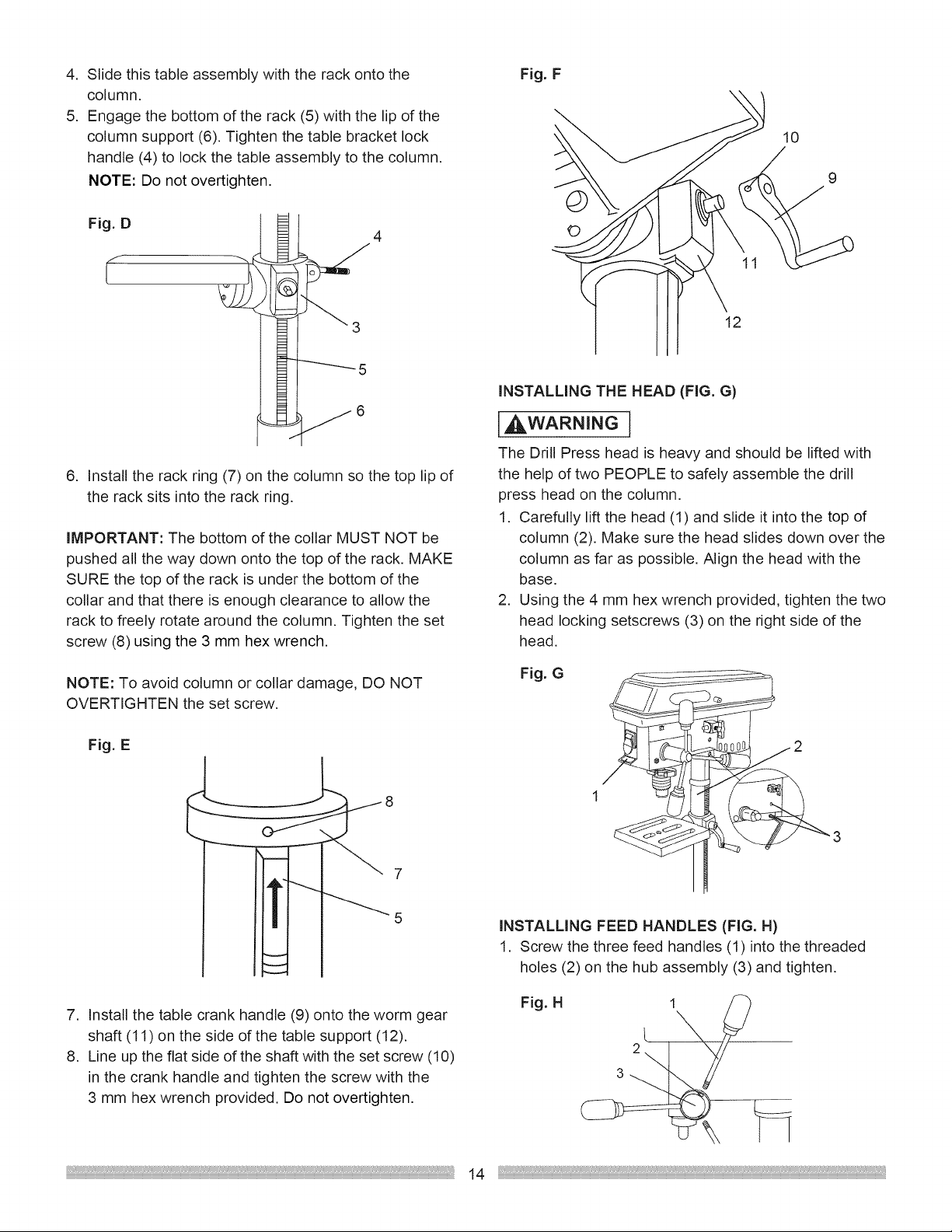

Assembly And Adjustments ....................... 13

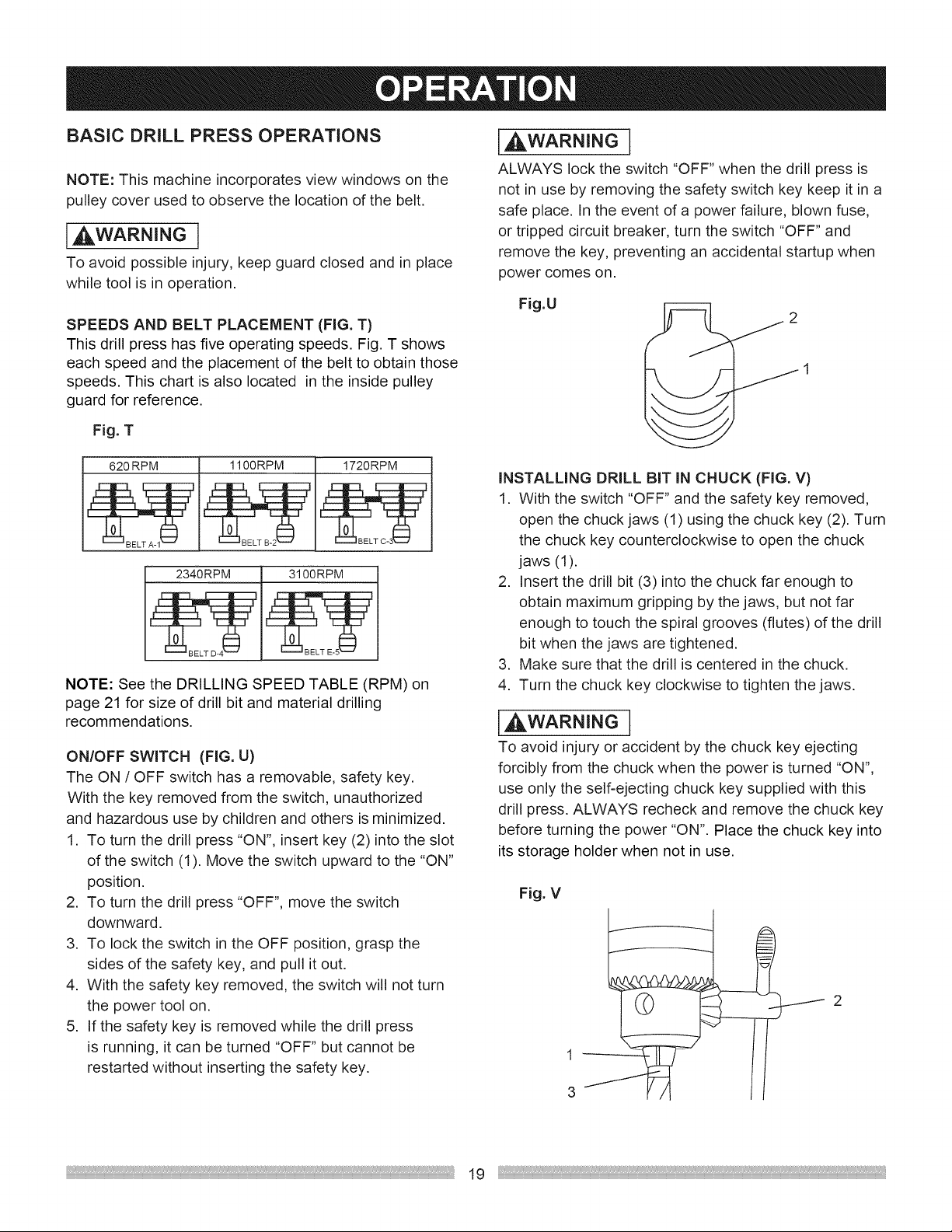

Operation .................................................. 19

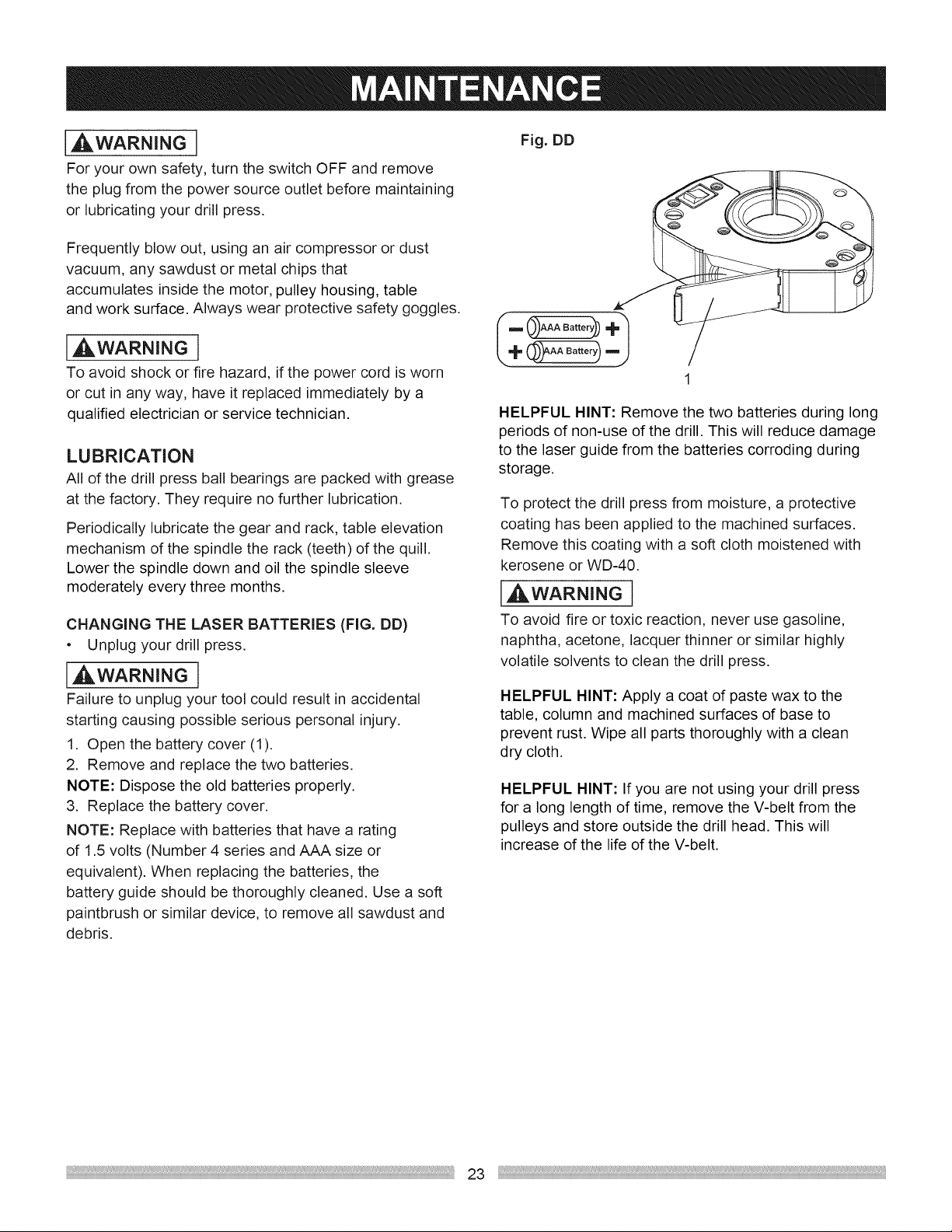

Maintenaince ............................................. 23

Troubleshooting Guide .............................. 24

Parts List ................................................... 25

Repair Protection Agreements .................. 27

CRAFTSMAN FULL WARRANTY

If this Craftsman product fails due to a manufacturer's defect in material or workmanship with one year from the
date of purchase, return it to any Sears store, Sears Parts & Repair Service Center, or other Craftsman outlet
in the United States for free free repair (or replacement if repair proves impossible). This warranty does not
include expendable parts such as saw blades which can wear out from normal use within the warranty period.
This warranty applies for only 90 days from the date of purchase if this product is ever used for commercial or
rental purposes. This warranty gives you special legal rights, and you may also have other rights which vary

from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

,_kWARNING

Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains
chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:

- Lead from lead-based paints,

- Crystalline silica from bricks and cement and other masonry products, and

- Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your

exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter out microscopic particles. Avoid prolonged contact

with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective

clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on
the skin may promote absorption of harmful chemicals.

Chuck size ..........................................................................

Speed ..................................................................................

Motor ...................................................................................

Horsepower .........................................................................

Table Size ............................................................................

Table tilt ...............................................................................

Spindle travel .......................................................................

Throat ..................................................................................

Laser guide ..........................................................................

1/2 in.

5 (620-3100 RPM)

6.0 A, 120 V, 60 Hz
2/3 HP (Max. Developed)

7-5/8 in. x 6-1/2 in.
45 ° Right or Left

2 in.
5 in.

YES

, WARNING

To avoid electrical hazards, fire hazards or damages to the tool, use proper circuit protection.This tool is wired
at the factory for 110-120 Volt operation. It must be connected to a 110-120 Volt / 6 Ampere
time delay fuse or circuit breaker. To avoid shock or fire, replace power cord immediately. If it is worn, cut or
damaged in any way.Before using your tool, it is critical that you read and understand these safety rules. Failure

to follow these
rules could result inserious injury to you or damage to the tool.

2

2010/10

WARNING iCONS

Your power tool and its Operator's Manual may contain "WARNING iCONS" (a picture symbol intended to alert
you to and/or instruct you how to avoid a potentially hazardous condition). Understanding and heeding these
symbols will help you operate your tool better and safer. Shown below are some of the symbols you may see.

A

®

O

I,A DANGER J

SAFETY ALERT: Precautions that involve your safety.

PROHIBITION

WEAR EYE PROTECTION: Always wear safety goggles or safety glasses with side shields,

WEAR RESPIRATORY AND HEARING PROTECTION: Always wear respiratory and hearing protection.

READ AND UNDERSTAND OPERATOR'S MANUAL: To reduce the risk of injury, user and all bystanders
must read and understand operator's manual before using this product,

KEEP HANDS AWAY FROM THE MOVING PART AND CUTTING SURFACE: Failure to keep your hands
away from the moving part and cutting surface will result in serious personal injury,

SUPPORT AND CLAMP WORK

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.

I,A WARNING J

l_ CAUTION i

i CAUTION i

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injury.

CAUTION: Used without the safety alert symbol indicates potentially hazardous situation

which, if not avoided, may result in property damage.

GENERAL SAFETY INSTRUCTIONS
BEFORE USING THIS POWER TOOL

Safety is a combination of common sense, staying alert
and knowing how to use your power tool.

WARNING i

To avoid mistakes that could cause serious injury,

do not plug the tool in until you have read and
understood the following.

Read all instructions before operating product.
Failure to follow all instructions listed below may

result in electric shock, fire and/or serious injury.

. READ and become familiar with the entire

Instruction Manual. LEARN the tool's

application, limitations and possible hazards.

2. KEEP GUARDS IN PLACE and inworking order.

. REMOVE ADJUSTING KEYS AND WRENCHES.

Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool before

turning ON.

4. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.

10. USE PROPER EXTENSION CORDS. Make sure
your extension cord is in good condition. When

using an extension cord, be sure to use one heavy
enough to carry the current your product will draw.
An undersized cord will result in a drop in line
voltage and in loss of power which will cause the tool
to overheat. The table on page 8 shows the correct
size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier

the cord.

11. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neckties, rings, bracelets or other

jewelry which may get caught in moving parts.

Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.

12.
O LWAYS WEAR EYE PROTECTION.

Any power tool can throw foreign objects

into the eyes and could cause permanent
eye damage. ALWAYS wear Safety Goggles (not
glasses) that comply with ANSI Safety standard
Z87.1. Everyday eyeglasses have only impact-
resistant lenses. They ARE NOT safety glasses.
NOTE: Glasses or goggles not in compliance with
ANSI Z87.1 could seriously injure you when they

break.

5. DO NOT USE IN DANGEROUS ENVIRONMENTS. 13.
Do not use power tools in damp locations, or expose

them to rain or snow. Keep work area well lit.

14.

.

KEEP CHILDREN AWAY. All visitors and bystanders
should be kept a safe distance from work area.

.

MAKE WORKSHOP CHILD PROOF with padlocks,
master switches or by removing starter keys.

.

DO NOT FORCE THE TOOL. It will do the job better

15.

and safer at the rate for which it was designed.

9. USE THE RIGHT TOOL. Do not force the tool or an 16.
attachment to do a job for which it was not designed.

WEAR A FACE MASK OR DUST MASK.
Sawing operation produces dust.

SECURE WORK. Use clamps or a vise to

hold work when practical. It is safer than
using your hand and it frees both hands to

operate the tool.

DISCONNECT TOOLS FROM POWER SOURCE
before servicing, and when changing accessories

such as blades, bits and cutters.

REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in the OFF position

before plugging the tool in.

17.USERECOMMENDEDACCESSORIES.
ConsultthisInstructionManualforrecommended

accessories.Theuseofimproperaccessoriesmay
causeriskofinjurytoyourselforothers,

18.NEVERSTANDONTHETOOL.Seriousinjury
couldoccurifthetoolistippedorifthecuttingtoolis
unintentionallycontacted,

19.CHECKFORDAMAGEDPARTS.Beforefurther
useofthetool,a guardorotherpartthatisdamaged

shouldbecarefullycheckedtodeterminethatitwill
operateproperlyandperformitsintendedfunction

- checkforalignmentofmovingparts,bindingof
movingparts,breakageofparts,mountingand

anyotherconditionsthatmayaffectitsoperation.

Aguardorotherpartthatisdamagedshouldbe

properlyrepairedorreplaced.

21.DONOTOVERREACH.Keepproperfootingand
balanceatalltimes.

22.

MAINTAIN TOOLS WITH CARE. Keep tools sharp

and clean for best and safest performance. Follow

instructions for lubricating and changing accessories.

23.

DO NOT use power tool in presence of flammable
liquids or gases.

24.

DO NOT operate the tool if you are under the
influence of any drugs, alcohol or medicationn that

could affect your ability to use the tool properly.

25.

Dust generated from certain materials can be
hazardous to your health. Always operate saw in

well-ventilated area and provide for proper dust

removal.

20.NEVERLEAVETHETOOLRUNNING
UNATTENDED.TURNTHEPOWER"OFF".Donot

walkawayfromarunningtooluntilthebladecomes

toacompletestopandthetoolisunpluggedfrom
thepowersource,

26. WEAR HEARING PROTECTION to reduce
the risk of induced hearing loss.

l,&WAR.I.G]

For your own safety, do not try to use your drill press or
plug it in until it is completely assembled and installed
according to the instructions, and until you have read and

understood this instruction manual: 13.

.

,_ YOUR DRILL PRESS MUST BE BOLTED

during certain operations, bolt the workbench to the

floor.

securely to aworkbench. In addition, if there
is any tendency for your drill press to move

14.

CLAMP THE WORKPIECE OR BRACE IT against
the left side of the column to prevent rotation. If it is
too short or the table is tilted, clamp it solidly to the
table and use the fence provided.

IF THE WORKPIECE overhangs the table such that it
will fall or tip if not held, clamp it to the table or provide
auxiliary support.

SECURE THE WORK. Use clamps or a vise to hold
the work when practical. It's safer than using your
hand and it frees both hands to operate tool.

2. THIS DRILL PRESS is intended for use in dry
conditions, indoor use only.

. WEAR EYE PROTECTION. USE a face or dust mask 16.

along with safety goggles if drilling operation is dusty.
USE ear protectors, especially during extended

periods of operation. 17.

4. DO NOT wear gloves, neckties, or loose clothing.

5. DO NOT try to drill material too small to be securely
held.

6. ALWAYS keep hands out of the path of a drill bit.

Avoid awkward hand positions where a sudden slip

could cause your hand to move into the drill bit.

.

DO NOT install or use any drill bit that exceeds
175 mm (7 in.) in length or extends 150 mm (6 in.)
below the chuck jaws. They can suddenly bend

outward or break.

.

Q DO NOT USE wire wheels, router bits, shaper

cutters, circle (fly) cutters, or rotary planers on
this drill press.

15. WHEN using a drill press vise, always fasten to the
table.

MAKE SURE all clamps and locks are firmly
tightened before drilling.

SECURELY LOCK THE HEAD and table support to
the column, and the table to the table support before
operating the drill press.

18. NEVER turn your drill press on before clearing the
table of all objects (tools, scraps of wood, etc.)

19. BEFORE STARTING the operation, jog the motor
switch to make sure the drill bit does not wobble or

vibrate.

20.

LET THE SPINDLE REACH FULL SPEED before

starting to drill. If your drill press makes an unfamiliar
noise or if it vibrates excessively, stop immediately,
turn the drill press off and unplug. If do not restart the
unit until the problem is corrected.

21.

DO NOT perform layout assembly or set up work on

the table while the drill press is in operation.

9. WHEN cutting a large piece of material, make sure it
is fully supported at the table height.

10. DO NOT perform any operation freehand. ALWAYS
hold the workpiece firmly against the table so it will
not rock or twist. Use clamps or a vise for unstable

workpieces.

11. MAKE SURE there are no nails or foreign objects in
the part of the workpiece to be drilled.

22.

USE THE RECOMMENDED SPEED for any drill

press accessory and for different workpiece

material. READ THE INSTRUCTIONS that come with

the accessory.

23.WHENDRILLINGlargediameterholes,clampthe
workpiecefirmlytothetable.Otherwise,thebitmay

grapandspintheworkpieceathighspeeds.DO
NOTUSEflycuttersormultiple-partholecutters,as
theycancomeapartorbecomeunbalancedinuse.

24.MAKE SURE the spindle has come to a complete

stop before touching the workpiece.

29. Drum sanders must never be operated on this drill
press at a speed greater than the speed rating of the

drum sander.

30.

IA wAR.I.Gl

Feed workpiece into a sanding drum or other

approved accessory, against the direction of rotation.

25. TO AVOID INJURY from accidental starting, always
turn the switch "OFF" and unplug the drill press be-

fore installing or removing any accessory or attach-
ment or making any adjustment.

26. KEEP GUARDS IN PLACE and in working order.

27. USE ONLY THE SELF-EJECTING TYPE CHUCK
KEY as provided with the drill press.

WARNINGI

TO AVOID BEING PULLED INTO THE SPINNING
TOOL - Tie back long hair and roll long sleeves

above elbows.

31.

IA wAR.I.Gl

A kickback occurs when workpiece suddenly binds
on the cutting edge of the tool and the workpiece is

thrown by the cutter in the direction of the cutter's

rotation. This can cause serious injury.

32.

IA wAR.I.Gl

Do not allow familiarity (gained from frequent use of

your drill press) to become commonplace. Always

remember that a careless fraction of a second is
sufficient to inflict severe injury.

33. See page 18 for additional warnings on laser safety.

GROUNDINGINSTRUCTIONS

INTHE EVENT OF A MALFUNCTION OR

BREAKDOWN, grounding provides a path of least
resistance for electric current and reduces the risk of

shock. This tool is equipped with an electric cord that

has an equipment grounding conductor and grounding
plug. The plug MUST be plugged into a matching

receptacle that is properly installed and grounded in

accordance with ALL local codes and ordinances.

DO NOT MODIFY THE PLUG PROVIDED. If it will not

fit the receptacle, have the proper receptacle installed

by a qualified electrician.

iMPROPER CONNECTION of the equipment grounding

conductor can result in risk of electric shock. The
conductor with the green insulation (with or without
yellow stripes) is the equipment grounding conductor.

If repair or replacement of the electric cord or plug is
necessary, DO NOT connect the equipment grounding

conductor to a live terminal.

(When using 120 volts only)

Ampere Rating

more than not more than
0 6

10 12
12 16

Total Length of Cord

25ft. 50ft. 100ft. 150ft.

18 16 16 14

16 16 14 12
14 12 not recommended

Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one
heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. The
table above shows the correct size to use according to
cord length and nameplate ampere rating. If in doubt,
use the next heavier gauge. The smaller the gauge

number, the heavier the cord.

Be sure your extension cord is properly wired and
in good condition. Always replace a damaged extension
cord or have it repaired by a qualified person before
using it. Protect your extension cords from sharp
objects, excessive heat and damp or wet areas.

CHECK with a quail ed electrician or service personnel

if you do not completely understand the grounding
instructions, or if you are not sure the tool is properly

grounded.

USE ONLY 3=WIRE EXTENSION CORDS THAT
HAVE 3=PRONG GROUNDING PLUGS AND 3=POLE

RECEPTACLE THAT ACCEPT THE TOOL'S PLUG.
REPAIR OR REPLACE DAMAGED OR WORN CORD

IMMEDIATELY.

3-Prong Plug

FIGURE A

g Prong
Properly Grounded
3-Prong Receptacle

FIGURE B

Grounding Lug

/ I(_ Make Sure This is

¢_t _, l_4J,<_-Connected to a

__. I! Known Ground

S _')_-Ad_a_Pt_r_ I_-:cr°pgacle

GUIDELINES FOR EXTENSION CORDS

[a,WARNINGI

This tool must be grounded while in use to protect the
operator from electrical shock.

Use a separate electrical circuit for your tools. This
circuit must not be less than #12 wire and should

be protected with a 15 Amp time lag fuse. Before
connecting the motor to the power line, make sure the
switch is in the OFF position and the electric current is
rated the same as the current stamped on the motor
nameplate. Running at a lower voltage will damage the

motor.

This tool is intended for use on a circuit that has a
receptacle like the one illustrated in FIGURE A.

FIGURE A shows a 3-prong electrical plug and
receptacle that has agrounding conductor. If a properly
grounded receptacle is not available, an adapter
(FIGURE B) can be used to temporarily connect this
plug to a 2-contact ungrounded receptacle. The adapter
(FIGURE B) has a rigid lug extending from it that MUST
be connected to a permanent earth ground, such as a
properly grounded receptacle box. THE TEMPORARY

ADAPTER SHOULD BE USED ONLY UNTIL A
PROPER GROUNDED OUTLET CAN BE INSTALLED

BY A QUALIFIED ELECTRICIAN.

CAUTION: In all cases, make certain the receptacle in
question is properly grounded, If you are not sure, have
a certified electrician check the receptacle,

{,_WARNING 1

This drill press is for indoor use only, Do not expose to
rain or use in damp locations,

8

RECOMMENDED ACCESSORIES

UNPACKING AND CHECKING CONTENTS

[,_WARNING J

Use only accessories recommend for this drill press.
Follow instructions that accompany accessories, Use of

improper accessories may cause hazards,

Visit your Sears Hardware Department or see the Sears

Power and Hand Tool Catalog for the follow accessories:

• Drill bits

• Hold-Down Clamps

• Drill press Vises

[ WAR"I"GI

Use only acessories designed for this drill press to

avoid injury from thrown broken parts or workpieces.
Sears may recommend other accessories not listed in

this manual. See your nearest Sears store or Power and

Hand Tool Catalog for other accessories.
Do not use any accessory unless you have completely

read the instruction or operator's manual for that

accessory.

SUPPLIED NOT SUPPLIED

Slotted screwdriver

3 mm hex key

,, 12 mm wrench

4 mm hex key _ (O_

Adjustable wrenches

Combination square

¢ ¢

,&WARNING I

Ifany partismissingor damaged, do notplugthedrill

pressinuntilthemissingor damaged partisreplaced,
and assembly iscomplete.ContacttheCustomer Help

Lineat1-800-843-16828:30AM-5:00 PM EST
Monday-Fridayformissingparts.

Carefully unpack the drill press and all its parts, and
compare against the list below.

To protect the drill press from moisture, a protective
coating has been applied to the machined surfaces.

Remove this coating with a soft cloth moistened with
kerosene or WD-40.

,_WARNING

To avoid fire or toxic reaction, never use gasoline,
naphtha, acetone, lacquer thinner or similar highly

volatile solvents to clean the drill press.

Apply a coat of paste wax to the table, column and

machined surfaces of base to prevent rust. Wipe

all parts thoroughly with a clean dry cloth.

ITEM DESCRIPTION QUANTITY

A. Head assembly 1

B. Base 1
C. Table 1

D. Column assembly 1
E. Rack ring 1
F. Rack 1

G. Feed handles 3
H. Worm gear 1

I. Table crank handle 1

J. Table lock handle 1

K. Hex bolts 3
L. Fence assembly 1

M. Fence locking knobs 2
N. Wing nuts 2

O. Washers 4
P. 3 mm & 4 mm hex keys 2

Q. Chuck key 1
R. Chuck 1

S. AAA batteries 2

T. Operator's manual 1

Block of wood

Hammer or rubber mallet

9

UNPACKING AND CHECKING CONTENTS

A

C

D

E

J

G

H

O

N

L

P

Q

R

$

Depthstopnuts

Beltspeedsightwindow

Depthscalepointer

Spindle pulley

Depth scale

Quillreturn
coil/ spring

Rack ring

Table bracket

Table lock Pulley cover

handle Bevel lock bolt

Base

Fence endstop

Spindle _

Feed handle

Chuck key
holder ",

ON/OFF
switch with

safety key

Laser guide

Motor pulley

Belt speed sight window

Belt tension
lock knob

Chuck

Table

11

Column

Head locking screw

Bevel scale

Table crank handle

Rack

Mounting holes

BASE- Supportsdrillpress.Foradditionalstability,
holesareprovidedinbaseto boltdrillpressto

workbench.

HEADLOCKINGSCREWS- Lockstheheadtothe
column.ALWAYSlockheadinplacewhileoperatingthe

drillpress.

BACKUPMATERIAL- A pieceofscrapwoodplaced
betweentheworkpieceandtable.Thebackupboard
preventswoodintheworkpiecefromsplinteringwhen

thedrillpassesthroughthebacksideoftheworkpiece.It
alsopreventsdrillingintothetabletop.

BELTTENSION- Refertothe"Assembly"Section,
"InstallingandTensioningBelt".

BELTTENSIONLOCKKNOB- Locksthemotor
bracketsupportmaintainingcorrectbeltdistanceand

tension.

BEVELSCALE- Showsdegreeoftableangleforbevel

operations.Scaleislocatedbehindthetable.
CHUCK- Holdsadrillbitorotherrecommended

accessorytoperformdesiredoperations.
CHUCKKEY- Aself-ejectingchuckkeyisprovided

anddesignedtopopoutofthechuckwhenyouletgoof

it.Thisactionisdesignedtohelppreventthrowingofthe

chuckkeyfromthechuckwhenthepoweristurnedON.

Donotuseanyotherkeyasasubstitute,orderanew

oneifdamagedorlost.

ON/OFFSWITCH- Incorporatesasafetyswitch
keywhichcanberemovedtopreventaccessfrom
unauthorizedusers.Insertthekeyintotheswitchtoturn
thedrillpresson.

PULLEYCOVERASSEMBLY- Coversthepulleysand
beltduringoperationofthedrillpress.

RACK- Combineswithgearmechanismtoprovide
easyelevationofthetablebythetablecrankhandle.

RACKRING- Holdstheracktothecolumn.Rack
remainsmovableinthecollartopermittablesupport

movements.Alwayscheckthatringistightbefore
startinganyoperation,

REVOLUTIONSPERMINUTE(R.P.M)- Thenumber
ofturnscompletedbyaspinningobjectinoneminute.

SPINDLESPEED- TheR.P.M.ofthespindle.
SPRINGCAP- Adjuststhequillreturnspringtension.

TABLE- Providesaworkingsurfacetosupportthe
workpiece.

COLUMN- Connectsthehead,table,andbaseona
onepiecetubeforeasyalignmentandmovement.

DEPTHSCALE-Indicatesdepthofholebeingdrilled.

Scaleislocatedonleftsideofdrillhead.

DEPTHSCALESTOPNUTS- Canbeadjustedtostop

thequillforcertaindepthdrillingoperations.

DRILLBIT- Thecuttingtoolusedinthedrillpressto
makeholesinaworkpiece.

DRILLINGSPEED- Changedbyplacingthebeltinany

ofthesteps(grooves)inthepulleys.SeetheSpindle
SpeedChartinsidebeltguard.

FEEDHANDLE- Movesthechuckupordown.One
ortwoofthehandlesmayberemovedifnecessary
whenevertheworkpieceisofsuchunusualshapethatit

interfereswiththehandles.

FENCE- Attachestothetabletoaligntheworkpiece
orforfastrepetitivedrilling.Removefencewhenit

interfereswithotherdrillpressaccessories.

TABLEBEVELLOCKBOLT- Locksthetableinany
positionfrom0°-45°.

TABLECRANKHANDLE- Elevatesandlowerstable.
Supportlockhandlemustbereleasedbeforeoperating

crank.
TABLESUPPORTLOCKHANDLE- Tighteninglocks

thetablesupporttothecolumn.Alwayshaveitlockedin
placewhileoperatingthedrillpress.

TABLEBRACKET- Ridesonthecolumntosupport
thetable.

WORKPIECE- Materialbeingdrilled.

12

ASSEMBLY INSTRUCTIONS Fig. B

[ WARNINGI

Foryourown safety,neverconnectplugtopower
sourceoutletuntilallassemblystepsarecompleteand

you have readand understoodthesafetyand operating

instructions.

[,AWARNINGI

The drillpressisa heavy power tooland shouldbe

liftedwiththehelpoftwo PEOPLE OR MORE tosafely
assemble it,

ASSEMBLING COLUMN TO BASE (FIG. A)

1. Position the base (2) on a flat, stable worksurface
(must be able to support 100 Ibs.).

2. Place the column (1) on the base, aligning the three
mounting holes to the base.

3. Locate the three hex bolts (3) from the loose parts
bag.

4. Place a bolt in each hole through the column support
and thread into the base. Tighten with a 12 mm

wrench.

NOTE: Table removed from bracket in illustration for
clarity.

,

Place the rack (5)inside the table bracket (3) as
shown in Fig. C, making sure the worm gear (1) on
the inside of the table bracket is engaged with the
teeth of the rack and the arrow stamped on the

rack is pointing up.

1

3

Fig. A

3

INSTALLING TABLE TO COLUMN ASSEMBLY

(FIG. B THROUGH F)

1. Install the table lock handle (4) into the hole
at the rear of the table bracket. NOTE: install

the handle from left to right, so it enters the
non-threaded side of the table bracket first.

2. insert the worm gear (1) into the table crank handle
hole (2) from inside the table support (3). Make sure

the worm gear (1) meshes with the inside gear.

NOTE: Do not remove the lubrication from this worm

gear.

Fig. C

13

,

Slide this table assembly with the rack onto the
column.

5.

Engage the bottom of the rack (5) with the lip of the
column support (6). Tighten the table bracket lock

handle (4) to lock the table assembly to the column,

NOTE: Do not overtighten.

_5

,

Install the rack ring (7) on the column so the top lip of
the rack sits into the rack ring,

IMPORTANT: The bottom of the collar MUST NOT be

pushed all the way down onto the top of the rack. MAKE
SURE the top of the rack is under the bottom of the
collar and that there is enough clearance to allow the

rack to freely rotate around the column. Tighten the set
screw (8) using the 3 mm hex wrench.

Fig. F

10

®

©

11

12

INSTALLING THE HEAD (FIG. G)

wAR.I.G t

The Drill Press head is heavy and should be lifted with
the help of two PEOPLE to safely assemble the drill
press head on the column.

1. Carefully lift the head (1) and slide it into the top of
column (2). Make sure the head slides down over the

column as far as possible. Align the head with the
base.

2. Using the 4 mm hex wrench provided, tighten the two
head locking setscrews (3) on the right side of the

head.

NOTE: To avoid column or collar damage, DO NOT

OVERTIGHTEN the set screw.

Fig. E

5

7. Install the table crank handle (9) onto the worm gear
shaft (11) on the side of the table support (12).

8. Line up the flat side of the shaft with the set screw (10)

in the crank handle and tighten the screw with the

3 mm hex wrench provided, Do not overtighten.

Fig. G

INSTALLING FEED HANDLES (FIG. H)

1. Screw the three feed handles (1) into the threaded
holes (2) on the hub assembly (3) and tighten,

Fig. H

14

iNSTALLiNG THE CHUCK (FIG. I, J AND K)

[,_WARNiNG ]

Beforeany assembly or the chuckto the drill press head,
clean all mating surfaceswith a non-petroleum based

product. Any oil or grease used in the packing of these
parts must be removed otherwise the chuckmay come
looseduring operation.

,_WARNING 1

To avoid injury from an accidental start, ALWAYS make
sure the power switch is in the "OFF" position, the
switch key is removed, and the plug is not connected to
the power source outlet before removing or installing

the chuck.

.

Clean out the tapered hole in the chuck (1) with a
clean cloth and a non-alcohol based cleaner. Wipe

clean all oil reside and any dirt or grime thoroughly.

.

Clean tapered surfaces on the spindle (2)in the
same manner as above.

NOTE: Make sure there are no foreign particles

sticking to the surfaces. The slightest piece of dirt or
oil reside on any of these surfaces will prevent the

chuck from seating properly. This will cause the drill
chuck and bit to wobble.

Fig. I

I,A CAUTION]

RISK OF PROPERTY DAMAGE. To avoid damage to

the chuck, NEVER drive the chuck on the spindle with

a metal hammer.

Fig. K

REMOVING THE CHUCK

1. Turn the feed handles to lower the chuck to the
lowest position.

2. Place a ball joint separator (not shown) above the
chuck and tap it lightly with a hammer or rubber
mallet to cause the chuck to drop from the spindle.
NOTE: Never hit the chuck directly with the hammer

or rubber mallet.

NOTE: The avoid possible damage to the chuck, raise
the jaws all the way first and be prepared to catch the

chuck as it falls.

2

.

Open the jaws of the chuck (1) by rotating the chuck
sleeve clockwise. To prevent damage, make sure the

jaws are completely receded into the chuck.

Fig. J

2

1

4. Unlock the table support lock (4- Fig. D) and swing
the table away from the bottom of the chuck.

5. Insert the chuck onto the spindle, pushing upwards

all the way.

6. Using a rubber mallet or a hammer and a block of
wood, tap the chuck onto the spindle firmly (Fig. K).

MOUNTING DRILL PRESS TO WORK SURFACE
(FIG. L)

1. If mounting the drill press to a workbench, a solid
wood bench is preferred over a plywood board, to

reduce noise and vibration.

2. Holes should be pre-drilled through the supporting
surface.

3. The hardware to mount this drill press is NOT
supplied with the tool. The hardware as shown in the

illustration should be used:

Fig. L

1. Drill press base 4. Rubber washer 7. Lockwasher

2. Bolt 5. Worksurface 8. Hex nut

3. Flat washer 6. Flatwasher 9. Jam nut

i i

_E

__ I!

_6 "

i i

_E
E E

I!

/1

15

CHUCKKEYSTORAGE(FIG.M)

Storage holder (1) for the chuck key (2) is located on the

right side of the drill press,

Fig. M

ASSEMBLING FENCE (FIG. N, N-1 )

1. Assembling the fence back stop (1) and the end
stop (2) with a bolt (3) and awing nut (4).

To protect the drill press from moisture, a protective
coating has been applied to the machined surfaces.

Remove this coating with a soft cloth moistened with
kerosene or WD-40.

ADJUSTMENT INSTRUCTIONS

NOTE: All the adjustments for the operation of the
drill press have been completed at the factory. Due to
normal wear and use, some occasional readjustments
may be necessary.

,,AWARNING

To avoid injury from an accidental start, ALWAYS make
sure the switch is in the "OFF" position, the switch key

is removed, and the plug is not connected to the power
source outlet before making belt adjustments.

Fig. N

3

2

4

2. Align the mounting holes of the fence over the table
slots.

3. Place a washer (5) on the threaded end of the knob
(6). Insert the knob through the mounting hole of the

fence and the table slot.

4. Place a washer and wing nut (7) on the knob from
under the table.

5. Repeat for the other knob and tighten.

Fig. N-1

BEVEL DRILLING (FIG. O)
NOTE: A bevel scale has been included to measure

approximate bevel angles. If precision is necessary,
a square or other measuring tool should be used to

position the table. To use the bevel scale (6):

1. TIGHTEN the nut (4) on the locking pin using a
10 mm or adjustable wrench clockwise to RELEASE

the pin from its table support. This pin will be needed

when placing the table back to its 0 degree setting

from the table support, do not throw away.

2. Loosen the large hex head table bevel locking bolt (5)
using a 17 mm or adjustable wrench.

3. Tilt the table, aligning the desired angle measurement

to the zero line opposite the scale (6).

4. Tighten the table bevel locking bolt (5).

5. To return the table to its original position, loosen the

table bevel locking bolt (5). Return the table (6) to the

0° position.

6. Return nut (4) on locking pin to the OUTSIDE END
OF THREADS. Gently tap locking pin, using a rubber
mallet, until it is seated in the mating hole of the table
bracket. Hand tighten nut (4).

NOTE: The table has been removed from the
illustration for clarity.

7

NOTE: Before operating the drill, make sure no

part of the fence is touching the drill bit or drill
chuck. When the fence is not being used, remove
completely from the table.

Fig.O

16

[,AWARNINGl

To prevent personal injury, always disconnect the plug
from the power source when making any adjustments.

SPINDLE / QUILL (FIG. P)
Rotate the feed handles counterclockwise to lower

spindle to its lowest position. Hold the chuck and move
it front to back. If there is excessive play, proceed with

the following adjustments:

1. Loosen the lock nut (1) located on the right side of
the drill press, using a 10 mm wrench.

2. Turn the screw (2) clockwise to eliminate the play,
using a slotted screwdriver, but without obstructing

the upward movement of the the spindle. (A little

play in the spindle is normal.)

3. Tighten the lock nut (1).

Fig. P

QUILL RETURN SPRING (FIG. Q)

The quill return spring may need adjustment if the quill

return speed is too rapid or too slow. This spring is

located on the left side of the drill head.

1. Lower the table for additional clearance.

2. Place a screwdriver in the lower front notch (1) of the

spring cap (2). Hold it in place while loosening and
removing only the outer jam nut (3), using a 10 mm

wrench.

3. With the screwdriver still engaged in the notch,
loosen the inner nut (4) just until the notch (5)

disengages from the boss (6) on the drill press head.

NOTE: DO NOT REMOVE THIS INNER NUT,
because the spring will forcibly unwind.

4. Carefully turn the spring cap (2) counterclockwise
with the screwdriver, engaging the next notch.

5. Lower the quill to the lowest position by rotating the
feed handle in a counterclockwise direction while

holding the spring cap (2)in position.

6. If the quill moves up and down as you desire, tighten
the inner nut (4) sung against the spring cap and
spring cap with the wrench. Iftoo loose, repeat

steps 3 through 5 to tighten, if too tight, reverse
steps 4 and 5.

7. Secure the outer nut (3) against the inner nut with
the wrench.

NOTE: DO NOT OVERTIGHTEN and restrict quill
movement.

Fig. Q _4

,A.WARNING 1

To avoid injury from an accidental start, ALWAYS make
sure the switch is in the "OFF" position, the switch key

is removed, and the plug is not connected to the power

source outlet before making belt adjustments.

BELT TENSION (FIG. R)

1. Open the pulley cover.

2. To unlock the belt tension, turn the belt tension lock
knob (1) on the right side of the drill press head

counterclockwise.

3. Pull the motor (2) toward the front of the drill press to
loosen the belt tension.

4. Position the belt on the correct pulley steps for the
desired speed.

5. Push the motor away from the drill press head until
the belt is properly tensioned.

NOTE: Belt tension is correct if the belt deflects
approximately 1/2 inch when pressed at its center.

6. Tighten the belt tension lock knob (1) to secure the
motor in position. Close pulley cover.

Fig. R

J2

THE LASER TRAC ®
Your tool is equipped with Laser Trac ® , a battery

powered device using Class Ilia laser beams.
The laser beams will enable you to preview the

drill bit path on the workpiece to be drilled before
you begin your operation.

17

[ WAR"ING1

AVOID DIRECT EYE CONTACT
A Laser light is radiated when the laser guide is turned

on. Avoid direct eye contact. Always un-plug the
drill press from the power source before making any

adjustments.

,_WARNING 1

LASER RADIATION. Never aim the beam at awork
piece with a reflective surface. Bright shiny reflective

sheet steel or similar reflective surfaces are not
recommended for laser use. Reflective surfaces could

direct the beam back toward the operator or by
standers.

, A laser pointer is not a toy and should not come into

hands of children. Misuse of this appliance can lead
to irreparable eye injuries.

- Any adjustment to increase the laser power is
forbidden.

, When using the laser pointer, do not point the laser

beam towards people and/or reflecting surfaces.
Even a laser beam of lower intensity may cause eye

damage. Therefore, do not look directly into the laser
beam.

- If the laser pointer is stored for more than three
months without use, please remove the batteries to

avoid damage from possibly leaking batteries.

ADJUSTING THE LASER LINES (FIG. S)

A. How to check the Laser=beam Alignment?

1. Adjust the table height so it is 5 in. below the bottom
of the chuck.

2. Scribe a round circle (approx. 1/8 in.) on a piece of
scrap wood.

3. Insert a drill bit approx 1/8 in. diameter into the chuck
and tighten.

4. Lower the quill and align the scribed circle with the
drill bit and fasten the wood to the table.

5. Turn on the laser and verify the laser lines (x) are
centered onto the scribed circle.

- The laser pointer includes no servicing components.
Never open the housing for repair or adjustments.

• Laser Warning label: Max output <5mW Wavelength:
630-660nm, Complies with 21CFR 1040.10

and 1040.11. Class Ilia Laser Product.

f ...................................................................................................................................................................................................................................................................................................

B. ALIGNING THE LASER=BEAM (FIG. S)
To adjust the laser lines:

1. Turn on the laser by pressing the rocker switch.

2. Lower the drill press quill and loosen one turn each
the four screws (4).

3. To adjust the laser beam left/right, turn the
adjustment screw (1) no more than 1/8 turn in either

direction. To adjust the laser beam front to back,
turn the adjusting screw (2) no more than 1/8 turn in

LASER RADIATION-AVOID
DIRECT EYE EXPOSURE

Max.Output <5 mWWavelength: 630-660 nm

Complieswith 21CFR1040.10and 1040.11

Class Ilia Laser Productj

• Do not remove or deface warning labels. Removing

either direction.

4. Once adjustments are completed, retighten the four
screws (4).

Fig. S

labels increases the risk of exposure to radiation.

• CAUTION=Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Do not attempt to repair or disassemble the laser level.
If unqualified persons attempt to repair this laser
product, serious injury may result. Any repair required
on this laser product should be performed by
authorized service center personnel.

• CAUTION=The use of optical instruments with this
product will increase eye hazard.

4

[,4kWARNINGI

DO NOT use tinted glasses to enhance the laser light.

Tinted glasses will reduce the overall vision for the

application and interfere with the normal operation of

the tool.

18

BASIC DRILL PRESS OPERATIONS

NOTE: This machine incorporates view windows on the
pulley cover used to observe the location of the belt.

[_WARNING ]

To avoidpossibleinjury,keep guardclosedand inplace

while tool is in operation.

SPEEDS AND BELT PLACEMENT (FIG. T)
This drill press has five operating speeds. Fig. T shows

each speed and the placement of the belt to obtain those
speeds. This chart is also located in the inside pulley

guard for reference.

Fig. T

620 RPM 1100RPM 1720RPM

2340RPM 3100RPM

NOTE: See the DRILLING SPEED TABLE (RPM) on
page 21 for size of drill bit and material drilling

recommendations.

ON/OFF SWITCH (FIG. U)
The ON / OFF switch has a removable, safety key.

With the key removed from the switch, unauthorized

and hazardous use by children and others is minimized.

1. To turn the drill press "ON", insert key (2) into the slot
of the switch (1). Move the switch upward to the "ON"
position.

2. To turn the drill press "OFF", move the switch
downward.

3. To lock the switch in the OFF position, grasp the
sides of the safety key, and pull it out.

4. With the safety key removed, the switch will not turn
the power tool on.

5. If the safety key is removed while the drill press
is running, it can be turned "OFF" but cannot be

restarted without inserting the safety key.

,AWARNING I

ALWAYS lock the switch "OFF" when the drill press is
not in use by removing the safety switch key keep it in a

safe place. In the event of a power failure, blown fuse,
or tripped circuit breaker, turn the switch "OFF" and
remove the key, preventing an accidental startup when

power comes on.

Fig.U

INSTALLING DRILL BIT IN CHUCK (FIG. V)

1. With the switch "OFF" and the safety key removed,
open the chuck jaws (1) using the chuck key (2). Turn

the chuck key counterclockwise to open the chuck
jaws (1).

2. Insert the drill bit (3) into the chuck far enough to
obtain maximum gripping by the jaws, but not far

enough to touch the spiral grooves (flutes) of the drill
bit when the jaws are tightened.

3. Make sure that the drill is centered in the chuck.

4. Turn the chuck key clockwise to tighten the jaws.

,,AWARNING I

To avoid injury or accident by the chuck key ejecting
forcibly from the chuck when the power is turned "ON",
use only the self-ejecting chuck key supplied with this

drill press. ALWAYS recheck and remove the chuck key
before turning the power "ON". Place the chuck key into

its storage holder when not in use.

Fig. V

2

1

3

19

USINGTHEFENCE(FIG.W)

Thefenceprovidesawayofaccuratelyandquickly
settinguptheworkpieceforprecisionorforrepetitive

drillingoperations.

1. Usingacenterpunchorsharpnail,makean
indentationintheworkpiecewhereyouwantto drill.

2. Alignthelaserlines(x)withtheindentationonthe
workpiece.

3. Loosentheknobs(1)andslidethefencebackstop(2)

firmlyagainstthelongsideoftheworkpiece.Tighten

theknobswheninposition.

4. Loosenthewingnut(3)andslidetheendstop(4)
alongthefenceuntilitisfirmlyagainsttheleftsideof

theworkpiece.Tightenthewingnut.

5. Checktheaccuracybydrillingintoascrapworkpiece

first.Adjustifneeded.

6. Holdwithyourhandorclampthetopsurfaceofthe
workpiecefirmlytopreventitfromliftingoffthetable

whenthebitisraised.

Fig.W

Fig.X

Depthscalemethod(Fig.Y)
Note:Withthechuckintheupperposition,thetipof

thedrillbitmustbejustslightlyabovethetopofthe
workpiece.

1.Withtheswitch"OFF",turnthefeedhandleuntilthe
pointer(7)pointstothedesireddepthonthedepth

scale(4)andholdthefeedhandleinthatposition.

2. Spinthelowernut(3)downtocontactthedepthstop
lug(6).

3. Spintheuppernut(5)againstagainstthelowerstop
nutandtighten.

4. Thedrillbitwillstopaftertravelingthedistance
selectedonthedepthscale.

3 4

DRILLINGTOASPECiFiCDEPTH
Drillingablindhole(notallthewaythroughworkpiece)

toagivendepthcanbedonetwoways:

Workpiecemethod(Fig.X andY)

1. Markthedepth(1)oftheholeonthesideofthe
workpiece(Fig.X).

2. Withtheswitch"OFF",bringthedrillbit(2)downuntil
thetipisevenwiththemark(Fig.X)

3. Holdthefeedhandleatthisposition.

4. Spinthelowernut(3)downtocontactthedepthstop

lug(6)onthehead(Fig.Y).

5. Spintheuppernut(5)downandtightenagainstthe

lowernut(3)(Fig.Y).

6. Thedrillbitwillnowstopaftertravelingthedistance

markedontheworkpiece.

Drilla hole

Using a center punch or a sharp nail, make an
indentation in the workpiece where you want to drill.

Turn on the laser assembly and align the laser lines (x)
with the indentation. Turn the power switch on and pull
down on the feed handles with only enough effort to

allow the drill to cut.

FEEDING TOO RAPIDLY might cause the belt or drill

to slip, tear the workpiece loose, or break the drill bit.
When drilling metal, it will be necessary to lubricate the
tip of the drill bit with metal drilling oil to prevent it from
overheating.

Fig. Y

-L

4

2O

6

BASICOPERATINGINSTRUCTIONS

Togetthebestresultsandminimizethelikelihoodof

personalinjury,followtheseinstructionsforoperating

yourdrillpress.

[ WARNINGI

For your own safety, always read the SAFETY
INSTRUCTIONS listed within this operator's manual.

FOR YOUR PROTECTION

I

To avoid being pulled into the power tool, do not wear

loose clothing, gloves, neckties, or jewelry. Always tie
back long hair.

1. If any part of your drill press is missing,
malfunctioning, damaged or broken, stop operation

immediately until that part is properly repaired or
replaced.

2. Never place your fingers in a position where they
could contact the drill bit or other cutting tool. The

workpiece may unexpectedly shift, or your hand
could slip.

3. To prevent the workpiece from being torn from your
hands, thrown, spun by the tool, or shattered, always

properly support your workpiece as follows:
a. Always position BACKUP MATERIAL (used

beneath workpiece ) so that it contacts the left
side of the column, or use the fence provided and
a clamp to brace the workpieces.

b. Whenever possible, position the workpiece to

contact the left side of the column. If it is too short

or the table is tilted, use the fence provided or

clamp solidly to the table, using the table slots.

c. When using a drill press vise, always fasten it to

the table.

d. Never do any work freehand (hand-holding the

workpiece rather than supporting it on the table),
except when polishing or sanding.

e. Securely lock the head and support to the column,

the table arm to the support, and the table to the
table arm, before operating the drill press.

f. Never move the head or the table while the tool is

running.

g. Before starting an operation, jog the motor switch

to make sure the drill or other cutting tool does

not wobble or cause vibration.

h. If a workpiece overhangs the table so it will fall or

tip if not held, clamp it to the table or provide

auxiliary support.

i. Use fixtures for unusual operations to adequately

hold, guide, and position workpiece.

j. Use the SPINDLE SPEED recommended for the

speci c operation and workpiece material. Check
the panel on the inside pulley cover or the chart

below for drilling speed information. For
accessories, refer to the instructions provided with
each accessory.

4. Never climb on the drill press table, it could break or
pull the entire drill press down on you.

5. Turn the power switch "OFF", and put away the
safety key when leaving the drill press.

6. To avoid injury from thrown work or tool contact, do
not perform layout, assembly, or setup work on the

table while the cutting tool is rotating.
Fig. Z

DRILLING SPEED TABLE (RPM)

Drill Bit Material
Diameter Wood Alum., Zinc., Brass

(Inches)

1/16 3100 3100

1/8

3/16

1/4 2340

5/16

3/8 1720
1/2 2340 1100

Iron, Steel

3100
2340

1720

1100

620

21

POSiTiONiNGTHETABLEANDWORKPIECE

(FIG.AA AND BB)

1. Lock the table (1) to the column (2) at a position so
the tip of the drill bit (3) is just above the top of the

workpiece (4).

2. ALWAYS place a BACK-UP MATERIAL (scrap wood)
on the table beneath the workpiece. This will prevent
splintering or heavy burring on the underside of

the workpiece. To keep the back-up material from
spinning, it MUST be positioned against the LEFT

side of the column.

3. For a small piece that cannot be clamped to the
table, use a drill press vise (optional accessory).

2. Turn the laser "ON" and align the laser lines (x) with
the indentation before turning the drill ON.

TILTING THE TABLE (FIG. CC)
NOTE: The table arm and support (1) has a predrilled

hole with a locking pin inserted for locking the table into
a predrilled 0° bevel angle.

1. TIGHTEN the nut (4) on the locking pin using a
10 mm or adjustable wrench clockwise to RELEASE

the pin from its table support. This pin will be needed
when placing the table back to its 0 degree setting

from the table support.

2. Loosen the large hex head table bevel locking bolt (3)
using a 17 mm or adjustable wrench.

[a,WARNINGI

To preventtheworkpieceorbackup materialfrom being
thrownwhiledrilling,you MUST positiontheworkpiece
againstthe LEFT sideofthecolumn.Iftheworkpiece

orthebackup materialisnotlongenough toreach
thecolumn,clamp them tothetable,oruse thefence

providedwiththedrillpresstobracetheworkpiece.
Failuretosecuretheworkpiececouldresultinpersonal

injury.

Fig. AA

[ WARNING I

A drillpressviseMUST be clamped orboltedtothe
tabletoavoidinjuryfrom a spinningworkpiece,or

damaged viseor bitparts.

Remove thedrillpressfence when itinterfereswith

otherdrillpressaccessories.

Fig. BB

[ WARNINGI

To preventinjury,be sureto holdthetable& tablearm

assembly, so it will not swivel or tilt.

Fig. CC

4

3. Tilt the table, aligning the desired angle measurement

to the zero line opposite the scale (4).

4. Tighten the table bevel locking bolt (3).

5. To return the table to its original position, loosen the

table bevel locking bolt (3). Return the table (1) to the

0° position.

6. Return nut (2) on locking pin to the OUTSIDE END
OF THREADS. Gently tap locking pin until it is

seated in the mating hole of the table bracket. Hand

tighten nut (2).

,_I_WARNING

To avoid injury from spinning work or tool breakage,
always clamp workpiece and backup material securely

to the table before operating the drill press.

HOLDING A DRILLING LOCATION

1. Using a centerpunch or sharp nail, make an
indentation in the workpiece where you will be

drilling.

FEEDING

1. Pull down the feed handles with only enough effort to
allow the drill bit to cut.

2. Feeding too slowly might cause the drill bit to burn.
Feeding too rapidly might cause the belt or drill to

slip, tear the workpiece loose or break the drill bit.

3. When drilling metal, it is necessary to lubricate the
drill bit tip with oil to prevent burning of the workpiece

and bit.

22

,_ WARNING 1

For your own safety, turn the switch OFF and remove
the plug from the power source outlet before maintaining
or lubricating your drill press.

Frequently blow out, using an air compressor or dust
vacuum, any sawdust or metal chips that

accumulates inside the motor, pulley housing, table
and work surface. Always wear protective safety goggles.

[ WARNINGI

To avoid shock or fire hazard, if the power cord is worn
or cut in any way, have it replaced immediately by a

qualified electrician or service technician.

LUBRICATION

All of the drill press ball bearings are packed with grease
at the factory. They require no further lubrication.

Periodically lubricate the gear and rack, table elevation

mechanism of the spindle the rack (teeth) of the quill.

Lower the spindle down and oil the spindle sleeve

moderately every three months.

CHANGING THE LASER BATTERIES (FIG. DD)

• Unplug your drill press.

[AWAR"INGI

Failure to unplug your tool could result in accidental
starting causing possible serious personal injury.

1. Open the battery cover (1).

2. Remove and replace the two batteries.

NOTE: Dispose the old batteries properly.

3. Replace the battery cover.

NOTE: Replace with batteries that have a rating
of 1.5 volts (Number 4 series and AAA size or

equivalent). When replacing the batteries, the

battery guide should be thoroughly cleaned. Use a soft

paintbrush or similar device, to remove all sawdust and
debris.

Fig. DD

HELPFUL HINT: Remove the two batteries during long

periods of non-use of the drill. This will reduce damage
to the laser guide from the batteries corroding during
storage.

To protect the drill press from moisture, a protective

coating has been applied to the machined surfaces.
Remove this coating with a soft cloth moistened with

kerosene or WD-40.

I WARNING l

To avoid fire or toxic reaction, never use gasoline,

naphtha, acetone, lacquer thinner or similar highly

volatile solvents to clean the drill press.

HELPFUL HINT: Apply a coat of paste wax to the

table, column and machined surfaces of base to

prevent rust. Wipe all parts thoroughly with a clean

dry cloth.

HELPFUL HINT: If you are not using your drill press

for a long length of time, remove the V-belt from the

pulleys and store outside the drill head. This will
increase of the life of the V-belt.

23

[_WARNINGI

To avoidinjuryfromaccidentalstarting,alwaysturnswitchOFF and unplugthetoolbeforemoving,ormaking
adjustments.

• ConsultyourSears ServiceCenterifforany reasonthemotorwillnotrun.

PROBLEM POSSIBLE CAUSES REMEDY

Noisy operation 1, Incorrect belt tension, 1.

2. Dry spindle.

2. Lubricate spindle. See Section "LUBRICATION".

3. Loose spindle pulley.

Drill bit burn.

4. Loose motor pulley.

1. Incorrect speed.

2. Chips not coming out of hole.

4. Tighten set screw in motor pulley.

2. Retract drill frequently to clear chips.

3. Dull drill bit.

4. Feeding too slowly.

4. Feed fast enough - allow drill to cut.

5. Not lubricated.

Run out of drill bit point-

drilled hole not round.

,

Hand grain in wood or
lengths of cutting utes and/

or angles not equal.

,

Wood splinters on
underside.

Workpiece torn loose from
hand.

Drill bit binds in workpiece.

Bent drill bit.

1.

No backup material under

workpiece.

1.

Not supported or clamped
properly.

1.

Workpiece pinching drill bit,

2. Replace drill bit.

or excessive feed presure.

2.

Excessive drill bit runout

or wobble.

Improper belt tension.

1.

Bent drill bit.

2.

Worn bearings.

3.

Drill bit not properly installed

2. Adjust tension. See Section" ASSEMBLY -

2. Replace bearings.

in chuck,

4.

Quill returns too slow or
too fast.

Chuck will not stay
attached to spindle. It falls
off when trying to install.

Chuck not properly installed.

1.

Coil spring has improper
tension.

1.

Dirt, grease, or oil on the
tapered inside surface of
chuck or on the spindle's

4. Install chuck properly. See Section "ASSEMBLY-

tapered surface.

.

The laser guide will not
turn on.

The batteries are dead.

2.

The battery contacts need
adjustment.

Adjust tension. See section "ASSEMBLY-
TENSIONING BELT"

3. Check tightenness of retaining nut on pulley, and
tighten if necessary.

1. Change speed. See Section " BASIC DRILL PRESS
OPERATION-SPEEDS AND BELT REPLACEMENT"

3. Resharpen drill bit or replace with new bit.

5. Lubricate drill. See Section "BASIC DRILL PRESS
OPERATION-FEEDING"

1. Resharpen drill bit correctly.

1. Use backup material. See Section "BASIC DRILL
PRESS OPERATION".

1. Support workpiece or clamp it. See Section "BASIC
DRILL PRESS OPERATION".

1. Support workpiece or clamp it. See Section "BASIC
DRILL PRESS OPERATION".

TENSIONING BELT".

1. Use a straight drill bit.

3. Install drill properly. See Section "BASIC DRILL
PRESS OPERATION" and "ASSEMBLY".

INSTALLING THE CHUCK".

1. Adjust spring tension. See Section "ASSEMBLY -
ADJUSTMENTS -QUILL RETURN SPRING".

1. Using a non-alcohol based cleaner, clean the
tapered surface of the chuck and spindle to remove
all dirt, grease and oil. See Section "ASSEMBLY-

INSTALLING THE CHUCK".

1. Replace with new AAA batteries.

2. Reload the batteries and make certain that they make
solid contact to the battery spring.

24

10 in. DRILL PRESS MODEL NO. 137.219001

WAR.I.GJ

When servicing use only CRAFTSMAN replacement parts. Use of any other parts many create a HAZARD or
cause product damage.

WAR.I.GJ

Any attempt to repair or replace electrical parts on this Drill Press may create a HAZARD unless repair is done
by a qualified service technician. Repair service is available at your nearest Sears Service Center.

PARTS LiST FOR SAW SCHEMATIC

No. I.D. No. Des€rip}ion Size

1 X4NH PULLEY SET NUT

2 X4NG SPINDLE PULLEY
9 X4N9 CR. RE.COUNT HD. SCREW M4"0.7-8

10 X4N8 CLEAR PANEL
11 X4N7 SPEED DIAGRAM LABEL

12 X4N6 PULLEY COVER ASS'Y #06
13 X4N5 CR. RE.PAN HD. SCREW M5"0.8-12
14 X4N4 CLAMP-CORD

15 X4N3 CR. RE.ROUND WASHER HD. SCREW M6"1.0-12
16 X4N2 V-BELT K-30
17 X4N 1 SPEED DIAGRAM

18 X4N0 STRAIN RELIEF cp20
19 X4MZ DRIVE SCREW cp2.3-5

20 X4MY WARNING LABEL
21 X4MX TRADE-MARK LABEL
22 X4MW CHUCK KEY HOLDER

23 X4MV SHIFTER BOLT M8"1.25-20
24 X4MU HEAD
25 X4MT HEX. SOC. SETSCREW M8"1.25-8
26 X4MS FEED SHAFT

27 X4MR FLAT WASHER 1/4"3/4-3/16
28 X4MQ SPRING
29 X4MP MOTOR ROD
30 X4MN HEX. HD. SCREW AND WASHER M8"1.25-25
32 X4ML MOTOR BASE

33 X4MK LOCK NUT M8"1.25 T=8
34 X4MJ SPRING PIN
35 X4MH CORD-CLAMP
36 X4MG HEX. NUT M8"t.25 T=6.5

37 X4MF QUILL SETSCREW M8"1.25-14
38 X4ME STICKER

39 X4MD EXTERNAL TOOTH LOCK WASHER cp5
40 X4MC CR. RE.PAN HD. SCREW M5"0.8-8

43 X4M9 HEX. NUT 3/8*24UNF T=8
44 X4M8 POINTER
45 X4M7 SET BOLT M10"1.5

46 X4M6 NUT M10"1.5-2B
47 X4M5 DEPTH SCALE
48 X4M4 SWITCH BOX
49 X4M3 SWITCH COVER

50 X4M2 CR. RE. TRUSSHD. TAPPING SCREW M4"16-12
51 X4M1 ROCKER SWITCH
52 X4MO TERMINAL

QTY

No. I.D. No. Descrip}ion Size QTY
58 X4LU AAA BATTERY 2

69 X4LH WARNING LABEL 1

4

72 X4LE CAUTION LABEL 1

2

73 X4LD LASER STICKER 2
74 X4LC FLAT WASHER 1/4"5/8-1/16 2

76 X4LA CHUCK KEY 1

6

77 X4L9 HEX. NUT M6"1.0 T=5 1

3

82 X4L4 ROD 1

5

83 X4L3 HEX. WRENCH 3 mm 1
84 X4L2 HEX. WRENCH 4 mm 1
85 X4L1 TABLE LOCK HANDLE 1

2

89 X4KX TABLE #AW 1

4

90 X4KW HEX. HD. BOLT 1/2"12UNC-7/8 1
93 X4KT RACK 1
95 X4KR HEX. HD. BOLT M8"1.25-25 3
97 X4KP BASE #06 1

98 X4KN FASTNESS KNOB 2
99 X4KM FLAT WASHER 3/8"1 5/32-7/64 4

3

104 OKQ4 BUTTERFLYNUT M8"1.25 2
105 X4KF SCALE 1

4

108 OKD5 CR. RE. PAN HD. SCREW M4"0.7-6 2

10 OLZ5 CAPACITOR 1
11 2ENN CAPACITOR BOX 1

2

12 X4K7 FLAT WASHER cpS*l 6-2.5 4
13 X4K6 LABEL 1

2

14 X4K5 OPERATOR'S MANUAL 1
15 X4K4 POWER CABLE 1
16 X4NK SWITCH KEY 1

A X4K3 DRIVING SLEEVE ASS'Y 1
B X4K2 MOTOR PULLEYASS'Y 1

C X4K1 HANDLE BAR ASS'Y 3

2

D X4K0 MOTOR ASS'Y 1

2

E X4JZ SPRING CAP ASS'Y 1

2

F X4JY RACK RING ASS'Y 1
G X4JX CRANK HANDLE ASS'Y 1
H X4JW TABLE BRACKET ASS'Y 1

J X4JU FENCE HARDWARE BAG ASS'Y 1
K X4JT COLUMN ASS'Y 1
L X4JS LOCATION PIN ASS'Y 1
M X4JR LASER ASS'Y 1

N X4JQ CHUCK & KEY 1
Q X4JN QUILL ASS'Y 1

10 in. DRILL PRESS

SCHEMATIC

MODEL NO. 137.219001

114

16

D

[
[

......C

//

[

\

29

\\'26

//83

[

49

50

51

116

84

H

85

58

,\

?

/./

Congratulations on making a smart purchase. Your new Craftsman ®product is designed and manufactured for years

of dependable operation. But like all products, it may require repair
from time to time. That's when having a Repair Protection Agreement can save you money and aggravation.

Here's what the Repair Protection Agreement* includes:

[] Expert service by our 10,000 professional repair specialists
[] Unlimited service and no charge for parts and labor on all covered repairs

[] Product replacement up to $1500 if your covered product can't be fixed
[] Discount of 10% from regular price of service and related installed parts not covered by the agreement; also,

10% off regular price of preventive maintenance check

[] Fast help by phone - we call it Rapid Resolution - phone support from a Sears representative. Think of us as a

"talking owner's manual."

Once you purchase the Repair Protection Agreement, a simple phone call is all that it takes for you to schedule
service. You can call anytime day or night, or schedule a service appointment online.

The Repair Protection Agreement is a risk-free purchase. If you cancel for any reason during the product warranty
period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires.

Purchase your Repair Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call
1=800=827-6655.

*Coverage in Canada varies on some items. For full details call Sears Canada at 1=800=361=6665.

Sears Installation Service
For Sears professional installation of home appliances, garage door openers, water heaters, and other major home

items, in the U.S.A. or Canada call 1-800-4-MY-HOME ®.

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.)

www.sears.com

1-800-469-4663 (Canada)

www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran£ais:

1-800-LE-FOYER M°

(1-800-533-6937)

www.sears.ca

® Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC
® Marca Registrada / TM Marca de Fabrica / SMMarca de Servicio de Sears Brands, LLC

MCMarque de commerce / Marque depos6e de Sears Brands, LLC © Sears Brands, LLC

MD
