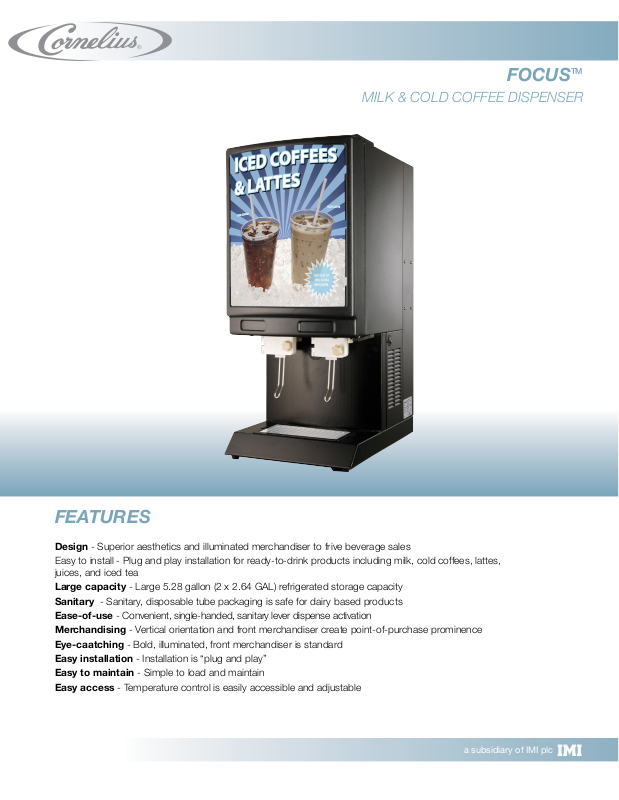

Cornelius CD210IB User Manual
Focus
TM
Milk & cold coffee dispenser
FEATuREs
Design - Superior aesthetics and illuminated merchandiser to frive beverage sales
Easy to install - Plug and play installation for ready-to-drink products including milk, cold coffees, lattes,
juices, and iced tea
Large capacity - Large 5.28 gallon (2 x 2.64 GAL) refrigerated storage capacity
Sanitary - Sanitary, disposable tube packaging is safe for dairy based products
Ease-of-use - Convenient, single-handed, sanitary lever dispense activation
Merchandising - Vertical orientation and front merchandiser create point-of-purchase prominence
Eye-caatching - Bold, illuminated, front merchandiser is standard
Easy installation - Installation is “plug and play”
Easy to maintain - Simple to load and maintain
Easy access - Temperature control is easily accessible and adjustable
a subsidiary of IMI plc
PART NUMBER MODEL DESCRIPTION
891416403 Model CD210IB Focus™ 2 flavor black with illuminated merchandiser
TEchnicAl spEciFicATions
ELECTRICAL ................. 115 volts 60 Hz, 10 Amp, 185 Watts
REFRIGERATION.............. 1/5 Hp Compressor
R134a refrigerant 2.3 oz (65 g)
CABINETRY.................. Powder coated steel with plastic cup rest, drip tray and merchandiser
DISPENSER DIMENSIONS ...... 31.63 H 14.17 W x 19.52 D (80.35 cm x 36 cm x 49.6 cm)
RECOMMENDED CLEARANCE .. Back: 4" (10.16 cm)
Top: 12" (30.48 cm)
Side: 1" (2.54 cm)
WEIGHT ..................... Shipping: 75 lbs
STORAGE ................... 2 x 2.64 gallon (10 liter) Bag-in-box
MAXIMUM PACKAGE SIZE .....16.5"H x 4.125"W x 10.5"D
CUP CLEARANCE............. 9.25"
WARRANTY.................. 1 year parts
AGENCY LISTINGS ............
© 2012 IMI CORNELIUS
CG5052-1212
IN THE U.S.A.
Ph: 800.238.3600
Fax: 800.258.0255
For more information or to place an order, contact your sales representative or authorized distributor.
OUTSIDE THE U.S.A.
Ph: 763.488.8200
Email: webmaster@cornelius.com
101 Broadway Street West
Osseo, MN 55369
www.cornelius.com
