Condec UVC1000, UVC1010 Specifications

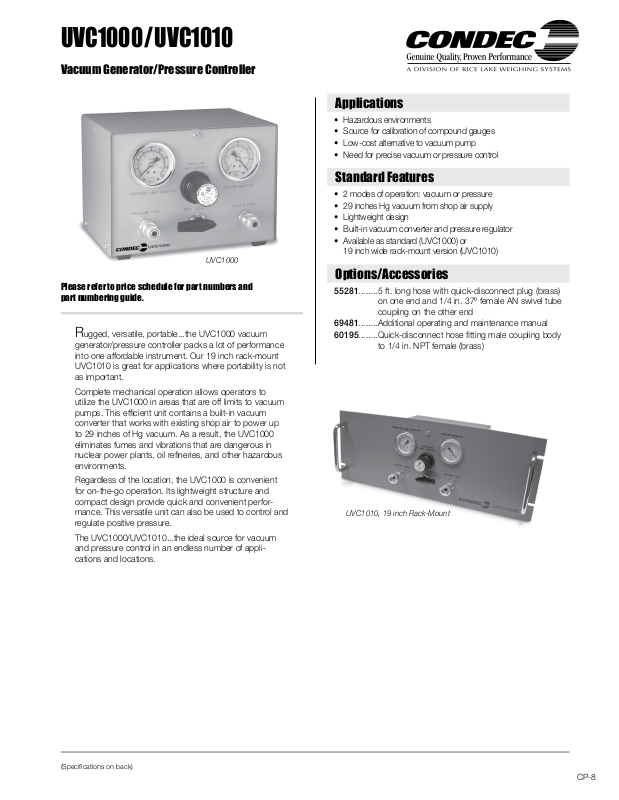

UVC1000/UVC1010

Vacuum Generator/Pressure Controller

UVC1000

Please refer to price schedule for part numbers and
part numbering guide.

Rugged, versatile, portable...the UVC1000 vacuum

generator/pressure controller packs a lot of performance
into one affordable instrument. Our 19 inch rack-mount
UVC1010 is great for applications where portability is not
as important.

Complete mechanical operation allows operators to
utilize the UVC1000 in areas that are off limits to vacuum
pumps. This efficient unit contains a built-in vacuum
converter that works with existing shop air to power up
to 29 inches of Hg vacuum. As a result, the UVC1000
eliminates fumes and vibrations that are dangerous in
nuclear power plants, oil refineries, and other hazardous
environments.

Regardless of the location, the UVC1000 is convenient
for on-the-go operation. Its lightweight structure and
compact design provide quick and convenient perfor­mance. This versatile unit can also be used to control and
regulate positive pressure.

The UVC1000/UVC1010...the ideal source for vacuum
and pressure control in an endless number of appli­cations and locations.

Applications

• Hazardous environments

• Source for calibration of compound gauges

• Low-cost alternative to vacuum pump

• Need for precise vacuum or pressure control

Standard Features

• 2 modes of operation: vacuum or pressure

• 29 inches Hg vacuum from shop air supply

• Lightweight design

• Built-in vacuum converter and pressure regulator

• Available as standard (UVC1000) or

19 inch wide rack-mount version (UVC1010)

Options/Accessories

55281 ........5 ft. long hose with quick-disconnect plug (brass)

on one end and 1/4 in. 37º female AN swivel tube
coupling on the other end

69481 ........Additional operating and maintenance manual

60195 ........Quick-disconnect hose tting male coupling body

to 1/4 in. NPT female (brass)

UVC1010, 19 inch Rack-Mount

(Specifications on back)

CP-8

UVC1000/UVC1010

Specications

PRESSURE MEDIA:

Filtered shop air

PRESSURE INPUT:

100-160 psi*, 4.2 SCFM, AN-4 37° flared tube setting

PRESSURE LIMIT MONITOR GAUGE:

Size: Two-inch diameter

Range: 0-160 psi

VACUUM MONITOR GAUGE:

Size: Two-inch diameter

Range: 0-30 inches Hg

REGULATOR:

Aluminum/brass 0-100 psi output pressure

UVC1000 CASE:

16 gauge painted steel

PRESSURE/VACUUM SELECTOR:

Brass

FITTINGS:

Brass, quick-disconnect, 1/4 in.

INTERNAL TUBING:

250 psi rated tubing

WEIGHT:

UVC1000: 6.6 lb (2.9 kg)

UVC1010: Approximately 7 lb (3 kg)

* At input pressures less than 100 psi, vacuum level may be less
than 29 inches Hg.

UVC1000 DIMENSIONS

A = 5.70 in. (144.78mm) D = 1.30 in. (33.02 mm)
B = 8.14 in. (206.75mm) E = 0.80 in. (20.32 mm)
C = 6.10 in. (154.94mm) F = 0.30 in. (7.62 mm)

Consult factory for UVC1010 dimensions.

Specifications subject to change without notice

© Condec 2012 Catalog PN 64749 1/12
