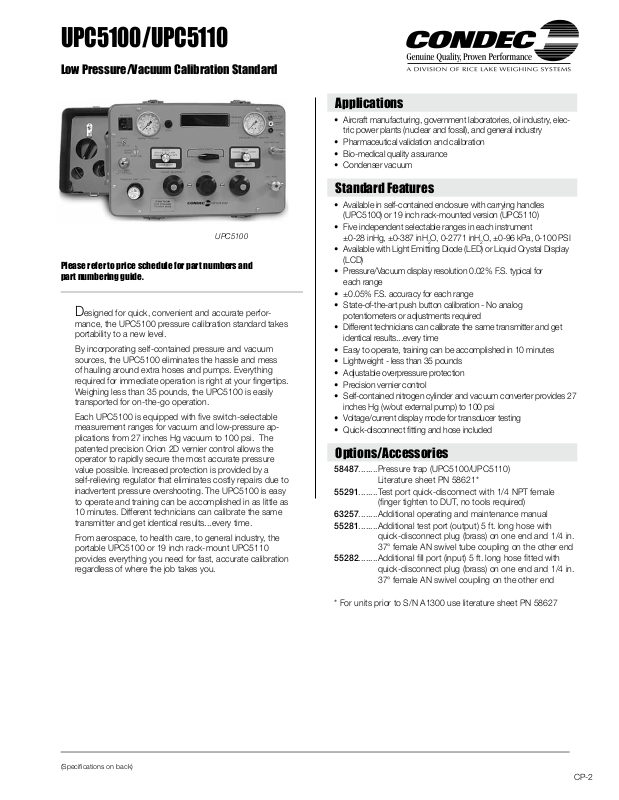

Condec UPC5100, UPC5110 Specifications
UPC5100/UPC5110
Low Pressure/Vacuum Calibration Standard
UPC5100
Please refer to price schedule for part numbers and
part numbering guide.
Designed for quick, convenient and accurate perfor-
mance, the UPC5100 pressure calibration standard takes
portability to a new level.
By incorporating self-contained pressure and vacuum
sources, the UPC5100 eliminates the hassle and mess
of hauling around extra hoses and pumps. Everything
required for immediate operation is right at your fingertips.
Weighing less than 35 pounds, the UPC5100 is easily
transported for on-the-go operation.
Each UPC5100 is equipped with five switch-selectable
measurement ranges for vacuum and low-pressure applications from 27 inches Hg vacuum to 100 psi. The
patented precision Orion 2D vernier control allows the
operator to rapidly secure the most accurate pressure
value possible. Increased protection is provided by a
self-relieving regulator that eliminates costly repairs due to
inadvertent pressure overshooting. The UPC5100 is easy
to operate and training can be accomplished in as little as
10 minutes. Different technicians can calibrate the same
transmitter and get identical results...every time.
From aerospace, to health care, to general industry, the
portable UPC5100 or 19 inch rack-mount UPC5110
provides everything you need for fast, accurate calibration
regardless of where the job takes you.
Applications
• Aircraft manufacturing, government laboratories, oil industry, electric power plants (nuclear and fossil), and general industry
• Pharmaceutical validation and calibration
• Bio-medical quality assurance
• Condenser vacuum
Standard Features
• Available in self-contained enclosure with carrying handles
(UPC5100) or 19 inch rack-mounted version (UPC5110)
• Five independent selectable ranges in each instrument
±0-28 inHg, ±0-387 inH
• Available with Light Emitting Diode (LED) or Liquid Crystal Display
(LCD)
• Pressure/Vacuum display resolution 0.02% F.S. typical for
each range
• ±0.05% F.S. accuracy for each range
• State-of-the-art push button calibration - No analog
potentiometers or adjustments required
• Different technicians can calibrate the same transmitter and get
identical results...every time
• Easy to operate, training can be accomplished in 10 minutes
• Lightweight - less than 35 pounds
• Adjustable overpressure protection
• Precision vernier control
• Self-contained nitrogen cylinder and vacuum converter provides 27
inches Hg (w/out external pump) to 100 psi
• Voltage/current display mode for transducer testing
• Quick-disconnect tting and hose included
O, 0-2771 inH2O, ±0-96 kPa, 0-100 PSI
2
Options/Accessories
58487 ........Pressure trap (UPC5100/UPC5110)
Literature sheet PN 58621*
55291 ........Test port quick-disconnect with 1/4 NPT female
(finger tighten to DUT, no tools required)
63257 ........Additional operating and maintenance manual
55281 ........Additional test port (output) 5 ft. long hose with
quick-disconnect plug (brass) on one end and 1/4 in.
37° female AN swivel tube coupling on the other end
55282 ........Additional fill port (input) 5 ft. long hose fitted with
quick-disconnect plug (brass) on one end and 1/4 in.
37° female AN swivel coupling on the other end
* For units prior to S/N A1300 use literature sheet PN 58627
(Specifications on back)
CP-2
UPC5100/UPC5110
Specications
AVAILABLE PRESSURE CALIBRATIONS:
Gauge and vacuum
OVERALL ACCURACY:
±0.05% F.S. maximum. Accuracy statement includes all effects
of linearity, hysteresis, repeatability and ambient temperature
TEMPERATURE RANGE:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95% non-condensing
PRESSURE MEDIA:
Clean dry gaseous nitrogen or clean dry air
PRESSURE MEDIA FILTER:
Rating: 7 microns nominal
Type: Field replaceable filter cartridge
CONTROL VALVES:
Type: Micro-metering with positive shut off, adjustable stop and
replaceable seat, non-destructible
Material: Aluminum/stainless steel
INTERNAL PIPING:
Tubing: 5/32 in. nylon tubing, 1/8 in. copper
Fittings: Brass
TEST PORT:
Style: Quick-disconnect type
Pressure rating: 600 psi maximum, connected or disconnected
PRESSURE HOSE:
Quantity supplied: One output
Length: 5 feet, nominal
VERNIER CONTROL:
Volume: 0.25 cubic inches
Material: Aluminum/stainless steel
PRESSURE LIMIT MONITOR GAUGE:
Size: Two-inch diameter
Range: 160 psi
Pressure supply gauge: 3000 psi
Regulator: 100 psi max
Construction: Self-relieving, single stage regulator
INTERNAL PRESSURE SENSOR:
Type: Bonded, metal foil strain gauge or equal
Sensitivity: 3 mV/V, nominal
Construction: Completely weld sealed stainless steel outer body
and pressure cavity
UPC5100 ExTERNAL CARRYING CASE:
Type: Aluminum case with cover and carrying handle
Material thickness: 0.090 in. nominal
Finish: Grey polyurethane baked-enamel paint, textured finish
CURRENT DISPLAY:
0-20.000 mA counting by 0.005 mA
VACUUM CONVERTER:
Capable of generating 27 inches Hg vacuum stand alone or
30 inches Hg with external vacuum pump
WEIGHT:
UPC5100: Less than 35 lb (15.9 kg) including two hoses and
one cable
UPC5100 OVERALL DIMENSIONS
A = 11.5 in. (292.10 mm) C = 10.0 in. (254.00 mm)
B = 16.0 in. (406.40 mm)
UPC5110 (not shown) dimensions—excluding front handles:
19 in. (482.6 mm) W x 8.1 in. (205.74 mm) D x 10.5 in. (266.7 mm) H
Rack-mount dimensions are for reference only. Consult factory for
cutout dimensions.
Specifications subject to change without notice
© Condec 2012 Catalog PN 64749 1/12
