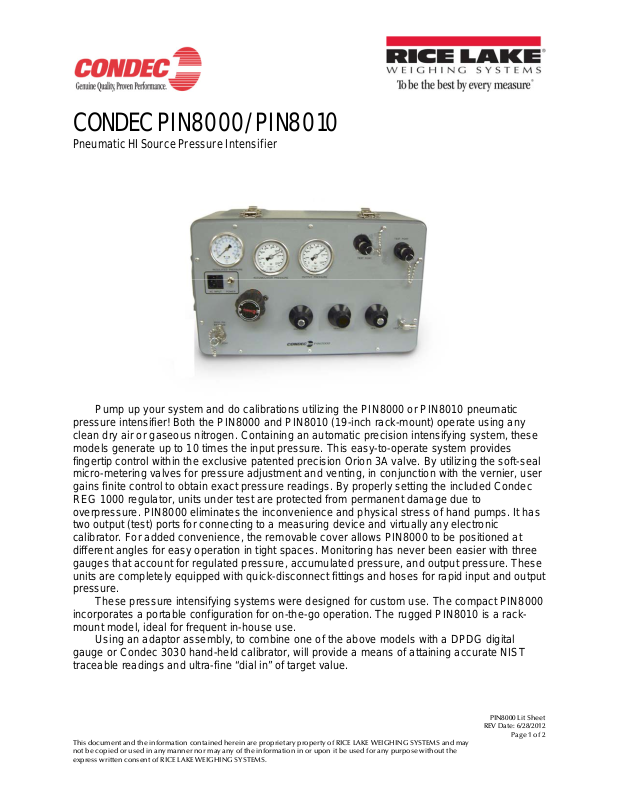

CONDEC PIN8000/PIN8010
Pneumatic HI Source Pressure Intensifier
Pump up your system and do calibrations utilizing the PIN8000 or PIN8010 pneumatic
pressure intensifier! Both the PIN8000 and PIN8010 (19-inch rack-mount) operate using any
clean dry air or gaseous nitrogen. Containing an automatic precision intensifying system, these
models generate up to 10 times the input pressure. This easy-to-operate system provides
fingertip control within the exclusive patented precision Orion 3A valve. By utilizing the soft-seal
micro-metering valves for pressure adjustment and venting, in conjunction with the vernier, user
gains finite control to obtain exact pressure readings. By properly setting the included Condec
REG 1000 regulator, units under test are protected from permanent damage due to
overpressure. PIN8000 eliminates the inconvenience and physical stress of hand pumps. It has
two output (test) ports for connecting to a measuring device and virtually any electronic
calibrator. For added convenience, the removable cover allows PIN8000 to be positioned at
different angles for easy operation in tight spaces. Monitoring has never been easier with three
gauges that account for regulated pressure, accumulated pressure, and output pressure. These
units are completely equipped with quick-disconnect fittings and hoses for rapid input and output
pressure.
These pressure intensifying systems were designed for custom use. The compact PIN8000
incorporates a portable configuration for on-the-go operation. The rugged PIN8010 is a rackmount model, ideal for frequent in-house use.
Using an adaptor assembly, to combine one of the above models with a DPDG digital
gauge or Condec 3030 hand-held calibrator, will provide a means of attaining accurate NIST
traceable readings and ultra-fine “dial in” of target value.
This document and the information contained herein are proprietary property of RICE LAKE WEIGHING SYSTEMS and may
not be copied or used in any manner nor may any of the information in or upon it be used for any purpose without the
express written consent of RICE LAKE WEIGHING SYSTEMS.
PIN8000 Lit Sheet
REV Date: 6/28/2012
Page 1 of 2
PIN8000/PIN8010 Specifications
Temperature range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensing
Pressure Media:
Clean dry gaseous nitrogen or clean dry air
Regulated Pressure Gauge:
Size: Two and one half-inch diameter
Range: 0-1500 psi
Accumulator and Output Pressure Gauges:
Size: Two and one half-inch diameter
Range: 0-15,000 psi
Control valves :
Type: Micro-metering with positive shut off,
adjustable stop and replaceable seat, nondestructible
Vernier mechanical rotation : 16 turns, nominal
Adjustable sensitivity : 0.0005 psi, minimum
Vernier torque: Finger tip adjust to 10,000 psi
Material: 300 series stainless steel outer body
Input Pressure Condec REG 1000
Regulator :
Pressure rating: 3000 psi maximum
Output pressure range: 0-1000 psi
Construction: Self-relieving, single stage regulator
External housing:
PIN8000: Deep drawn aluminum case with cover
and handles
PIN8010: Sheet aluminum enclosure
External Finish:
PIN8000: Grey polyurethane baked-enamel paint,
textured finish
PIN8010: Dark Tan polyurethane baked-enamel
paint, textured finish
Weight:
Approximately 40 lb (18.1 kg), nominal including all
fitting, hoses and power cord
PIN8000 overall Dimensions
A = 11 in. (279.40 mm) C = 11.5 in. (292.10 mm)
B = 18.0 in. (457.20 mm)
Internal piping:
Tubing: 1/4 in. O.D. and 1/8 in. O.D. 300 series
stainless steel, seamless
Couplings: 300 series stainless steel Swagelok®
Output test ports:
Style: Quick-disconnect type
Pressure rating: 10,000 psig minimum, connected
or disconnected
Quantity supplied: 2 output Quick Disconnects
(one, p/o output pressure hose mentioned below)
Pressure Hoses:
Quantity supplied: 2; one input and one output
Length: 4 ft., nominal each hose
Booster Pump solenoid valve :
Type: Three-way, normally closed, electronically
controlled
Pressure rating :
1500 psig
Power Requirements:
115 VAC, 50 Hz, 10 watts
Note: 220 VAC also available.
