Comtrend AR-5312U User Manual

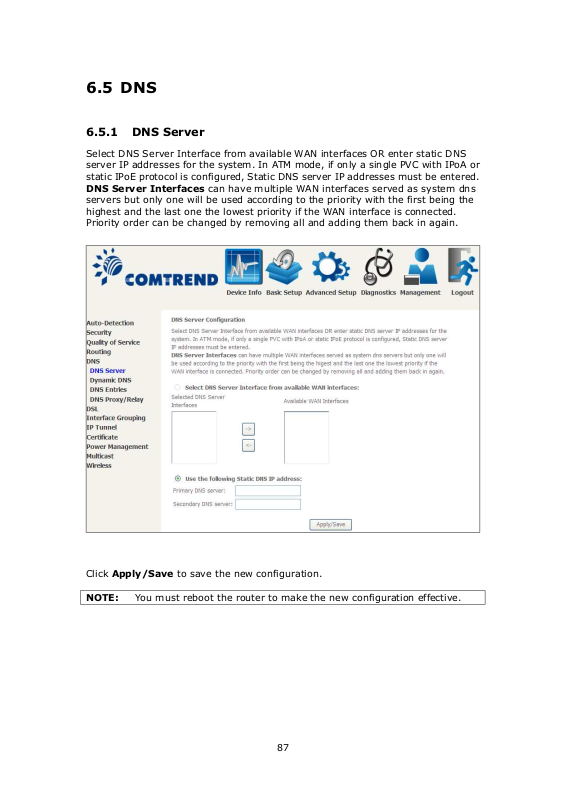

6.5 DNS

6.5.1 DNS Server

Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered. DNS Server Interfaces can have multiple WAN interfaces served as system dns servers but only one will be used according to the priority with the first being the highest and the last one the lowest priority if the WAN interface is connected. Priority order can be changed by removing all and adding them back in again.

Click Apply/Save to save the new configuration.

NOTE: You must reboot the router to make the new configuration effective.

6.5.2 Dynamic DNS

The Dynamic DNS service allows you to map a dynamic IP address to a static hostname in any of many domains, allowing the AR-5312u to be more easily accessed from various locations on the Internet.

To add a dynamic DNS service, click Add. The following screen will display.

Click Apply/Save to save your settings.

Consult the table below for field descriptions.

Field Description

D-DNS provider Select a dynamic DNS provider from the list

Hostname Enter the name of the dynamic DNS server

Interface Select the interface from the list

Username Enter the username of the dynamic DNS server

Password Enter the password of the dynamic DNS server

6.5.3 DNS Entries

The DNS Entry page allows you to add domain names and IP address desired to be resolved by the DSL router.

Choose Add or Remove to configure DNS Entry. The entries will become active after save/reboot.

Enter the domain name and IP address that needs to be resolved locally, and click the Add Entry button.

6.5.4 DNS Proxy/Relay

DNS proxy receives DNS queries and forwards DNS queries to the Internet. After the CPE gets answers from the DNS server, it replies to the LAN clients. Configure DNS proxy with the default setting, when the PC gets an IP via DHCP, the domain name, Home, will be added to PC’s DNS Suffix Search List, and the PC can access route with “Comtrend.Home”.

6.6 DSL

The DSL Settings screen allows for the selection of DSL modulation modes. For optimum performance, the modes selected should match those of your ISP.

DSL Mode Data Transmission Rate - Mbps (Megabits per second)

G.Dmt Downstream: 12 Mbps Upstream: 1.3 Mbps

G.lite Downstream: 4 Mbps Upstream: 0.5 Mbps

T1.413 Downstream: 8 Mbps Upstream: 1.0 Mbps

ADSL2 Downstream: 12 Mbps Upstream: 1.0 Mbps

AnnexL Supports longer loops but with reduced transmission rates

ADSL2+ Downstream: 24 Mbps Upstream: 1.0 Mbps

AnnexM Downstream: 24 Mbps Upstream: 3.5 Mbps

Options Description

Inner/Outer Pair Select the inner or outer pins of the twisted pair (RJ11 cable)

Bitswap Enable Enables adaptive handshaking functionality

SRA Enable Enables Seamless Rate Adaptation (SRA)

DSL Mode Data Transmission Rate - Mbps (Megabits per second)

Select DSL LED behavior

G997.1 EOC xTU-R Serial Number

Advanced DSL Settings

Click Advanced Settings to reveal additional options.

Normal (TR-68 compliant): Select this option for DSL LED to operate normally (See menu 2.2 LED Indicator)

Off:DSL LED will always be OFF

Select Equipment Serial Number or Equipment MAC Address to use router’s serial number or MAC address in ADSL EOC messages

On this screen you select the required test mode, then click the Apply button.

Field Description

Normal DSL line signal is detected and sent normally

Reverb DSL line signal is sent continuously in reverb mode

Medley DSL line signal is sent continuously in medley mode

No Retrain DSL line signal will always be on even when DSL line is unplugged

L3 DSL line is set in L3 power mode

6.7 Interface Grouping

Interface Grouping supports multiple ports to PVC and bridging groups. Each group performs as an independent network. To use this feature, you must create mapping groups with appropriate LAN and WAN interfaces using the Add button. The Remove button removes mapping groups, returning the ungrouped interfaces to the Default group. Only the default group has an IP interface.

To add an Interface Group, click the Add button. The following screen will appear. It lists the available and grouped interfaces. Follow the instructions shown onscreen.

Automatically Add Clients With Following DHCP Vendor IDs:

Add support to automatically map LAN interfaces to PVC's using DHCP vendor ID (option 60). The local DHCP server will decline and send the requests to a remote DHCP server by mapping the appropriate LAN interface. This will be turned on when Interface Grouping is enabled.

For example, imagine there are 4 PVCs (0/33, 0/36, 0/37, 0/38). VPI/VCI=0/33 is for PPPoE while the other PVCs are for IP set-top box (video). The LAN interfaces are ETH1, ETH2, ETH3, and ETH4.

The Interface Grouping configuration will be:

1. Default: ETH1, ETH2, ETH3, and ETH4.

2. Video: nas_0_36, nas_0_37, and nas_0_38. The DHCP vendor ID is "Video".

If the onboard DHCP server is running on "Default" and the remote DHCP server is running on PVC 0/36 (i.e. for set-top box use only). LAN side clients can get IP addresses from the CPE's DHCP server and access the Internet via PPPoE (0/33).

If a set-top box is connected to ETH1 and sends a DHCP request with vendor ID "Video", the local DHCP server will forward this request to the remote DHCP server. The Interface Grouping configuration will automatically change to the following:

1. Default: ETH2, ETH3, and ETH4

2. Video: nas_0_36, nas_0_37, nas_0_38, and ETH1

6.8 IP Tunnel

6.8.1 IPv6inIPv4

Configure 6in4 tunneling to encapsulate IPv6 traffic over explicitly-configured IPv4 links.

Click the Add button to display the following.

Options Description

Tunnel Name Input a name for the tunnel

Mechanism Mechanism used by the tunnel deployment

Associated WAN Interface Select the WAN interface to be used by the tunnel

Associated LAN Interface Select the LAN interface to be included in the tunnel

Manual/Automatic Select automatic for point-to-multipoint tunneling /

manual for point-to-point tunneling

IPv4 Mask Length The subnet mask length used for the IPv4 interface

6rd Prefix with Prefix Length Prefix and prefix length used for the IPv6 interface

Border Relay IPv4 Address Input the IPv4 address of the other device

6.8.2 IPv4inIPv6

ġġġġ

Configure 4in6 tunneling to encapsulate IPv4 traffic over an IPv6-only environment.

Click the Add button to display the following.

Options Description

Tunnel Name Input a name for the tunnel

Mechanism Mechanism used by the tunnel deployment

Associated WAN Interface Select the WAN interface to be used by the tunnel

Associated LAN Interface Select the LAN interface to be included in the tunnel

Manual/Automatic Select automatic for point-to-multipoint tunneling /

manual for point-to-point tunneling

AFTR Address of Address Family Translation Router

6.9 Certificate

A certificate is a public key, attached with its owner’s information (company name, server name, personal real name, contact e-mail, postal address, etc) and digital signatures. There will be one or more digital signatures attached to the certificate, indicating that these entities have verified that this certificate is valid.

6.9.1 Local

CREATE CERTIFICATE REQUEST

Click Create Certificate Request to generate a certificate-signing request.

The certificate-signing request can be submitted to the vendor/ISP/ITSP to apply for a certificate. Some information must be included in the certificate-signing request. Your vendor/ISP/ITSP will ask you to provide the information they require and to provide the information in the format they regulate. Enter the required information and click Apply to generate a private key and a certificate-signing request.

The following table is provided for your reference.

Field Description

Certificate Name A user-defined name for the certificate.

Common Name Usually, the fully qualified domain name for the machine.

Organization Name The exact legal name of your organization.

Do not abbreviate.

State/Province Name

Country/Region Name The two-letter ISO abbreviation for your country.

IMPORT CERTIFICATE

Click Import Certificate to paste the certificate content and the private key provided by your vendor/ISP/ITSP into the corresponding boxes shown below.

he state or province where your organization is located.

It cannot be abbreviated.

Enter a certificate name and click the Apply button to import the certificate and its private key.

6.9.2 Trusted CA

CA is an abbreviation for Certificate Authority, which is a part of the X.509 system. It is itself a certificate, attached with the owner information of this certificate authority; but its purpose is not encryption/decryption. Its purpose is to sign and issue certificates, in order to prove that these certificates are valid.

Click Import Certificate to paste the certificate content of your trusted CA. The CA certificate content will be provided by your vendor/ISP/ITSP and is used to authenticate the Auto-Configuration Server (ACS) that the CPE will connect to.

Enter a certificate name and click Apply to import the CA certificate.

100

6.10 Power Management

This screen allows for control of hardware modules to evaluate power consumption. Use the buttons to select the desired option, click Apply and check the response.

101

6.11 Multicast

Input new IGMP or MLD protocol configuration fields if you want modify default values shown. Then click Apply/Save.

Field Description

Default Version Define IGMP using version with video server.

Query Interval The query interval is the amount of time in seconds

between IGMP General Query messages sent by the router (if the router is the querier on this subnet). The default query interval is 125 seconds.

102

Field Description

Query Response Interval The query response interval is the maximum amount

of time in seconds that the IGMP router waits to receive a response to a General Query message. The query response interval is the Maximum Response Time field in the IGMP v2 Host Membership Query message header. The default query response interval is 10 seconds and must be less than the query interval.

Last Member Query Interval

Robustness Value The robustness variable is a way of indicating how

Maximum Multicast Groups

Maximum Multicast Data Sources (for IGMPv3)

Maximum Multicast Group Members

Fast Leave Enable When you enable IGMP fast-leave processing, the

The last member query interval is the amount of time in seconds that the IGMP router waits to receive a response to a Group-Specific Query message. The last member query interval is also the amount of time in seconds between successive Group-Specific Query messages. The default last member query interval is 10 seconds.

susceptible the subnet is to lost packets. IGMP can recover from robustness variable minus 1 lost IGMP packets. The robustness variable should be set to a value of 2 or greater. The default robustness variable value is 2.

Setting the maximum number of Multicast groups.

Define the maximum multicast video stream number.

Setting the maximum number of groups that ports can accept.

switch immediately removes a port when it detects an IGMP version 2 leave message on that port.

LAN to LAN (Intra LAN) Multicast Enable

Membership to join Immediate (IPTV)

103

This will activate IGMP snooping for cases where multicast data source and player are all located on the LAN side.

Enable IGMP immediate join feature for multicast membership group.

6.12 Wireless

6.12.1 Basic

The Basic option allows you to configure basic features of the wireless LAN interface. Among other things, you can enable or disable the wireless LAN interface, hide the network from active scans, set the wireless network name (also known as SSID) and restrict the channel set based on country requirements.

Click Apply/Save to apply the selected wireless options.

Consult the table below for descriptions of these options.

Option Description

Enable Wireless

104

A checkbox  that enables or disables the wireless LAN interface. When selected, a set of basic wireless options will appear.

Option Description

Hide Access Point

Select Hide Access Point to protect the access point from detection by wireless active scans. To check AP status in Windows XP, open

Network Connections from the start Menu and select View Available Network Connections. If the access point is hidden, it

will not be listed there. To connect a client to a hidden access point, the station must add the access point manually to its wireless configuration.

Clients Isolation

When enabled, it prevents client PCs from seeing one another in My Network Places or Network Neighborhood. Also, prevents one wireless client communicating with another wireless client.

Disable WMM Advertise

Stops the router from ‘advertising’ its Wireless Multimedia (WMM) functionality, which provides basic quality of service for time-sensitive applications (e.g. VoIP, Video).

Enable

Select the checkbox  to enable this function.

Wireless Multicast Forwarding

Enable WiFi

Select the checkbox  to enable the WiFi button.

Button

SSID

[1-32 characters]

Sets the wireless network name. SSID stands for Service Set Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that user will not be granted access.

BSSID The BSSID is a 48-bit identity used to identify a particular BSS

(Basic Service Set) within an area. In Infrastructure BSS networks, the BSSID is the MAC (Media Access Control) address of the AP (Access Point); and in Independent BSS or ad hoc networks, the BSSID is generated randomly.

Country A drop-down menu that permits worldwide and specific national

settings. Local regulations limit channel range: US= worldwide, Japan=1-14, Jordan= 10-13, Israel= 1-13

Max Clients The maximum number of clients that can access the router.

Wireless Guest / Virtual Access Points

This router supports multiple SSIDs called Guest SSIDs or Virtual Access Points. To enable one or more Guest SSIDs select the checkboxes  in the Enabled column. To hide a Guest SSID select its checkbox  in the Hidden column.

Do the same for Isolate Clients and Disable WMM Advertise. For a description of these two functions, see the previous entries for “Clients Isolation” and “Disable WMM Advertise”. Similarly, for Enable WMF, Max Clients and BSSID, consult the matching entries in this table.

NOTE: Remote wireless hosts cannot scan Guest SSIDs.

105

6.12.2 Security

The following screen appears when Wireless Security is selected. The options shown here allow you to configure security features of the wireless LAN interface.

Click Apply/Save to implement new configuration settings.

WIRELESS SECURITY

Setup requires that the user configure these settings using the Web User Interface (see the table below).

Select SSID

Select the wireless network name from the drop-down box. SSID stands for Service Set Identifier. All stations must be confi WLAN. If the SSID does not match, that client will not be granted access.

Network Authentication

This option specifies whether a network key is used for authentication to the wireless network. If network authentication is set to Open, then no authentication is provided. Despite this, the identity of the client is still verified.

Each authentication type has its own settings. For example, selecting 802.1X authentication will reveal the RADIUS Server IP address, Port and Key fields. WEP Encryption will also be enabled as shown below.

ured with the correct SSID to access the

106

The settings for WPA authentication are shown below.

The settings for WPA-PSK authentication are shown next.

107

WEP Encryption

This option specifies whether data sent over the network is encrypted. The same network key is used for data encryption and network authentication. Four network keys can be defined althou Network Key list box to select the appropriate network key.

Security options include authentication and encryption services based on the wired equivalent privacy (WEP) algorithm. WEP is a set of security services used to protect 802.11 networks from unauthorized access, such as eavesdroppin case, the capture of wireless network traffic. When data encryption is enabled, secret shared encryption keys are used by the source station and the destination station to alter frame bits, thus avoiding disclosure to eavesdroppers.

Under shared key authentication, each wireless station is assumed to have received a secret shared key over a secure channel that is independent from the 802.11 wireless network communications channel.

Encryption Strength

This drop-down list box will display when WEP Encryption is enabled. The key strength is proportional to the number of binary bits comprising the key. This means that keys with a are considerably more difficult to crack. Encryption strength can be set to either 64-bit or 128-bit. A 64-bit key is equivalent to 5 ASCII characters or 10 hexadecimal numbers. A 128-bit key contains 13 ASCII characters or 26 hexadecimal numbers. Each key contains a 24-bit header (an initiation vector) which enables parallel decoding of multiple streams of encrypted data.

h only one can be used at any one time. Use the Current

; in this

enerated and

reater number of bits have a greater degree of security and

108

6.12.3 WPS

Wi-Fi Protected Setup (WPS) is an industry standard that simplifies wireless security setup for certified network devices. Every WPS certified device has both a PIN number and a push button, located on the device or accessed through device software. The AR-5312u has a WPS button on the device.

Devices with the WPS logo (shown here) support WPS. If the WPS logo is not present on your device it still may support WPS, in this case, check the device documentation for the phrase “Wi-Fi Protected Setup”.

NOTE: WPS is only available in Open, WPA-PSK, WPA2-PSK and Mixed

WPA2/WPA-PSK network authentication modes. Other authentication modes do not use WPS so they must be configured manually.

To configure security settings with WPS, follow the procedures below. You must choose either the Push-Button or PIN configuration method for Steps 6 and 7.

I. Setup

Step 1: Enable WPS by selecting Enabled from the drop down list box shown.

Step 2: Set the WPS AP Mode. Configured is used when the AR-5312u will assign

security settings to clients. Unconfigured is used when an external client assigns security settings to the AR-5312u.

NOTES: You r client may or may not have the ability to provide security settings to

the AR-5312u. If it does not, then you must set the WPS AP mode to Configured. Consult the device documentation to check its capabilities.

In addition, using Windows 7, you can add an external registrar using the

Config AP button (Appendix F - WPS OPERATION has detailed instructions).

109

II. NETWORK AUTHENTICATION

Step 3: Select Open, WPA-PSK, WPA2-PSK, or Mixed WPA2/WPA-PSK network

authentication mode from the Manual Setup AP section of the Wireless Security screen. The example below shows WPA2-PSK mode.

Step 4: For the Pre-Shared Key (PSK) modes, enter a WPA Pre-Shared Key. You

will see the following dialog box if the Key is too short or too long.

Step 5: Click the Apply/Save button at the bottom of the screen.

IIIa. PUSH-BUTTON CONFIGURATION

The WPS push-button configuration provides a semi-automated configuration method. The WPS button on the rear panel of the router can be used for this purpose or the Web User Interface (WUI) can be used exclusively.

The WPS push-button configuration is described in the procedure below. It is assumed that the Wireless function is Enabled and that the router is configured as the Wireless Access Point (AP) of your WLAN. In addition, the wireless client must also be configured correctly and turned on, with WPS function enabled.

110

NOTE: The wireless AP on the router searches for 2 minutes. If the router stops

searching before you complete Step 7, return to Step 6.

Step 6: Press WPS button

Press the WPS button on the front panel of the router. The WPS LED will

blink to show that the router has begun searching for the client.

Step 7: Go to your WPS wireless client and activate the push-button function. A typical WPS client screenshot is shown below as an example.

Now go to Step 8 (part IV. Check Connection) to check the WPS connection.

IIIb. WPS – PIN CONFIGURATION

Using this method, security settings are configured with a personal identification number (PIN). The PIN can be found on the device itself or within the software. The PIN may be generated randomly in the latter case. To obtain a PIN number for your client, check the device documentation for specific instructions.

The WPS PIN configuration is described in the procedure below. It is assumed that the Wireless function is Enabled and that the router is configured as the Wireless Access Point (AP) of your wireless LAN. In addition, the wireless client must also be configured correctly and turned on, with WPS function enabled.

NOTE: Unlike the push-button method, the pin method has no set time limit.

This means that the router will continue searching until it finds a client.

Step 6: Select the PIN radio button in the WSC Setup section of the Wireless

Security screen, as shown in A or B below, and then click the appropriate button based on the WSC AP mode selected in step 2.

A - For Configured mode, click the Add Enrollee button.

Enter STA PIN: a Personal Identification Number (PIN) has to be read from either

a sticker or the display on the new wireless device. This PIN must then be inputted at representing the network, usually the Access Point of the network.

B - For Unconfigured mode, click the Config AP button.

111

Step 7: Activate the PIN function on the wireless client. For Configured mode,

the client must be configured as an Enrollee. For Unconfigured mode, the client must be configured as the Registrar. This is different from the External Registrar function provided in Windows Vista.

The figure below provides an example of a WPS client PIN function in-progress.

Now go to Step 8 (part IV. Check Connection) to check the WPS connection.

IV. CHECK CONNECTION

Step 8: If the WPS setup method was successful, you will be able access the

wireless AP from the client. The client software should show the status. The example below shows that the connection established successfully.

You can also double-click the Wireless Network Connection icon from the

Network Connections window (or the system tray) to confirm the status of the new connection.

112

6.12.4 MAC Filter

This option allows access to the router to be restricted based upon MAC addresses. To add a MAC Address filter, click the Add button shown below. To delete a filter, select it from the MAC Address table below and click the Remove button.

Option Description

Select

SSID

MAC

Restrict

Mode

MAC

Address

After clicking the Add button, the following screen appears.

Select the wireless network name from the drop-down box. SSID stands for Service Set Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that user will not be granted access.

Disabled: MAC filtering is disabled. Allow: Permits access for the specified MAC addresses. Deny: Rejects access for the specified MAC addresses.

Lists the MAC addresses subject to the MAC Restrict Mode. A maximum of 60 MAC addresses can be added. Every network device has a unique 48-bit MAC address. This is usually shown as xx.xx.xx.xx.xx.xx, where xx are hexadecimal numbers.

113

Enter the MAC address in the box provided and click Apply/Save.

114

6.12.5 Wireless Bridge

This screen allows for the configuration of wireless bridge features of the WIFI interface. See the table beneath for detailed explanations of the various options.

Click Apply/Save to implement new configuration settings.

Feature Description

AP Mode Selecting Wireless Bridge (aka Wireless Distribution System)

disables Access Point (AP) functionality, while selecting Access Point enables AP functionality. In Access Point mode, wireless bridge functionality will still be available and wireless stations will be able to associate to the AP.

Bridge Restrict Selecting Disabled disables wireless bridge restriction, which

means that any wireless bridge will be granted access. Selecting Enabled or Enabled (Scan) enables wireless bridge restriction. Only those bridges selected in the Remote Bridges list will be granted access. Click Refresh to update the station list when Bridge Restrict is enabled.

115

6.12.6 Advanced

The Advanced screen allows you to configure advanced features of the wireless LAN interface. You can select a particular channel on which to operate, force the transmission rate to a particular speed, set the fragmentation threshold, set the RTS threshold, set the wakeup interval for clients in power-save mode, set the beacon interval for the access point, set XPress mode and set whether short or long preambles are used. Click Apply/Save to set new advanced wireless options.

Field Description

Band Set to 2.4 GHz for compatibility with IEEE 802.11x

standards. The new amendment allows IEEE 802.11n units to fall back to slower speeds so that legacy IEEE

802.11x devices can coexist in the same network. IEEE

802.11g creates data-rate parity at 2.4 GHz with the IEEE

802.11a standard, which has a 54 Mbps rate at 5 GHz. (IEEE 802.11a has other differences compared to IEEE

802.11b or g, such as offering more channels.)

116

+ 74 hidden pages

Comtrend AR-5312U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
