CST-500

C-Band Satellite Terminal

Installation and O

Part Number MN/CST5000.IOM Revision 9

eration Manual

Comtech EFData Documentation Update

Subject:

Date: Document:

Part Number: Collating Instructions:

Comments:

Errata A

Change Table 1-2, Output Power Requirements

October 26, 2005 CST-5000 C-Band Satellite Terminal, Rev. 9 dated April 30, 1998 Installation and Operation Manual MN/CST5000.EA9 Attach this page to page 1-9

The following change provides updated information for Table 1-2. This information will be incorporated into the next revision.

Change Specifics:

Change Table 1-2, Output Power to read:

Output Power: at 1 dB compression at 25C and f

+8 dBm or 5W (+37 dBm) or 10W (+40 dBm) or 20W (+43 dBm) or 40W (+46 dBm)

Filename: T_ERRATA 1

Filename: T_ERRATA 2

Comtech EFData Documentation Update

Subject:

Date: Document:

Part Number: Collating Instructions:

Comments:

Errata B

Change Table 1-2, Spurious Requirements

October 26, 2005 CST-5000 C-Band Satellite Terminal, Rev. 9 dated April 30, 1998 Installation and Operation Manual MN/CST5000.EB9 Attach this page to page 1-9

The following highlighted change provides updated information for Table 1-2. This information will be incorporated into the next revision.

Change Specifics:

Change Table 1-2, Spurious to read:

Spurious:

< 250 kHz Carrier Offset > 250 kHz Carrier Offset

-35 dBc maximum

-50 dBc maximum

Filename: T_ERRATA 1

Filename: T_ERRATA 2

Comtech EFData is an ISO 9001

Registered Company.

CST-5000

C-Band Satellite Terminal

Installation and Operation Manual

Part Number MN/CST5000.IOM

Revision 9

April 30, 1998

Comtech EFData, 2114 West 7th Street, Tempe, Arizona 85281 USA, (480) 333-2200, FAX: (480) 333-2161.

Customer Support

Contact the Comtech EFData Customer Support Department for:

• Product support or training

• Information on upgrading or returning a product

• Reporting comments or suggestions concerning manuals

A Customer Support representative may be reached at:

Comtech EFData Attention: Customer Support Department 2114 West 7th Street Tempe, Arizona 85281 USA

(480) 333-2200 (Main Comtech EFData Number) (480) 333-4357 (Customer Support Desk) (480) 333-2161 FAX

or, E-Mail can be sent to the Customer Support Department at:

service@comtechefdata.com

1. To return a Comtech EFData product (in-warranty and out-of-warranty) for repair or replacement:

2. Request a Return Material Authorization (RMA) number from the Comtech EFData Customer Support Department.

3. Be prepared to supply the Customer Support representative with the model number, serial number, and a description of the problem.

4. To ensure that the product is not damaged during shipping, pack the product in its original shipping carton/packaging.

5. Ship the product back to Comtech EFData. (Shipping charges should be prepaid.)

For more information regarding the warranty policies, see Warranty Policy, p. ix.

ii Rev. 9

CHAPTER 1. INTRODUCTION ....................................................................................... 1–1

1.1 Description .........................................................................................................................................................1–2

1.1.1 Applications ......................................................................................................................................................1–4

1.1.2 Monitor and Control (M&C).............................................................................................................................1–4

1.1.3 Low Noise Amplifier (LNA).............................................................................................................................1–5

1.1.4 Outdoor Enclosure.............................................................................................................................................1–5

1.2 Options................................................................................................................................................................1–6

1.2.1 Configurations...................................................................................................................................................1–6

1.2.2 Equipment .........................................................................................................................................................1–7

Specifications...........................................................................................................................................................1–8

CHAPTER 2. SINGLE THREAD SYSTEM INSTALLATION........................................... 2–1

2.1 Unpacking .........................................................................................................................................................2–1

2.2 Inspecting the Equipment................................................................................................................................ 2–2

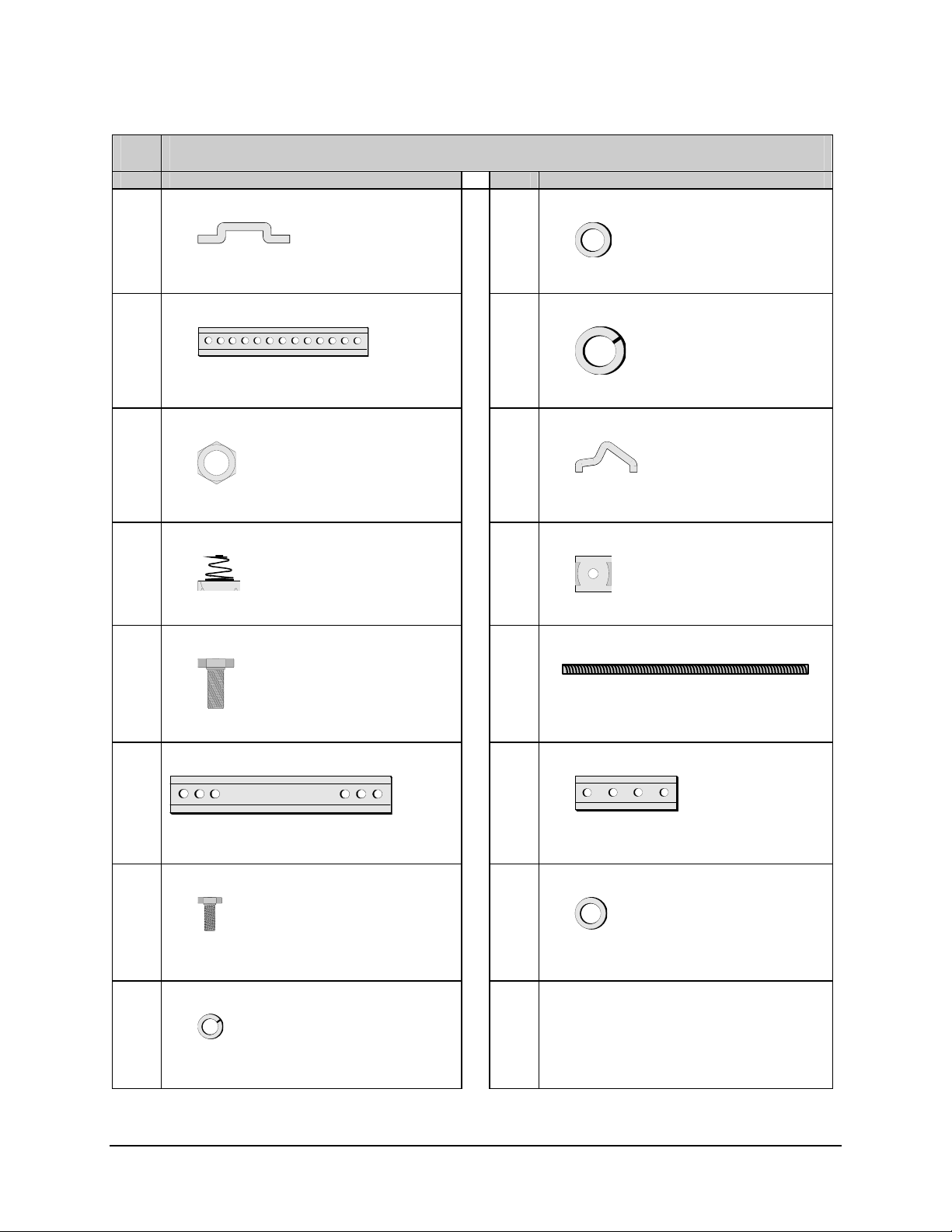

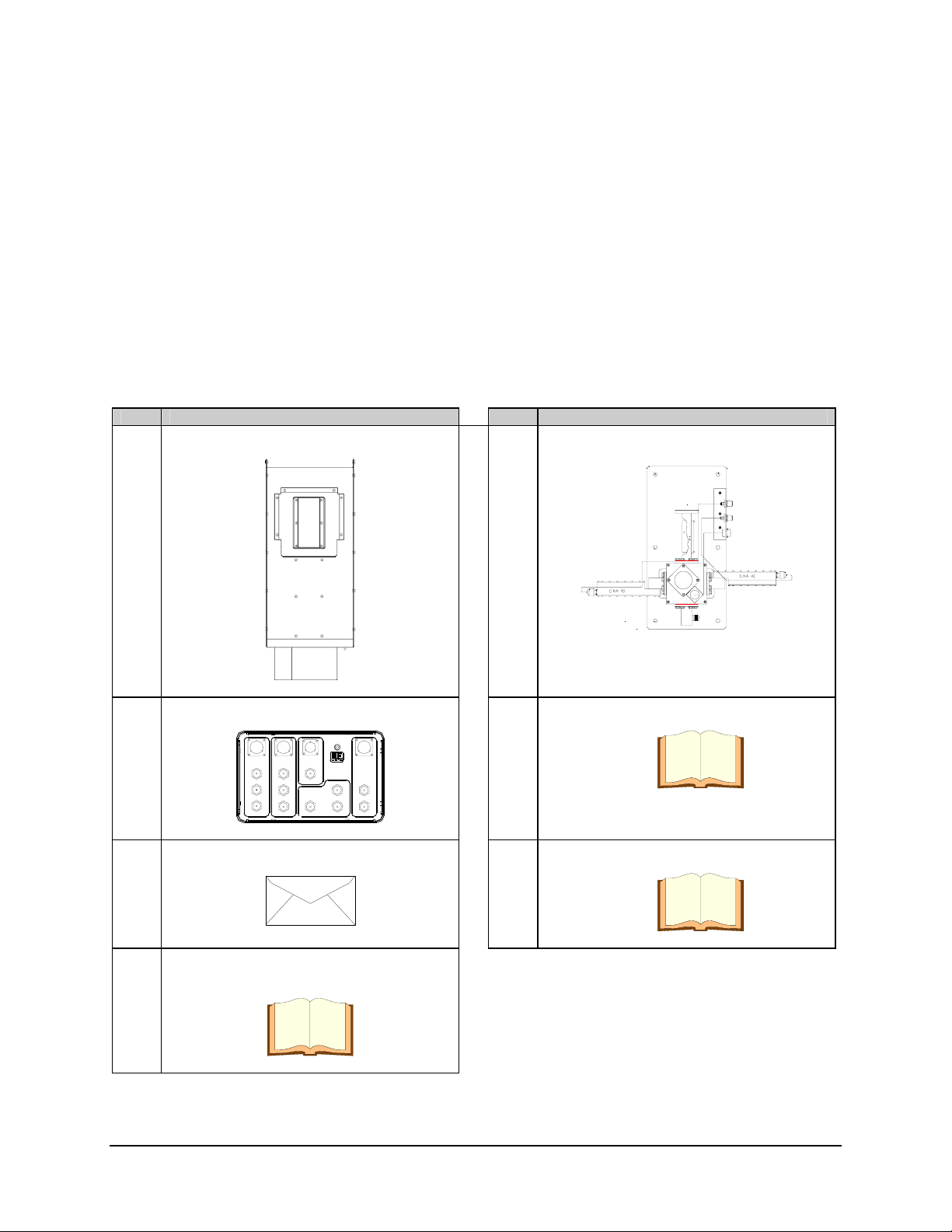

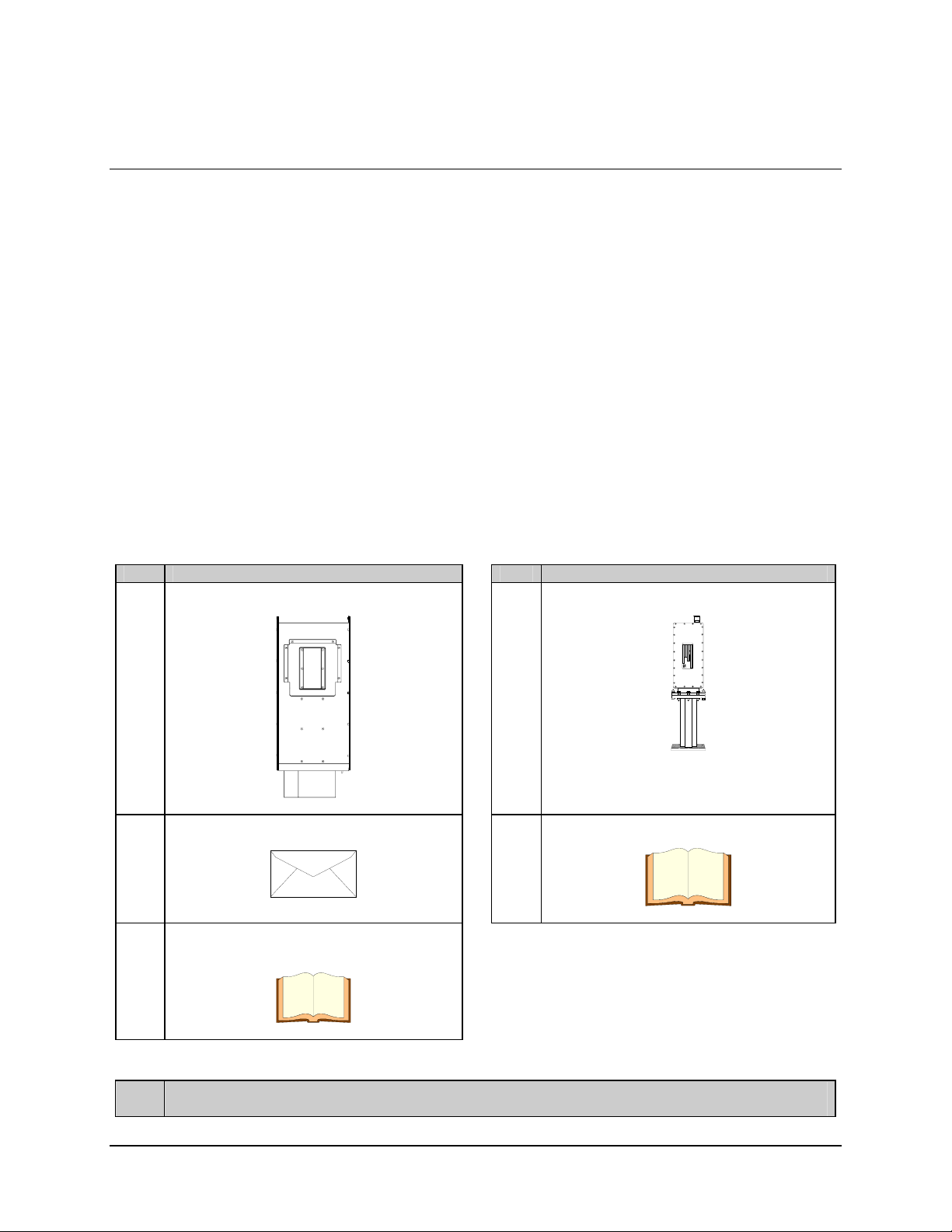

2.2.1 Included Parts....................................................................................................................................................2–2

2.3 RFT Installation................................................................................................................................................2–7

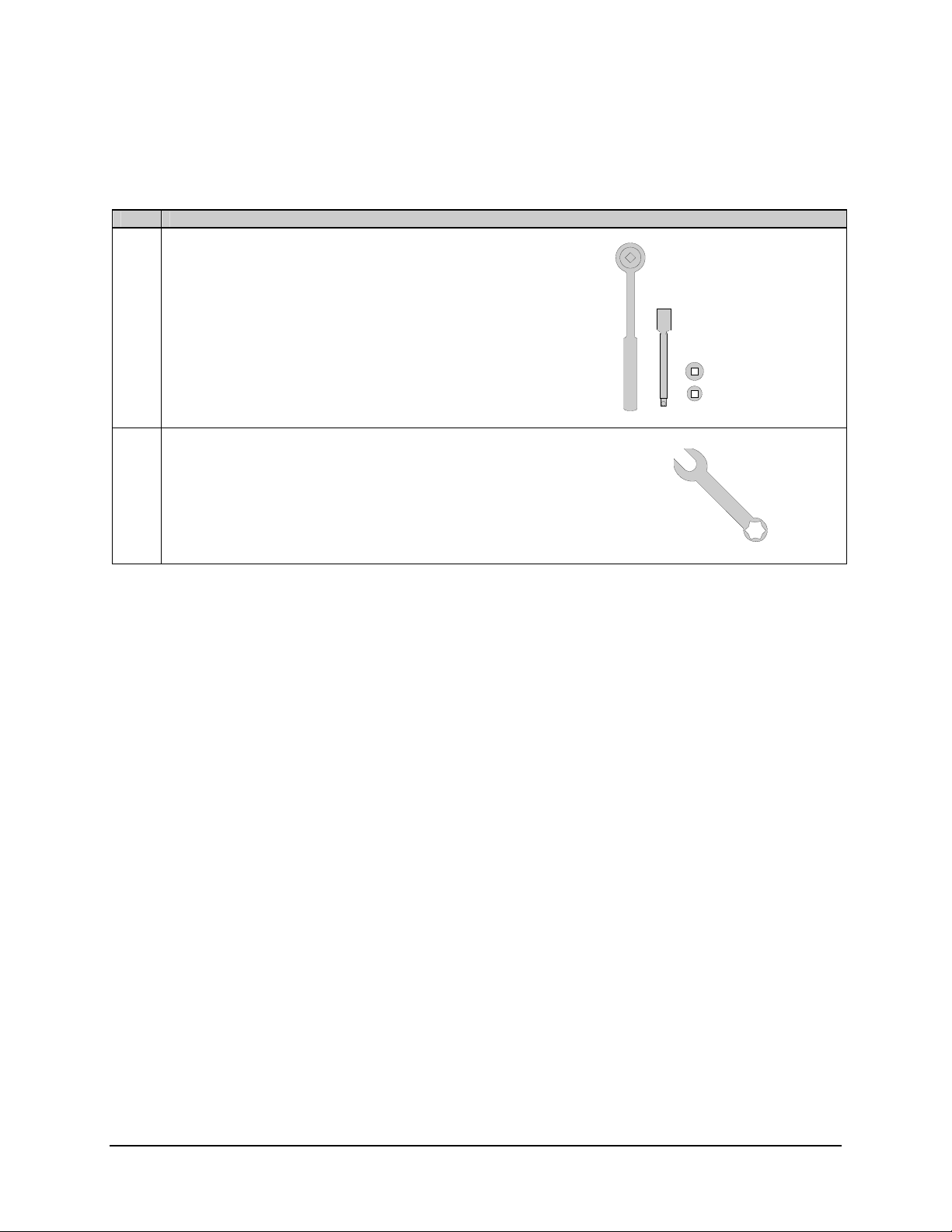

2.3.1 Tools Required .................................................................................................................................................. 2–8

2.3.2 Vertical Pole Installation...................................................................................................................................2–9

2.3.2.1 Round Pole ..................................................................................................................................................... 2–9

2.3.2.2 Square Pole.....................................................................................................................................................2–16

2.3.3 Spar Installation.................................................................................................................................................2–17

2.4 LNA Installation ............................................................................................................................................. 2–19

2.5 External Connections .....................................................................................................................................2–21

2.5.1 TX/IF Input (J1) ................................................................................................................................................2–22

2.5.2 TX/RF Output (J2) ............................................................................................................................................2–22

2.5.3 RX/IF Output (J3) .............................................................................................................................................2–22

2.5.4 RX/RF Input (J4)...............................................................................................................................................2–23

2.5.5 Prime Power (J5)...............................................................................................................................................2–23

2.5.6 Serial Remote Control (J6)................................................................................................................................2–24

2.5.7 Ground (GND) ..................................................................................................................................................2–26

CHAPTER 3. REDUNDANT SYSTEM INSTALLATION ................................................. 3–1

3.1 Unpacking .........................................................................................................................................................3–2

3.2 Inspecting the Equipment................................................................................................................................ 3–2

3.2.1 Included Parts....................................................................................................................................................3–3

3.3 RFT Installation................................................................................................................................................3–7

3.3.1 Tools Required .................................................................................................................................................. 3–8

3.3.2 Vertical Pole Installation...................................................................................................................................3–9

3.3.2.1 Round Pole ..................................................................................................................................................... 3–9

Rev. 9 iii

Preface CST-5000

3.3.2.2 Square Pole.....................................................................................................................................................3–15

3.3.3 Spar Installation.................................................................................................................................................3–16

3.3.4 1:1 Redundant Plate Installation........................................................................................................................3–19

3.4 External Connections .....................................................................................................................................3–21

CHAPTER 4. OPERATION.............................................................................................. 4–1

4.1 System Operation .............................................................................................................................................4–1

4.2 Remote Control.................................................................................................................................................4–1

4.3 Front Panel Display/Keypad............................................................................................................................4–2

4.3.1 Front Panel Controls..........................................................................................................................................4–3

4.4 Menu Explanations...........................................................................................................................................4–4

4.4.1 Configuration ....................................................................................................................................................4–5

4.4.2 Monitor..............................................................................................................................................................4–9

4.4.3 Faults.................................................................................................................................................................4–11

CHAPTER 5. THEORY OF OPERATION........................................................................ 5–1

5.1 Monitor and Control ........................................................................................................................................5–1

5.1.1 EEPROM Memory............................................................................................................................................5–3

5.1.2 Remote Interface ...............................................................................................................................................5–3

5.1.2.1 Remote Interface Specification ......................................................................................................................5–4

5.1.3 Terminal Default Conditions.............................................................................................................................5–4

5.1.4 Theory of Operation .......................................................................................................................................... 5–4

5.1.5 M&C Board Connector Pinouts ........................................................................................................................5–6

5.1.5.1 EIA-232/485 Remote Control (J1) .................................................................................................................5–6

5.1.5.2 Remote Relay Control, J2 DB15-Female .......................................................................................................5–6

5.1.5.3 HPA, PS, U/C, and D/C, J3 DB37-Male........................................................................................................5–7

5.1.5.4 Synthesizers (DC/UC/LO), J4 DB37-Female.................................................................................................5–8

5.1.5.5 Keypad Display, 24-Pin (12 x 2) Ribbon Connector (J5)...............................................................................5–9

5.1.6 Test Points and LEDs........................................................................................................................................5–10

5.2 High Stability Oscillator.................................................................................................................................5–10

5.2.1 Specifications ....................................................................................................................................................5–10

5.3 IF Local Oscillator.......................................................................................................................................... 5–12

5.3.1 Specifications ....................................................................................................................................................5–12

5.4 Synthesizer ......................................................................................................................................................5–14

5.4.1 Specifications ....................................................................................................................................................5–14

5.4.2 Theory of Operation ..........................................................................................................................................5–14

5.5 Down Converter..............................................................................................................................................5–16

5.5.1 Specifications ....................................................................................................................................................5–17

5.5.2 Theory of Operation ..........................................................................................................................................5–18

5.6 Up Converter...................................................................................................................................................5–19

5.6.1 Specifications ....................................................................................................................................................5–20

5.6.2 Theory of Operation .......................................................................................................................................... 5–21

CHAPTER 6. MAINTENANCE ........................................................................................ 6–1

6.1 Test Points and LEDs.......................................................................................................................................6–1

6.2 Fault Isolation ................................................................................................................................................... 6–2

APPENDIX A. OPTIONS ................................................................................................. A–1

A.1 140 MHz Option..............................................................................................................................................A–1

A.1.1 IF 1112.5 MHz Local Oscillator.......................................................................................................................A–1

A.1.1.1 Specifications ................................................................................................................................................A–3

A.1.2 Synthesizer .......................................................................................................................................................A–3

A.1.2.1 Specifications ................................................................................................................................................A–3

A.1.2.2 Theory of Operation ...................................................................................................................................... A–3

A.1.3 Down Converter ...............................................................................................................................................A–5

A.1.3.1 Specifications ................................................................................................................................................A–6

iv Rev. 9

CST-5000 Preface

A.1.3.2 Theory of Operation ...................................................................................................................................... A–7

A.1.4 Up Converter .................................................................................................................................................... A–8

A.1.4.1 Specifications ................................................................................................................................................A–9

A.1.4.2 Theory of Operation ...................................................................................................................................... A–10

A.2 CST-5000 Multi-Carrier System Option ....................................................................................................A–11

A.2.1 Remote Control Operation................................................................................................................................A–12

A.2.2 RSU-503 Redundancy Switch Unit..................................................................................................................A–13

A.2.3 M&C Software .................................................................................................................................................A–13

APPENDIX B. REMOTE CONTROL OPERATION ......................................................... B–1

B.1 General............................................................................................................................................................. B–1

B.2 Message Structure........................................................................................................................................... B–2

B.2.1 Start Character ..................................................................................................................................................B–2

B.2.2 Device Address................................................................................................................................................. B–3

B.2.3 Command/Response .........................................................................................................................................B–3

B.2.4 End Character ...................................................................................................................................................B–4

B.3 Configuration Commands/Responses ...........................................................................................................B–5

B.4 Status Commands/Responses......................................................................................................................... B–8

GLOSSARY ...................................................................................................................... g-1

INDEX ............................................................................................................................... i-1

Rev. 9 v

Preface CST-5000

Figures

Figure 1-1. CST-5000 Single Thread System ............................................................................................................1–1

Figure 1-2. 1:1 Redundant LNA Plate........................................................................................................................1–2

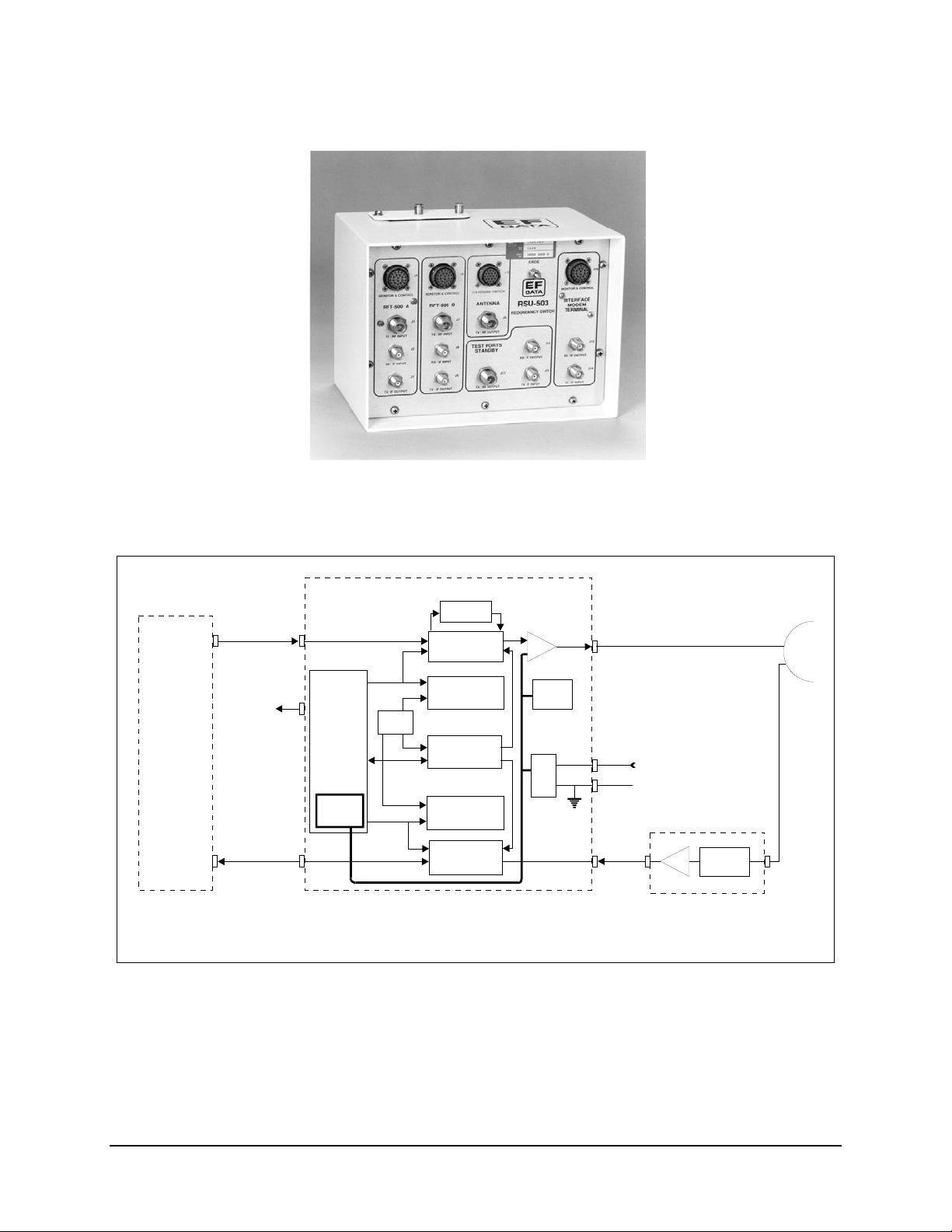

Figure 1-3. RSU-503..................................................................................................................................................1–3

Figure 1-4. CST-5000 Block Diagram.......................................................................................................................1–3

Figure 1-5. Dimensions for Single Thread LNA........................................................................................................1–12

Figure 1-6. Dimensions for 1:1 Redundant LNA Plate..............................................................................................1–12

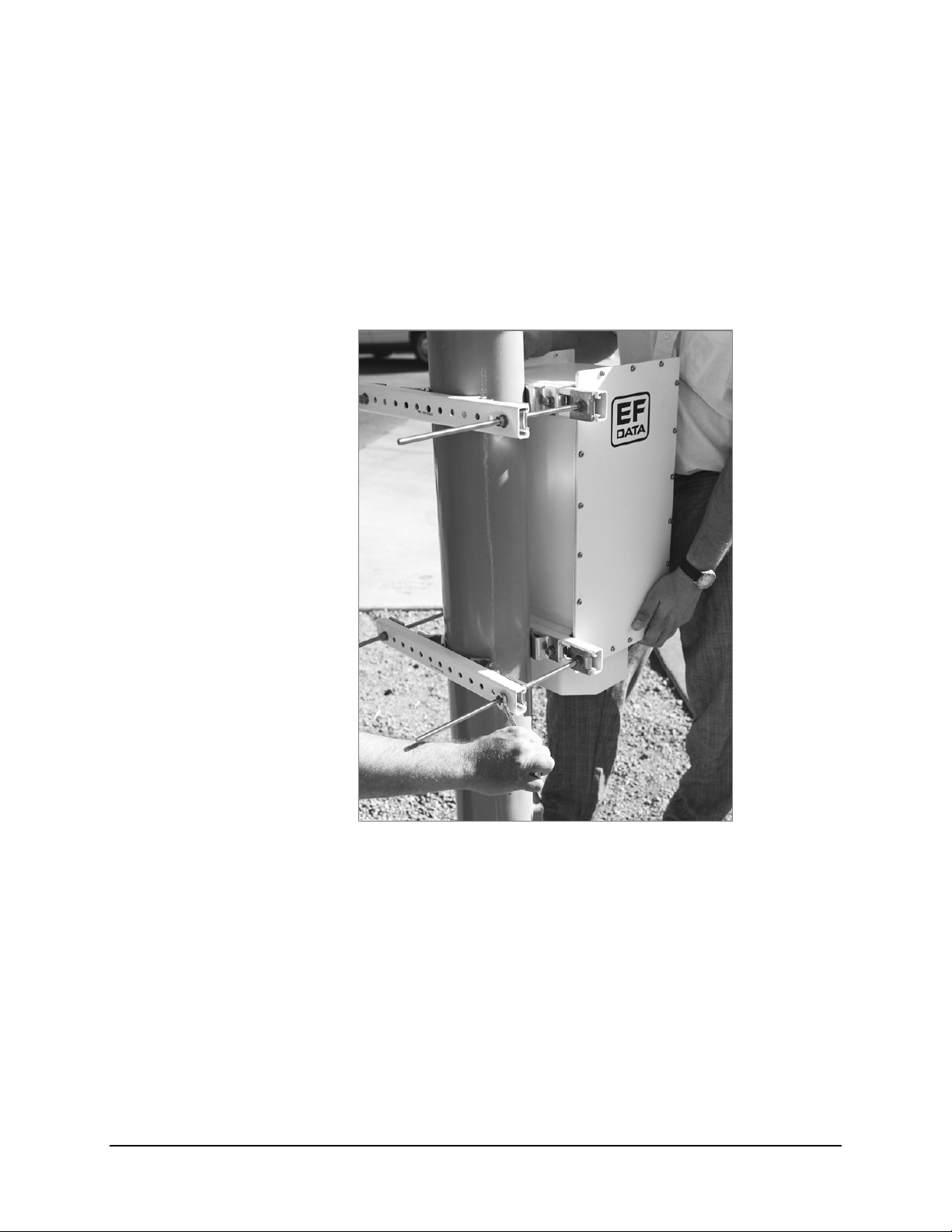

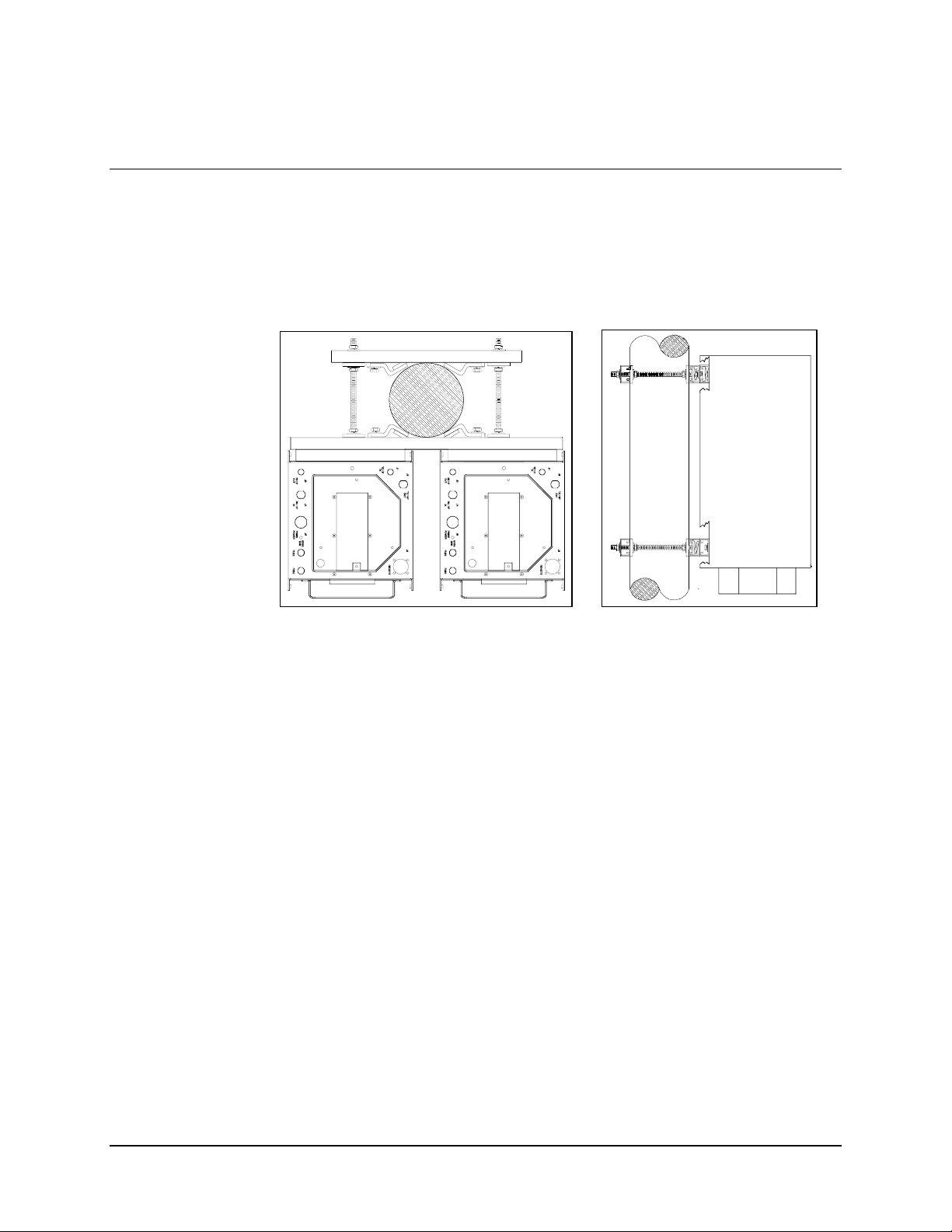

Figure 2-1. Vertical Pole Installation .........................................................................................................................2–7

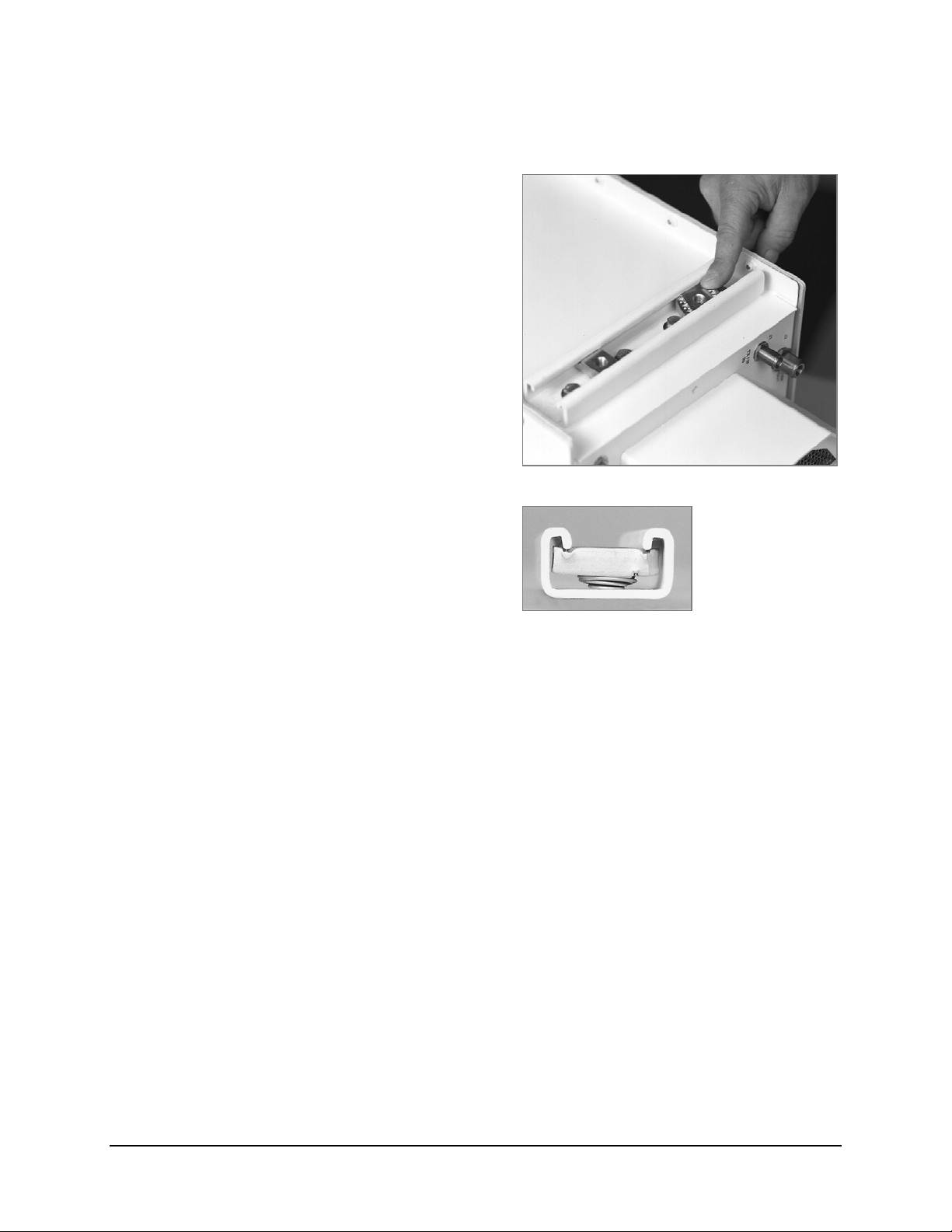

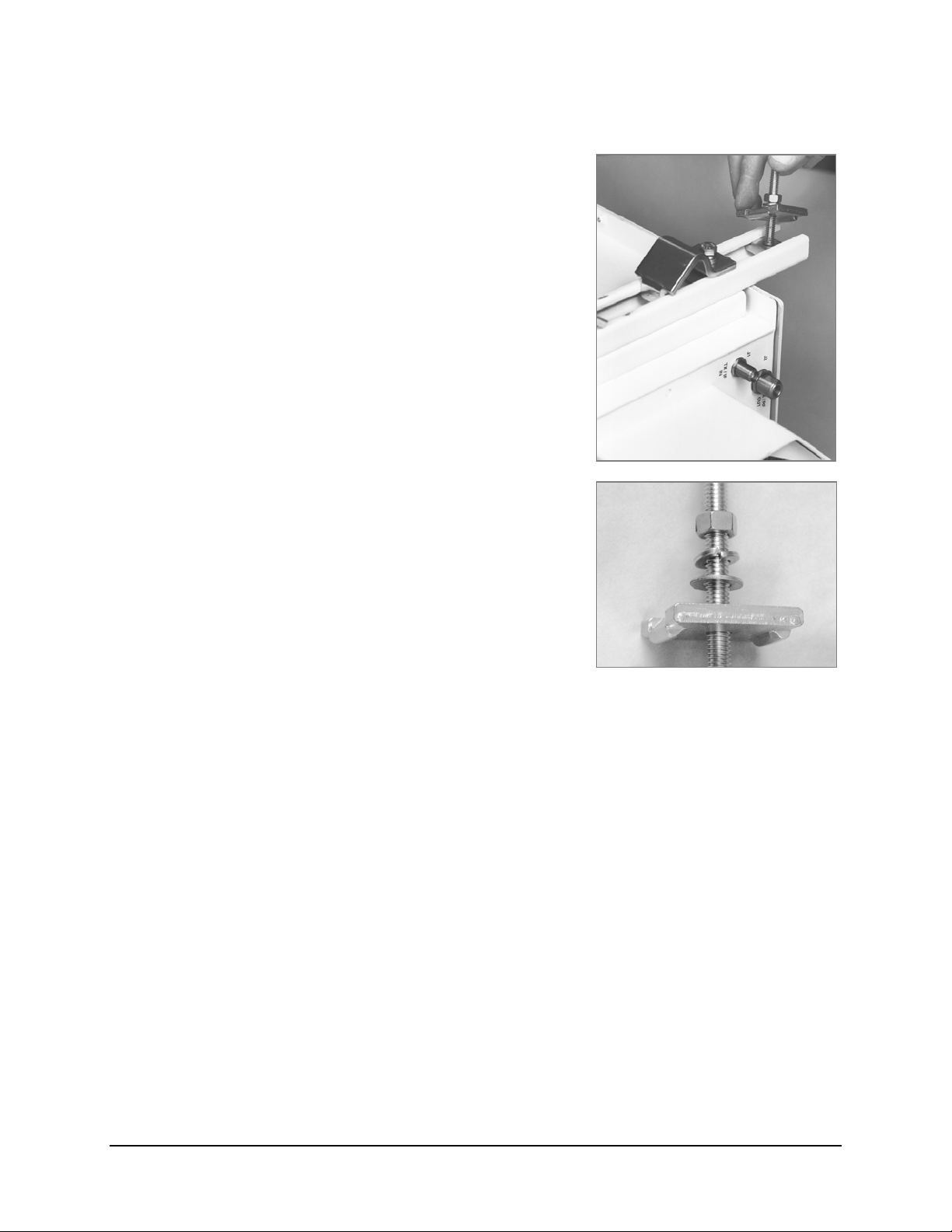

Figure 2-2. Mounting LNA to Antenna......................................................................................................................2–20

Figure 2-3. Tightening Sequence ...............................................................................................................................2–20

Figure 2-4. RFT External Connections.......................................................................................................................2–21

Figure 2-5. Serial Adapter Cables .............................................................................................................................. 2–26

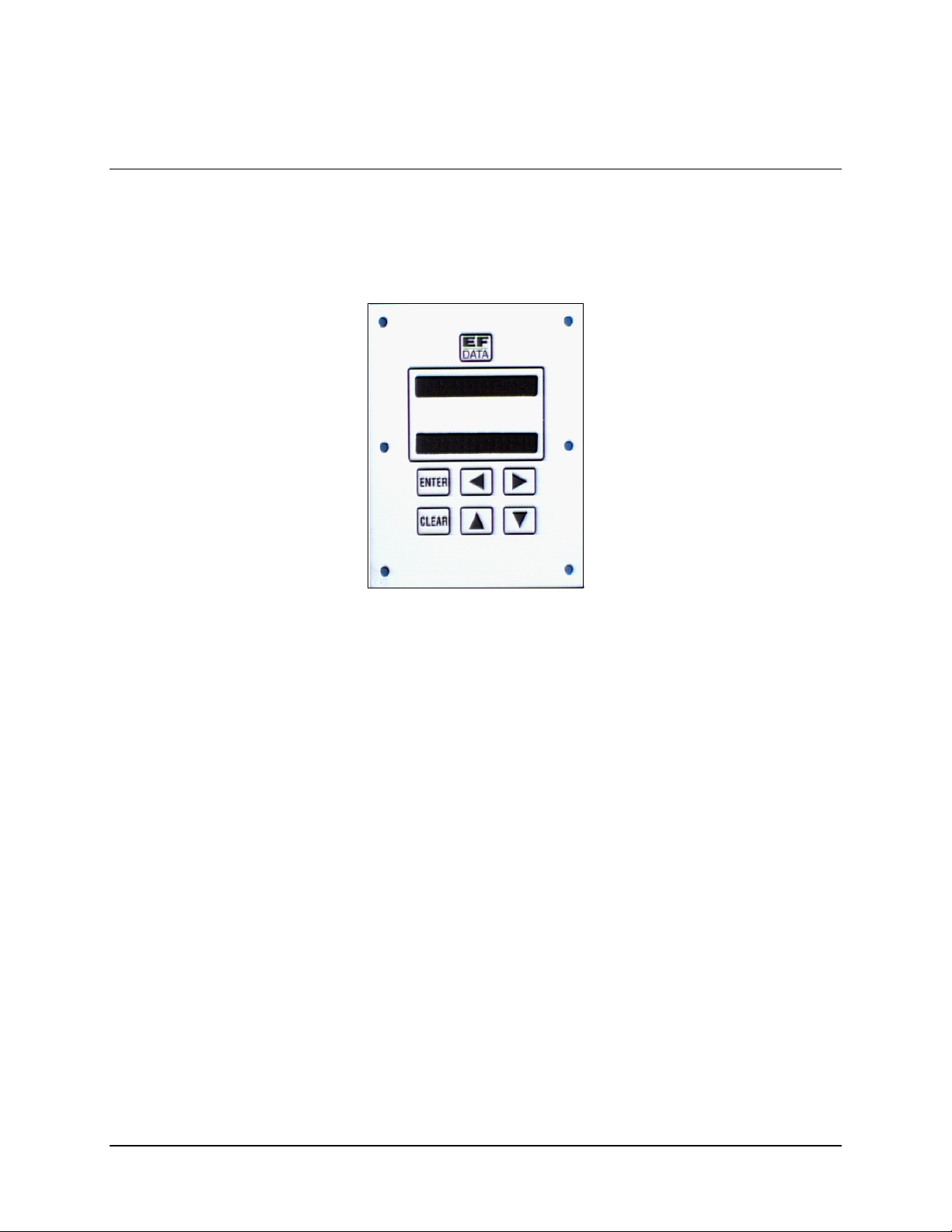

Figure 4-1. RFT-500 Terminal Keypad......................................................................................................................4–2

Figure 4-2. Main Menu ..............................................................................................................................................4–4

Figure 4-3. Select Configuration Menu......................................................................................................................4–6

Figure 4-4. Select Monitor Menu...............................................................................................................................4–9

Figure 4-5. Select Faults Menu ..................................................................................................................................4–12

Figure 5-1. M&C Board............................................................................................................................................. 5–2

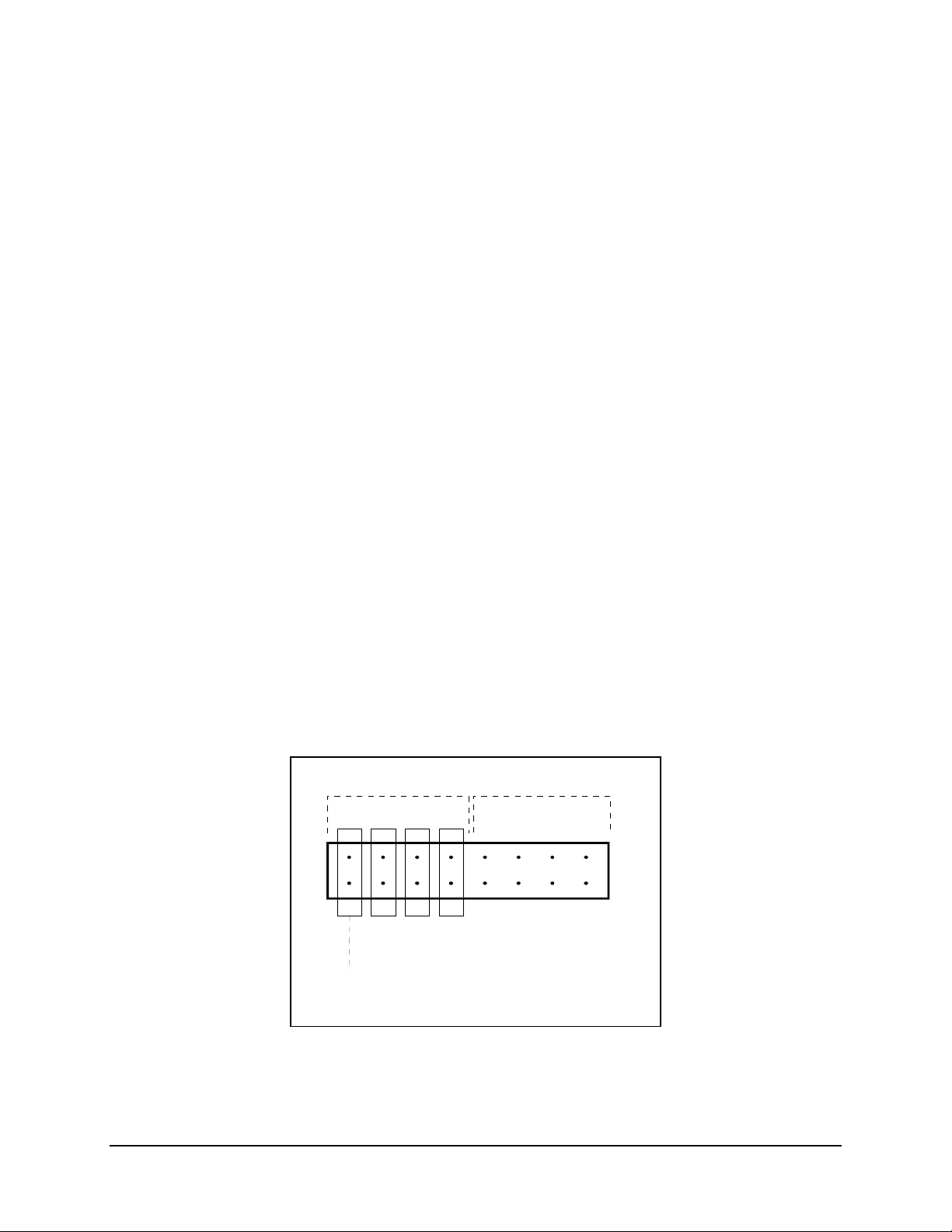

Figure 5-2. M&C Jumper Placement at JP3............................................................................................................... 5–3

Figure 5-3. M&C Functional Block Diagram ............................................................................................................5–5

Figure 5-4. High Stability Oscillator Block Diagram.................................................................................................5–11

Figure 5-5. IF Local Oscillator Block Diagram .........................................................................................................5–13

Figure 5-6. Down Converter Synthesizer Block Diagram..........................................................................................5–15

Figure 5-7. Up Converter Synthesizer Block Diagram ..............................................................................................5–15

Figure 5-8. Down Converter Block Diagram............................................................................................................. 5–16

Figure 5-9. Up Converter Block Diagram..................................................................................................................5–19

Figure 6-1. RFT-500 Inside Front View.....................................................................................................................6–5

Figure 6-2. RFT-500 Inside Rear View......................................................................................................................6–6

Figure A-1. IF Local Oscillator Block Diagram.........................................................................................................A–2

Figure A-2. LO Synthesizer Block Diagram..............................................................................................................A–4

Figure A-3. Down Converter Block Diagram ............................................................................................................A–5

Figure A-4. Up Converter Block Diagram ................................................................................................................. A–8

Figure A-5. Multi-Carrier Function Diagram.............................................................................................................A–11

Tables

Table 1-1. CST-5000 System Specifications..............................................................................................................1–8

Table 1-2. RFT-500 Specifications ............................................................................................................................1–9

Table 1-3. LNA Specifications...................................................................................................................................1–11

Table 2-1. Rear Panel Connectors..............................................................................................................................2–21

Table 2-2. SSPA Maximum Output Power ................................................................................................................2–22

Table 2-3. RFT Remote Control Connector, J6..........................................................................................................2–25

Table 6-1. M&C LEDs...............................................................................................................................................6–1

Table 6-2. Test Points.................................................................................................................................................6–2

Table 6-3. Fault Isolation ...........................................................................................................................................6–3

Table A-1. D/C, IF Synth Input, and IFLO Specifications.........................................................................................A–6

Table A-2. D/C, RFLO, and RF Synth Input Specifications ......................................................................................A–9

vi Rev. 9

CST-5000 Preface

Overview of Changes to Previous Edition

A summary of the changes made to Rev. 8 includes:

• Changed Prime Power normal input voltage in Section 2.5.5 to conform with SP/2578 (95 to 230 VAC)

About this Manual

This manual provides installation and operation information for the Comtech EFData CST-5000 C-Band satellite terminal. This is a technical document intended for earth station engineers, technicians, and operators responsible for the operation and maintenance of the CST-5000.

Conventions and References

Cautions and Warnings

CAUTION indicates a hazardous situation that, if not avoided, may result in minor or moderate injury. CAUTION may also be used to indicate other

CAUTION

WARN ING

Rev. 9 vii

unsafe practices or risks of property damage.

WARNING indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.

Preface CST-5000

Metric Conversion

Metric conversion information is located on the inside back cover of this manual. This information is provided to assist the operator in cross-referencing English to Metric conversions.

Recommended Standard Designations

Recommended Standard (RS) Designations have been superseded by the new designation of the Electronic Industries Association (EIA). References to the old designations are shown only when depicting actual text displayed on the screen of the unit (RS-232, RS485, etc.). All other references in the manual will be shown with the EIA designations (EIA-232, EIA-485, etc.) only.

Trademarks

Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.

Reporting Comments or Suggestions Concerning this Manual

Comments and suggestions regarding the content and design of this manual will be appreciated. To submit comments, please contact the Comtech EFData Customer Support Department.

viii Rev. 9

CST-5000 Preface

Warranty Policy

This Comtech EFData product is warranted against defects in material and workmanship for a period of one year from the date of shipment. During the warranty period, Comtech EFData will, at its option, repair or replace products that prove to be defective.

For equipment under warranty, the customer is responsible for freight to Comtech EFData and all related custom, taxes, tariffs, insurance, etc. Comtech EFData is responsible for the freight charges only for return of the equipment from the factory to the customer. Comtech EFData will return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to Comtech EFData.

Limitations of Warranty

The foregoing warranty shall not apply to defects resulting from improper installation or maintenance, abuse, unauthorized modification, or operation outside of environmental specifications for the product, or, for damages that occur due to improper repackaging of equipment for return to Comtech EFData.

No other warranty is expressed or implied. Comtech EFData specifically disclaims the implied warranties of merchantability and fitness for particular purpose.

Exclusive Remedies

The remedies provided herein are the buyer's sole and exclusive remedies. Comtech EFData shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory.

Disclaimer

Comtech EFData has reviewed this manual thoroughly in order that it will be an easy-touse guide to your equipment. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described. Further, Comtech EFData reserves the right to make changes in the specifications of the products described in this manual at any time without notice and without obligation to notify any person of such changes.

If you have any questions regarding your equipment or the information in this manual, please contact the Comtech EFData Customer Support Department.

Rev. 9 ix

Preface CST-5000

This page is intentionally blank.

x Rev. 9

Chapter

INTRODUCTION

This chapter describes the CST-5000 C-Band satellite terminal, referred to in this manual as “the CST-5000” (Figure 1-1).

Figure 1-1. CST-5000 Single Thread System

Rev. 9 1–1

Introduction CST-5000 C-Band Satellite Terminal

1.1 Description

As a single thread system, the CST-5000 consists of the following assemblies (Figure 1-

1):

• Outdoor enclosure assembly (RFT-500)

• Low Noise Amplifier (LNA)

As a redundant system, the CST-5000 consists of the following assemblies:

• Two outdoor enclosure assemblies (RFT-500s)

• 1:1 redundant LNA plate (Figure 1-2)

• RSU-503 (Figure 1-3)

For more information on the RSU-503, refer to the RSU-503 Redundancy Switch Unit Installation and Operation Manual.

Refer to Figure 1-4 for a block diagram of the CST-5000.

The CST-5000 meets all requirements for operation on both private and regional domestic C-Band satellite networks.

Figure 1-2. 1:1 Redundant LNA Plate

Note: Pictured above are typical LNAs. Other LNAs are available, which can be ordered

from an EFData marketing representative.

1–2 Rev. 9

CST-5000 C-Band Satellite Terminal Introduction

36 TO

Figure 1-3. RSU-503

70 MHz STSTEM MODEM

TX.IF

70 MHz ± -18 MHz

-30 dBm

EIA-485/232 SERIAL REMOTE PORT 26 PIN CIRCULAR CONNECTOR

RX/IF 70 MHz ± -18 MHz

RFT-500

TNC

OPTIONA L

DISPLAY/

J3 TNC

BANDPASS

FILTER

M&C

KEYPAD

10 MHz

REF

CONVERTER

LO SYNTHESIZER

IF LO AND

REF PLO

DOWN

CONVERTER

LO SYNTHESIZER

DOWN

CONVERTER

HPA

FAN

Figure 1-4. CST-5000 Block Diagram

TYPE N 5.845 TO 6.425 GHz

GND

J4TYPE N

Ca/1530

17 FOOT

(5.2 METER)

CABLE

RX/IF INPUT

3.620 TO 4200 GHz

TX/RF OUTP UT

0 dBm

PRIME POWER

AC INPUT 3-PIN CIRCULAR DC INPUT 8-PIN CIRCULAR 4-PIN CIRCULAR (DC OPTIONA L)

TX REJECT

FILTER

LNA

-21 dBm

ANTENNA

Rev. 9 1–3

Introduction CST-5000 C-Band Satellite Terminal

1.1.1 Applications

When used in conjunction with EFData modems, the CST-5000 is ideal for:

• Single digit carriers up to 2.048 Mbit/s

• Multiple carrier operation over a 36 MHz bandwidth

Because the CST-5000 has a 70 MHz IF, it can also be used for other analog and digital applications.

Small to medium size earth stations are easily constructed and commissioned with the CST-5000.

When used with a high-gain antenna, the CST-5000 can also be used as the Radio Frequency (RF) electronics of a central hub in point-to-multipoint applications, as well as serving as the terminal for the end points of a network.

1.1.2 Monitor and Control (M&C)

An on-board microcomputer monitors and controls all operational parameters and system status of the CST-5000. This powerful M&C system enables the user to control functions, locally or remotely, such as:

• Output power

• Transmit/receive channel frequencies

The system also reports terminal configuration status, as well as fault status of all CST-5000 components.

The CST-5000 can be initially configured using the:

• Connection of a common ASCII/EIA-232-C terminal connected to the serial port. A simple command set then allows total configuration control and retrieval of status information.

• Optional keyboard/LCD (Liquid Crystal Display) controller within the enclosure.

If the indoor unit is a more sophisticated station M&C computer, the serial port can be set to EIA-485 for bus operation.

For more information on the M&C board, refer to Chapter 5.

1–4 Rev. 9

CST-5000 C-Band Satellite Terminal Introduction

1.1.3 Low Noise Amplifier (LNA)

The feed assembly consists of an LNA and a wave guide transmit reject filter.

The transmit reject filter provides receive system protection from transmit energy fed back through the antenna feed system.

The LNA standard noise temperature is 65°K, with optional upgrades down to 33°K, depending on gain over temperature (G/T) requirements.

1.1.4 Outdoor Enclosure

The RFT-500 assembly is a weatherproof enclosure housing the following:

• Solid State Power Amplifier (SSPA)

• Up and down converters

• M&C microprocessor

• Power supply and cables, which interface with an antenna subsystem

In the transmit (uplink) direction, the RFT-500 accepts a 70 MHz IF signal, and transmits it in the 5.845 to 6.425 GHz frequency band.

In the receive (downlink) direction, the terminal accepts an RF signal in the 3.620 to

4.200 GHz band, and converts the signal to a 70 MHz IF output.

Power levels range from +8 dBm (for driving an external Traveling Wave Tube (TWT) or amplifier) to 40W, depending on Equivalent Isotropically Radiated Power (EIRP) requirements.

The up and down converters are dual conversion, with individual synthesizers for independent transmit and receive transponder selection.

The microprocessor provides:

• On-line loop monitoring

• Dynamic control functions

• Configuration control

• Fault/status monitoring

• Serial computer/terminal interface

Rev. 9 1–5

Introduction CST-5000 C-Band Satellite Terminal

1.2 Options

Contact an EFData marketing representative for more information about the options described in this section.

1.2.1 Configurations

The CST-5000 can be ordered with various configurations, including:

• Output power levels.

• Input power (AC/DC).

• Step sizes. For example, 125 kHz step size. The 125 kHz step size option allows

the transmit and receive frequencies to be adjusted within 125 kHz. The higher resolution step size of 125 kHz requires replacing the synthesizer modules and upgrading the software on the M&C board.

• LNA gain.

• Redundant LNA mounting plates.

• Custom logos.

• Wider bandwidths. The 140 MHz IF option enables the user to double the

available bandwidth. Specifically, instead of the standard 70 MHz, this option allows 140 MHz,

± 36 MHz. For more information, refer to

Appendix A.

• Multi-carrier system. The multi-carrier option allows external separation of the up converter and SSPA for possible multiple carrier inputs. For more information, refer to Appendix A.

± 18 MHz,

1–6 Rev. 9

CST-5000 C-Band Satellite Terminal Introduction

1.2.2 Equipment

The following items are available:

• KP-10 hand-held keypad. The KP-10 provides portable, external access for controlling the RFT. For information, refer to the KP-10 External Keypad Installation and Operation Manual.

• Front panel display/keypad. The optional front panel provides the local user interface, which can be used to configure and monitor the status of the terminal. For information, refer to Chapter 4.

• High-power amplifiers:

♦ Traveling Wave Tube Amplifier (TWTA).

♦ SSPA. For more information, refer to the EFData High-Power SSPA

Satellite Terminals Installation and Operation Manual.

• High-performance LNAs.

• Phase-locked Low-Noise Block-converters (LNBs).

• LNBs (Non-Phase-locked).

Rev. 9 1–7

Introduction CST-5000 C-Band Satellite Terminal

1.3 Specifications

Table 1-1 lists the specifications for the CST-5000 system, Table 1-2 lists the specifications for the RFT-500, and Table 1-3 lists the specifications for the LNA.

Notes:

1. For specifications on the RSU-503, refer to the RSU-503 Redundancy Switch Unit Installation and Operation Manual.

2. For more information pertaining to CST-5000 specifications, refer to EFData Specification SP/2578.

Table 1-1. CST-5000 System Specifications

Prime Power 95 to 230 VAC, 47 to 63 Hz, or 48 VDC Power Consumption:

+8 dBm Output 5W Output 10W Output 20W Output 40W Output

Size 23 H x 10.5 W x 9 D inches

Weight 40 lbs. (18 kg) Sealing Weatherproof Ground #10 AWG ground lug Environmental:

Temperature

Humidity Altitude

90W 140W 210W 340W 600W

(58.4 x 26.7 x 22.8 cm)

-40 to +55

-50 to +80 0 to 100% RH 0 to 15,000 ft. (0 to 4.6 km) Operational 0 to 50,000 ft. (0 to 15.2 km) Storage

° C (-104 to +131° F) Operational ° C (-122 to 176° F) Storage

1–8 Rev. 9

CST-5000 C-Band Satellite Terminal Introduction

Table 1-2. RFT-500 Specifications

Transmit

Output Frequency (No Inversion) 5.845 to 6.425 GHz Input Frequency Output Power:

at 1 dB compression

70 MHz,

+8 dBm

± 18 MHz (optional 140 MHz, ± 36 MHz)

or 5W (+37 dBm) or 10W (+40 dBm) or 20W (+43 dBm) or 40W (+46 dBm)

Third Order Intercept +18 dBm (for +8 dBm)

or +46 dBm (for 5W) or +49 dBm (for 10W) or +52 dBm (for 20W) or +55 dBm (for 40W)

Nominal Small Signal Gain 26 dB (for +8 dBm)

or 68 dB (for 5W) or 71 dB (for 10W) or 74 dB (for 20W)

or 77 dB (for 40W) Gain Adjust Range 0 to 25 dB, in 0.5 dB steps Gain Variation:

Over 36 MHz Over 36 MHz, Temperature, and Aging

Noise Figure:

Maximum Attenuation Minimum Attenuation

± 1 dB maximum

± 2 dB maximum

23 dB maximum

15 dB maximum Group Delay 25 ns/36 MHz Synthesizer Step Size 2.5 MHz (optional 125 kHz) Synthesizer Phase Noise -60 dBc/Hz at 100 Hz

-70 dBc/Hz at 1 kHz

-75 dBc/Hz at 10 kHz

-80 dBc/Hz at 100 kHz

Frequency Stability:

At Shipment Daily at 23 Annual at 23

°C

Over Temperature After 30 Minutes Warm-up Electrical Adjustment

± 1 x 10

0.5 x 10

-8

-7

-8

(-40 to +55° C) (-104 to +131° F)

-8

-7

Isolation on Fault Shutdown -60 dBc Spurious:

< 250 kHz Carrier Offset > 250 kHz Carrier Offset

-35 dBc maximum

-58 dBc maximum HPA Harmonics -50 dBc maximum RF Output VSWR 1.5:1 at 50Ω RF Output Connector Type N female IF Input VSWR 1.5:1 at 50Ω IF Input Connector Type TNC female

Rev. 9 1–9

Introduction CST-5000 C-Band Satellite Terminal

Table 1-2. RFT-500 Specifications (Continued)

Receive

Input Frequency (No Inversion) 3.620 to 4.200 GHz Output Frequency

70 MHz,

± 18 MHz (optional 140 MHz, ± 36 MHz)

Output Power at 1 dB Compression +15 dBm Third Order Intercept +25 dBm Gain Adjust Range (Typical, with LNA) 87 to 98 dB Gain Variation (with LNA):

Over 36 MHz Over 36 MHz, Temperature and Aging

± 1.5 dB maximum ± 4 dB maximum

Noise Temperature (with LNA) LNA specification Group Delay 25 ns/36 MHz Synthesizer Step Size 2.5 MHz (optional 125 kHz) Synthesizer Phase Noise -60 dBc/Hz at 100 Hz

-70 dBc/Hz at 1 kHz

-75 dBc/Hz at 10 kHz

-80 dBc/Hz at 100 kHz

Frequency Stability:

At Shipment Daily at 23° C (73° F) Annually at 23

° C (73° F)

Over Temperature After 30 Minutes Warm-up Electrical Adjustment

± 1 x 10 ± 1 x 10 ± 1 x 10 ± 1 x 10 ± 1 x 10

0.5 x 10

-8

-7

-8

(-40 to +55° C) (-104 to +131° F)

-8

-7

Spurious Non-Signal Related -60 dBm maximum Image Rejection (All Conversions) > 35 dB Linearity Intermods < -35 dBc for two tones at

-89 dBm at 95 dB gain RF Input VSWR 1.25:1 at 50Ω RF Input Connector Type N female IF Output VSWR 1.5:1 at 50Ω IF Output Connector Type TNC female

1–10 Rev. 9

CST-5000 C-Band Satellite Terminal Introduction

Table 1-2. RFT-500 Specifications (Continued)

Monitor and Control

Control Interface EIA-232, EIA-485, or optional keyboard Control Functions SELECT PARITY

RF OUTPUT LNA PWR U/C FREQ LNA FLT D/C FREQ CALIB. U/C ATTN REF ADJ D/C ATTN XFLT EN PROGRAM RSW MODE BAUD LOCK MODE ADDRESS

Monitor Functions U/C TEMP TUV

D/C TEMP TDV HPA TEMP TIV

Fault Detect Functions RESTART U/C LOCK

UPLINK U/C TUN DOWNLINK D/C LOCK 5V PWR D/C TUN 12V PWR IF LOCK HPA IF TUN LNA

Table 1-3. LNA Specifications

LNA Dimensions Refer to Figure 1-5 or 1-6, respectively Frequency 3.620 to 4.200 GHz Noise Temperature (with TRF) 65°K maximum (lower temperatures optional) Gain 50 dB minimum, 54 dB nominal

(optional 60 db) Gain Flatness ± 1 dB/575 MHz Gain vs. Temperature ± 3 dB maximum 1 dB Compression Point +10 dBm minimum Third Order Intercept +20 dBm minimum Group Delay:

Linear Parabolic

Ripple Input VSWR 1.25:1 Output VSWR 1.25:1 Input Connector CPR229G (hold pressure to 0.5 PSIG) Output Connector Type N Spurious Below thermal noise/100 kHz TRF Rejection 60 dB

± 0.01 ns/MHz maximum

0.001 ns/MHz

0.1 ns P-P

maximum

Rev. 9 1–11

Introduction CST-5000 C-Band Satellite Terminal

14.60

23.50 MAX

)

RF OUTPUT, VCC INPUT N CONECTOR, FEMALE

(37.1)

3.00

(7.62)

.69

(1.7)

1.69

(4.3)

.84 (2.1)

7.50 (19)

8.99

(22.8)

.75

(1.9)

6.35

(16.1)

1.475 (3.7)

1.50 (3.8)

2.85

(7.2)

RF INPUT CPR 229 WAVEGUIDE

Figure 1-5. Dimensions for Single Thread LNA

(59.7)

9.50

(24.13)

7.50 (19)

1.00 (2.5)

2.38

(6.04)

(0.96

.38

19.50 (49.5)

8.75

(22.2)

8.75

(22.2)

1.00

(2.54)

4.75

(12.1)

6.35

(16.1)

Figure 1-6. Dimensions for 1:1 Redundant LNA Plate

5.28

(13.4)

1–12 Rev. 9

This chapter provides installation information for single thread systems, including:

• Unpacking and inspecting the parts

• Installing the RFT

• Installing the LNA

• External connections

For redundant systems, refer to Chapter 3.

2.1 Unpacking

Chapter

SINGLE THREAD SYSTEM

INSTALLATION

The CST-5000 terminal system is packaged in preformed, reusable foam inside a cardboard carton.

Before unpacking the carton components, ensure that there is plenty of working space around the carton; a large table is recommended.

To remove the parts:

1. Cut the tape at the top of the carton where it is labeled ‘OPEN THIS END’.

2. Lift out the cardboard/foam spacer covering the unit.

3. Remove each part from the carton. Refer to Section 2.2.1 for a parts breakdown.

Because the RFT is heavy, assistance may be necessary to remove

CAUTION

Note: Save the packing material for reshipment/storage.

Rev. 9 2–1

the unit from the box.

Single Thread System Installation CST-5000 C-Band Satellite Terminal

2.2 Inspecting the Equipment

1. Carefully check the equipment for potential damage incurred during shipment.

2. Carefully check the equipment against the packing list shipped with the equipment to ensure that the shipment is correct and complete.

2.2.1 Included Parts

A typical single thread CST-5000 configuration contains the following components.

Notes:

1. Parts are not drawn to scale.

2. Because each system can be custom ordered, it is beyond the scope of this manual to provide the unlimited configuration possibilities.

3. This chapter does not describe the installation procedures for amplifiers, high performance LNAs, phase-locked LNBs, LNBs, and phase-locked block converters.

Qty. Description

1 RFT outdoor unit.

Qty. Description

1 Feed assembly.

RFOUT

1 Envelope containing the test data sheet.

1 CST-5000 installation and operation manual.

1 Monitor and Control Software for EFData Satellite

Terminals User’s Guide.

1 LNA connector kit (EFData Part # KT/2721), which includes:

SERIALNO.

MODELNO.

FREQUENCY

NOISETEMP GAIN

RFIN

Note: Pictured is a typical LNA. Other LNAs are available, and can be ordered from an EFData marketing representative.

2–2 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

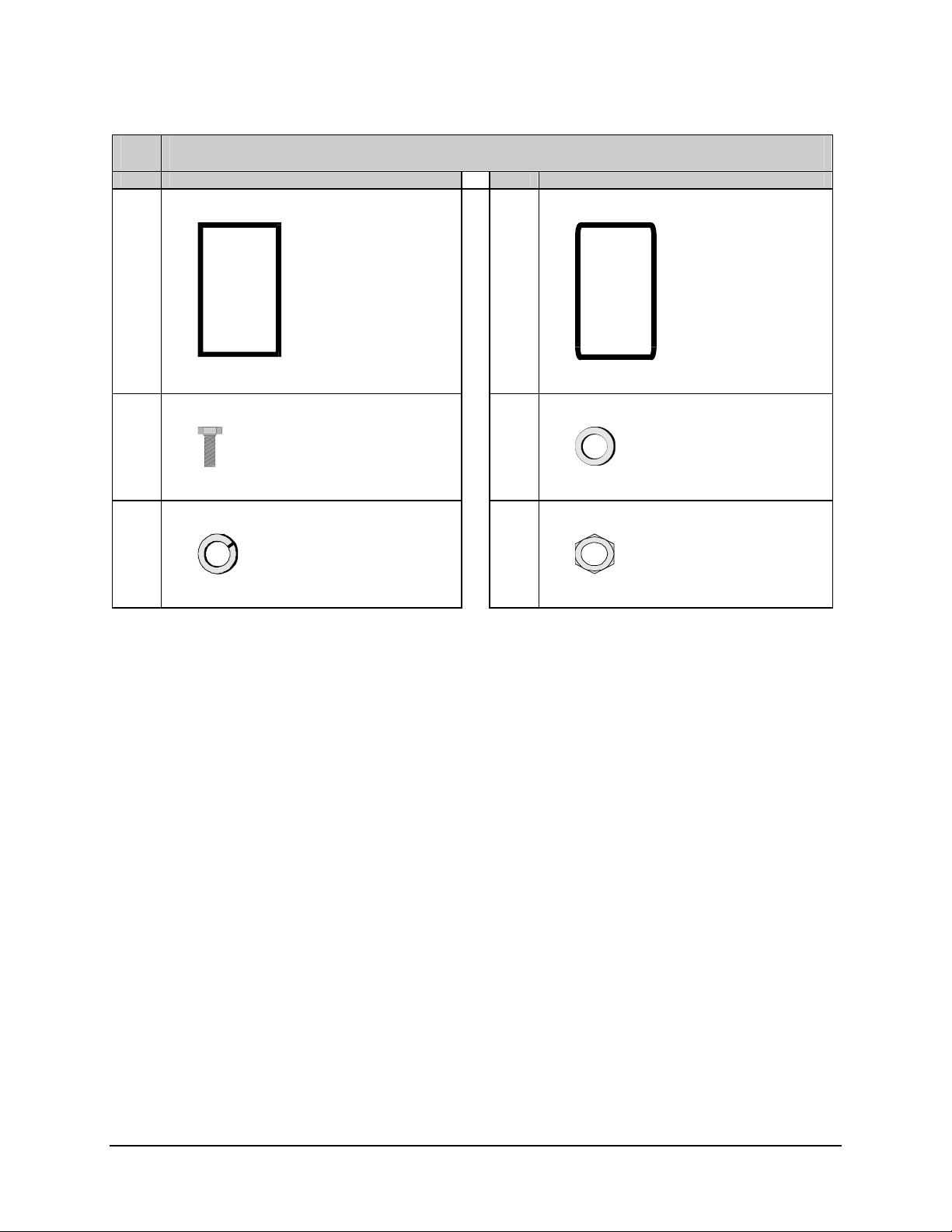

Qty. Description

1 Gasket - thick.

EFData Part # 32P1040.

10 1/4-20 x 1 inch (2.54 cm) bolt.

EFData Part # 03P1079.

10 1/4-20 nut.

EFData Part # HW/1/4HEXNUT.

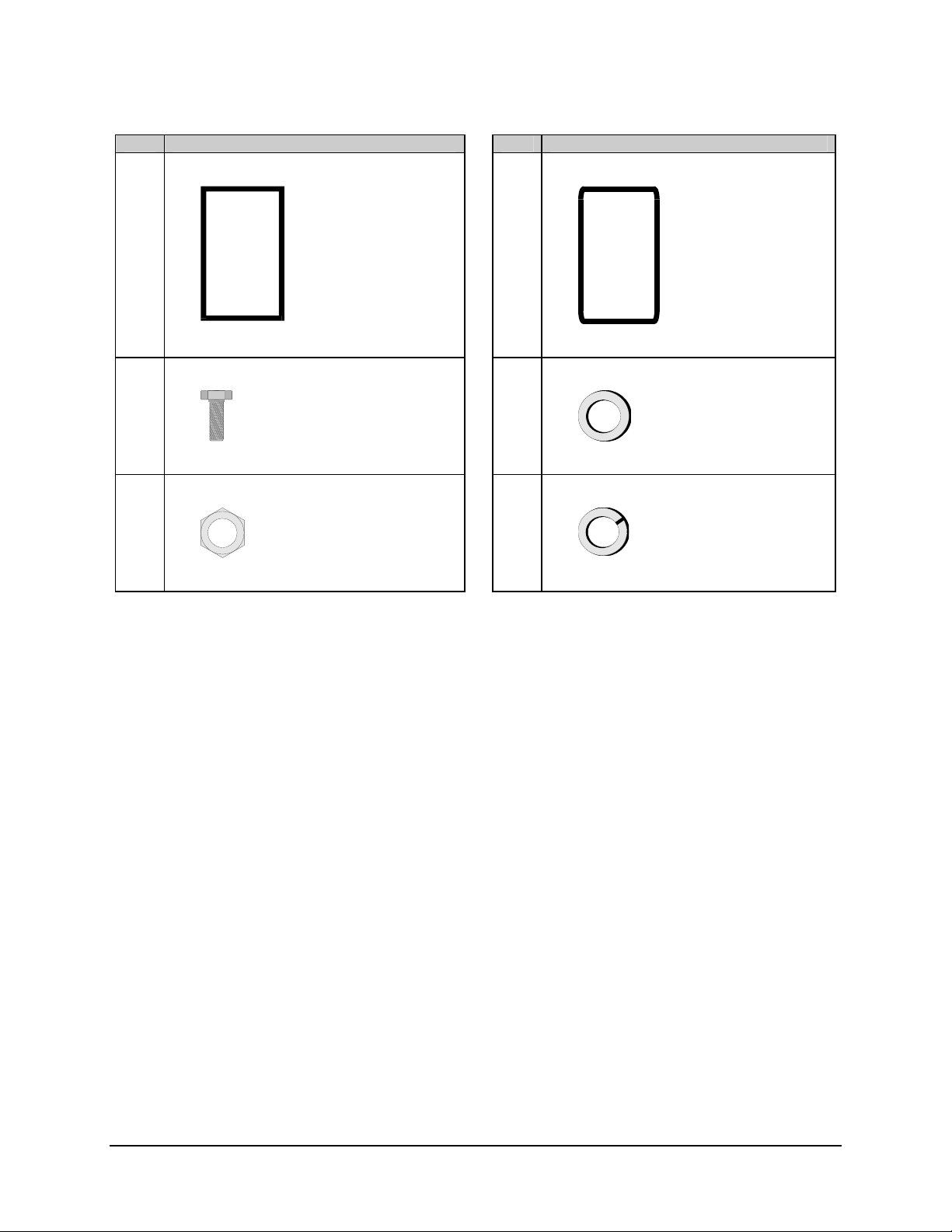

Qty. Description

1 Gasket - thin.

EFData Part # 32D1002.

20 1/4 inch (6 mm) flat washer.

EFData Part # O4P1022.

10 1/4 inch (6 mm) split lockwasher.

EFData Part # HW/1/4-SPLIT.

Rev. 9 2–3

Single Thread System Installation CST-5000 C-Band Satellite Terminal

1 Kit KT/3272-x (where x = 1 for AC power, and 2 for DC power), which includes:

Qty. Description

1 Connector kit.

EFData Part # CN/STPG26M01. Used to connect customer’s cable to the RFT 26pin J6 (REMOTE). For remote control and status monitoring (by using M&C system monitor software).

2 17 foot (518 cm) Heliax cable.

Qty. Description

Note: Either the AC or DC cable is provided, depending upon the product ordering code.

Assembly, 15 foot (457 cm) AC prime power cable.

EFData Part # PL/2754.

Assembly, 15 foot (457 cm) DC prime power cable.

EFData Part # PL/4157.

EFData Part # CA/1530. Used for RF input and RF output.

2–4 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

Note: If an RFT for a spar mount is ordered, EFData will provide a spar mount kit (KT/4061). Otherwise, the universal installation kit (KT/3576) will be provided.

1 Kit KT/4061, which includes:

Qty. Description

2 Spar support bracket.

EFData Part # FP/3175. Used for spar mount only.

8 1/4-20 x 5/8 inch (16 mm) bolt.

EFData Part # HW/1/4-20X5/8BT. Used to attach 8 inch (20.3 cm) or 14 inch (35.6 cm) unistruts to RFT.

8 1/4 inch (6 mm) flat washer.

EFData Part # HW/1/4-FLT. Used to attach 8 inch (20.3 cm) unistruts to RFT.

8 1/4 inch (6 mm) split lockwasher.

Qty. Description

4 5/16-18 x 1 inch (2.54 cm) bolt.

EFData Part # HW/5/16-18X1BLT. Used to attach spar support bracket to 8 inch (20.3 cm) unistrut.

4 5/16 inch (8 mm) split lockwasher.

EFData Part # HW/5/16-SPLIT. Used to attach spar support bracket to 8 inch (20.3 cm) unistrut.

4 5/16 inch (8 mm) flat washer.

EFData Part # HW/5/16-FLT. Used to attach spar support bracket to 8 inch (20.3 cm) unistrut.

4 5/16-18 spring nut.

EFData Part # HW/1/4-SPLIT. Used to attach 8 inch (20.3 cm) unistruts to RFT.

2 Unistrut — 8 inches (20.3 cm) long.

EFData Part # FP/3481. Attaches directly to RFT.

Rev. 9 2–5

EFData Part # HW/5/16-18SPNUT. Used to attach spar support bracket to 8 inch (20.3 cm) unistrut.

Single Thread System Installation CST-5000 C-Band Satellite Terminal

1 Kit KT/3576, which includes:

Qty. Description

2 Spar support bracket.

EFData Part # FP/3175. Used for spar mount only.

4 Unistrut — 14 inches (35.6 cm) long.

EFData Part # FP/3595. Used for round and square pole mount only.

2 Unistrut — 8 inches (20.3 cm) long.

EFData Part # FP/3481. Attaches directly to RFT.

8 1/4-20 x 5/8 inch (1.59 cm) bolt.

Qty. Description

12 5/16-18 x 1 inch (2.54 cm) bolt.

EFData Part # HW/5/16-18X1BLT.

24 5/16 inch (8 mm) split lockwasher.

24 5/16 inch (8 mm) flat washer.

12 5/16-18 hex nut.

EFData Part # HW/5/16-SPLIT.

EFData Part # HW/5/16-FLT.

EFData Part # HW/1/4-20X5/8BT. Used to attach 8 inch (20.3 cm) unistruts to RFT.

8 1/4 inch (6 mm) flat washer.

EFData Part # HW/1/4-FLT. Used to attach 8 inch (20.3 cm) unistruts to RFT.

8 1/4 inch (6 mm) split lockwasher.

EFData Part # HW/1/4-SPLIT. Used to attach 8 inch (20.3 cm) unistruts to RFT.

8 Pipe block.

EFData Part # HW/BLK-PIPE2-8. Used for round pole mount only.

EFData Part # HW/5/16-18HEXNT.

16 5/16-18 spring nut.

EFData Part # HW/5/16-18SPNUT.

8 Flat fitting plate, 5/16 inch (8 mm).

EFData Part # HW/FIT-PLT-5/16.

4 Threaded rod, 5/16-18 x 14 inch (35.6 cm).

EFData Part # HW/RD5/16-18X14. Used for round and square pole mount only.

2–6 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

2.3 RFT Installation

The RFT can be installed anywhere on or near the antenna. The supplied hardware allows the installer a wide range of installation alternatives, including:

• Vertical pole (e.g., mast) (either square or round). This is the most typical installation (refer to Figure 2-1).

Figure 2-1. Vertical Pole Installation

• Within the hub of a large antenna.

• Spar (i.e., square bar) on the antenna structure.

EFData recommends that the RFT be mounted vertically, with the air inlet facing downward.

Rev. 9 2–7

Single Thread System Installation CST-5000 C-Band Satellite Terminal

2.3.1 Tools Required

Qty. Description

3/8 inch (9 mm) drive ratchet.

3 inch (76 mm) x 3/8 inch (9 mm) drive extension.

7/16 inch x 3/8 inch drive socket. (Metric equivalent: 12mm, 6 pt.)

1/2 inch x 3/8 inch drive socket. (Metric equivalent: 13mm, 6 pt.)

1 1/2 inch combination wrench. (Metric equivalent: 13mm combination

wrench with a 6 pt. box end.)

2–8 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

2.3.2 Vertical Pole Installation

2.3.2.1 Round Pole

Note: The following process is for a typical installation. Custom systems may be ordered, and are beyond the scope of this manual.

To install the RFT to a round vertical pole:

1. Set the unit on its side, with the mounting holes facing up.

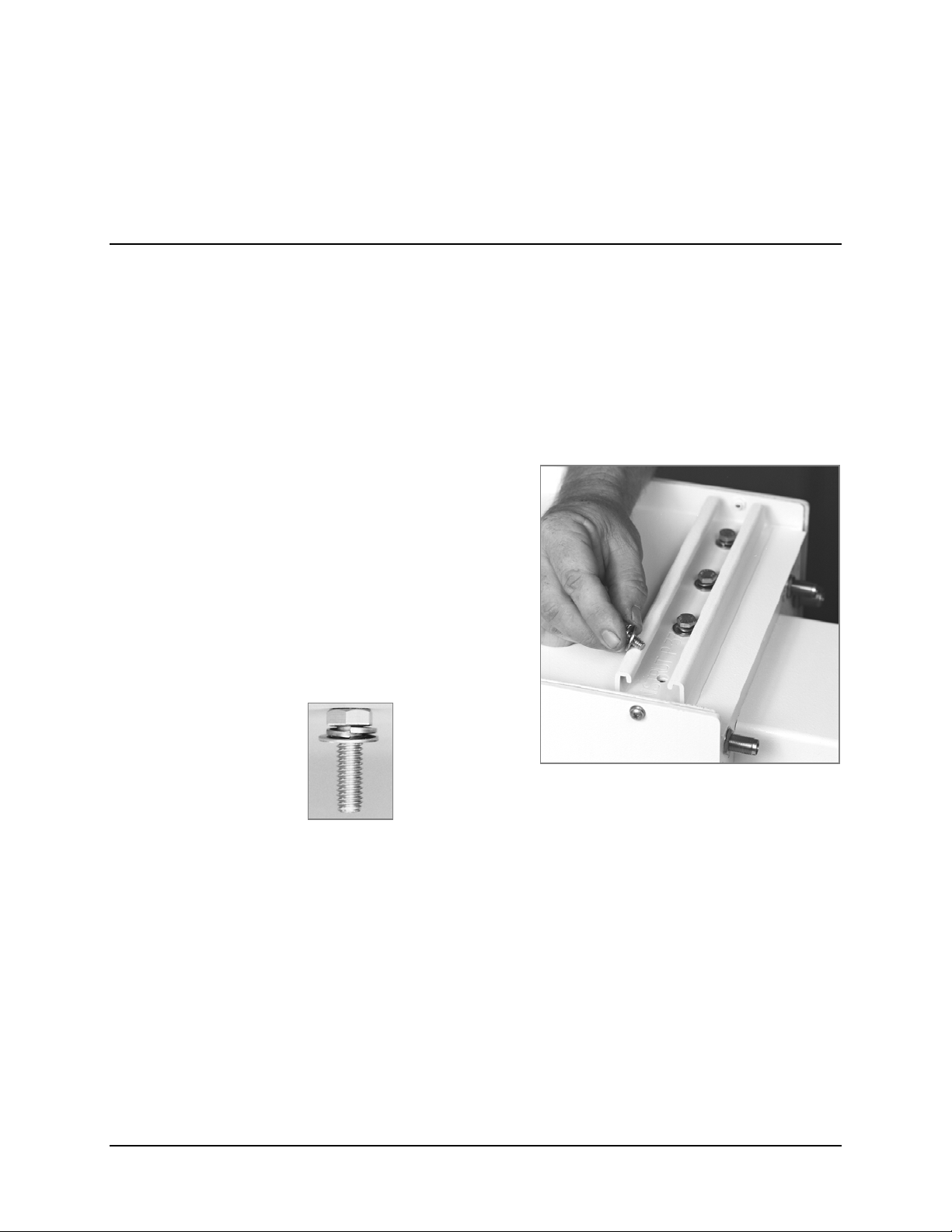

2. Install the 8 inch (20.3 cm) unistruts as follows:

a. Position an 8 inch (20.3 cm)

unistrut (with the open side facing up) over one set of the mounting holes on the RFT.

b. Using four 1/4-20 x 1 inch

(2.54 cm) bolts, 1/4 inch (6 mm) split lockwashers, and 1/4 (6 mm) flat washers, attach an 8 inch (20.3 cm) unistrut to the RFT.

Tighten the bolts firmly.

c. Repeat Steps 2.a. and 2.b.

for the second 8 inch (20.3 cm) unistrut.

Rev. 9 2–9

Single Thread System Installation CST-5000 C-Band Satellite Terminal

3. Install the 14 inch (35.6 cm) unistruts as follows:

a. Position a spring nut

between the inner and outer bolts on both sides of each 8 inch (20.3 cm) unistrut.

b. Install each spring nut as

follows:

(1) Place the spring nut in

the unistrut channel, spring side down, with its wide side parallel with the unistrut channel.

(2) Press down on the

spring nut to compress the spring, and rotate the nut 90° (i.e., perpendicular to the unistrut).

(3) Release pressure on the

spring nut.

(4) Repeat Steps 3.b.(1)

through 3.b.(3) for each spring nut.

2–10 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

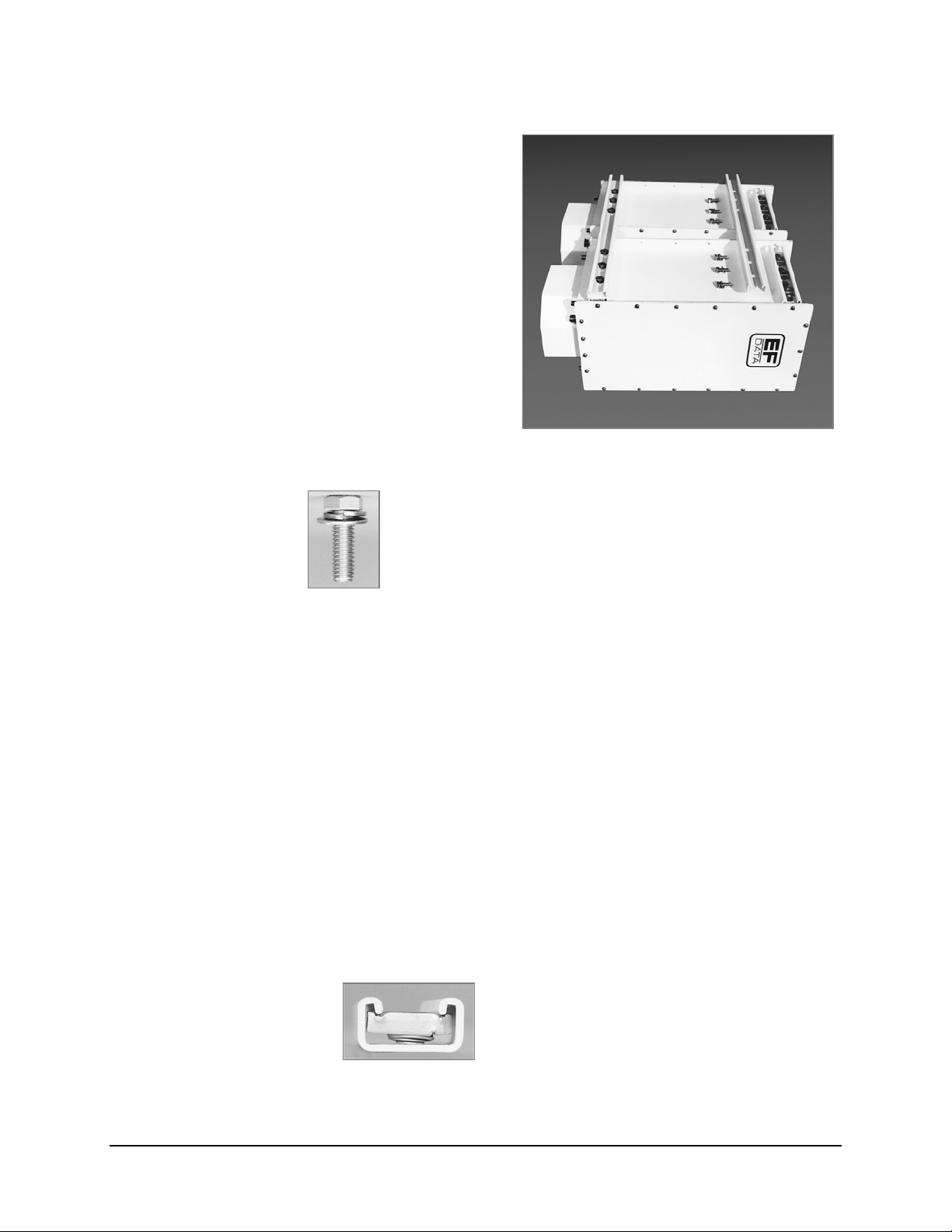

c. Position a 14 inch (35.6 cm)

unistrut (open side facing up) over one of the 8 inch (20.3 cm) unistruts.

Ensure the 14 (35.6 cm)

unistrut is centered over the RFT.

d. Using two 5/16-18 x 1-1/4

inch (3.2 cm) bolts, 5/16 inch (8 mm) split lockwashers, and 5/16 inch (8 mm) flat washers, attach the 14 inch (35.6 cm) unistrut to the 8 inch (20.3 cm) unistrut.

Note: The bolts should be installed in the fifth hole from each end, as illustrated.

Tighten the bolts firmly.

e. Attach the second 14 inch (35.6 cm) unistrut to the second 8 inch (20.3 cm)

unistrut by repeating Steps 3.a. through 3.d.

Rev. 9 2–11

Single Thread System Installation CST-5000 C-Band Satellite Terminal

4. Install the pipe blocks as follows:

a. Install two spring nuts in each of four 14 inch (35.6 cm) unistruts (the two

just mounted on the RFT, and two additional).

Be sure to position the spring nuts in the unistruts wide enough apart so that

when the pipe blocks are installed, they will clear the pole when the unit is lifted into place for installation.

b. Install each spring nut as follows:

(1) Place the spring nut in the unistrut channel, spring side down, with its

wide side parallel with the unistrut channel.

(2) Press down on the spring nut to compress the spring, and rotate the nut

90° (i.e., perpendicular to the unistrut).

(3) Release pressure on the spring nut.

(4) Repeat Steps 4.b.(1) through 4.b.(3) for each spring nut.

c. Using four 5/16-18 x 1” bolts, 5/16

inch (8 mm) split lockwashers, and 5/16 inch (8 mm) flat washers, loosely secure the pipe blocks to the spring nuts.

Ensure the pipe blocks are installed with the long angle facing inward, toward the pipe, as illustrated.

DO NOT tighten the pipe block bolts until after mounting the RFT on the vertical pole. (See Step 6.e.)

2–12 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

5. Install the threaded rods as follows:

a. Install two spring nuts in both 14”

unistruts mounted on the RFT.

Note: Ensure the spring nuts are

positioned over the outer holes in the 14 inch (35.6 cm) unistruts, as illustrated.

b. To install each spring nut:

(1) Place the spring nut in the

unistrut channel, spring side down, with its wide side parallel with the unistrut channel.

(2) Press down on the spring nut to

compress the spring, and rotate the nut 90° (i.e., perpendicular to the unistrut).

(3) Release pressure on the spring nut.

(4) Repeat Steps 5.b.(1) through 5.b.(3) for each spring nut.

c. Thread a 5/16-20 nut approximately 1-1/2 inch (1.27 cm) onto each threaded

rod. (This will ensure that the threaded rods will extend beyond the spring nuts when installed.)

d. Place a 5/16 inch (8 mm) split lockwasher, 5/16 inch (8 mm) flat washer, and

flat fitting plate over each threaded rod.

Rev. 9 2–13

Single Thread System Installation CST-5000 C-Band Satellite Terminal

e. One threaded rod at a time, hold the

washers and plate in place on the rod, and screw the rod into a spring nut, as illustrated.

Notes:

1. Be sure to position the flanges of the flat fitting plates in the grooves of the unistruts.

2. Before tightening the nuts on the threaded rods, ensure that the end of each rod is screwed in until it is flush with the backside of the unistruts. This ensures the rods are threaded completely through the spring nuts.

Tighten each nut firmly.

f. Thread a 5/16-18 nut about 2 inches

(5.1 cm) onto the end of each threaded rod.

g. Slip a 5/16 inch (8 mm) split

lockwasher, 5/16 inch (8 mm) flat washer, and flat fitting plate (in that order) onto each threaded rod.

2–14 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

6. Mount the RFT as follows:

a. Lift the RFT into position on the vertical pole.

b. Slip a 14 inch (35.6 cm) unistrut over each of pair of threaded rods (upper

and lower).

Note: Install the 14 inch (35.6 cm) unistruts with the open face toward the pole as illustrated below.

Rev. 9 2–15

Single Thread System Installation CST-5000 C-Band Satellite Terminal

c. Install a 5/16 inch (8 mm) flat washer, 5/16 inch (8 mm) split lockwasher,

and 5/16-18 nut on each threaded rod.

d. Position the RFT as desired, and tighten the 5/16-18 nuts installed in

Step 6.c.

e. Slide the pipe blocks inward until they contact the vertical pole, then firmly

tighten the 5/16-18 bolts.

2.3.2.2 Square Pole

For square vertical pole installation, follow the steps in Section 2.3.2.1, with the following exceptions:

• Do not perform Step 4.

• Do not perform Step 6.e.

2–16 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

2.3.3 Spar Installation

Note: The following process is for a typical installation. Custom systems may be ordered, and are beyond the scope of this manual.

To install the RFT to a spar:

1. Set the unit on its side, with the mounting holes facing up.

2. Install the 8 inch (20.3 cm) unistruts as follows:

a. Position an 8 inch (20.3 cm) unistrut

(with the open side facing up) over one set of the mounting holes on the RFT.

b. Using four 1/4-20 x 1 inch bolts, 1/4

inch (6 mm) split lockwashers, and 1/4 inch (6 mm) flat washers, attach an 8 inch (20.3 cm) unistrut to the RFT.

Tighten the bolts firmly.

c. Repeat Steps 2.a. and 2.b. for the

second 8 inch (20.3 cm) unistrut.

Rev. 9 2–17

Single Thread System Installation CST-5000 C-Band Satellite Terminal

3. Mount the RFT as follows:

a. Position a spring nut between the

inner and outer bolts on both sides of each 8 inch (20.3 cm) unistrut, as illustrated.

b. Install each spring nut as follows:

(1) Place the spring nut in the

unistrut channel, spring side down, with its wide side parallel with the unistrut channel.

(2) Press down on the spring nut

to compress the spring, and rotate the nut 90° (i.e., perpendicular to the unistrut).

(3) Release pressure on the spring

nut.

(4) Repeat Steps 3.b.(1) through

3.b.(3) for each spring nut.

c. Lift the RFT into position.

d. Using four 5/16-18 bolts, 5/16”

2–18 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

split lockwashers, and 5/16” flat washers, bolt the two spar support brackets in place.

Tighten the bolts firmly.

2.4 LNA Installation

To install a single LNA to an antenna:

1. Remove the protective cover from the antenna mount location (if installed).

2. Remove the plastic cover from the antenna end (RF IN) of the LNA.

3. Remove the plastic cover from the RF OUT end of the LNA.

After removing the protective cover(s), ensure that no foreign material or moisture enters the antenna waveguide or LNA.

CAUTION

4. Install the appropriate gasket on the antenna end of the LNA:

a. If the LNA has a groove, and the antenna flange does not, the thin gasket

should be used.

b. If the LNA and the antenna flange both have grooves, the thick gasket should

be used.

Rev. 9 2–19

Single Thread System Installation CST-5000 C-Band Satellite Terminal

Figure 2-2. Mounting LNA to Antenna

5. Position the LNA in place on the antenna, and install the 1/4-20 x 1 inch (25 mm) bolts, washers, and nuts (refer to Figure 2-2). Do not tighten at this time.

Install the hardware exactly as shown. Failure to do so may cause damage to the LNA and/or waveguide.

CAUTION

6. After all the bolts, washers, and nuts have been installed, tighten them according to the illustrated sequence shown in Figure 2-3.

Figure 2-3. Tightening Sequence

2–20 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

2.5 External Connections

Connections between the RFT and other equipment are made through six connectors. These connectors are listed in Table 2-1, and their locations are shown in Figure 2-4. The use of each connector is described in the following paragraphs.

Cables for connectors J3, J4, and J5 are supplied by EFData. A connector kit for the remote connector, J6, is also supplied. All others must be supplied by the customer.

Table 2-1. Rear Panel Connectors

Name Ref. Design. Connector Type Function

TX/IF IN J1 TNC TX IF INPUT (70 MHz) TX/RF OUT J2 Type N 5.845 to 6.425 GHz Out RX/IF OUT J3 TNC RX IF OUT (70 MHz) RX/RF IN J4 Type N 3.620 to 4.200 GHz Input PRIME PWR J5 3- or 4-pin CIR Prime Power Input REMOTE J6 26-pin CIR Remote Interface GND ERDE GND #10-32 Stud Chassis Ground

Figure 2-4. RFT External Connections

Rev. 9 2–21

Single Thread System Installation CST-5000 C-Band Satellite Terminal

2.5.1 TX/IF Input (J1)

The TX/IF input is a TNC connector that receives the signal from the indoor unit. The input impedance is 50

± 36 MHz).

Ω, and the frequency is 70 MHz ± 18 MHz (optional 140 MHz

The typical power level is from -43 to -19 dBm, depending on the configuration and application.

2.5.2 TX/RF Output (J2)

The TX/RF output is a type N connector that sends the signal to the antenna. The output impedance is 50 power level is dependent on the power amplifier ordered with the system.

Table 2-2 lists the maximum output power at the 1 dB compression point for each SSPA available:

Ω. The output frequency range is from 5.845 to 6.425 GHz. The output

Table 2-2. SSPA Maximum Output Power

2.5.3 RX/IF Output (J3)

The RX/IF output is a TNC connector that sends the received signal to the indoor unit. The output impedance is 50 140 MHz

The 1 dB output compression point is +15 dBm.

Maximum output power operation is +9 dBm (-6 dB from 1 dB compression) to 50 dBm, depending on system gain requirements.

The down converter has 26 to 47 dB of gain, and is adjustable by the customer from 0 to 21 dB of attenuation.

The typical system gain includes a 50 dB LNA, making the total system gain 76 to 97 dB.

Note: A 60 dB LNA is used only when extremely long cables are used from the LNA to the down converter.

± 36 MHz).

SSPA System Power at 1 dB

Compression Point

None +8 dBm 5W +37 dBm 10W +40 dBm 20W +43 dBm 40W +46 dBm

Ω, and the frequency is 70 MHz ± 18 MHz (optional

2–22 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

2.5.4 RX/RF Input (J4)

The RX/RF input is a type N connector that receives the signal from the LNA. The input impedance is 50

Ω.

The input frequency range is from 3.620 to 4.200 GHz.

The input signal level ranges between -50 and -25 dBm, depending on LNA and antenna gain.

The input level should be set to give the required signal level at J3, the RX/IF Output (refer to Section 2.5.3).

2.5.5 Prime Power (J5)

The AC power is supplied to the RFT by a 3-pin circular connector.

Normal input voltage is 95 to 230 VAC, 47 to 63 Hz.

The AC pinout is as follows:

Pin # Name Function Wire Color

A HI Line Brown

B LO Neutral/Line Blue C GND Ground Green/Yellow

Maximum power consumption depends on the power amplifier used in the RFT. The following is a list of maximum power consumption at each configuration:

SSPA Maximum Power

+8 dBm 90W 5W 140W 10W 210W 20W 340W 40W 600W

A circular 4-pin power connector is used for the 48 VDC option. The pinout is as follows:

Pin # Function

A + INPUT B CHASSIS GROUND C - INPUT D - N/C

Rev. 9 2–23

Single Thread System Installation CST-5000 C-Band Satellite Terminal

2.5.6 Serial Remote Control (J6)

The remote connector on the RFT is used to interface the M&C functions to a remote location. This interface can be either EIA-232 or EIA-485.

When using an EIA-485 interface, the transmit and receive signals are able to accommodate either type of remote equipment pinouts. As long as the polarities of the remote equipment TX and RX signals are correct, this remote interface will be completely compatible.

Refer to Table 2-3 for a list of pinouts for the J6 connector.

For standard EIA-232 or EIA-485 applications, an adapter cable must be used to connect the 26-pin connector (J6) to a standard 9-pin D.

Refer to Figure 2-5 for an illustration of the adapter cable and pinouts.

2–24 Rev. 9

CST-5000 C-Band Satellite Terminal Single Thread System Installation

Table 2-3. RFT Remote Control Connector, J6

Pin # Name Description

EIA-232 EIA-485

A GND -RX/TX RX/TX Data B -RX/TX RX/TX Data C +RX/TX RX/TX Data D CTS +RX/TX Clear to Send (see Note 1) E RD/RX Receive Data

F RTS Ready to Send (see Note 1) G TD/TX Transmit Data H DSR Data Set Ready

J GND Ground K LNA_PWR Output, 10V for powering LNA (see Note 2) L EXT_PWR Output voltage, 11V, to power RSU-503 and KP-10

M EXT TWT FLT Input, logic 0 or 5V: 5V = FLT, 0V = normal (see Note 3)

N EXT IN_2 Input, logic 0 or 5V, spare (see Note 3)

P SPARE N/C

R GND Ground

S SPARE N/C T ALOG TST Analog test voltage output U UL_NC Uplink fault relay, connects to uplink COM with fault V UL_COM Uplink fault relay, COMMON

W UL_NO Uplink fault relay, opens with fault

X DL_NC Downlink fault relay, connects to DL_COM with fault Y DL_COM Downlink fault relay, COMMON Z DL_NO Downlink fault relay, opens with fault

a LNA PWR RTN Return for LNA Power (see Note 2)

b SPARE

c SPARE

Notes:

1. In EIA-232 mode, CTS is tied to RTS.

2. LNA can be powered from these pins instead of through the RF cable.

3. 5V is a floating level.

Rev. 9 2–25

Single Thread System Installation CST-5000 C-Band Satellite Terminal

EFDATA: CN/STPG26M01

PT06E16-260(SR)

D E F G H

GND

CTS RD/R RTS TD/T DSR

5 9 4 8 3 7 2 6 1

26 PIN

EFDATA: CN/STPG26M01

PT06E16-26P(SR)

A B C D

26 PIN

EIA-232-C ADAPTER CABLE

-RX/TX

-RX/TX +RX/TX

+RX/TX

GND

EIA-485 ADAPTER CABLE

Figure 2-5. Serial Adapter Cables

MALE

5 9 4 8 3 7 2 6 1

MALE

2.5.7 Ground (GND)

2–26 Rev. 9

A #10-32 stud is available on the rear for the purpose of connecting a common chassis ground among all of the equipment.

Chapter

REDUNDANT SYSTEM

INSTALLATION

This chapter provides installation information for redundant systems, including:

• Unpacking and inspecting the parts

• Installing the RFTs

• Installing the 1:1 redundant plate

• External connections

For RSU-503 installation information, refer to the RSU-503 Redundancy Switch Unit Installation and Operation Manual.

For single thread systems, refer to Chapter 2.

If the RFTs are to be mounted individually, refer to Chapter 2 for installation information.

Rev. 9 3–1

Redundant System Installation CST-5000 C-Band Satellite Terminal

3.1 Unpacking

The CST-5000 redundant system is shipped in two cartons (one RFT each) and one crate.

To remove the parts:

1. Cut the tape at the top of each carton where it is indicated OPEN THIS END.

2. Lift out the cardboard/foam spacer covering the units.

3. Remove the parts from the cartons (refer to Section 3.2.1 for a parts listing).

Because the RFTs are heavy, assistance may be necessary to remove the units from the boxes.

CAUTION

4. Remove the screws from the lid of the wooden crate, and remove the lid.

5. Unbolt the redundant LNA plate and remove it from the crate.

6. Remove the remainder of the parts from the crate (refer to Section 3.2.1 for a parts listing).

Note: Save the packing material for reshipment.

3.2 Inspecting the Equipment

1. Carefully check the equipment for potential damage incurred during shipment.

2. Carefully check the equipment against the packing list shipped with the equipment to ensure that the shipment is complete. Refer to the following paragraphs.

3–2 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

3.2.1 Included Parts

A typical redundant CST-5000 configuration contains the following components.

Notes:

1. Parts are not drawn to scale.

2. Because each system can be custom ordered, it is beyond the scope of this manual to provide the unlimited configuration possibilities.

3. This chapter does not describe the installation procedures for amplifiers, high performance LNAs, phase-locked LNBs, LNBs, and phase-locked block converters.

Qty. Description Qty. Description

2 RFT outdoor unit.

1 Redundant LNA plate.

1 RSU-503.

1 Envelope containing the test data sheet.

1 Monitor and Control Software for EFData Satellite

Terminals User’s Guide.

Note: Pictured is a typical LNA. Other LNAs are available, and can be ordered from an EFData marketing representative.

1 CST-5000 installation and operation manual.

1 RSU-503 installation and operation manual.

Rev. 9 3–3

Redundant System Installation CST-5000 C-Band Satellite Terminal

1 LNA connector kit (EFData Part # KT/2721), which includes:

Qty. Description Qty. Description

1 Gasket — thick.

1 Gasket — thin.

EFData Part # 32P1040.

10 1/4-20 x 1 inch (25 mm) bolt.

EFData Part # 03P1079.

10 1/4 inch (6 mm) split lockwasher.

EFData Part # HW/1/4-SPLIT.

EFData Part # 32D1002.

20 1/4 inch (6 mm) flat washer.

EFData Part # O4P1022.

10 1/4-20 nut.

EFData Part # HW/1/4HEXNUT.

3–4 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

1 Kit KT/3107-x (where x = 1 for AC power, and 2 for DC power), which includes:

Qty. Description Qty. Description

1 Connector kit.

EFData Part # CN/STPG26M01. Used to connect customer’s cable to the RFT 26pin J6 (REMOTE), for remote control and status monitoring (by using M&C system monitor software).

3 17 foot (5.2 m) .50 (13 mm) Heliax, LDF4-50A.

2 4 foot (1.2 m) Cable Assy.

Note: Either the AC or DC cable is provided, depending upon the product ordering code.

Assembly, 15 foot (4.57 m) AC prime power cable.

EFData Part # PL/2754.

Assembly, 15 foot (4.57 m) DC prime power cable.

EFData Part # PL/4157.

EFData Part # CA/1530. Used for RF input and output.

4 foot (1.2 m) Cable Assy., 50Ω.

EFData Part # CA/3005-1. IF TX and RX cables from RFT to RSU.

2 3 foot (.91 m) Cable, N-Male, LDF4-50A, Heliax

C-Band.

EFData Part # CA/3230-1 Used for RF transmit cables to the RFTs.

EFData Part # PL/3003. Used for communications from RFTs A and B to RSU.

1 17 foot (5.2 m) RSU-503 to redundant LNA plate.

EFData Part # PL/3006. Communications from RSU to redundant LNA plate.

Rev. 9 3–5

Redundant System Installation CST-5000 C-Band Satellite Terminal

2 Kit KT/3577, which includes:

Qty. Description Qty. Description

3 Spar support bracket.

EFData Part # FP/3175. Used for spar mount only.

4 Unistrut — 14 inches (35.6 cm) long.

42 5/16 inch (8 mm) flat washer.

EFData Part # HW/5/16-FLT.

42 5/16 inch (8 mm) split lockwasher.

EFData Part # FP/3595. Used for round and square pole mount only.

18 5/16-18 hex nut.

EFData Part # HW/5/16-18HEXNT.

30 5/16-18 spring nut.

EFData Part # HW/5/16-18SPNUT.

28 5/16-18 x 1 inch (25 mm) bolt.

EFData Part # HW/5/16-18X1BLT.

2 Unistrut, modified, 20 inches (51 cm) long.

EFData Part # HW/5/16-SPLIT.

12 Pipe block.

EFData Part # HW/BLK-PIPE2-8. Used for round pole mount only.

12 Flat fitting plate, 5/16 inch (8 mm).

EFData Part # HW/FIT-PLT-5/16.

6 Threaded rod, 5/16-18 x 14 inch (35.6 cm).

EFData Part # HW/RD5/16-18X14. Used for round and square pole mount only.

4 Unistrut — 8 inches (20.3 cm) long.

EFData Part #FP/3482. Used for round and square pole mount only.

19 1/4-20 x 5/8 inch (16 mm) bolt.

EFData Part # HW/1/4-20X5/8BT. Used to attach short unistruts to RFTs.

19 1/4 inch (6 mm) split lockwasher.

EFData Part # HW/1/4-SPLIT. Used to attach short unistruts to RFT.

3–6 Rev. 9

19 1/4 inch (6 mm) flat washer.

EFData Part # FP/3481. Attaches directly to RFTs.

EFData Part # HW/1/4-FLT. Used to attach short unistruts to RFT.

CST-5000 C-Band Satellite Terminal Redundant System Installation

3.3 RFT Installation

The RFTs can be installed anywhere on or near the antenna. The supplied hardware allows the installer a wide range of installation alternatives, including:

• Vertical pole (e.g., mast) (either square or round). This is the most typical installation.

• Within the hub of a large antenna.

• Spar (i.e., rectangular bar) on the antenna structure.

EFData recommends that the RFTs be mounted vertically, with the air inlets facing downward.

Rev. 9 3–7

Redundant System Installation CST-5000 C-Band Satellite Terminal

3.3.1 Tools Required

Qty. Description

3/8 inch (9 mm) drive ratchet.

3 inch (76 mm) x 3/8 inch (9 mm) drive extension.

7/16 inch x 3/8 inch drive socket. (Metric equivalent: 12mm, 6 pt.)

1/2 inch x 3/8 inch drive socket. (Metric equivalent: 13mm, 6 pt.)

1 1/2 inch combination wrench. (Metric equivalent: 13mm combination

wrench with a 6 pt. box end.)

3–8 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

3.3.2 Vertical Pole Installation

3.3.2.1 Round Pole

The following process is for a typical installation. Custom systems may be ordered, but are not covered in this manual.

To install the RFTs to a round vertical pole:

1. Set the units on their sides, with the mounting holes facing up.

2. Install the 8 inch (20.3 cm) unistruts as follows:

a. Position an 8 inch (20.3 cm)

unistrut (with the open side facing up) over one set of the mounting holes on the RFT.

b. Using four 1/4-20 x 1 inch

(25 mm) bolts, 1/4 inch (6 mm) split lockwashers, and 1/4 inch (6 mm) flat washers, attach an 8 inch (20.3 cm) unistrut to the RFT.

Tighten the bolts firmly.

c. Repeat Steps 2.a. and 2.b. for

each of the remaining 8 inch (20.3 cm) unistruts (for a total of four).

Rev. 9 3–9

Redundant System Installation CST-5000 C-Band Satellite Terminal

3. Install the 20 inch (51 cm) unistruts as follows:

Note: The placement of the pipe blocks may interfere with the inner or center unistrut attaching bolts. Be sure to determine the pipe block placement locations before bolting the 20 inch (51 cm) unistruts in place. It may be necessary to eliminate the center or inner 20 inch (51 cm) unistrut mounting spring nuts and bolts.

a. Insert a spring nut between

the unistrut mounting bolts on both RFTs, as illustrated.

b. To install each spring nut:

(1) Place the spring nut in

the unistrut channel, spring side down, with its wide side parallel with the unistrut channel.

(2) Press down on the

spring nut to compress the spring, and rotate the nut 90° (i.e., perpendicular to the unistrut).

(3) Release pressure on the spring nut.

(4) Repeat Steps 3.b.(1) through 3.b.(3) for each spring nut.

3–10 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

c. With the RFTs side-by side,

position a 20 inch (51 cm) unistrut (open side facing up) in place over one pair of 8 inch (20.3 cm) unistruts.

Ensure the long unistrut is

centered over the RFT.

d. Using two or three 5/16-18

x 1-1/4 inch (6 mm) bolts, 5/16 inch (8 mm) split lockwashers, and 5/16 inch (8 mm) flat washers, attach the 20 inch (51 cm) unistrut to the 8 inch (20.3 cm) unistruts.

Tighten the bolts firmly.

e. Attach the second 20 inch (51 cm) unistrut to the second set of 8 inch

(20.3 cm) unistruts by repeating Steps 3.a. through 3.d.

4. Install the pipe blocks as follows:

a. Install two spring nuts in each of the two 20 inch (51 cm) long unistruts and

two 14 inch (35.6 cm) long unistruts (centered in the unistruts, and wide enough apart so the pipe blocks will clear the pole when the unit is installed).

b. Install each spring nut as follows:

(1) Place the spring nut in the unistrut channel, spring side down, with its

wide side parallel with the unistrut channel.

(2) Press down on the spring nut to compress the spring, and rotate the nut

90° (i.e., perpendicular to the unistrut).

(3) Release pressure on the spring nut.

Rev. 9 3–11

Redundant System Installation CST-5000 C-Band Satellite Terminal

(4) Repeat Steps 4.b.(1) through 4.b.(3) for each spring nut.

c. Using eight 5/16-18 x 1 inch (25 mm) bolts, 5/16 inch (8 mm) split

lockwashers, and 5/16 (8 mm) flat washers, loosely secure the pipe blocks to the spring nuts.

Ensure the pipe blocks are installed with the long angle face inward, toward

the pipe, as illustrated.

DO NOT tighten the pipe block bolts until after mounting the RFTs on the

vertical pole. (See Step 6.e.)

5. Install the threaded rods as follows:

a. Install two spring nuts in both

20 inch (51 cm) unistruts mounted on the RFT.

b. Install each spring nut as

follows:

(1) Place the spring nut in

the unistrut channel, spring side down, with its wide side parallel with the unistrut channel.

(2) Press down on the spring

nut to compress the spring, and rotate the nut 90° (i.e., perpendicular to the unistrut).

3–12 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

(3) Release pressure on the spring nut.

(4) Repeat Steps 5.b.(1) through 5.b.(3) for each spring nut.

c. Thread a 5/16-20 nut approximately 1-1/2 inch (38 mm) onto each threaded

rod. (This will ensure that the threaded rods will extend beyond the spring nuts when installed.)

d. Place a 5/16 inch (8 mm) split lockwasher, 5/16 inch (8 mm) flat washer, and

flat fitting plate over each threaded rod.

e. One threaded rod at a time,

hold the washers and plate in place on the threaded rod and screw it into a spring nut, as illustrated.

Notes:

1. Be sure to position the flanges of the flat fitting plates in the grooves of the unistruts.

2. Before tightening the nuts on the threaded rods, ensure that the end of each rod is screwed in until it contacts the unistrut. This ensures the rods are threaded completely through the spring nuts.

Tighten each nut firmly.

f. Thread a 5/16-18 nut about 2

inches (5.1 cm) onto the end of each threaded rod.

g. Slip a 5/16 inch (8 mm) split

lockwasher, 5/16 inch (8 mm) flat washer, and flat fitting plate (in that order) onto each threaded rod.

6. Mount the RFTs as follows:

Rev. 9 3–13

Redundant System Installation CST-5000 C-Band Satellite Terminal

a. Lift the RFT into position on

the vertical pole.

b. Slip a 14 inch (35.6 cm)

unistrut over each of pair of threaded rods (upper and lower).

Note: Install the 14 inch (35.6 cm) unistruts with the open face toward the pole, as illustrated.

c. Install a 5/16 inch (8 mm) flat

washer, 5/16 inch (8 mm) split lockwasher, and 5/16-18 nut on each threaded rod.

d. Position the RFT, as desired,

and tighten the 5/16-18 nuts installed in Step 6.c.

e. Slide the pipe blocks in until

they contact the vertical pole.

Then, firmly tighten the

5/16-18 bolts.

3.3.2.2 Square Pole

For square, vertical pole installation, follow the steps in Section 3.3.2.1, with the following exceptions:

• Do not perform Step 4.

• Do not perform Step 6.e.

3–14 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

3.3.3 Spar Installation

Note: The following process is for a typical installation. Custom kits may be ordered and are beyond the scope of this manual.

To install the RFTs to a spar:

1. Set the units on their sides, with the mounting holes facing up.

2. Install the 8 inch (20.3 cm) unistruts as follows:

a. Position an 8 inch (20.3 cm) unistrut

(with the open side facing up) over one set of the mounting holes on the RFT.

b. Using four 1/4-20 x 1 inch (25 mm)

bolts, 1/4” split lockwashers, and 1/4 inch (6 mm) flat washers, attach an 8 inch (20.3 cm) unistrut to the RFT.

Tighten the bolts firmly.

c. Repeat Steps 2.a. and 2.b. for the

remaining 8 inch (20.3 cm) unistruts (for a total of four).

Rev. 9 3–15

Redundant System Installation CST-5000 C-Band Satellite Terminal

3. Install the 20 inch (51 cm) unistruts as follows:

a. Position a spring nut between the 1/4-20 bolts in each 8 inch (20.3 cm)

unistrut, as illustrated below:

b. Install each spring nut as follows:

(1) Place the spring nut in the unistrut channel, spring side down, with its

wide side parallel with the unistrut channel.

(2) Press down on the spring nut to compress the spring, and rotate the nut

90° (i.e., perpendicular to the unistrut).

(3) Release pressure on the spring nut.

(4) Repeat Steps 3.b.(1) through 3.b.(3) for each spring nut.

c. With the RFTs side by side, position a 20 inch (51 cm) unistrut in place over

one pair of 8 inch (20.3 cm) unistruts (open side up).

d. Using four 5/16-18 bolts, 5/16 inch (8 mm) split lockwashers, and 5/16 inch

(8 mm) flat washers, bolt the 20 inch (51 cm) unistrut to the 8 inch (20.3 cm) unistruts.

e. Tighten the bolts firmly.

f. Repeat Steps 3.c. through 3.e. for the second 20 inch (51 cm) unistrut.

3–16 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

4. Mount the RFT as follows:

a. Lift the RFT into position.

b. Using four 5/16-18 bolts, 5/16 inch

(8 mm) split lockwashers, and 5/16 inch (8 mm) flat washers, bolt the two spar support brackets in place.

Tighten the bolts firmly.

Rev. 9 3–17

Redundant System Installation CST-5000 C-Band Satellite Terminal

3.3.4 1:1 Redundant Plate Installation

The 1:1 redundant plate is shown below. Refer to Section 3.2.1 for included parts.

To install the 1:1 redundant plate:

1. Mount the 1:1 redundant plate to the antenna.

Note: The type of mounting is determined by the brand of antenna on which the equipment will be installed.

2. Remove the plastic cover from the RF IN connector of the redundant plate.

After removing the protective cover, ensure that no foreign material or moisture enters the 1:1 redundant plate’s waveguide.

CAUTION

3. Install the appropriate gasket on the RF IN connector of the redundant plate:

a. If the TR Filter_Plate/waveguide has a groove, and the antenna flange does

not, the thin gasket should be used.

b. If both the TR Filter_Plate/waveguide and the antenna flange have grooves,

the thick gasket should be used.

3–18 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

4. Position the antenna waveguide in place on the RF IN connector, and install the 1/4-20 x 1 inch (25 mm) bolts, 1/4 inch (6 mm) split lockwashers, 1/4 inch (6 mm) flat washers, and 1/4-20 nuts.

Note: Do not tighten the bolts at this time.

5. After all of the bolts, washers, and nuts have been installed, tighten them according to the following illustrated sequence.

6. Remove the plastic covers from all the connectors, and attach the appropriate cables.

Rev. 9 3–19

Redundant System Installation CST-5000 C-Band Satellite Terminal

3.4 External Connections

Refer to Section 2.5 for further information about external connections.

3–20 Rev. 9

CST-5000 C-Band Satellite Terminal Redundant System Installation

This page is intentionally left blank.

Rev. 9 3–21

This chapter provides operation information for the RFT-500.

4.1 System Operation

There are three methods of operating the RFT-500:

• Connect a PC running DOS to the EIA-232/485 remote control port, and run the M&C system monitor software. This software is DOS-based and provides an interface to the remote commands.

♦ For information on the remote commands, refer to Appendix B.

♦ For more information on the M&C system monitor program, refer to the

Monitor and Control Software for EFData Satellite Terminals User’s Guide.

• Connect the optional KP-10 hand-held keypad. For more information, refer to the

KP-10 External Keypad Installation and Operation Manual.

• Use the optional front panel display/keypad (refer to Section 4.3).

Chapter

OPERATION

4.2 Remote Control

Refer to Appendix B for information on remote control operation.

Rev. 9 4–1

Operation CST-5000 C-Band Satellite Terminal

4.3 Front Panel Display/Keypad

The optional front panel (Figure 4-1) provides the local user interface, which can be used to configure and monitor the status of the terminal.

Figure 4-1. RFT-500 Terminal Keypad

The front panel features a 16-character, 2-line LCD display, and a 6-key keypad which provides for sophisticated functions, yet is easy to use. All functions are accessible at the front panel by entering one of three “SELECT” menus:

• Configuration (CONFIG)

• Monitor

• Faults

4–2 Rev. 9

CST-5000 C-Band Satellite Terminal Operation

4.3.1 Front Panel Controls

The terminal is locally operated by using the front panel keypad. The keypad consists of six keys. Each key has its own logical function or functions.

Key Description

[ENTER] This key is used to select a displayed function or to execute a change to the terminal’s

configuration.

[CLEAR] This key is used for backing out of a selection or to cancel a configuration change

which has not been executed using [ENTER]. Pressing [CLEAR] generally returns the display to the previous selection.

[←] and [→] These keys are used to move to the next selection, or to move the cursor for certain

functions.

[↑] and [↓] These keys are used primarily to change configuration data (numbers), but are also

used at times to move from one section to another.

The terminal front panel control uses a tree-structured menu system (Figures 4-2 through 4-5) to access and execute all functions. The base level of this structure is the sign-on message, which is displayed at the front panel upon terminal power-up.

• Line 1 of the sign-on message displays the terminal model number.

• Line 2 displays the version number of the firmware implemented in the terminal.

The main level of the menu system is the SELECT menu, which may be accessed from the base level by pressing any of the arrow keys. From the SELECT menu, any one of three functional categories may be selected:

• Configuration functions

• Monitor functions

• Fault functions

←] or [→] to move from one selection to another.

Press [

When the desired category is displayed on line 2, press [ENTER]. Once the category has been entered, move to the desired function by pressing [

←] or [→].

Rev. 9 4–3

Operation CST-5000 C-Band Satellite Terminal

4.4 Menu Explanations

The following sections contain information about individual menu categories and their functions.

Note: The firmware/software referenced in this manual may be an earlier version of the actual firmware/software supplied with the unit.

RFT-500

SW_2.13

SELECT CONFIG

(Figure 4-3)

Key:

ACCESS TO

SUBMENU

SELECT

MONITOR

(Figure 4-4)

CONDITIONAL OR

OPTION-

DEPENDENT

Figure 4-2. Main Menu

SELECT

FAULTS

(Figure 4-5)

Parameter Information

4–4 Rev. 9

CST-5000 C-Band Satellite Terminal Operation

4.4.1 Configuration

Terminal configuration may be viewed or changed by entering the CONFIG (Figure 4-3) menu from the SELECT menu on the front panel.

Enter the selected configuration menu by pressing [ENTER]. Press [ selected configuration parameters. To change a configuration parameter, press [ENTER] to begin the change process, at which point the arrow keys can be used to make the changes.

After the changes are made and the display represents the correct parameters, execute the change by pressing [ENTER]. When [ENTER] is pressed, the necessary programming is initiated by the RFT-500.

To undo a parameter change prior to executing it, simply press [CLEAR].

←] or [→] to view the

Rev. 9 4–5

Operation CST-5000 C-Band Satellite Terminal

RFT-500 SW_2.13

U/C FREQ D/C FREQ

5845.0 to 6425.0 MHz in 2.5 MHz steps

PROGRAM

1, 2, or 3

3620.0 to 4200.0 MHz

300 to 19200 bit/s 1 to 255

SELECT CONFIG

1, 2, 3, or NONE

in 2.5 MHz steps

BAUD ADDRESS

SELECT RF OUTPUT

WRM

U/C ATTN D/C ATTN

0 to 25 dB

in 0.5 dB steps

0 to 21 dB

in 0.5 dB steps

PARITY

ODD EVEN NONE

OFF

LNA PWR

OFF

XFLT EN

OFF

LNA FLT

OFF

RSW MODE

INDEP

DEP

Press [ENTER] to calibrate

CALIB.

LNA

LOCK MODE

LOCK

ENABLE

Key:

ACCESS TO

SUBMENU

Figure 4-3. Select Configuration Menu

REF ADJ

0 to 255

CONDITIONAL OR

OPTION-DEPENDENT

Parameter Information

4–6 Rev. 9

CST-5000 C-Band Satellite Terminal Operation

The following listing describes each Configuration function in detail.

Function Description

SELECT Selects any one of the three “preset” configurations. The user must first program

(store) configuration parameters in the PROGRAM menu.

On entry, the current Select parameter will appear in the menu. Press [ select 1, 2, 3, or None. Press [ENTER] to execute the change. If no parameters have been selected in the PROGRAM menu, default configurations will be loaded.

RF OUTPUT Programs the RF output to ON, WRM, or OFF.

On entry, the current status of the output is displayed. Press an Arrow key to select ON, WRM, or OFF. Press [ENTER] to execute the change.

U/C FREQ Programs the up converter frequency between 5845 and 6425 MHz, in 2.5 MHz

steps.

On entry, the current up converter frequency is displayed with the flashing cursor on the first character. Press [

←] or [→] to move the flashing cursor. Press [↑] or [↓] to

increment or decrement the digit at the flashing cursor. Press [ENTER] to execute the change.

Note: The frequency is programmable within the specified range in 2.5 MHz steps. When the transmitter frequency is changed, the transmitter is automatically turned OFF to prevent the possible swamping of other channels. To turn the transmitter ON, use the RF OUTPUT menu.

D/C FREQ Programs the down converter frequency between 3620 and 4200 MHz, in 2.5 MHz

steps.

On entry, the current down converter frequency is displayed with the flashing cursor on the first character. Press [

←] or [→] to move the flashing cursor. Press [↑] or [↓] to

increment or decrement the digit at the flashing cursor. Press [ENTER] to execute the change.

U/C ATTN Programs the up converter output power attenuation from 0 to 25 dB, in 0.5 dB steps.

On entry, the current up converter attenuation is displayed with the flashing cursor on the first character. Press [

↑] or [↓] to increase or decrease the output power

attenuation in 0.5 dB steps. Press [ENTER] to execute the change.

D/C ATTN Programs the down converter input power attenuation from 0 to 21 dB, in 0.5 dB

steps.

On entry, the current down converter attenuation is displayed with the flashing cursor on the first character. Press [

↑] or [↓] to increase or decrease the output power

attenuation in 0.5 dB steps. Press [ENTER] to execute the change.

PROGRAM Programs or clears the current frequency and attenuator settings as one of the three

“preset” selections.

On entry, 1*, 2*, or 3* will appear in the window. Press [

←] or [→] to move the

cursor from left to right. When the flashing cursor is on any of the “*”s, press [ [

↓] to turn the “*” ON or OFF. When the “*” is ON, press [ENTER] to clear stored

parameters in the preset location to the left of the “*”. When the “*” is OFF, press [ENTER] to store the current frequency and attenuation parameters in the preset location at the cursor. To recall any of the present selections, use the SELECT menu, and select 1, 2, or 3. Press [ENTER].

↑] or [↓] to

↑] or

Rev. 9 4–7

Operation CST-5000 C-Band Satellite Terminal

BAUD Programs the baud rate of the terminal.

On entry, the currently selected baud rate of the terminal will be displayed with the flashing cursor on the first digit on the second line of the display. To change the baud rate, press [ execute the changes.

ADDRESS Programs the terminal remote address.

On entry, the currently selected address of the terminal is displayed with the flashing cursor on the first character. Press [ terminal from 1 to 255. Press [ENTER] to execute the change.

PARITY Programs the parity bit to EVEN, ODD or NONE.

On entry, the currently selected parity is displayed. Press an Arrow key to select EVEN, ODD, or NONE. Press [ENTER] to execute the change.

LNA PWR “ON” means LNA power will be available on the center conductor of the coax cable

(J4). “OFF” means DC power will be removed from the coax cable.

LNA FLT “ON” means the system will declare an LNA fault when applicable. “OFF” means all

LNA faults will be ignored by the system.

CALIB. Enables the user to calibrate the LNA. If [ENTER] is pressed, the M&C will perform

an analog-to-digital conversion of the LNA current, and store the value in the Electrically-Erasable Programmable Read-Only Memory (EEPROM). During the normal operation, the M&C will monitor the recent LNA current, and compare it to the stored value. If the LNA deviates by

REF ADJ Allows adjustment of the 10.000 MHz reference frequency to account for long term

drift. The setting varies from 0 to 255.

XFLT EN Enables or disables the external fault input. For use with external TWTs.

On entry, the currently selected parameter will appear. Press an Arrow key to select ON or OFF. Press [ENTER] to execute the change. When ON is selected, all of the uplink external faults will appear in the front panel monitoring menus and fault menus. When OFF is selected, all of the uplink external faults will be masked in the front panel monitoring menus and fault menus.

RSW MODE For use in a redundant system only (with an RSU-503 switch).

INDEP TX and RX switch independently on fault to the backup terminal.

DEP switches both TX and RX on fault to the backup terminal.

LOCK MODE If the system is placed in the LOCK mode, none of the above parameters can be

changed. This is to prevent accidental changes of the operation conditions by unauthorized personnel. The mode must be changed to ENABLE in order to change the existing configuration.

↑] or [↓] to select a baud rate from 300 to 19200 bit/s. Press [ENTER] to

↑] or [↓] to select the desired address of the

± 30%, a fault will be declared.

4–8 Rev. 9

CST-5000 C-Band Satellite Terminal Operation

4.4.2 Monitor

The MONITOR (Figure 4-4) menu is accessible from the SELECT menu. When the MONITOR menu is entered, press [

Each monitor function is displayed in real time for as long as it is selected.

←] or [→] to select the desired function.

RFT-500

SW_2.13

U/C TEMP D/C TEMP

-40 to +90

(Status only)

TDV TIV

SELECT

MONITOR

-40 to +90

(Status only)

HPA TEMP TUV

-40 to +90

(Status only)

Key:

ACCESS TO

1 to 11 V

(Status only)

1 to 11 V

(Status only)

SUBMENU

Figure 4-4. Select Monitor Menu

The following listing describes each monitor function in detail.

Function Description

U/C TEMP Up converter temperature monitor

Range: -40 to +90° C (-40 to 194° F)

D/C TEMP Down converter temperature monitor

Range: -40 to +90° C (-40 to 194° F)

HPA TEMP HPA temperature monitor

Range: -40 to +90° C (-40 to 194° F)

TUV Tuning voltage monitor for up converter synthesizer

Range: 1 to 11V

TDV Tuning voltage monitor for down converter synthesizer

Range: 1 to 11V

TIV Tuning voltage monitor for the IF LO

Range: 1 to 11V

(Status only)

CONDITIONAL OR

OPTION-DEPENDENT

1 to 11 V

Parameter Information

Rev. 9 4–9

Operation CST-5000 C-Band Satellite Terminal

This page is intentionally left blank.

4–10 Rev. 9

CST-5000 C-Band Satellite Terminal Operation

4.4.3 Faults

The FAULTS (Figure 4-5) menu is accessible from the SELECT menu. Faults are similar to monitor functions, as they display the current fault status of the group being displayed.

←] or [→] to move between the faults.

Press [

The current fault status is displayed as “OK” or “FLT” for each parameter monitored. “OK” indicates that no fault exists, while “FLT” indicates that a fault exists.

Press [CLEAR] to exit this level of operation and return to the previous level.

Rev. 9 4–11

Operation CST-5000 C-Band Satellite Terminal

RFT-500

SW_2.13

DOWNLINK 5V PWR

OK / FLT OK / FLT

LNA U/C LOCK

OK / FLT OK / FLT

D/C TUN IF LOCK

SELECT FAULTS

RESTART UPLINK

OK / FLT OK / FLT

12V PWR HPA

OK / FLT OK / FLT

U/C TUN D/C LOCK

OK / FLT OK / FLT

IF TUN

OK / FLT OK / FLT

Figure 4-5. Select Faults Menu

Key:

ACCESS TO

SUBMENU

OK / FLT

CONDITIONAL OR

OPTION-DEPENDENT

Parameter Information

4–12 Rev. 9

CST-5000 C-Band Satellite Terminal Operation

The following list describes the faults monitored in the FAULTS menu. Refer to Chapter 6 for troubleshooting procedures for each displayed fault.

Fault Description

RESTART M&C microprocessor experienced a restart due to power failure or watchdog timer

time-out. UPLINK U/L fault caused by synth, U/C, IFLO, or HPA. DOWNLINK D/L fault caused by synth, D/C, IFLO, or LNA. 5V PWR +5V power supply fault. This is a status-only fault, and will not turn the transmitter

OFF. 12V PWR +12V power supply fault. This is a status-only fault, and will not turn the transmitter

OFF. HPA High Power Amplifier fault. Typically indicates that the HPA is not present or is not

operating. This fault will turn the RF transmitter off. LNA Low noise amplifier fault. Typically indicates that the LNA is not present, has failed,

or has exceeded the high or low fault window trip point. This fault will not turn the

transmitter off. U/C LOCK Up converter lock fault. Indicates the up converter is not locked up. This fault will

turn the transmitter off. U/C TUN Up converter tuning fault. D/C LOCK Down converter lock fault. Indicates the down converter is not locked up.

This fault will NOT turn the transmitter off.

Note: Not applicable to 140 MHz IF option. D/C TUN Down converter tuning fault.

Note: Not applicable to 140 MHz IF option. IF LOCK IF synthesizer lock fault. This fault will turn the transmitter OFF. IF TUN IF tuning fault.

Rev. 9 4–13

Operation CST-5000 C-Band Satellite Terminal

This page is intentionally left blank.

4–14 Rev. 9

THEORY OF OPERATION

This chapter provides the basic theory of operation for the Monitor and Control (M&C) board, high stability oscillator, IFLOs synthesizers, and the up and down converters.

5.1 Monitor and Control

The RFT-500 uses a sophisticated microcontroller module to perform the M&C functions of the terminal. This board (refer to Figure 5-1) is located inside of theRFT-500, on top of the other assemblies.

The M&C monitors the RFT-500 and provides configuration updates to other modules within the terminal when necessary.

Terminal configuration parameters are maintained in EEPROMs, which provides for total recovery after a power-down situation.

Fault monitoring and status gathering are also provided.

All RFT-500 functions are accessible through the local front panel keypad/display or a remote communications interface.

Note: For more information on the M&C board, refer to Chapter 1.

Chapter

Rev. 9 5–1

Theory of Operation CST-5000 C-Band Satellite Terminal

Figure 5-1. M&C Board

5–2 Rev. 9

CST-5000 C-Band Satellite Terminal Theory of Operation

SHU

5.1.1 EEPROM Memory

EEPROM memory on the M&C module allows it to retain configuration information without prime power for at least one year. If the terminal is powered down, the following sequence will be carried out by the M&C microcontroller:

1. When power is reapplied, the microcontroller checks the EEPROM’s Random Access Memory (RAM ) to see if valid data has been retained. If valid data has been retained, the terminal is reconfigured to the configuration maintained in EEPROM.

2. If EEPROM memory fails the valid data test, a default configuration from Read Only Memory (ROM) is loaded into the system.

5.1.2 Remote Interface

The functions of the RFT-500 can be remotely controlled and monitored via an EIA-485 or EIA-232 communications link. The M&C module must be hardware configured to one of the two interfaces.

The EIA-485 interface makes it possible to operate 255 terminals on a common communications link.

The EIA-232 interface is used to communicate with a single terminal.

Refer to Figure 5-2 for the jumper placement at JP3.

EIA-485

SHORTING

SHOWN STRAPPED

EIA-232

JP3

159

FOR EIA-4

Figure 5-2. M&C Jumper Placement at JP3

Rev. 9 5–3

Theory of Operation CST-5000 C-Band Satellite Terminal

5.1.2.1 Remote Interface Specification

Refer to Appendix B for information on remote control operation.

5.1.3 Terminal Default Conditions

On initial power-up, the unit will default to the following parameters:

Parameter Default

Baud Rate 9600 Parity Even Device Address 1 U/C Gain Minimum D/C Gain Minimum RF Output OFF U/C Frequency 6135.00 MHz D/C Frequency 3925.00 MHz

5.1.4 Theory of Operation

Refer to Figure 5-3 for a functional block diagram of the M&C.

The M&C board performs the following operations:

• Receives the desired frequency from either the remote EIA-232/485 or local keypad, and after converting it to a synthesizer setting, stores it to the applicable synthesizer output latch.

• Reads the thermistors located in the up converter, down converter, and HPA, and converts the signals into temperatures for display.

• Reads the characterization EEPROMs in the up converter, down converter, and HPA, and calculates an Automatic Gain Control (AGC) voltage based on frequency and temperature to linearize the respective module.

• Turns the fan on or off, depending on the temperature.

• Receives fault inputs from all modules, and presents them to the remote

EIA-232/485 and the optional local keypad display.

• Performs an initial current sense on the LNA, and stores the reading in the EEPROM. Subsequent current sense readings are taken and compared to the initial reading to determine a fault.

5–4 Rev. 9

CST-5000 C-Band Satellite Terminal Theory of Operation

LOCAL

KEYPAD/DISPLAY

(OPTIONAL)

U/C LOCK DET D/C LOCK DET IF LOCK DET

HPA FAULT FAN FA ULT

INPUT PORT

8 BIT PARALLEL BUS

OUTPUT

LATCHES

U/C SYNTH D/C SYN TH FAN C NT L

SDA/SC L D/C U/C HPA

HPA THERM IF TUNING HPA PWR MON

COLD/WARM START U/C THERM U/C TUNING U/C LEVEL MON D/C THERM D/C TUNING

5V MON 12V MON LNA CAL

INPUT POW ER

A/D

CONVERTER

PROGRAM

REGULATOR

MEMORY

2 BIT SE RIAL BUS

EEPROM

CURRENT

SENSE

MICROCONTROLLER

12V

TXD/RXD

TO LNA 10V

D/A

CONVERTERS

SERIAL

REMOTE

COMM

PORT

LATCHES

Figure 5-3. M&C Functional Block Diagram

HPA LVL CNTL U/C AGC

U/C ATTEN

D/C LVL CNTL

REF OSC ADJ

EIA-232

EIA-485

TXD ENABLE RF SHUTDOWN SUM FAULT LNA FAULT

RELAY

COM NO

REMOTE CONNECTOR

Rev. 9 5–5

Theory of Operation CST-5000 C-Band Satellite Terminal

5.1.5 M&C Board Connector Pinouts

5.1.5.1 EIA-232/485 Remote Control (J1)

The remote interface is provided on a 9-pin female D connector. Screw locks are provided for mechanical security of the mating connector. The remote connector is a Data Circuit Terminating Equipment (DCE) interface. Refer to the following listing for pin assignments:

Pin # EIA-232 EIA-485 Description

1 GND GND Ground 2 TD/TX Transmit Data 3 RD/RX Receive Data 4 +RX/TX Plus Transmit or Receive 5 GND -RX/TX Negative Transmit or Receive 6 DSR Data Set Ready 7 RTS Ready to Send 8 CTS +RX/TX Clear to Send (EIA-485 - Plus Transmit or Receive) 9 -RX/TX Negative Transmit or Receive Data

Notes:

1. Clear to Send (CTS) is tied to Ready to Send (RTS) in EIA-232 mode.

2. The pinout for Data Terminal Equipment (DTE) interface is provided for

EIA-232.

5.1.5.2 Remote Relay Control, J2 DB15-Female

Pin # Name Description

1 EXT PWR Output voltage, 11V, 1A 9 LNA_PWR 10V to LNA 2 NO A Summary fault relay A

10 COM A Normal operation, common connects to NO

3 NC A Fault mode, common connects to NC

11 NO B Summary fault relay B

4 COM B Normal operation, common connects to NO

12 NC B Fault mode, common connects to NC

5 SPARE

13 SPARE

6 ALOG TST Analog voltage output, TBD

14 LNA_PWR_RTN Ground Return for LNA

7 EXT INPUT2 Input, logic 0 (normal) or 5V (fault)

15 EXT TWT FLT Input, logic 0 or 5V, used for TWT.FLT

8 GND Ground

5–6 Rev. 9

CST-5000 C-Band Satellite Terminal Theory of Operation

5.1.5.3 HPA, PS, U/C, and D/C, J3 DB37-Male

Pin # Name Description

1 12.5V PWR Input power to M&C, 12.5V, 220 mA

20 12.5V PWR Input power to M&C, 12.5V, 220 mA

2 DC LNA PWR Output power to DC, 10V, 100 mA

21 GND M&C ground

3 GND M&C ground

22 FAN TACH Input pulse, 0 to 12V, 9 millisecond period

4 FREQ CNTRL Output, voltage 0 to 10V

23 FAN CNTRL Output, NPN OC Transistor with resistor to 5V

5 SPARE

24 EXT OUTPUT1 Output, digital CMOS level - function TBD

6 EXT INPUT3 Input, digital CMOS - function TBD

25 HPA FLT COM Output, ground connection to relay common

7 HPA FLT NO Input from HPA, contact to COM during normal operation

26 SPARE

8 SPARE

27 HPA THERM Input, 5K thermistor to ground located in HPA

9 HPA LEVEL CON Output, 0 to 4 VDC for AGC control of HPA output

28 HPA SHUTDOWN Output, NPN OC transistor to GND, low produces shut-off

10 HPA PWR MON Input from HPA, 0 to 4V

29 SPARE 11 SPARE 30 SPARE

12 DC LEVEL CON Output, analog voltage 0 to 4V, AGC control of D/C output

31 DC LEVEL MON Input, 0 to 4V 13 DC THERM Input, 5K thermistor to ground located in D/C

32 SPARE

14 HPA SDA Bi-directional serial data 33 DC SDA Bi-directional serial data 15 UC SDA Bi-directional serial data

34 HPA SCL Output, serial clock 16 DC SCL Output, serial clock 35 UC SCL Output, serial clock

17 SPARE

36 UC LEVEL MON Input, 0 to 4V 18 UC THERM Input, 5K thermistor to ground located in U/C 37 UC ATT (FLC) Output, analog voltage 0 to 4V, attenuator control 19 UC AGC (CLC) Output, analog voltage 0 to 4V, AGC control

Rev. 9 5–7

Theory of Operation CST-5000 C-Band Satellite Terminal

5.1.5.4 Synthesizers (DC/UC/LO), J4 DB37-Female

Pin # Name Description

1 UC LO A0 Output CMOS level, LSB (selects the 2nd

20 UC LO A1 Output CMOS level, 2LSB divide-by number)

2 UC LO A2 Output CMOS level, 2MSB

21 UC LO A3 Output CMOS level, MSB

3 UC LO G0 Output CMOS level, LSB (selects gain over

22 UC LO G1 Output CMOS level, 2LSB frequency)

4 UC LO G2 Output CMOS level, 2MSB

23 UC LO G3 Output CMOS level, MSB

5 UC LO N0 Output CMOS level, LSB (selects the first

24 UC LO N1 Output CMOS level, 2LSB divide-by number

6 UC LO N2 Output CMOS level, 3LSB in the synthesizer)

25 UC LO N3 Output CMOS level, 3MSB

7 UC LO N4 Output CMOS level, 2MSB

26 UC LO N5 Output CMOS level, MSB

8 DC LO LCK DET Input, 0V = locked, 5V = unlocked

27 DC LO T_MON Input, 0 to 11V, nominal reading = 6V

9 SPARE

28 SPARE

10 IF LCK DET Input, 0V = locked, 5V = unlocked 29 IF T_MON Input, 0 to 11V, nominal reading = 6V

11 SPARE

30 DC LO A0 Output CMOS level, LSB (selects the 2nd 12 DC LO A1 Output CMOS level, 2LSB divide-by number) 31 DC LO A2 Output CMOS level, 2MSB 13 DC LO A3 Output CMOS level, MSB

32 DC LO G0 Output CMOS level, LSB (selects gain 14 DC LO G1 Output CMOS level, 2LSB over frequency) 33 DC LO G2 Output CMOS level, 2MSB 15 DC LO G3 Output CMOS level, MSB

34 DC LO N0 Output CMOS level, LSB (selects the first 16 DC LO N1 Output CMOS level, 2LSB divide by number 35 DC LO N2 Output CMOS level, 3LSB in the synthesizer) 17 DC LO N3 Output CMOS level, 3MSB 36 DC LO N4 Output CMOS level, 2MSB 18 DC LO N5 Output CMOS level, MSB

37 UC LO LCK DET Input, 0V = locked, 5V = unlocked 19 UC LO T_MON Input, 0 to 11V, nominal reading = 6V

5–8 Rev. 9

CST-5000 C-Band Satellite Terminal Theory of Operation

5.1.5.5 Keypad Display, 24-Pin (12 x 2) Ribbon Connector (J5)

The front panel/display keypad is an optional feature which allows the user to configure and monitor status of the terminal locally.

All functions are also accessible from the remote port.

When this option has been installed, the 24-pin ribbon connector will be routed from J5 of the M&C board to the keypad/display assembly.

The pinout is shown in the following listing:

Pin # Name Description

1 /A0 Address Data Line 0 Inverted 3 /A1 Address Data Line 1 Inverted 5 A2 Address Data Line 2 7 A3 Address Data Line 3

9 A4 Address Data Line 4 11 A5 Address Data Line 5 13 /D0000 Address D000 Inverted 15 /BFR READ Buffered Read Inverted 17 /BFR WRITE Buffered Write Inverted 19 SPARE 21 /KB INTRPT Reserved For KB Interrupt 23 GND Ground

2 +5V +5V

4 SPARE

6 BFRD AD0 Buffered Address Data Line 0

8 BFRD AD1 Buffered Address Data Line 1 10 BFRD AD2 Buffered Address Data Line 2 12 BFRD AD3 Buffered Address Data Line 3 14 BFRD AD4 Buffered Address Data Line 4 16 BFRD AD5 Buffered Address Data Line 5 18 BFRD AD6 Buffered Address Data Line 6 20 BFRD AD7 Buffered Address Data Line 7 22 SPARE 24 SPARE

Rev. 9 5–9

Theory of Operation CST-5000 C-Band Satellite Terminal

5.1.6 Test Points and LEDs

Refer to Section 6.1.

5.2 High Stability Oscillator

The high stability oscillator provides a low phase noise, frequency-stable 10 MHz source for the up converter, down converter, synthesizers, and IFLO.

The internal oven, which is provided for additional stability, operates directly from the 12V power source. The electronic control circuitry is buffered by an active filter.

The sinewave output is converted to a CMOS square wave before being output to the synthesizers.

Refer to Figure 5-4 for a block diagram of the high stability oscillator.

5.2.1 Specifications

Frequency 10 MHz Frequency Stability Output Level CMOS voltages (+5V) Output Waveform Square Wave Input Voltage 12.5V Input Current Warm-up Phase Noise (Maximum) 1Hz Measurement bandwidth measured at 10 MHz:

10 Hz 100 Hz 1 KHz

10 KHz Vibrational Sensitivity 1 x 10-9/g Aging 5 x 10 Frequency Deviation (mechanical) To compensate for 10 years aging Frequency Deviation (electrical)

-40 to +70° C (-40 to 158° F)

600 mA at turn-on, 250 mA after warm-up at +25° C (77° F)

2.5 minutes to within 1 x 10

-120 dBc

-150 dBc

-160 dBc

-165 dBc

-10

/day, 1 x 10-1/year

± 2 x 10

-6

minimum, 0 to 10 VDC

-7

of final frequency at +25° C (77° F)

5–10 Rev. 9

CST-5000 C-Band Satellite Terminal Theory of Operation

HIGH STABILITYOSCILLATOR

+12.5 VOLTS

TUNING VOLTAGE

FILTER

0 - 10 VOLT ELECTRONIC TUNING

OSC

PWR

OVEN

PW R

12 VOLTS

OVENIZED

HIGH ST

OSCILL

MECHANICAL

DJUSTMENT

BILITY

10 MHz

TOR

REGULATOR

OUTPUT

Figure 5-4. High Stability Oscillator Block Diagram

BUFFERS

5VOLTS

U/C R EFEREN CE

10 MHz CMOS LEVELS SQUARE WAVE SMAFEMALE

D/C REFERENCE

10 MHz CMOS LEVELS SQUARE WAVE SMAFEMALE

IF LO REF

10 MHz CMOS LEVELS SQUARE WAVE SMAFEMALE

Rev. 9 5–11
