Compro VideoMate W700 START UP GUIDE

VideoMate W700

Standalone TV Box

Start Up Guide

Compro Technology, Inc.

www.comprousa.com

1

Table of Contents

About This Guide ............................................................... 3

VideoMate W700 TV Box Contents ................................... 4

Install W700 TV Box with Box Stand ................................. 5

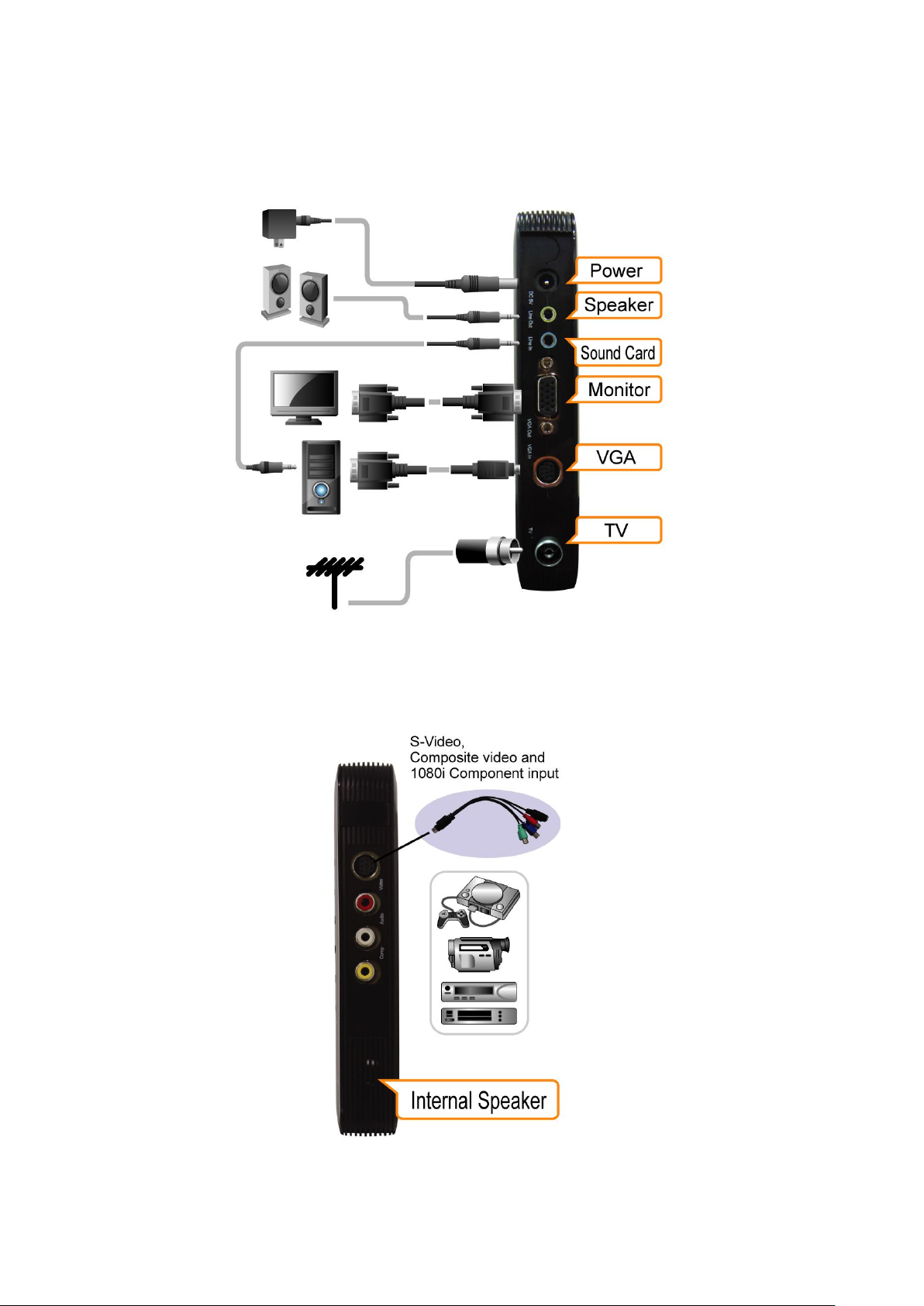

VideoMate W700 TV Box Connection ............................... 6

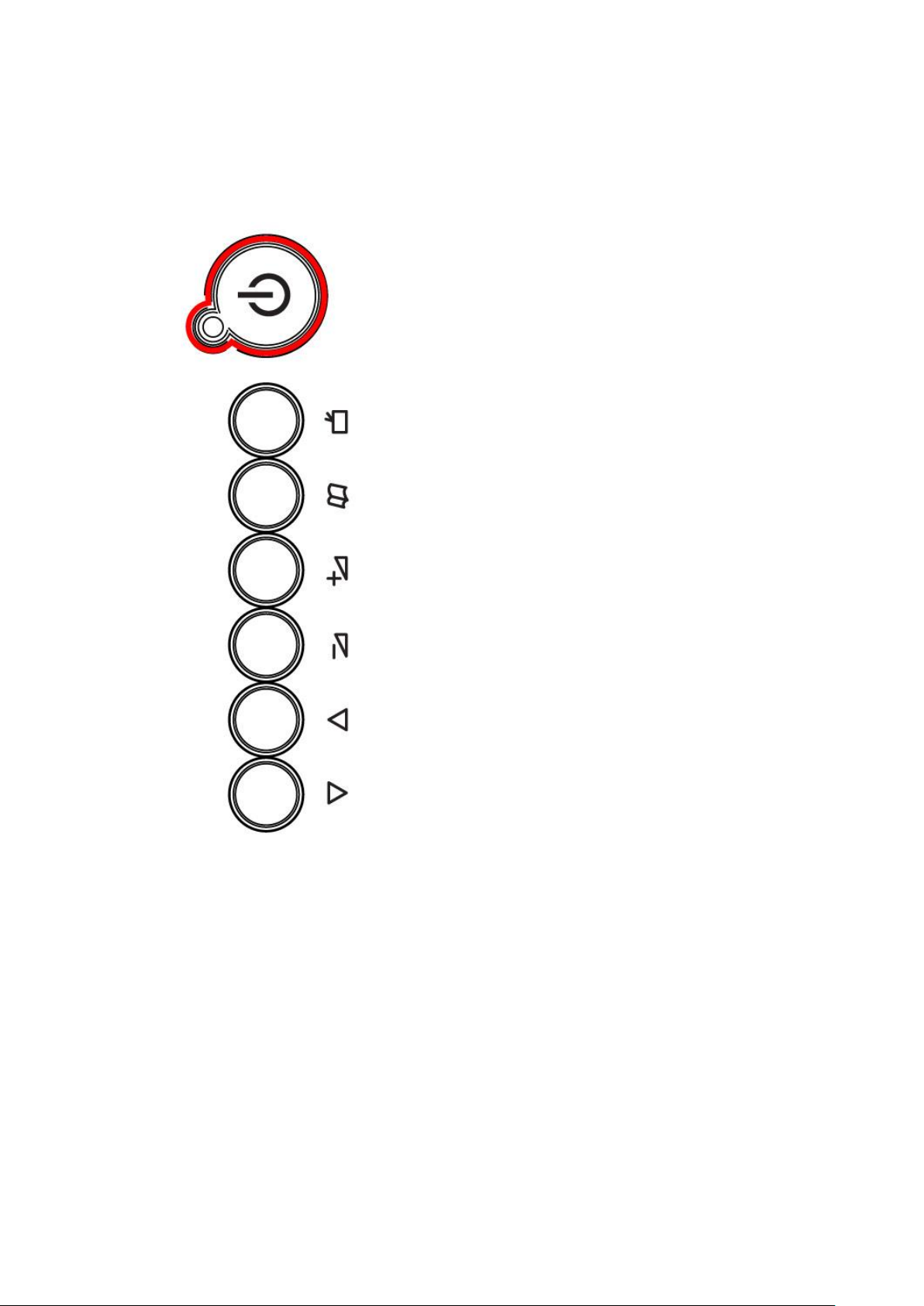

Buttons on VideoMate W700 TV Box ................................ 7

Remote Control Key Definition and Use ............................ 8

VideoMate W700 TV Box Using Guide ............................. 9

Troubleshooting ............................................................... 15

Copyright © 2001-2009. Compro Technology, Inc. No part of this document
may be copied or reproduced in any form or by any means without the prior
written consent of Compro Technology, Inc.

Compro, VideoMate, Poladyne, Play with Power, and the Compro logo are
trademarks of Compro Technology, Inc. Other names and marks are
trademarks of their respective owners.

COMPRO makes no warranties with respect to this documentation and
disclaims any implied warranties of merchantability, quality, or fitness for
any particular purpose. The information in this document is subject to
change without notice. COMPRO reserves the right to make revisions to
this publication without obligation to notify any person or entity of any such
changes.

Compro Technology, Inc.
Tel. [phone], Fax [phone]
4/F, No.12, Alley 6, Lane 45, Pao Shin Road Hsintein City, Taipei, Taiwan.
www.comprousa.com

2

About This Guide

This guide provides you the information on how to install and use your
VideoMate W700 standalone TV box.

VideoMate W700 standalone TV box lets you watch analog TV with your
computer monitor without driver or applications install. W700 TV box provides
S-video, composite video, and up to 1080i component video input which allow
you to connect other video devices (i.e. DVD Player, camcorder, xBox360, PS2,
PS3, Wii or other game console). The maximum resolution is 1900x1200 and
1680x1050, which allows you to have crystal clear pictures. It also supports 4:3,
5:4, 16:9, and 16:10 screen ratio for all kinds of monitors. With the remote
control that included with W700 package will greatly increase the value of the
computer monitor which also saves you from buying another TV set.

MINIMUM SYSTEM REQUIREMENTS

 Monitor (CRT or LCD) contains D-sub Connector and supports 800*600

resolution or above.

 Analog TV cable or antenna input

Warning

It is normal for VideoMate W700 TV Box becomes warm when it is being used.
Please place the TV Box at a place where the air flows.

VideoMate W700 TV Box will only need a computer monitor to work; It does
not require to connect to computer nor turn on the computer to work properly.

Please do not use other adaptor except the one included in the W700 package.
Damage caused by using wrong adaptor will not be cover from the warranty.

VideoMate W700 TV Box Contents

4

Install W700 TV Box with Box Stand

Step 1

Step 2

Step 3

Step 4
