Front Panel Components
1
A Look at the Computer
Front Panel Components
1 Optical drives Depending on your computer model, may be
a CD-ROM, CD-RW, DVD-ROM or
DVD-R/ RW drive.
2 Optical drive activity lights When lit, indicates that the optical drive is
being accessed.
3 Diskette drive Reads and writes information onto a
3.5-inch diskette.
Hardware Reference Guide 1–1
A Look at the Computer
Front Panel Components (Continued)
4 Diskette drive activity light When lit, indicates that the diskette drive is
being accessed. (Do not remove the diskette
while the light is on.)
5 Power-on light When lit, indicates power is on.
6 1394 port (available on select
models)
7 Optical drive eject buttons Releases the disc tray.
8 Diskette eject button Ejects the diskette from the diskette drive.
9 Power button Turns on the computer. To turn off the
: Hard drive activity light When lit, indicates that the hard drive is
; USB (Universal Serial Bus) ports Connects USB devices, such as a USB
✎
Arrangement and number of connectors may vary by model.
Connects digital video equipment and allows
fast data transfer to your computer.
Computer, use the operating system “Turn
Off Computer” command.
being accessed.
gamepads, joysticks and video games. The
number of USB ports you have on your
computer will vary depending on your model
1–2 Hardware Reference Guide
Rear Panel Components
A Look at the Computer
Rear Panel Components
1 Voltage select switch
(available on select models)
2 Power cord connector Connects the computer’s power cord.
3 PS/2 keyboard connector Connects a PS/2-compatible keyboard.
4 USB (Universal Serial Bus)
ports
Hardware Reference Guide 1–3
Selects 230 volts (for some areas in Asia,
Africa, Australia and Europe) or 115 volts (for
North America, South America, and Japan).
This switch may be factory set to 230 volts.
Before plugging the power cord into an
electrical outlet be sure the switch is set to your
regional requirement.
Failure to set the switch to the correct
Ä
regional voltage requirement may damage
your internal components.
Connects USB devices, such as a USB
keyboard, mouse, or pointing device. The
number of USB ports you have on your
computer will vary depending on your model.
A Look at the Computer
Rear Panel Components (Continued)
5 Serial port Connects a serial device, such as a scanner.
6 VGA connector Connects the monitor to the computer.
Depending on your model, the video port
✎
may be located on a VGA card in the
expansion slot.
7 Network Interface Card (NIC)
connector
8 Audio line-out connector Connects stereo speakers.
9 Audio line-in connector Connects audio devices.
: Modem port Connects the modem cable. A modem cable is
; PS/2 mouse connector Connects a PS/2-compatible mouse or other
< Parallel port Connects a parallel device, such as a printer.
= Microphone connector Connects a microphone.
> Telephone extension (not
available in all countries)
✎
Arrangement and number of connectors may vary by model.
Connects an Ethernet network cable. A network
cable is not included with your computer.
included with the computer.
pointing device.
Connects a telephone to the computer.
1–4 Hardware Reference Guide
Mouse Components
Your computer includes a Scroll Mouse, a Wireless Wheel Mouse, or
a USB Optical Mouse. The Wireless Wheel Mouse and the USB
Optical Mouse are available with select models.
A Look at the Computer
Mouse Component
1 Left mouse button Click and quickly release to make screen selections.
Double-click and quickly release to open applications
and files.
2 Scroll wheel Moves the screen backward and forward through a
document without having to continuously move the
mouse or mouse wheel.
3 Right mouse button Click and quickly release to display application menu
selections.
Hardware Reference Guide 1–5
A Look at the Computer
Using the Scroll Mouse
The mouse directs the cursor on the Windows desktop. Use the mouse
to move quickly and easily through a document or Web site.
Moving the scroll wheel on your mouse through a document or Web
site is faster than using the scroll bar. You can use the scroll wheel to:
■ Scroll forward or backward through a document or Web site by
turning the scroll wheel forward or backward.
■ Autoscroll by pressing down on the scroll wheel until it clicks
(you will see an autoscroll icon on your desktop). Move the
mouse vertically, horizontally, or diagonally to scroll in the
desired direction. The farther you move the cursor from the
starting point icon, the faster the scrolling occurs. To stop, press
the mouse button.
Some mouse functions, such as autoscrolling, may not work with all
✎
software.
Refer to the Learning More About Your Computer guide contained on
the Documentation Library CD for information on customizing your
Mouse.
Using the Wireless Wheel Mouse
The wireless wheel mouse is available with select models. It has the
same features and functions as the scroll mouse with the addition of a
connect receiver box. Refer to the Getting Started guide included with
your computer for instructions on installing the batteries.
When using the wireless mouse:
■ Replace the batteries approximately every six months. The
wireless mouse does not alert you when the batteries are low.
■ For optimal performance, place the connect receiver box at least
8-inches/20-centimeters away from other electrical devices, such
as the computer, monitor or external storage equipment.
■ Refer to the “Solving Minor Problems” section in your Getting
Started Guide if your wireless mouse does not function properly.
1–6 Hardware Reference Guide
Using the USB Optical Mouse
The USB optical mouse is available with select models. It provides
the same functions as the scroll mouse and wireless wheel mouse
except it uses an optical sensor instead of a mechanical ball to
determine the position of the cursor on the screen. The surface on
which you use the optical mouse plays an important role in tracking
the cursor. When using the optical mouse:
■ Use a mousepad or a white sheet of paper underneath your
mouse. Using it on a glass or see-through surface will inhibit the
ability of the sensor to track the cursor.
■ Avoid using the mouse on a reflective surface such as a mirror or
shiny metal desk. This may cause tracking problems.
■ Some wood grains and grooved surfaces may also cause tracking
problems.
■ Refer to the “Solving Minor Problems” section in your Getting
Started Guide if your optical mouse does not function properly
A Look at the Computer
Hardware Reference Guide 1–7
Keyboard Features
Your computer includes a Compaq PS/2 Easy Access Keyboard or a
Compaq USB Smart Card Keyboard. The Smart Card Keyboard is
available with select models in some geographic regions.
Easy Access Keyboard Components
2
Hardware Reference Guide 2–1
Keyboard Features
Easy Access Keyboard Components
1 Function keys Perform special functions, depending on the software
applications being used.
2 Easy Access Buttons Provide quick access to your favorite Web sites,
services, and applications.
3 Edit keys Includes the following: Insert, Home, Page Up, Delete,
End, and Page Down.
4 Status Lights Indicates a quick status of your computer and keyboard
settings (Num Lock, Caps Lock, and Scroll Lock).
5 Numeric Keys Works like a calculator keypad.
6 Arrow Keys Navigates through games or through a document or
Web site. These keys allow you to move left, right, up,
and down, using the keyboard instead of the mouse.
7 Application Key* Opens (used like the right mouse button) pop-up
menus in a Microsoft Office application. May perform
other functions in other software applications.
8 Windows Logo Keys* Opens the Start menu in Microsoft Windows. Used in
combination with other keys to perform other functions.
9 Main Keys Works like standard typewriter-style keys.
*Keys available in select geographic regions.
Using the Easy Access Buttons
The Easy Access Buttons make accessing your favorite Web sites,
services, and applications easier and faster.
Several Easy Access Buttons are programmed to default to an Internet
✎
Web site when pressed. However, until you set up your Internet
Service Provider (ISP), the buttons will take you to a window that
guides you through the ISP setup process.
2–2 Hardware Reference Guide
Keyboard Features
Easy Access Buttons
1 Instant Internet Provides your daily starting point to the Internet. It
connects you to a customizable Web page filled with
local weather, news, sports, and financial information.
2 Help Takes you to the Compaq Help & Support Center,
which provides information about your computer.
You can find information about your computer and
computer-related peripherals as well as access links
to online technical support.
3 Search Accesses a Web site that helps you to locate news and
information on the Internet. Search for topics including
news and information, shopping, graphics, music, and
video.
4 E-mail Launches your e-mail application.
Hardware Reference Guide 2–3
Keyboard Features
Easy Access Buttons (Continued)
5 Smart Card
or
Community
6 Entertainment Your online connection to the world of entertainment,
7 My Compaq PC Takes you to the My Presario Web site.
8 Retail/Affinity
Central
Depending on your region, this button launches the
Smart Card or the Compaq online Community.
• The Smart Card button is available on U.S. English
keyboards. When pressed, it provides information
on obtaining a Smart Card and/or shopping at
participating online merchants. Refer to “Smart Card
Keyboard Components” in this chapter for additional
information.
• The Community button provides online collaboration
between novice and technical experts, who share
knowledge and information and provide assistance.
Participate in existing product discussions, review
commonly asked questions, and answer or post new
questions to a community of users.
featuring music downloads, streaming video, Web
casts, entertainment news, and reviews.
Provides an instant connection to your computer store
and a variety of leading consumer companies.
✎
Easy Access Button functions may vary by model and by region.
Customizing the Easy Access Buttons
All Easy Access Buttons can be reprogrammed to open any software
application or data file on your hard drive, or any Internet address.
2–4 Hardware Reference Guide
Keyboard Features
To reprogram the Easy Access Buttons, complete the following steps:
1. Double-click the keyboard icon in the notification area (lower
right corner) of the Windows taskbar. The Keyboard Properties
dialog box is displayed.
2. Click the Help button on the keyboard properties dialog box for
instructions.
Using the Windows Logo Key
Use the Windows Logo key in combination with other keys to
perform certain functions available in the Windows operating system.
Refer to “Easy Access Keyboard Components” in this chapter to
identify the Windows Logo key.
Windows Logo Key + F1 Displays a pop-up menu for the selected object
Windows Logo Key + Tab Activates the next Taskbar button
Windows Logo Key + e Launches Explore My Computer
Windows Logo Key + f Launches Find Document
Windows Logo Key + Ctrl + f Launches Find Computer
Windows Logo Key + m Minimizes all open applications
Shift + Windows Logo Key + m Undoes Minimize All
Windows Logo Key + r Displays the Run dialog box
Hardware Reference Guide 2–5
Keyboard Features
Identifying System Status Lights
The system lights on the keyboard provide a quick status of your
computer and keyboard settings.
System Status Lights
1 Num Lock When lit, the Num lock is on and indicates that you can
use the numeric key pad to type numbers.
2 Caps Lock When lit, the Caps lock is on and indicates all text typed
will appear as capital letters.
3 Scroll Lock When lit, the Scroll lock is on and indicates when the
scroll-lock function is engaged, enabling you to scroll
through a document without moving the cursor.
2–6 Hardware Reference Guide
Smart Card Keyboard Components
The Compaq USB Smart Card Keyboard (available with select
models in some regions) has the same features as the Easy Access
Keyboard with the addition of Smart Card features.
The Smart Card features provide online shopping convenience and
security. If you have a Smart Card or when you receive your Smart
Card, insert your card into the terminal on the keyboard, then enter a
PIN number and make purchases from participating online
merchants.
The Smart Card Keyboard is classified as a low power USB device
✎
that should be connected directly to one of the USB ports on the front
or back of your computer. If an optional external USB hub is used, it
must be a powered external USB hub.
Keyboard Features
Hardware Reference Guide 2–7
Keyboard Features
Smart Card Keyboard Components
1 Smart Card button Press this button to apply for a Smart Card and/or shop
online at many of the participating online merchants.
2 Smart Card activity light When lit, indicates that you have inserted your Smart
Card into the terminal.
3 Smart Card terminal Insert your Smart Card into the terminal (face up) to
purchase merchandise online.
Using the Smart Card Feature
The smart card feature makes it easy for you to purchase merchandise
online.
To apply for a Smart Card or use your Smart Card to shop at
participating online merchants:
1. Press the Smart Card button 1. This button launches a Web site
with instructions on obtaining your Smart Card.
2. When you receive your Smart Card and want to purchase
merchandise online, insert your card into the Smart Card
terminal, when prompted, with the front of the card facing up 2.
3. Follow the on-screen instructions to complete the transaction.
2–8 Hardware Reference Guide
Keyboard Features
The Smart Card Keyboard comes with a non-payment Smart Card,
the Presario Internet Smart Card powered by Netissismo
, which
enables a value added Internet utility. The Internet utility will:
■ Intelligently auto-sense and dial the default Internet connection
on your Presario desktop computer.
■ Securely log you into online accounts with automatic population
of Web aliases and passwords.
■ Automatically allow you to access and store Web site favorites.
■ Provide access to Web site destinations containing specialized
content and offers for Smart Card Keyboard users.
Hardware Reference Guide 2–9
You can replace or upgrade several components in your computer.
This chapter provides procedures on accessing and installing the
internal parts of the computer.
Preparing the Computer
CAUTION: Static electricity can damage the electronic components of
Ä
the computer or optional equipment. Before beginning these
procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object. Refer to “Appendix A” in this guide for
additional information on preventing electrostatic discharge.
1. Remove any diskette or compact discs (CDs) from the computer.
2. To shut down the computer, click the Start button, and then click
Turn Off Computer. The Turn Off Computer dialog box is
displayed. Select Turn O f f to turn the computer off.
3
Computer Upgrades
Hardware Reference Guide 3–1
Computer Upgrades

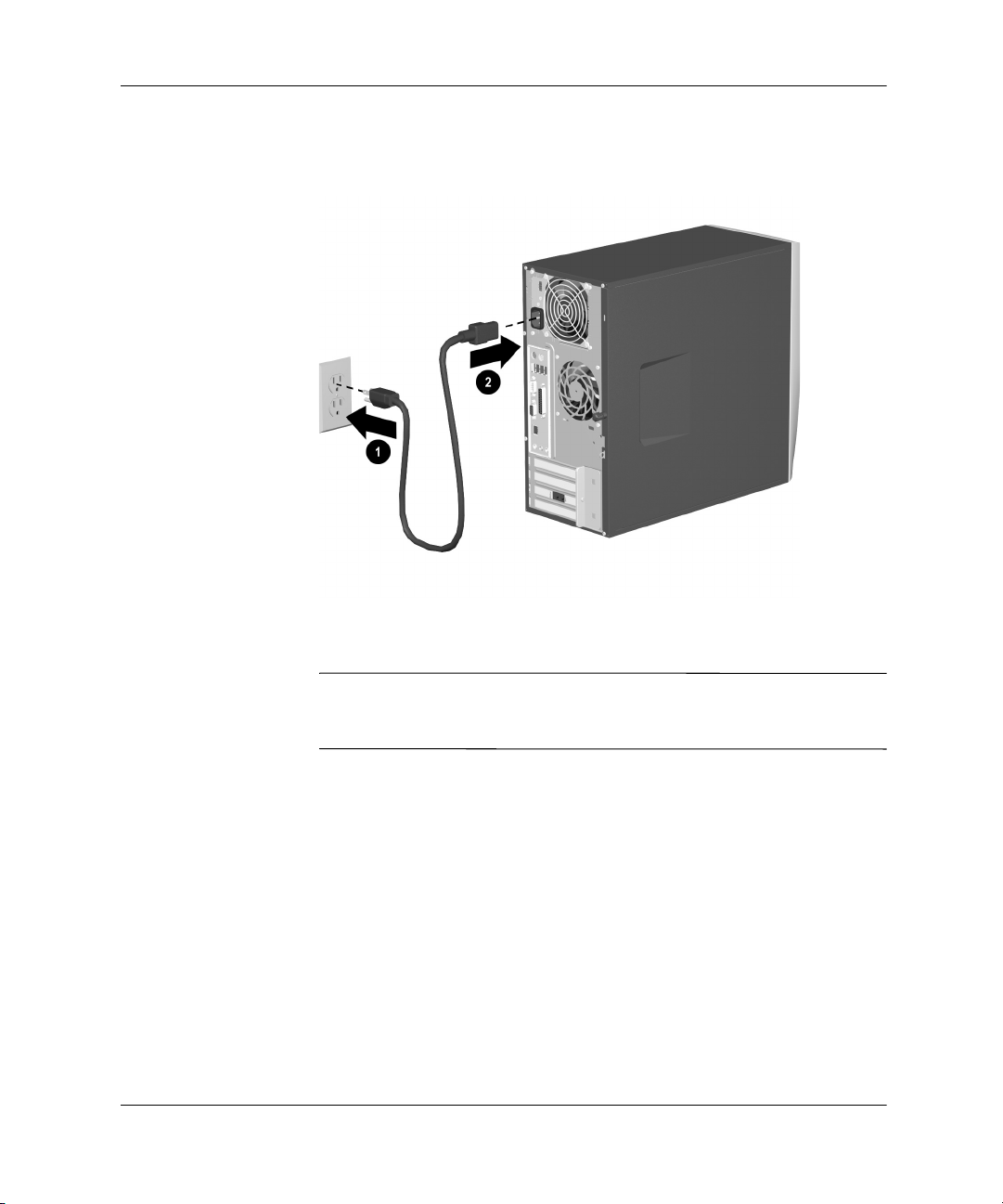

3. Disconnect the power cord from the electrical outlet 1 and then
from the computer 2.
Disconnecting the Power Cord
WARNING: To reduce the risk of personal injury from electrical shock
Å
and/or hot surfaces, be sure to disconnect the power cord from the wall
outlet, and allow the internal system components to cool before
touching.
4. Disconnect all external devices connected to the computer.
3–2 Hardware Reference Guide
Computer Upgrades
5. Lay the computer on its side with the access panel (the side with
the pull grip) facing up.
6. Remove the access panel by loosening the screw 1 that secures
the access panel to the computer chassis. Slide the access panel
back 2 about 1 inch/2.54 centimeters, then lift it up and off the
unit.
Removing the Computer Access Panel
Hardware Reference Guide 3–3
Computer Upgrades
7. Remove the front bezel by gently prying the top section 1 of the
bezel away from the chassis. On the inside of the front bezel,
press the center two tabs (not the bottom tabs) to release the
bezel, then pull it from the chassis 2.
Removing the Front Bezel
Removing or Upgrading a Drive
Depending on your computer configuration, you may have up to four
of the following storage drives in your computer.
■ CD-ROM or CD-RW drive
■ DVD-ROM or DVD-R/RW drive
■ Hard drive
■ Diskette drive
This section describes the procedure for replacing or upgrading your
storage drives. You will need a Torx or Flathead screwdriver to
replace any of the drives.
3–4 Hardware Reference Guide
CAUTION: Make sure you backup your personal files on the hard drive
Ä
to an external storage device, such as a CD, before removing the hard
drive. Failure to do so will result in data loss. After replacing the hard
drive, you will need to run the Compaq Restore Plus! CD to load the
Compaq factory installed files.
Locating Drive Positions
Computer Upgrades
Drive Positions
1 Optical drive (may be a CD-ROM, CD-RW, DVD-ROM or
DVD-R/RW drive)
2 Second optical drive (may be a DVD-ROM, DVD-R/RW,
CD-ROM or CD-RW drive)
3 Diskette drive
4 Hard drive
Removing A Drive
1. Locate the drive you want to remove. See the previous section in
the chapter on “Locating Drive Positions” for details.
Hardware Reference Guide 3–5
Computer Upgrades
2. Complete the procedure described in “Preparing the Computer”
at the beginning of this chapter.
3. Disconnect the power and data cables from the back of the drive
you want to remove as indicated in the following illustrations.
Disconnecting the Optical Drive Cables
3–6 Hardware Reference Guide
Disconnecting the Diskette Drive Cables
Computer Upgrades
Disconnecting the Hard Drive Cables
Hardware Reference Guide 3–7
Computer Upgrades
4. A latch drive bracket with release tabs 1 secure the drives in their
respective positions. Lift the release tab on the latch drive bracket
for the drive you want to remove, then slide the drive from its
drive bay 2.
Removing a Drive
5. If you are replacing the old drive with a new drive, remove the
four screws, two from each side, from the old drive. You will
need these screws to install in the new drive.
3–8 Hardware Reference Guide
Replacing or Adding a Drive
1. Install the four guide screws (two on each side) that you removed
from the old drive into the new drive. The screws help guide the
drive into its proper position in the bay.
2. Slide the drive into the drive bay 1, making sure to align the
guide screws with the guide slots, until it snaps into place.
Computer Upgrades
Sliding the Drive into the Drive Cage
3. Reconnect the power and data cables to your drive as indicated in
the following illustrations.
Hardware Reference Guide 3–9
Computer Upgrades
Reconnecting the Optical Drive Cables
Reconnecting the Diskette Drive Cables
3–10 Hardware Reference Guide
Computer Upgrades
Reconnecting the Hard Drive Cables
4. Complete the procedure described in “Reassembling the
Computer” section towards the end of this chapter.
5. Turn on the computer.
6. If you replaced the hard drive, insert the Compaq Restore Plus!
CD to restore the operating system, software drivers, and/or any
software applications that were preinstalled on the computer from
Compaq. Follow the instructions in the guide included with the
restore CD. When the restore process is completed, reinstall your
personal files that you backed up before replacing your hard
drive.
Upgrading or Replacing Memory
Your computer comes with random access memory (RAM), which
temporarily stores data and instructions on your computer. Memory
expansion modules can be installed in the memory expansion slots in
the computer.
Hardware Reference Guide 3–11
Computer Upgrades
There are several different types of memory modules. Install the same
type of memory currently in your computer. To find your type of
memory, go to compaq.com/athome/memory Web site (not
available in all languages).
No tools are needed to remove, replace, or upgrade memory modules.
Removing a Memory Module
CAUTION: When handling a memory module, be careful not to touch
Ä
any of the contacts. Doing so may damage the module.
1. Complete the procedure described in “Preparing the Computer”
section at the beginning of this chapter, but do not remove the
front bezel.
3–12 Hardware Reference Guide
Computer Upgrades
2. Locate the memory module inside your computer. See the
following illustration for the location of the memory modules 1,
memory slots 2 and release latches 3 on the system board.
Locating the Memory Module
The location and number of memory modules may vary slightly by
✎
model.
Hardware Reference Guide 3–13
Computer Upgrades
3. Open both latches of the memory module socket 1 found at each
end of the memory module. Lift the memory module 2 from the
memory slot.
Removing a Memory Module
Replacing or Adding a Memory Module
CAUTION: When handling a memory module, be careful not to touch
Ä
any of the contacts. Doing so may damage the module.
Upgrade the memory in your computer with memory of the same type
✎
and speed to the memory originally installed in your computer. You
can find out exactly what type of memory is in your computer at the
compaq.com/athome/memory Web site (not available in all
languages).
3–14 Hardware Reference Guide
Computer Upgrades
1. Open both latches of the memory module socket 1.
Opening the Latches on the Memory Module Socket
If you are replacing a memory module, put the new memory module
✎
in the same memory slot from which the old memory was removed.
If you are adding a memory module, install the new module into the
✎
socket nearest the preinstalled module, and install additional modules
in the next available sockets.
Hardware Reference Guide 3–15
Computer Upgrades
2. The memory module can be installed in only one way. Match the
notch on the module 1 with the tab on the memory socket. Push
the module carefully and firmly into the slot ensuring that the
latches 2 on both ends snap into place.
Installing a Memory Module
3. Complete the procedure described in “Reassembling the
Computer” section of this guide.
If a blank screen is displayed after replacing or adding a memory
✎
module, the memory is installed incorrectly or it is the wrong type of
memory. Remove and reinstall the memory module as previously
described in the “Replacing or Adding a Memory Module” section of
this chapter.
Removing or Installing an Expansion Card
An expansion card is a circuit board that fits into a computer
expansion slot. Your computer contains several expansion slots that
can be used to add components to your computer.
3–16 Hardware Reference Guide
Computer Upgrades
Expansion cards you can add to your computer include:
■ Modem
■ Network Interface Card (NIC)
■ Graphics Card
■ Sound Card
A Phillips screwdriver is needed to remove, replace, or add an
expansion card.
1. Complete the procedure described in “Preparing the Computer”
section at the beginning of this chapter, but do not remove the
front bezel.
2. On the rear of the computer an expansion bracket cover secures
the expansion slots. To remove the expansion bracket cover,
remove the screw from the bracket cover 1, then remove the
expansion bracket cover 2.
Removing the Screw and Expansion Bracket Cover
3. Inside the computer, locate the expansion slots on the system
board.
Hardware Reference Guide 3–17
Computer Upgrades
4. If you are removing an expansion card, hold the card at each end,
carefully rock it back and forth until the connectors pull free from
the socket. Be sure not to scrape the card against the other
components.
Removing an Expansion Card
5. If you are not replacing the old expansion card with a new
expansion card, install the expansion slot cover to close the open
slot. Insert the metal slot cover in the opened slot and install a
crew to the top of the cover to secure it in place.
3–18 Hardware Reference Guide
Computer Upgrades
6. If you are replacing or adding a new expansion card, align the
edge of the expansion card with the slot on the chassis and gently
press the card straight down into the expansion slot.
Replacing or Adding an Expansion Card
When you install an expansion card, press firmly on the card so that
✎
the whole connector seats properly in the expansion card slot.
7. If you have replaced or added a new expansion card, store the old
card in the anti-static packaging that contained your new card.
Hardware Reference Guide 3–19
Computer Upgrades
8. Replace the expansion cover bracket 1 and screw 2.
Replacing the Expansion Bracket Cover
9. Complete the procedure described in “Reassembling the
Computer” section towards the end of this chapter.
3–20 Hardware Reference Guide
Reassembling the Computer
1. Position the chassis in the upright position. At an angle, align the
lower end of the front bezel with the bottom end 1 of the chassis
so that front bezel hooks onto the chassis, then press the top end
of the bezel to the chassis until it snaps into place 2.
Computer Upgrades
Replacing the Front Bezel
Hardware Reference Guide 3–21
Computer Upgrades
2. Place the side access panel in the proper position on the chassis
and slide it into place 1. Ensure that the hole for the thumbscrew
is aligned with the hole in the chassis 2 and replace the
thumbscrew.
Replacing the Side Access Panel
3–22 Hardware Reference Guide
Computer Upgrades
3. Reconnect the power cable 1 to the computer and plug the cable
into an electrical outlet 2.
Reconnecting the Power Cable
4. Reconnect all peripheral devices to the computer.
WARNING: To reduce the risk of electrical shock, fire, or damage to the
Å
equipment, do not plug telecommunications or telephone connectors
into the network interface controller (NIC) ports.
5. Turn on the computer by pressing the power button.
Hardware Reference Guide 3–23
Electrostatic Discharge
A discharge of static electricity from a finger or other electrostatic
conductor may damage electronic components. Before handling
electrostatic-sensitive components, discharge static electricity by one
the methods described in this appendix.
Preventing Electrostatic Damage
When Handling Drives
■ Before handling a drive, discharge static electricity by touching
the unpainted metal surface or lug nuts on the connectors on the
rear of the computer.
■ Avoid touching connector pins on the computer or a drive.
When Installing Internal Components
A
■ Keep components in their electrostatic-safe containers until you
are ready to install them.
■ Have everything needed for the installation within reach so that
you do not have to leave the area after beginning installation.
■ Use nonmagnetic tools.
■ Avoid touching pins, leads, and circuitry. Handle electronic
components as little as possible.
■ If you remove a component, place it in an electrostatic-safe
container.
Hardware Reference Guide A–1
Specifications
Depending on your computer model, specifications may vary.
Compaq 6000 Series Computer
Desktop Dimensions
Height
Width
Depth
Approximate Weight 20.0 lb 9.1 kg
3.8 in
12.5 in
14.6 in
9.7 cm
31.8 cm
37.1 cm
B
Weight Supported (maximum distributed
load)
Temperature Range
Operating
Nonoperating
Relative Humidity (noncondensing)
Operating
Nonoperating
Maximum Altitude (unpressurized)
Operating
Nonoperating
Power Supply
Operating Voltage Range
Rated Voltage Range*
Rated Line Frequency
Power Output 235 W 235 W
Rated Input Current (maximum)* 3.6 A @100 VAC 1.8 A @ 200
100.0 lb 45.5 kg
50° to 95°F
-4° to 140°F
8-90%
5-95%
10,000 ft
30,000 ft
90-264 VAC
100-240 VAC
50-60 Hz
100-240 VAC
10° to 35°C
-20° to 60°C
8-90%
5-95%
3048 m
9144 m
90-264 VAC
50-60 Hz
VAC
Hardware Reference Guide B–1
Specifications
Compaq 6000 Series Computer (Continued)
Heat Dissipation
Maximum
Nominal
*Some models use a full-ranging, active power factor corrected power supply. This
eliminates the need for an input voltage select switch and greatly reduces the input current
amplitude and harmonics.
1232 BTU/hr
616 BTU/hr
310 kg-cal/hr
155 kg-cal/hr
B–2 Hardware Reference Guide
Index
1394 port 1–2
A
access panel
removing
replacing 3–22
audio connectors
line out
line-in 1–4
3–3
1–4
B
backup files 3–5, 3–11
C
CD-R/RW drive 1–1
installation
CD-ROM drive 1–1
installation
components
Easy Access keyboard
front panel
keyboard 2–1
mouse
rear panel
Smart Card keyboard 2–8
3–4
3–4
1–1
1–5
1–3
2–2
drive positions
DVD-R/RW drive 1–1
installation
DVD-ROM drive
3–5
3–4
1–1
E
Easy Access Buttons 2–2, 2–3
Easy Access keyboard
customizing buttons 2–4
2–2, 2–8
using
electrostatic discharge
expansion card 3–16
installation
expansion slots
3–16
3–17
2–1, 2–2
3–1, A–1
F
front bezel
removing
replacing 3–21
front panel components
3–4
1–1
H
hard drive
activity light
installation 3–4
1–2
D
diskette drive 1–1
activity light
eject button
installation
drive locations
CD drive
diskette drive
DVD drive 3–5
hard drive
Hardware Reference Guide Index–1
1–2
1–2
3–4
3–5
3–5
3–5
I
installation
3–5, 3–9
drives
expansion cards
memory
installing upgrades
3–12
K
keyboard 2–1
connector
1–3
3–17
3–1
Index
identifying keys 2–2
Windows Logo Key
L
latch drive bracket 3–8
M
memory
installation
location
microphone
modem port
mouse
connector
customizing
optical mouse
scroll mouse
wireless wheel mouse
3–11
3–13
1–4
1–4
1–4
1–6
1–7
1–6
N
NIC 1–4
O
optical drives 1–1
activity light
eject button
optical mouse
1–1
1–2
1–7
P
parallel 1–4
power
1–2
button
cord connector
1–3
2–5
1–6
1–2
light
power cord
connecting
disconnecting
3–23
3–2
R
rear panel components 1–3
restoring software
3–11
S
scroll mouse 1–6
features
2–8
using
1–4
2–7
2–7, 2–8
B–1
2–6
serial port
Smart Card keyboard
specifications
system status lights
T
telephone 1–4
U
upgrades 3–1
1–2, 1–3
USB
V
video 1–4
voltage select switch
voltage selections
1–3
1–3
W
Windows Logo key 2–5
wireless mouse
1–6
Index–2 Hardware Reference Guide
Loading...
