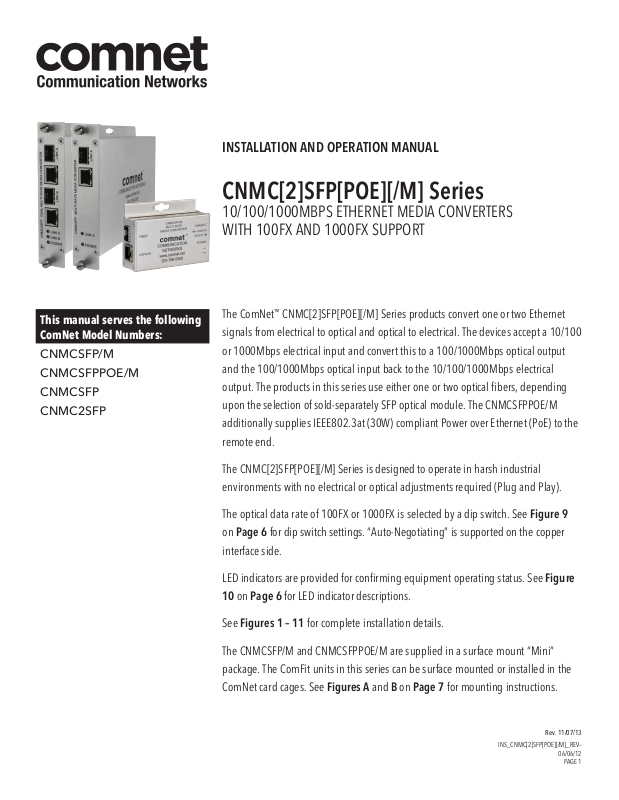

INSTALLATION AND OPERATION MANUAL

CNMC[2]SFP[POE][/M] Series

10/100/1000MBPS ETHERNET MEDIA CONVERTERS
WITH 100FX AND 1000FX SUPPORT

This manual serves the following
ComNet Model Numbers:

CNMCSFP/M

CNMCSFPPOE/M

CNMCSFP

CNMC2SFP

The ComNet™ CNMC[2]SFP[POE][/M] Series products convert one or two Ethernet
signals from electrical to optical and optical to electrical. The devices accept a 10/100
or 1000Mbps electrical input and convert this to a 100/1000Mbps optical output
and the 100/1000Mbps optical input back to the 10/100/1000Mbps electrical
output. The products in this series use either one or two optical fibers, depending
upon the selection of sold-separately SFP optical module. The CNMCSFPPOE/M
additionally supplies IEEE802.3at (30W) compliant Power over Ethernet (PoE) to the
remote end.

The CNMC[2]SFP[POE][/M] Series is designed to operate in harsh industrial
environments with no electrical or optical adjustments required (Plug and Play).

The optical data rate of 100FX or 1000FX is selected by a dip switch. See Figure 9
on Page 6 for dip switch settings. “Auto-Negotiating” is supported on the copper
interface side.

LED indicators are provided for confirming equipment operating status. See Figure
10 on Page 6 for LED indicator descriptions.

See Figures 1 – 11 for complete installation details.

The CNMCSFP/M and CNMCSFPPOE/M are supplied in a surface mount “Mini”
package. The ComFit units in this series can be surface mounted or installed in the
ComNet card cages. See Figures A and B on Page 7 for mounting instructions.

Rev. 11/07/13

INS_CNMC[2]SFP[POE][/M]_REV–

06/06/12

PAGE 1

INSTALLATION AND OPERATION MANUAL CNMC[2]SFP[POE][/M] SERIES

FIBER

POWER

COPPER

LINK/ACT

CNMCSFP/M
MULTIRATE

MEDIACONVERTER

TM

100FX

1000FX

~/-

~/+

FIGURE 1 – CNMCSFP/M SMALL SIZE UNIT

CNMCSFP/M

OPTICAL FIBER

DETERMINED BY

SELECTION OF

SFP MODULE

CAT5e/6

FIBER

COPPER

MULTIRATE

MEDIACONVERTER

TM

LINK/ACT

1000FX

100FX

POWER

~/+

~/-

BLACK

BLACK WITH WHITE STRIPE

Surface Mount Power:

9 – 24 VDC @ 200mA max.

OR

24 VAC @ 200mA max.

FIGURE 2 – CNMCSFP/M SMALL SIZE UNIT

REAR PANELFRONT PANEL

INS_CNMC[2]SFP[POE][/M]_REV– 06/06/12 PAGE 2TECH SUPPORT: 1.888.678.9427

INSTALLATION AND OPERATION MANUAL CNMC[2]SFP[POE][/M] SERIES

FIGURE 3 – CNMCSFPPOE/M SMALL SIZE UNIT

OPTICAL FIBER

DETERMINED BY

SELECTION OF

SFP MODULE

CAT5e/6

IEEE802.3at

(30W) PoE

BLACK

BLACK WITH WHITE STRIPE

Surface Mount Power:

48 – 57 VDC @ 0.85A

FIGURE 4 – CNMCSFPPOE/M SMALL SIZE UNIT

REAR PANELFRONT PANEL
