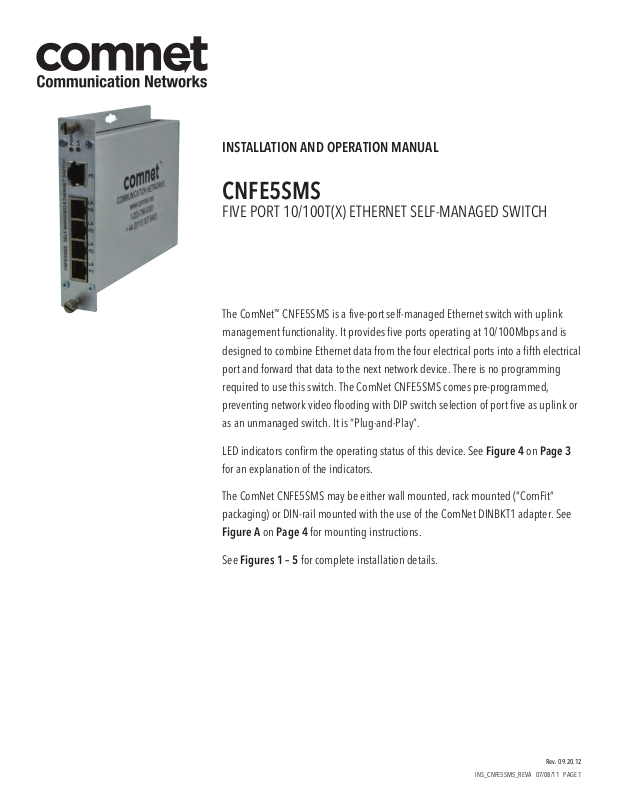

INSTALLATION AND OPERATION MANUAL

CNFE5SMS

FIVE PORT 10/100T(X) ETHERNET SELF-MANAGED SWITCH

The ComNet™ CNFE5SMS is a five-port self-managed Ethernet switch with uplink
management functionality. It provides five ports operating at 10/100Mbps and is
designed to combine Ethernet data from the four electrical ports into a fifth electrical
port and forward that data to the next network device. There is no programming
required to use this switch. The ComNet CNFE5SMS comes pre-programmed,
preventing network video flooding with DIP switch selection of port five as uplink or
as an unmanaged switch. It is “Plug-and-Play”.

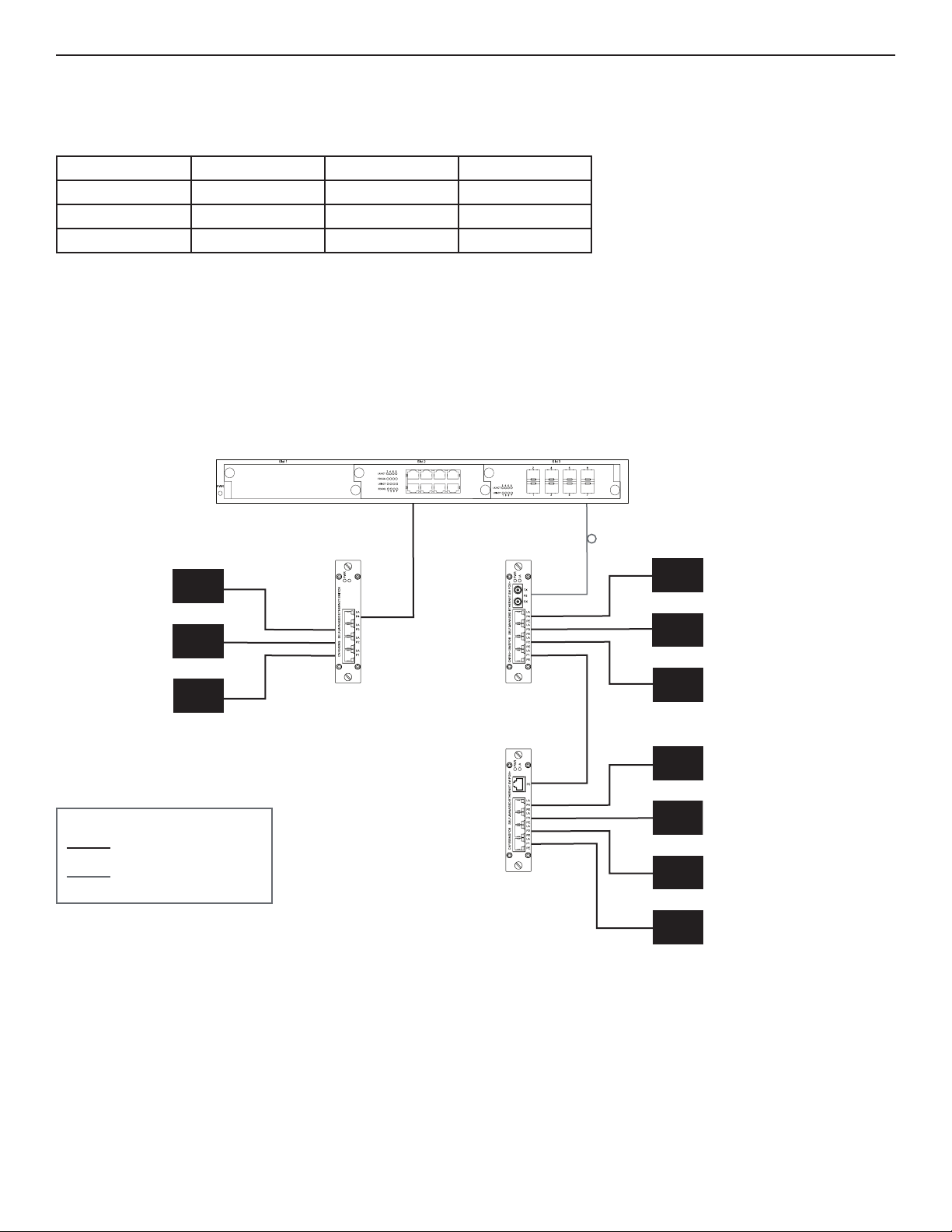

LED indicators confirm the operating status of this device. See Figure 4 on Page 3
for an explanation of the indicators.

The ComNet CNFE5SMS may be either wall mounted, rack mounted (“ComFit”
packaging) or DIN-rail mounted with the use of the ComNet DINBKT1 adapter. See
Figure A on Page 4 for mounting instructions.

See Figures 1 – 5 for complete installation details.

Rev. 09.20.12

INS_CNFE5SMS_REVA 07/08/11 PAGE 1

INSTALLATION AND OPERATION MANUAL CNFE5SMS

FIGURE 1 – CNFE5SMS

RJ-45

RJ-45

RJ-45

RJ-45

RJ-45

FIGURE 2 – CNFE5SMS

BLACK

BLACK WITH WHITE STRIPE

Power Supply:
Surface Mount: 9–24VDC@1A
Rack Mount: From Rack

NOTE: Remove Electrical

Connector for Rack
Mount Units

FIGURE 3 – UPLINK SWITCH SETTINGS

REAR PANELFRONT PANEL

EFFECT UPLINK

Uplink Enabled ON

Uplink Disabled OFF

Tech SupporT: 1.888.678.9427

INS_CNFE5SMS_REVA 07/08/11 PAGE 2
