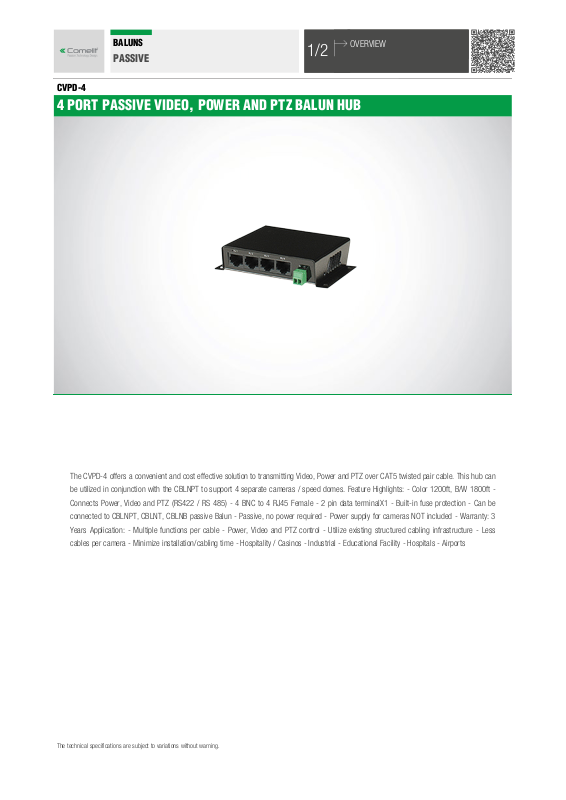

Comelit CVPD-4 Specsheet
CVPD-4
BALUNS
PASSIVE
1/2
OVERVIEW
4 PORT PASSIVE VIDEO, POWER AND PTZ BALUN HUB
The CVPD-4 offers a convenient and cost effective solution to transmitting Video, Power and PTZ over CAT5 twisted pair cable. This hub can
be utilized in conjunction with the CBLNPT to support 4 separate cameras / speed domes. Feature Highlights: - Color 1200ft, B/W 1800ft -
Connects Power, Video and PTZ (RS422 / RS 485) - 4 BNC to 4 RJ45 Female - 2 pin data terminalX1 - Built-in fuse protection - Can be
connected to CBLNPT, CBLNT, CBLNB passive Balun - Passive, no power required - Power supply for cameras NOT included - Warranty: 3
Years Application: - Multiple functions per cable - Power, Video and PTZ control - Utilize existing structured cabling infrastructure - Less
cables per camera - Minimize installation/cabling time - Hospitality / Casinos - Industrial - Educational Facility - Hospitals - Airports
The technical specifications are subject to variations without warning.
CVPD-4
BALUNS
PASSIVE
2/2
FUNCTION AND GENERAL DATA
4 PORT PASSIVE VIDEO, POWER AND PTZ BALUN HUB
GENERAL DATA
Height (inch): 0.1
Width (inch): 0.2
Depth (inch): 0.04
Type of finish:
Unit of measurement: Inches
The technical specifications are subject to variations without warning.
