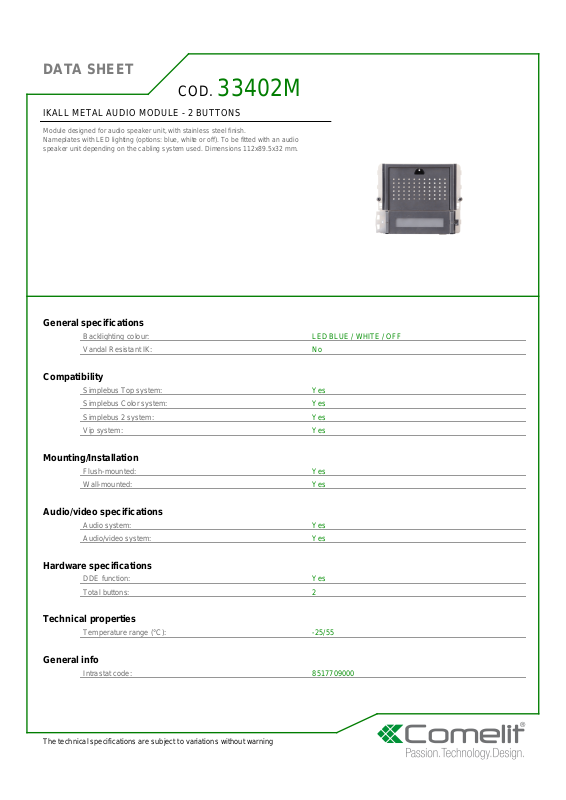

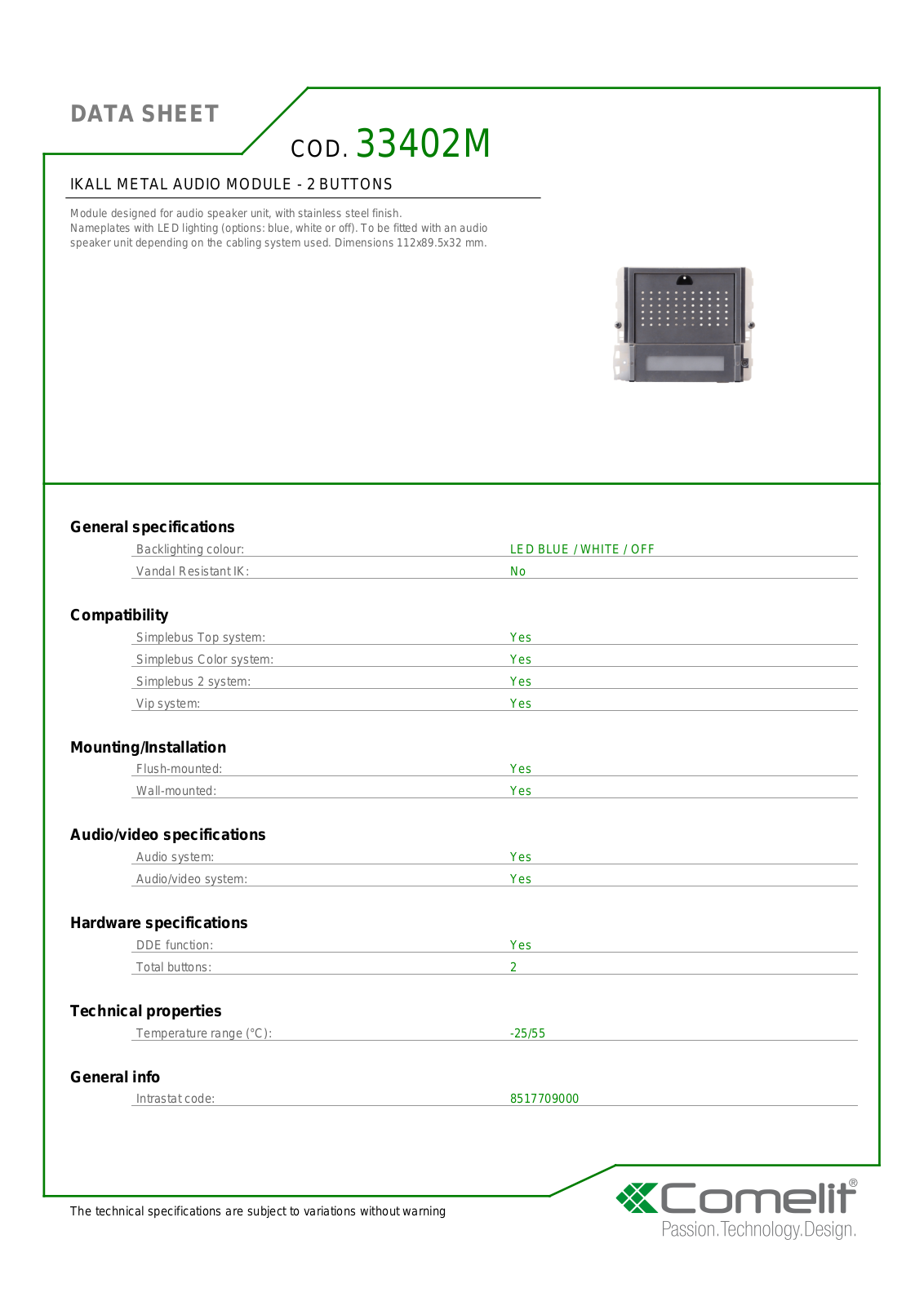

Comelit 33402M Specsheet

DATA SHEET

COD.

33402M

IKALL METAL AUDIO MODULE - 2 BUTTONS

Module designed for audio speaker unit, with stainless steel finish.
Nameplates with LED lighting (options: blue, white or off). To be fitted with an audio
speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

General specifications

Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

DDE function: Yes
Total buttons: 2

Technical properties

Temperature range (°C): -25/55

General info

Intrastat code: 8517709000

The technical specifications are subject to variations without warning

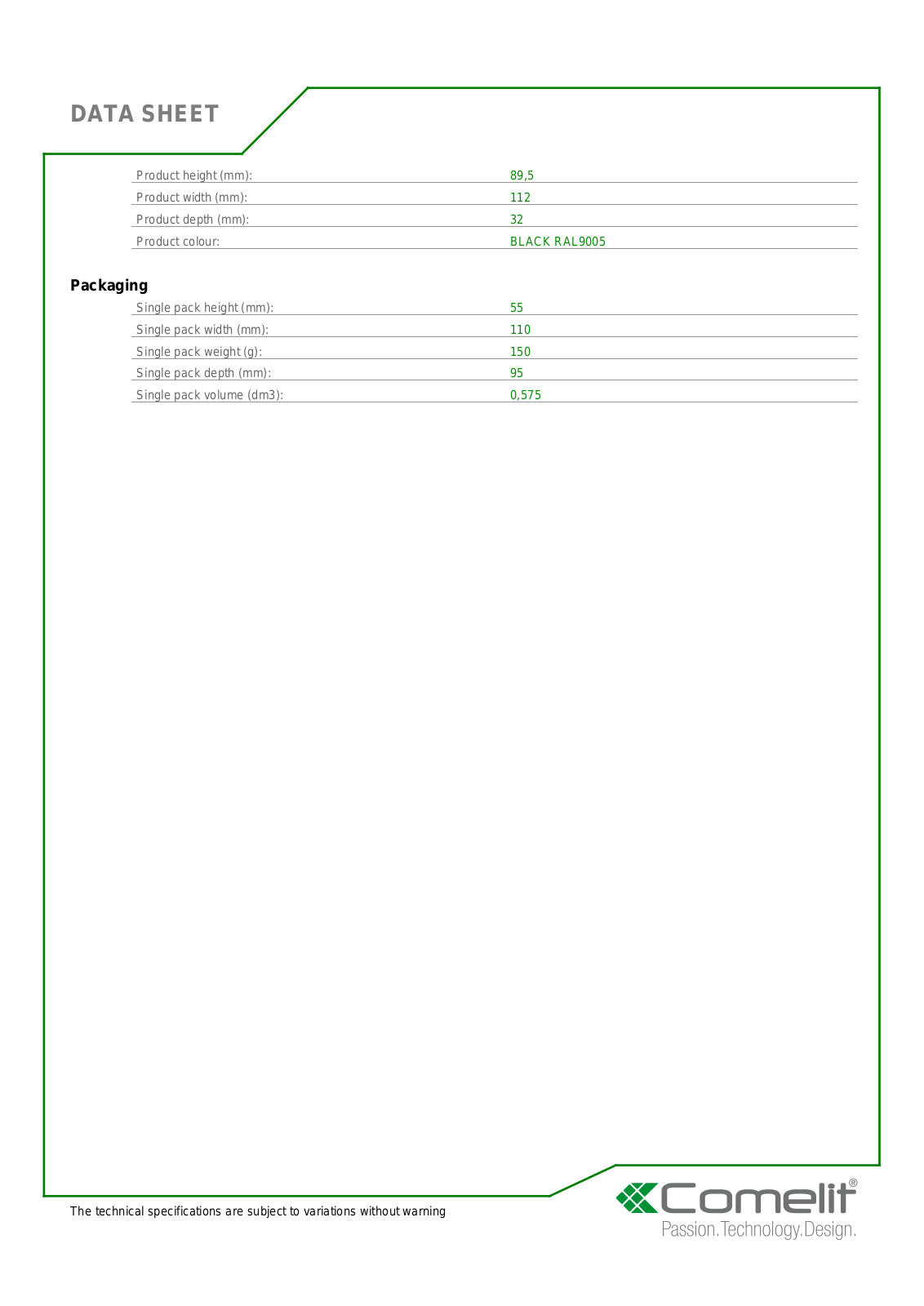

DATA SHEET

Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: BLACK RAL9005

Packaging

Single pack height (mm): 55
Single pack width (mm): 110
Single pack weight (g): 150
Single pack depth (mm): 95
Single pack volume (dm3): 0,575

The technical specifications are subject to variations without warning
