Comelit 1253 Specsheet

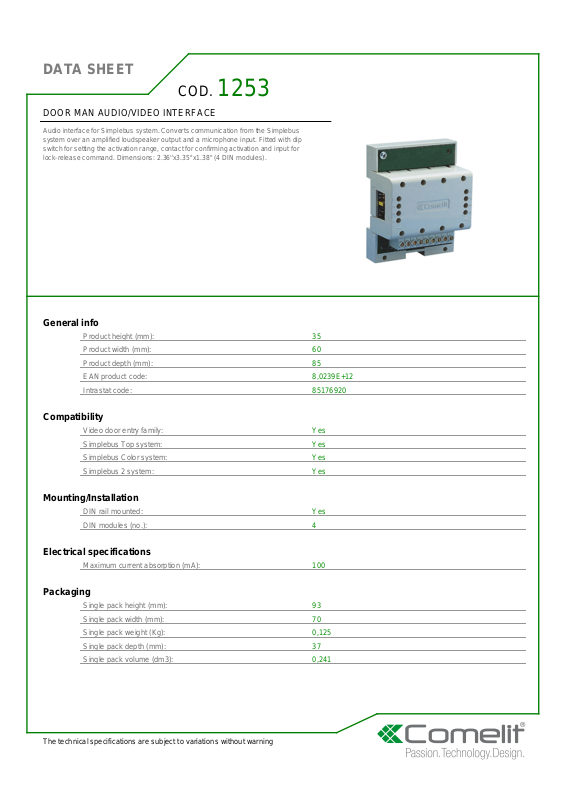

DATA SHEET

COD.

1253

DOOR MAN AUDIO/VIDEO INTERFACE

Audio interface for Simplebus system. Converts communication from the Simplebus
system over an amplified loudspeaker output and a microphone input. Fitted with dip
switch for setting the activation range, contact for confirming activation and input for
lock-release command. Dimensions: 2.36''x3.35''x1.38'' (4 DIN modules).

General info

Product height (mm): 35
Product width (mm): 60
Product depth (mm): 85
EAN product code: 8,0239E+12
Intrastat code: 85176920

Compatibility

Video door entry family: Yes
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes

Mounting/Installation

DIN rail mounted: Yes
DIN modules (no.): 4

Electrical specifications

Maximum current absorption (mA): 100

Packaging

Single pack height (mm): 93
Single pack width (mm): 70
Single pack weight (Kg): 0,125
Single pack depth (mm): 37
Single pack volume (dm3): 0,241

The technical specifications are subject to variations without warning
