Clear-Com Eclipse-PiCo User Manual
ECLIPSE PICO MATRIX
INSTRUCTION MANUAL
Eclipse PiCo Matrix Instruction Manual
© 2007. 2009 Vitec Group Communications Ltd. All rights reserved.
Part Number 810348Z Rev. 5
Vitec Group Communications LLC
850 Marina Village Parkway
Alameda, CA 94501
U.S.A.
Vitec Group Communications Ltd
7400 Beach Drive
Cambridge Research Park
Cambrideshire
United Kingdom
CB25 9TP
The Vitec Group plc
Beijing Representative Office
Room 706, Tower B
Derun Building, YongAn Dongli A No.3
Jianwai Ave., Chaoyang District
Beijing, P.R.China 100022
® Clear-Com, CellCom/FreeSpeak and the Clear-Com Communication Systems logo are
registered trademarks of The Vitec Group plc.
Website: www.clearcom.com
CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
The Eclipse PiCo Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Intelligent Linking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
High Speed Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
IFB Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Powerful Programming Features . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Individual Level Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Excellent Audio Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Robust and Compatible. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Eclipse PiCo Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
System Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Matrix Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Power Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Rear-Panel Connectors (“Ports”). . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Eclipse Configuration Software (ECS) . . . . . . . . . . . . . . . . . . . . .1-6
Remote Intercom Panels and Accessory Panels . . . . . . . . . . . . .1-7
Remote Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
OPERATING AN ECLIPSE PICO MATRIX. . . . . . . 2-1
Storing and Retrieving Configurations . . . . . . . . . . . . . . . . . . . . . . .2-1
Front-Panel Controls and Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
PC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
OK Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Configuration “Config” Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Configuration Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Power Supply Alarm Lights (1 and 2) . . . . . . . . . . . . . . . . . . . . . .2-3
LAN Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Display Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Setup/Enter Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Default IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Connecting the Matrix to remote Devices. . . . . . . . . . . . . . . . . . . . .2-5
Connecting to AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Connecting to Panels and Interfaces. . . . . . . . . . . . . . . . . . . . .2-5
Connecting to General-Purpose Outputs. . . . . . . . . . . . . . . . . .2-6
Connecting to General-Purpose Inputs. . . . . . . . . . . . . . . . . . .2-7
Connecting to a GPI/RLY Interface . . . . . . . . . . . . . . . . . . . . . .2-7
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
i
Connecting to a Second Eclipse PiCo Matrix . . . . . . . . . . . . . .2-7
Connecting to a Local Area Network. . . . . . . . . . . . . . . . . . . . .2-8
USING THE PICO FRONT PANEL MENUS . . . . . . 3-1
Starting from the Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Checking Port Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Adjusting Audio Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Creating Audio Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
Selecting and Activating a Configuration . . . . . . . . . . . . . . . . . . . . .3-6
Allocating an IP Address to the PiCo . . . . . . . . . . . . . . . . . . . . . . . .3-7
Resetting to the Default IP Address . . . . . . . . . . . . . . . . . . . . . . .3-8
Accessing System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
Accessing System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
Selecting a Source of Identification Tone . . . . . . . . . . . . . . . . . . . .3-10
Resetting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12
Checking the Status of General Purpose Inputs (GPIs) . . . . . . . . .3-13
Checking the Status of General Purpose Outputs (GPOs). . . . . . .3-13
INSTALLING AN ECLIPSE PICO MATRIX . . . . . . . 4-1
Verifying the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Unpacking the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Installing the Eclipse PiCo Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Wiring the Matrix to Remote Devices . . . . . . . . . . . . . . . . . . . . . . . .4-2
Wiring to AC Mains Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Wiring to Panels and Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
4-Pair Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Wiring to 4-Wire Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
2-Pair Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Single-Pair Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Wiring General-Purpose Outputs . . . . . . . . . . . . . . . . . . . . . . . . .4-6

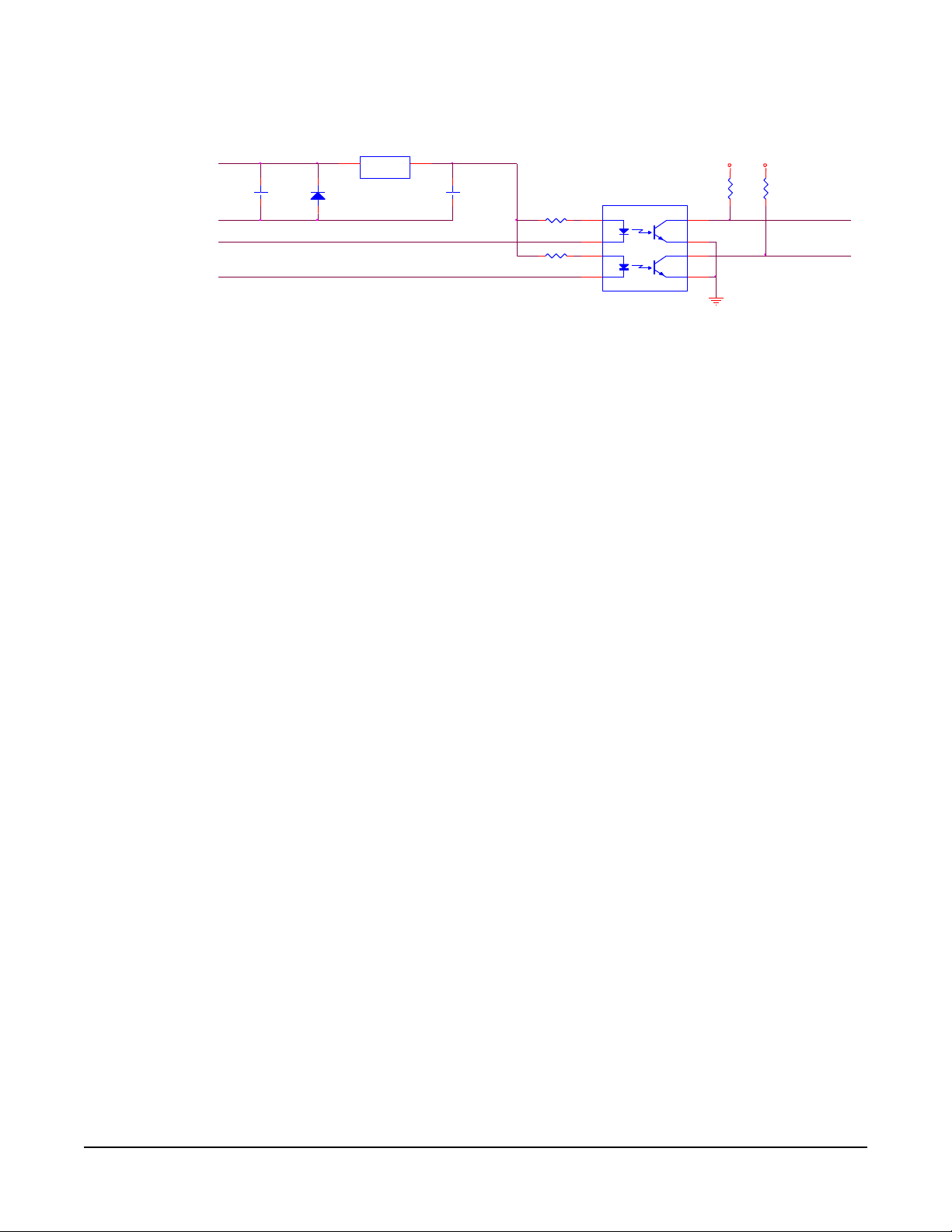

Wiring General-Purpose Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Wiring to a GPI/RLY Interface. . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
RLY-6 Interface Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
IMF-102 Interface Module Frame Wiring. . . . . . . . . . . . . . . . .4-13
GPI-6 Interface Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-13
IMF-3 Interface Module Frame Wiring. . . . . . . . . . . . . . . . . . .4-14

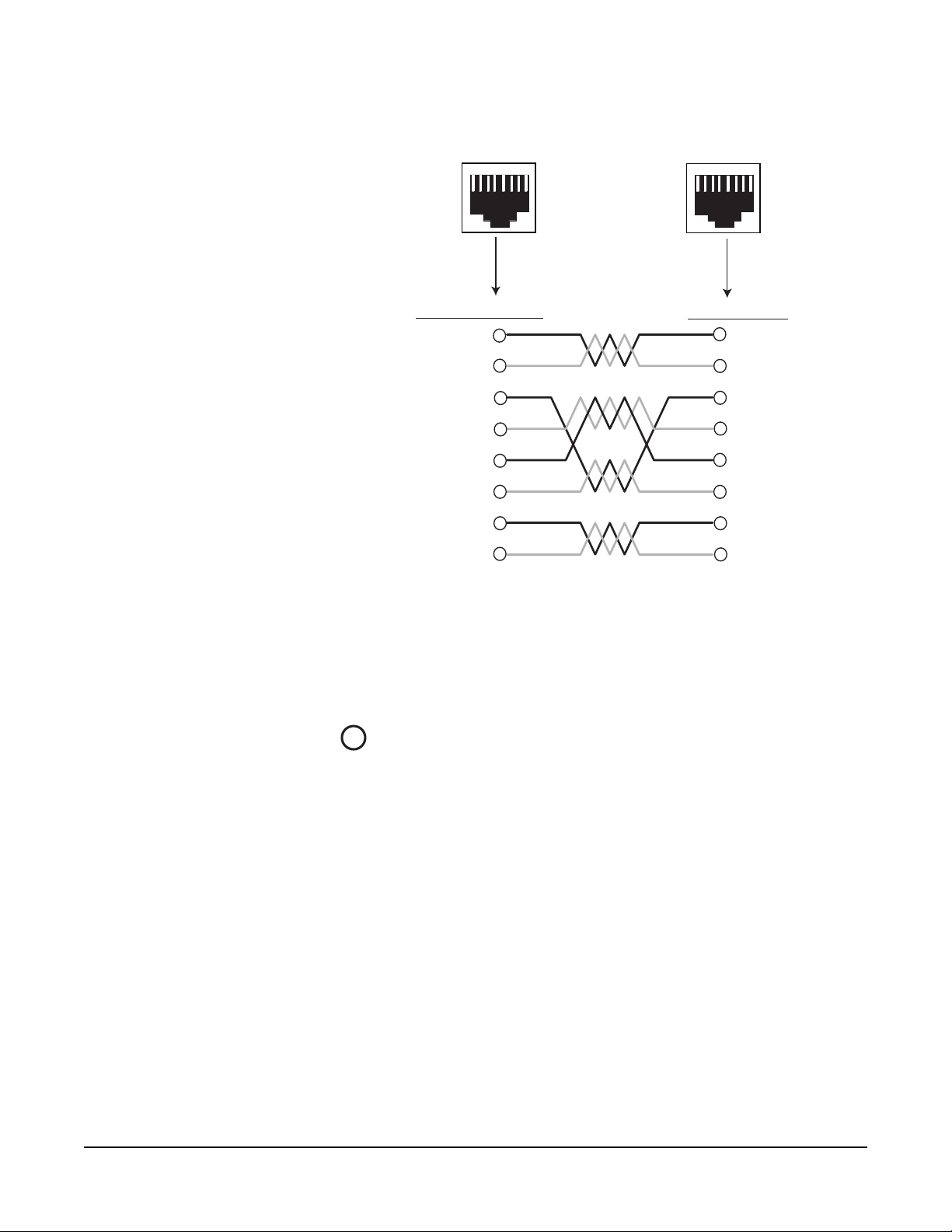

Wiring to a Second Eclipse Matrix. . . . . . . . . . . . . . . . . . . . . . . .4-15
Wiring to a Local Area Network. . . . . . . . . . . . . . . . . . . . . . . . . .4-16
Wiring to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-17
ii
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
MAINTAINING AN ECLIPSE PICO MATRIX. . . . . . 5-1
Recommended Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Dual, Independent Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . .5-1
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Eclipse PiCo Technical Specification . . . . . . . . . . . . . . . . . . . . . . . .6-1
APPENDIX: PICO MENU MAP . . . . . . . . . . . . . . . . 7-1
GLOSSARY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Eclipse Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
Software Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
Hardware Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . W-I
TECHNICAL SUPPORT & REPAIR POLICY. . . . . W-V
TECHNICAL SUPPORT POLICY. . . . . . . . . . . . . . . . . . . . . . . . . . W-v
RETURN MATERIAL AUTHORIZATION POLICY . . . . . . . . . . . . .W-vi
REPAIR POLICY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . W-viii
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
iii
iv
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
Please read and follow these
instructions before operating
this product.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades, with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
15. WARNING: To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
Please familiarize yourself with the safety symbols in Figure 1.
When you see these symbols on this product, they warn you of
the potential danger of electric shock if the main station is used
improperly. They also refer you to important operating and
maintenance instructions in the manual.
i
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol alerts you to the presence of uninsulated dangerous
voltage within the product's enclosure that might be of sufficient
magnitude to constitute a risk of electric shock. Do not open
the product's case.
This symbol informs you that important operating and maintenance instructions are included in the literature accompanying
this product.
Figure ii-1: Safety Symbols
EMC AND SAFETY
The Eclipse PiCo matrix meet all relevant CE, FCC, UL, and CSA
specifications set out below:
EN55103-1 Electromagnetic compatibility. Product family
standard for audio, video, audio-visual, and entertainment
lighting control apparatus for professional use. Part 1:
Emissions.
EN55103-2 Electromagnetic compatibility. Product family
standard for audio, video, audio-visual, and entertainment
lighting control apparatus for professional use. Part 2: Immunity.
UL 60065-7, CAN/CSA-C22.2 No.60065-3, IEC 60065-7 Safety
requirements.
And thereby compliance with the requirement of Electromagnetic
Compatibility Directive 2004/108/EC and Low Voltage Directive
2006/95/EC
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
ii
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
1
The Eclipse PiCo digital
matrix intercom features 32
full-duplex communications
ports, plus four 4-wire ports.
The matrix fits in one rack
unit (1 RU) of a standard
Electronic Industry
Association equipment rack.
INTRODUCTION
THE ECLIPSE PICO MATRIX
The Eclipse family of communications products includes the Eclipse
PiCo digital matrix intercom, which offers 32 full-dup lex communication
ports, plus four extra 4-wire ports, in a one rack unit (1 RU) chassis.
The Eclipse PiCo matrix supports the same V-Series panels,
i-stations, 4000 series panels, ICS digital matrix panels and interfaces
as its larger counterparts, the Eclipse Omega and Median matrices,
and is programmed and controlled with the same Eclipse Configuration
System (ECS) software.
Two Eclipse PiCo matrices can be joined together to form an
intelligently linked non-blocking 64-port system in two rack units (2 RU)
using a single RJ-45 “base loop” connection. The Eclipse PiCo matrix
also provides two power supplies for fail-safe redundancy, and
onboard general-purpose inputs and outputs.
The Eclipse PiCo matrix is built around the powerful Motorola 8260
processor, giving it the same processing power as the larger Eclipse
Omega matrix.
This manual refers to facilities in the Eclipse 4.2 software release.
Features of the Eclipse PiCo matrix include:
• Thirty-six ports in one rack unit (1 RU), including four 4-wire ports
• Eight onboard relays and eight onboard GPIs
• Non-blocking 64-port system created by connecting two matrices with
the high-speed link
• Intelligent linking of up to 15 matrices using the 4-wire trunks and a
LAN
• Two power supplies for fail-safe redundancy
• Seamless interfacing
• DTMF inward access
• Programmable VOX
• Individual level control
• Intuitive ECS programming software
• Remote matrix access via Internet/Ethernet
• Frequency response of 30 Hz to 22 kHz, ± 3 dB
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
• SNR and crosstalk > -70 dB
1-1
INTELLIGENT LINKING
An intelligent link may be used to connect an Eclipse PiCo to other
Eclipse-32, Eclipse Pico, Eclipse Median or Eclipse Omega matrices.
Up to 15 matrices may be connected. The linking between matrices is
via dedicated trunk lines between ports on the linked systems.
This capability is in addition to the high-speed link which connects two
Eclipse PiCo matrices into one non-blocking 64-port system subject to
the condition described below.
Two Eclip se PiCo matrices that are connected usin g a high-speed link
cannot also be connected together with a trunk line. In this case trunk
lines should only be used to connect such Eclipse PiCo systems to
other matrices.
Any port within the matrix may be used as a trunk line, and carries one
full-duplex communications path between the matrices. Typically the
number of trunk lines would equal the anticipated simultaneous
communications between matrices. The system will intelligently use
and release these lines to route the communications traffic between
panels connected with the various matrices, routing the calls through
available open trunks.
HIGH SPEED LINK
A high speed link is used to connect two Eclipse PiCo matrices
together via the Base Loop Connector to create a 64-port non-blocking
system. The high speed link operates by ‘mapping’ the physical ports
(0-35) of the remote system onto a second set of virtual ports on the
local system (36-71). A panel on the local system can listen to a p anel
on the remote system simply by listening to the virtual port for that
panel.
If a panel on the remote system opens a talk path to a panel on the
local system a message is sent via the link instructing the local system
to create the required audio path from the remote system to the local
panel.
The ethernet link is required to pass key labels between the systems
as well as receive configuration data from ECS.
A diagram of High Speed Link operation is shown in Figure 1-1.
1-2
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
Figure 1-1: High Speed Link Operation
IFB Support
The High Speed Link supports the use of remote callers to IFB
destinations between the linked systems. When a remote caller opens
an audio path to an IFB destination the source for that IFB will be
dimmed as normal.
The High Speed Link will support the use of Local IFB where
Assignment Panels can assign sources to an IFB locally. This option
may be enabled in ECS (Advanced Settings > AP Panel Options > IFB
Assignment).
POWERFUL PROGRAMMING FEATURES
The Eclipse Configuration System is a powerful programming soft ware
suite that covers all aspects of the Eclipse PiCo, Eclipse-32, Eclipse
Median and Eclipse Omega digital intercom matrices. From creating
user labels for panel key assignments, to configuring interfaces,
assigning routes, and adjusting system levels, the intuitive software
makes the process transparent and relatively simple to control.
A series of pull-down menus eases navigation through the software.
Visual representations of intercom panels allow drag-and-drop
placement of labels onto the panel keys.
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
Software features include:
• Global and local IFBs
• Programmable VOX
• DTMF inward access
• Activation of relays, routes, and DTMF sequences via controls
• Global and individual key latch disable
• Configuration of matrix and panel relays
1-3
NOTE: The term
“central matrix” is used
to differentiate the
system’s core hardware
and software from the
connected intercom
panels and interfaces.
The central matrix itself
consists of the matrix
hardware and
configuration software.
• Forced listens (normally made routes)
• Port I/O level control
• Local and global ISO routes
• Control labels
The Eclipse PiCo matrix allows TCP/IP access to the system for
updates. The system may be accessed remotely for programming or to
retrieve configurations. Up to four full-system configurations may be
stored in the Eclipse PiCo matrix, and an unlimited number of
configurations may be backed up on a computer and downloaded to
the matrix as needed.
INDIVIDUAL LEVEL CONTROL
Both incoming and outgoing volume levels can be adjusted for each
device connected to an Eclipse PiCo port, which allows the Eclipse
PiCo to be connected to a wide variety of panels and communications
devices either directly via the port or via interfaces. On the panels,
individual listen-level controls allow the operator to adjust the level of
each key to provide a customized audio “mix”.
EXCELLENT AUDIO QUALITY
The Eclipse PiCo matrix features industry-leading 24-bit, 48 kHz audio
sampling, yielding a frequency response of 30 Hz to 22 kHz, ± 3 dB.
With a signal-to-noise ratio better than –70 dB, and crosstalk better
than –70 dB, the audio among panels, interfaces, and other system
inputs and outputs is clean and distinct. Level adjustments are in
0.355 dB steps, which will sound completely smooth to the user.
ROBUST AND COMPATIBLE
The Eclipse PiCo matrix houses two independent power supplies.
These may be connected to a main and backup power source for
redundancy. In the unlikely event of the failure of one of these power
supplies, the second supply will automatically take over. The Eclipse
PiCo is robust even in the face of a major power outage. In the event of
a complete power interruption, the system will return with all previously
set talk and listen paths in place when power is restored.
The Eclipse PiCo matrix is fully compatible with Clear-Com’s modular
matrix interface modules and frames. It can transparently interface
with telephones, two-way radios, camera and 2-wire intercoms, 4-wire
devices, and audio sources. Eclipse PiCo is also compatible with most
of the matrix intercom panels, including the V-Series, ICS-92,
ICS-2003, 4000 series, and i-stations.
1-4
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
ECLIPSE PICO APPLICATIONS
The Eclipse PiCo is the perfect solution for high-quality full-duplex
communications requiring a moderate number of ports in a compact
1-RU form. With the ability to intelligently link two Eclipse PiCo
matrices together, t asks such as mobile prod uction, small to mid-sized
studio integration, and sports and performing facilities communications
are easily realized. Intelligent linking to other Eclipse PiCo and Eclip se
Omega matrices adds to its ability to be the core of a comprehensive
communications system.
SYSTEM BASICS
A complete Eclipse PiCo system consists of a central matrix and the
remote audio devices—intercom panels, interfaces, 4-wire
equipment—connected to it. Each element of the Eclipse PiCo system
is briefly described in this chapter and more fully described later in this
manual and in the Eclipse set of manuals.
The Eclipse set of manuals includes the overview manual Eclipse
Matrix Installation Manual (part 810298Z), as well as individual
manuals for each matrix, panel, and interface in the system.
MATRIX HARDWARE
The Eclipse PiCo matrix is 19 inches wide and one rack unit high (26.9
cm x 48.3 cm). It installs in a standard Electronics Industry Association
equipment rack. No parts of the unit are removable without it being
taken out of service.
The matrix’s front panel provides pushbuttons and indicator lights for
operating the system, while the back panel holds the RJ-45
connectors, or “ports,” for connecting remote intercom panels and
interfaces to the system. The next chapter describes the matrix’s
operation in more detail.
Note: The term “central matrix” is used to differentiate the
system’s core hardware and software from the connected
intercom panels and interfaces. The central matrix itself
consists of the matrix hardware and configuration software.
POWER SUPPLIES
An Eclipse PiCo matrix has two internal power supply units. One power
supply unit can power the entire matrix; the second unit provides a
backup in case of failure or damage to the first unit.
In addition, the two supplies have separate IEC connectors to AC
mains, and are designed for completely automatic and transparent
changeover between supplies in the event of a power outage in one of
the AC mains circuits.
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
1-5
A power-supply failure sensor is connected to a warning light, allowing
power anomalies to be diagnosed.
REAR-PANEL CONNECTORS (“PORTS”)
The Eclipse PiCo matrix connects to remote devices such as intercom
panels, interfaces, general purpose inputs and outputs, local area
networks, and other matrices through its rear-panel hardware
connectors.
A rear-panel RJ-45 connector to which cable is connect to run from the
matrix to a panel or interface is called a “port”. Shielded category-5
cable is connected to a “port” to carry signals from the Eclipse PiCo
matrix to connected remote intercom panels or interfaces. Later
chapters of this manual discuss these connections in detail.
ECLIPSE CONFIGURATION SOFTWARE (ECS)
The Eclipse Configuration System (ECS) software controls the
operation of the matrix by sending electronic signals to the Eclipse
PiCo matrix, which then relays the signals to the remotely connected
panels and interfaces.
“Configuration Maps”—which are the operating parameters of
complete system setups can be created on the ECS computer. The
Eclipse Configuration System programming software stores the
created configurations on the computer’s hard disk using a relational
database which holds up to two gigabytes of configuration data and is
able to store over 100,000 complex system configurations. ECS can
then upload four complete configurations from the computer to the
Eclipse-32 matrix’s operational memory to retrieve and activate directly
from the matrix when needed.
1-6
The Eclipse Configuration System software runs on the following
versions of Windows: Windows 2000, Windows XP, Windows Server
2003 and Windows Vista (with restrictions). When running ECS on
Windows operating systems, the client and server can run on separate
machines connected over a network.
The Eclipse Configuration System can be used to create point-to-point
and fixed group or party-line communications among the connected
remote audio devices, assign a “label” to each port/panel, and inhibit or
enable features at any connected remote panel. The Eclipse
Configuration System can be set up to run on a client/server model
over a network allowing the matrix to be controlled remotely.
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
REMOTE INTERCOM PANELS AND ACCESSORY PANELS
All analog intercom panels connect to the central matrix via shielded
category-5 cable terminated with RJ-45 connectors. Digital panels
connect to the central matrix through AES-6 or DIG-2 digital module
interfaces. Digital panels require double-shielded 24 AWG conductor
category-6 enhanced (CAT-6E) cable to connect to a DIG-2 interface
or coaxial cable to connect to the AES-6-CX rear card. For further
details on connecting digital panels to the Eclipse PiCo please refer to
the appropriate product manual.
The following intercom panels are compatible with the Eclipse PiCo
matrix system:
• i-Station family, including expansion panels
• ICS-2003 intercom panel, including expansion panels
• ICS-52 and ICS-92 intercom panels, including expansion panels
• ICS-62 and ICS-102 intercom panels, including expansion panels
• ICS-1008 and ICS-1016 intercom panels, including expansion
panels
• ICS-21/22/24 intercom panels
• 4215E, 4224E, 4226E, 4212E, 4222E, 4294E, 4203E, 4206E,
4230E and 4230VE 4000 Series II panels
• V12LD, V24LD, V12PD, V24PD, V12LDD, V12PDD, V12LDE and
V12PDE V-Series panels
Each of these panels is described in its own manual. For a full
description of the operation, installation and maintenance of a panel,
please refer to the appropriate panel manual.
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
1-7
REMOTE INTERFACES
Interface modules convert the 4-wire signals of a central matrix port to
other types of signals that communicate with devices such as
telephones, camera intercoms, two-way radios, and so on. In this way
non-4-wire devices can communicate with the central matrix.
Each interface module has hardware connectors to connect to both the
central matrix and to the external device that communicates with the
central matrix. Most interface modules connect to the central matrix via
shielded category-5 cable terminated with RJ-45 connectors. The
DIG-2 digital interface module, however , connects to the central matr ix
via double-shielded 24 AWG conductor category-6 enhanced
(CAT-6E) STP cable.
The type of cable used to connect the interface module to the
non-4-wire device varies with the device. Each of these connections is
described more fully in the individual manual for each interface.
The following interface modules are compatible with the Eclipse PiCo
matrix:
• TEL-14 telephone interface module
• CCI-22 dual party-line interface module
• FOR-22 four-wire interface module
• GPI-6 general purpose inputs interface module
• RLY-6 relay (general-purpose outputs) interface module
• AES-6 digital interface module
• DIG-2 digital interface module (transparent to the system,
configured in ECS as the type of panel it is connected to)
Each of these interfaces is described in its own manual. For a full
description of the operation, installation, and maintenance of an
interface, refer to the individual manual for that interface.
1-8
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
OPERATING AN
2
A configuration map is
created with the Eclipse
Configuration System (ECS)
programming software.
ECLIPSE PICO
MATRIX
STORING AND RETRIEVING CONFIGURATIONS
A “configuration map” is a complete set of operating parameters for the
matrix system which includes all talk and listen paths for each
connected intercom panel. Depending upon the remote interfaces
installed, the configuration can also include more sophisticated
features such as paging, call signaling, interruptible foldback (IFB),
ISO, groups, automatic DTMF dialing, routing, and many other
features.
The system manager creates a configuration in the Eclipse
Configuration System programming software and then uploads the
configuration to the Eclipse PiCo matrix’s operational memory through
the software. The Eclipse PiCo matrix’s operational memory holds up
to four complete configurations. From the controls on the matrix’s front
panel the system manager may select which configuration to apply at
any given time.
FRONT-PANEL CONTROLS AND LIGHTS
4
2
3
1
1 Connector to PC
2 Reset Button
3 OK Light
4 Configuration button for
selecting among onboard
configurations
6
5
7
Figure 2-1: Front Panel of Eclipse PiCo Matrix
5 Status lights which show
currently active configuration
6 Power supply alarm lights (1 and 2)
7 LAN status lights
8 Display window
9 Setup/enter knob
8
9
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
2-1
1
PC CONNECTOR
The female 3.5 mm jack socket labeled “RS-232” connects the matrix
to an external computer . See the Installation Chapter for information o n
wiring this connection.
2
RESET BUTTON
Pressing the reset button causes the matrix to stop its current activity
and to restart. The same configuration that was active before the
matrix was reset will be active after it is reset.
During the reset, configuration information reloads to the matrix’s
operational memory from its non-volatile memory and the matrix start s
running again from the beginning.
3
OK LIGHT
When flashing, the “OK” light indicates that the Eclipse PiCo matrix is
running normally.
4
CONFIGURATION “CONFIG” BUTTON
The Eclipse PiCo matrix can hold four complete system configurations
in its operational memory. Any one of the four configurations can be
activated using the CONFIG button on the matrix front panel.
When one of the four configurations is active, its front-panel light
illuminates steadily.
Note: A configuration can also be selected using the setup/enter
knob and front-panel display. See page 3-6 for more
information.
To select a new configuration
1. Repeatedly tap the CONFIG button until the desired configu ration’ s
light (1,2,3, or 4) starts flashing.
2. While the desired configuration’s light flashes, press and hold the
configuration button for three seconds, until the light stops flashing,
and illuminates steadily.
The selected configuration then becomes the system’s active
operational configuration.
If an invalid or blank configuration is chosen all four configuration lights
steadily illuminate at the same time for about a second. The currently
active configuration will continue to operate and its front-panel light
steadily illuminates after the other lights go out.
2-2
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
5
CONFIGURATION STATUS LIGHTS
The four configuration status lights indicate which of the four onboard
configurations is currently active. The currently active configuration’s
light illuminates steadily.
6
POWER SUPPLY ALARM LIGHTS (1 AND 2)
An Eclipse PiCo matrix has two internal power supply units. One power
supply unit can power an entire matrix; the second unit provides a
backup in case of an equipment failure.
In addition, the two supplies have separate IEC connectors to AC
mains power, and are designed for completely automatic and
transparent changeover between supplies in the event of an out age on
one of the AC mains circuits.
The front-panel alarm lights do not illuminate under normal operating
conditions.
The following conditions cause a power-supply alarm light to
illuminate:
• If any of the voltages produced by the first power supply unit fall
below normal levels.
• If any of the voltages produced by the second power supply unit fall
below normal levels.
Once the power-supply fault condition is no longer present, the
power-supply alarm light goes out.
7
LAN STATUS LIGHTS
When a local area network is connected to the matrix’s LAN port, the
LAN UP light steadily illuminates to indicate that the Eclipse PiCo
matrix is connected to a local area network. The Rx light flashes when
data is being received.
Note also that the PiCo’s front-panel System Status screen shows
activity when a LAN is connected and communicating with the matrix.
8
DISPLAY WINDOW
Using the display window and setup/enter knob a variety of actions can
be performed directly from the PiCo matrix, without any need for the
Eclipse Configuration System programming software. See the chapter
“Using the PiCo’s Front Panel Display Menus” in this manual for more
information.
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
2-3
9
SETUP/ENTER KNOB
The setup/enter knob is used in conjunction with the display window
(see above) to perform a variety of actions directly from the PiCo
matrix, without any need for the Eclipse Configuration System
programming software. See the chapter “Using the PiCo’s Front Panel
Display Menus” in this manual for more information.
DEFAULT IP ADDRESS
From Eclipse 4.2 release onwards a factory default IP address
(172.16.2.100) is set up in the matrix firmware which will always be
available via an IP reset. This ensures that once the matrix firmware is
loaded it will always be possible to access the matrix via ethernet even
if the current IP address is not known.
To carry out an IP reset it is necessary to remove the cover of the
Eclipse PiCo in order to access the three reset switches positioned at
the front left of the main circuit board (viewed from the front of the unit)
shown in Figure 2-2. To carry out an IP reset press and hold the
rightmost two switches (nearest the side of the case) simultaneously
and then press and release the ‘RESET’ button at the front of the unit,
then release the internal switches. The unit will then be reset to the
factory default IP address.
The unit cover should be replace immediately the operation is
completed.
Warning: As the unit must be powered when resetting the IP
address this operation should only be carried out by
qualified service personnel.
2-4
Figure 2-2: Eclipse PiCo Reset Buttons
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
CONNECTING THE MATRIX TO REMOTE
Note: General Purpose
Outputs are also referred to
as “relays.”
1
1 Two IEC AC power input connectors,
(1 per power-supply unit )
2 RJ-45 port connectors (36)
3 General purpose outputs connector
(male, 25-pin, D-type)
DEVICES
The Eclipse PiCo matrix connects to remote devices such as intercom
panels, interfaces, general purpose inputs and outputs, and other
matrices through its rear-panel hardware connectors.
The following sections describe the rear-panel connectors. The
Installation Chapter of this manual gives pin assignments for each
connector.
2
5 GPI/RLY interface connector (RJ-45)
6 Base loop connector (RJ-45)
7 LAN connector (RJ-45)
3
4
5
7
6
4 General purpose inputs connector
(female, 25-pin, D-type)
1
CONNECTING TO AC POWER
An Eclipse PiCo matrix’s rear panel contains two IEC AC power input
sockets for connecting AC mains power to the two power supplies.
Each IEC socket connects cable to one power supply, operating at an
input voltage of 100 to 240 volts, between 50 and 60 hertz.
2
CONNECTING TO PANELS AND INTERFACES
An Eclipse PiCo matrix’s rear panel contains 36 RJ-45 sockets for
connecting the matrix to remote intercom panels and interfaces. These
sockets are often called “ports”. Each port socket is given a number on
the rear-panel for easy identification.
All ports contain a voice detection mechanism (“VOX”) that is
programmed from the Eclipse Configuration System software. VOX
Figure 2-3: Rear Panel of an Eclipse PiCo Matrix
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
2-5
detection allows the panel operator to know when the audio on a
particular channel has exceeded a threshold. This is particularly useful
for channels that are inactive periodically, so that the panel operator is
visually cued in the software when audio appears on the line.
Note: Ports 17 through 32 can both send and receive DTMF tones.
When using a TEL-14 interface with the PiCo matrix, it is
recommended that the TEL-14 is connected to one of these
matrix ports for full functionality.
Note: Although ports 1 through 16 are not DTMF-enabled, a
TEL-14 interface connected to one of these ports can
receive incoming calls. However it is not possible to then
use inward DTMF on ports 1 though 16. It is also not
possible to dial out from the matrix on these ports.
Note: A shielded cable should be used.
CONNECTING TO GENERAL-PURPOSE OUT-
3
PUTS
The male 25-pin D-type socket labeled “GP OUT” allows the Eclipse
PiCo matrix to be connected to eight general purpose outputs (GPOs).
General-purpose outputs are single-pole double-throw relays with
contact ratings of 30 VDC (volts direct current) at 1 ampere.
A general purpose output or “relay” is a switch that is controlled
remotely. The relay is programmed in the Eclipse Configuration
System software to close a contact whenever an intercom panel’s key
is pressed. When the contact is closed, it completes an electronic
circuit’s signal path so that a remote device, such as a light, is
powered.
A GPO can be programmed to mute a speaker, to turn on an applau se
light, to turn on a door lock, or to perform a variety of other functions.
For example, to get the attention of a panel operator working in a
high-noise environment such as a control booth a relay can be
programmed to switch on a light at the panel each time the panel
receives an incoming call to ensure that the call will not be missed.
Note: If the GP-OUT port is used the following filter must be fitted
between the PROC-RCC socket and the cable:
CINCH FA-25PS/1-LF 25W D-type in-line 1000pF filter
(UK supplier: Farnell 111-4108)
Note: A shielded cable should be used.
2-6
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
CONNECTING TO GENERAL-PURPOSE INPUTS
4
The female 25-pin D-type socket labeled “GP IN” allows the Eclipse
PiCo matrix to be connected to eight general purpose inputs (GPIs).
An external logic device–such as an external foot switch, a
panel-mounted switch, or the logic output of some other device– can
be connected to the “GP IN” connector . When the external logic device
is activated, it sends a control signal into the matrix to perform one of
several preset functions, such as turning an intercom panel’s
microphone on or off, muting a microphone’s output, or turning a
panel’s speaker off. The function to perform, and the p anel upon which
it is performed is programmed from the Eclipse Configuration System
software.
Note: A shielded cable should be used.
5
CONNECTING TO A GPI/RLY INTERFACE
The RJ-45 socket labeled “GPI/RLY Interface” connects the Eclipse
PiCo matrix to a GPI-6 or RLY-6 card. The GPI-6 provides six
general-purpose opto-isolated logic inputs. The RLY-6 card provides
six single-pole, double-throw relay outputs.
Both card types mount in either an IMF-3 interface frame or an
IMF-102 interface frame. Up to ten GPI-6 or RLY-6 cards can be
operated at one time from the matrix by daisy-chaining the cards
together. Each card has an IN an d an OUT connector for this pu rpose.
The RLY-6 and GPI-6 cards connect to the GPI/RLY interface
connector using shielded category-5 cable. For more information about
the GPI-6 and RLY-6 cards, consult their respective manuals.
Note: If this port is used a ferrite must be added to the socket end
of the cable. A suitable ferrite is Würth Electronik part:
74271132.
Note: A shielded cable should be used.
CONNECTING TO A SECOND ECLIPSE PICO
6
MATRIX
Shielded category-5 (CAT-5) cable is connected from the “base loop”
socket of one Eclipse PiCo matrix to the “base loop” socket of a
second Eclipse PiCo matrix to form one non-blocking 64-port Eclipse
matrix system. The cable connecting the two matrices can be up to 1
meter (3.28 feet) long.
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
The link is activated from the “My Systems” screen in the Eclipse
Configuration System.
2-7
Note: To transfer data between two linked PiCo matrices using
the high-speed link the Ethernet ports must be connected
with either a cross-over shielded CAT-5 cable or a with a
hub or switch using conventional shielded CAT-5 cable.
CONNECTING TO A LOCAL AREA NETWORK
7
The RJ-45 socket labeled “LAN” connects a local area network (LAN)
to the Eclipse PiCo matrix through a standard Ethernet connection.
Note: If this port is used a ferrite must be added to the socket end
of each cable. A suitable ferrite is Würth Electronik part:
74271132.
Note: A shielded CAT-5 cable should be used.
2-8
Clear-Com Communication Systems
Eclipse PiCo Matrix Instruction Manual
