DESCRIPTION
Clear-Com offers five models of headsets to meet any production requirement.
Choose from single ear or double ear, moderate to high sound isolation, lightweight and unobtrusive to rugged and indestructible, shaped frequency response
or high-fidelity full-range response, and switched or unswitched microphone.
All feature a moveable-boom, noise-cancelling microphone and a four-pin
(optional six-pin for some models) XLR-type connector to mate with Clear-Com
or other professional beltpacks and intercom stations.
Two handsets are available to interface with Clear-Com beltpacks and stations.
A telephone-style handset allows full duplex communication through the intercom
system. A push-to-talk handheld microphone offers an alternate means to talk
through speaker stations.
Clear-Com has been the performance leader in production intercom systems for
over 25 years, and has learned what characteristics are necessary to communicate
effectively in production environments. These headsets and handsets are designed
to provide optimal performance with Clear-Com’s wired and wireless beltpacks and
intercom stations.
Specially shielded cables are used to minimize crosstalk and optimize nulling,
whether one is using a handful or many stations in an intercom system. Much
attention is paid to durability, using cables with great flex strength and strain relief,
with rugged parts and connectors. And the audio response is chosen to provide
intelligible communications in the field.
®
APPLICATIONS
• Television/broadcast production
• Post-production studios
• Live theatre, dance,
music performance
• Touring/concert communications
• Event coordination
• Performance lighting
• Sportscasting
• Industrial/manufacturing
communications
• Schools and institutions
• Training and computer
simulation labs
• Wireless communications
• Aerospace
PROFESSIONAL INTERCOM PRODUCTS
by Clear-Com
CC-26/CC-40/CC-60/CC-85/CC-250/HS-6/PT-4
Headsets and Handsets

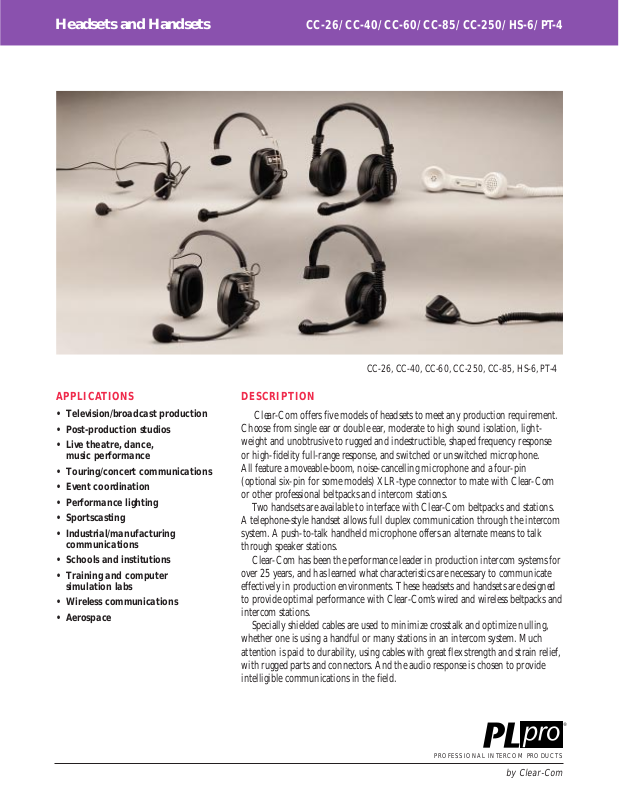

CC-26, CC-40, CC-60, CC-250, CC-85, HS-6, PT-4
MAXIMUM ACOUSTIC ISOLATION FOR HIGH-SPL
ENVIRONMENTS
The CC-40 single-ear and CC-60 double-ear headsets offer high
sensitivity and a contoured frequency response for maximum intelligibility
under high-noise conditions. The vocal range is emphasized so that critical
production calls cut through easily. The ear cups are unsurpassed in their
ability to isolate the wearer from high-SPL sound fields, making these
headsets ideal for rock and roll production and other loud environments.
A completely sealed, rigid plastic outer ear cup blocks external sounds
and prevents leakage of headphone output to the outside. A fitted ear
cushion creates a comfortable yet soundproof seal over the ear.
The double-ear version gives sufficient isolation to maintain understandable communications in an industrial or concert setting.
The noise-cancelling microphone is mounted on a durable yet flexible
arm for full adjustment of mic-to-mouth distance. The arm provides 300
degrees of rotation, allowing the microphone to be positioned on the
user's left or right side. Acoustic isolation between the microphone and the
earpieces yields high gain before feedback.
The CC-40 and CC-60 headsets are ideal for high-SPL concert and
industrial communications, where high intelligibility and maximum
isolation from external interference are required.
EXTREMELY LIGHT WEIGHT AND UNOBTRUSIVE
APPEARANCE FOR EXTENDED PERIODS OF USE
The CC-26 personal headset is a very low profile, lightweight headset
with excellent audio quality and adjustability. Weighing less than 2
ounces, the headset becomes virtually unnoticeable to the user.
A single foam-covered earpiece provides full-range audio response
for both voice and program material. The band is adjustable to fit any
head size. Minimal isolation means the user can maintain full contact
with the surroundings, yet also be in touch with others through the
intercom system.
The boom arm may be adjusted in length or in angle, allowing
optimal positioning of the mic element. A directional, noise-cancelling
microphone minimizes background noise leakage.
Rotation of the arm through 300 degrees lets the user select right- or
left-side positioning of the mic.
The CC-26 personal headset is ideal for situations where the user
must wear the headset for extended periods of time. It is recommended
whenever low profile and light weight, combined with good audio, are
the primary considerations for intercommunications.
CC-26
• Completely sealed ear cups for
maximum acoustic isolation
• Single or double earpieces
• High sensitivity
• Contoured frequency response
for intelligibility in high-SPL
environments
• Cardioid noise-cancelling
microphone
• Durable, flexible mic boom arm
• Rotatable boom for left- or
right-side operation
• Weighs less than 2 ounces
• Single earpiece
• Full-range audio response
• Minimal isolation keeps user in
full contact with surroundings
• Mic boom arm adjustable in
length or angle
• Rotatable boom for left- or
right-side operation
CC-40 and CC-60
THE INDESTRUCTIBLE HEADSETS: UNSURPASSED
DURABILITY, COMFORT, AND EXCELLENT AUDIO
QUALITY FOR PROFESSIONAL SETTINGS
The supremely durable CC-85 single-ear and CC-250 double-ear
headsets provide the appearance and features to meet any professional
communications requirement. They are especially designed for intercom
applications where good audio quality, reliability, durability, and comfort
are of prime importance, or where a switched mic is required.
The almost indestructible headsets are constructed of Dura-Flex, an
advanced, flexible composite material. The lightweight headsets will not
be damaged if they are dropped, stepped on, or otherwise abused in the
line of duty. And Dura-Flex also protects the internal transducers and
electronics from damage.
The smooth, full-range audio response gives an accurate representation
of program material, and promotes low ear fatigue when using the
headsets for extended periods. A presence peak is incorporated to enhance
voice intelligibility.
Unique dual-chamber foam-filled ear cushions provide acoustic
isolation in moderate-noise-level environments. They are extremely
comfortable for long-term use.
The flexible boom arm features a high-quality, noise-cancelling
microphone that promotes intelligible communications. The microphone
has low susceptibility to wind and breath noise.
A full 300 degrees of rotation allows the user to position the mic on the
left or right side, with detented "stops" to prevent the arm from shifting
during use. Swinging the boom arm up in either direction activates a
microswitch that turns the microphone output off – useful for listen-only
applications and preventing unwanted remarks from going out on the air.
Separate earphone wires are provided for stereo or binaural "split ear"
use. The custom cable is designed for high resistance to breakage, and is
well shielded both internally and externally to prevent interference and
crosstalk.
The CC-85 and CC-250 professional headsets are ideal for professional
theatrical, industrial, and broadcast applications where extreme ruggedness
and durability are required, and wherever good audio response, switchable
microphones, and great comfort are desired.
TELEPHONE HANDSET AND PUSH-TO-TALK MIC FOR
INTERCOM COMMUNICATIONS
The HS-6 telephone-style handset offers a convenient means for the
less frequent intercom user to link with the system. It is also useful when
comfort or appearance requires a more conventional look. Full-duplex
communication is possible, and the push-to-talk button minimizes
bleed of external sound into the intercom line when the handset is not
in use. The handset connects with the intercom station via a 4-pin
female XLR connector on a 6-foot coiled cord. A wall/console mounting
cradle is included.
The PT-4 push-to-talk microphone is a rugged, CB-styled mic for use
with intercom stations. It is especially useful when used with remote
speaker stations such as the KB-111A. A"dummy load" across the earpiece
pins on the connector provides the proper impedance, so that the station's
speaker will operate normally when the PT-4 is connected. Provided with
a mounting clip and a 5-foot coiled cord with heavy-duty strain relief.
• Push-to-talk switch
• 4-pin female XLR connector
• Convenient coiled cable
• Mounting clip/cradle
• For use with main and remote
intercom/speaker stations
• Dura-Flex construction for
extreme durability
• Single or double earpieces
• Smooth, full-range audio
response
• Microswitch in boom arm turns
mic off when boom is lifted
• Left- or right-side operation,
with detented “stops” to keep
boom arm in place
• High-quality, noise-cancelling
cardioid microphone
• Separate earphone wires
for stereo or “split-ear”
binaural use
• Immune to RFI and EMI pickup
• Available with 4-pin XLR
or optional 6-pin binaural
connector
HS-6 AND PT-4
CC-85 AND CC-250
Clear-Com Intercom Systems, 945 Camelia Street, Berkeley, CA 94710
(510) 527-6666, Fax (510) 527-6699, www.clearcom.com
International Sales: PO Box 302, Walnut Creek, CA 94597, (510) 932-8134, Fax (510) 932-2171
© 1997 Clear-Com Intercom Systems. PL-Pro is a Registered Trademark of Clear-Com.
Headsets and Handsets
APPLICATIONS
NUMBER OF EARPIECES
EARPIECE TYPE
EXTERNAL NOISE
ISOLATION
FREQUENCY RESPONSE
DURABILITY
HEADSET MATERIAL
MICROPHONE
TRANSDUCER TYPE
MIC FREQUENCY
RESPONSE
MIC SWITCH (ON/OFF)
MIC BOOM ROTATION
(for left or right-side use)
IMPEDANCE: MIC/EARPIECE
CABLE TYPE & LENGTH
CONNECTOR & OPTIONS
WEIGHT
Theatre, school, industrial,
other environments
needing high output
and excellent intelligibility
with one ear free
One
Closed/sealed
High (single ear)
Contoured for
voice intelligibility
Durable in normal
production use
Plastic with
heavy wire frame
Noise-cancelling
cardioid dynamic
80 Hz - 10 kHz
N/A
300 degrees
200 ohms/400 ohms
Straight 4-wire
5.5 ft/1.75m
4-pin XLR female
9.5 oz/265 g
Concert, industrial, other
high-SPL environments
needing high output and
excellent intelligibility with
highest isolation
Two
Closed/sealed
Highest
Contoured for
voice intelligibility
Durable in normal
production use
Plastic with
heavy wire frame
Noise-cancelling
cardioid dynamic
80 Hz - 10 kHz
N/A
300 degrees
200 ohms/400 ohms
Straight 4-wire
5.5 ft/1.75m
4-pin XLR female
14 oz/390 g
Broadcast, theatrical, insti-
tutional, others needing
extreme durability and
good audio quality with
one ear free
One
Closed
Moderate (single ear)
Full-range audio
with vocal presence
Virtually unbreakable
Dura-Flex flexible
composite material
High-quality cardioid
noise-cancelling dynamic
70 Hz - 18 kHz
On-off microswitch when
boom arm is raised
300 degrees
200 ohms/400 ohms
Straight 4-wire
5.5 ft/1.75m
4-pin XLR female
(optional 4-pin
XLR male)
7.8 oz/220 g
Broadcast, theatrical, insti-
tutional, others needing
extreme durability and
good audio quality with
moderate isolation
Two
Closed
Moderate
Full-range audio
with vocal presence
Virtually unbreakable
Dura-Flex flexible
composite material
High-quality cardioid
noise-cancelling dynamic
70 Hz - 18 kHz
On-off microswitch when
boom arm is raised
300 degrees
200 ohms/200 ohms
Straight 4-wire
5.5 ft/1.75m
4-pin XLR female
(optional 4-pin XLR male
and 6-pin binaural)
12.2 oz/340 g
Broadcast, on-camera,
lower-noise environments
needing full-range audio,
low profile, and light
weight
One
Open
Low (single ear)
Smooth full-range audio
For lighter duty use
Plastic with
moderate-gauge wire
Noise-cancelling direc-
tional dynamic
70 Hz - 15 kHz
N/A
300 degrees
200 ohms/400 ohms
Straight 4-wire
5.5 ft/1.75m
4-pin XLR female
1.9 oz/55 g
CC-40 CC-60 CC-85 CC-250 CC-26
APPLICATIONS
MICROPHONE/EARPIECE TRANSDUCER TYPE
IMPEDANCE: MIC/EARPIECE
PUSH-TO-TALK SWITCH
CABLE TYPE AND LENGTH
CONNECTORS
WEIGHT
Full-duplex link to intercom system for less-frequent
user or for more conventional look
Dynamic/Dynamic
800 ohms/200 ohms
Yes
Coiled 3-wire plus shield
6 ft/ 1.85 m
4-pin XLR female
12 oz/330g
CLEAR-COM HANDSET COMPARISON CHART
CB-style microphone especially for use with
remote speaker stations
Dynamic
150 ohms/2.2K ohms (dummy load)
Yes
Coiled shielded cable
5 ft/1.5 m
4-pin XLR female
6 oz/165 g
HS-6 PT-4
CLEAR-COM HEADSET COMPARISON CHART
Loading...
