Clear-Com Eclipse-Omega User Manual

ECLIPSE MATRIX INSTALLATION

Instruction Manual

Part Number 810298Z Rev. 7 Vitec Group Communications LLC

850 Marina Village Parkway Alameda, CA 94501 U.S.A.

Vitec Group Communications Ltd 7400 Beach Drive IQ Cambridge Cambrideshire United Kingdom CB25 9TP

The Vitec Group plc Beijing Representative Office Room 706, Tower B Derun Building, YongAn Dongli A No.3 Jianwai Ave., Chaoyang District Beijing, P.R.China 100022

Clear-Com is a registered trademark of Vitec Group Communications. The Clear-Com logo is a registered tradema rk of Vitec Group Comm u nic at ion s. Eclipse is a registered trademark of Vitec Group Communications.

Website: www.clearcom.com

CONTENTS

INSTALLATION OVERVIEW. . . . . . . . . . . . . . . . . . 1-1

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Step-by-Step Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Verify the Shipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Select Locations for the Components . . . . . . . . . . . . . . . . . . . . .1-3

Determine the Wiring Requirements . . . . . . . . . . . . . . . . . . . . . .1-3

Install Components in Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

Install Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

Connect Cables and Auxiliary Wiring . . . . . . . . . . . . . . . . . . . . . .1-4

Connect to Mains AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Matrices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

V-Series Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

4000 Series II Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

ICS Panels and i-Stations . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Configure the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Verify the Operation of the System . . . . . . . . . . . . . . . . . . . . . . .1-6

Matrix Indicators to Verify . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Eclipse Omega . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Eclipse Median . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Eclipse Pico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Eclipse-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

PLACING SYSTEM COMPONENTS. . . . . . . . . . . . 2-1

Component Location Requirements. . . . . . . . . . . . . . . . . . . . 2-1

Eclipse Matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Eclipse Omega Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Eclipse Median Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

Eclipse Pico Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

Eclipse-32 Matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

Interface Frame(s) and Power Supplies . . . . . . . . . . . . . . . . . . . .2-3

IMF-3 Interface Module Frame . . . . . . . . . . . . . . . . . . . . . . . . .2-3

IMF-102 Interface Module Frame . . . . . . . . . . . . . . . . . . . . . . .2-4

DIF-102 Interface Module Frame. . . . . . . . . . . . . . . . . . . . . . . .2-5

Intercom Panels and Expansion Panels . . . . . . . . . . . . . . . . . . . .2-5

External Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

POWERING SYSTEM COMPONENTS . . . . . . . . . 3-1

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Matrices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

Eclipse Omega Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Eclipse Median Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Eclipse Pico Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Eclipse-32 Matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Intercom Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

V-Series Panels and Expansion Panels . . . . . . . . . . . . . . . . . .3-3

4000 Series II Panels and Expansion Panels . . . . . . . . . . . . . .3-3

i-Series Intercom Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

ICS-2003 Intercom Panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

ICS-1008/ICS-1016 Intercom Panels . . . . . . . . . . . . . . . . . . . .3-3

ICS-52/62/92/102 Intercom Panels . . . . . . . . . . . . . . . . . . . . . .3-3

XPL-12/22 Display Expansion Panels and AP-22 Assignment Pan-

els. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Interface Module Frame Power Supply Requirements. . . . . . 3-5

IMF-3 Interface Module Frame . . . . . . . . . . . . . . . . . . . . . . . . .3-5

IMF-102 Interface Module Frame . . . . . . . . . . . . . . . . . . . . . . .3-6

DIF-102 Interface Module Frame. . . . . . . . . . . . . . . . . . . . . . . .3-6

WIRING SYSTEM COMPONENTS. . . . . . . . . . . . . 4-1

Summary of Wiring Systems . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

RJ-45 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

General Discussion About RJ-45 Connector Cables. . . . . . . . .4-2

Clear-Com Kits and Recommendation . . . . . . . . . . . . . . . . . . .4-2

Installing RJ-45 Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3

Wiring the Matrix to a Computer. . . . . . . . . . . . . . . . . . . . . . . 4-4

Wiring for Serial Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4

Wiring for PC to DB-9F Matrix Connectors . . . . . . . . . . . . . . . .4-5

Wiring for PC to 3.5mm Jack Matrix Connector. . . . . . . . . . . . .4-6

Wiring for Ethernet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

Connecting Matrices with Fiber-Optic Cable . . . . . . . . . . . . . 4-8

Wiring the Matrix to Intercom PANELS . . . . . . . . . . . . . . . . . 4-8

4-Pair Analog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8

Single-Pair Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

Wiring the Matrix General-Purpose Outputs. . . . . . . . . . . . . 4-10

Wiring the Matrix to General Purpose Inputs . . . . . . . . . . . . 4-12

Opto-Isolated Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-13

Non-Isolated Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-14

Wiring the Matrix to an External Alarm. . . . . . . . . . . . . . . . . 4-15

Wiring the Matrix Directly to a 4-Wire Audio Device. . . . . . . 4-16

Wiring the Matrix to Interface Modules. . . . . . . . . . . . . . . . . 4-17

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

FOR-22 4-Wire/Radio Interface Wiring. . . . . . . . . . . . . . . . . . . .4-20

External Audio Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-20

Call Signal Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-21

Relay Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-21

CCI-22 Party-Line Interface Wiring. . . . . . . . . . . . . . . . . . . . . . .4-21

Clear-Com Party Lines General Discussion . . . . . . . . . . . . . .4-22

TEL-14 Telephone Interface Wiring. . . . . . . . . . . . . . . . . . . . . . .4-22

IMF-3 Interface Module Frame Wiring. . . . . . . . . . . . . . . . . . .4-23

IMF-102 Interface Module Frame Wiring. . . . . . . . . . . . . . . . .4-23

Connecting to the Telephone Line. . . . . . . . . . . . . . . . . . . . . .4-24

Telephone Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-25

Relay Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-25

RLY-6 Interface Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-25

IMF-3 Interface Module Frame Wiring. . . . . . . . . . . . . . . . . . .4-26

To Matrix Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-26

To External Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-27

IMF-102 Interface Module Frame Wiring. . . . . . . . . . . . . . . . .4-28

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 -28

GPI-6 Interface Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-29

IMF-3 Interface Module Frame Wiring. . . . . . . . . . . . . . . . . . .4-29

To Matrix Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-29

To External Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-29

IMF-102 Interface Module Frame Wiring. . . . . . . . . . . . . . . . .4-30

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 -31

Wiring an ICS Panel Miscellaneous Connector . . . . . . . . . . 4-32

External Program Feed Input . . . . . . . . . . . . . . . . . . . . . . . . . . .4-32

Binaural Headset (All Panels Except ICS-2003/2110/1016) . . . .4-33

ICS-2003 Logic Input #1 and Logic Input #2. . . . . . . . . . . . . . . .4-33

Mute Relay Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-34

Auxiliary Relay Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-34

Wiring a Binaural Headset (ICS-2003) . . . . . . . . . . . . . . . . . 4-35

Wiring an ICS Panel OPT-100 Auxiliary Audio I/O Option. . 4-36

Auxiliary Audio Line Level Output. . . . . . . . . . . . . . . . . . . . . . . .4-37

Hot Mic Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-37

SA (Studio/Stage Announce) Output. . . . . . . . . . . . . . . . . . . . . .4-37

SA Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-37

Wiring an ICS Panel Accessory Connector . . . . . . . . . . . . . 4-38

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

CONNECTING MATRICES. . . . . . . . . . . . . . . . . . . 5-1

Intelligent Linking with Trunk Lines. . . . . . . . . . . . . . . . . . . . . 5-1

Base-Loop Linking (Eclipse PiCo/Eclipse-32 Matrix Only). . . 5-5

iii

Tie-Line (Audio Only) Linking . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

GLOSSARY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Eclipse Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Software Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5

Hardware Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . W-I

TECHNICAL SUPPORT & REPAIR POLICY. . . . . W-V

TECHNICAL SUPPORT POLICY. . . . . . . . . . . . . . . . . . . . . .W-v

RETURN MATERIAL AUTHORIZATION POLICY . . . . . . . . W-vi

REPAIR POLICY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . W-viii

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

FIGURES

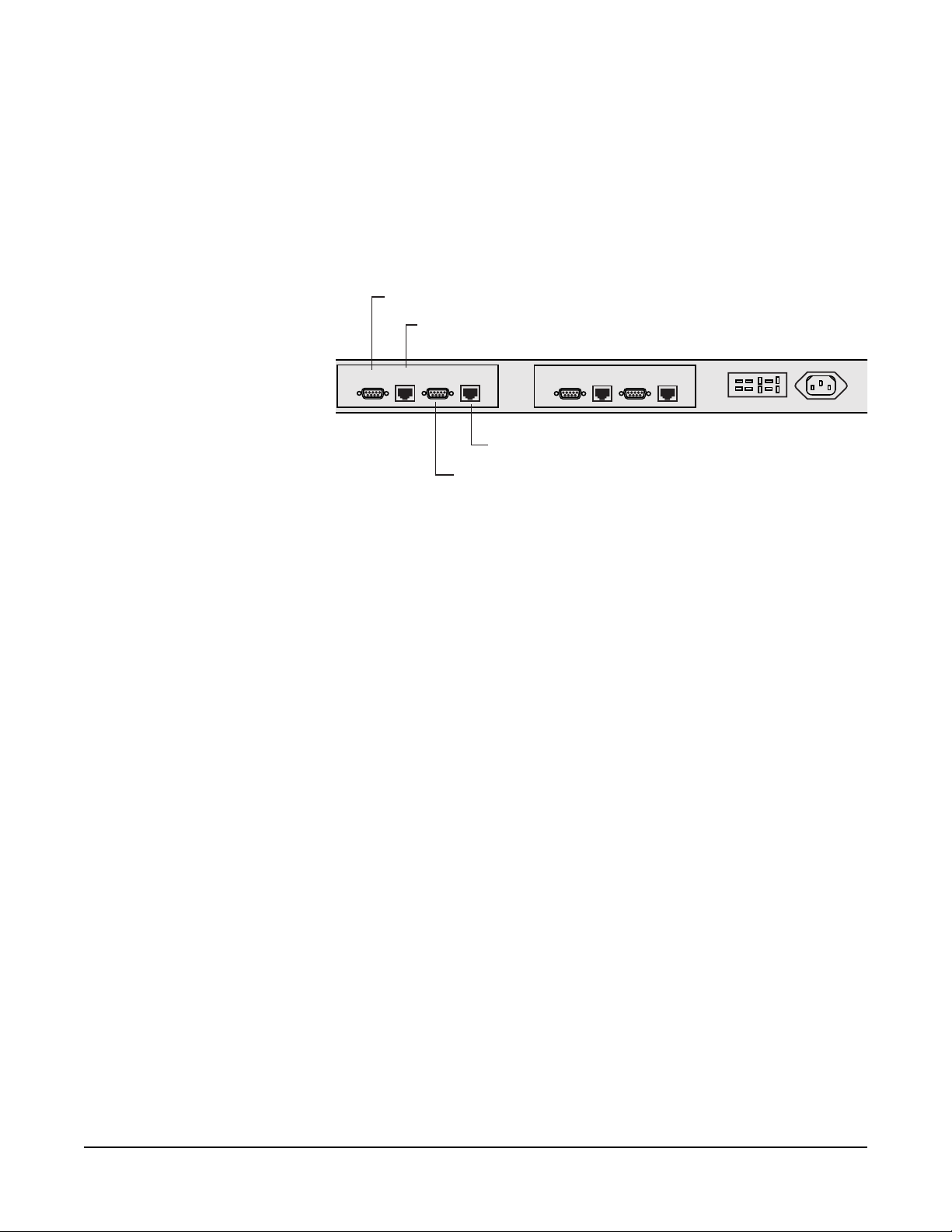

Figure 2-1 IMF-3 Interface Frame Rear Panel................................. 2-4

Figure 2-2 IMF-102 Interface Frame Rear Panel............................. 2-4

Figure 3-1 PSU-101 to IMF-3 Wiring............................................... 3-6

Figure 4-1 Computer DB-25F to Matrix DB-9M RS-232 Cable........ 4-5

Figure 4-2 Computer DB-9F to Matrix DB-9M RS-232 Cable.......... 4-5

Figure 4-3 Pin Assignments for LAN 1 and LAN 2 Connectors....... 4-7

Figure 4-4 Wiring Matrix to Analog Panel Using RJ-45................... 4-9

Figure 4-5 Wiring Matrix to Digital Panel Using RJ-45 .................. 4-10

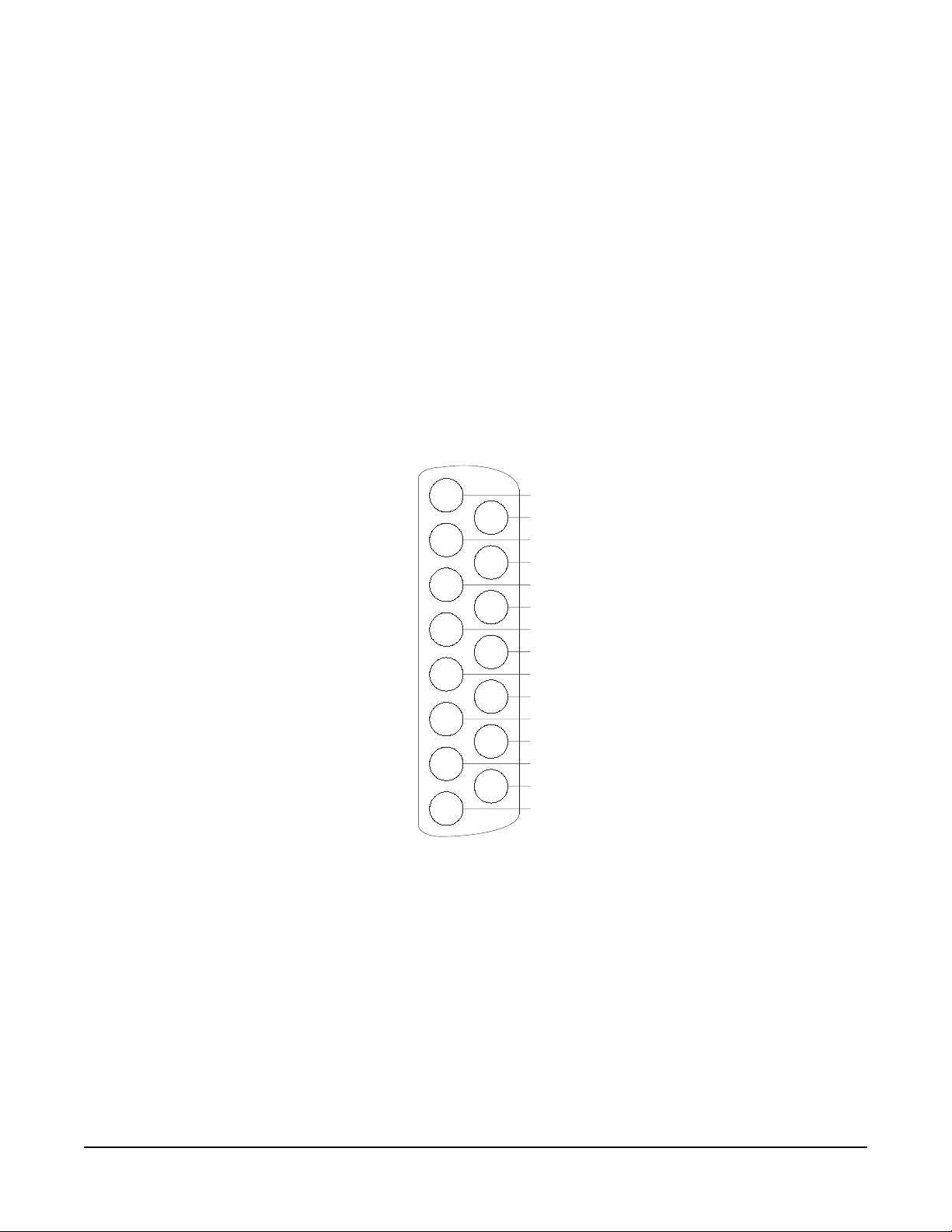

Figure 4-6 General-Purpose Outputs Connector Pinout................ 4-11

Figure 4-7 General-Purpose Inputs Connector Pinout .................. 4-12

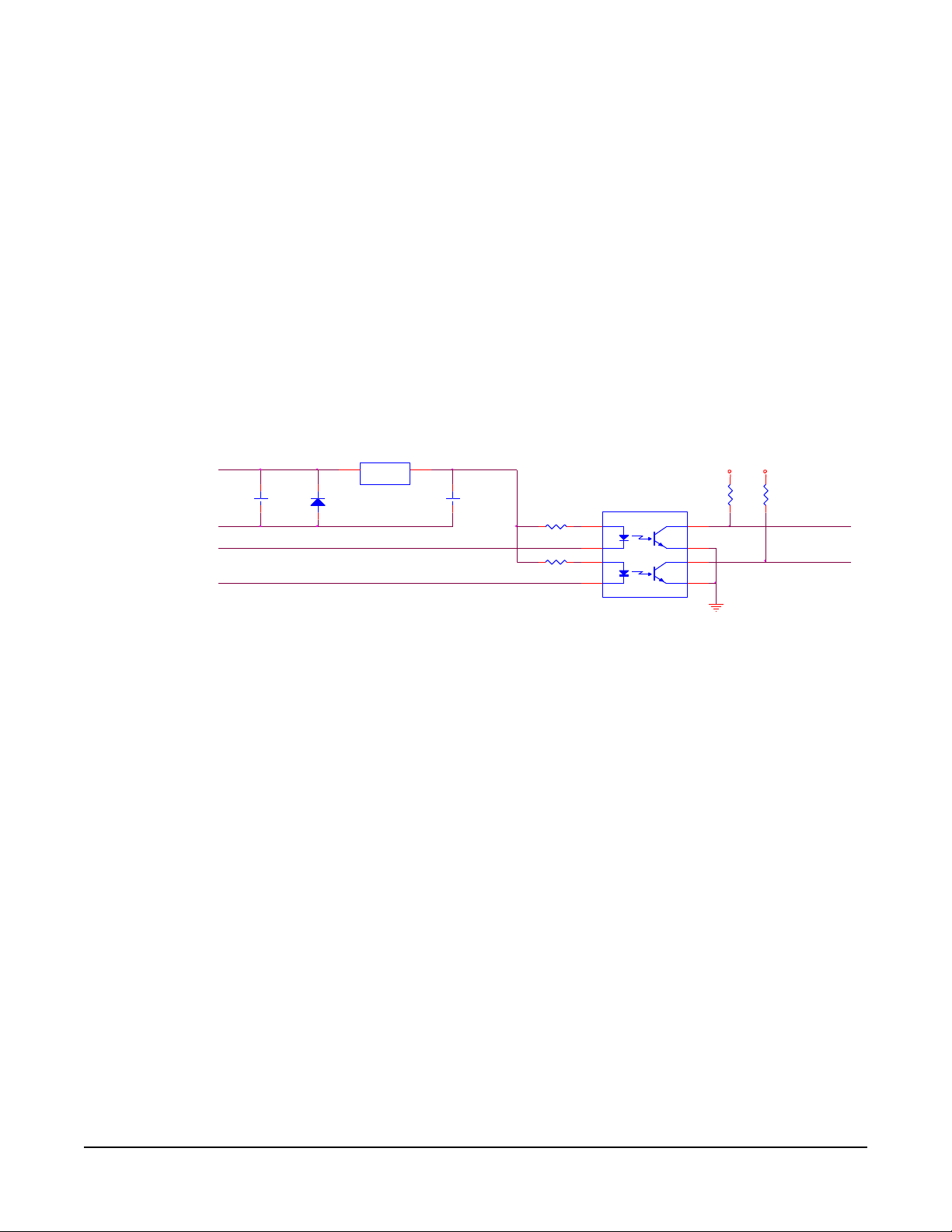

Figure 4-8 Opto-Isolated Connection to Eclipse GPI Connector... 4-13

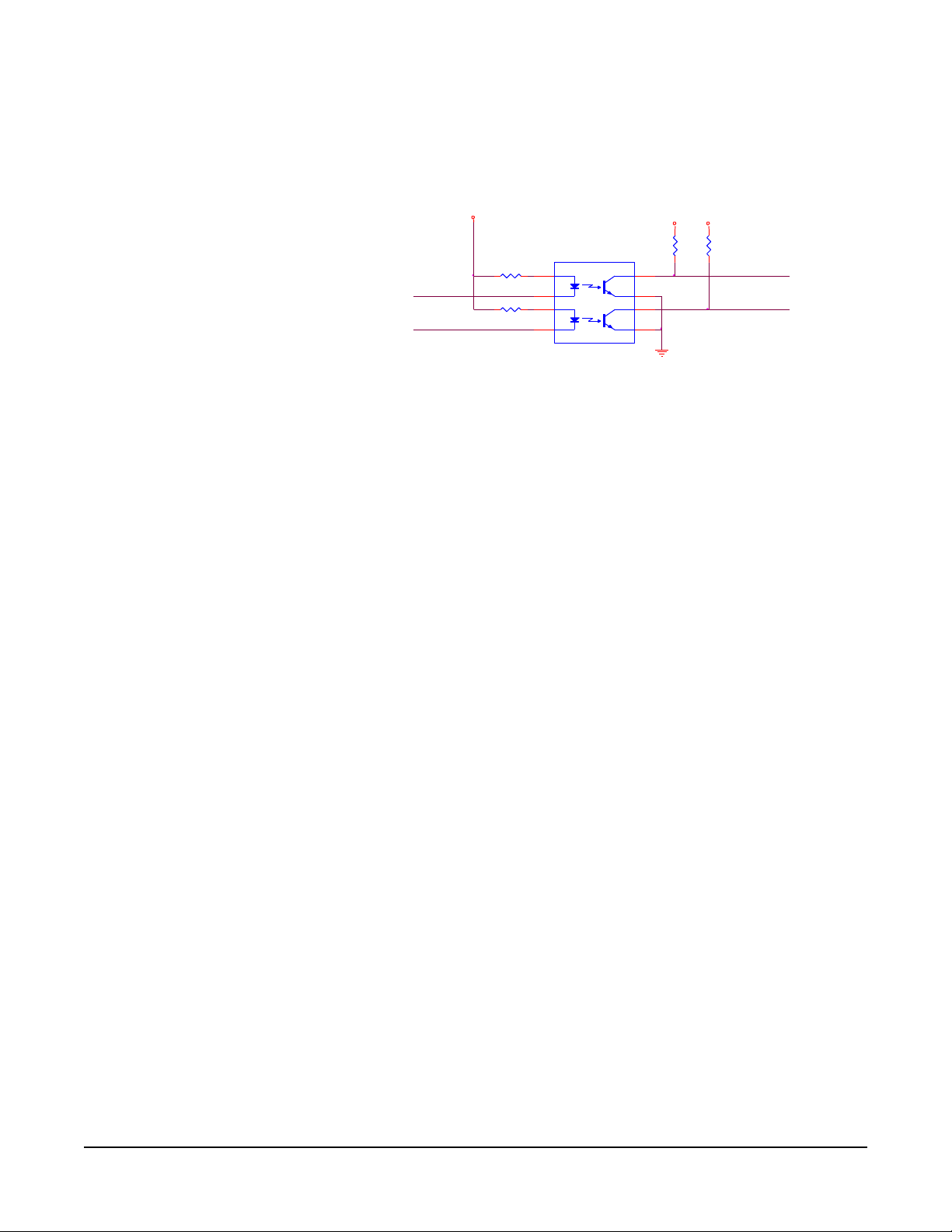

Figure 4-9 Non-Isolated Connection to Eclipse GPI Connector .... 4-14

Figure 4-10 Alarm I/O Connector................................................... 4-15

Figure 4-11 Direct Eclipse Matrix Port Connection........................ 4-16

Figure 4-12 RLY-6/GPI-6 Daisy Chain Connection....................... 4-19

Figure 4-13 Matrix Frame to IMF-3 Interface Connection.............. 4-19

Figure 4-14 Pinout of the DB-9M I/O Connectors for FOR-22s..... 4-20

Figure 4-15 Pinout of the DB-9M Interface I/O Connectors for CCI-22. 4-22 Figure 4-16 Wiring an IMF-3 Rear-Panel Assembly to a TEL-14 Inter-

face................................................................................................ 4-23

Figure 4-17 Wiring an IMF-102 Rear-Panel Assembly to a TEL-14 Inter-

face................................................................................................ 4-24

Figure 4-18 RJ-11 to DB-9 Adaptor for TEL-14 Interfaces............ 4-25

Figure 4-19 Rear View of IMF-3 Frame......................................... 4-27

Figure 4-20 RLY-6 Interface DB-9M Connector Pinout................. 4-28

Figure 4-21 GPI-6 Interface DB-9M Connector Pinout.................. 4-30

Figure 4-22 GPI-6 Application Examples....................................... 4-30

Figure 4-23 Miscellaneous Connector Pin Configuration .............. 4-32

Figure 4-24 Binaural Headset Wiring............................................. 4-35

Figure 4-25 Auxiliary I/O Connector .............................................. 4-36

Figure 4-26 Accessory Panel Connector Pinout............................ 4-38

Figure 5-1 A Linked System on an Ethernet Network...................... 5-1

Figure 5-2 Example of Fiber-Optic Connected Matrices.................. 5-2

Figure 5-3 Dedicated Serial Port Audio Trunk Wiring...................... 5-3

Figure 5-4 Ethernet Wiring............................................................... 5-3

Figure 5-5 Matrices Linked Across Continents................................ 5-4

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

Please read and follow these instructions before operating an Eclipse system.

IMPORTANT SAFETY INSTRUCTIONS

Please read and follow these instructions before operating an Eclipse system. Keep these instructions for future reference.

1. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

2. Do not use the apparatus near water.

3. Clean only with a dry cloth.

4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Install product according to the installation directions of this manual.

5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not place naked flame sources such as candles on or near the matrix.

6. Do not defeat the safety purpose of the polarized plug or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

7. Protect power leads from being walked on or pinched particularly at plugs, at convenience receptacles, and at the point where they exit from the apparatus.

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

Note: A “convenience receptacle” is an extra AC power outlet

located on the back of a piece of equipment, intended to allow you to power other equipment.

8. Only use attachments/accessories specified by the manufacturer.

9. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

10. Unplug the apparatus during lightning storms or when unused for long periods of time.

11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Please familiarize yourself with the safety symbols in Figure 1. When you see these symbols on an Eclipse system, they warn you of the potential danger of electric shock if the system is used

iii

improperly. They also refer you to important operating and maintenance instructions in the manual.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol alerts you to the presence of uninsulated dangerous voltage within the product’s enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product’s case.

This symbol informs you that important operating and maintenance instructions are included in the literature accompanying this product.

Figure 1: Safety Symbols

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

INSTALLATION

This manual describes how to install an Eclipse matrix system.

Each product manual in the Eclipse set gives additional installation information.

OVERVIEW

INTRODUCTION

The Eclipse Matrix Installation Instruction Manual describes the steps required to install an Eclipse matrix system and customize it. The manual provides information about placing, powering, and wiring components of the Eclipse system.

It is highly recommended that the instruction manual for the matrix to be installed is read before attempting an installation. That manual describes the specific Eclipse system hardware and defines many of the concepts used in the system. An overall understanding of the system is necessary to make maximum use of its vast capabilities.

Caution: Servicing instructions are for use by qualified personnel only .

To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless qualified to do so. Refer all servicing to qualified service personnel.

The information in this manual is presented as follows:

Chapter 1. Installation Overview: Step-By-Step Installation Information

The first chapter provides a step-by-step installation guide for the components of the Eclipse matrix system as received from the factory.

Chapter 2. Placing System Components

The second chapter describes the Eclipse matrix system’s component location requirements, including a summary of component sizes.

Chapter 3. Powering System Components

The third chapter provides guidelines for providing AC power to the system and for planning the powering of interface frames.

Chapter 4. Wiring System Components

The fourth chapter gives an overview of the various wiring systems for connecting panels and interfaces to the matrix. This chapter contains reference information necessary to wire all connectors in the Eclipse system. However, many of the components have internal jumpers and adjustments. Information on internal jumpers, adjustments, and device specifications can be found in the individual manuals for each component.

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

1-1

Chapter 5. Connecting Matrices

The fifth chapter provides information on linking matrices.

1-2

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

STEP-BY-S TEP INSTALLATION

To install an Eclipse matrix system:

1. Verify the shipment.

2. Select locations for the components.

3. Determine the wiring requirements.

4. Install components in rack.

5. Install cables.

6. Connect cable and auxiliary wiring.

7. Connect to mains AC Power.

8. Configure the system with the Eclipse Configuration System (ECS)

software.

9. Verify the operation of the system.

1. Verify the Shipment

When the equipment is received inspect the boxes for shipping damage. Report any shipping damage to the carrier. The Eclipse matrix system distributor is not responsible for shipping damage.

Check the packing list and verify that every item on the list has been received. Pay special attention to options that have been installed in intercom panels. Panel options are printed on each p anel’ s rear cove r.

Save all packing materials (boxes, S tyrofoam filler, etc.), since they will be needed if any item must be returned because it was shipped by mistake, because of malfunction, or for warranty service.

2. Select Locations for the Components

Select locations for the central matrix, intercom panels, interface modules, computer , and an y othe r system components. For additional information on limitations imposed on location by the Eclipse matrix system see Chapter 2, “Placing System Components.”

3. Determine the Wiring Requirements

Eclipse requires shielded category-5 (CAT5) cable with RJ-45 connectors on either end; however, there are various methods available to deliver these cables from one place to another. For more information on RJ-45 connectors and their installation, refer to Chapter 4, “Wiring System Components.”

All Eclipse panels have built-in RJ-45 connectors. Shielded CAT5 cables are available with RJ-45 terminations already installed. Bulk RJ-45 connectors can be bought and installed on custom length cables.

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

1-3

4. Install Components in Rack

Install the matrix in a standard Electronics Industry Association 19-inch wide (48.26 cm) equipment rack. The matrix requires adequate ventilation. Leave at least 2 inches (50.8 mm) of clearance on all sides of the matrix to ensure proper airflow. Do not block ventilation vents.

Check the position of circuit cards, power supplies, and rear-connector panels. Refer to the appropriate manual in the Eclipse set of manuals for detailed information on installing a particular frame in the rack.

• For matrices, refer to the Eclipse Omega Matrix Instruction Manual

(part 810290Z), the Eclipse Median Matrix Instruction Manual (part 810347Z), the Eclipse Pico Matrix Instruction Manual (part 810348Z) or the Eclipse-32 Matrix Instruction Manual (part 810315Z) as appropriate for complete installation requirements.

• For interface frames, refer to the appropriate instruction manual for either the IMF-3, IMF-102, or DIF-102 interface frame (part 810313Z).

5. Install Cables

Install the wiring between the Eclipse matrix and the system components. Usually the connectors are wired to the cables after the cables are routed. For further information refer to Chapter 4, “Wiring System Components.”

Install the DC power cables that connect the power supply or supplies to the IMF-3 interface frame. Connect the mains AC power cables for the matrix frame and each panel. For further information refer to Chapter 3, “Powering System Components.”

6. Connect Cables and Auxiliary Wiring

There are several different types of wiring necessary to connect an Eclipse system. The following is a summary of the subjects.

Analog Panel Wiring - Connect the intercom panels to the matrix using shielded CAT5 4-twisted pair cables with RJ-45 connectors. At each panel there may be other connector wiring necessary depending on the options and accessories installed.

Digital Panel Wiring - The DIF-102 interface frame holds two DIG-2 interface modules. Each DIG-2 interface module connects two digital intercom panels to the matrix. Connect the intercom panels to the DIG-2 interface using double shielded (braid and foil) 24 AWG conductor CAT-6 enhanced STP cable (CAT-6E) with RJ-45 connectors. At each panel there may be other connector wiring necessary depending on the options and accessories installed.

Interface Wiring - Connect the interface modules to the matrix using shielded CAT5 4-twisted pair cables with RJ-45 connectors. Each interface type requires particular wiring schemes on the DB-9

1-4

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

connectors on the rear of the associated IMF-3 frame per the actual application. Special interfaces such as the RLY-6 and GPI-6 are connected directly via an RJ-45 connector on the rear of the matrix to the appropriate interface input connector on an IMF-3 frame.

External Computer - To connect the computer to the Eclipse matrix, use the supplied DB-9 cable or a commercially available shielded RS-232 cable. If an RS-232 cable is used, be sure it provides the connections described in "Wiring for Serial Connection" in Chapter 4.

Note: If the ECS computer does not have a serial port, but only

offers USB, adapters are available from computer parts suppliers.

The matrix can be connected to an Ethernet network through the two standard RJ-45 Ethernet connectors labeled LAN 1 and LAN 2 on the Eclipse matrix. Ethernet connection allows one or more matrices to be controlled from one or more computers on a network. See Chapter 4 for more information.

Note: If these ports are used a ferrite must be added to the socket

end of each cable. A suitable ferrite is Würth Electronik part:

74271132.

Note: Shielded CAT-5 cable should be used.

External Alarm Connection - Eclipse matrices have built-in fault alarm systems. If it is desirable to repeat this alarm with some remote alarm, relay contacts are available on the matrix frame’s rear panel. If some external alarm condition needs to be added to the frame’s alarm system, the same connector on the rear panel

ALARM I/O will allow an

external contact closure to be connected to the frame’s alarm system.

Note: Shielded cables should be used.

7. Connect to Mains AC Power

Each component of the Eclipse system requires AC power except for the IMF-3 and some expansion panels. The IMF-3 requires an externa l power supply. The XP-type expansion panels receive power from the panels to which they are connected.

Matrices

Eclipse matrices have two separate AC power connectors for two separate power supplies in the system. Either power supply will completely power a system, providing 100% power redundancy. If the two power supplies are connected to different AC power sources and one of the power supplies loses power, the other will continue to operate the system.

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

AC voltage for the matrices and the PSU-101 can be 100 to 240 VAC without any switching or fuse changes.

1-5

Panels

V -Series Panels

Each V-Series panel (V12LD, V12PD, V24LD, V24PD, V12LDD, V12PDD, V12LDE, V12PDE) has an external power supply. AC voltage for these panels can be 100 to 240 VAC without any switching or fuse changes.

4000 Series II Panels

Each 4000 Series II panel (4212, 4215, 4222, 4224, 4226, 4294, 4203, 4206, 4230, 4230V) has an external power supply. AC voltage for these panels can be 100 to 240 VAC without any switching or fuse changes.

ICS Panels and i-Stations

Each ICS-2003 and ICS-1016 panel has an external power supply. A bracket has been provided to mount this external supply if ne cessary. AC voltage for these panels can be 90 to 260 VAC without any switching or fuse changes.

The ICS-102/92/62/52 panels have wall-mounted transformers for 110 VAC and in-line transformers for 220 VAC. Confirm that the correct ones have been supplied for the installation.

The i-St ations have internal power supplies, with removable AC power cords. The power supplies are “universal,” operating over a voltage range of 90 to 245 VAC and 50 to 60 Hz. The maximum dissipation is 40 W.

Each panel will need to be plugged into an AC source at its location.

8. Configure the System

The Eclipse Configuration System (ECS) programming software allows the system to be configured for the operating environment. With this software a system administrator can assign port or panel names, declare interface port functions, assign “labels” to keys on panels, and perform many other functions. Refer to the Eclipse Configuration System Manual for instructions on using the software.

9. Verify the Operation of the System

Once the system is configured, a detailed check of each panel, interface connection, control function, and other features should be performed. Each audio path, relay output, and control input needs to be exercised to verify proper operation. Each software function, such as Party Lines, ISO, and IFB must be verified. Each installation is different, so it is beyond the scope of this manual to outline in detail this phase.

1-6

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

Matrix Indicators to Verify

Eclipse Omega

There are many lights on the front of the matrix that indicate its operational status. Proper operation of the matrix is indicated by the following:

1. The two power supply lights, labeled “+5V” and “+3.3V” illuminate

green steadily to indicate that the power supplies are present.

2. The dot-matrix array of lights displays a number to indicate which of

the four stored configurations in the CPU card’s memory is currently operating. The configuration number displays for a short time after power up or upon configuration selection.

3. The “OK” light flashes to indicate that the CPU card software is

running.

4. The “master” light illuminates steadily on the currently active CPU

card, indicating that the CPU card is properly installed and operating correctly.

Eclipse Median

There are many lights on the front of the matrix that indicate its operational status. Proper operation of the matrix is indicated by the following:

1. The two power supply lights, labeled “+5V” and “+3.3V” illuminate

green steadily to indicate that the power supplies are present.

2. The dot-matrix array of lights displays a number to indicate which of

the four stored configurations in the CPU card’s memory is currently operating. The configuration number displays for a short time after power up or upon configuration selection.

3. The “OK” light flashes to indicate that the CPU card software is

running.

4. The “master” light illuminates steadily on the currently active CPU

card, indicating that the CPU card is properly installed and operating correctly.

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

Eclipse Pico

The following front-panel indicators indicate a properly operating Eclipse Pico matrix:

1. The two PSU alarm lights, labeled “1” and “2” do not illuminate

under normal operating conditions.

2. One of the four green configuration lights illuminates steadily to

identify the currently active configuration.

3. The “OK” light flashes to indicate that the Eclipse-32 is running

successfully.

4. If the matrix is connected to a local area network, the green LAN UP

light illuminates steadily. The yellow RX light flashes when data is being received.

1-7

Eclipse-32

The following front-panel indicators indicate a properly operating Eclipse-32 matrix:

1. The two PSU alarm lights, labeled “1” and “2” do not illuminate

under normal operating conditions.

2. One of the four green configuration lights illuminates steadily to

identify the currently active configuration.

3. The “OK” light flashes to indicate that the Eclipse-32 is running

successfully.

4. If the matrix is connected to a local area network, the green LAN UP

light illuminates steadily. The yellow RX light flashes when data is being received.

5. An illuminated port status light indicates that communications are

running properly between the matrix and the device connected to that port.

1-8

Clear-Com Communication Systems

Eclipse Matrix Installation Instruction Manual

PLACING SYSTEM

COMPONENTS

COMPONENT LOCATION REQUIREMENTS

This chapter provides guidelines for placing and arranging the main components of an Eclipse system, including:

• Eclipse matrices

• Interface frame(s) and power supplies

• Intercom panels and accessory panels

• External computer

ECLIPSE MATRICES

The Eclipse matrix is the central connecting point of the system. All panels, interfaces, and external devices must be connected directly to the Eclipse matrix, so it should be centrally located. The system matrix may be an Eclipse Omega, Eclipse Median, Eclipse Pico or an Eclipse-32, depending on site requirements.

A matrix should be placed in the center portion of a standard Electronics Industry Association 19-inch wide (48.26 cm) rack, allowing easy access to the matrix’s port connectors. Some planning is also necessary for the dressing of cables in the rack because of the large number of cables.

Note: A “rack unit” refers to a standardized unit of space in an

Electronics Industry Association equipment rack. One rack unit is 1.75 inches high and 19 inches wide (or 482.6 mm by

44.45 mm). Each increasing “rack unit” adds 1.75 inches to the area vertically, while staying at 19 inches horizontally.

Eclipse Omega Matrix

The Eclipse Omega matrix requires six vertical rack units (10.5 inches or 267 mm) in a standard Electronics Industry Association 19-inch wide (48.26 cm) rack. There are two power supplies in each matrix. A modular removable alarm module fitted beneath the two power supplies has two fans that deliver forced air cooling. The primary fan runs continuously. If the temperature in the matrix exceeds a set threshold and extra cooling is required, a secondary fan switches on to increase the air flow in the matrix.

Clear-Com Communication Systems Eclipse Matrix Installation Instruction Manual

2-1

lights allow the system operator to identify and correct the alarm conditions. See the Eclipse Omega Matrix Instruction Manual (part 810290Z) for more details.

Caution: It is mandatory that the air flow through an Eclipse Omega

matrix from the bottom to the top is unimpeded. If other equipment is mounted above and below the matrix that impedes the air flow through the matrix, it will be necessary to leave 1 RU of empty space above and below the Eclipse Omega matrix as over-heating will occur if this is not done. If the matrix is mounted in a portable case th is air flow must not be impeded.

Eclipse Median Matrix
