SAFETY INSTRUCTION
Before using this product, please read the safety instructions
and follow all normal safety precautions.
1, Read this user manual thoroughly and carefully before using this product
2, Keep this ma nu al in your sight .
3, Any operat ion oppose to desc rip ti ons in this user ma nu al may lead to harm to human or this
prod uc t.
1, Only use the prod uct indo or s, do not use it outdo or s.
2, Befo re start ing th e produc t, make sure the dus t bin fil ter is properl y inst al led .
3, Do not use this product in wet or moist environment (any environment with liquid), e.g
bath room or laund ry.
4, Before use, collect the floor environment (remove all the fragile objects and cords, clothing,
pape rs, loose cab les, as well as makin g sur e to lift curt ai ns and drapes off the floo r to avo id
any pos si ble acci dents . In cas e tha t a loos e cable is tan gl ed with the prod uc t, the cabl e mig ht
move arou nd with the prod uc t as it wor ks and topp le do wn the tabl e, ch ai rs, or cabi net and
mig ht cau se hu rt or pro per ty damag e.)
5, Do not sit on top of this produ ct or at tach an objec t on the top of it. Bewa re of childre n or pets
whi le the pr oduct is in ope ra tion
6, Do not ma ke this p ro duct cl os e to ciga rette , li ght er , matc h or any f lamma ble
7, Never use the product to clean up combustible or highly volatile liquids such as gasoline.
8, White the pr od uct is in operat ion, make sur e all do ors lead in g outsid e are cl osed. .
9, In case that the product is malfunctioned or damaged by external force, please contact the
seller before repairing.
10,Before charging, check whether adapter and outlet are properly connected.
11,Use this product in temperature from 0 (centigrade degree) and do not place this
product in high-temperature environment or under baking sunlight for a long time.
12, The applia nc e is nto to be us ed by pers on (incl udi ng ch il dren) wi th reduced ph ys ica l, se nso ry
or mental capabilities, or persons lack of experience and knowledge, unless they have been
give n su pervi si on or ins truct ion.
13, Children being supervised do not play with the appliance.
Safety Instructions
℃ to 4 0 ℃
Battery and Recharging instructions
1.The battery is rechargeable, please use the voltage and current specified on the packing. If
yo u are not su re of the vo ltage an d curr ent of your house , please contact the se ll er or loc al
powe r co mpany o f a li cense d el ect ri cian. ( Only us e ba ttery p ac k which p rovid ed by
manufacturer or specified by manufacturer, please check the polarity before installing the battery.
Battery voltage: 14.4VDC, working current: 850mA)
2.Only use the original battery and power adapter of the product for charging.
3.Charging adaptor is for indoors use only.
4.Do not rech arge the prod uct if the ba tte ry co rd or pl ug is damaged .
5.Nev er t ouch th e charg er, p lug or ca bl e with damp ed hand s.
6.Before cleaning the product, unplug the adaptor, switch off the unit and take out the battery.
7.Ple ase take ou t the bat tery whe n it is no t in use for a long time .
8.The battery must be removed from the product before it is scrapped.
9.The product must be disconnected from the power source when removing the battery.
The bat tery is to be d is pos ed o f sa fet y
1
PRODUCT FEATURES
Thanks for purchasing the K5 Mini Robotic Vacuum Cleaner!
This revolutionary Mini Robotic Vacuum Cleaner is equipped with functions suitable for cleaning
up floor s urfac es of home an d of fi ce, suc h as wood, ti le, and l inole um . Th e K6 L Mini R oboti c
Vacuum Cleaner is definitely a good household helper.
Random
Spiral
Along the wall
Spiral

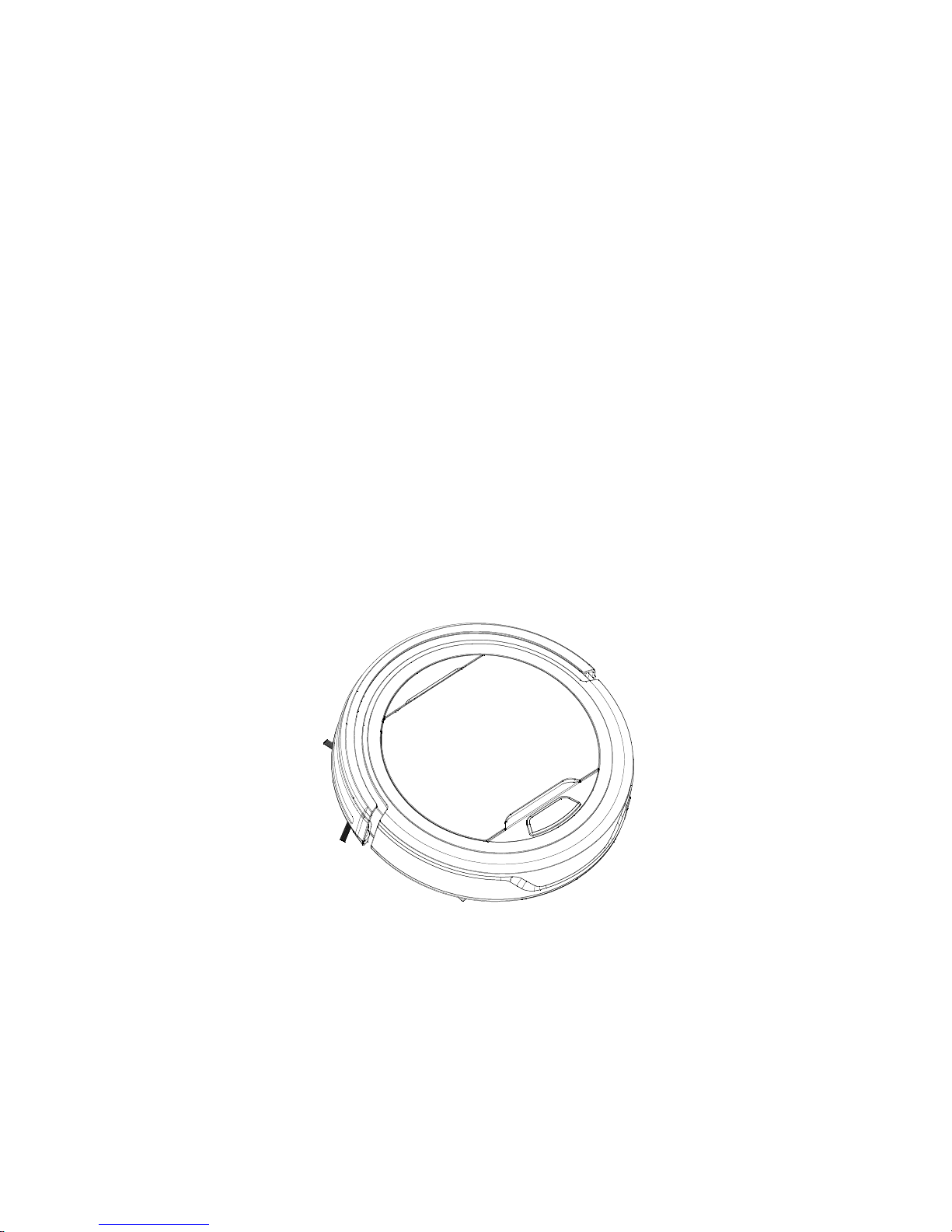

MAIN BODY AND ACCESSORIES
Main b od y x 1
Rechargeable battery x 1
Adapter x 1
Fi lte r x 1
User M an ual x 1
Si de br ush x 2
2
Cleanmate S300
Cleanmate S300
Cleanmate
MAIN BODY AND ACCESSORIES
Bumper
Switch on/off
Top Cover
Inner dustbin
Bumper
Front wheel
Side brush
Wheel
Battery house
Vacuum
Intake
3
BATTERY INSTALLATION AND REMOVAL
1, Before installing or removing the battery, the product must be disconnected from the power
sour ce .
2, Open the battery cover.
3, Insert the battery into the battery cabinet and close the cover. Make sure the cover clips well
locate d in its po si tion.
4
RECHARGING BATTERY
1, Before charging, make sure the battery is correctly installed.
2, The procedure of charging the product is as follows: firstly, connect the adapter output into
the DC jack, an d the n plug into powe r soc ket of the other end, th en blue light wi ll flash .
3, After fully charged, blue LED will keep on.
4, When the produc t runs out of power, LED indic ator wil l tur n red , which pro mpts the user to
charge the produ ct .
5, To ensu re the bes t perfor man ce an d lif t spa n of the batte ry, plea se chage the pro du ct for 4
hour s contin uo usl y. Aft er fully ch ar ged for 4 hrs, blu e LED wi ll keep on light ing. Since th e
LED indic ato rs li ght color is dep en ded on its charg ing-t ime, if the powe r is cut off durin g
charging, when recharge the product, it will always timing from zero automatically. Therefore,
if the produ ct has charge d for 4 hou rs in total, it can be used to do cleani ng work.
Adapter Plug
Adapter Plug outlet
5
GENERAL OPERATION
Starting Operation
1.Before operation, empty the dust bin and install the filter properly.
2.Pla ce t he prod uc t in a ro om with muc h fr ee s pace, a nd then p ow er it on to do cl eanin g wo rk.
3,When th e pro duct run s out of po wer, the LED indi ca tor in the illum inati on ring will turn red , and
the pr oduct wi ll st op working .
Remove the dusting paper holder and side brushes before using the product on the carpet,
just to avoi d wearin g the se parts.
This product is not suitable for long-pile carpets
Note:
*
*
SIDE BRUSH INSTALLATION
Just put the L sid e br ush at L place a nd R side brush at R p la ce on the bot tom and t he n push to f ix i t.
And vice visa—to pull up, side brush will be taken out.
6
CLEAN AND MAINTENANCE
Cleaning Dust Bin
1, Open the upper cover by pressing the button as shown in the picture.
2, Put your fin ge r into the dust bin gr oo ve and grip to take it out.
(1)
(2)
7
CLEAN AND MAINTENANCE
3, Open the lid of dust bi n.
4, Take out the inner filter.
5, Empty the dirt in th e dus t bin.
(3)
(4)
(5)
8
CLEAN AND MAINTENANCE
1.Rinse th e dust bi n wi th tap wate r. Do not was h it in wa sh ing mach ine, dish-w as hing machin e or
ot he r mach ine.
2.Per iodic al ly clea n th e fil te r with a so ft bris tl e bru sh .
3.Reins tal l the filter and the dust bin li d onc e they get dried .
4.Put back th e dus t bin in to the clea ner.
Before put back the dust bin, please make sure the PE pad (function as non-return valve) in the
dust bin is well located. Recheck the filter also before operate the product. If operate the product
with ou t fi lt er, it mig ht cause malfunction.
NOTE:
(6)
(7)
(8)
(9)
9
CLEAN AND MAINTENANCE
Cleaning intake
After rep eated us e for so me ti me, dirt and dus t mig ht accum ul ate arou nd the intake of th e pro du ct,
to ensure its best cl eanin g effic iency and con stant ai rflow it shou ld be cl eaned peri odi ca lly.
1.Remove the external power source.
2.Clean up th e dir t and dust at the inta ke .
(10)
10
TROUBLE SHOOTING
Problem Possible Cause Solution
1 Red LED st ays aft er
power on
1. Battery Low condition
2. Main bo dy is pic ke d up
1. Recharge the battery
2. Re-pla ce the robot on
the floor
2 Vacuum on but can
not
collect dirt and hair
1. The du st bin is ful l
2. The fi lter is not inst alled
correctly
1. Clea n the dus t bin
2. Re-i ns tall the fi lt er
correctly
3 The produ ct is
moving
backwards after
being started
1. The pr oduct is on dark
color floor
2. Anti-drop sensor light
was covered
1. Put the robot on light
colo r fl oor.
2. Clean a nt i-d rop sen so r
light.
4 LED indicators flash
in blue afte r 4hr s
charging
Power supply might been
cut off during charging
The robot ca n be ope ra ted
if the battery has been fully
charged for 4hrs
5 The side bru sh es
croo ked, no t go od to
sweep
Bein g us ed for a lo ng t ime If it becomes crooked,
plea se sc ald it in hot water
to rec ov er it to it s origina l
shape
6 The product cannot
start
1. Battery is not installed
properly
2. Battery low
3. The robot is under
protection status
1. To install the battery
correctly
2. To have the battery fully
charged(turn off the
cleaner first)
3. To re-set the robot
7 The produ ct circl es
around only, cannot
go straight
One of the wires of the
wheels might be loosened
1. Open the whe el cover
and connect the loosen
wire properly
2. Send the robot to se ll er
for repairing
* If all s oluti ons giv en a bo ve don' t work fo r you, pl ea se take act ion s be low:
1)Re- set the rob ot by swi tchin g on the pow er butto n;
2)If re-set action doesn't work, please send the robot to seller for repairing.
Note: Particular specifications are subjected to change without prior notice.
